SE-52

< REMOVAL AND INSTALLATION >

SECOND SEAT (SLIDING TYPE)

SECOND SEAT (SLIDING TYPE)

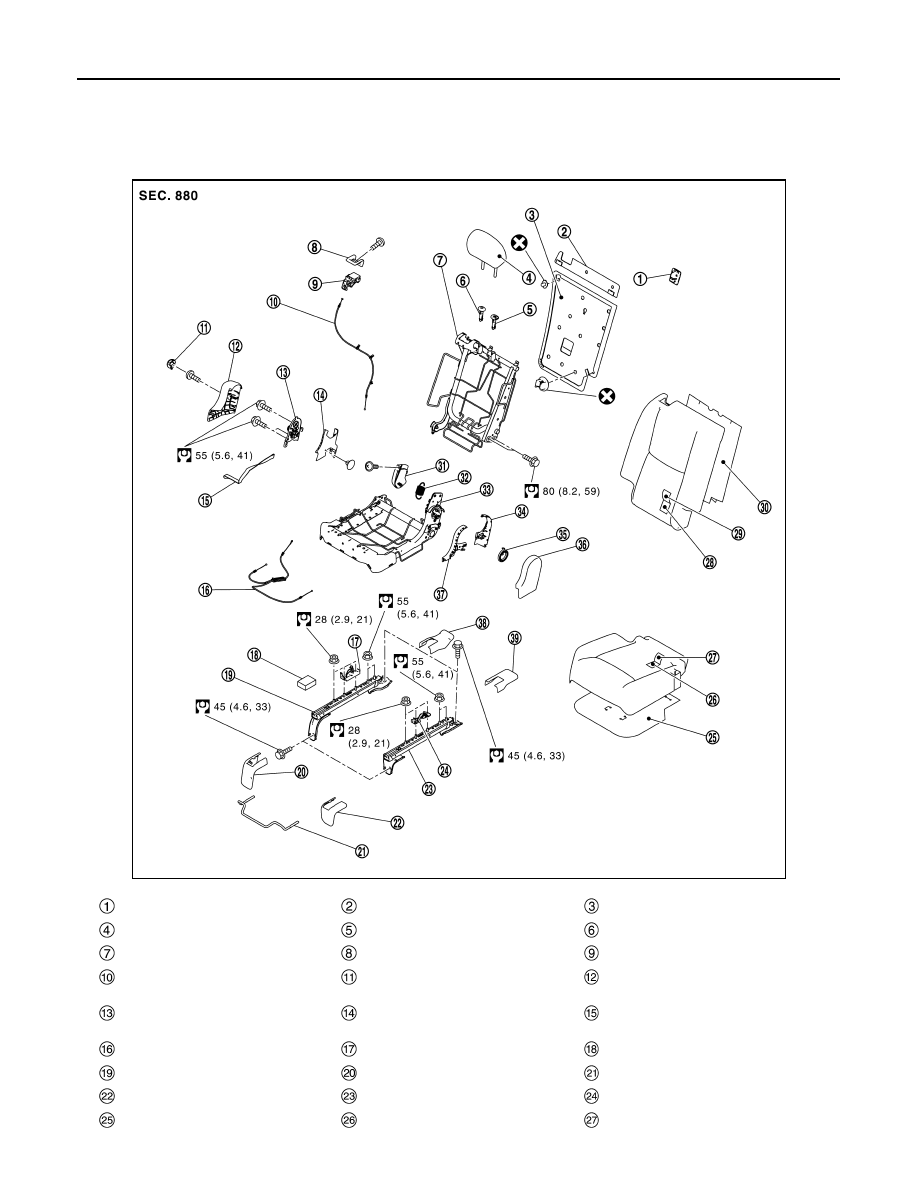

Exploded View

INFOID:0000000010713143

SECOND SEAT RH

JMJIA9708GB

Tether anchor cover

Upper board

Seatback board

Headrest

Headrest holder (lock)

Headrest holder (free)

Seatback frame

Seat control lever escutcheon

Seat control lever

Seat control cable 1

Screw cap

Seat cushion outside finisher outer
side

Hinge bracket

Seat cushion inside finisher outer
side

Cushion strap

*

Seat control cable 2

*

Lever unit outer side

*

Seat cushion spacer

Seat slide outer side

Front leg cover outer side

Towel bar

Front seat leg cover inner side

Seat slide inner side

Lever unit inner side

*

Seat cushion silencer

Seat cushion pad

Seat cushion trim

SECOND SEAT (SLIDING TYPE)

SE-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

*: If equipped

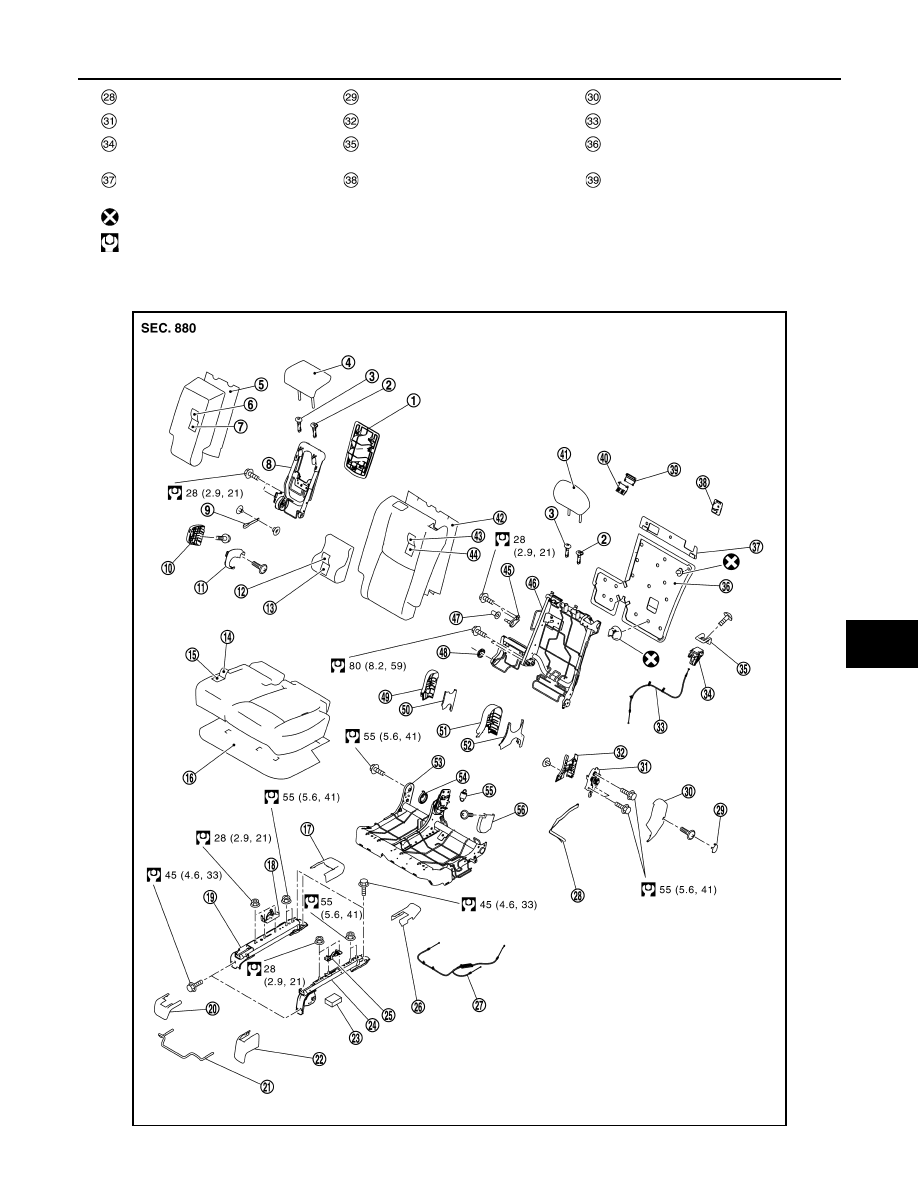

SECOND SEAT LH

Seatback pad

Seatback trim

Seatback silencer

Reclining device cover

Spring

Seat cushion frame

Seat cushion inside finisher inner
side rear

Reclining spring

Seat cushion outside finisher inner
side

Seat cushion inside finisher inner
side front

Rear leg cover outer side

Rear leg cover inner side

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMJIA9709GB

SE-54

< REMOVAL AND INSTALLATION >

SECOND SEAT (SLIDING TYPE)

*: If equipped

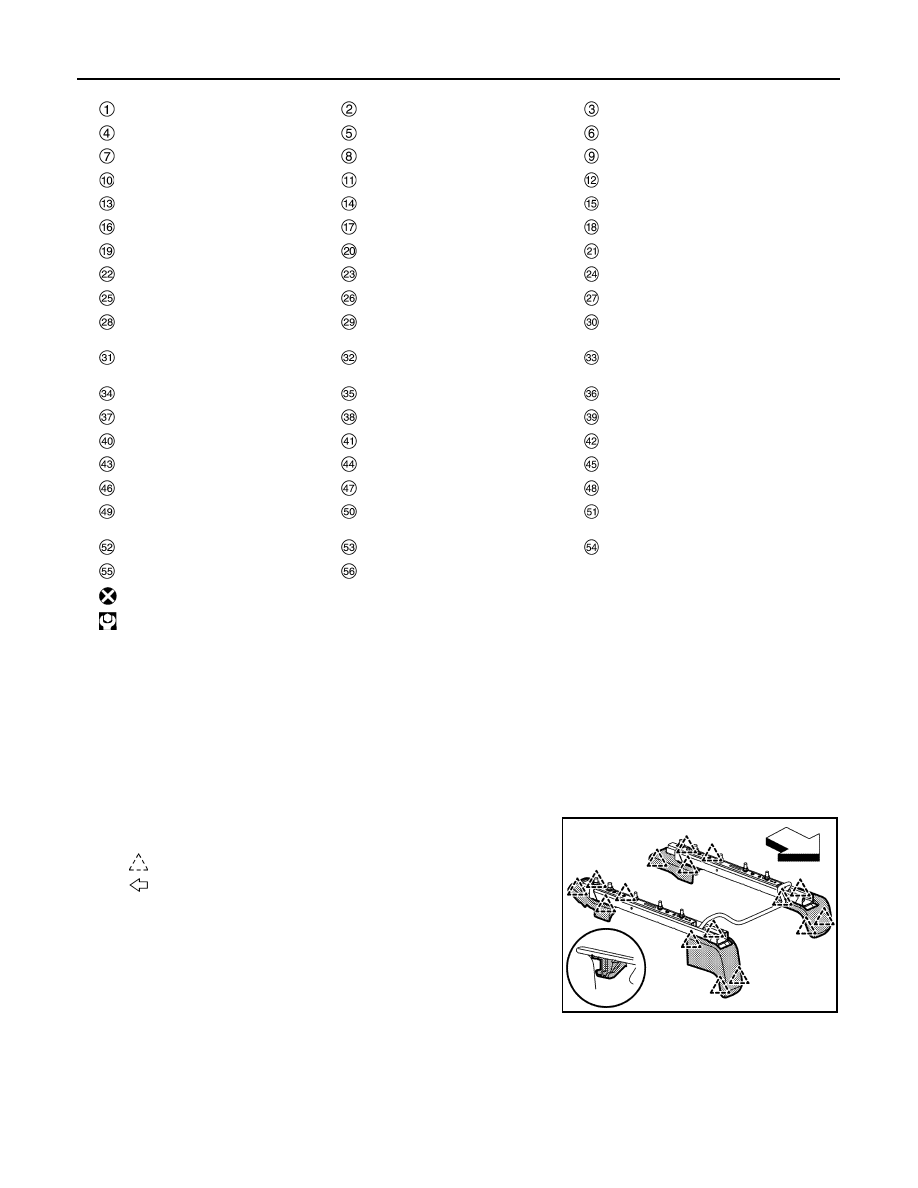

Removal and Installation

INFOID:0000000010713144

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

REMOVAL

1.

Remove headrest.

2.

Disengage leg cover fixing pawls, and then remove leg covers.
• second seat RH

Cup holder

Headrest holder (lock)

Headrest holder (free)

Center headrest

Armrest silencer

Armrest trim

Armrest pad

Armrest frame

Armrest strap

Armrest bracket outer cover

Armrest bracket inner cover

Seatback side trim

Seatback side pad

Seat cushion trim

Seat cushion pad

Seat cushion silencer

Rear leg cover inner side

Lever unit inner side

*

Seat slide inner side

Front leg cover inner side

Towel bar

Front leg cover outer side

Seat cushion spacer

Seat slide outer side

Lever unit outer side

*

Rear leg cover outer side

Seat control cable 2

*

Cushion strap

*

Screw cap

Seat cushion outside finisher outer
side

Hinge bracket

Seat cushion inside finisher outer
side

Seat control cable 1

Seat control lever

Seat control lever escutcheon

Seatback board

Upper board

Tether anchor cover

Seat belt guide A

Seat belt guide B

Headrest

Seatback silencer

Seatback trim

Seatback pad

Armrest bracket

Seatback frame

Bush

Bush

Seat cushion outside finisher inner
side

Seat cushion inside finisher inner
side

Seat cushion center finisher outer

Seat cushion center finisher inner

Seat cushion frame

Reclining spring

Spring

Reclining device cover

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Pawl

: Vehicle front

JMJIA9650ZZ

SECOND SEAT (SLIDING TYPE)

SE-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

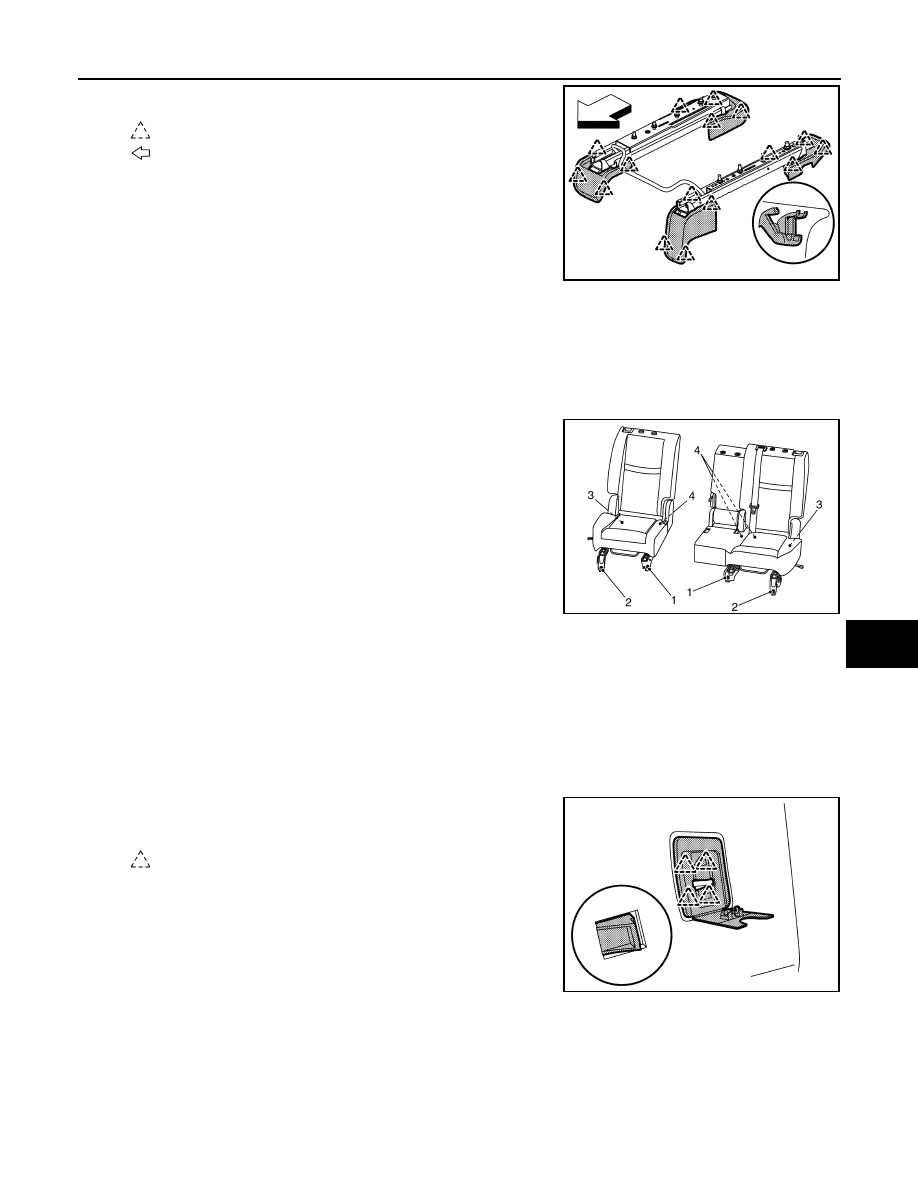

• second seat LH

3.

Remove seat fixing bolts.

4.

Disconnect seat belt harness connector (if equipped).

5.

Remove seat from vehicle.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• When installing, tighten fixing bolts according to the numeri-

cal order 1

→

4 as shown in the figure, starting from front inner

fixing bolt.

ARMREST

ARMREST : Removal and Installation

INFOID:0000000010713145

REMOVAL

CAUTION:

When removing, always use a remover tool that is made of plastic to prevent damage to the parts.

1.

Remove seatback board LH.

a.

Disengage tether anchor cover fixing pawls, and then remove
tether anchor (if equipped).

: Pawl

: Vehicle front

JMJIA9651ZZ

JMJIA9652ZZ

: Pawl

JMJIA9653ZZ
