SEAT BELT WARNING LAMP CONTROL SYSTEM

SBC-11

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SBC

N

O

P

WIRING DIAGRAM

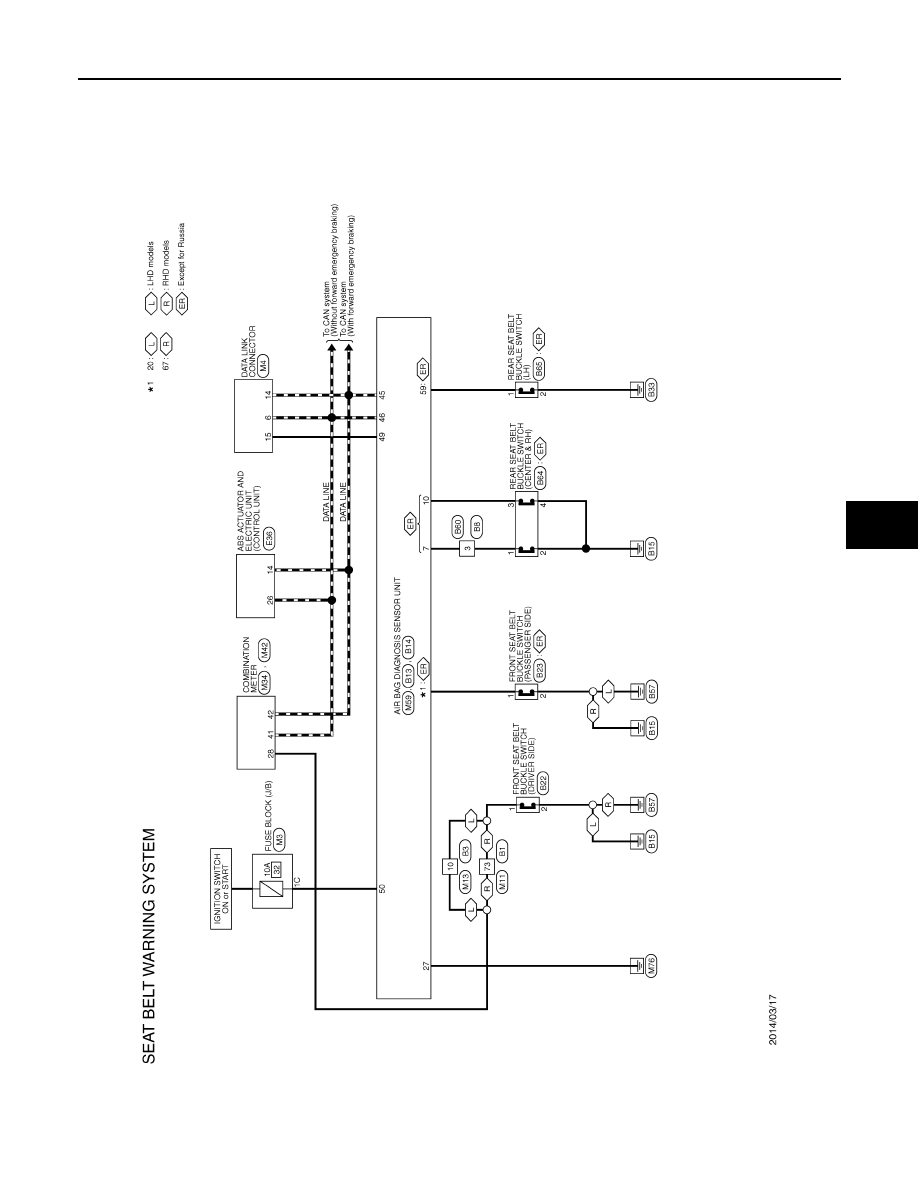

SEAT BELT WARNING LAMP CONTROL SYSTEM

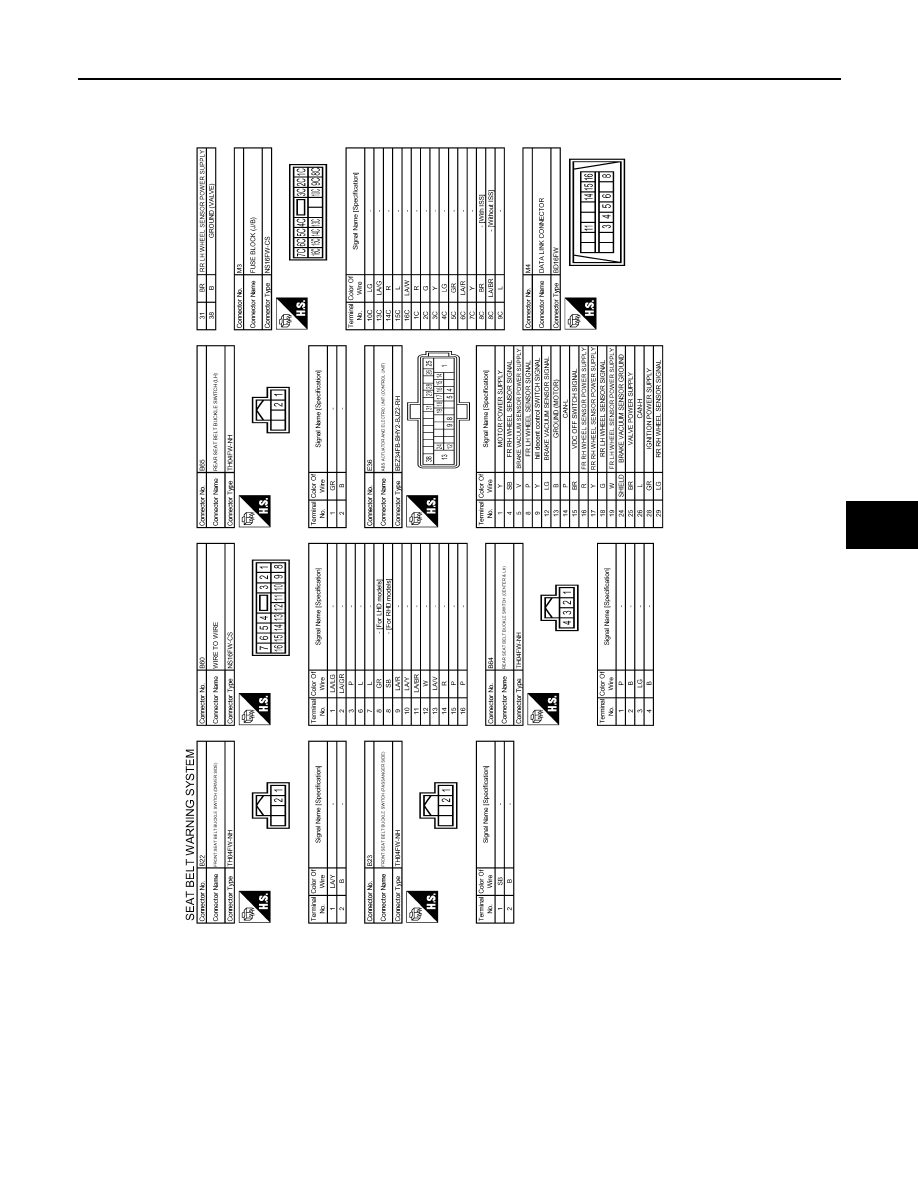

Wiring Diagram

INFOID:0000000010926552

JRHWC2021GB

SBC-12

< WIRING DIAGRAM >

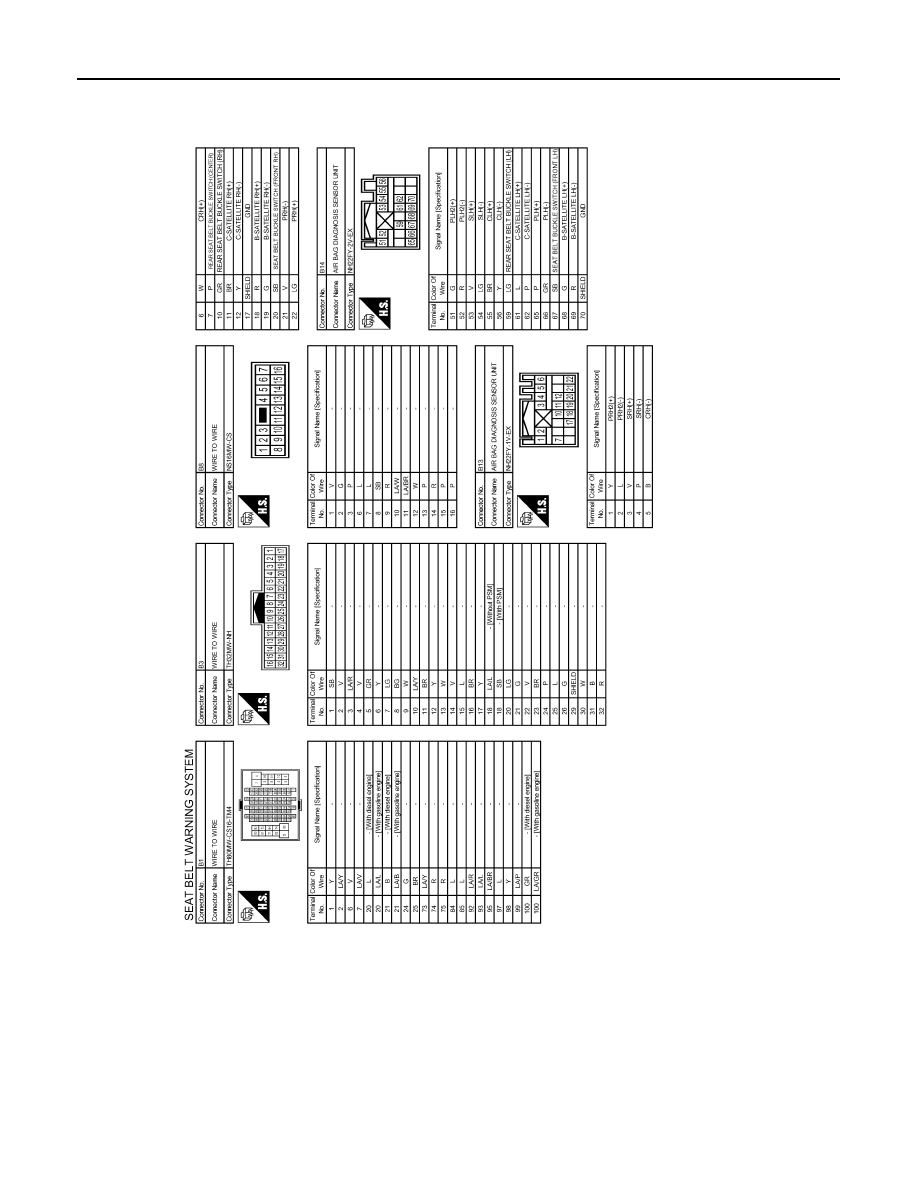

SEAT BELT WARNING LAMP CONTROL SYSTEM

JRHWC2022GB

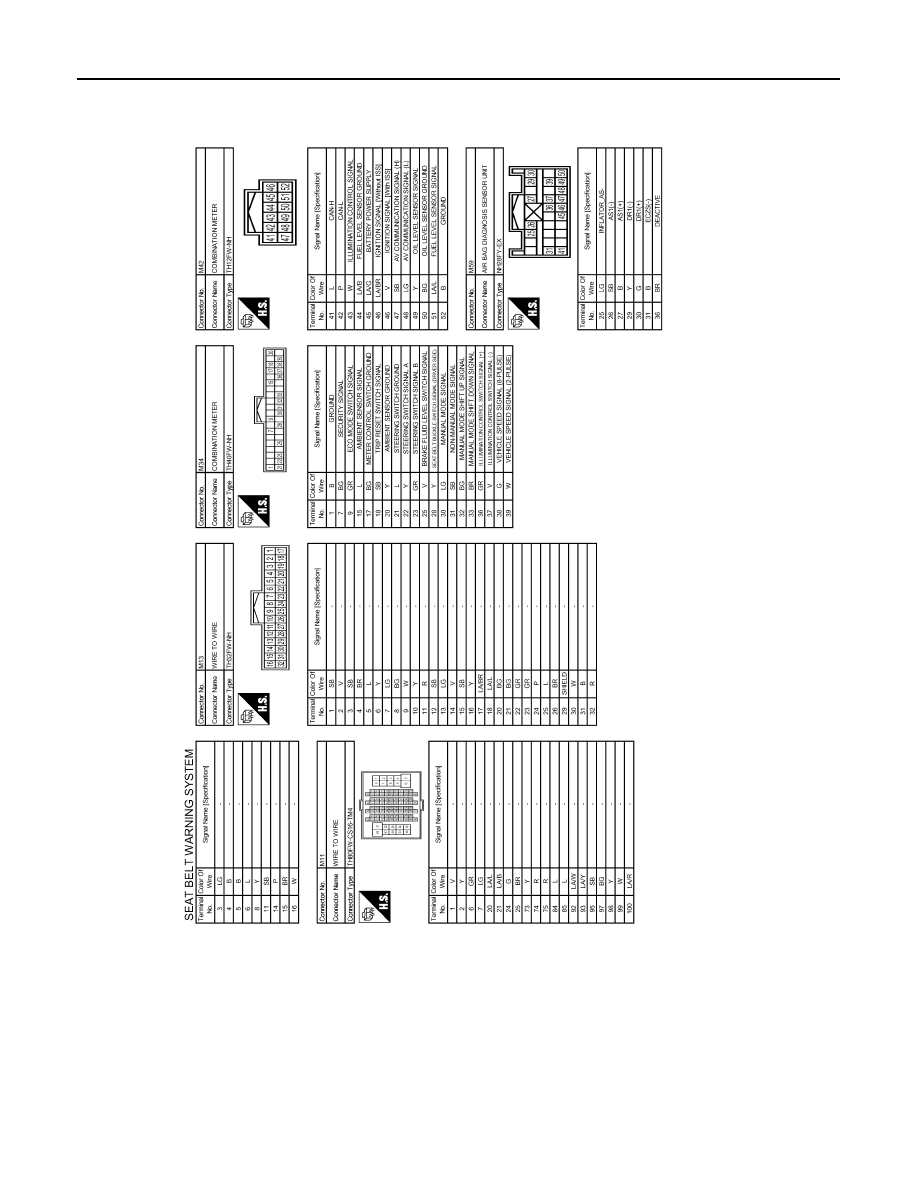

SEAT BELT WARNING LAMP CONTROL SYSTEM

SBC-13

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SBC

N

O

P

JRHWC2023GB

SBC-14

< WIRING DIAGRAM >

SEAT BELT WARNING LAMP CONTROL SYSTEM

JRHWC2024GB
