< WIRING DIAGRAM >

HARNESS LAYOUT

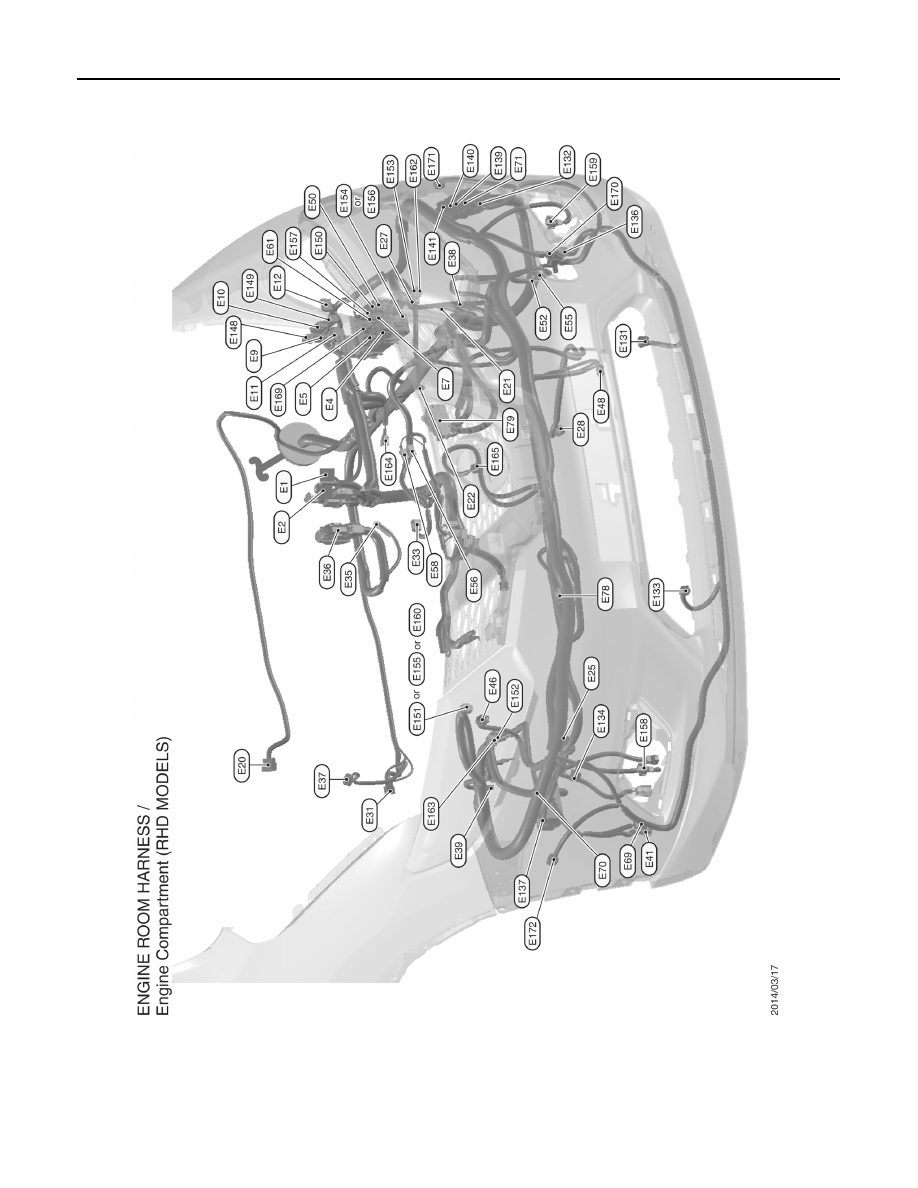

RHD : Engine Room Harness

INFOID:0000000010709221

ENGINE COMPARTMENT

JRMIC4456GB

PG

HARNESS LAYOUT

PG-107

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

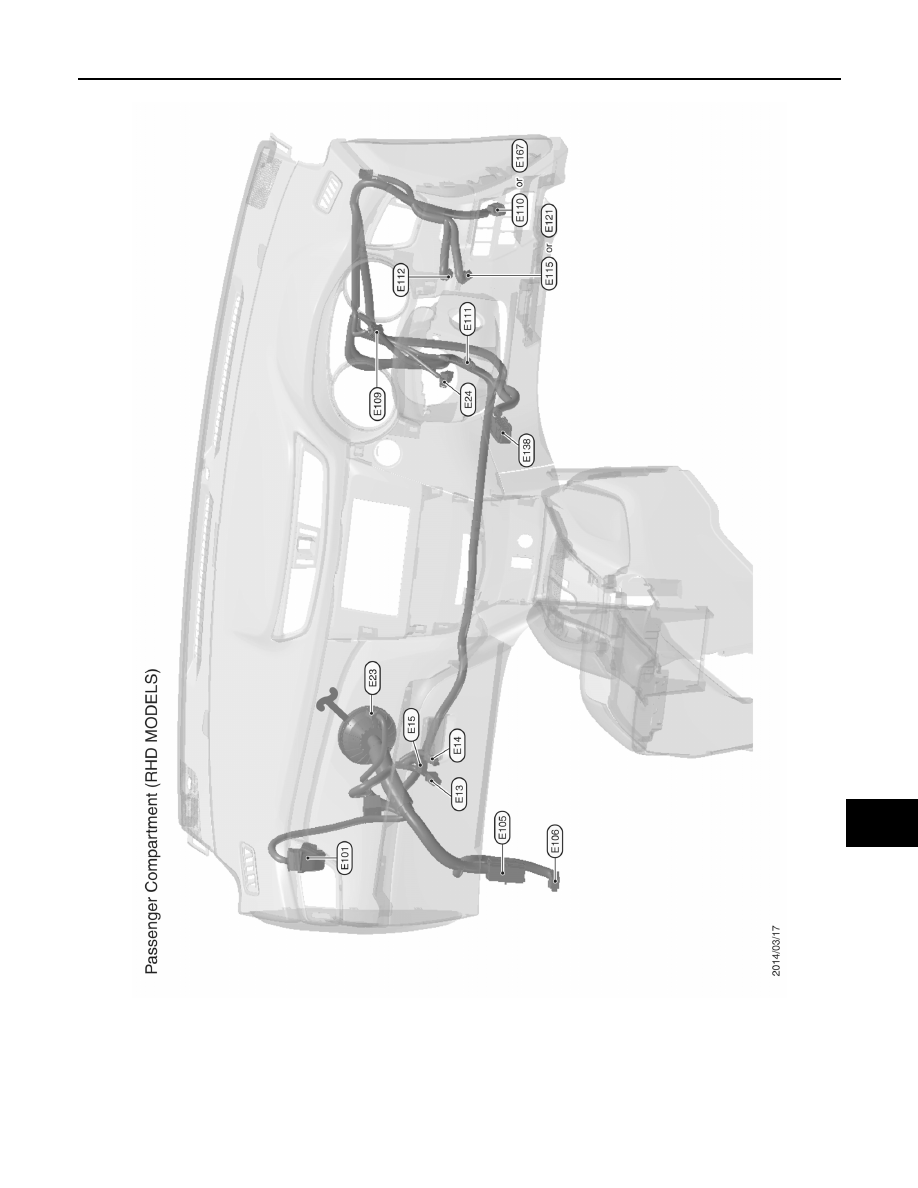

PASSENGER COMPARTMENT

JRMIC4457GB

PG-108

< WIRING DIAGRAM >

HARNESS LAYOUT

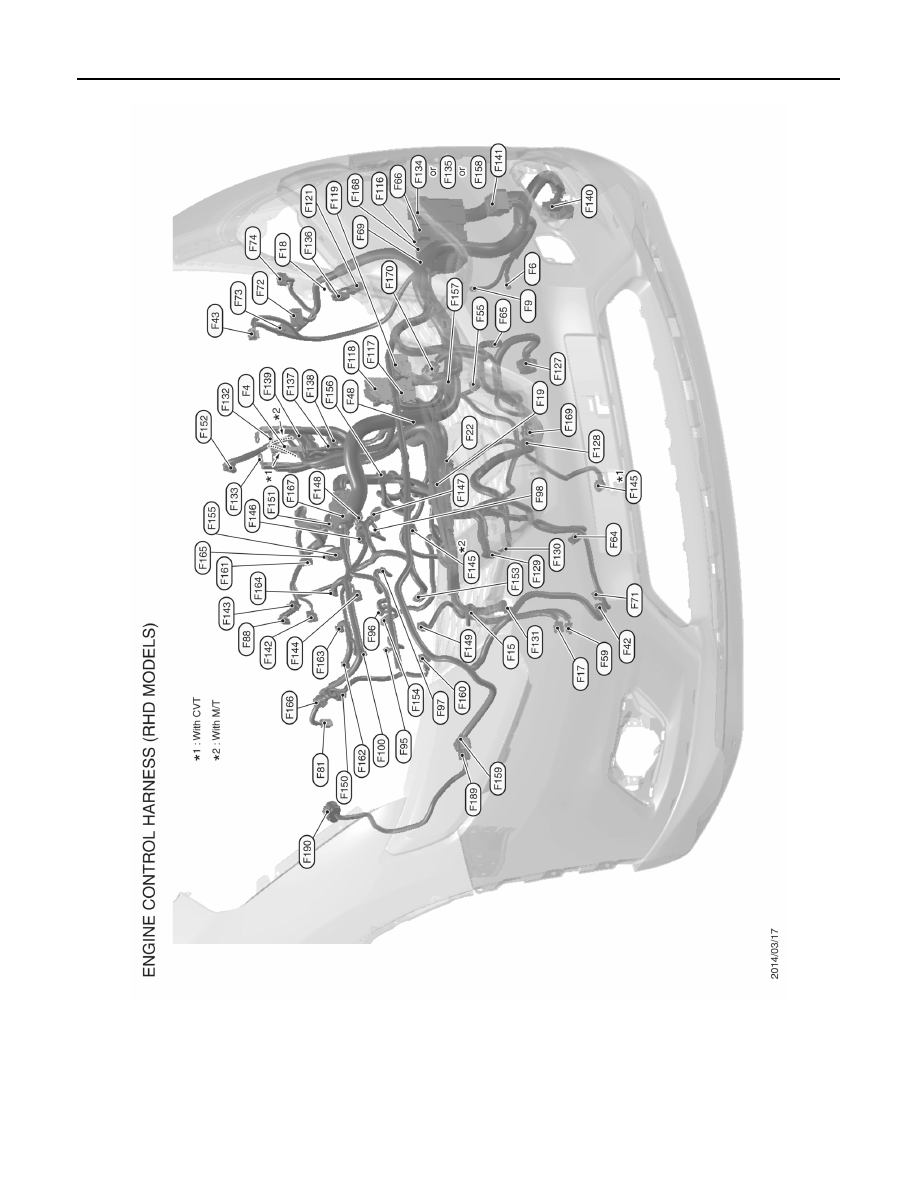

RHD : Engine Control Harness

INFOID:0000000010709222

JRMIC4458GB

PG

HARNESS LAYOUT

PG-109

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

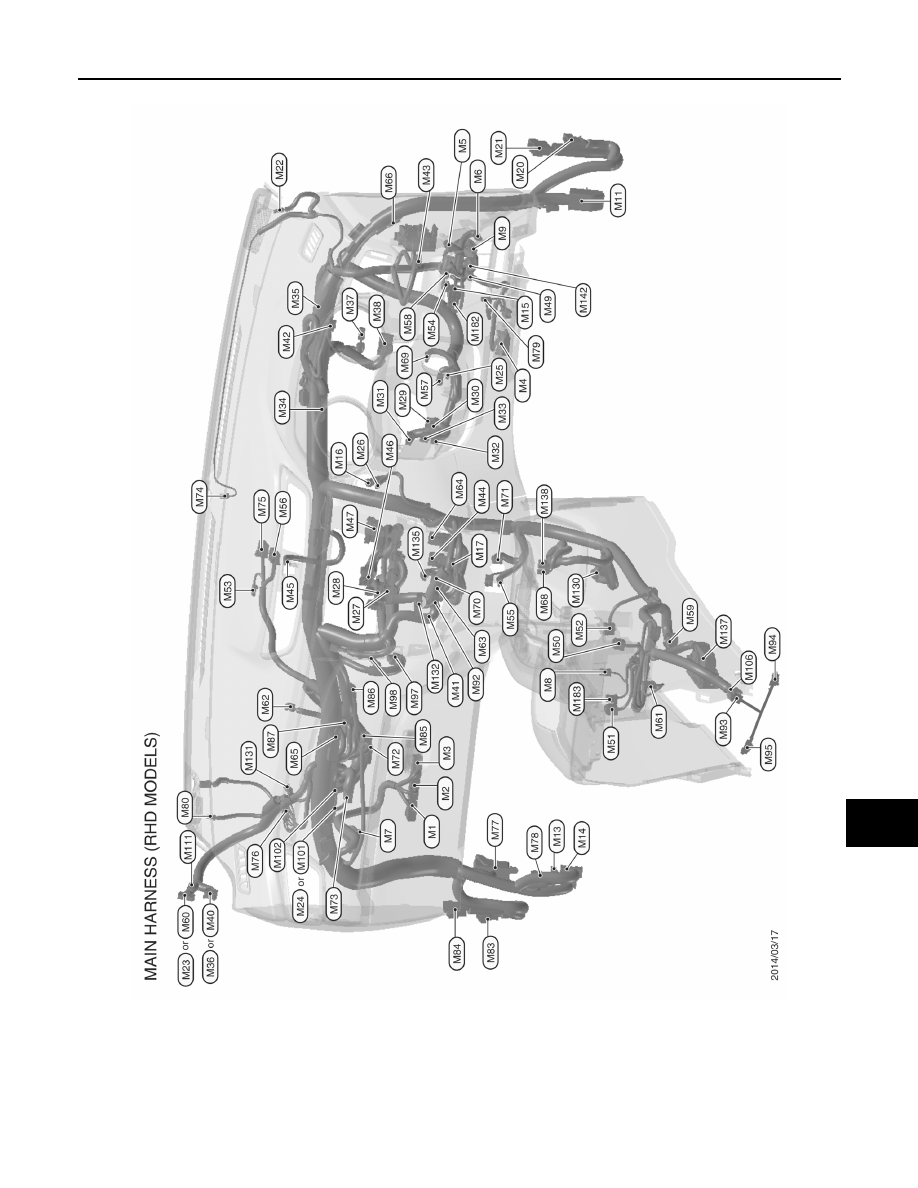

RHD : Main Harness

INFOID:0000000010709223

JRMIC4459GB
