PB-6

< PRECAUTION >

PRECAUTIONS

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for Stop/Start System Service

INFOID:0000000011003165

CAUTION:

When performing an inspection and its related work with the engine at idle, always turn the stop/start
OFF switch ON or open the hood to release the stop/start system.

Precautions for Harness Repair

INFOID:0000000010735273

• Solder the repaired area and wrap tape around the soldered area.

NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

SKIB8766E

PRECAUTIONS

PB-7

< PRECAUTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

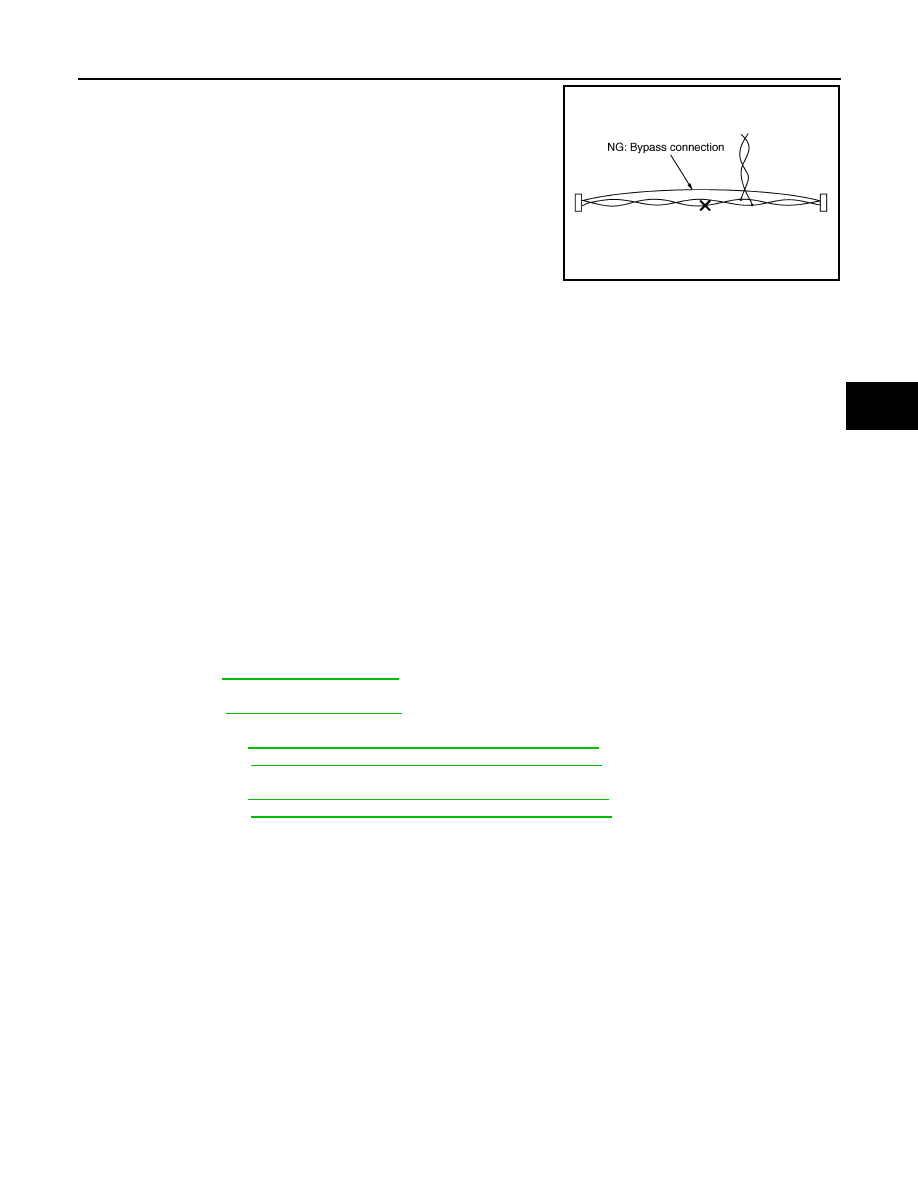

• Bypass connection is never allowed at the repaired area.

NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of twisted
line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

Precaution for Parking Brake System

INFOID:0000000010722914

WARNING:

Since dust covering the rear brakes has an affect on human body, the dust must be removed with a
dust collector. Never splatter the dust with an air blow gun.
• When the parking brake is operated, the electric parking brake indicator lamp in the combination meter and

the parking brake switch indicator turn ON.

• When a following malfunction occurs in the electric parking brake system, the brake system warning lamp

and parking brake switch indicator turn blink.

- When a status cannot be judged between applied and released.
- When the parking brake switch is operated under the condition that the parking brake switch is malfunction.
- When the parking brake switch is operated under the condition that the parking brake actuator is malfunc-

tion.

- When the initial position adjustment of the parking brake actuator is incomplete.
- When a peaking brake system mode is factory mode

CAUTION:

When vehicle is parked, selector lever is in the P position.

• When a malfunction occurs in the electric parking brake system, parking brake can be mechanically

released. Refer to

PB-50, "Work Procedure"

.

• When parking brake must be released while the battery negative terminal is disconnected, mechanically

release it. Refer to

PB-50, "Work Procedure"

.

• When rear brake pad is ground or replaced, perform break-in operation.
- LHD models: Refer to

BR-19, "BRAKE PAD : Inspection and Adjustment"

.

- RHD models: Refer to

BR-83, "BRAKE PAD : Inspection and Adjustment"

• When rear disc rotor is ground or replaced, perform break-in operation.
- LHD models: Refer to

BR-19, "DISC ROTOR : Inspection and Adjustment"

.

- RHD models: Refer to

BR-83, "DISC ROTOR : Inspection and Adjustment"

SKIB8767E

PB-8

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

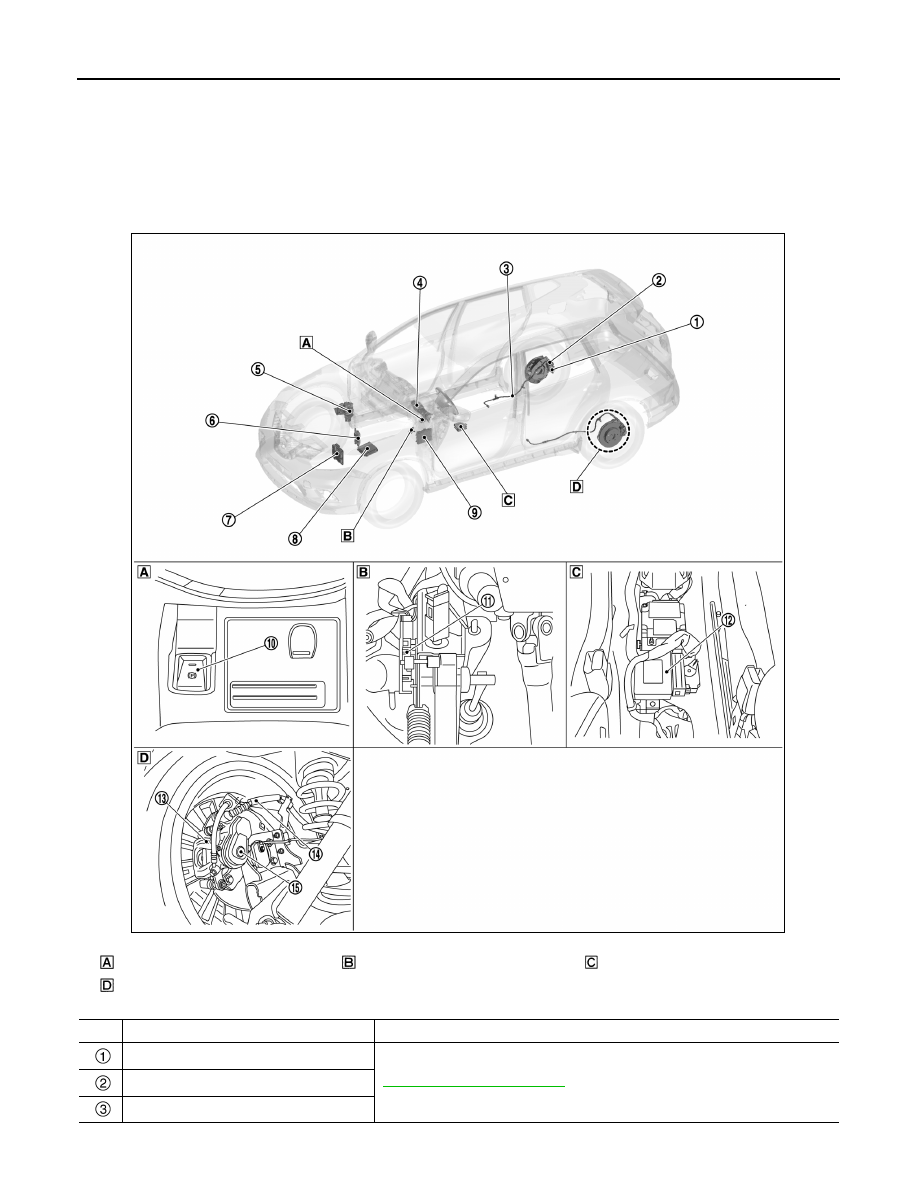

Component Parts Location

INFOID:0000000010722916

LHD models

Center console

Clutch pedal

Under center console

Rear brake caliper assembly

JSFIA2498ZZ

No.

Component part

Function

Parking brake actuator (RH)

PB-12, "Parking Brake Actuator"

Rear brake caliper assembly (RH)

Parking brake actuator harness

COMPONENT PARTS

PB-9

< SYSTEM DESCRIPTION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

*1: CVT models
*2: M/T models

RHD models

Combination meter

Mainly transmits the following signal to electric parking brake control module via
CAN communication.
• Seat belt buckle switch (driver side) signal
Mainly receives the following signals from electric parking brake control module
via CAN communication.
• Electric parking brake indicator lamp signal
• Brake system warning lamp signal
• Master warning lamp signal
• Electric parking brake display request signal
Refer to

MWI-7, "METER SYSTEM : Component Parts Location"

 for detailed in-

stallation location.

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to electric parking brake control module via
CAN communication.
• Rear LH wheel speed signal
• Rear RH wheel speed signal
• VDC operation signal
• Brake fluid pressure signal
• ABS operation signal
Refer to

BRC-14, "Component Parts Location"

 for detailed installation location.

TCM

*1

Mainly transmits the following signal to electric parking brake control module via
CAN communication.
• Target gear position signal
Refer to

TM-235, "CVT CONTROL SYSTEM : Component Parts Location"

 (gas-

oline engine models),

TM-466, "CVT CONTROL SYSTEM : Component Parts Lo-

cation"

 (diesel engine models) for detailed installation location.

ECM

Mainly transmits the following signal to electric parking brake control module via
CAN communication.
• Engine speed signal
• Engine torque signal
Refer to

EC-28, "ENGINE CONTROL SYSTEM : Component Parts Location"



(MR20DD engine models)

EC-440, "Component Parts Location"

 (QR25DE en-

gine models),

EC-812, "Component Parts Location"

 (R9M engine models) for de-

tailed installation location.

IPDM E/R

Mainly transmits the following signal to electric parking brake control module via
CAN communication.
• Ignition switch ON signal
Refer to

PCS-5, "Component Parts Location"

 for detailed installation location.

BCM

Mainly transmits the following signal to electric parking brake control module via
CAN communication.
• Stop lamp switch signal
• Steering lock status signal
• Wake up sleep command signal
• Door switch (driver side) signal
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Parking brake switch

PB-12, "Parking Brake Switch"

Clutch pedal stroke sensor

*2

PB-12, "Clutch Pedal Stroke Sensor"

Electric parking brake control module

PB-12, "Electric Parking Brake Control Module"

Rear brake caliper assembly (LH)

PB-12, "Parking Brake Actuator"

Parking brake actuator harness

Parking brake actuator (LH)

No.

Component part

Function
