SYNCHRONIZATION WITH MASTER WARNING LAMP

Not applicable

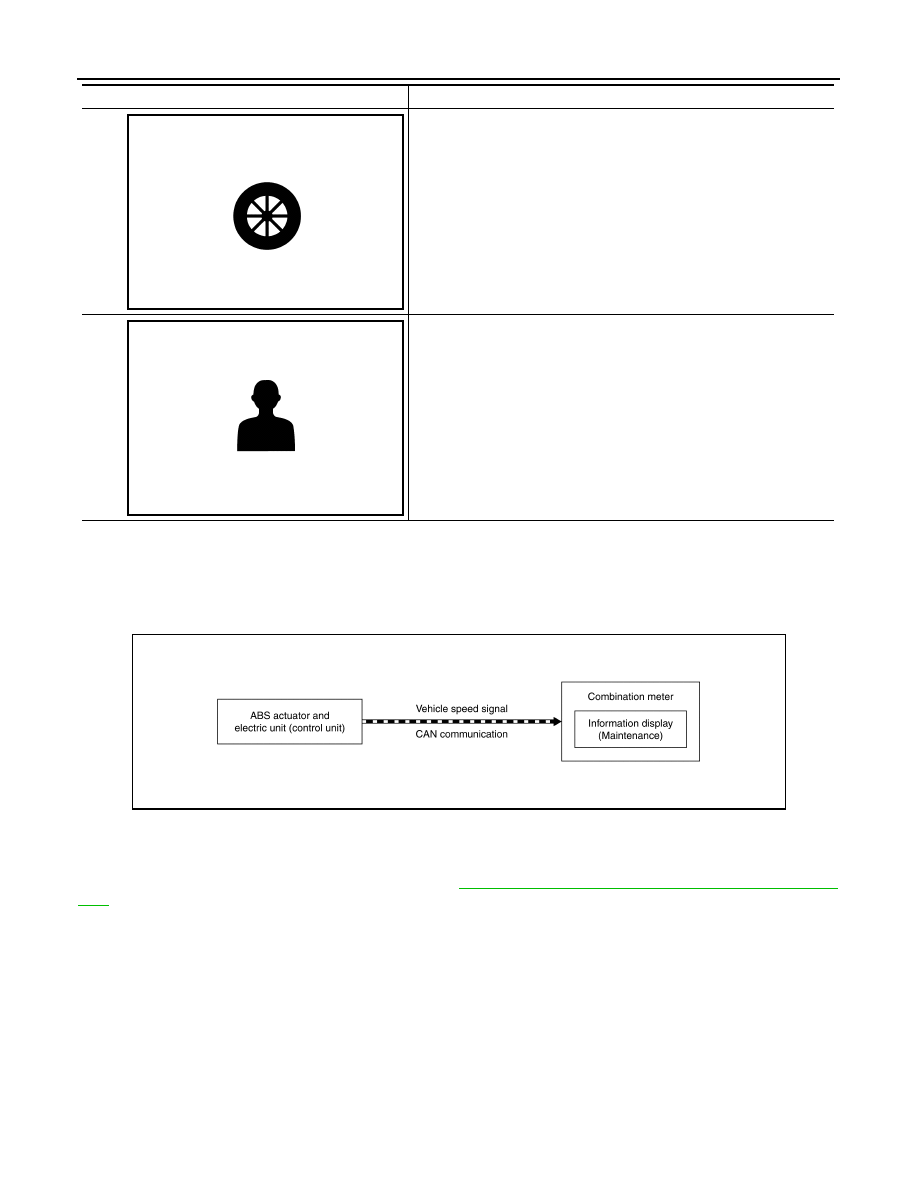

SYSTEM DIAGRAM

SIGNAL PATH

Combination meter will show the interrupt maintenance items according to vehicle speed signal via CAN com-
munication.
For information on setting maintenance items, refer to

MWI-71, "INFORMATION DISPLAY : System Descrip-

tion"

.

WARNING/INDICATOR OPERATING CONDITION

When all of the following conditions are satisfied:
• Ignition switch ON
• When mileage exceeds a set value

WARNING/INDICATOR CANCEL CONDITION

Press the ENTER switch

Tire

Other

Symbol

Message

JSNIA5885ZZ

JSNIA5886ZZ

JSNIA5887GB

MWI

SYSTEM

MWI-67

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

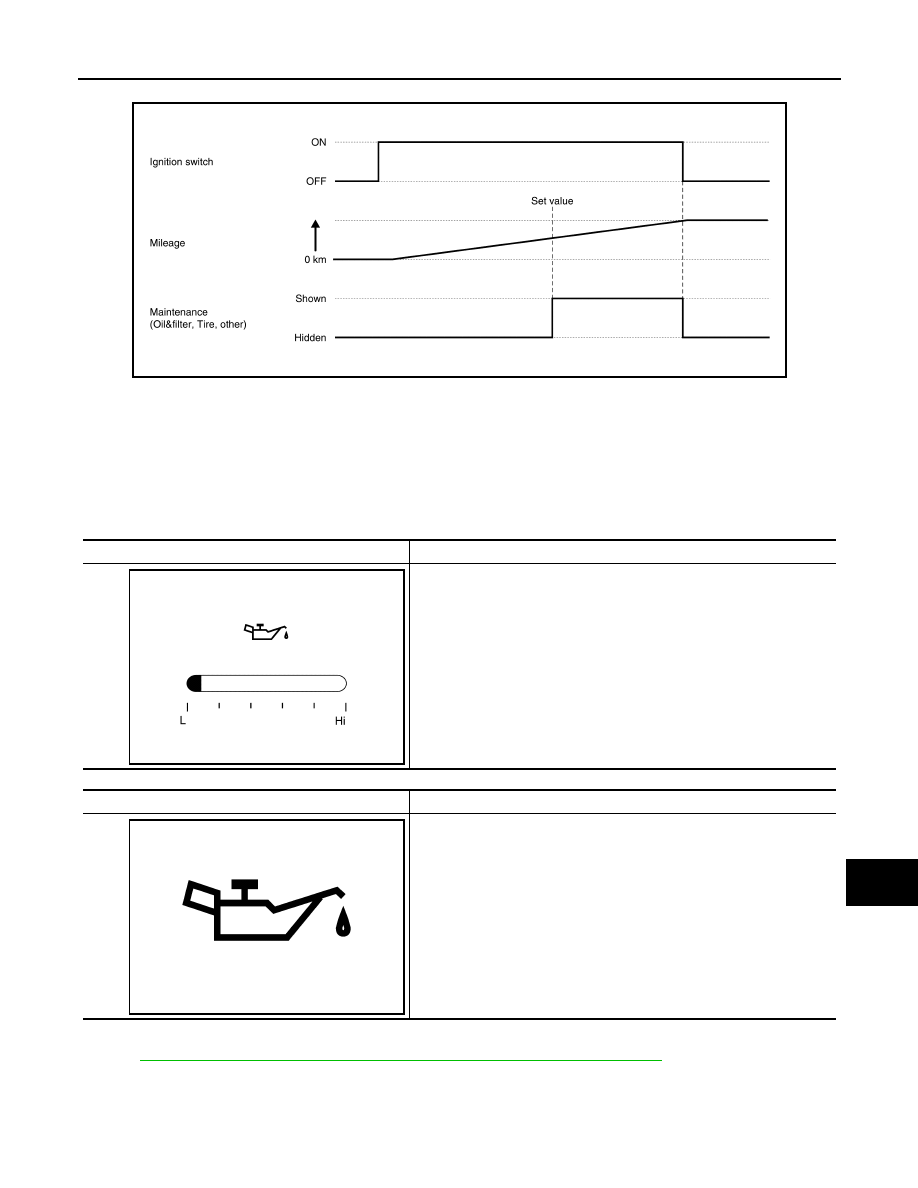

TIMING CHART

WARNING/INDICATOR (ON INFORMATION DISPLAY) : Oil Level Warning

INFOID:0000000010789960

DESIGN/PURPOSE

The oil level indicator judges and displays engine oil level. When engine oil level is insufficient, the oil level
indicator shows an engine oil level low warning to the driver. When oil level sensor is in abnormal conditions,
an oil level sensor warning is displayed.

Oil Level Low Warning

Oil Level Sensor Warning

SYNCHRONIZATION WITH MASTER WARNING LAMP

Refer to

MWI-47, "WARNING LAMPS/INDICATOR LAMPS : Master Warning Lamp"

.

JSNIA5888GB

Symbol

Message

Engine Oil
Oil Level Low

Symbol

Message

Engine Oil
Sensor Error
Visit Dealer

JSNIA7300ZZ

JPNIA1881ZZ

MWI-68

< SYSTEM DESCRIPTION >

SYSTEM

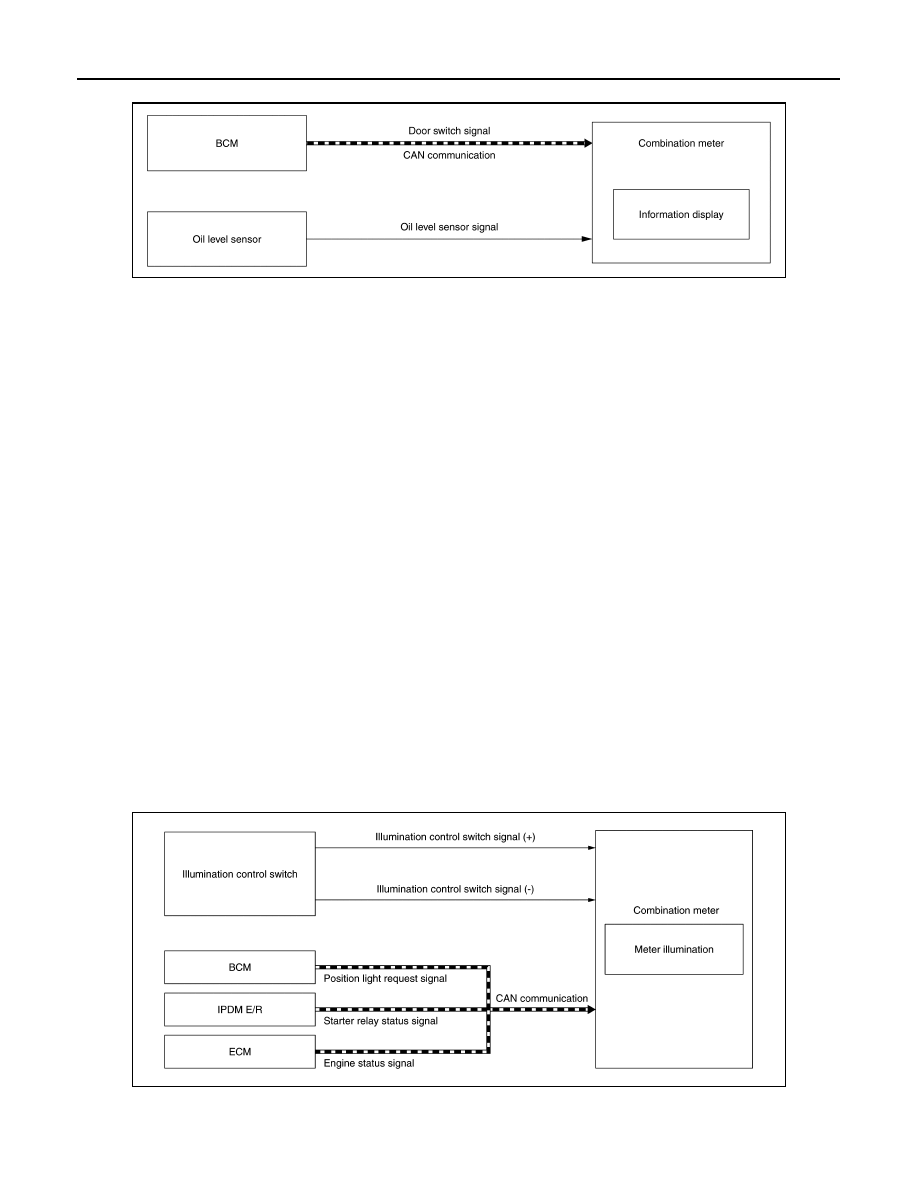

SYSTEM DIAGRAM

SIGNAL PATH

• BCM transmits a door switch signal to the combination meter via CAN communication.
• Oil level sensor transmits an oil level sensor signal to the combination meter.
• Combination meter displays engine oil level to the information display.
• Check engine oil level when the following condition is satisfied:
- A lapse of approximately 5 minutes after turning OFF the ignition switch
- Door switch (driver side): ON (Driver's door is open)

WARNING/INDICATOR OPERATING CONDITION

Oil level low warning and oil level sensor warning are displayed under the following conditions:

Oil Level Low Warning

• Ignition switch: ON
• When engine oil level is low (After engine oil level check)

Oil Level Sensor Warning

• Ignition switch: ON
• Oil level sensor abnormality

WARNING/INDICATOR CANCEL CONDITION

Oil level low warning and oil level sensor warning are cancelled under the following conditions:

Oil Level Low Warning

Press the enter switch downward

Oil Level Sensor Warning

Press the enter switch downward

METER ILLUMINATION CONTROL

METER ILLUMINATION CONTROL : System Description

INFOID:0000000010714991

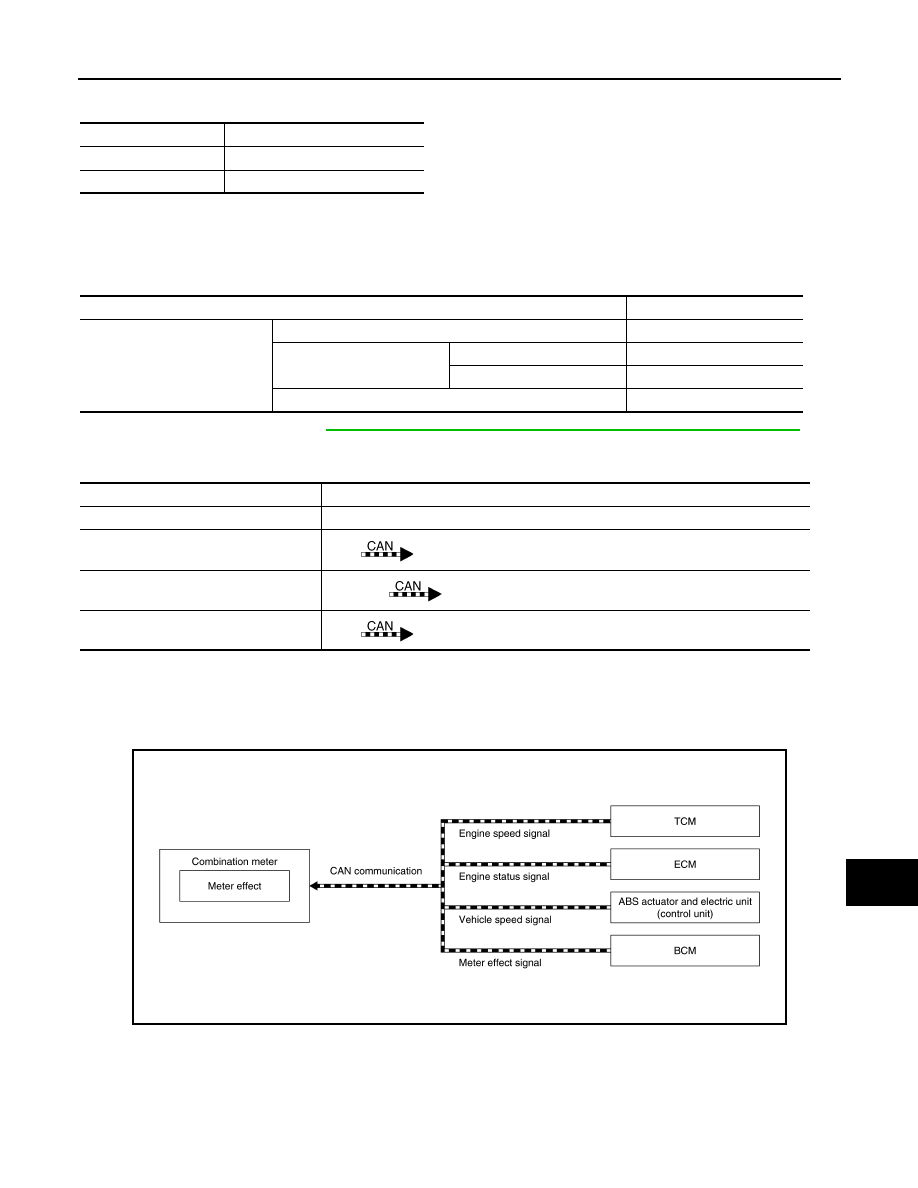

SYSTEM DIAGRAM

DESCRIPTION

Back Light Illumination Control Function

JSNIA5190GB

JSNIA7298GB

MWI

SYSTEM

MWI-69

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

The operation of the illumination control switch allows the brightness adjustment of meter illumination.

Meter Illumination Control Function

• Combination meter controls meter illumination, based on the position light request signal.
• The combination meter switches mode between Daytime mode and Nighttime mode, according to the fol-

lowing conditions.

*: For further information, refer to

INL-18, "ILLUMINATION CONTROL SYSTEM : System Description"

.

Signal Path

METER EFFECT FUNCTION

METER EFFECT FUNCTION : System Description

INFOID:0000000010714992

SYSTEM DIAGRAM

DESCRIPTION

Driver Welcome Function

Meter illumination

The number of adjustable steps

Daytime

22 step

Nighttime

22 step

Condition

Meter illumination

Combination switch
(lighting switch)

1ST or 2ND position

Nighttime mode

AUTO POSITION

Outdoor: Bright*

Daytime mode

Outdoor: Dark*

Nighttime mode

Off

Daytime mode

Signal name

Signal path

Ignition signal

—

Position light request signal

BCM

Combination

meter

Starter relay status signal

IPDM E/R

 Combination meter

Engine status signal

ECM

Combination

meter

JSNIA7179GB
