Nissan X-Trail 32. Manual - part 1579

DOOR MIRROR

MIR-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

2.

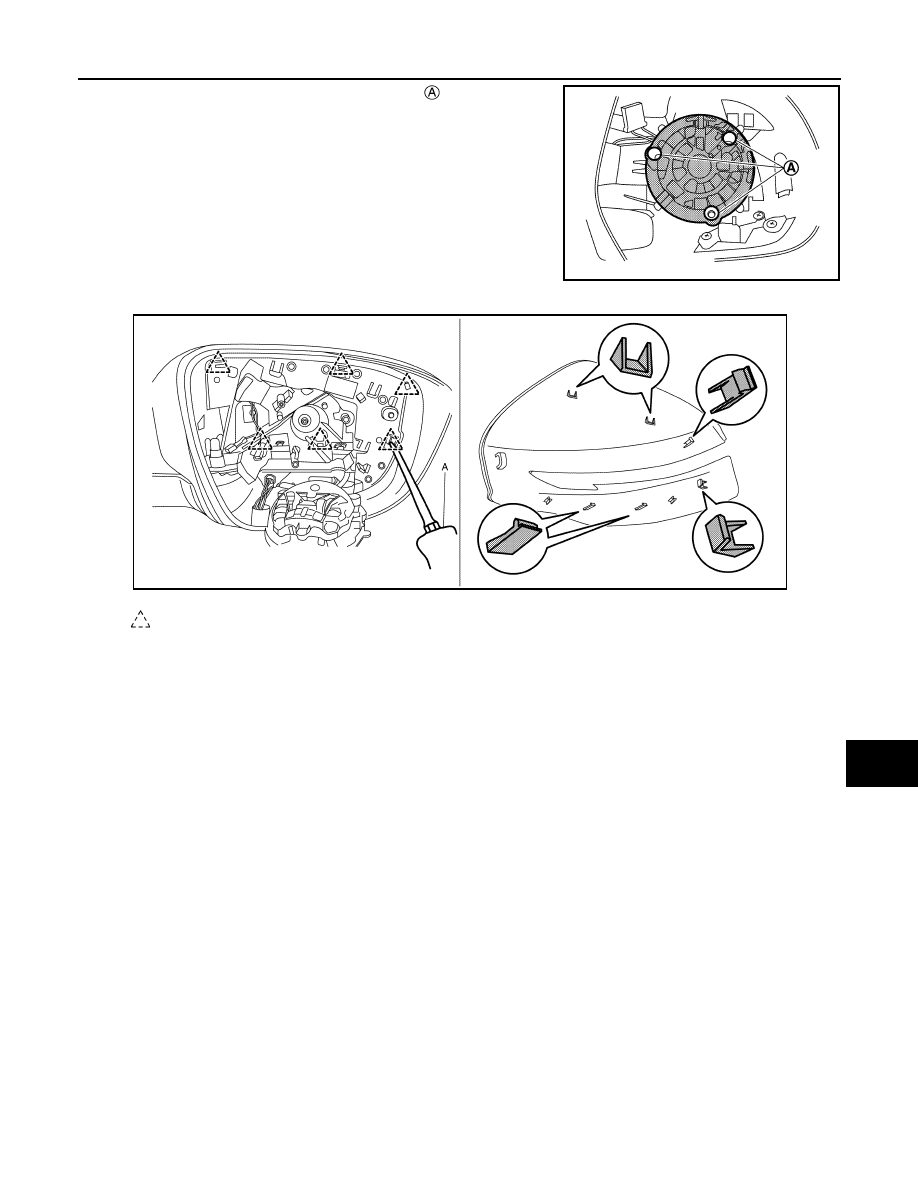

Remove door mirror actuator fixing screws

 and disconnect

harness connector, and then remove door mirror actuator.

3.

Disengage door mirror cover fixing pawls using a remover tool (A).

4.

Remove door mirror cover from door mirror housing.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, visually check that pawls are securely engaged.

JMLIA3306ZZ

: Pawl

JMLIA4830ZZ

MIR-32

< REMOVAL AND INSTALLATION >

DOOR MIRROR REMOTE CONTROL SWITCH

DOOR MIRROR REMOTE CONTROL SWITCH

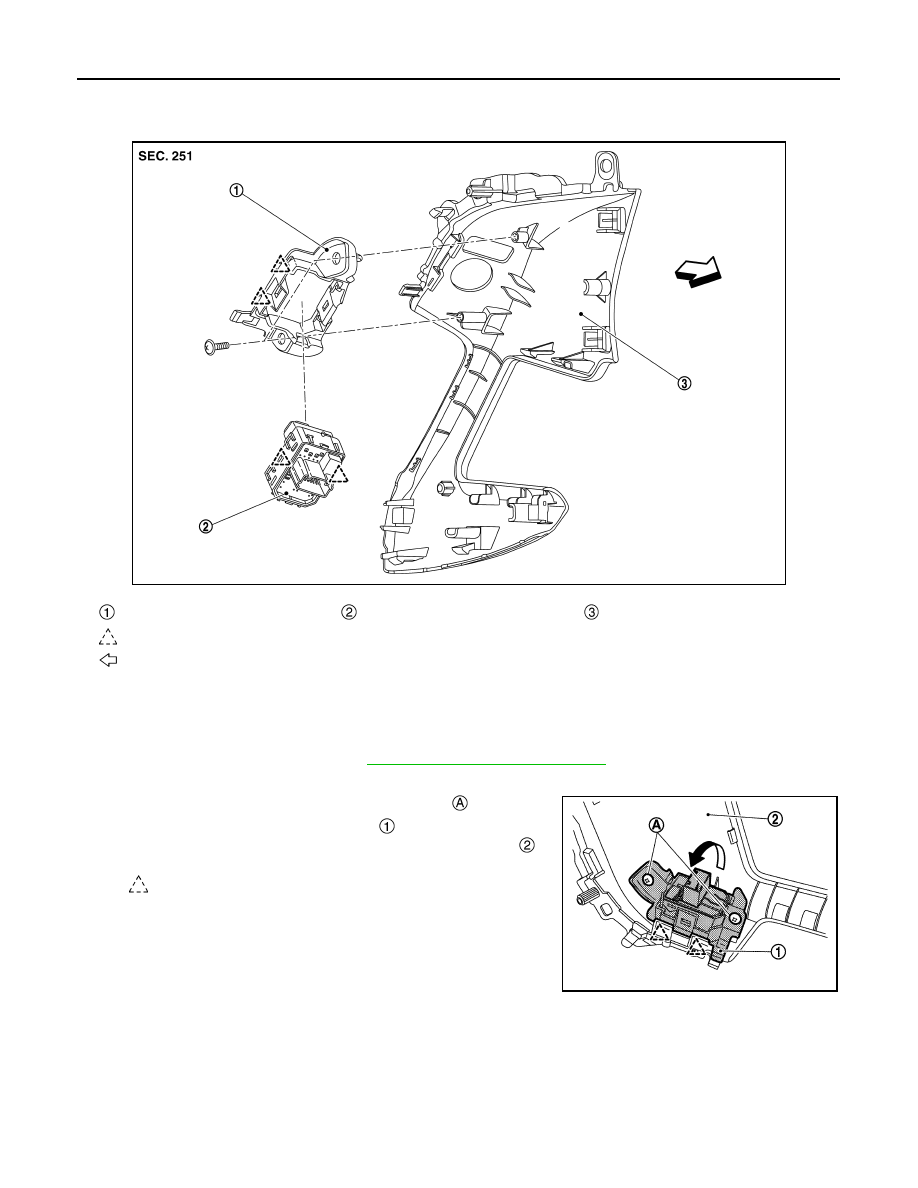

Exploded View

INFOID:0000000011008304

Removal and Installation

INFOID:0000000011008305

REMOVAL

1.

Remove front door grip cap. Refer to

INT-14, "Removal and Installation"

.

2.

Remove front door grip cap bracket.

a.

Remove front door grip cap bracket fixing screws

.

b.

Disengage front door grip cap bracket

 fixing pawls, and then

remove front door grip cap bracket from front door grip cap

.

JMLIA4834ZZ

Front door grip cap bracket

Door mirror remote control switch

Front door grip cap

: Pawl

: Vehicle front

: Pawl

JMLIA4835ZZ

DOOR MIRROR REMOTE CONTROL SWITCH

MIR-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

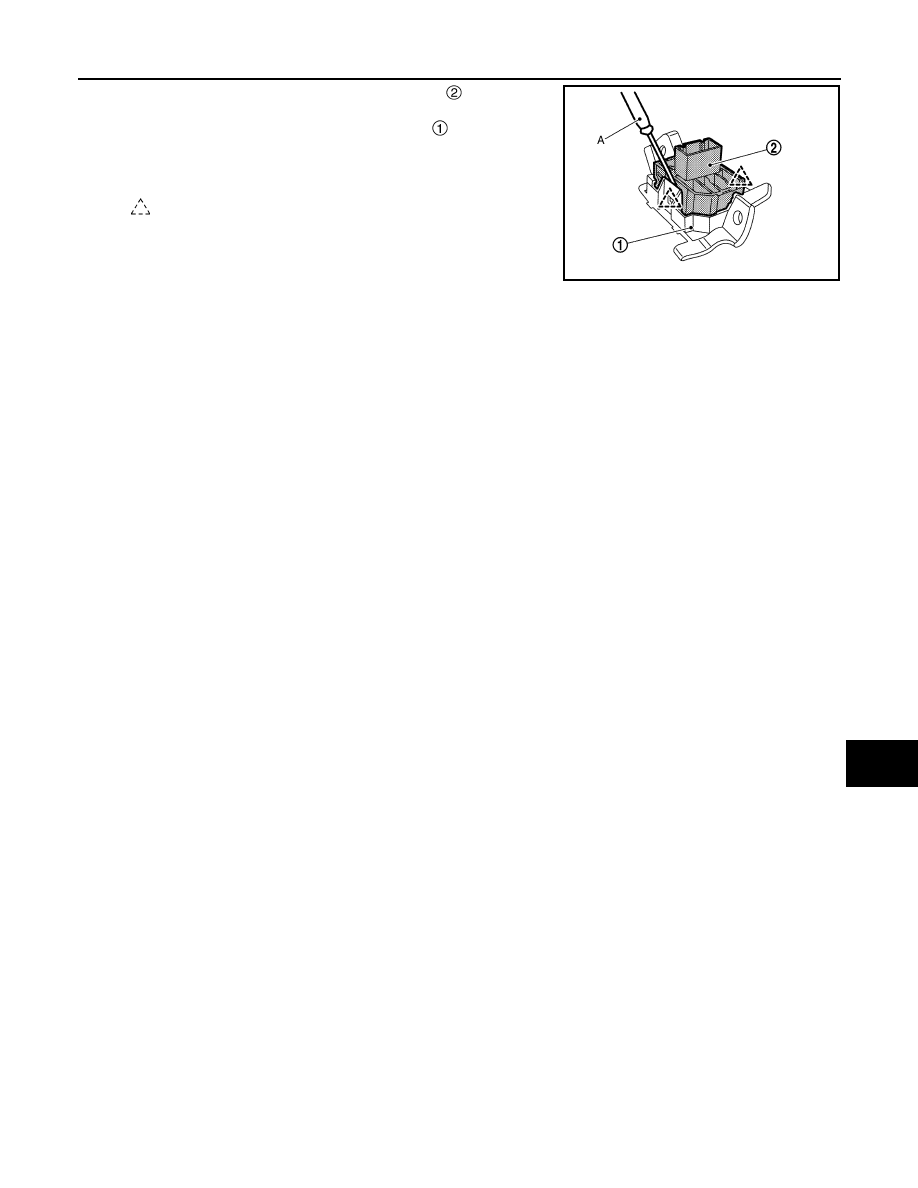

3.

Disengage door mirror remote control switch

 fixing pawls

using a remover tool (A), and then remove door mirror remote
control switch from front door grip cap bracket

.

CAUTION:

Remove the pawls slowly so that they are not damaged.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMLIA4836ZZ

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

HOW TO USE THIS MANUAL ......................

4

HOW TO USE THIS SECTION ............................

4

Information ................................................................

4

PRECAUTION ...............................................

5

PRECAUTIONS ...................................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

Precautions for Removing Battery Terminal  .............

5

SYSTEM DESCRIPTION  ..............................

7

COMPONENT PARTS  ........................................

7

METER SYSTEM  .........................................................

7

METER SYSTEM : Component Parts Location  ........

7

METER SYSTEM : Design ......................................

10

METER SYSTEM : Combination Meter  ..................

13

METER SYSTEM : Steering Switch  ........................

13

METER SYSTEM : Meter Control Switch  ...............

14

SYSTEM .............................................................

15

METER SYSTEM  .......................................................

15

METER SYSTEM : System Description  ..................

15

METER SYSTEM : Circuit Diagram ........................

19

METER SYSTEM : Fail-Safe ..................................

19

SPEEDOMETER ........................................................

21

SPEEDOMETER : System Description ...................

21

TACHOMETER ..........................................................

22

TACHOMETER : System Description  .....................

22

ENGINE COOLANT TEMPERATURE GAUGE  ........

22

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

22

FUEL GAUGE ............................................................

22

FUEL GAUGE : System Description  .......................

22

WARNING LAMPS/INDICATOR LAMPS  ..................

23

WARNING LAMPS/INDICATOR LAMPS : 4WD
Indicator Lamp and LOCK Indicator Lamp  ..............

23

WARNING LAMPS/INDICATOR LAMPS : ABS
Warning Lamp  .........................................................

24

WARNING LAMPS/INDICATOR LAMPS : Brake
Warning Lamp (Red)  ...............................................

26

WARNING LAMPS/INDICATOR LAMPS : Brake
System Warning Lamp (Yellow)  ..............................

28

WARNING LAMPS/INDICATOR LAMPS : Charge
Warning Lamp  .........................................................

30

WARNING LAMPS/INDICATOR LAMPS : Dipped
Beam Indicator Lamp  ..............................................

32

WARNING LAMPS/INDICATOR LAMPS : Electric
Parking Brake Indicator Lamp  .................................

33

WARNING LAMPS/INDICATOR LAMPS : Electric
Power Steering Warning Lamp ................................

35

WARNING LAMPS/INDICATOR LAMPS : FEB
Warning Lamp  .........................................................

36

WARNING LAMPS/INDICATOR LAMPS : Front
Fog Lamp Indicator Lamp ........................................

38

WARNING LAMPS/INDICATOR LAMPS : Glow
Indicator Lamp .........................................................

39

WARNING LAMPS/INDICATOR LAMPS : High
Beam Assist Indicator Lamp ....................................

40

WARNING LAMPS/INDICATOR LAMPS : High
Beam Indicator Lamp  ..............................................

41

WARNING LAMPS/INDICATOR LAMPS : hill de-
scent control (Downhill Drive Support) Indicator
lamp .........................................................................

42

WARNING LAMPS/INDICATOR LAMPS : hill
start assist (Uphill Start Support) Indicator lamp  .....

44

WARNING LAMPS/INDICATOR LAMPS : Low
Tire Pressure Warning Lamp ...................................

45

WARNING LAMPS/INDICATOR LAMPS : Master
Warning Lamp  .........................................................

47

WARNING LAMPS/INDICATOR LAMPS : Mal-
function Indicator Lamp (MIL) ..................................

50

WARNING LAMPS/INDICATOR LAMPS : Posi-
tion Lamp Indicator Lamp  ........................................

52
