LU-12

< PERIODIC MAINTENANCE >

[MR20DD]

OIL FILTER

OIL FILTER

Removal and Installation

INFOID:0000000010783292

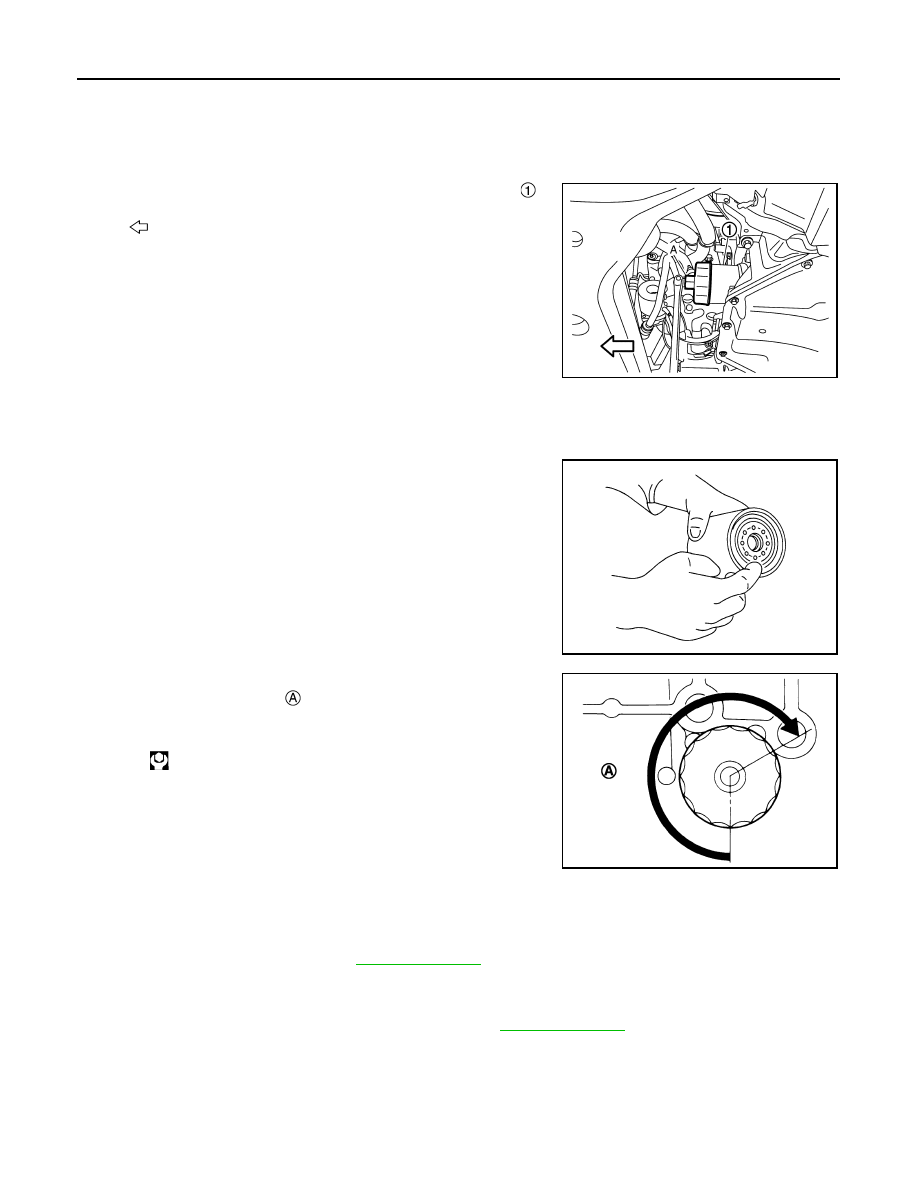

REMOVAL

• Using oil filter wrench [SST: KV10115801](A), remove oil filter

.

CAUTION:

• Oil filter is provided with relief valve. Use Genuine NISSAN

Oil Filter or equivalent.

• Be careful not to get burned when engine and engine oil

may be hot.

• When removing, prepare a shop cloth to absorb any engine

oil leakage or spillage.

• Completely wipe off any engine oil that adheres to engine

and vehicle.

INSTALLATION

1.

Remove foreign materials adhering to the oil filter installation surface.

2.

Apply new engine oil to the oil seal contact surface of new oil fil-
ter.

3.

Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn

. Or tighten to specification.

Inspection

INFOID:0000000010783293

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level. Refer to

LU-9, "Inspection"

.

2.

Start the engine, and check there is no leakage of engine oil.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level, and adjust the level. Refer to

LU-9, "Inspection"

.

: Engine front

JSBIA4402ZZ

SMA010

Oil filter:

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

OIL COOLER

LU-13

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

REMOVAL AND INSTALLATION

OIL COOLER

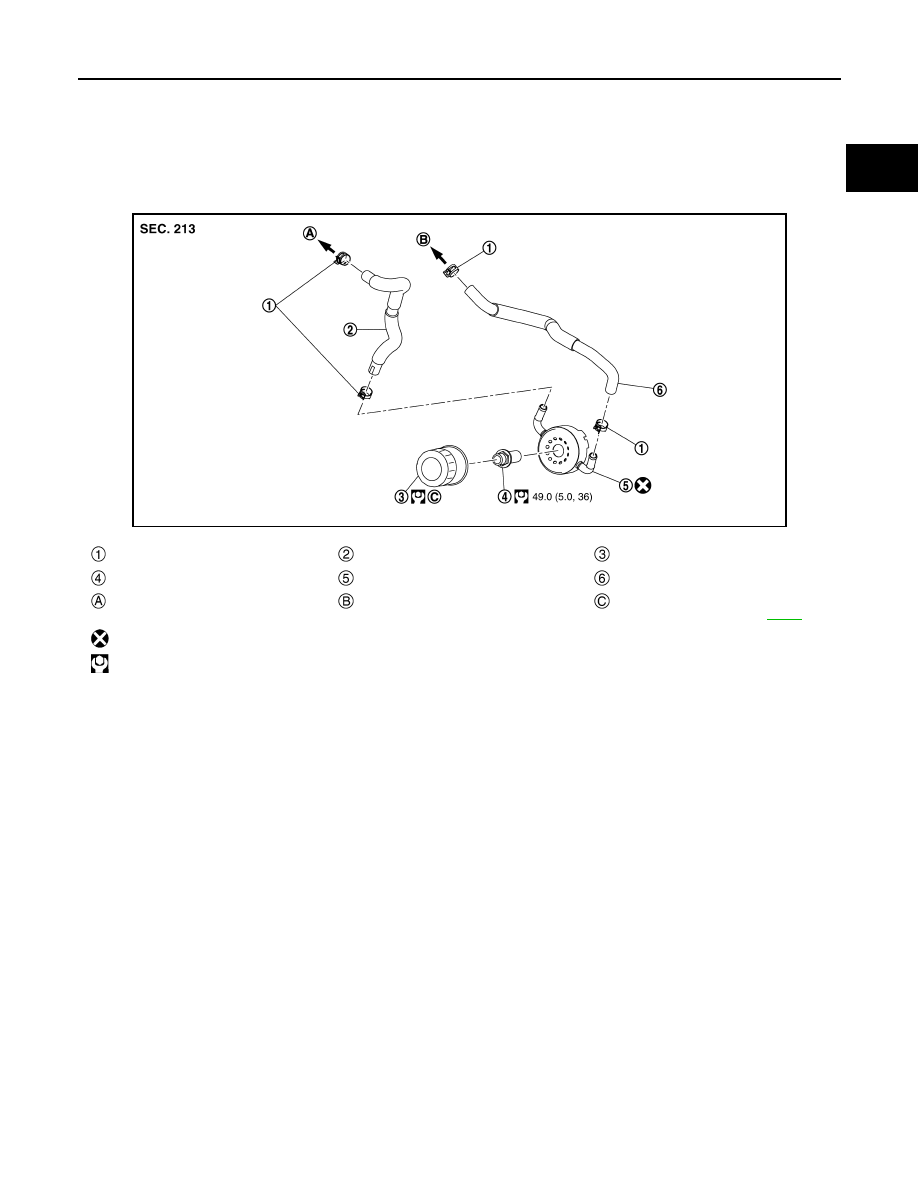

Exploded View

INFOID:0000000010783294

M/T models

JPBIA6894GB

Clamp

Water hose

Oil filter

Connector bolt

Oil cooler

Water hose

To thermostat housing

To thermostat housing

Comply with the assembly procedure
when tightening. Refer to

LU-12

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

LU-14

< REMOVAL AND INSTALLATION >

[MR20DD]

OIL COOLER

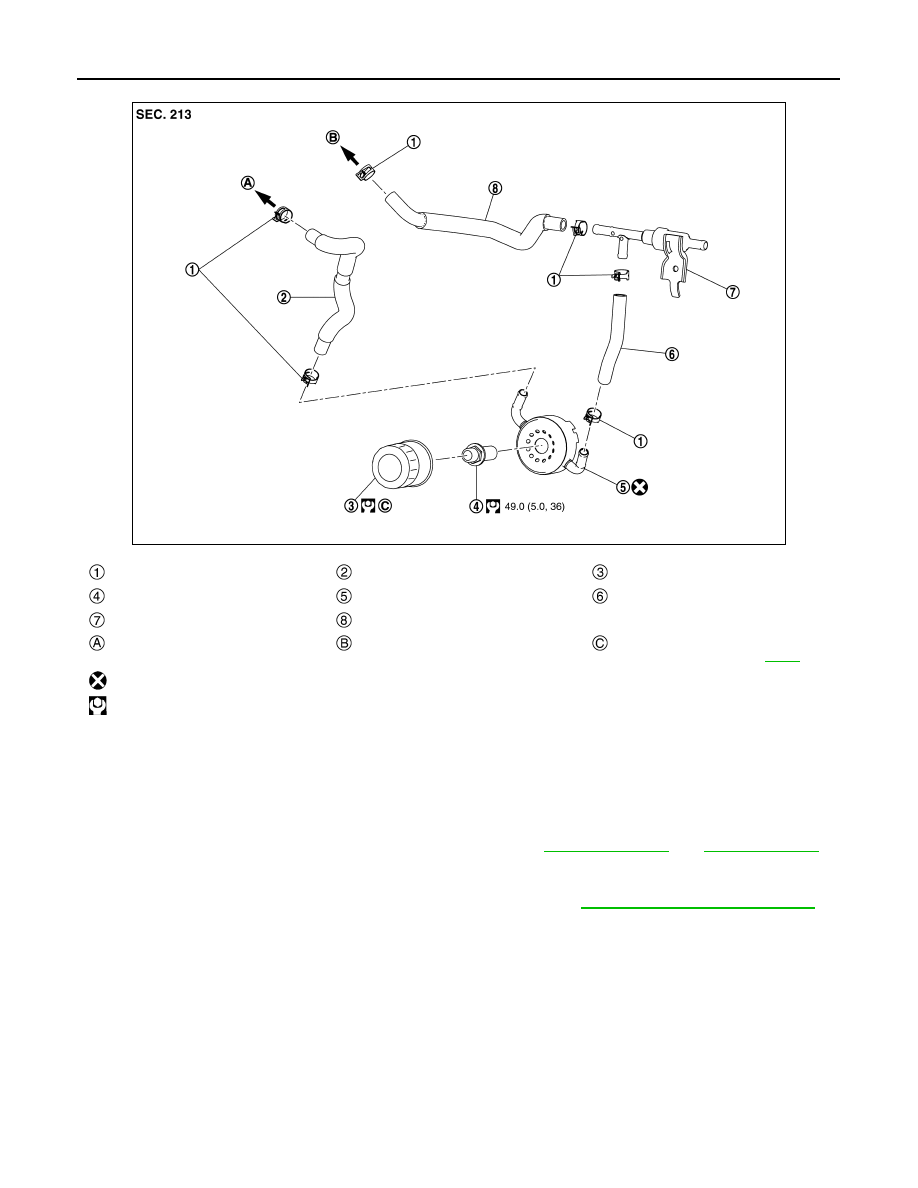

CVT models

Removal and Installation

INFOID:0000000010783295

REMOVAL

WARNING:

Be careful not to get burn yourself, as engine oil and engine coolant may be hot.

1.

Drain engine coolant from radiator and cylinder block. Refer to

CO-13, "Draining"

 and

EM-61, "Setting"

.

NOTE:
Perform this step when removing water hoses.

2.

Using oil filter wrench [SST: KV10115801], remove oil filter. Refer to

LU-12, "Removal and Installation"

.

3.

Disconnect water hoses from oil cooler.
• When removing oil cooler only, pinching water hoses near oil cooler to prevent engine coolant from spill-

ing out.

• Remaining engine coolant in piping will come out. Use a tray to collect it.

CAUTION:

Perform this step when the engine is cold.

4.

Remove connector bolt, and remove oil cooler.

INSTALLATION

Installation is the reverse order of removal.

JPBIA6895GB

Clamp

Water hose

Oil filter

Connector bolt

Oil cooler

Water hose

Heater thermostat

Water hose

To thermostat housing

To thermostat housing

Comply with the assembly procedure
when tightening. Refer to

LU-12

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

OIL COOLER

LU-15

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

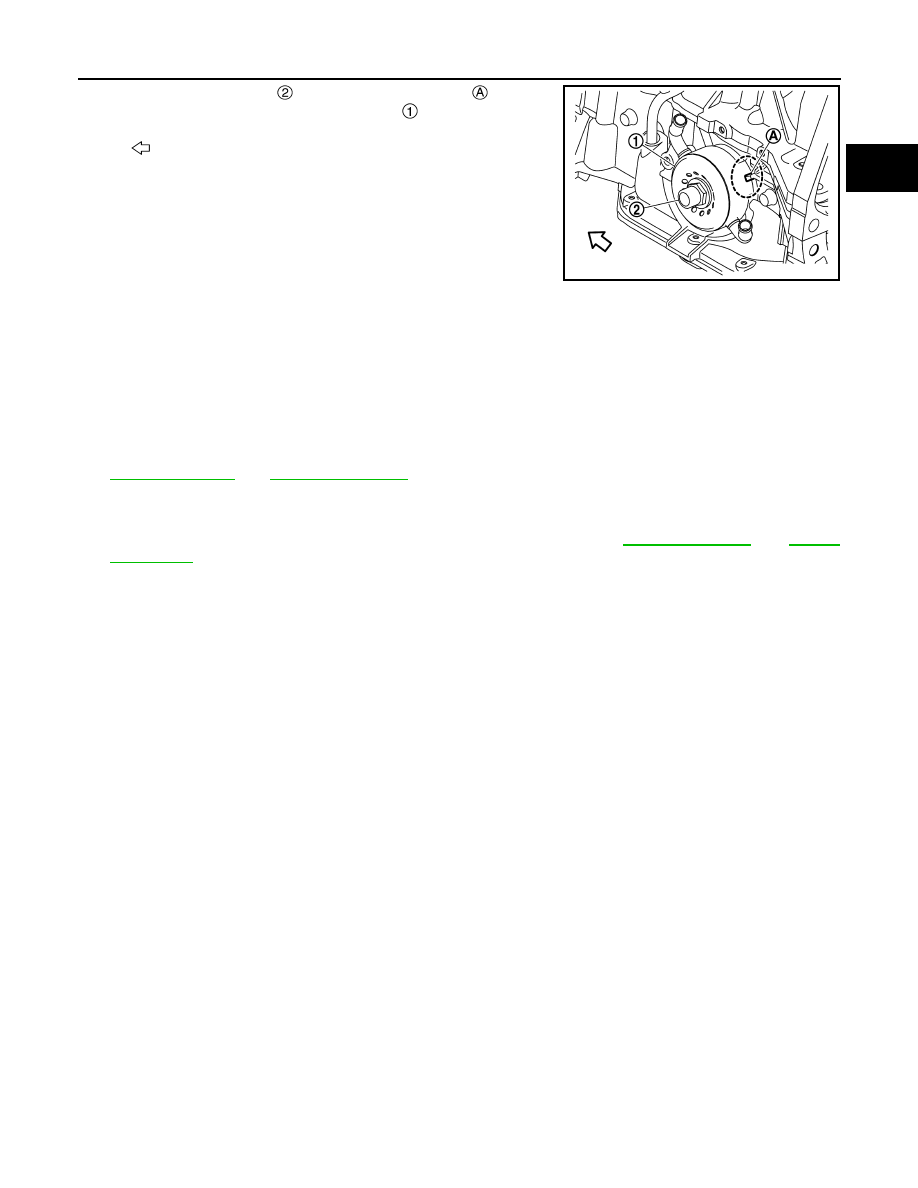

• Tighten the connector bolt

 after aligning the stopper

 on the oil

pan (upper) side with protrusion of oil cooler

.

Inspection

INFOID:0000000010783296

INSPECTION AFTER REMOVAL

Oil Cooler

Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and the engine coolant level and add engine oil and engine coolant. Refer to

LU-9, "Inspection"

 and

CO-13, "Inspection"

.

2.

Start the engine, and check that there is no leakage of engine oil or engine coolant.

3.

Stop the engine and wait for 10 minutes.

4.

Check the engine oil level and the engine coolant level again. Refer to

LU-9, "Inspection"

 and

CO-13,

"Inspection"

.

: Engine front

JPBIA6907ZZ
