REFRIGERANT PRESSURE SENSOR

HAC-131

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000010939790

Refer to following items.
• R9M (EXCETP FOR RUSSIA) : Refer to

HA-32, "Exploded View"

.

• MR20DD : Refer to

HA-82, "Exploded View"

.

• QR25DE : Refer to

HA-127, "Exploded View"

.

• R9M (FOR RUSSIA) : Refer to

HA-169, "Exploded View"

.

Removal and Installation

INFOID:0000000010939791

REMOVAL

Refer to following items.
• R9M (EXCETP FOR RUSSIA) : Refer to

HA-36, "REFRIGERANT PRESSURE SENSOR : Removal and

Installation"

.

• MR20DD : Refer to

HA-84, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

.

• QR25DE : Refer to

HA-129, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

.

• R9M (FOR RUSSIA) : Refer to

HA-174, "REFRIGERANT PRESSURE SENSOR : Removal and Installa-

tion"

.

INSTALLATION

Install in the reverse order of removal.

HAC-132

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

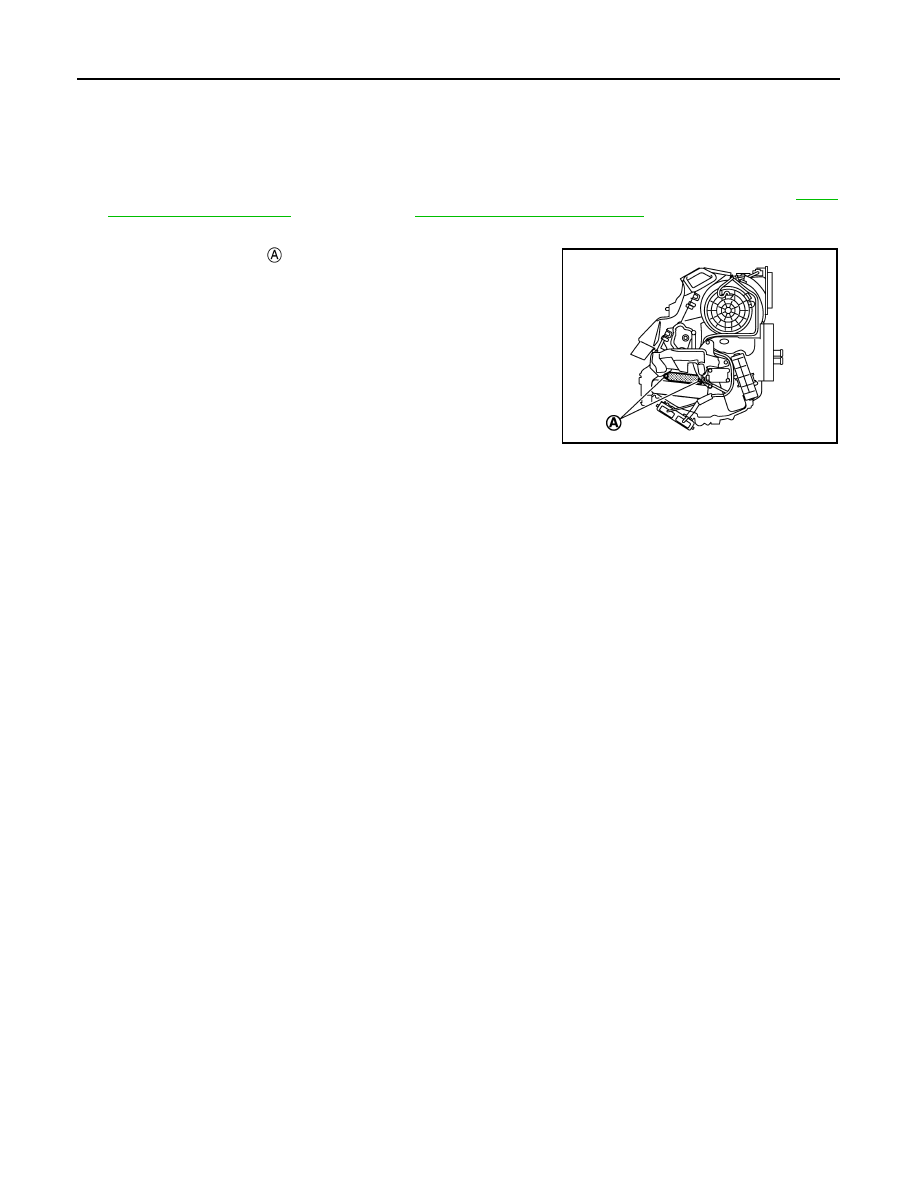

PTC HEATER

PTC HEATER

Removal and Installation

INFOID:0000000010939792

REMOVAL

1.

Remove glove box cover (LHD models) or instrument lower cover RH (RHD models). Refer to

IP-14,

"Removal and Installation"

 (LHD models) or

IP-41, "Removal and Installation"

 (RHD models).

2.

Disconnect PTC heater connector.

3.

Remove fixing screws

, and then remove PTC heater from A/

C unit assembly.

INSTALLATION

Install in the reverse order of removal.

JMIIA3532ZZ

POWER TRANSISTOR

HAC-133

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

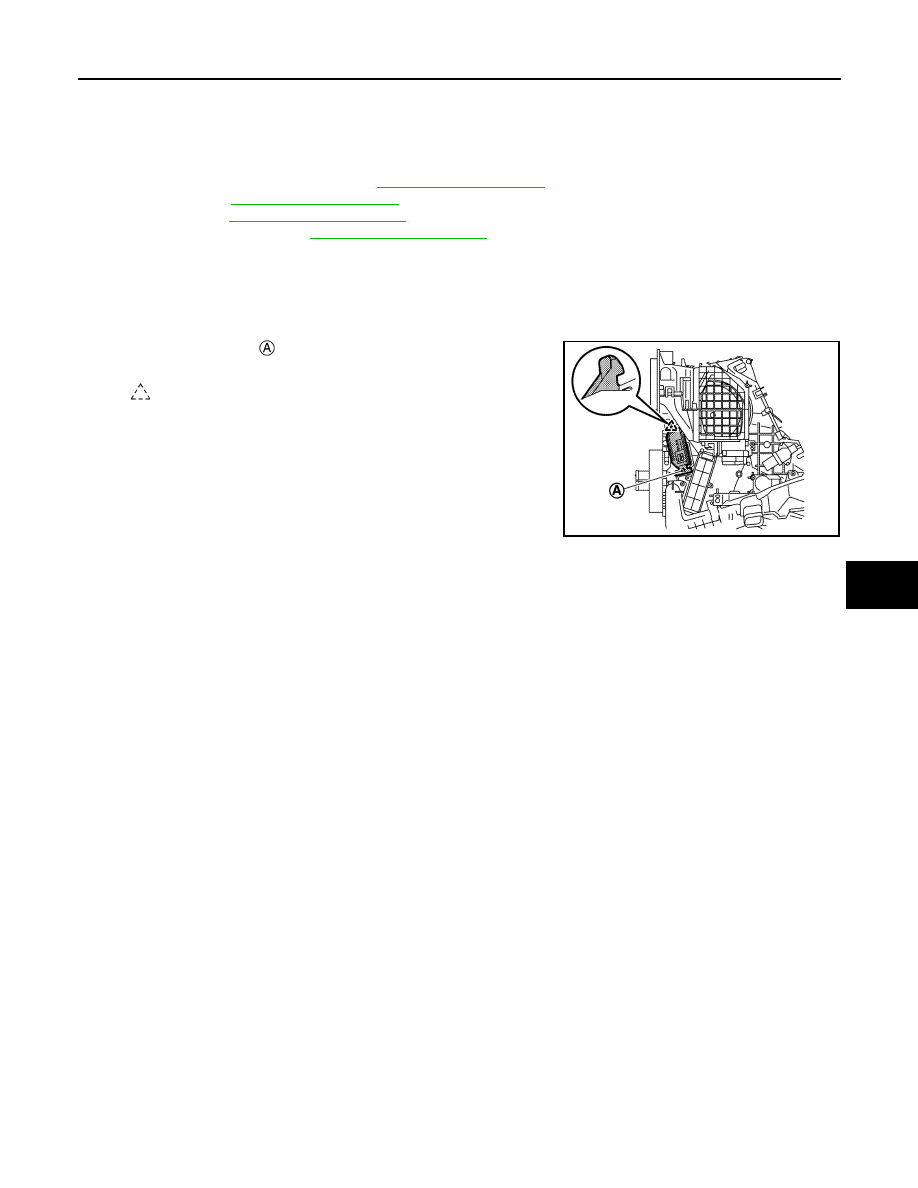

POWER TRANSISTOR

Exploded View

INFOID:0000000010939793

Refer to following items.
• R9M (EXCETP FOR RUSSIA) : Refer to

HA-40, "Exploded View"

.

• MR20DD : Refer to

HA-86, "Exploded View"

.

• QR25DE : Refer to

HA-131, "Exploded View"

.

• R9M (FOR RUSSIA) : Refer to

HA-177, "Exploded View"

.

Removal and Installation

INFOID:0000000010939794

REMOVAL

1.

Disconnect power transistor harness connector.

2.

Remove fixing screw

 and disengage pawl.

3.

Remove power transistor from A/C unit assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3399ZZ

HAC-134

< REMOVAL AND INSTALLATION >

[AUTOMATIC AIR CONDITIONING]

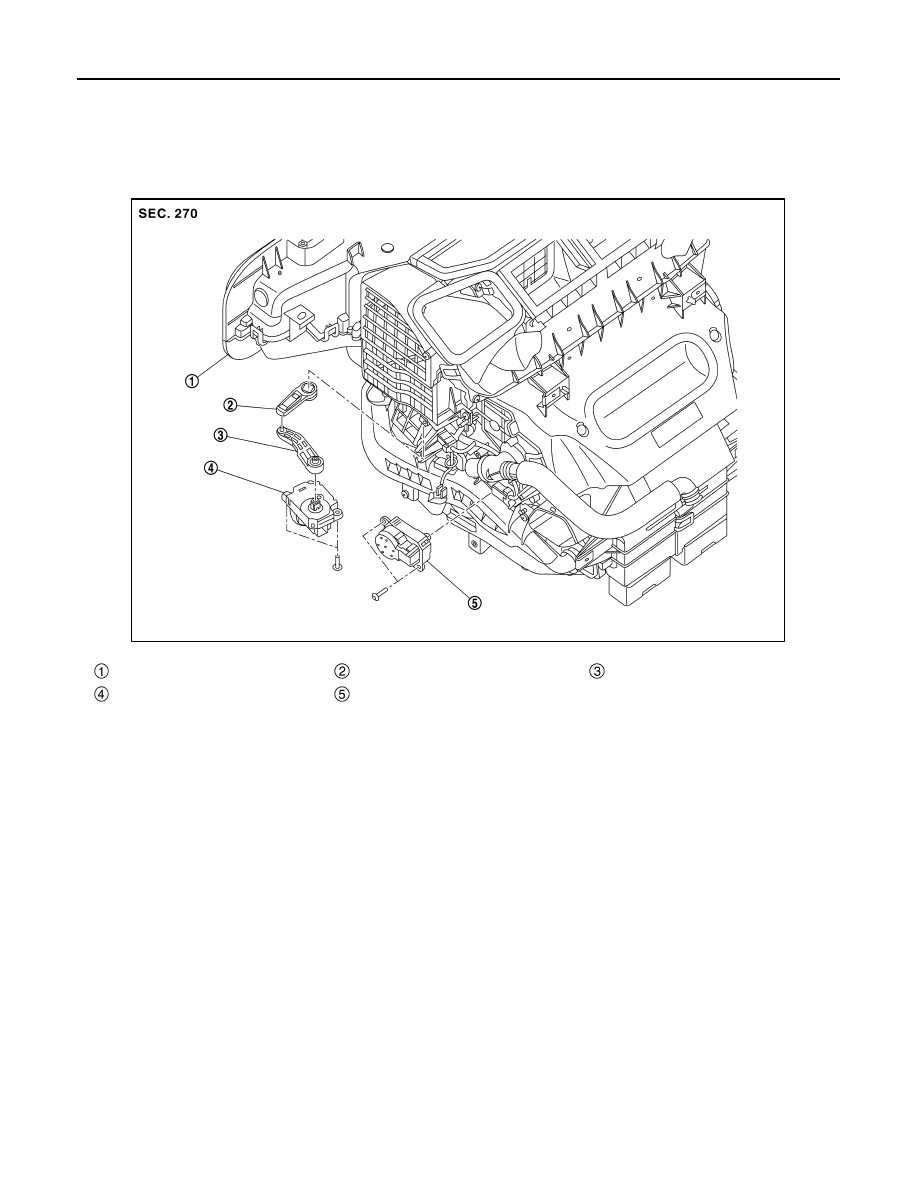

DOOR MOTOR

DOOR MOTOR

Exploded View

INFOID:0000000010939795

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door link

Intake door motor

Air mix door motor LH

JMIIA3368GB
