BACK DOOR FINISHER

EXT-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

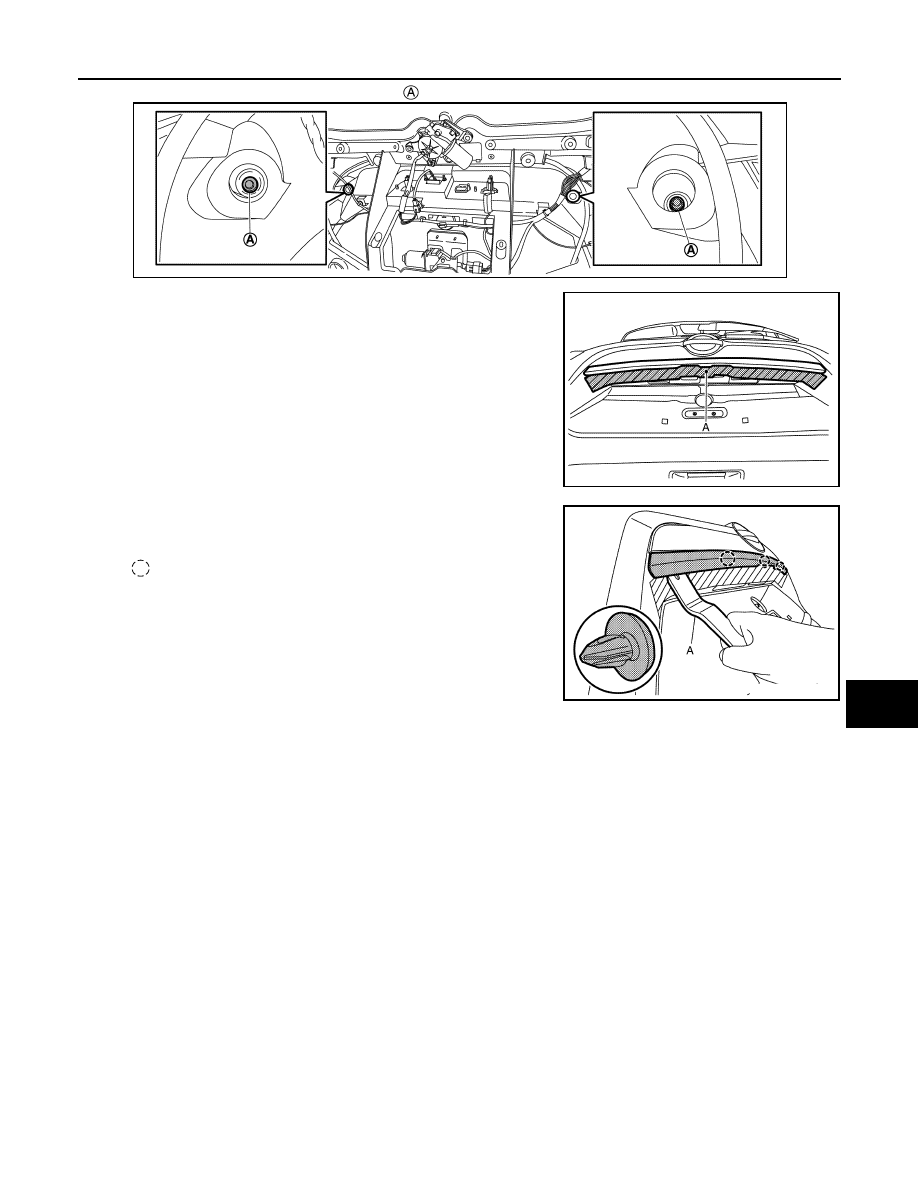

3.

Remove back door finisher mounting nuts

.

4.

Apply protective tape (A) on body to protect the painted surface
from damage.

5.

Disengage back door finisher fixing clips using a remover tool
(A), and then remove back door finisher.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never damage the back door panel.
• When installing back door finisher, visually check the back door finisher and the clips, then replace

them with new parts if they are damaged.

• When installing back door finisher, check that clips are securely in back door panel holes, and press

them in.

JMKIB3045ZZ

JMKIB3046ZZ

: Clip

JMKIB3047ZZ

FAX-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

FAX

A

B

FAX

N

O

P

CONTENTS

FRONT AXLE

2WD

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
..

3

Precautions for Removing Battery Terminal  .............

4

Precautions for Drive Shaft  .......................................

5

PREPARATION ............................................

6

PREPARATION ...................................................

6

Special Service Tool  .................................................

6

Commercial Service Tool  ..........................................

6

Lubricant or/and Sealant  ...........................................

7

SYMPTOM DIAGNOSIS  ...............................

8

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

8

NVH Troubleshooting Chart  ......................................

8

PERIODIC MAINTENANCE ..........................

9

FRONT WHEEL HUB AND KNUCKLE  ..............

9

Inspection ..................................................................

9

FRONT DRIVE SHAFT .......................................

10

Inspection ................................................................

10

REMOVAL AND INSTALLATION ...............

11

FRONT WHEEL HUB AND KNUCKLE  .............

11

Exploded View  ........................................................

11

Removal and Installation .........................................

11

Inspection ................................................................

16

FRONT DRIVE SHAFT BOOT  ...........................

17

MR20DD .....................................................................

17

MR20DD : Exploded View  .......................................

17

MR20DD : Removal and Installation  .......................

19

MR20DD : Inspection  ..............................................

25

R9M ............................................................................

25

R9M : Exploded View  ..............................................

25

R9M : Removal and Installation ...............................

27

R9M : Inspection ......................................................

33

FRONT DRIVE SHAFT  .....................................

34

MR20DD .....................................................................

34

MR20DD : Exploded View  .......................................

34

MR20DD : Removal and Installation  .......................

36

MR20DD : Disassembly and Assembly ...................

42

MR20DD : Inspection  ..............................................

46

R9M ............................................................................

47

R9M : Exploded View  ..............................................

48

R9M : Removal and Installation ...............................

50

R9M : Disassembly and Assembly  ..........................

56

R9M : Inspection ......................................................

60

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

62

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

62

Wheel Bearing  .........................................................

62

Drive Shaft ...............................................................

62

4WD

PRECAUTION ..............................................

64

PRECAUTIONS .................................................

64

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

64

Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect  ...................................

64

Precautions for Removing Battery Terminal ............

65

FAX-2

Precautions for Drive Shaft .....................................

66

PREPARATION ...........................................

67

PREPARATION  .................................................

67

Special Service Tool  ...............................................

67

Commercial Service Tool  .......................................

67

Lubricant or/and Sealant  ........................................

68

SYMPTOM DIAGNOSIS  .............................

69

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  ............................

69

NVH Troubleshooting Chart  ...................................

69

PERIODIC MAINTENANCE ........................

70

FRONT WHEEL HUB AND KNUCKLE  .............

70

Inspection ...............................................................

70

FRONT DRIVE SHAFT  ......................................

71

Inspection ...............................................................

71

REMOVAL AND INSTALLATION ...............

72

FRONT WHEEL HUB AND KNUCKLE  .............

72

Exploded View  ........................................................

72

Removal and Installation  ........................................

72

Inspection ...............................................................

77

FRONT DRIVE SHAFT BOOT ...........................

78

MR20DD ....................................................................

78

MR20DD : Exploded View  ......................................

78

MR20DD : Removal and Installation  ......................

79

MR20DD : Inspection  .............................................

85

QR25DE ....................................................................

85

QR25DE : Exploded View .......................................

85

QR25DE : Removal and Installation  .......................

86

QR25DE : Inspection  ..............................................

92

R9M ...........................................................................

92

R9M : Exploded View ..............................................

92

R9M : Removal and Installation  ..............................

93

R9M : Inspection  .....................................................

99

FRONT DRIVE SHAFT .....................................

100

MR20DD ..................................................................

100

MR20DD : Exploded View  ....................................

100

MR20DD : Removal and Installation .....................

101

MR20DD : Disassembly and Assembly  ................

107

MR20DD : Inspection ............................................

111

QR25DE ...................................................................

112

QR25DE : Exploded View .....................................

112

QR25DE : Removal and Installation  .....................

113

QR25DE : Disassembly and Assembly .................

119

QR25DE : Inspection  ............................................

123

R9M .........................................................................

124

R9M : Exploded View ............................................

124

R9M : Removal and Installation  ............................

125

R9M : Disassembly and Assembly  .......................

131

R9M : Inspection  ...................................................

135

SERVICE DATA AND SPECIFICATIONS
(SDS) .........................................................

137

SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................

137

Wheel Bearing  ......................................................

137

Drive Shaft  ............................................................

137

PRECAUTIONS

FAX-3

< PRECAUTION >

[2WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010824368

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010824369

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

1.

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

2.

Open driver door.

3.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

4.

Turn the ignition switch to OFF position with driver door open.

5.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.















содержание   ..  1250  1251  1252  1253   ..
