PRECAUTIONS

EM-293

< PRECAUTION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

R9M engine

: 4 minutes

V9X engine

: 4 minutes

EM-294

< PREPARATION >

[R9M]

PREPARATION

PREPARATION

PREPARATION

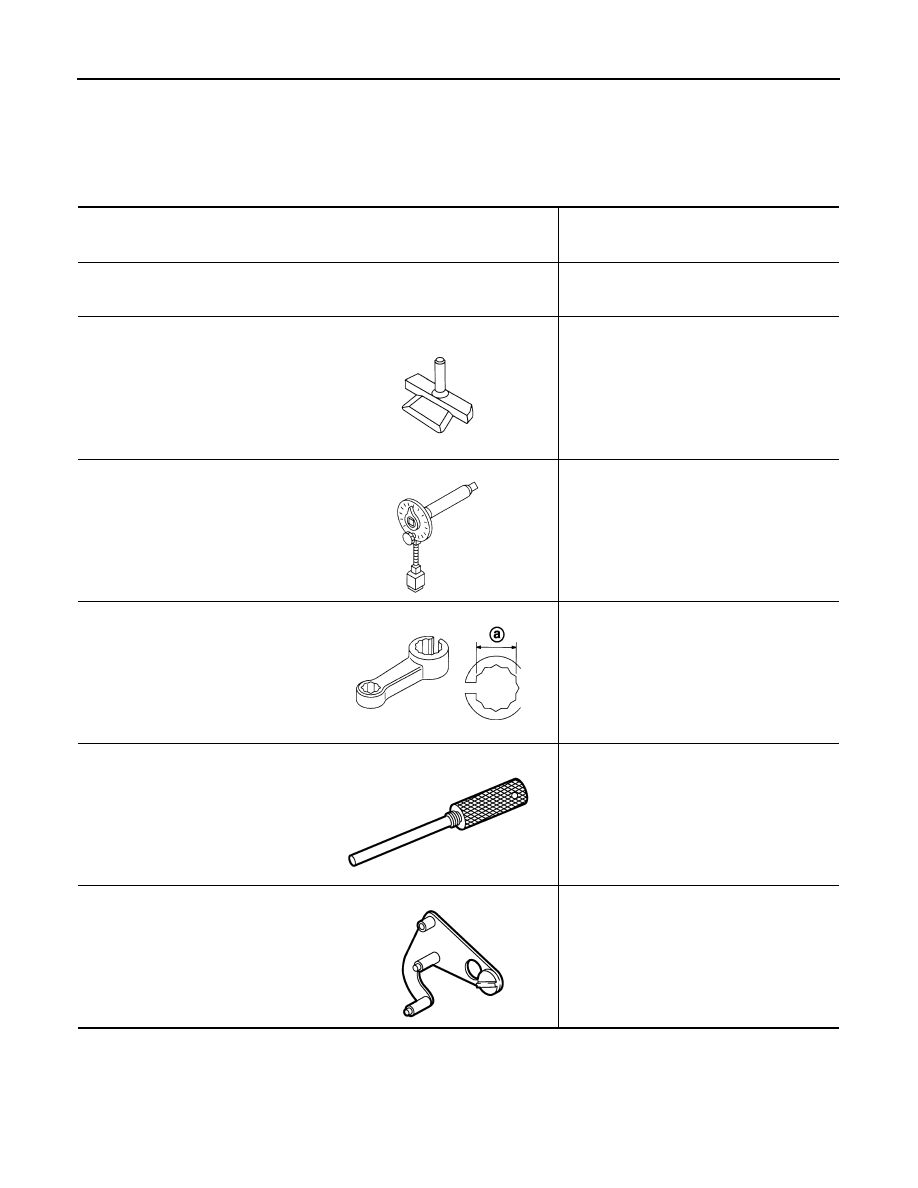

Special Service Tools

INFOID:0000000010784302

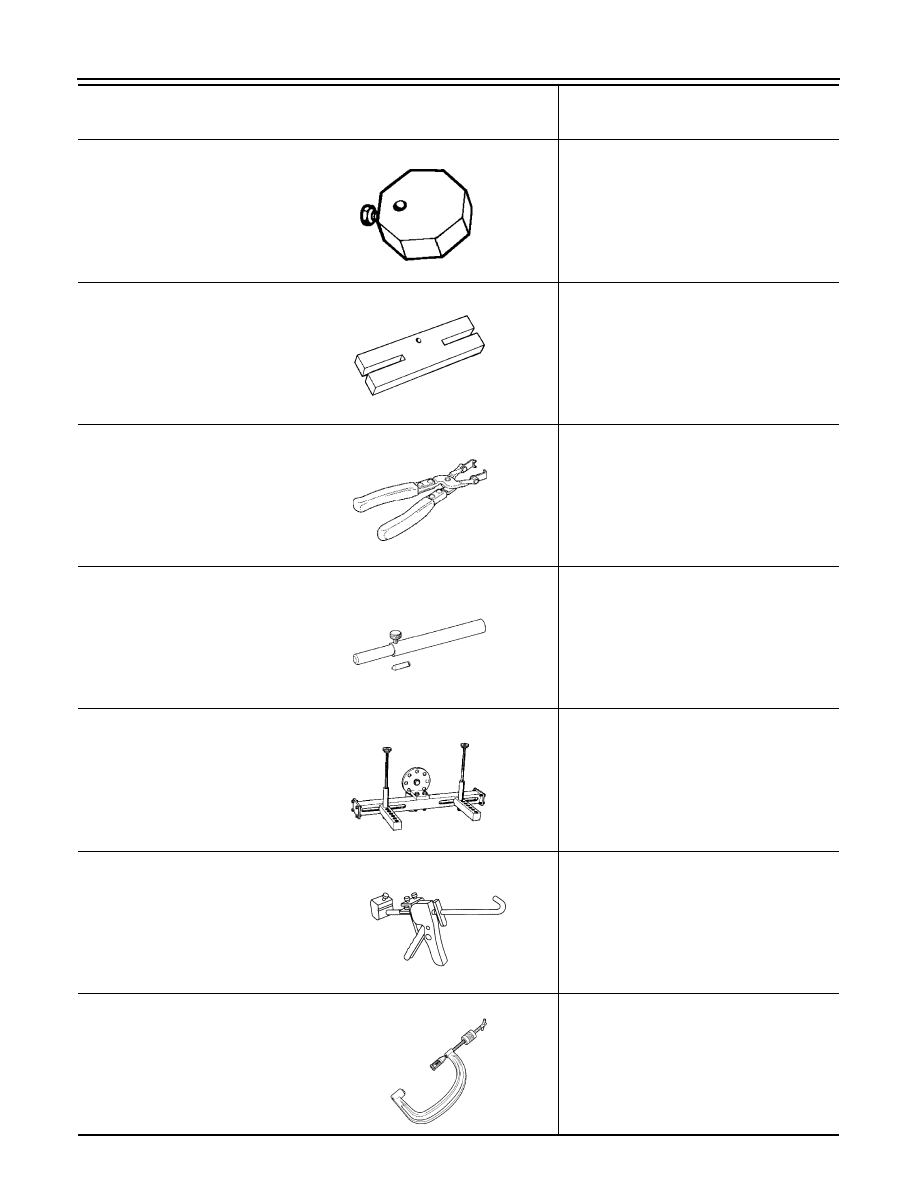

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

—
(Mot. 1979)
Piston ring compressor

Installing piston assembly into cylinder bore

KV10111100
(

—

)

Seal cutter

Removing oil pan and front cover. etc

KV10112100
(

—

)

Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc. in angle

KV10114400
(

—

)

Heated oxygen sensor wrench

Loosening or tightening air fuel ratio sensor
a: 22 mm (0.87 in)

—
(Mot. 1970)
TDC set pin

To lock engine at TDC

—
(Mot. 1969)
Camshaft timing tool

To lock camshaft when changing timing chain

NT046

NT014

JPBIA0397ZZ

JPBIA0629ZZ

JPBIA0628ZZ

PREPARATION

EM-295

< PREPARATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

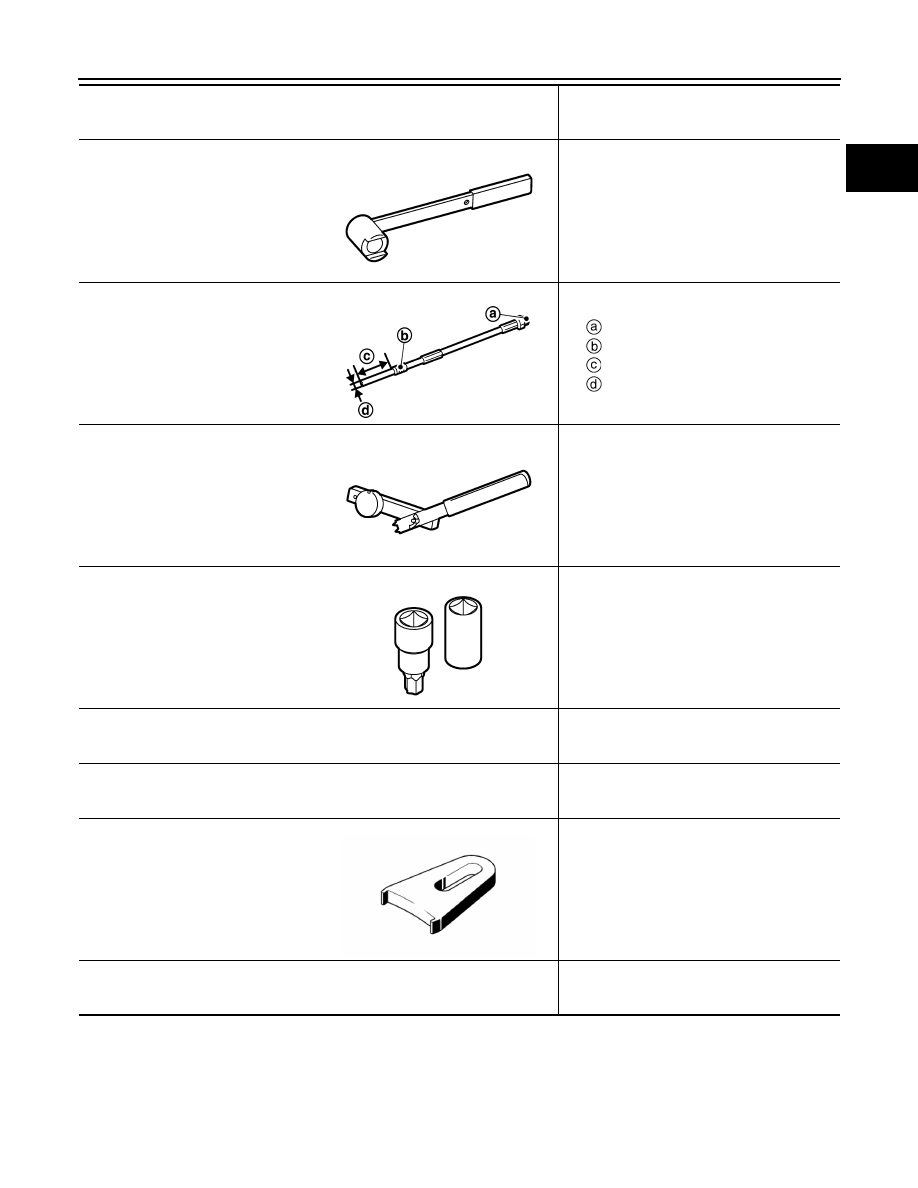

Commercial Service Tools

INFOID:0000000010784303

—
(Mot. 1770)
Crankshaft pulley locking tool

To lock crankshaft pulley

—
(Mot. 1772)
Compression gauge adapter

Connecting compression gauge and glow
plug hole

•

:  G1/4

•

:  M10

×

1.0

•

:  64  mm

•

:

φ

8.5 mm

—
(Mot. 1773)
Positioning tool

To position the gear and apply for the right
clearance (wear compensation gear)

—
(Mot. 1959)
TORX Socket

Removing and installing drive plate or fly-
wheel
Size: T55+

—
(Mot. 1972)
Piston cooler fitting tool

Installing oil jet (9.5 degree orientation)

—
(Mot. 1485-01)
Piston cooler removing tool

Removing oil jet

—
(Mot. 1431)
Flywheel locking tool

To lock flywheel

—
(Emb. 880)
Piston cooler fitting tool

Pin extractor tool

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

JPBIA0630ZZ

JSBIA5512ZZ

JPBIA0625ZZ

E1BIA0349ZZ

JMAIA0431ZZ

EM-296

< PREPARATION >

[R9M]

PREPARATION

NISSAN tool number
(RENAULT tool No.)
Tool name

Description

KV113B0040
(Mot. 251-01)
Dial indicator stand set

Gauge stand used with KV113B0050 (Mot.
252-01)

KV113B0050
(Mot. 252-01)
Dial indicator stand set

Thrust plate for measuring the protrusion of
piston used with KV113B0040 (Mot. 251-01)

KV113B0090
(Mot. 1335)
Valve seal remover

Tool for removing valve oil seals

KV113B0180
(Mot. 1511-01)
Valve seal drift

Tool for installing valve oil seals

KV113B0200
(Mot. 1573)
Cylinder head stand

Cylinder head and cylinder head housing sup-
port

Tube presser

Pressing the tube of liquid gasket

Valve spring compressor

Disassembling valve mechanism

MBIB0360E

MBIB0361E

MBIB0370E

MBIB0378E

MBIB0380E

NT052

JPBIA0770ZZ
