Nissan X-Trail 32. Manual - part 107

BR-22

< REMOVAL AND INSTALLATION >

[LHD]

BRAKE PEDAL

4.

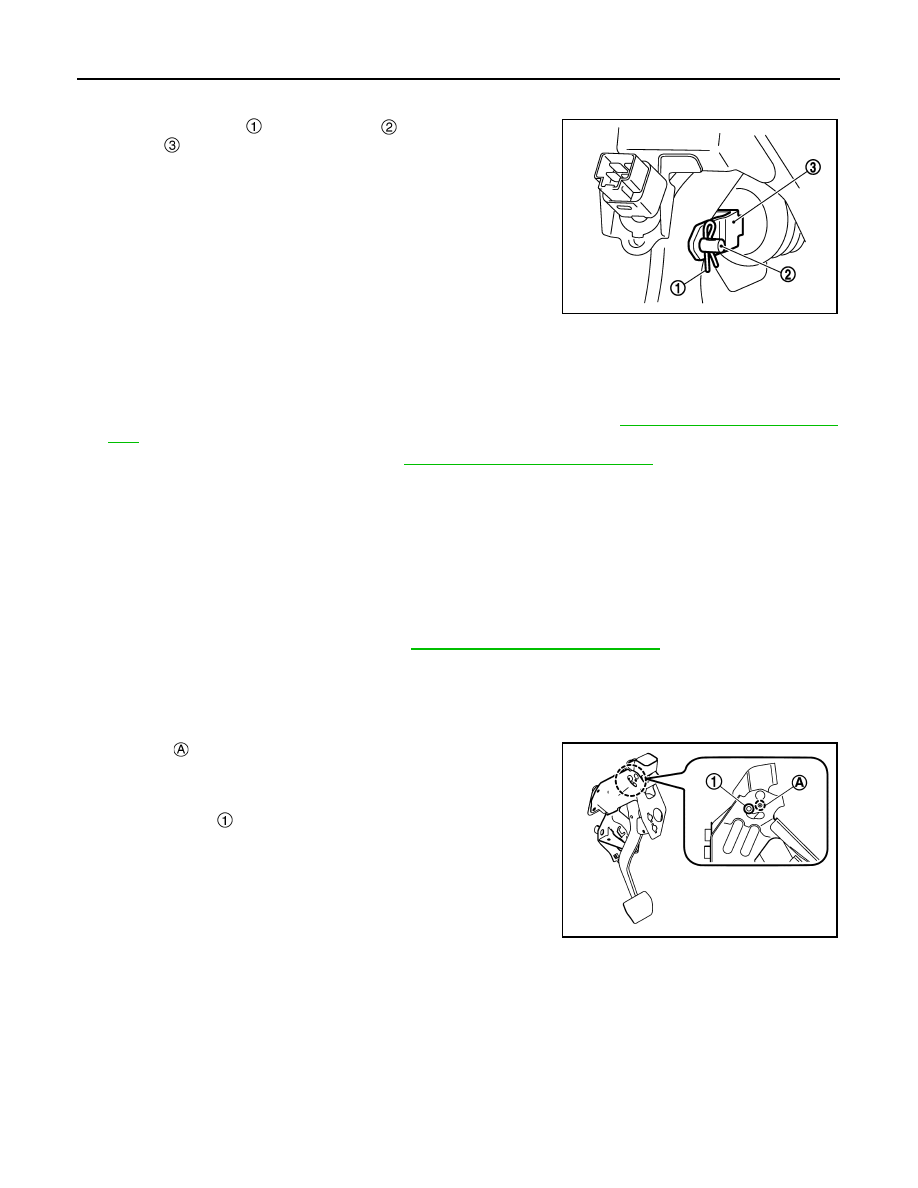

Disconnect the accelerator pedal harness connector.

5.

Remove snap pin

 and clevis pin

 from clevis of brake

booster .

6.

Remove the brake pedal assembly.

CAUTION:

Hold the brake booster and master cylinder assembly so as not to drop out or contact them other
parts.

7.

Remove the accelerator pedal from the brake pedal assembly. Refer to

ACC-4, "Removal and Installa-

tion"

.

8.

Perform inspection after removal. Refer to

BR-22, "Inspection and Adjustment"

.

INSTALLATION

Note the following, and install in the reverse order of removal.

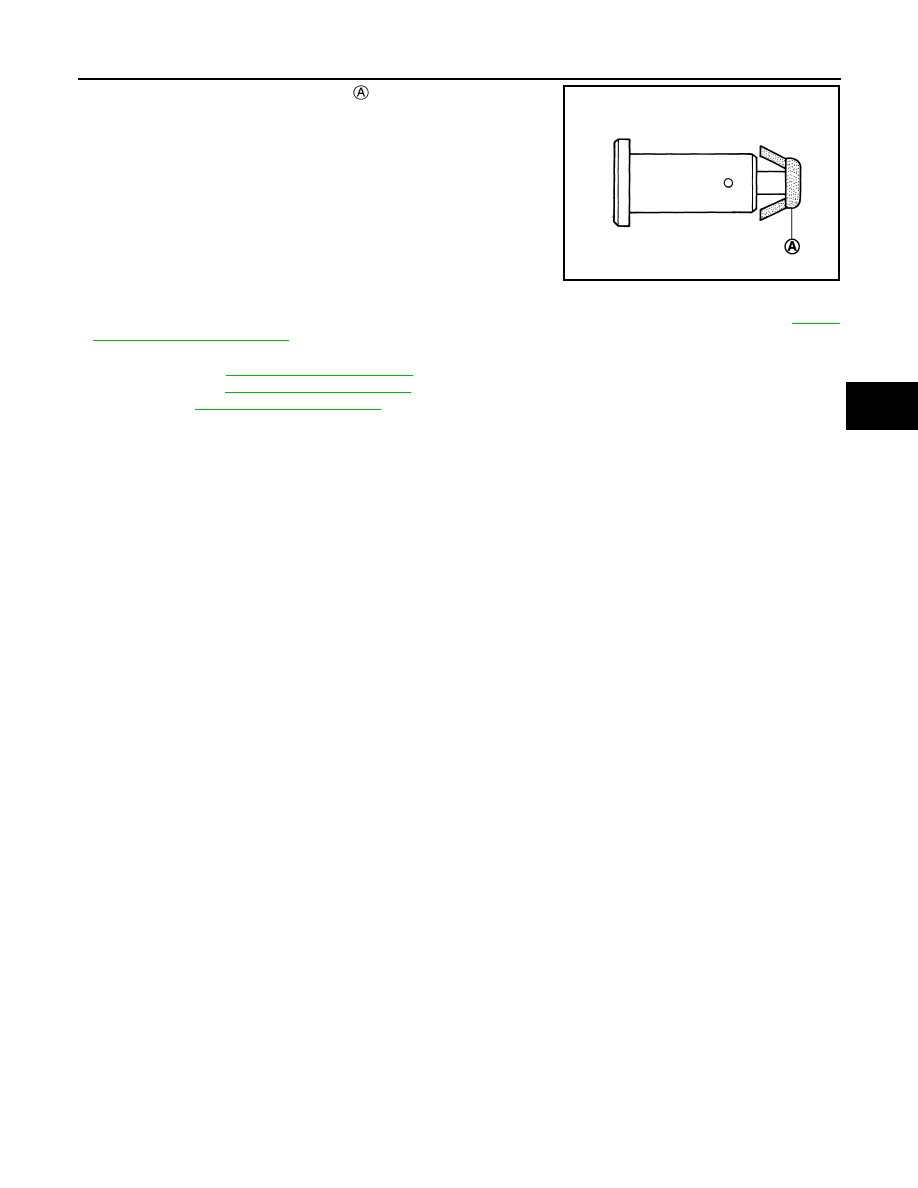

• Never reuse the clevis pin and snap pin.
• Apply the multi-purpose grease to the clevis pin and the mating faces. (Not necessary if grease has been

already applied)
NOTE:
The clevis pin may be inserted in either direction.

• Never impact brake pedal such as drop and interference with tools and parts.
• Replace brake pedal when impacting brake pedal.
• Perform adjustment after installation. Refer to

BR-22, "Inspection and Adjustment"

.

Inspection and Adjustment

INFOID:0000000010838509

INSPECTION AFTER REMOVAL

Check for the following items and replace the brake pedal assembly if necessary.
• Check rivet

 for deformation, crack, and damage.

• Check the brake pedal for bend, damage, and cracks on the

welded parts.

CAUTION:

Never loose bolt

.

JPFIA0816ZZ

JSFIA2250ZZ

BRAKE PEDAL

BR-23

< REMOVAL AND INSTALLATION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

• Check clevis pin and plastic stopper

 for damage and deforma-

tion. Replace clevis pin if necessary.

ADJUSTMENT AFTER INSTALLATION

• Adjust each item of brake pedal after installing the brake pedal assembly to the vehicle. Refer to

BR-11,

"Inspection and Adjustment"

.

• Perform the release position learning of the accelerator pedal.
- MR20DD: Refer to

EC-144, "Work Procedure"

.

- QR25DE: Refer to

EC-553, "Work Procedure"

.

- R9M: Refer to

EC-961, "Work Procedure"

.

PFIA0756J

BR-24

< REMOVAL AND INSTALLATION >

[LHD]

BRAKE PIPING

BRAKE PIPING

FRONT

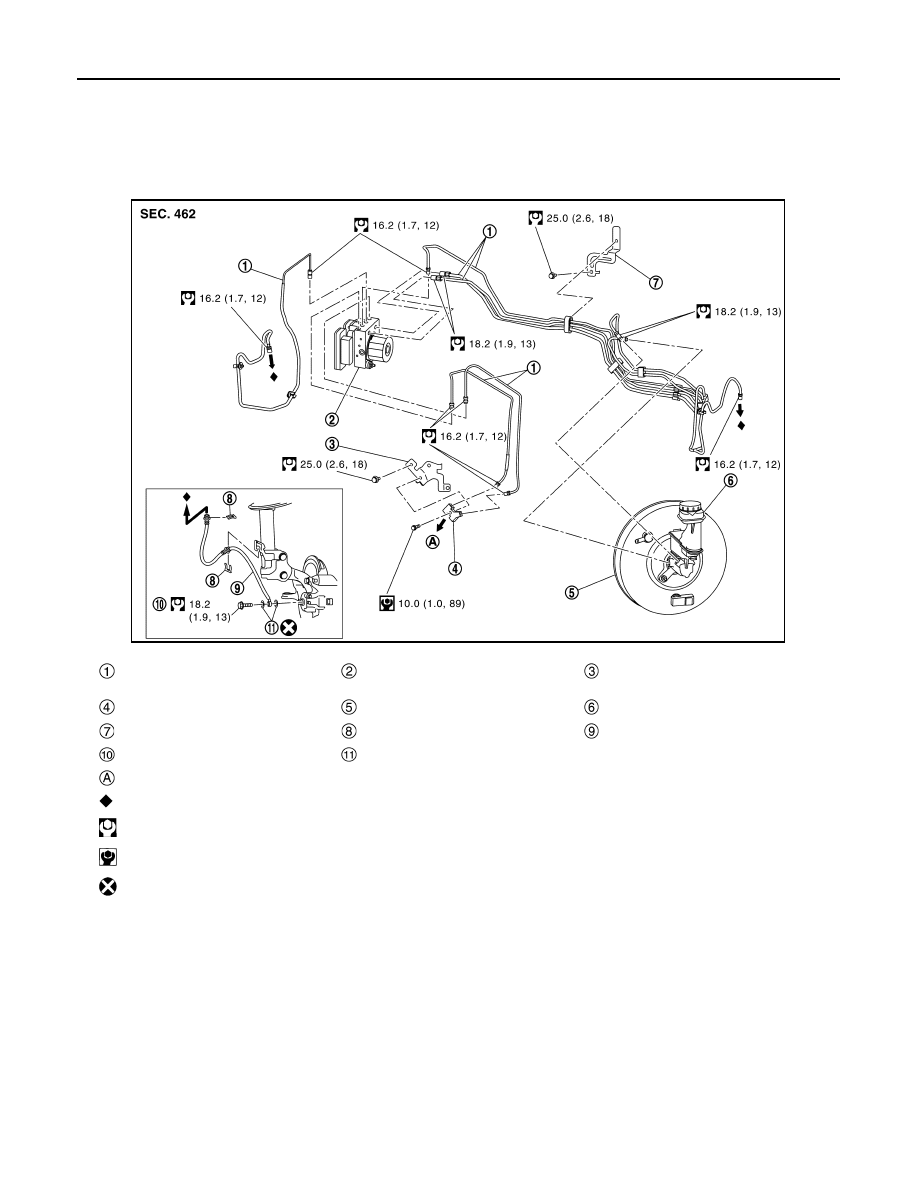

FRONT : Exploded View

INFOID:0000000010838510

Brake tube

ABS actuator and electric unit (con-
trol unit)

Connector bracket

Connector

Brake booster

Master cylinder assembly

Brake tube bracket

Lock plate

Brake hose

Union bolt

Copper washer

To rear brake tube

: Indicates that the part is connected at points with same symbol in actual vehicle.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

JSFIA2537GB

BRAKE PIPING

BR-25

< REMOVAL AND INSTALLATION >

[LHD]

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

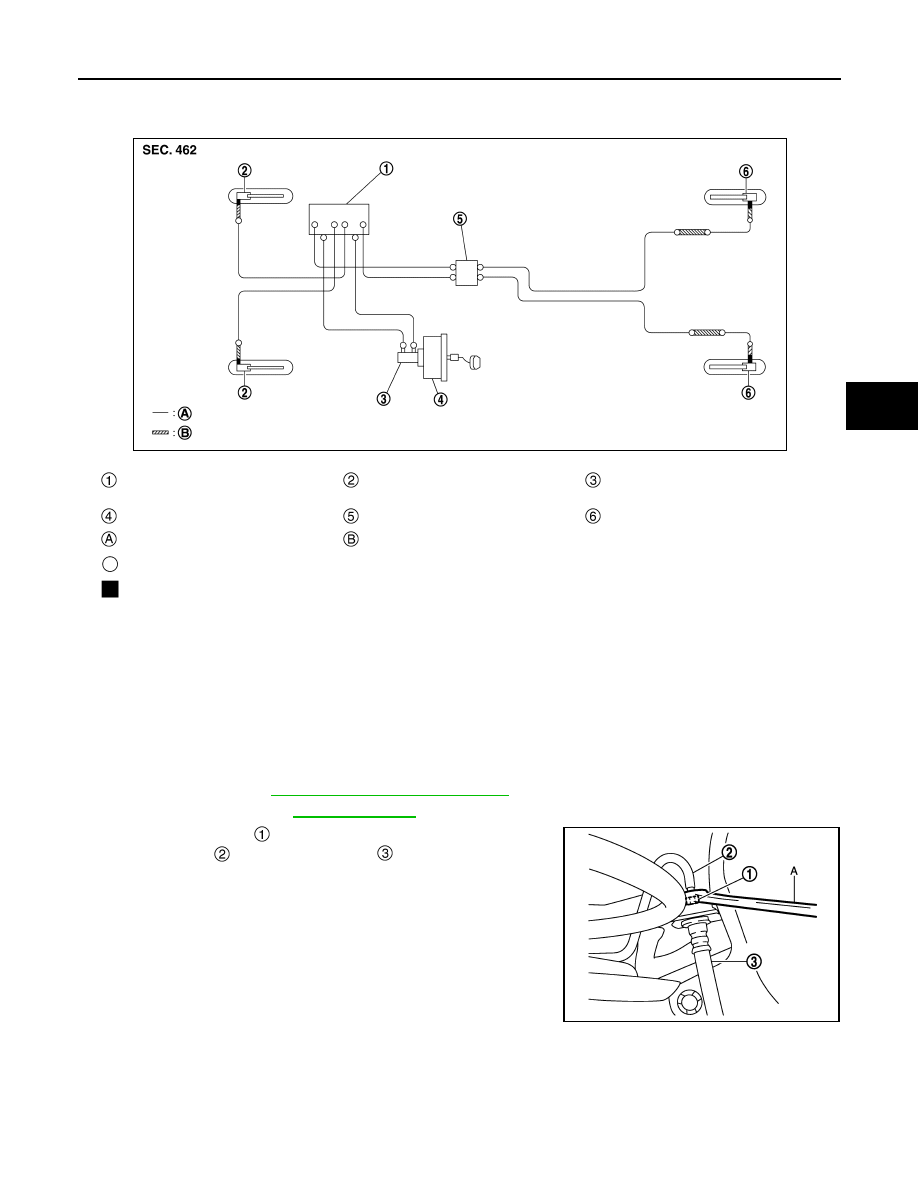

FRONT : Hydraulic Piping
