CAMSHAFT

EM-85

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

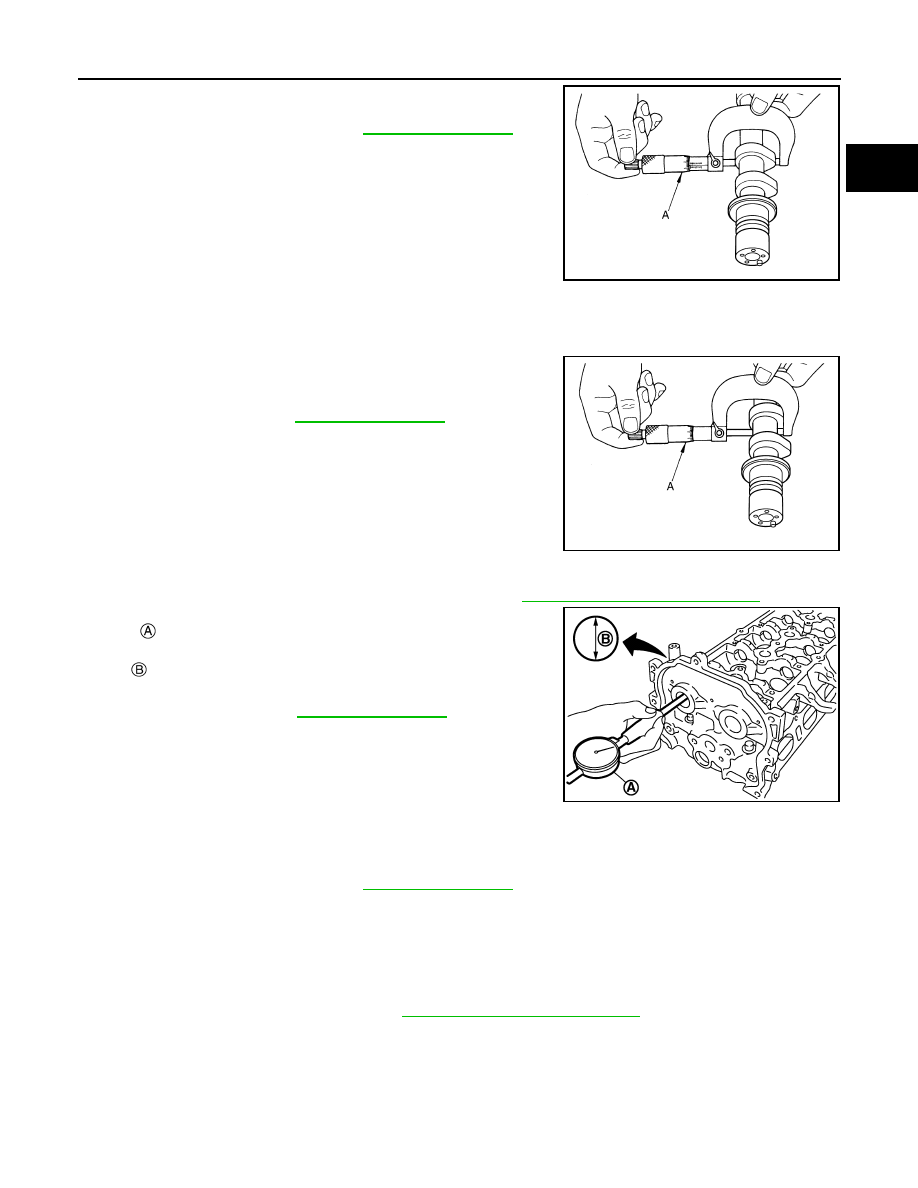

Measure the camshaft cam height with a micrometer (A).

2.

If it exceeds the limit, replace camshaft.

Camshaft Journal Oil Clearance

CAMSHAFT JOURNAL OUTER DIAMETER
Measure the outer diameter of camshaft journal with a micrometer
(A).

CAMSHAFT BRACKET INNER DIAMETER
• Tighten camshaft bracket bolts with specified torque. Refer to

EM-81, "Removal and Installation"

.

• Measure the inner diameter of camshaft bracket with a cylinder

gauge .

CAMSHAFT JOURNAL OIL CLEARANCE
• (Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter)

• If it exceeds the limit, replace camshaft or cylinder head, or both.

NOTE:
Camshaft bracket cannot be replaced as a single part, because it is machined together with cylinder head.
Replace whole cylinder head assembly.

Camshaft End Play

1.

Install camshaft in cylinder head. Refer to

EM-81, "Removal and Installation"

.

Standard and Limit

: Refer to

EM-133, "Camshaft"

.

JPBIA6382ZZ

Standard

: Refer to

EM-133, "Camshaft"

.

JPBIA6337ZZ

: Measuring direction of inner diameter

Standard

: Refer to

EM-133, "Camshaft"

.

PBIC3180J

Standard and Limit

: Refer to

EM-133, "Camshaft"

.

EM-86

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CAMSHAFT

2.

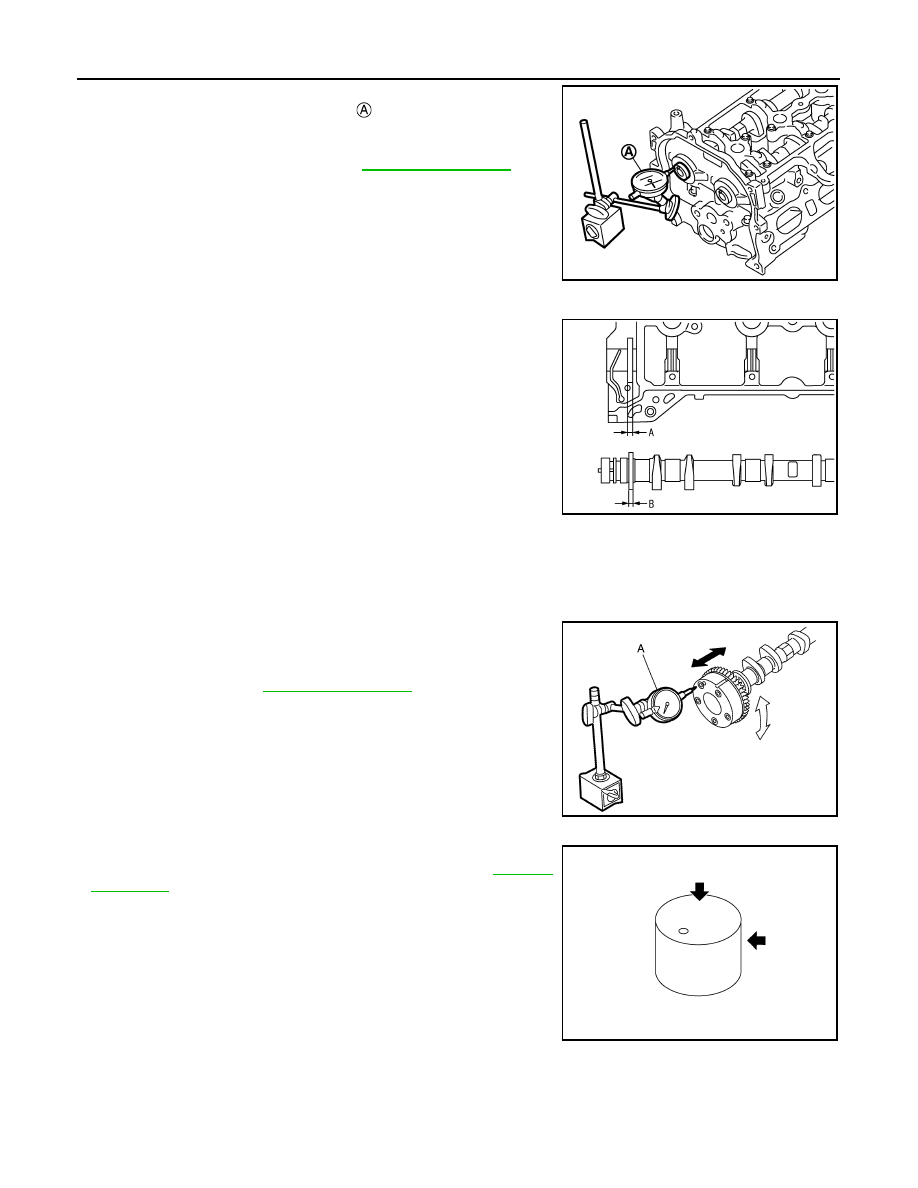

Install dial indicator in thrust direction on front end of camshaft.
Read the end play of dial indicator

 when camshaft is moved

forward/backward (in direction to axis).

• Measure the following parts if out of the standard.
- Dimension (A) for groove of cylinder head No. 1 journal

- Dimension (B) for camshaft flange

• Refer to the standards above, and then replace camshaft and/

or cylinder head.

Camshaft Sprocket Runout

1.

Put V-block on precise flat table, and support No. 2 and 5 journals of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft sprocket) because it has a different diameter
from the other four locations.

2.

Measure the camshaft sprocket runout with a dial indicator (A).
(Total indicator reading)

• If it exceeds the limit, replace camshaft sprocket.

Valve Lifter

Check if surface of valve lifter has any wear or cracks.
• If anything above is found, replace valve lifter. Refer to

EM-133,

"Camshaft"

.

Valve Lifter Clearance

VALVE LIFTER OUTER DIAMETER

Standard and Limit

: Refer to

EM-133, "Camshaft"

.

PBIC3181J

Standard

: 4.000 - 4.030 mm (0.1575 - 0.1587 in)

Standard

: 3.877 - 3.925 mm (0.1526 - 0.1545 in)

PBIC3183J

Limit

: Refer to

EM-133, "Camshaft"

.

JPBIA4413ZZ

KBIA0182E

CAMSHAFT

EM-87

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

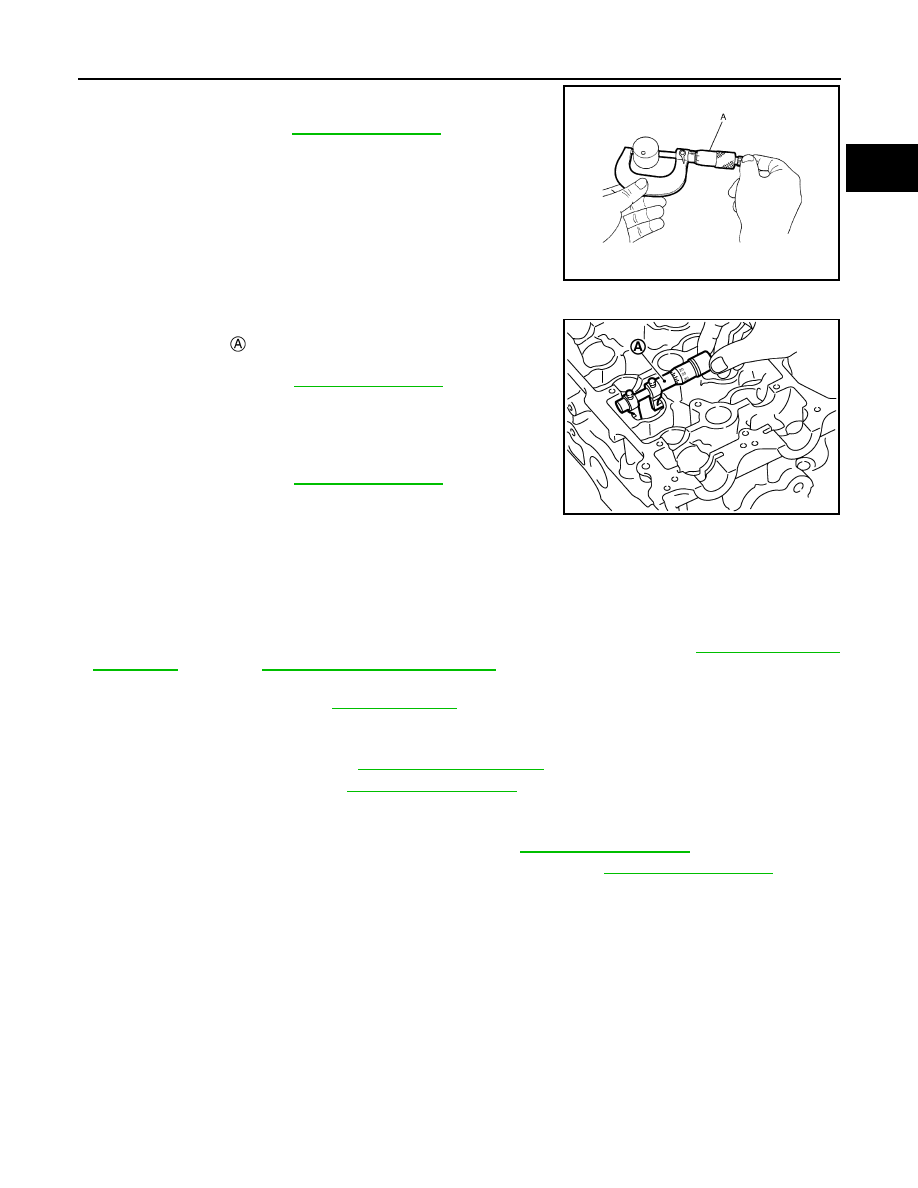

• Measure the outer diameter of valve lifter with a micrometer (A).

VALVE LIFTER HOLE DIAMETER
Measure the inner diameter of valve lifter hole of cylinder head with
an inside micrometer

.

VALVE LIFTER CLEARANCE
• (Valve lifter clearance) = (Valve lifter hole diameter) – (Valve lifter

outer diameter)

• If out of the standard, referring to the each standard of valve lifter

outer diameter and valve lifter hole diameter, replace either or both
valve lifter and cylinder head.

INSPECTION AFTER INSTALLATION

Inspection of Camshaft Sprocket (INT), (EXH) Oil Groove

CAUTION:

• Perform this inspection only when DTC P0011 or P0014 is detected in self-diagnostic results of CON-

SULT and it is directed according to inspection procedure of EC section. Refer to

EC-174, "Diagnosis

Procedure"

 (P0011) or

EC-178, "Diagnosis Procedure"

 (P0014).

• Check when engine is cold so as to prevent burns by the splashing engine oil.
1.

Check engine oil level. Refer to

LU-9, "Inspection"

.

2.

Perform the following procedure so as to prevent the engine from being unintentionally started while
checking.

a.

Release the fuel pressure. Refer to

EC-152, "Work Procedure"

.

b.

Remove intake manifold. Refer to

EM-33, "Exploded View"

.

c.

Disconnect ignition coil and injector harness connectors.

d.

Support the bottom surface of engine using a transmission jack, and then remove the engine mounting
bracket (RH) and engine mounting insulator (RH). Refer to

EM-56, "Exploded View"

.

3.

Remove intake or exhaust valve timing control solenoid valve. Refer to

EM-67, "Exploded View"

.

• Lift the front side of the engine with a jack base to remove intake or exhaust valve timing control sole-

noid valve.

4.

Clean the mounting area of intake or exhaust valve timing control solenoid valve, and then insert a clean
waste with no oil adhesion into the oil hole of the cylinder head.

5.

Install engine mounting insulator (RH) and engine mounting bracket (RH). (After the removal of intake or
exhaust valve timing control solenoid valve and insertion of a waste into the oil hole.)

6.

Perform cranking to check that engine oil comes out from the oil hole (mounting hole of intake or exhaust
valve timing control solenoid valve) of cylinder head.
• Regarding the engine oil check, judge it by the amount of oil adhered to the wasted inserted into the oil

hole.

WARNING:

• Never insert fingers into the oil hole.
• Never touch rotating parts (drive belt, idler pulleys and crankshaft pulley, etc.).

CAUTION:

Standard

: Refer to

EM-133, "Camshaft"

.

JPBIA0125ZZ

Standard

: Refer to

EM-133, "Camshaft"

.

Standard

: Refer to

EM-133, "Camshaft"

.

PBIC3184J

EM-88

< UNIT DISASSEMBLY AND ASSEMBLY >

[MR20DD]

CAMSHAFT

• Never perform cranking without installing the engine mounting insulator (RH) and engine mount-

ing bracket (RH).

• Prevent splashing by using a shop cloth so as to prevent the worker from injury from engine oil

and so as to prevent engine oil contamination.

• Prevent splashing by using a shop cloth so as to prevent engine oil from being splashed to

engine and vehicle. Especially, be careful not to apply engine oil to rubber parts of drive belt,
engine mounting insulator, etc. Wipe engine oil off immediately if it is splashed.

7.

Perform the following inspection if engine oil does not come out from intake or exhaust valve timing con-
trol solenoid valve oil hole of the cylinder head.
• Clean oil groove between oil strainer and intake valve timing control solenoid valve. Refer to

LU-7,

"Engine Lubrication System"

 and

LU-8, "Engine Lubrication System Schematic"

.

8.

Remove components between intake or exhaust valve timing control solenoid valve and camshaft
sprocket (INT) or (EXH), and then check each oil groove for clogging.
• Clean oil groove if necessary. Refer to

LU-7, "Engine Lubrication System"

 and

LU-8, "Engine Lubrica-

tion System Schematic"

.

9.

After inspection, install removed parts in the reverse order.
