INTAKE MANIFOLD

EM-33

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

INTAKE MANIFOLD

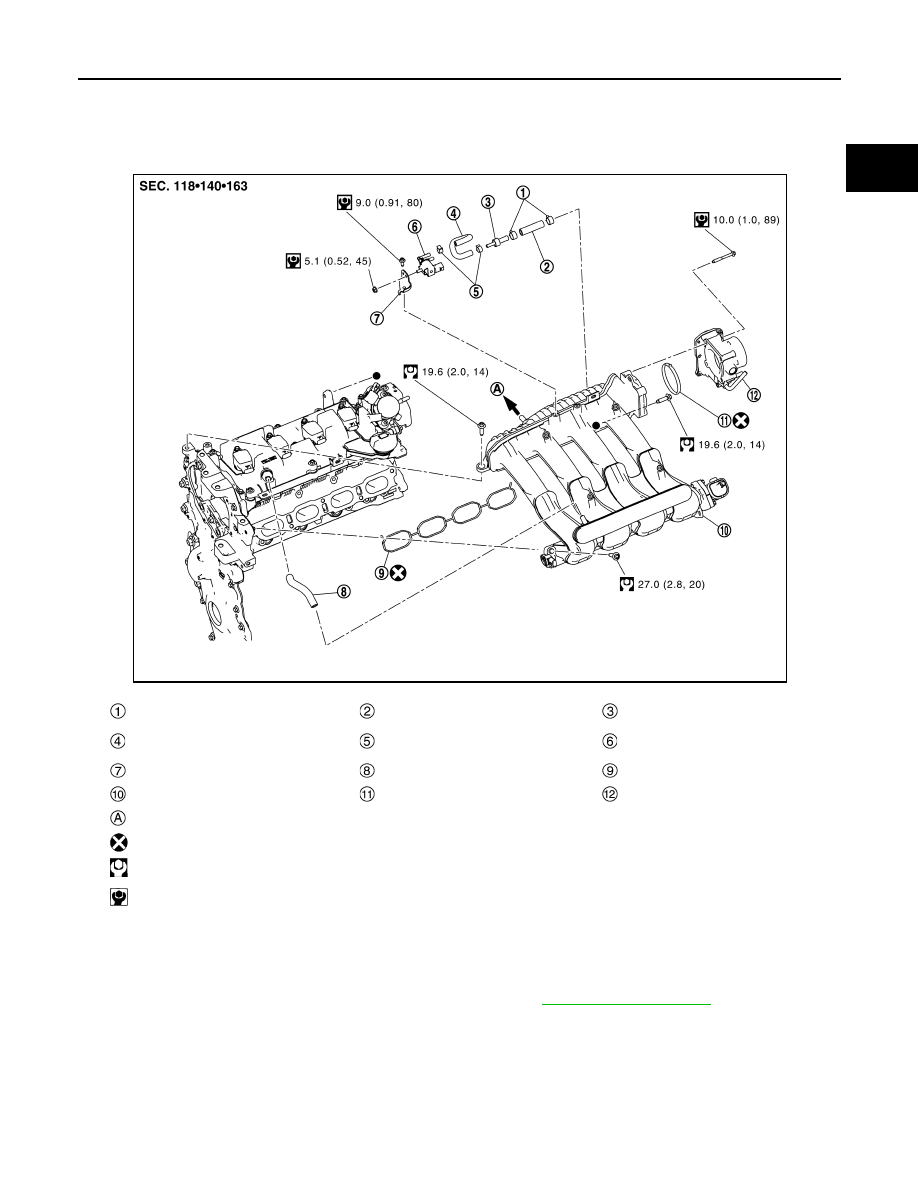

Exploded View

INFOID:0000000010783690

Removal and Installation

INFOID:0000000010783691

REMOVAL

1.

Remove air cleaner assembly and air duct assembly. Refer to

EM-33, "Exploded View"

.

2.

Pull out oil level gauge.

CAUTION:

Cover the oil level gauge guide openings to avoid entry of foreign materials.

Clamp

EVAP hose

Connector

EVAP hose

Clamp

EVAP canister purge volume
control solenoid valve

Bracket

PCV hose

Gasket

Intake manifold

Gasket

Electric throttle control actuator

To brake booster

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JPBIA6811GB

EM-34

< REMOVAL AND INSTALLATION >

[MR20DD]

INTAKE MANIFOLD

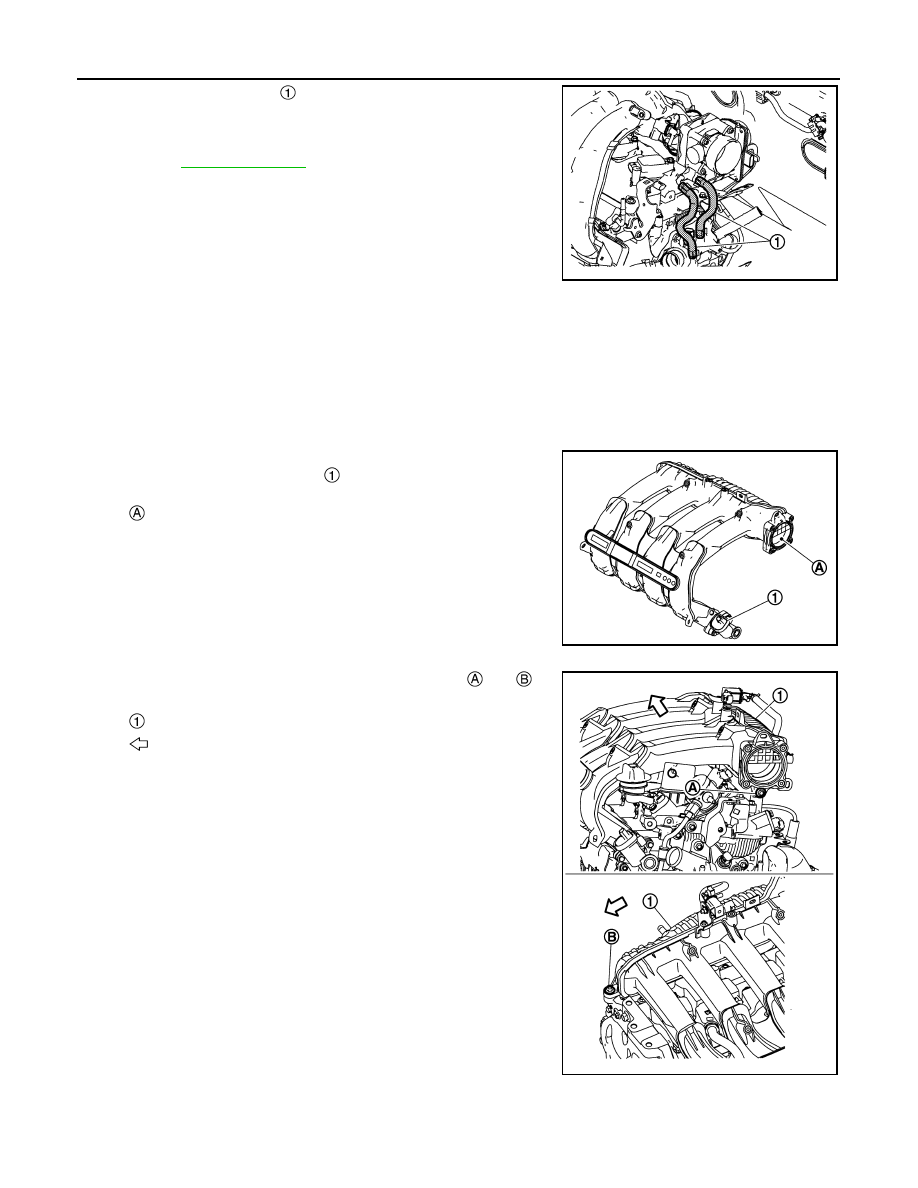

3.

Disconnect water hoses

 from electric throttle control actuator

as follows:
• Drain engine coolant from radiator or attach plug to prevent

engine coolant leakage when engine coolant is not drained.
Refer to

CO-13, "Draining"

.

CAUTION:

Perform this step when the engine is cold.

4.

Remove electric throttle control actuator.

CAUTION:

• Handle carefully to avoid any shock to electric throttle control actuator.
• Never disassemble electric throttle control actuator.

5.

Disconnect vacuum hose from intake manifold.

6.

Disconnect PCV hose from intake manifold and rocker cover.

7.

Remove intake manifold with the following procedure:

CAUTION:

• Handle carefully to avoid any shock to intake manifold

runner control valve motor

.

• Never remove intake manifold runner control valve motor.

(Not designed for disassembly)

• Cover engine openings to avoid entry of foreign materi-

als.

a.

Loosen and remove intake manifold mounting bolts

 and

.

b.

Remove harness clip from intake manifold side.

c.

Disconnect EVAP hose from intake manifold.

d.

Disconnect harness connector from EVAP canister purge vol-
ume control valve.

JPBIA6509ZZ

: Electric throttle control actuator side

JPBIA6787ZZ

: Intake manifold

: Engine front

JPBIA6812ZZ

INTAKE MANIFOLD

EM-35

< REMOVAL AND INSTALLATION >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

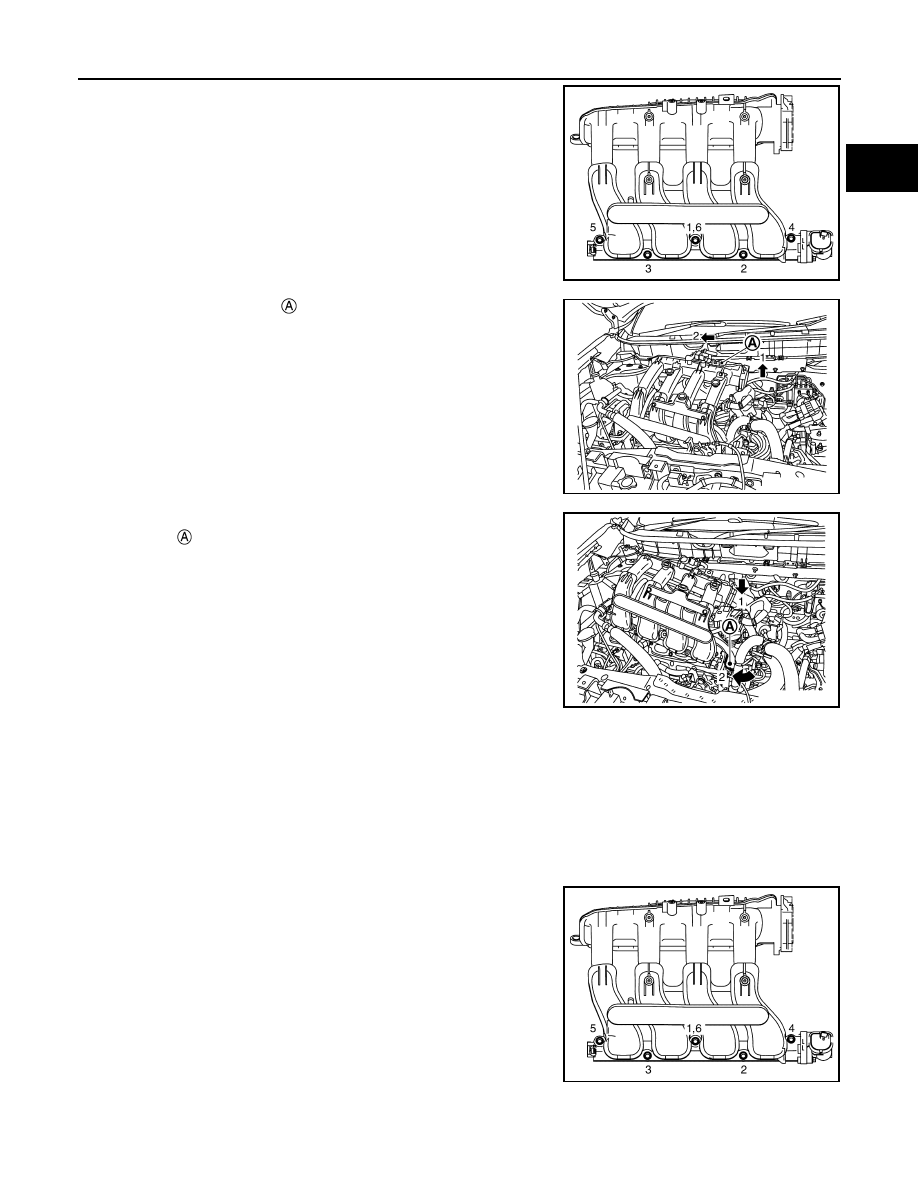

e.

Loosen mounting bolts in the order from 5 to 1 shown in the fig-
ure.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

f.

Lift the surge tank side

 of intake manifold to move it in the

direction of engine front.
NOTE:
Keep off the brake reservoir tank and A/C low pressure pipe.

g.

Lower the surge tank side to pull out intake manifold runner con-
trol valve

 from between harness and cylinder head.

8.

Remove brackets from intake manifold, if necessary. (For air duct assembly and/or engine cover)

9.

Remove EVAP canister purge volume control solenoid valve from intake manifold, if necessary.

INSTALLATION

Note the following, and install in the reverse order of removal.

Intake Manifold

1.

Check if gasket is not dropped from the installation groove of intake manifold.

2.

Install intake manifold with the following procedure:

a.

Temporary tighten in the order 4 to 5 as shown in the figure.

b.

Tighten in the order from 1 to 6 as shown in the figure.

JPBIA6813ZZ

JPBIA6833ZZ

JPBIA6834ZZ

JPBIA6813ZZ

EM-36

< REMOVAL AND INSTALLATION >

[MR20DD]

INTAKE MANIFOLD

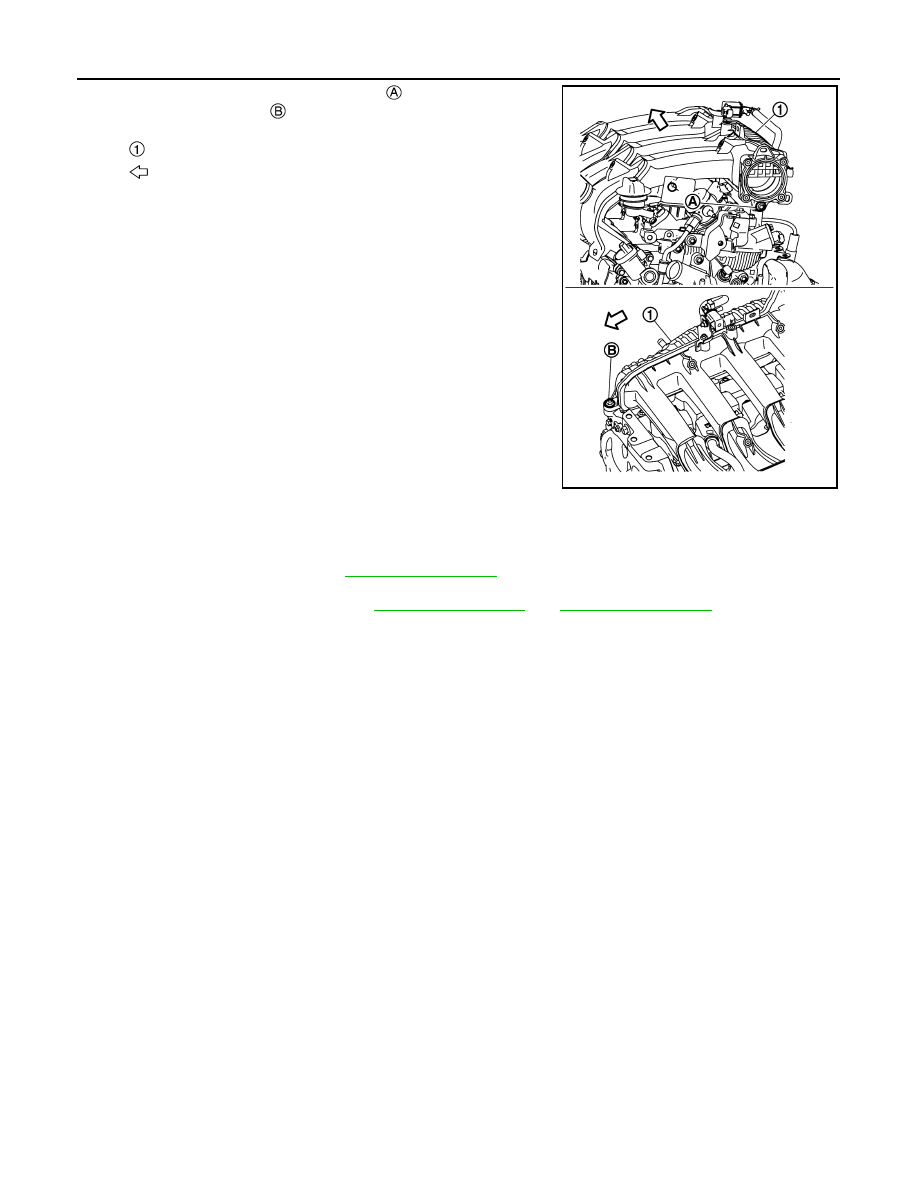

c.

Tighten intake manifold mounting bolt

. Then tighten intake

manifold mounting bolt

.

Electric Throttle Control Actuator

• Tighten bolts of electric throttle control actuator equally and diagonally in several steps.
• Perform “Throttle Valve Closed Position Learning” after repair when removing harness connector of the elec-

tric throttle control actuator. Refer to

EC-145, "Description"

.

• Perform “Throttle Valve Closed Position Learning” and “Idle Air Volume Learning” after repair when replacing

electric throttle control actuator. Refer to

EC-145, "Description"

 and

EC-146, "Description"

.

: Intake manifold

: Engine front

JPBIA6812ZZ
