Nissan X-Trail 32. Manual - part 68

AV-264

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

REAR DOOR SPEAKER

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000010714918

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-19, "Removal and Installation"

.

2.

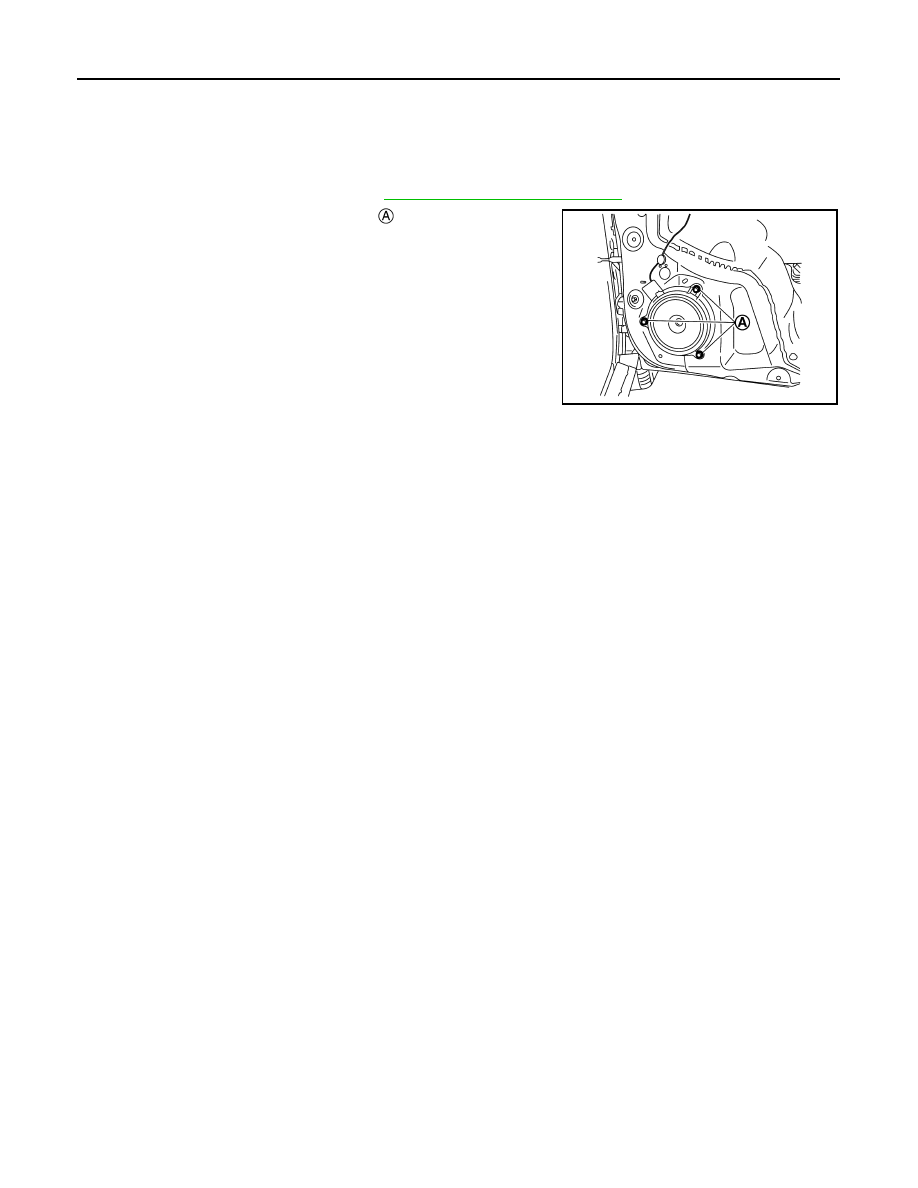

Remove the rear door speaker screws

.

3.

Disconnect the harness connector from the rear door speaker
and remove.

INSTALLATION

Install in the reverse order of removal.

JSNIA6727ZZ

AV

FRONT SQUAWKER

AV-265

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT SQUAWKER

Removal and Installation

INFOID:0000000010714919

REMOVAL

1.

Remove the front pillar garnish. Refer to

INT-23, "FRONT PILLAR GARNISH : Removal and Installation"

.

2.

Remove the front squawker grille using a suitable tool. Refer to

IP-13, "Exploded View"

 (LHD models),

IP-

40, "Exploded View"

 (RHD models).

3.

Pull out the front squawker, disconnect the harness connector from front squawker and remove.

INSTALLATION

Installation is in the reverse order of removal.

AV-266

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

USB CONNECTOR AND AUX JACK

USB CONNECTOR AND AUX JACK

Removal and Installation

INFOID:0000000010714920

REMOVAL

1.

Remove the instrument lower panel. Refer to

IP-13, "Exploded View"

 (LHD models),

IP-40, "Exploded

View"

 (RHD models).

2.

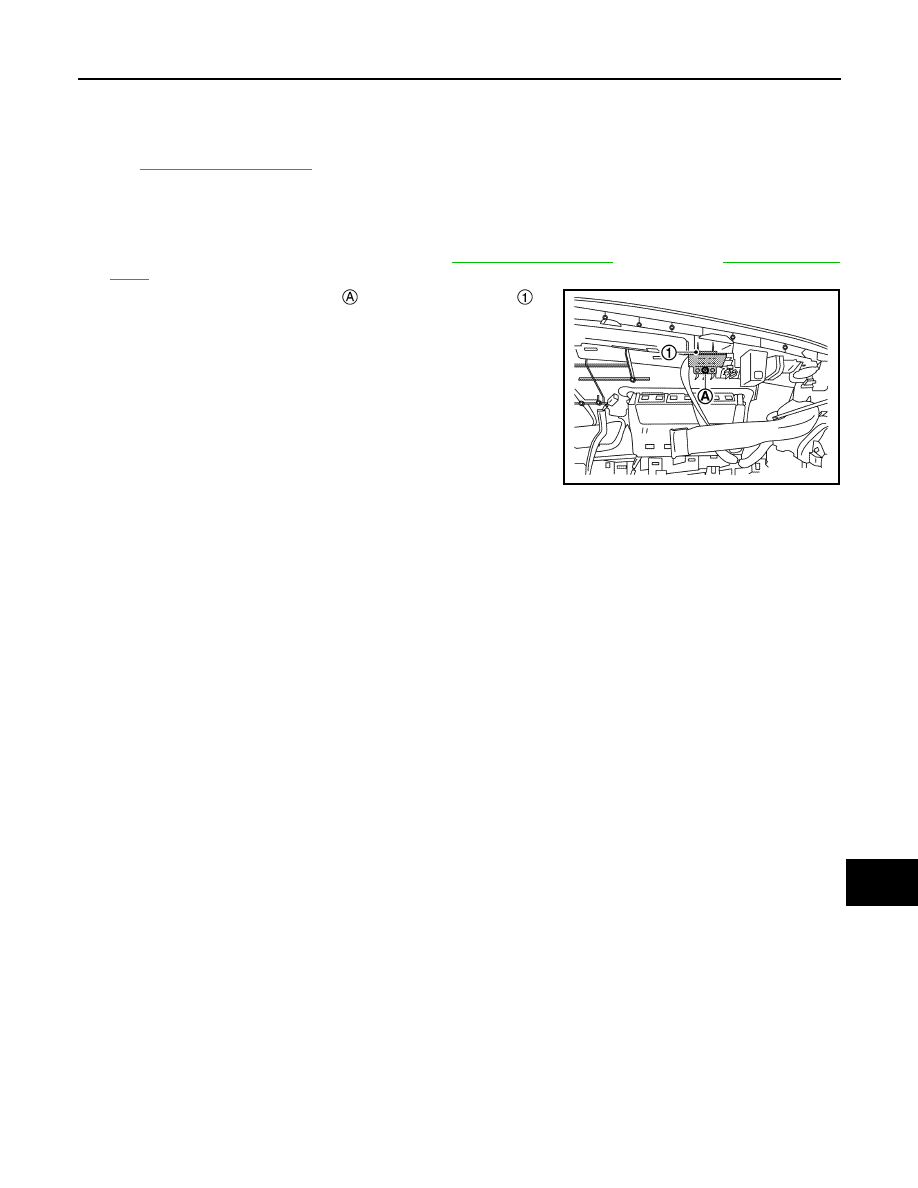

Release the pawls

 and remove the USB connector AUX jack

 from the instrument lower panel

.

INSTALLATION

Installation is in the reverse order of removal.

JSNIA6728ZZ

AV

GPS ANTENNA

AV-267

< REMOVAL AND INSTALLATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

GPS ANTENNA

Feeder Layout

INFOID:0000000010714921

Refer to

AV-276, "Feeder Layout"

.

Removal and Installation

INFOID:0000000010714922

REMOVAL

1.

Remove the instrument panel assembly. Refer to

IP-13, "Exploded View"

 (LHD models),

IP-40, "Exploded

View"

 (RHD models).

2.

Remove the GPS antenna screw

 and the GPS antenna

.

INSTALLATION

Installation is in the reverse order of removal.

JSNIA6732ZZ
