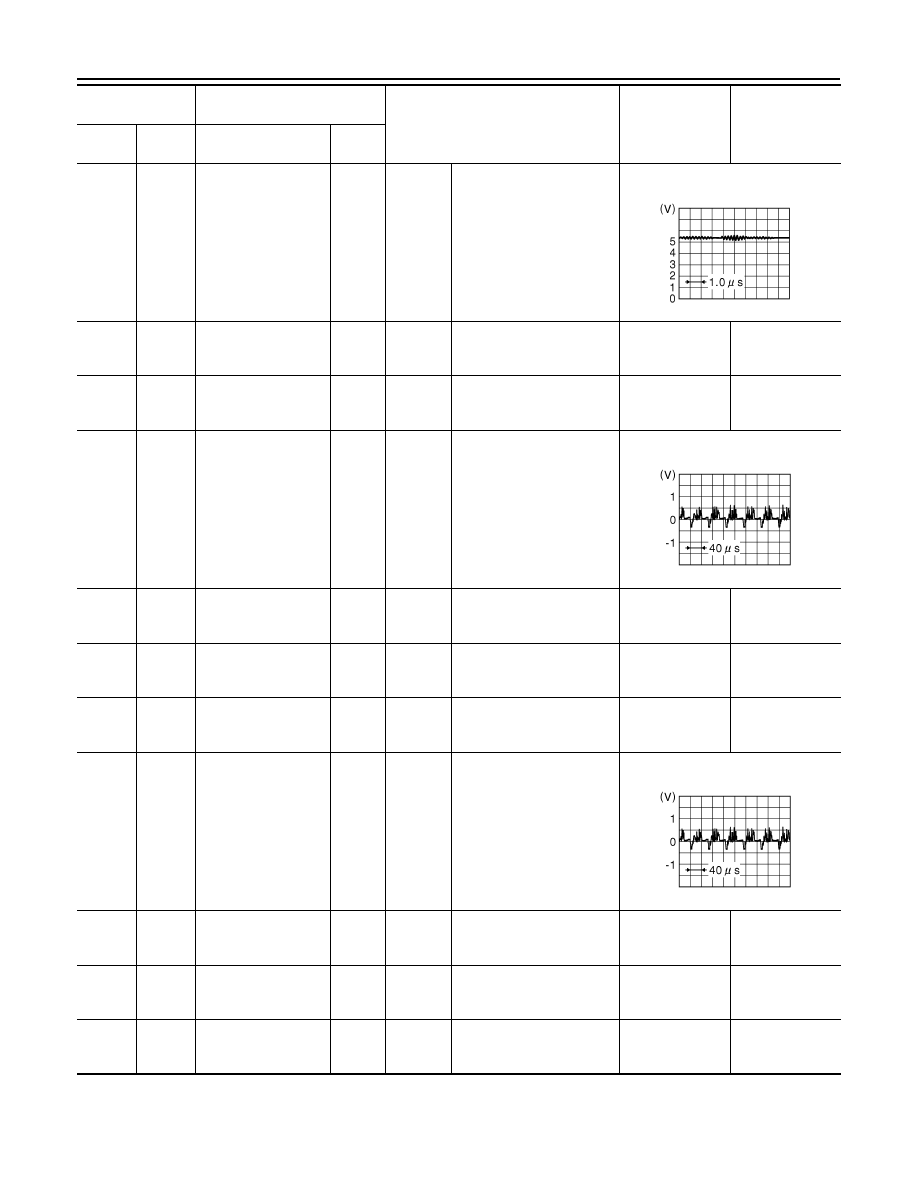

AROUND VIEW MONITOR CONTROL UNIT

49

(LG)

52

(B)

Rear camera commu-
nication signal

Input/

Output

Ignition

switch

ON

—

Input the waveform synchronized

with the communication status.

50

(R)

52

(B)

Rear camera power
supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

52

(B)

Ground

Rear camera ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

53

(W)

54

Rear camera image
signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

54

Ground

Rear camera image
signal (

−

)

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

56

(L)

58

(Y)

Driver side camera
power supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

58

(Y)

Ground

Driver side camera
ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

59

(G)

60

Driver side camera
image signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

60

Ground

Driver side camera
image signal (

−

)

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

62

(B)

64

(L)

Passenger side cam-
era power supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

64

(L)

Ground

Passenger side cam-
era ground

—

Ignition

switch

ON

—

0  -  0.1  V

0  V

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0836GB

JSNIA0834GB

JSNIA0834GB

AV

AROUND VIEW MONITOR CONTROL UNIT

AV-117

< ECU DIAGNOSIS INFORMATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

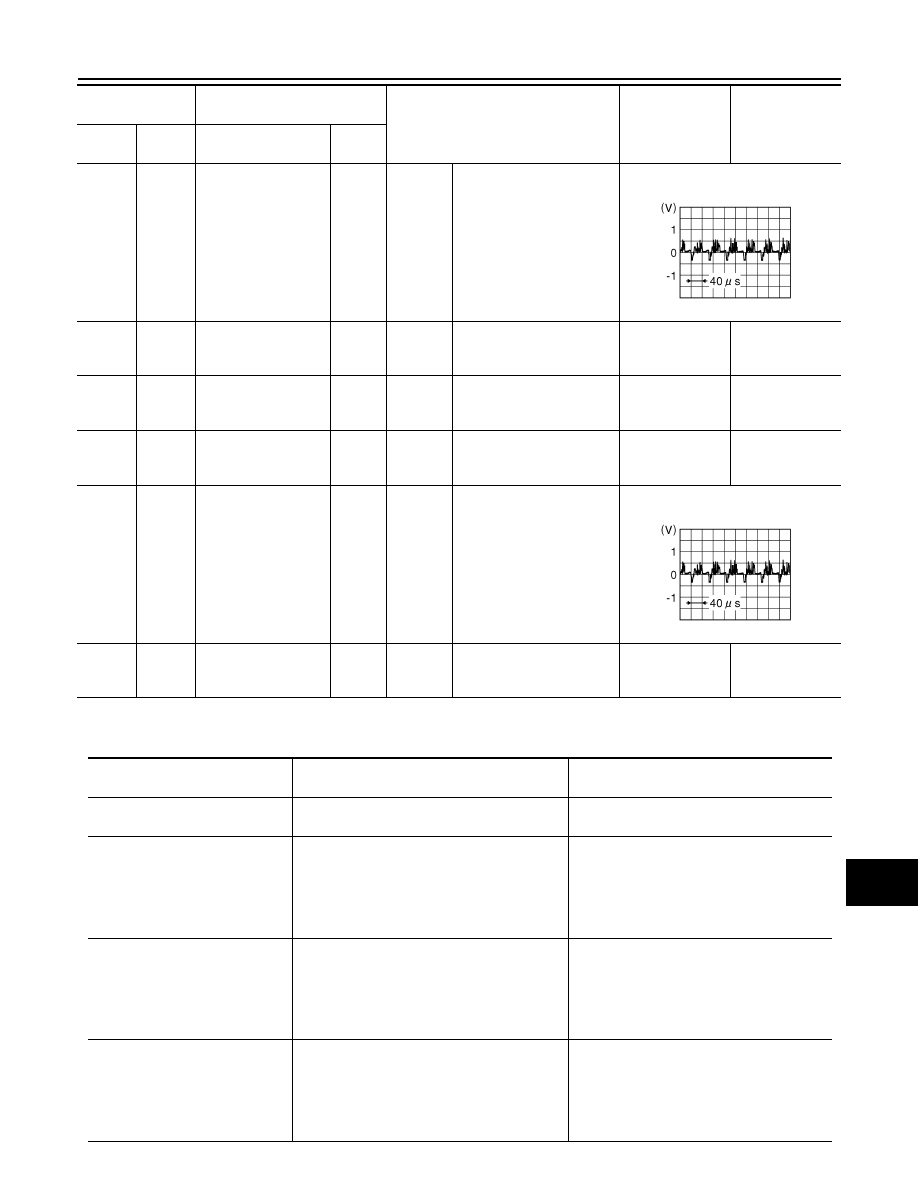

Fail-Safe (Around View Monitor Control Unit)

INFOID:0000000010714813

65

(Y)

66

Passenger side cam-
era image signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

66

Ground

Passenger side cam-
era image signal (

−

)

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

68

(L)

70

(V)

Front camera power
supply

Output

Ignition

switch

ON

—

5.0 - 9.0 V

6.0 V

70

(V)

Ground

Front camera ground

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

71

(LG)

72

Front camera image
signal (+)

Input

Ignition

switch

ON

—

Input the waveform synchronized

with the camera image signal.

72

Ground

Front camera image
signal (

−

)

—

Ignition

switch

ON

—

0 - 0.1 V

0 V

Terminal

(Wire color)

Description

Condition

Standard value

Reference value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0834GB

JSNIA0834GB

DTC

Display contents of CONSULT

Malfunction detection condition

Fail-safe condition

C1A00
CONTROL UNIT

Around view monitor control unit internal mal-
function

Around view monitor with Park Assist is can-
cel

C1A01
POWER SUPPLY CIRC

• The battery voltage sent to around view mon-

itor control unit remains less than 7.9 V for 5
seconds

• The battery voltage sent to around view mon-

itor control unit remains more than 19.3 V for
5 seconds

Around view monitor with Park Assist is can-
cel

C1A03
VHCL SPEED SE CIRC

If the vehicle speed signal (wheel speed) from
ABS actuator and electric unit (control unit) re-
ceived by the around view monitor control unit
via CAN communication, are inconsistent

• BSW system is cancel
• DAA system is stopped.
• MOD (Moving Object Detection) function is

cancel

• Around view monitor with Park Assist is

cancel

C1A04
ABS/TCS/VDC CIRC

If a malfunction occurs in the VDC/TCS/ABS
system

• BSW system is cancel
• DAA system is stopped.
• MOD (Moving Object Detection) function is

cancel

• Around view monitor with Park Assist is

cancel

AV-118

< ECU DIAGNOSIS INFORMATION >

[WITH NAVIGATION]

AROUND VIEW MONITOR CONTROL UNIT

C1A07
CVT CIRCUIT

If the CVT is malfunction

Around view monitor with Park Assist is can-
cel

C1A39
STRG SEN CIR

If the steering angle sensor is malfunction

• BSW system is cancel
• DAA system is stopped.
• MOD (Moving Object Detection) function is

cancel

C1A56
SONAR CIRC

The around view monitor control unit detects
that sonar control unit has a malfunction

Around view monitor with Park Assist is can-
cel

U0122
VDC P-RUN DIAGNOSIS

If around view monitor control unit detects an
error signal that is received from ABS actuator
and electric unit (control unit) via CAN commu-
nication

• BSW system is cancel
• DAA system is stopped.
• MOD (Moving Object Detection) function is

cancel

• Around view monitor with Park Assist is

cancel

U0416
VDC CHECKSUM DIAGNOSIS

If around view monitor control unit detects an
error signal that is received from ABS actuator
and electric unit (control unit) via CAN commu-
nication

• BSW system is cancel
• DAA system is stopped.
• MOD (Moving Object Detection) function is

cancel

• Around view monitor with Park Assist is

cancel

U0428
ST ANGLE SENSOR CALIBRA-
TION

Neutral position adjustment of steering angle
sensor is not complete.

• Predicted course line is not displayed.
• MOD (Moving Object Detection) function is

stopped.

• BSW system is stopped.
• DAA system is stopped.
• Around view monitor with Park Assist is

stopped

U1000
CAN COMM CIRCUIT

When around view monitor control unit cannot
transmit/receive CAN communication signal
continuously for 2 seconds or more.

The following functions are stopped
• When communication of steering angle

sensor signal is not normal

- Predicted course line is not displayed.
- MOD (Moving Object Detection) function is

stopped.

- BSW system is stopped.
- DAA system is stopped.
• When communication of vehicle signal,

wheel speed sensor signal, and shift signal
is not normal

- Predicted course line is not displayed.
- MOD (Moving Object Detection) function is

stopped.

- LDW system is stopped.
- BSW system is stopped.
- DAA system is stopped.
- Around view monitor with Park Assist is

stopped

U1010
CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detected.

MOD (Moving Object Detection) function is
stopped.

U111A
REAR CAMERA IMAGE SIGNAL

No-signal status of rear camera image signal is
continued for 500 ms or more while ignition
switch is ON.
NOTE:
Current malfunction is displayed only and is not
saved.

• Camera image is not displayed (Gray

screen display).

• MOD (Moving Object Detection) function is

stopped.

U111B
SIDE CAMERA RH IMAGE SIG-
NAL

No-signal status of side camera RH image sig-
nal is continued for 500 ms or more while igni-
tion switch is ON.
NOTE:
Current malfunction is displayed only and is not
saved.

Camera image is not displayed (Gray screen
display).

DTC

Display contents of CONSULT

Malfunction detection condition

Fail-safe condition

AV

AROUND VIEW MONITOR CONTROL UNIT

AV-119

< ECU DIAGNOSIS INFORMATION >

[WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111C
FRONT CAMERA IMAGE SIG-
NAL

No-signal status of front camera image signal is
continued for 500 ms or more while ignition
switch is ON.
NOTE:
Current malfunction is displayed only and is not
saved.

Camera image is not displayed (Gray screen
display).

U111D
SIDE CAMERA LH IMAGE SIG-
NAL

No-signal status of side camera LH image sig-
nal is continued for 500 ms or more while igni-
tion switch is ON.
NOTE:
Current malfunction is displayed only and is not
saved.

Camera image is not displayed (Gray screen
display).

U112F
EPS CIRCUIT

If the EPS system is malfunction

Around view monitor with Park Assist is can-
cel

U1232
ST ANGLE SEN CALIB

Neutral position adjustment of steering angle
sensor is performed. NG signal from steering
angle sensor is received.

• Predicted course line is not displayed.
• MOD (Moving Object Detection) function is

stopped.

• BSW system is stopped.
• DAA system is stopped.
• Around view monitor with Park Assist is

stopped.

U1302
CAMERA POWER VOLT

Camera power supply voltage does not satisfy
the following conditions for 2 seconds or more
when ignition switch is turned ON.
• When camera power supply output is ON: 5.9

- 6.5 V

• When OFF: 0 V by camera power supply

measurement.

Camera power output is stopped

U1304
CAMERA IMAGE CALIB

• When camera calibration is incomplete.
• When camera information in around view

monitor control unit and information read
from camera are not the same.

NOTE:
Current malfunction is displayed only and is not
saved.

• Unmatched icon

 display (red) is dis-

played (applicable for unmatched camera
only).

• Around view monitor with Park Assist is

cancel.

U1305
CONFIG UNFINISH

The vehicle setting of around view monitor con-
trol unit is incomplete.
NOTE:
Current malfunction is displayed only and is not
saved.

• On applicable camera screen

 marking

(Red) is displayed.

• Around view monitor with Park Assist is

cancel.

U1308
R-CAMERA (R&L) CALIB JDG-
MNT

Camera image calibration is incomplete

• MOD (Moving Object Detection) function is

stopped.

• BSW system is stopped.
• Around view monitor with Park Assist is

stopped.

U1309
PUMP INPUT CURRENT JUDGE

Around view monitor control unit detects the
value of current from pump control unit is incor-
rect

BSW system is stopped.

U130A PUMP ECU JUDGE

If the pump control unit is malfunction

BSW system is stopped.

U130B
RR CAMERA COMM ERROR

Around view monitor control unit receives the
incorrect communication signal from rear view
camera

• MOD (Moving Object Detection) function is

stopped.

• BSW system is stopped.

U1320
REPROGRAMMING

Reprogramming of around view monitor control
unit is incomplete

Around view monitor with Park Assist is can-
cel

U150E
BCM CIRCUIT

If the BCM is malfunction

Around view monitor with Park Assist is can-
cel

DTC

Display contents of CONSULT

Malfunction detection condition

Fail-safe condition
