Nissan X-Trail 32. Manual - part 8

AV-24

< WIRING DIAGRAM >

[BASE AUDIO]

BASE AUDIO

WIRING DIAGRAM

BASE AUDIO

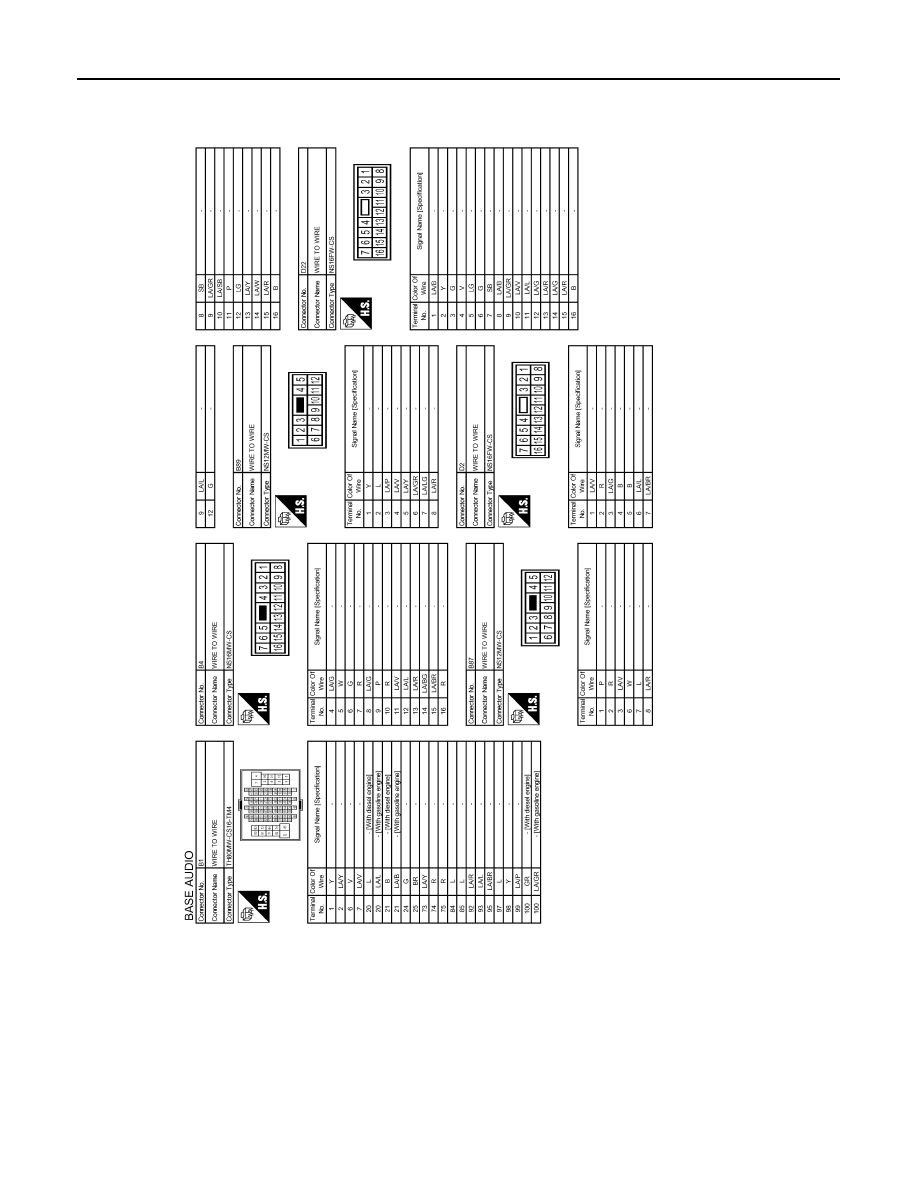

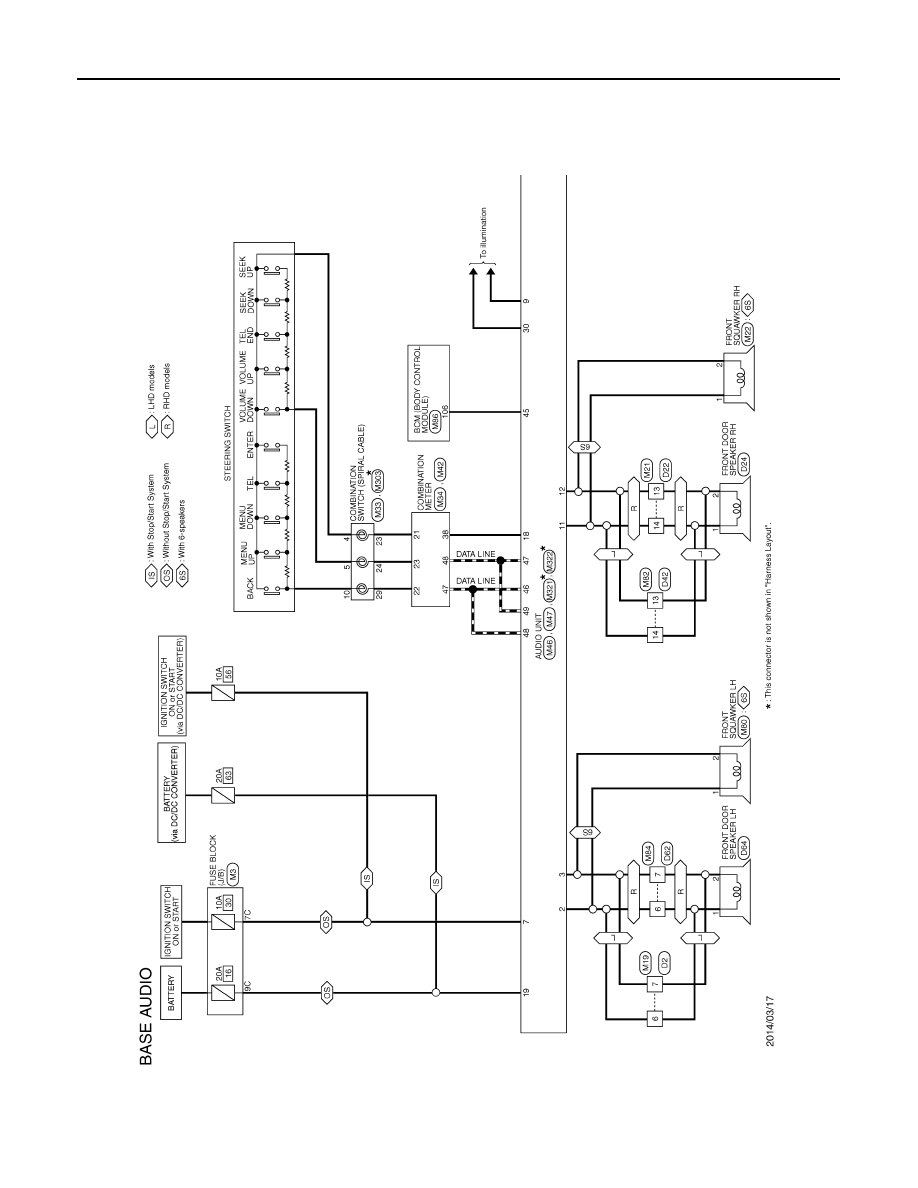

Wiring Diagram

INFOID:0000000010714757

JRNWD4104GB

AV

BASE AUDIO

AV-25

< WIRING DIAGRAM >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD4105GB

AV-26

< WIRING DIAGRAM >

[BASE AUDIO]

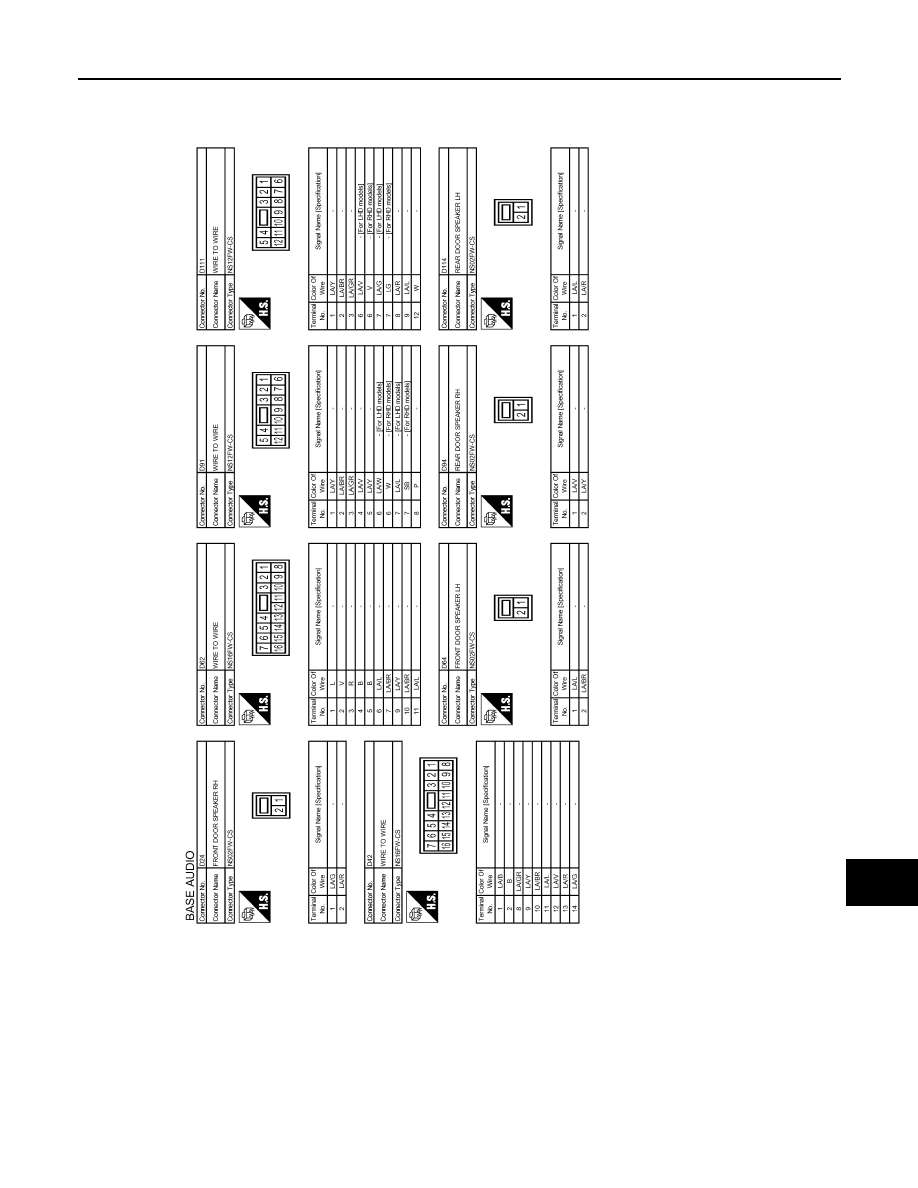

BASE AUDIO

JRNWD4106GB

AV

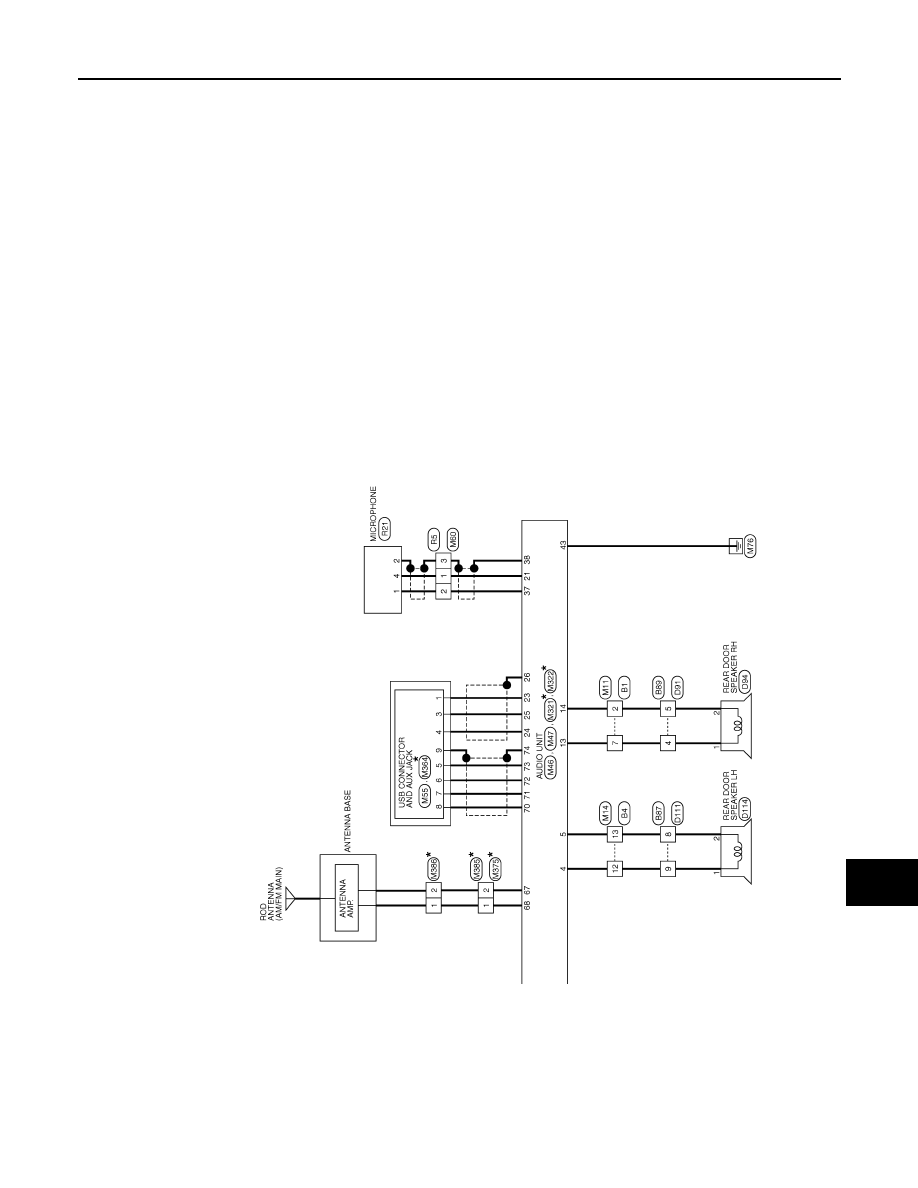

BASE AUDIO

AV-27

< WIRING DIAGRAM >

[BASE AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

JRNWD4107GB
