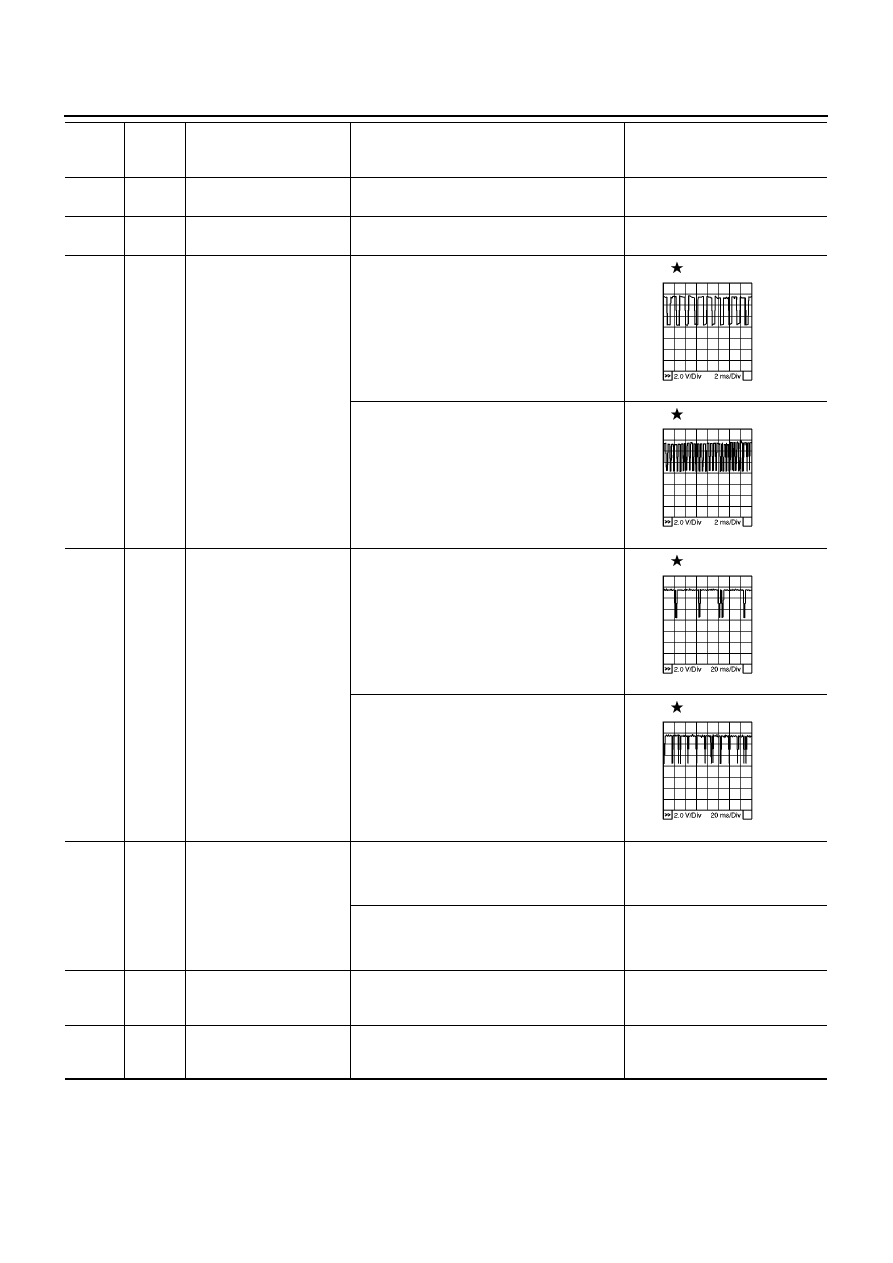

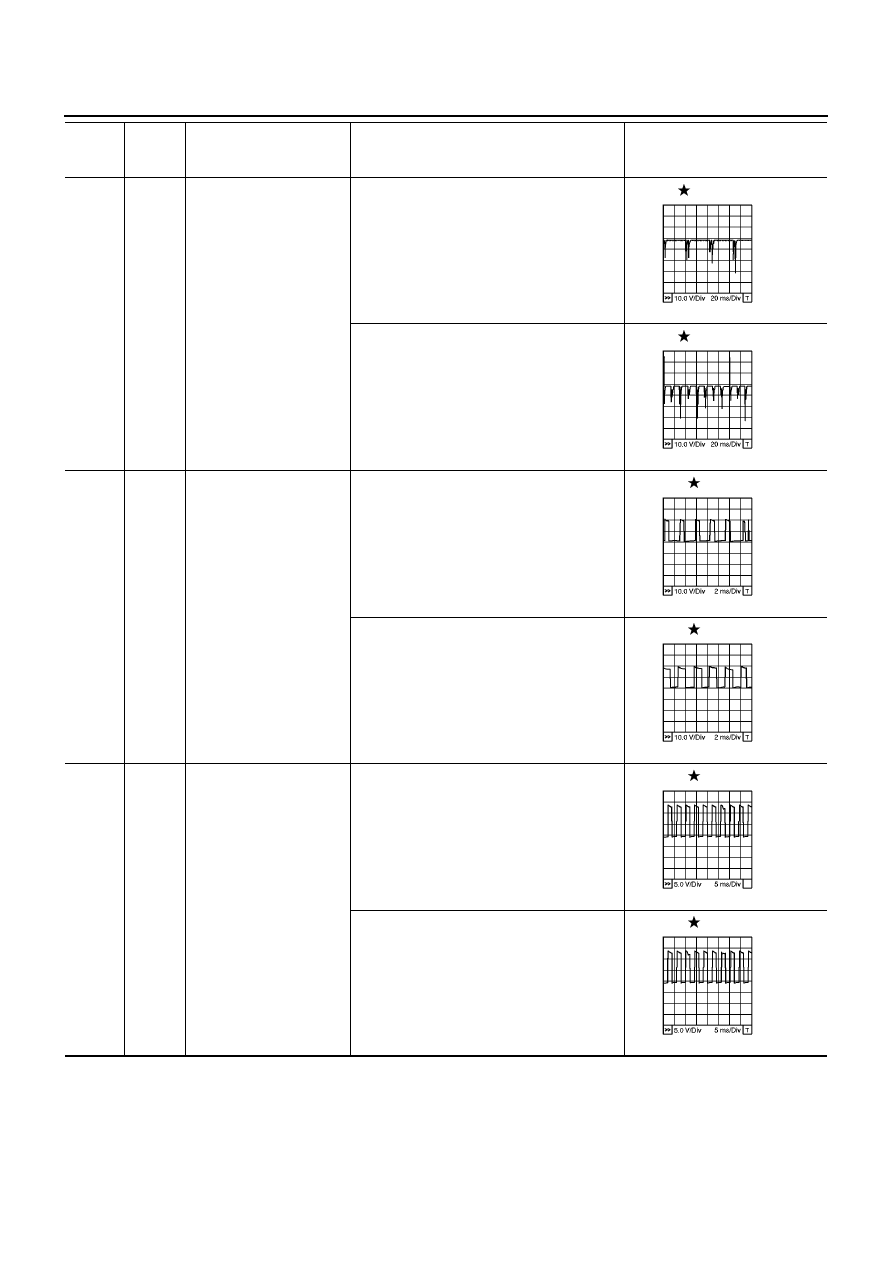

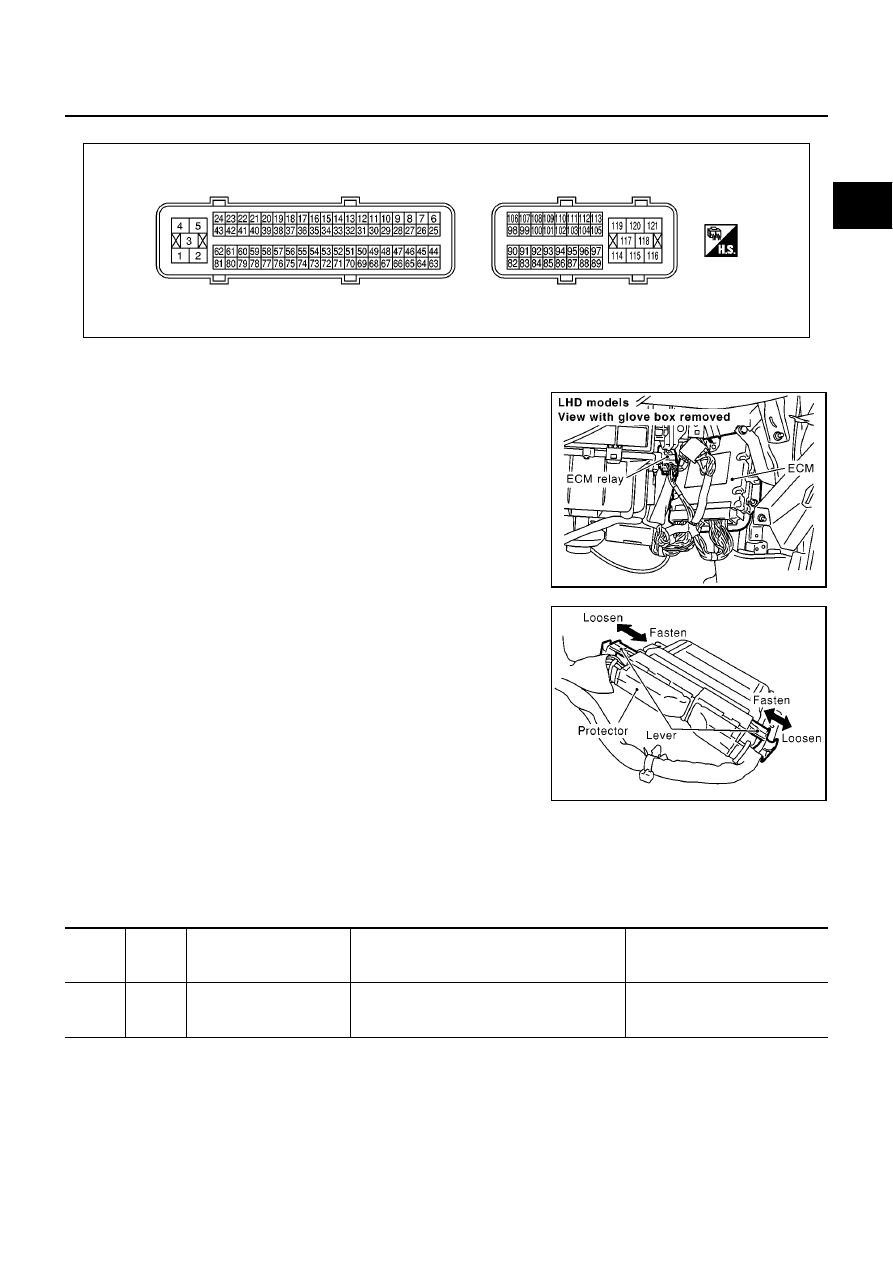

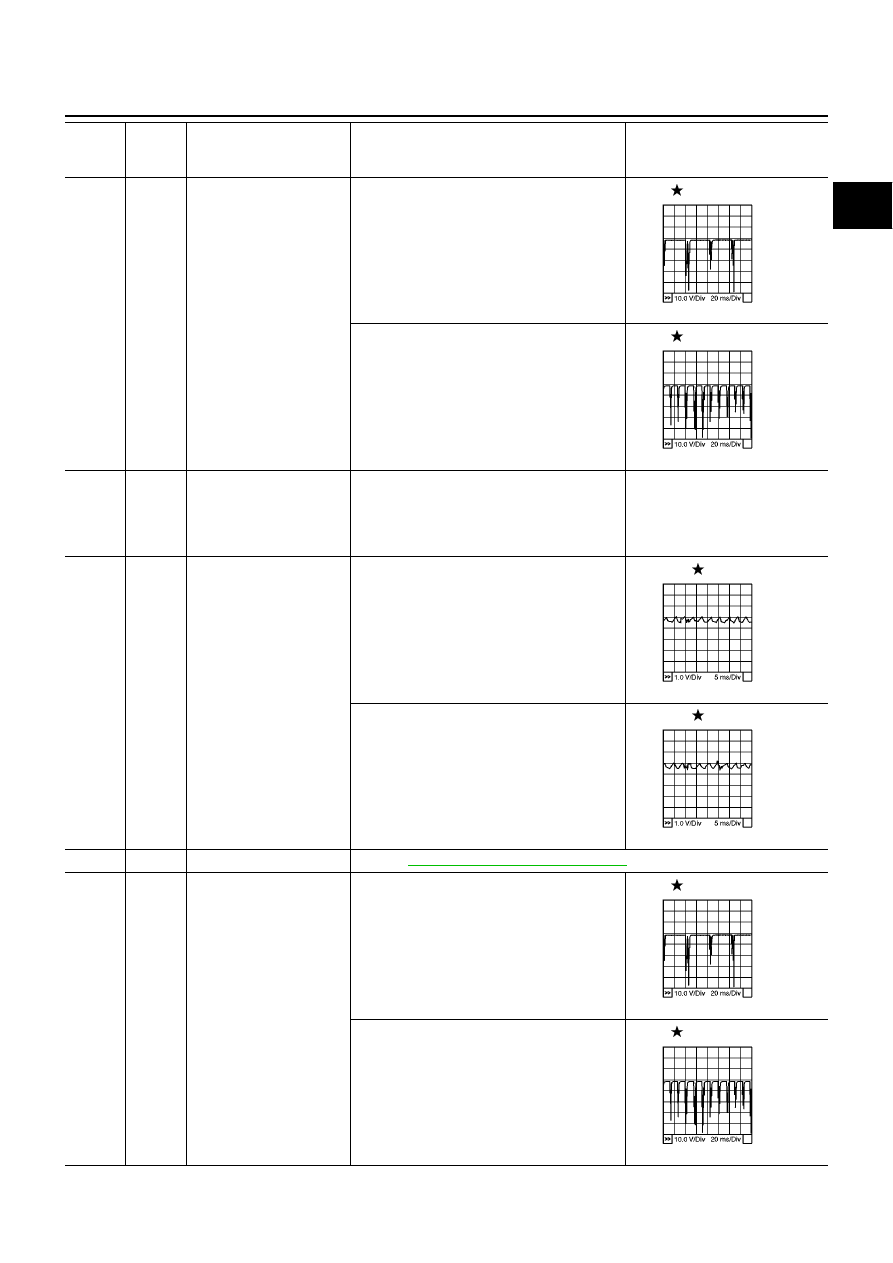

TROUBLE DIAGNOSIS EC-57 [YD (WITH EURO-OBD)] C D E F G H I J K L M A EC ECM Harness Connector Terminal Layout EBS013JP ECM Terminals And Reference Value EBS013JQ PREPARATION 1. ECM is located behind the glove box. For this inspection, 2. Remove ECM harness protector. 3. When disconnecting ECM harness connector, loosen it with 4. Connect a break-out box (SST) and Y-cable adapter (SST) ● Use extreme care not to touch 2 pins at one time. ● Data is for comparison and may not be exact. ECM INSPECTION TABLE Remarks: Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam- MBIB0045E MBIB1086E MBIB0145E TERMI- NAL NO. WIRE COLOR ITEM CONDITION DATA (DC Voltage and Pulse Signal) 1 B ECM ground [Engine is running] ● Idle speed Approximately 0V |
