Qashqai J11. Door & Lock

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-209

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

SYSTEM (INTELLIGENT KEY SYSTEM)

INTELLIGENT KEY SYSTEM

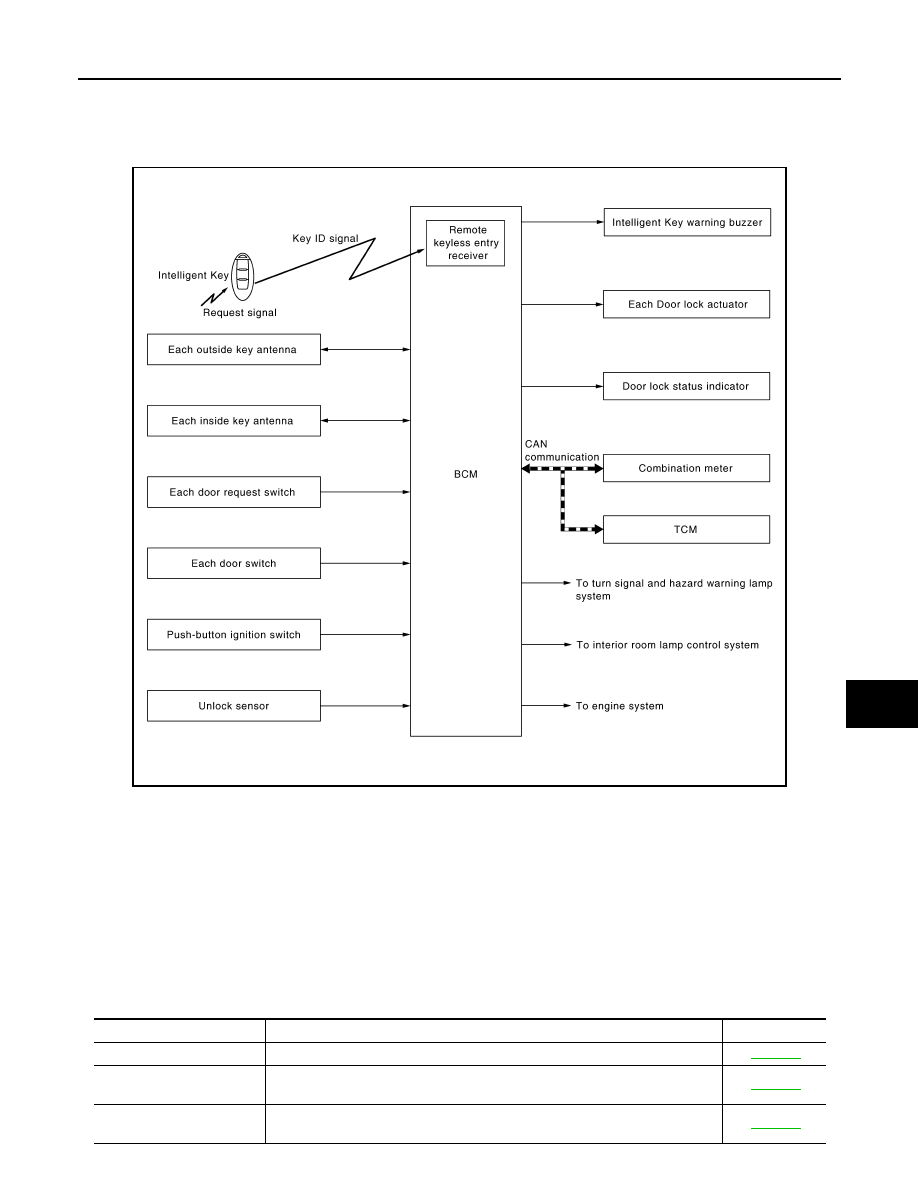

INTELLIGENT KEY SYSTEM : System Diagram

INFOID:0000000010434763

INTELLIGENT KEY SYSTEM : System Description

INFOID:0000000010434764

• The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/

unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verifica-
tion using two-way communication between the Intelligent Key and the vehicle (BCM).

CAUTION:

The driver should always carry the Intelligent Key

• The settings for each function can be changed with CONSULT.
• If an Intelligent Key is lost, a new Intelligent Key can be registered. A maximum of 4 Intelligent Keys can be

registered.

• It is possible to perform a diagnosis on the system and register an Intelligent Key with CONSULT.

JMKIB3316GB

Function

Description

Refer

Door lock

Lock/unlock can be performed by pressing the request switch

DLK-210

Back door open

The back door can be opened by carrying the Intelligent Key and pressing the
back door opener switch.

DLK-213

Remote keyless entry

Lock/unlock can be performed by pressing the remote controller button of the In-
telligent Key

DLK-214

DLK-210

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

DOOR LOCK FUNCTION

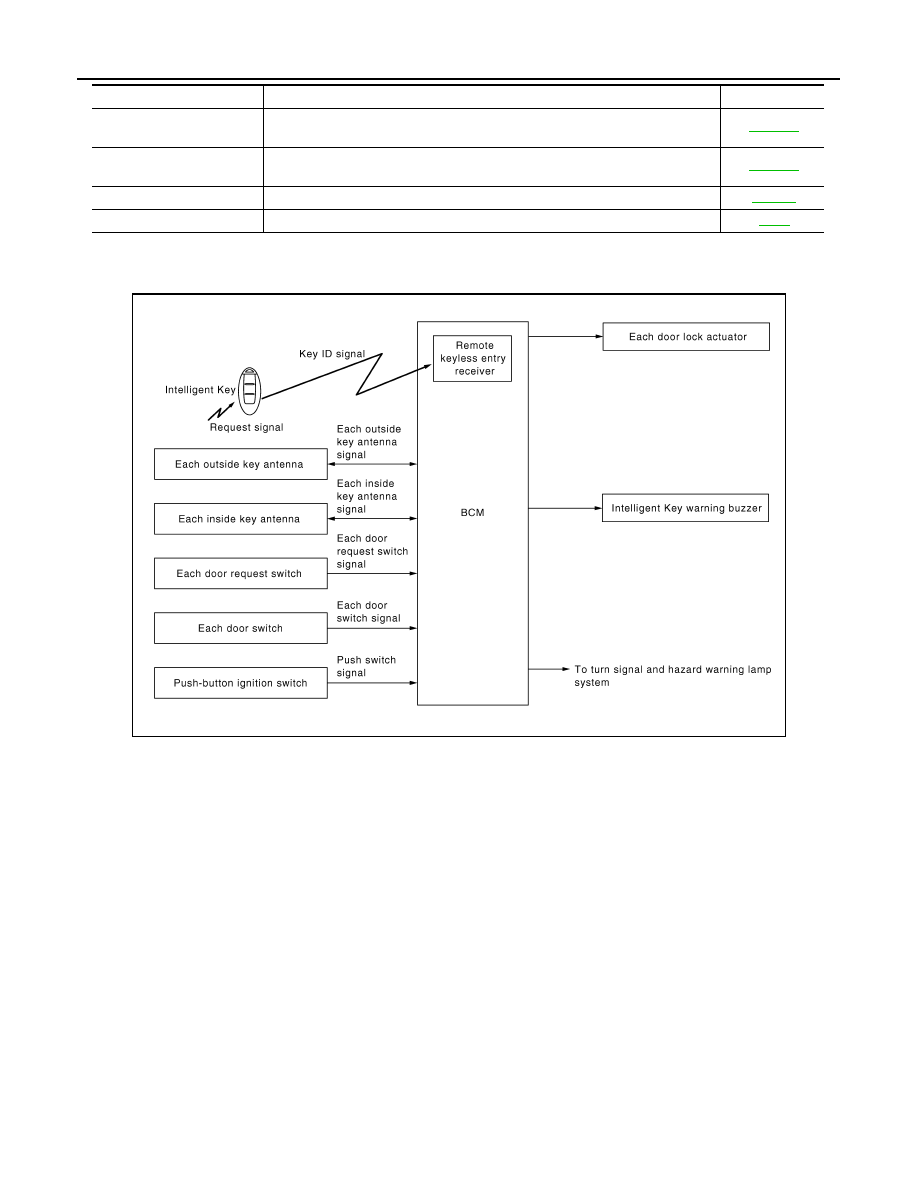

DOOR LOCK FUNCTION : System Diagram

INFOID:0000000010434765

DOOR LOCK FUNCTION : System Description

INFOID:0000000010434766

When pressing the door request switch, it is possible to lock and unlock the door by carrying the Intelligent
Key.

OPERATION DESCRIPTION

• When the BCM detects that each door request switch is pressed, it activates the outside key antenna and

inside key antenna corresponding to the pressed door request switch and transmits the request signal to the
Intelligent Key. And then, check that the Intelligent Key is near the door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• BCM lock/unlock each door and blinks hazard warning lamps (lock: 1 time, unlock: 2 times) at the same time

as a reminder.

OPERATION CONDITION

If the following conditions are satisfied, door lock/unlock operation is performed if the door request switch is
operated.

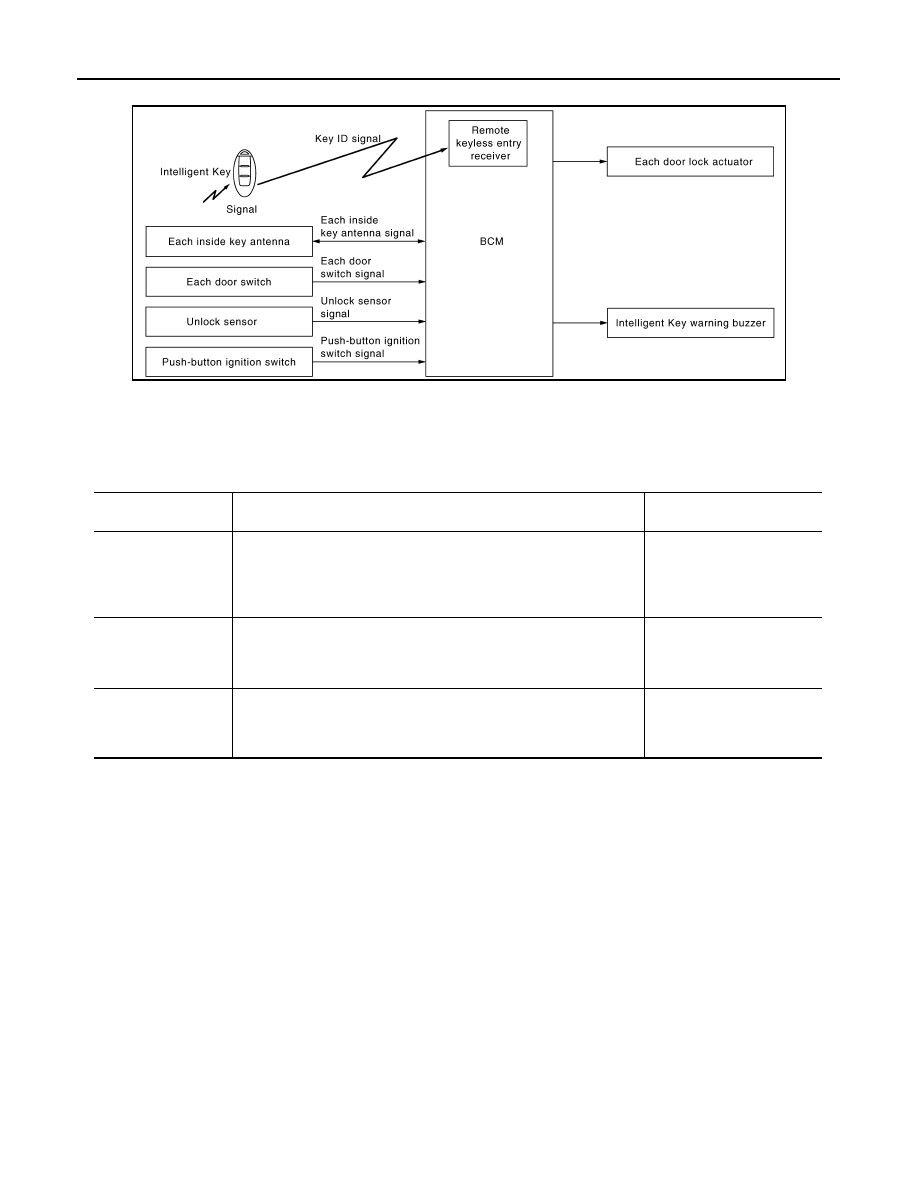

Key reminder

The key reminder buzzer sounds a warning if the door is locked with the key left
inside the vehicle

DLK-216

Warning

If an action that does not meet the operating condition of the Intelligent Key sys-
tem is taken, the buzzer sounds to inform the driver

DLK-216

Engine start

The engine can be turned on while carrying the Intelligent Key

SEC-15

Interior room lamp control

Interior room lamp is controlled according to door lock/unlock state

INL-8

Function

Description

Refer

JMKIB3317GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-211

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

*: Even with a registered Intelligent Key remaining inside the vehicle, door locks can be unlocked from outside of the vehicle with a spare
Intelligent Key as long as key IDs are different.

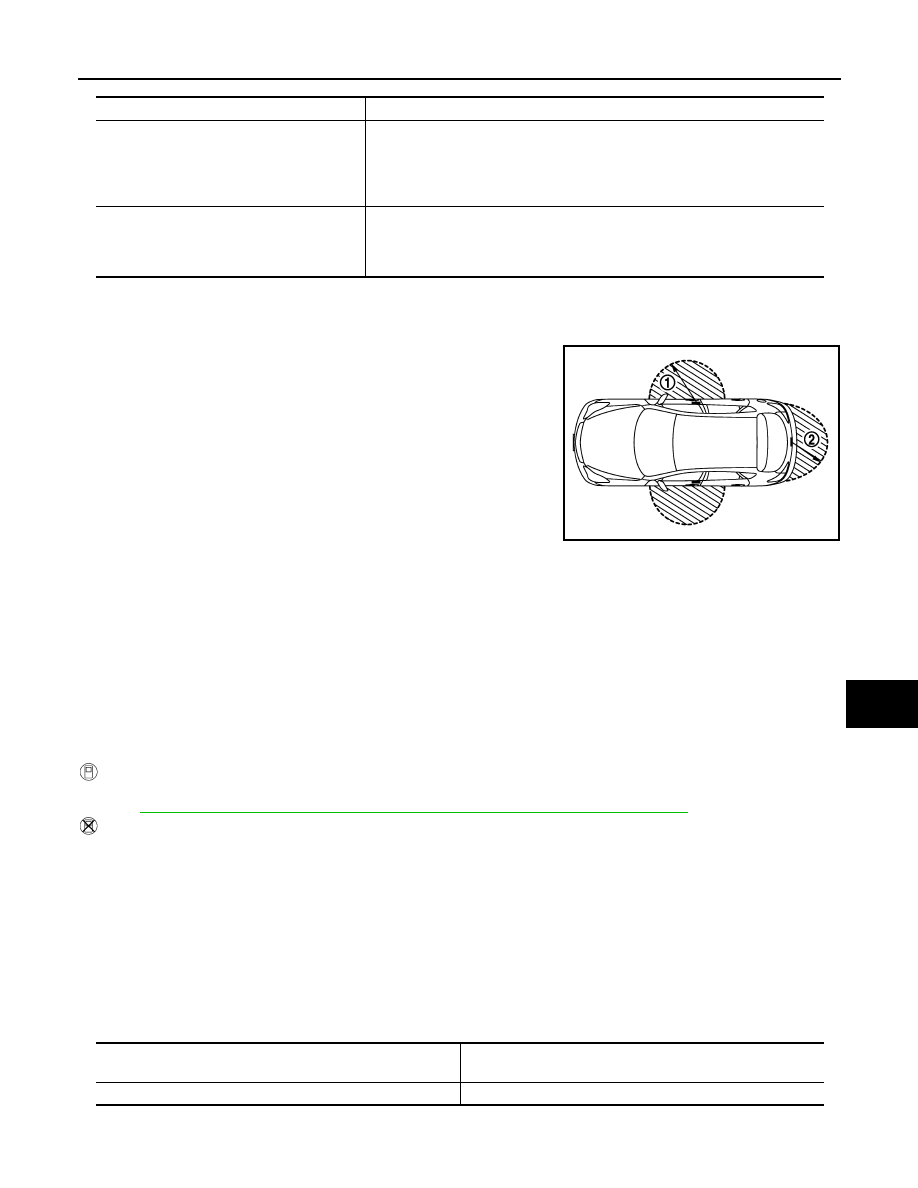

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of door lock/unlock function
is in the range of approximately 80 cm (31.50 in) surrounding the
driver, passenger door handles (1) and back door handle (2). How-
ever, this operating range depends on the ambient conditions.

ANTI-HIJACK FUNCTION

Lock Operation

When an LOCK signal is sent from door request switch (driver side, passenger side or back door), all doors
are locked.

Unlock Operation

• When an UNLOCK signal from front door request switch (driver side) is transmitted, driver side door

unlocks. When another UNLOCK signal is transmitted within 5 seconds, all door unlocks.

• When an UNLOCK signal from front door request switch (passenger side) is transmitted, all doors unlocks.
• When an UNLOCK signal from back door request switch is transmitted, back door open permission is set.

When another UNLOCK signal is transmitted within 5 seconds, all door unlocks (except back door).

How to change anti-hijack mode.

With CONSULT

Anti-hijack mode can be set to ON or OFF using CONSULT.
Refer to

DLK-223, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 2)"

Without CONSULT

Anti-hijack function can be set to ON/OFF by user with a registered Intelligent Keyfob.
• ON/OFF can be switched when Intelligent Key lock button and unlock button are pressed simultaneously for

5 seconds or more while steering lock is locked.

• When mode is switched, hazard warning lamp blinks.

HAZARD REMINDER FUNCTION

When doors are locked or unlocked by door request switch, BCM blinks hazard warning lamps as a reminder.
Reminder function does not operate if ignition switch in ON position.

Each door request switch operation

Operation condition

Lock

• All doors are closed
• Ignition switch is in the OFF position
• P position warning is not activated
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area

Unlock

• All doors are closed
• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• Intelligent Key is within outside key antenna detection area *

JMKIA4534ZZ

OFF

→

: 1 blink

→

OFF

: 3 blinks

Door lock operation

(With door request switch)

Hazard warning lamp blink

Lock

Once

DLK-212

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

AUTO DOOR LOCK FUNCTION

After door is unlocked by door request switch operation and if 30 seconds or more passes without performing
the following operation, all doors are automatically locked. However, operation check function does not acti-
vate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

224, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 2)"

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-207, "System Description"

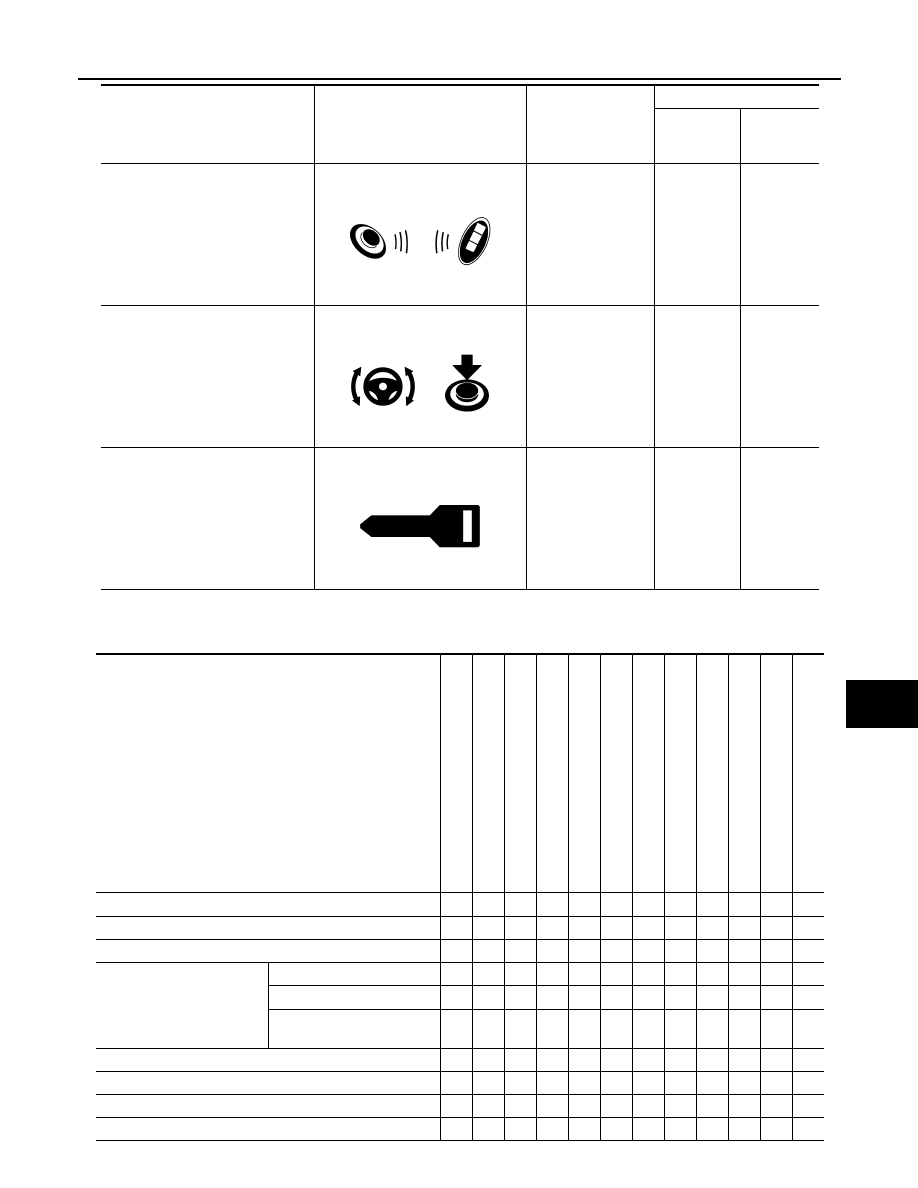

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

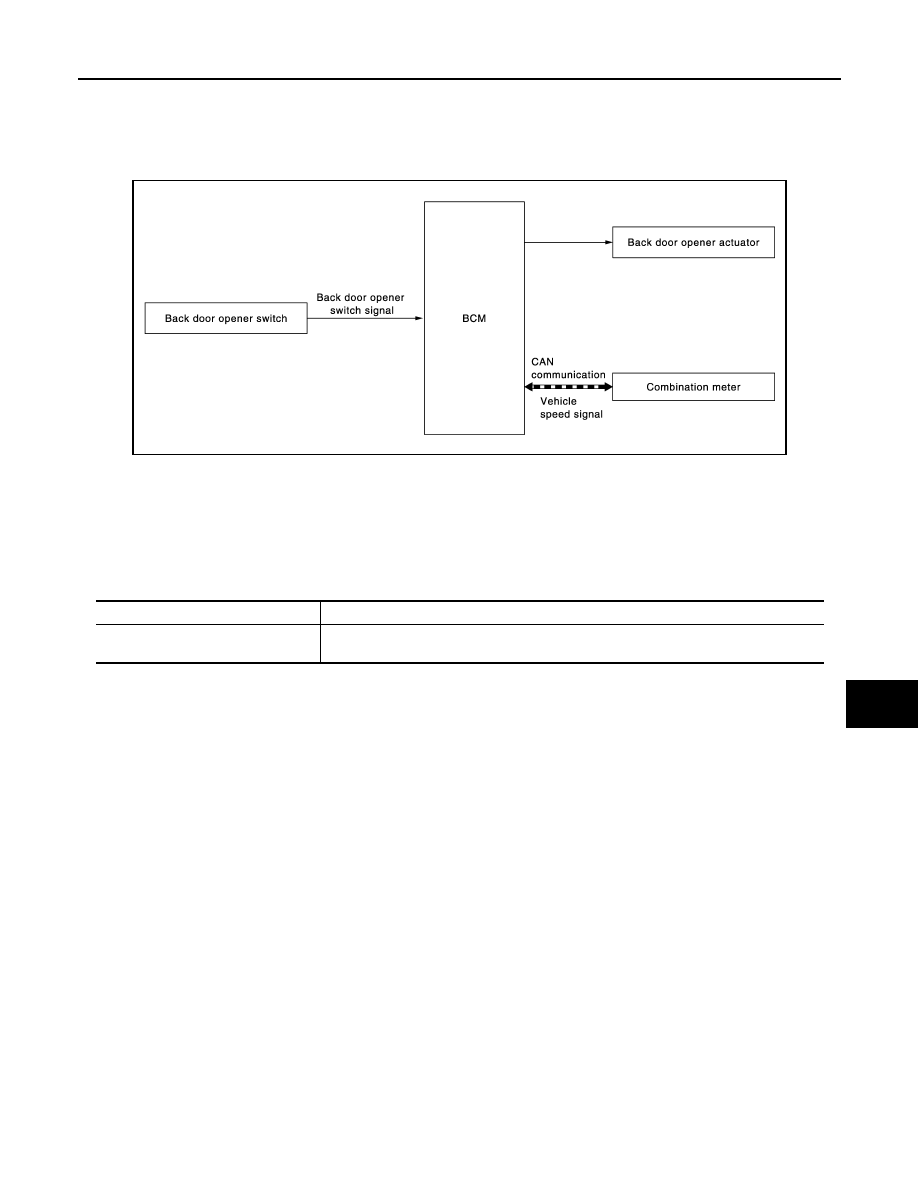

BACK DOOR OPEN FUNCTION

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Door lock operation

(With door request switch)

Hazard warning lamp blink

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Door lock function

tel

lig

t Ke

s en

try rec

or swi

tch

or req

st sw

itch

Doo

r lo

tuat

ten

e ke

CAN co

ati

sys

tem

BCM

Hazard warning lamp

-bu

tto

n i

itio

swit

Door lock/unlock function

Hazard reminder function

Door lock status indicator operation

Anti-hijack function

Auto door lock function

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-213

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

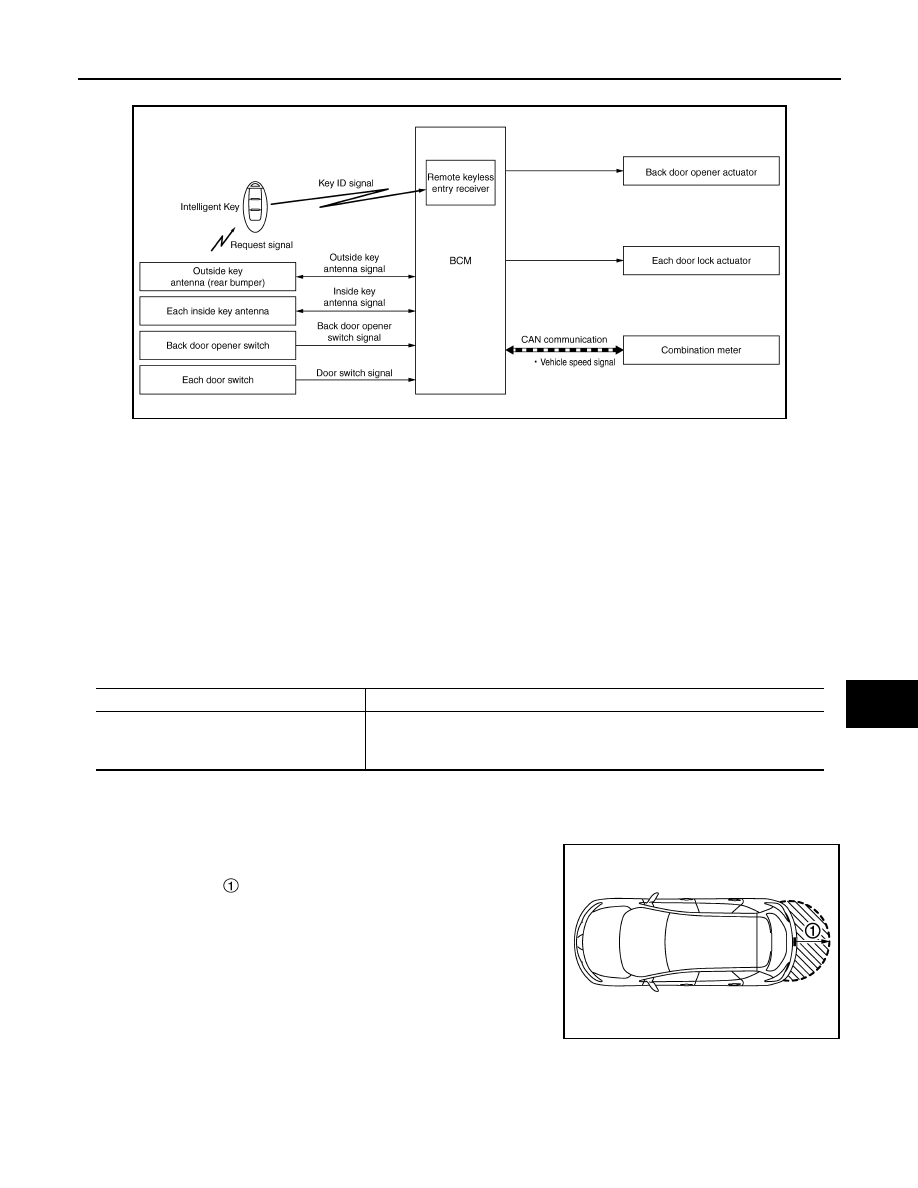

BACK DOOR OPEN FUNCTION : System Diagram

INFOID:0000000010683587

BACK DOOR OPEN FUNCTION : System Description

INFOID:0000000010683588

BACK DOOR OPEN FUNCTION

• When the BCM detects that back door opener switch is pressed, it activates the outside key antenna (rear

bumper) and inside key antenna and transmits the request signal to the Intelligent Key. And then, check that
the Intelligent Key is near the back door.

• If the Intelligent Key is within the outside key antenna detection area, it receives the request signal and

transmits the key ID signal to the BCM via remote keyless entry receiver.

• BCM receives the key ID signal and compares it with the registered key ID.
• If the verification result is OK, BCM opens back door.

OPERATION CONDITION

If the following conditions are satisfied, the back door can be opened.

: Even with a registered Intelligent Key remaining inside the vehicle, back door can be opened from outside of

the vehicle with a spare Intelligent Key as long as key IDs are different.

OUTSIDE KEY ANTENNA DETECTION AREA

The outside key antenna detection area of back door open function
is in the range of approximately 80 cm (31.50 in) surrounding back
door opener switch

. However, this operating range depends on

the ambient conditions.

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

JMKIB3635GB

Back door opener switch operation

Operation condition

Open

• All door: locked and closed
• Ignition switch: OFF

• Intelligent Key is within outside key antenna (rear bumper) detection area

JMKIA1955ZZ

DLK-214

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

REMOTE KEYLESS ENTRY FUNCTION

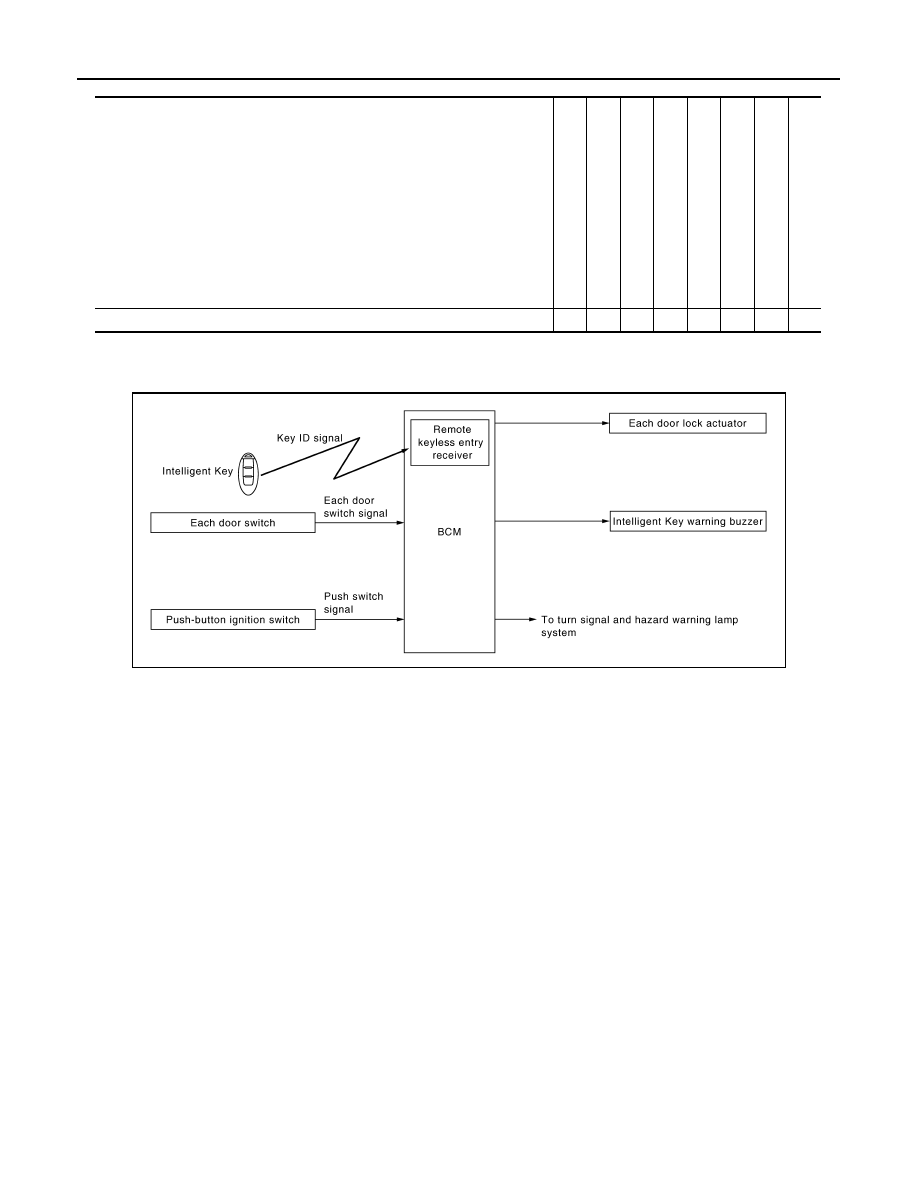

REMOTE KEYLESS ENTRY FUNCTION : System Diagram

INFOID:0000000010434767

REMOTE KEYLESS ENTRY FUNCTION : System Description

INFOID:0000000010434768

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the door lock/unlock button.

OPERATION

Remote keyless entry system controls operation of the following items.
• Door lock/unlock
• Anti-hijack function
• Hazard reminder function
• Auto door lock
• Door lock status indicator operation

OPERATION AREA

To check that the Intelligent Key works normally, use within 1 m (3 ft) range of each doors, however the opera-
ble range may differ according to surroundings.

DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal transmitted from

Intelligent Key to BCM via remote keyless entry receiver.

• BCM receives the signal and compares it with the registered key ID to the vehicle.
• BCM transmits door lock/unlock signal to each door lock actuator and operates each door lock actuator,

when key ID matches. At the same time, BCM blinks hazard warning lamps (lock: 1 time, unlock: 2 times).

OPERATION CONDITION

If the following condition are satisfied, remote keyless entry operation is performed when the Intelligent Key is
operated.

Function

llige

t Key

s en

try rec

or op

r a

tor

or swi

tch

y an

ten

ide

a (re

bum

or op

r s

Back open function (back door opener switch)

JMKIB3318GB

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-215

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

ANTI-HIJACK FUNCTION

• When an LOCK signal is transmitted from Intelligent Key, all doors are locked.
• When an UNLOCK signal is transmitted from Intelligent Key once, driver side door is unlocked.
• Then, if an UNLOCK signal is transmitted from Intelligent Key again within 5 seconds, all other doors (except

for back door) are unlocked.

AUTO DOOR LOCK FUNCTION

After door is unlocked by Intelligent Key button operation and if 30 seconds or more passes without performing
the following operation, all doors are locked. However, operation check function does not activate.

Auto door lock mode can be changed by the “AUTO LOCK SET” mode in “WORK SUPPORT”. Refer to

DLK-

224, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 2)"

DOOR LOCK STATUS INDICATOR OPERATION

• Door lock status indicator turns indicator lamp ON or OFF and indicates door lock or unlock state.
• For door lock status indicator operation, refer to

DLK-207, "System Description"

HAZARD REMINDER FUNCTION

Operation Description

When doors are locked or unlocked by Intelligent Key button operation, BCM blinks hazard warning lamps as
a reminder.

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

KEY REMINDER FUNCTION

Remote controller operation

Operation condition

Lock

• All doors closed
• Ignition switch in the OFF position
• P position warning is not activated

Unlock

• Ignition switch is in the OFF position
• Intelligent Key is outside the vehicle
• P position warning is not activated

Operating condition

• Door switch is ON (door is open)
• Door is locked
• Push switch is pressed

Door lock operation

(With Intelligent Key button)

Hazard warning lamp blink

Lock

Once

Unlock (all door unlock)

Twice

Unlock (anti-hijack operation)

Twice (quick)

Remote keyless entry functions

llige

t Key

or swit

or loc

ato

-b

utt

nit

ion

itc

CAN co

ati

tem

Combination meter

Hazard warning

lamp

Door lock/unlock function by remote control button

Hazard reminder function

Anti-hijack function

Auto door lock function

DLK-216

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

KEY REMINDER FUNCTION : System Diagram

INFOID:0000000010434769

KEY REMINDER FUNCTION : System Description

INFOID:0000000010434770

Key reminder is the function that prevents the key from being left in the vehicle.
Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation is perform in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function does not operate when the Intel-
ligent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-
times does not operate if the Intelligent Key is in the door pocket for the open door.

WARNING FUNCTION

WARNING FUNCTION : System Description

INFOID:0000000010434771

OPERATION DESCRIPTION

The warning function are as per the following items and are given to the user as warning information and
warnings using combinations of Intelligent Key warning buzzer, combination meter buzzer and information dis-
play in combination meter.
• Intelligent Key system malfunction
• OFF position warning
• P position warning
• Take away warning
• Door lock operation warning
• Engine start information

JMKIB3319GB

Key remainder func-

tion

Operation condition

Operation

Driver side door
opened

Right after door is locked by door lock/unlock switch or driver door lock
knob operation under the following conditions
• Ignition switch is in the OFF position
• Intelligent Key is inside the vehicle
• Driver side door is opened

All doors unlock

Driver side door
closed*

Right after driver side door is closed under the following conditions
• Intelligent Key is inside the vehicle
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked.

• All doors unlock
• Honk Intelligent Key warn-

ing buzzer

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-217

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

• Intelligent Key low battery warning
• Key ID verification information
• Steering lock information
• Key ID warning

OPERATION CONDITION

Operation condition of warning and information is as per the following table.

*: M/T models do not apply.

WARNING METHOD

The following table shows the alarm or warning methods with chime.

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

A malfunction is detected on BCM and key warning lamp turns ON

OFF position warning

When condition A or B is satisfied
• Condition A
- Turn ignition switch from ON to OFF while door is open
• Condition B
- Intelligent Key backside is contacted to push-button ignition switch while

brake pedal is depressed and ignition switch is LOCK or OFF (When the In-
telligent Key battery is discharged)

- Door switch (driver side): ON (Door is open)

P position warning*

For internal

• Shift position: Except P position
• Engine is running to stopped (Ignition switch is ON to OFF)

For external

• P position warning (For internal) operates
• Door switch: ON to OFF (Door is open to close)
• Intelligent Key cannot be detected inside the vehicle

Take away warning

Door status changes
from open to close

• Ignition switch: Except LOCK or OFF position
• Door switch: ON to OFF (Door is open to close)
• Registered Intelligent Key is not detected inside the vehicle

Door status is open

• Ignition switch: Except OFF position
• Door switch: ON (Door is open)
• Registered Intelligent Key is not detected inside the vehicle during Key ID ver-

ification for 5 seconds

Push button-ignition
switch operation

• Ignition switch: OFF position
• Press push-button ignition switch
• Registered Intelligent Key is not detected inside the vehicle

Door lock operation warning

When door lock operation is requested while door lock operating condition of
door request switch not satisfied

Engine start information

Ignition switch is ON po-
sition

• Ignition switch: ON position
• Shift position: P position*
• Engine is stopped

Ignition switch is except
ON position

• Ignition switch: Except ON position
• Shift position: P position*
• Intelligent Key can be detected inside the vehicle

Ignition switch is ON po-
sition to OFF position

• Ignition switch: ON position to OFF position
• Shift position: P position
NOTE:
Engine start information turns ON for several seconds and then turns OFF, when
ignition switch is turned to the ON position from the OFF position. Engine start
information does not turn ON until opening and closing of driver door is detected
again.

Intelligent Key low battery warning

BCM detects that Intelligent Key is low battery, after ignition switch is turned ON

Key ID verification information

• Ignition switch: LOCK position
• Push-button ignition switch: Pressed
• Registered Intelligent Key is not detected inside the vehicle

Steering lock information

When the steering lock can not be unlocked

Key ID warning

• Push-button ignition switch is pressed
• Registered Intelligent Key is not detected inside the vehicle

DLK-218

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

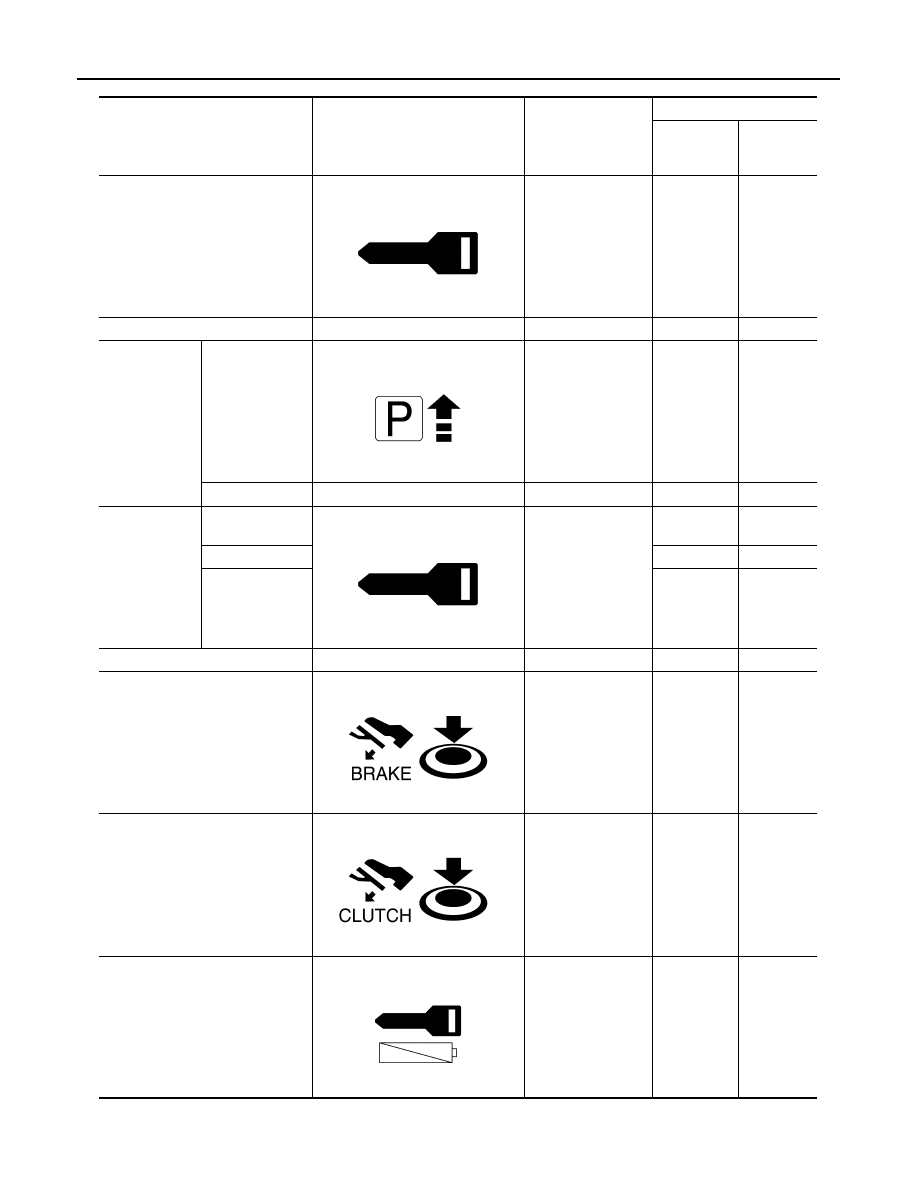

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

Intelligent Key system malfunction

Key System Error
See Owner

′

s Manu-

—

OFF position warning

—

Activate

—

P position warn-
ing

For internal

Shift to Park

Activate

—

For external

—

Active

Take away
warning

Door is open to
close

No Key Detected

Activate

Door is open

—

Push-ignition
switch operation

Activate

—

Door lock operation warning

—

Activate

Engine start information (A/T mod-
els)

—

Engine start information (M/T mod-
els)

—

Intelligent Key low battery warning

Key Battery Low

—

JMKIB1526ZZ

JMKIB1527ZZ

JMKIB1526ZZ

JMKIB1396ZZ

JMKIB3307ZZ

JMKIB1529ZZ

SYSTEM (INTELLIGENT KEY SYSTEM)

DLK-219

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

LIST OF OPERATION RELATED PARTS

Parts marked with

are the parts related to operation.

Key ID verification information

—

Steering lock information

—

Key ID warning

Key ID Incorrect

—

Warning/Information functions

Information display

(Symbol)

Information display

(Message)

Warning chime

Combina-

tion meter

buzzer

Intelligent

Key warn-

ing buzzer

JMKIB1399ZZ

JMKIB1401ZZ

JMKIB1526ZZ

Function

Int

llig

t Ke

-bu

tto

n i

iti

swi

tch

Doo

r swi

tch

or re

key

y an

ten

Int

llig

t Ke

y wa

rni

Com

ion

r (wa

rnin

er)

n me

r (in

form

isp

CAN c

n sy

BCM

Intelligent Key system malfunction

OFF position warning

P position warning

Take away warning

Door is open or close

Door is open

Push-button ignition switch
operation

Door lock operation warning

Engine start information

Intelligent Key low battery warning

Key ID verification information

DLK-220

< SYSTEM DESCRIPTION >

[TYPE 2]

SYSTEM (INTELLIGENT KEY SYSTEM)

Steering lock information

Key ID warning

Function

Int

llig

t Ke

Push-b

ton

tio

swit

Doo

r swi

tch

or re

t s

y an

ten

tee

rin

Int

llig

t Ke

rni

zze

Com

inat

n m

r (wa

rnin

er)

Com

inat

n m

r (i

nfo

rma

tio

dis

lay

)

CAN co

stem

BCM

SYSTEM (BACK DOOR OPENER SYSTEM)

DLK-221

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

SYSTEM (BACK DOOR OPENER SYSTEM)

System Description

INFOID:0000000010479501

SYSTEM DIAGRAM

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM operates back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are satisfied, back door opener operation is performed.

NOTE:
• When battery terminal is disconnected and reconnected during all doors unlock state, back door may not

open.

• Regardless of door lock actuator state, BCM resets recognition of all doors unlock state approximately 30

seconds after battery terminal is disconnected and BCM recognizes that all doors are in lock state.

• When battery terminal is reconnected and back door does not open, have BCM recognize that all doors are

in unlock state.

JMKIA6011GB

Back door opener switch operation

Operation condition

Back door open

• All doors are unlocked.
• Vehicle speed is less than 5 km/h (3 MPH)

DLK-222

< SYSTEM DESCRIPTION >

[TYPE 2]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010434772

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

: Applicable item

*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

Rear window defogger

REAR DEFOGGER

Warning chime

BUZZER

Interior room lamp timer

INT LAMP

Exterior lamp

HEAD LAMP

Wiper and washer

WIPER

Turn signal and hazard warning lamps

FLASHER

Automatic A/C

AIR CONDITONER

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

Combination switch

COMB SW

Body control system

BCM

NATS

IMMU

Interior room lamp battery saver

BATTERY SAVER

Back door open

TRUNK

—

THEFT ALM*

—

RETAINED PWR*

Signal buffer system

SIGNAL BUFFER

DIAGNOSIS SYSTEM (BCM)

DLK-223

< SYSTEM DESCRIPTION >

[TYPE 2]

DLK

NOTE:
*: Refer to the following for details at the power supply position.
• LOCK: Ignition switch OFF with steering locked
• OFF: Ignition switch OFF with steering unlocked
• ACC: Ignition switch ACC
• IGN: Ignition switch ON with engine stopped
• RUN: Ignition switch ON with engine running
• CRANKING: At engine cranking

DOOR LOCK

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK) (Type 2)

INFOID:0000000010478853

BCM CONSULT FUNCTION

CONSULT performs the following functions via CAN communication with BCM.

WORK SUPPORT

CONSULT screen item

Indication/Unit

Description

Vehicle Speed

km/h

Vehicle speed of the moment a particular DTC is detected

Odo/Trip Meter

Total mileage (Odometer value) of the moment a particular DTC is detected

Vehicle Condition

SLEEP>LOCK

Power supply position
status of the moment a
particular DTC is de-
tected*

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “LOCK”)

SLEEP>OFF

While turning BCM status from low power consumption mode to
normal mode (Power supply position is “OFF”.)

LOCK>ACC

While turning power supply position from “LOCK” to “ACC”

ACC>ON

While turning power supply position from “ACC” to “IGN”

RUN>ACC

While turning power supply position from “RUN” to “ACC” (Vehicle
is stopping and selector lever is except P position.)

CRANK>RUN

While turning power supply position from “CRANKING” to “RUN”
(From cranking up the engine to run it)

RUN>URGENT

While turning power supply position from “RUN“ to “ACC” (Emer-
gency stop operation)

ACC>OFF

While turning power supply position from “ACC” to “OFF”

OFF>LOCK

While turning power supply position from “OFF” to “LOCK”

OFF>ACC

While turning power supply position from “OFF” to “ACC”

ON>CRANK

While turning power supply position from “IGN” to “CRANKING”

OFF>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “OFF”.) to low power consumption mode

LOCK>SLEEP

While turning BCM status from normal mode (Power supply posi-
tion is “LOCK”.) to low power consumption mode

LOCK

Power supply position is “LOCK”.

OFF

Power supply position is “OFF”.

ACC

Power supply position is “ACC”.

Power supply position is “IGN”

ENGINE RUN

Power supply position is “RUN”.

CRANKING

Power supply position is “CRANKING”.

IGN Counter

0 - 39

The number of times that ignition switch is turned ON after DTC is detected
• The number is 0 when a malfunction is detected now.
• The number increases like 1

→

3...38

→

39 after returning to the normal condition

whenever ignition switch OFF

→

ON.

• The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

DLK-224

< SYSTEM DESCRIPTION >

[TYPE 2]

DIAGNOSIS SYSTEM (BCM)

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

ACTIVE TEST

INTELLIGENT KEY

INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY) (Type 2)

INFOID:0000000010478852

WORK SUPPORT

Monitor item

Description

DOOR LOCK-UNLOCK SET

Anti-hijack function mode can be changed to operation with this mode
• On: Operate
• Off: Non-operation

SIGNATURE LIGHT SETTING

Signature light function can be changed to operation with this mode
• On: Operate
• Off: Non-operation

Monitor Item

Contents

REQ SW-DR

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS

Indicated [On/Off] condition of door request switch (passenger side)

REQ SW-BD/TR

Indicated [On/Off] condition of back door request switch

DOOR SW-DR

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK

Indicated [On/Off] condition of back door switch

CDL LOCK SW

Indicated [On/Off] condition of lock signal from door lock unlock switch

CDL UNLOCK SW

Indicated [On/Off] condition of unlock signal from door lock unlock switch

KEY CYL LK-SW

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW

NOTE:
This item is displayed, but cannot be monitored

SHOCK SENSOR

Indicates [NOMAL/On/Off] condition of circuit between BCM and air bag diagnosis sensor unit
• NORMAL: Ignition switch ON. (BCM is receiving normal condition signal from air bag diagnosis sensor

unit.)

• ON: During the receiving of air bag signal from air bag diagnosis sensor unit
• OFF: After the receiving of air bag signal from air bag diagnosis sensor unit

KEY SW

NOTE:
This item is displayed, but cannot be monitored

Test item

Description

DOOR LOCK

This test is able to check door lock/unlock operation
• The all door lock actuators are locked when “ALL LOCK” on CONSULT screen is touched
• The all door lock actuators are unlocked when “ALL UNLOCK” on CONSULT screen is touched

SUPER LOCK

NOTE:
This item is displayed, but cannot be monitored

DOOR LOCK IND

This test is able to check door lock status indicator operation
• On: Operate
• Off: Non-operation

Qashqai J11. Door & Lock - part 13
