Qashqai J11. Power supply ground & circuit elements - part 10

PG

HARNESS LAYOUT

PG-145

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

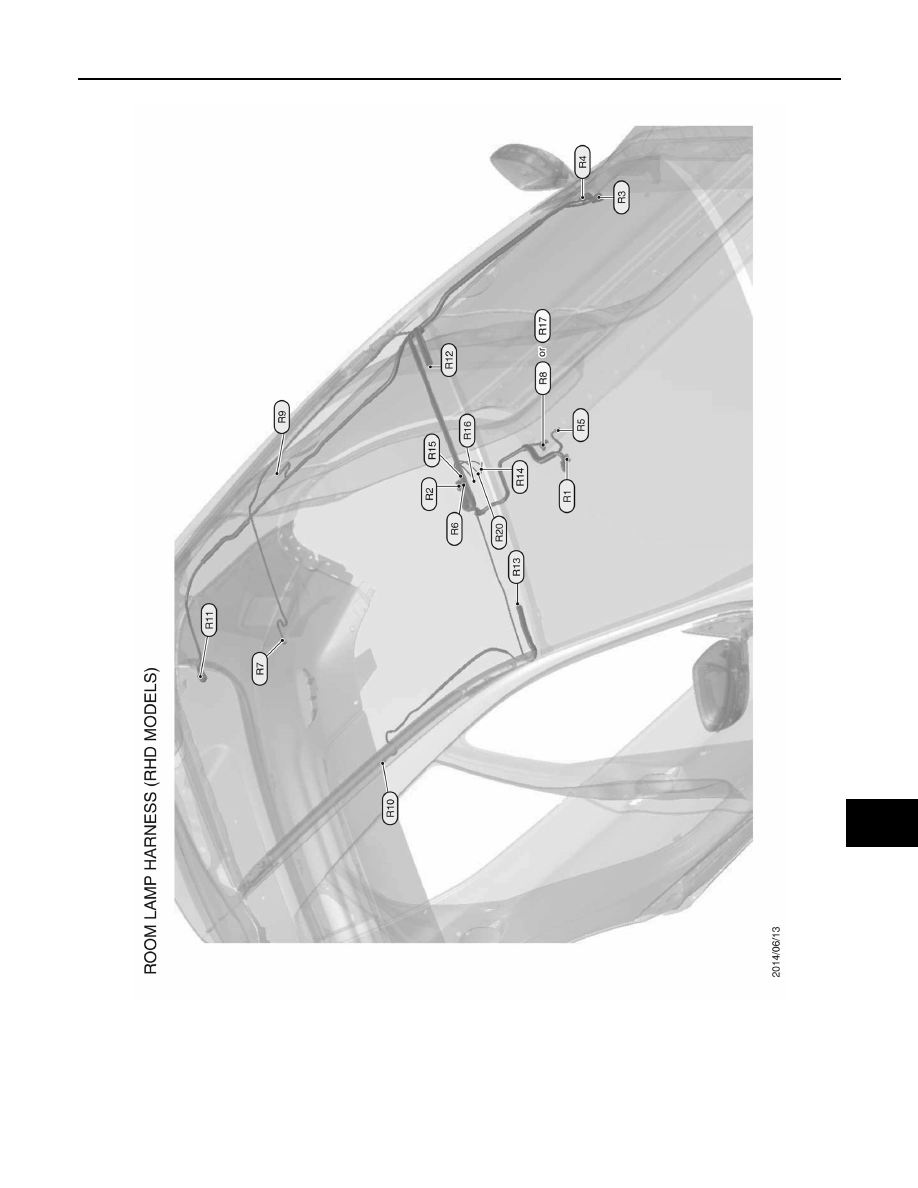

RHD : Room Lamp Harness

INFOID:0000000010464095

JRMIC4899GB

PG

BATTERY INSPECTION

PG-147

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Work Flow WITHOUT STOP/START SYSTEM

INFOID:0000000010464099

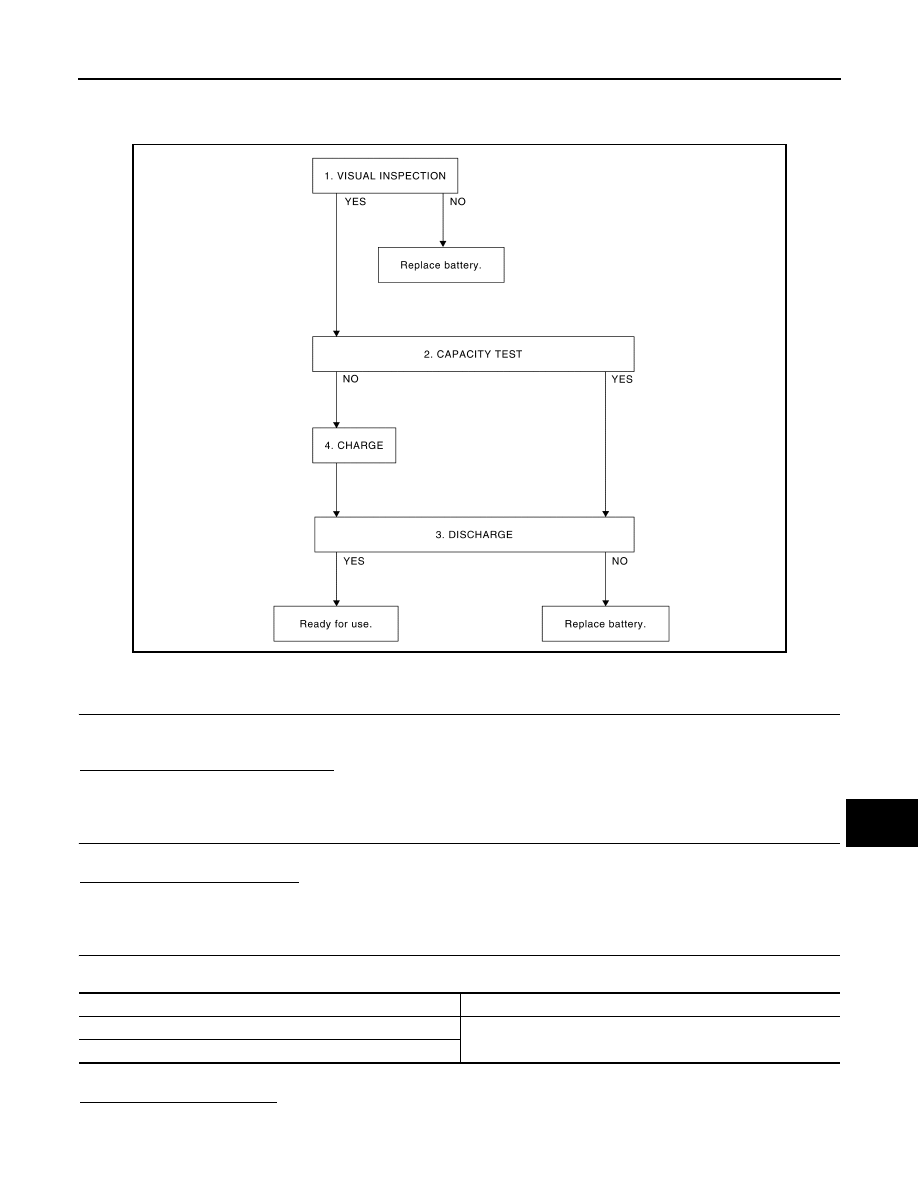

OVERALL SEQUENCE

DETAILED FLOW

1.

VISUAL INSPECTION

1.

Check battery case for cracks or bends.

2.

Check battery terminals for damage.

Are these inspection results normal?

YES

>> GO TO 2.

NO

>> Replace battery.

2.

CAPACITY TEST

Check battery voltage.
Is the voltage 12.35 V or more?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

DISCHARGE

1.

Check battery type and determine the specified current using the table.

2.

Perform discharge using the load tester.

Is the voltage 10 V or more?

YES

>> Ready for use.

NO

>> Replace battery.

JSMIA1006GB

Type

Current (A)

55D23L-MF

300

80D23L-MF

PG-148

< BASIC INSPECTION >

BATTERY INSPECTION

4.

CHARGE

Charge battery, following the instructions below:
• Constant current charging may damage batteries. Therefore, charge battery by constant voltage charge

mode with the maximum voltage set at 15 V.

• Charge at least 6 hours or until the charge current becomes 4 amps or less.

>> GO TO 3.

Work Flow WITH STOP/START SYSTEM

INFOID:0000000011772993

DETAILED FLOW

1.

VISUAL INSPECTION

1.

Check battery case for cracks or bends.

2.

Check battery terminals for damage.

Are these inspection results normal?

YES

>> GO TO 2.

NO

>> Replace battery.

2.

CHECK BATTERY (USE CONSULT)

Check the battery, using CONSULT. Refer to

ECH-316, "Diagnosis Procedure"

 (HRA2DDT),

ECK-394, "Diag-

nosis Procedure"

 (K9K), or

EC9-405, "Diagnosis Procedure"

 (R9M).

Is the check result normal?

YES

>> GO TO 3.

NO

>> Replace battery.

3.

CAPACITY TEST

Check battery voltage.
Is the voltage 12.35 V or more?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

DISCHARGE

1.

Check battery type and determine the specified current using the table.

2.

Perform discharge using the load tester.

Is the voltage 10 V or more?

YES

>> Ready for use.

NO

>> Replace battery.

5.

CHARGE

Charge battery, following the instructions below:
• Constant current charging may damage batteries. Therefore, charge battery by constant voltage charge

mode with the maximum voltage set at 15 V.

• Charge at least 6 hours or until the charge current becomes 4 amps or less.

>> GO TO 4.

Type

Current (A)

L2

300

L3

300

PG

FUSE INSPECTION

PG-149

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

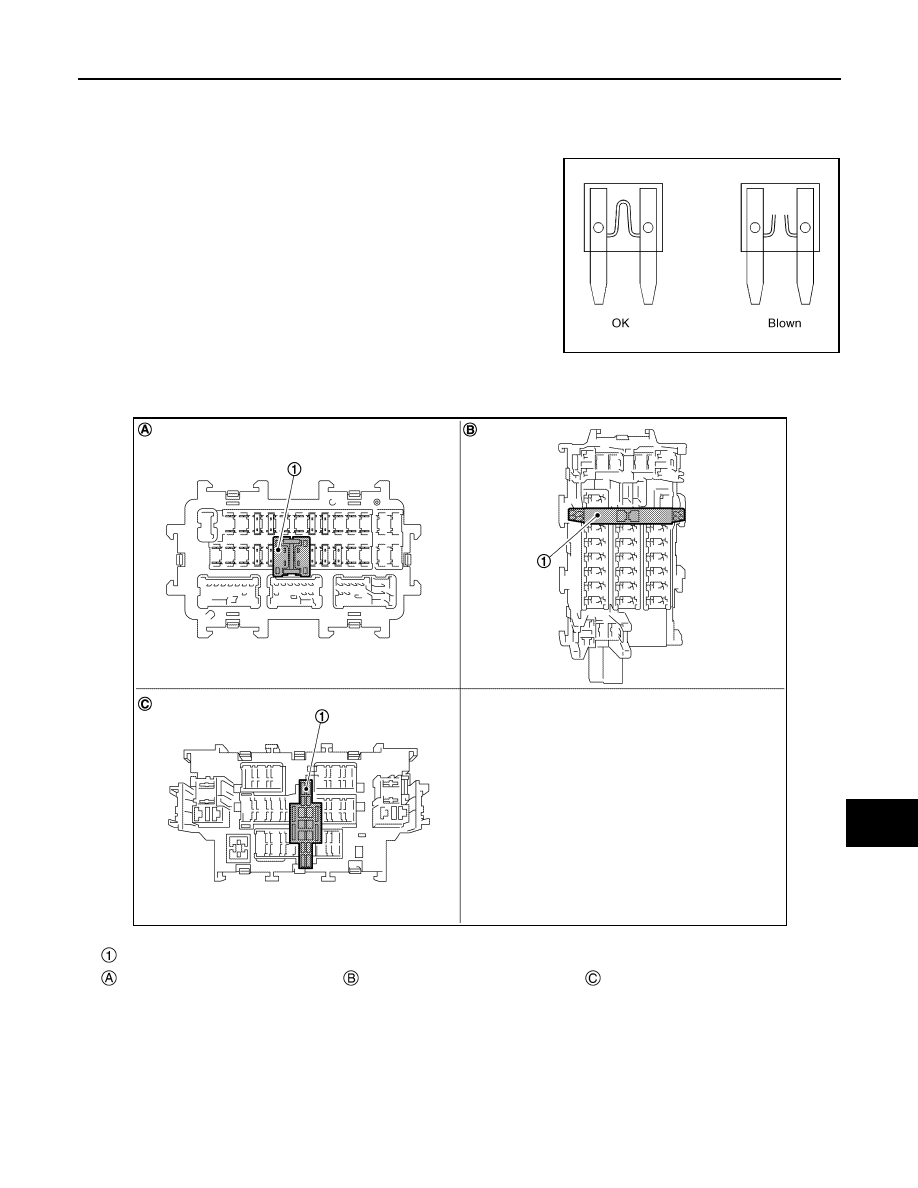

FUSE INSPECTION

How To Check

INFOID:0000000010464100

• If fuse is blown, be sure to eliminate cause of malfunction before

installing new fuse.

• Use fuse of specified rating. Never use fuse of more than specified

rating.

• Do not partially install fuse; always insert it into fuse holder prop-

erly.

• Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not

used for a long period of time.

EXTENDED STORAGE FUSE SWITCH (IF EQUIPPED)

The following switch may be mounted on the fuse block (Junction Box) for transportation and storage.

• Remove the extended storage fuse switch when replacing the fuse of extended storage fuse switch.
• Remove the extended storage fuse switch if it causes the interference when the fuse or the other fuses is

checked.

How To Extended Storage Fuse Switch ON/OFF

CAUTION:

• Turn the ignition switch OFF when operating the extended storage fuse switch.
• Under normal conditions, keep the extended storage fuse switch in ON state. Never operate the

extended storage fuse switch except when necessary.

CEL083

Extended storage fuse switch

Type  A

Type  B

Type  C

JSMIA0793ZZ

PG-150

< BASIC INSPECTION >

FUSE INSPECTION

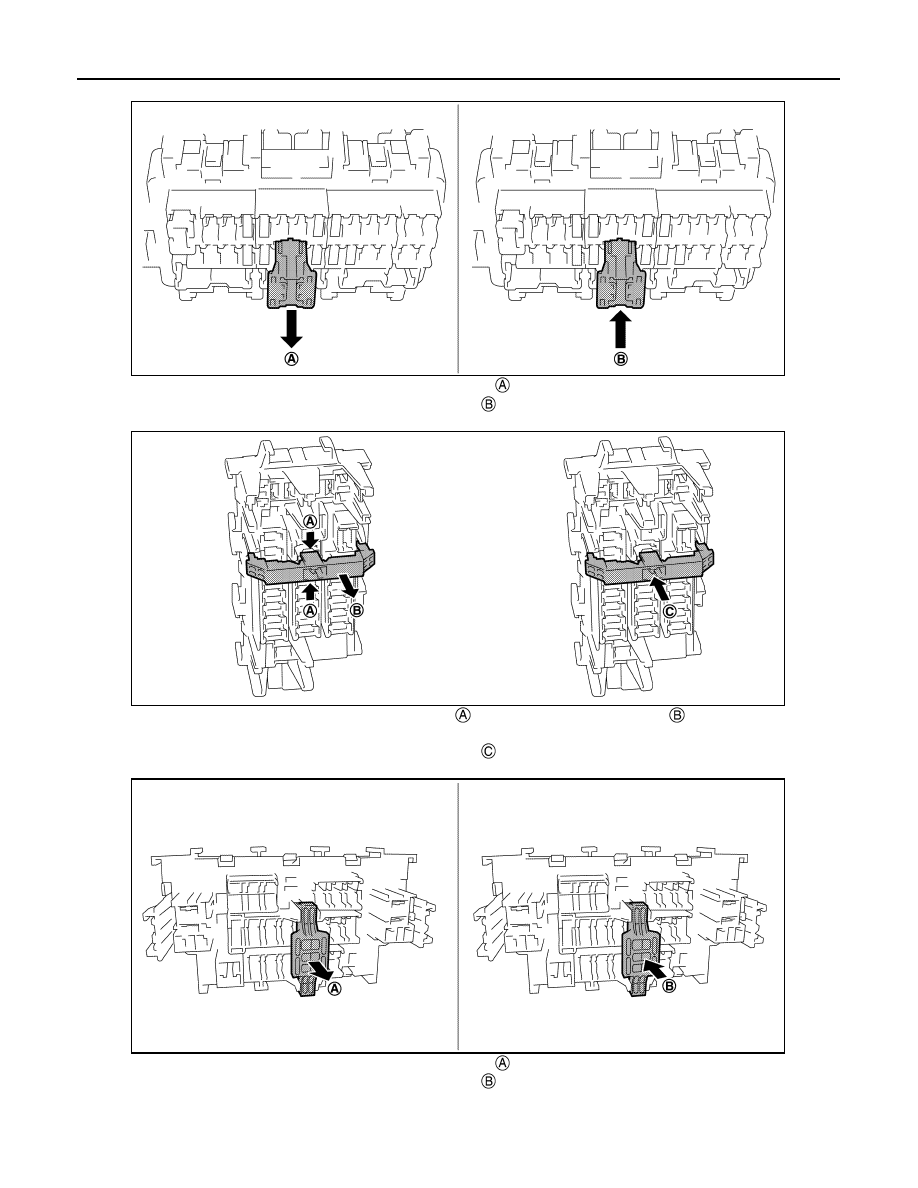

• Type A

- To turn the extended storage fuse switch OFF, pull it up in

 direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in

 direction as shown in the figure.

• Type B

- To turn the extended storage fuse switch OFF, hold

 of the switch and pull up in

 direction as shown in

the figure.

- To turn the extended storage fuse switch ON, press it in

 direction as shown in the figure.

• Type C

- To turn the extended storage fuse switch OFF, pull it up in

 direction as shown in the figure.

- To turn the extended storage fuse switch ON, press it in

 direction as shown in the figure.

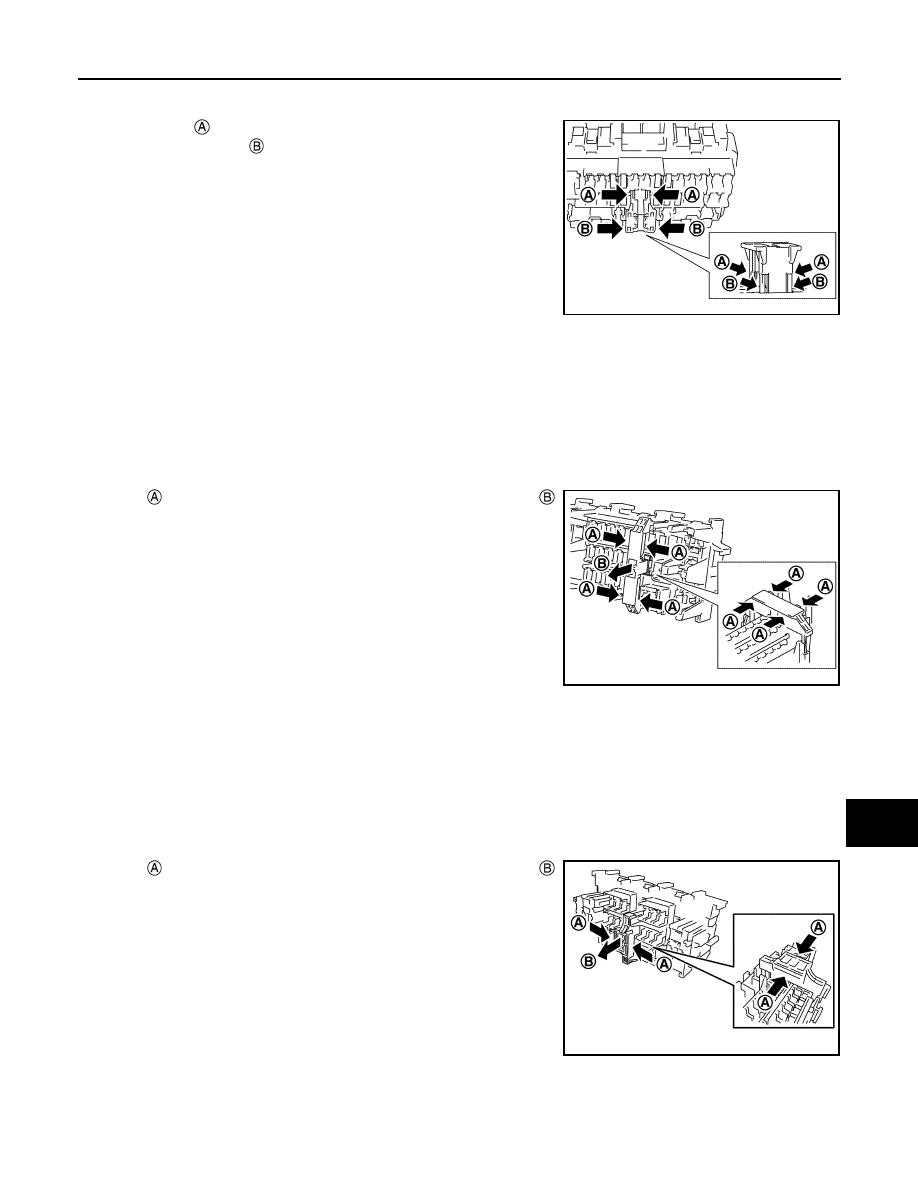

How To Remove Extended Storage Fuse Switch

Type A

JSMIA0472ZZ

JSMIA0473ZZ

JSMIA0794ZZ

PG

FUSE INSPECTION

PG-151

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

1.

Turn the ignition switch OFF.

2.

Turn the extended storage fuse switch OFF.

3.

Press pawl

 and tilt to disengage the extended storage fuse

switch. Press pawl

 and tilt to remove the extended storage

fuse switch.

NOTE:
• Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse

switch, if necessary.

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type B

1.

Turn the ignition switch OFF.

2.

Turn the extended storage fuse switch OFF.

3.

Hold

 and pull up the extended storage fuse switch hard in

direction.

NOTE:
• Extended storage fuse switch and fuse may be removed together. Remove fuse from extended storage

fuse switch, if necessary.

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

Type C

1.

Turn the ignition switch OFF.

2.

Turn the extended storage fuse switch OFF.

3.

Hold

 and pull up the extended storage fuse switch hard in

direction.

NOTE:
• Extended storage fuse switch and fuse are removed together. Remove fuse from extended storage fuse

switch, if necessary.

JSMIA0476ZZ

JSMIA0477ZZ

JSMIA0795ZZ

PG-152

< BASIC INSPECTION >

FUSE INSPECTION

• Extended storage fuse switch is for transportation and storage. Reinstallation is not required after the

removal.

PG

FUSIBLE LINK INSPECTION

PG-153

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

FUSIBLE LINK INSPECTION

How To Check

INFOID:0000000010464101

A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.

CAUTION:

• If fusible link should melt, it is possible that critical circuit (power supply or large current carrying

circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.

• Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other

wiring harness, vinyl or rubber parts.

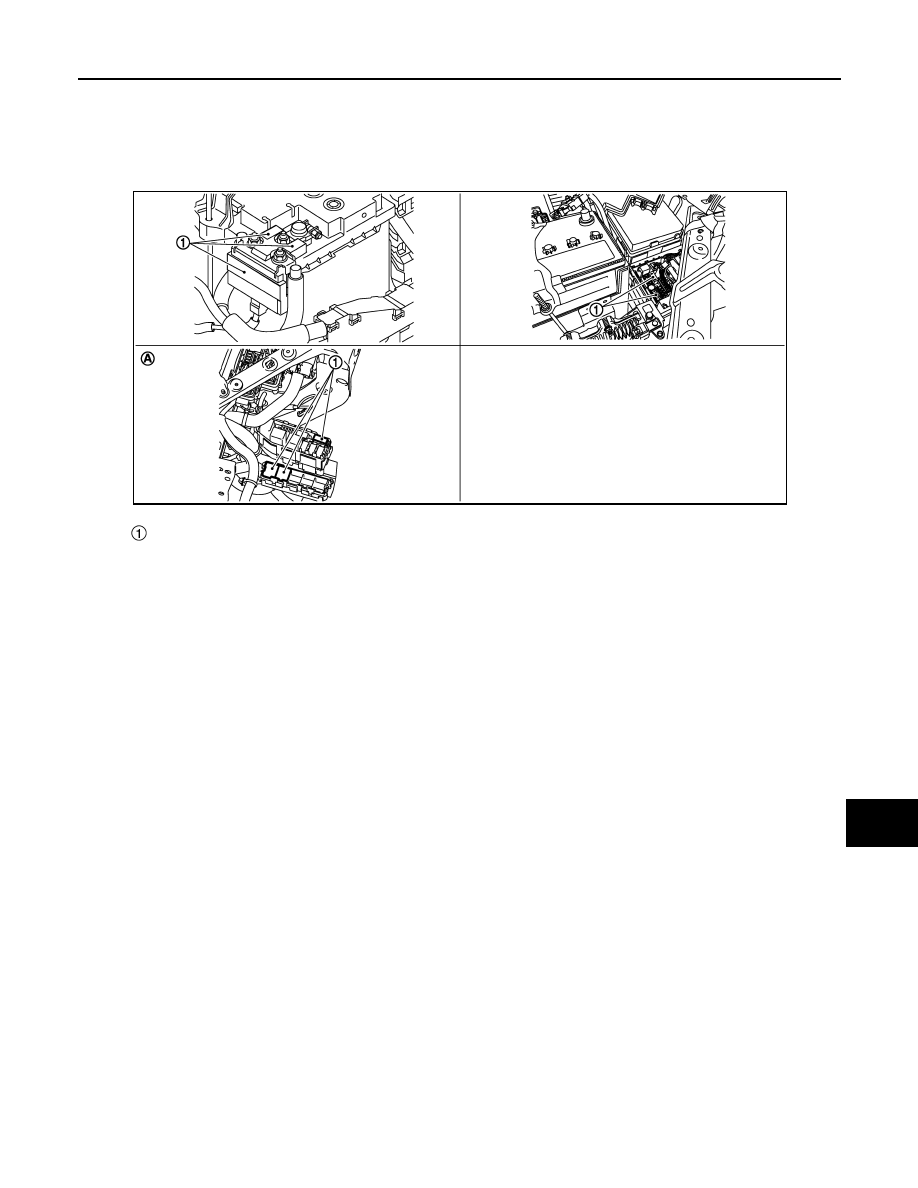

:Fusible link

JMMIA1915ZZ

PG-154

< REMOVAL AND INSTALLATION >

BATTERY

REMOVAL AND INSTALLATION

BATTERY

Exploded View

INFOID:0000000010464105

JMMIA1768GB

Battery fix frame

Battery fix rod

Cover

Battery terminal with fusible link

Battery

Battery cover

PG

BATTERY

PG-155

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Removal and Installation

INFOID:0000000010464106

REMOVAL

CAUTION:

After the battery of a vehicle equipped with the Stop/Start System is replaced, the cumulative battery
discharge current value stored in IPDM E/R must be erased, using CONSULT. Refer to

PCS-60, "Work

Procedure"

 (With Stop/Start System).

1.

Disconnect the battery cable from the negative terminal.

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

2.

Remove cover of battery positive terminal.

3.

Disconnect the battery cable from the positive terminal.

4.

Remove battery fix frame mounting nuts and battery fix frame.

5.

Remove battery.

6.

Remove tray.

7.

Remove battery mounting bracket assembly mounting bolts, and then remove battery mounting bracket
assembly.

8.

Remove battery mounting bracket mounting bolts, and then remove battery mounting bracket. (if
equipped)

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

To install the battery, carefully read the following instructions.

• To prevent damage to the parts, connect the battery cable to the positive terminal first.
• After connecting battery cables, to securely supply battery voltage, ensure that they are tightly

clamped to battery terminals for good contact.

• To securely supply battery voltage, check battery terminal for poor connection caused by corrosion.
Reset electronic systems as necessary. Refer to

GI-63, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Required Procedure After Battery Disconnection"

.

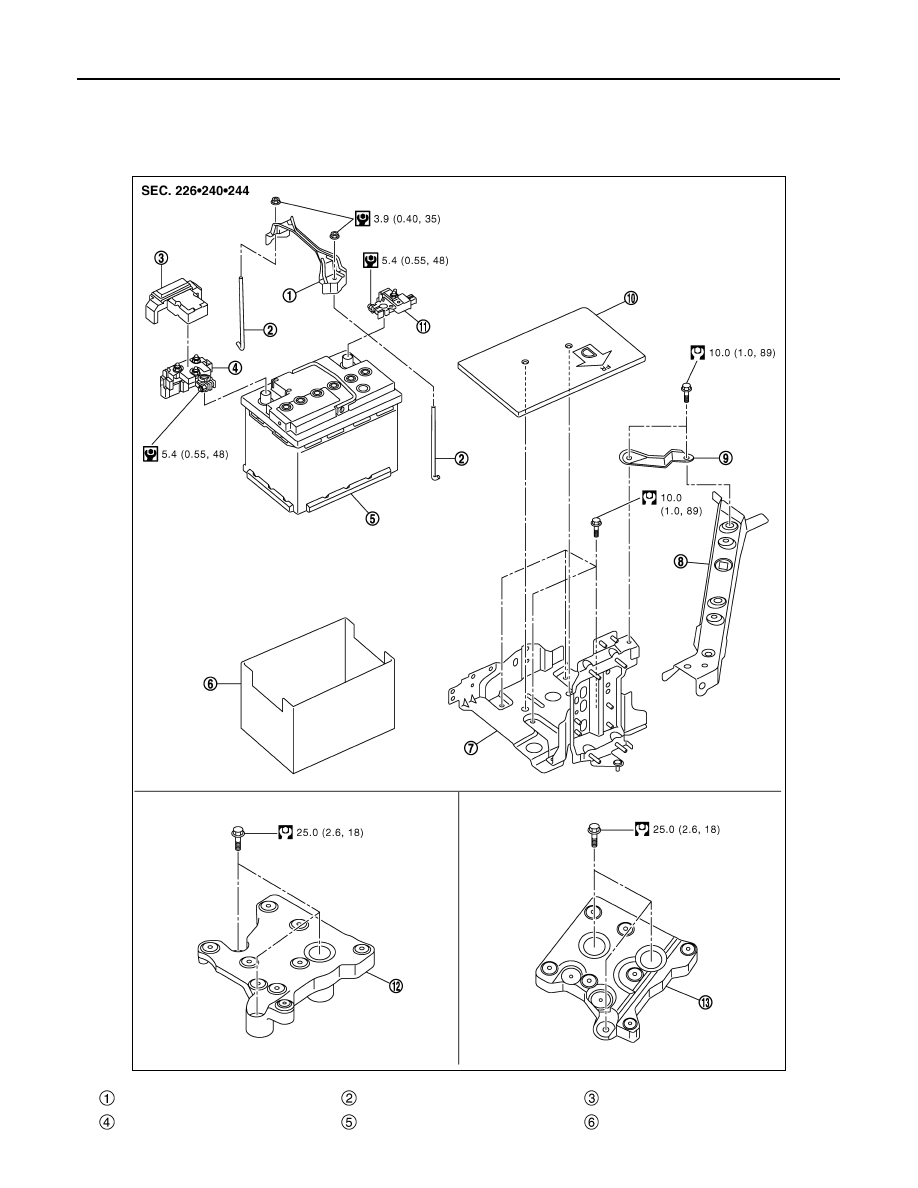

Battery mounting bracket assembly

Radiator core support LH

Battery bracket

Battery tray

Battery current sensor

Battery mounting bracket
(if equipped)

Battery mounting bracket
(if equipped)

: N·m (kg-m, ft-lb)

: N·m (Kg-m, ft-lb)

PG-156

< REMOVAL AND INSTALLATION >

BATTERY TERMINAL WITH FUSIBLE LINK

BATTERY TERMINAL WITH FUSIBLE LINK

Exploded View

INFOID:0000000010464107

Removal and Installation

INFOID:0000000010464108

REMOVAL

1.

Disconnect the battery cable from the negative terminal. Refer to

PG-154, "Exploded View"

.

CAUTION:

To prevent damage to the parts, disconnect the battery cable from the negative terminal first.

2.

Remove cover of battery positive terminal.

3.

Disconnect battery cable from the positive terminal. Refer to

PG-154, "Exploded View"

.

4.

Remove harness mounting nut and battery terminal with fusible link mounting nut.

5.

Disconnect harness connector and remove battery terminal with fusible link.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

To prevent damage to the parts, connect the battery cable to the positive terminal first.

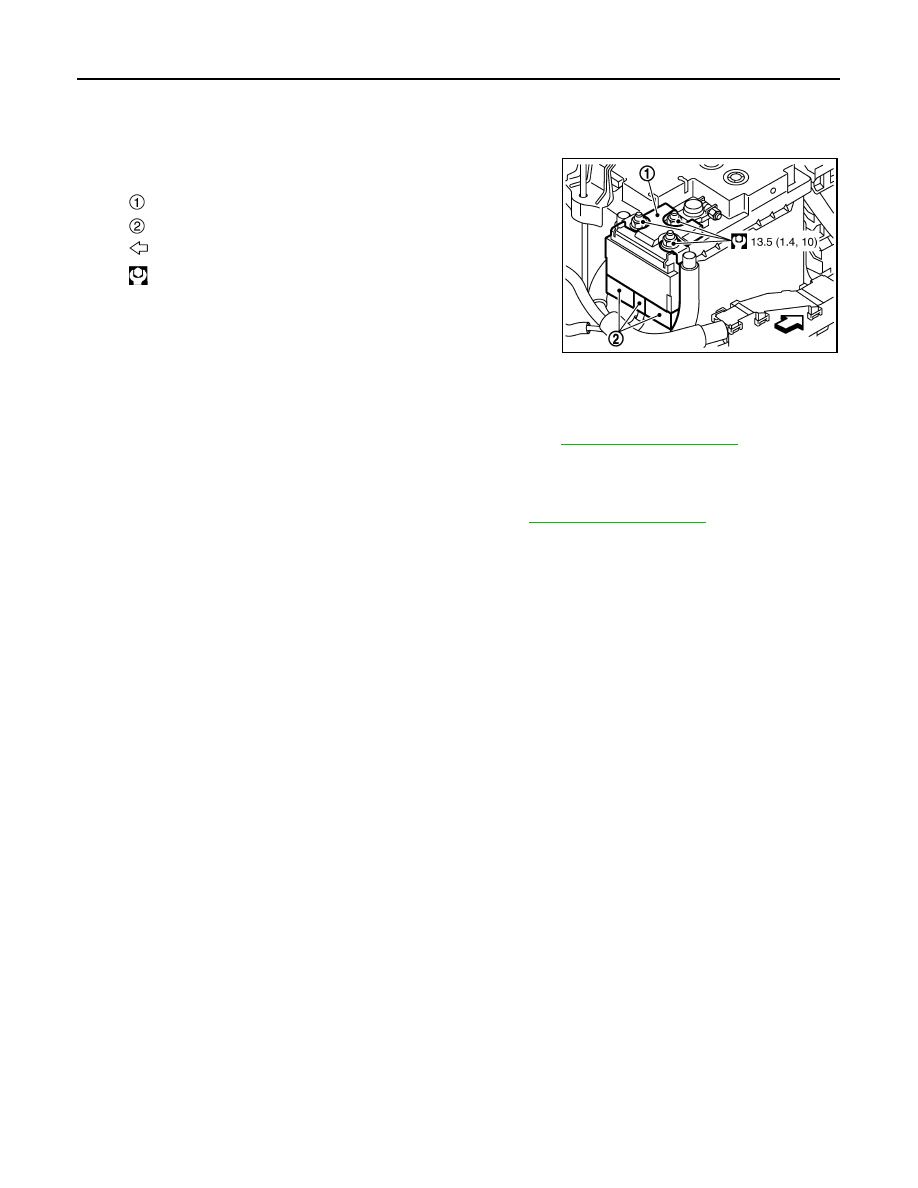

: Battery terminal with fusible link

: Harness connector

: Vehicle front

: N·m (kg-m, ft-lb)

JMMIA1770GB

PG

BATTERY CURRENT SENSOR

PG-157

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BATTERY CURRENT SENSOR

Exploded View

INFOID:0000000010464109

Removal and Installation

INFOID:0000000010464110

REMOVAL

1.

Disconnect battery cable from the negative terminal. Refer to

PG-154, "Exploded View"

.

2.

Disconnect battery current sensor connector.

3.

Remove battery current sensor mounting nut.

4.

Remove battery current sensor from battery cable.

INSTALLATION

Install in the reverse order of removal.

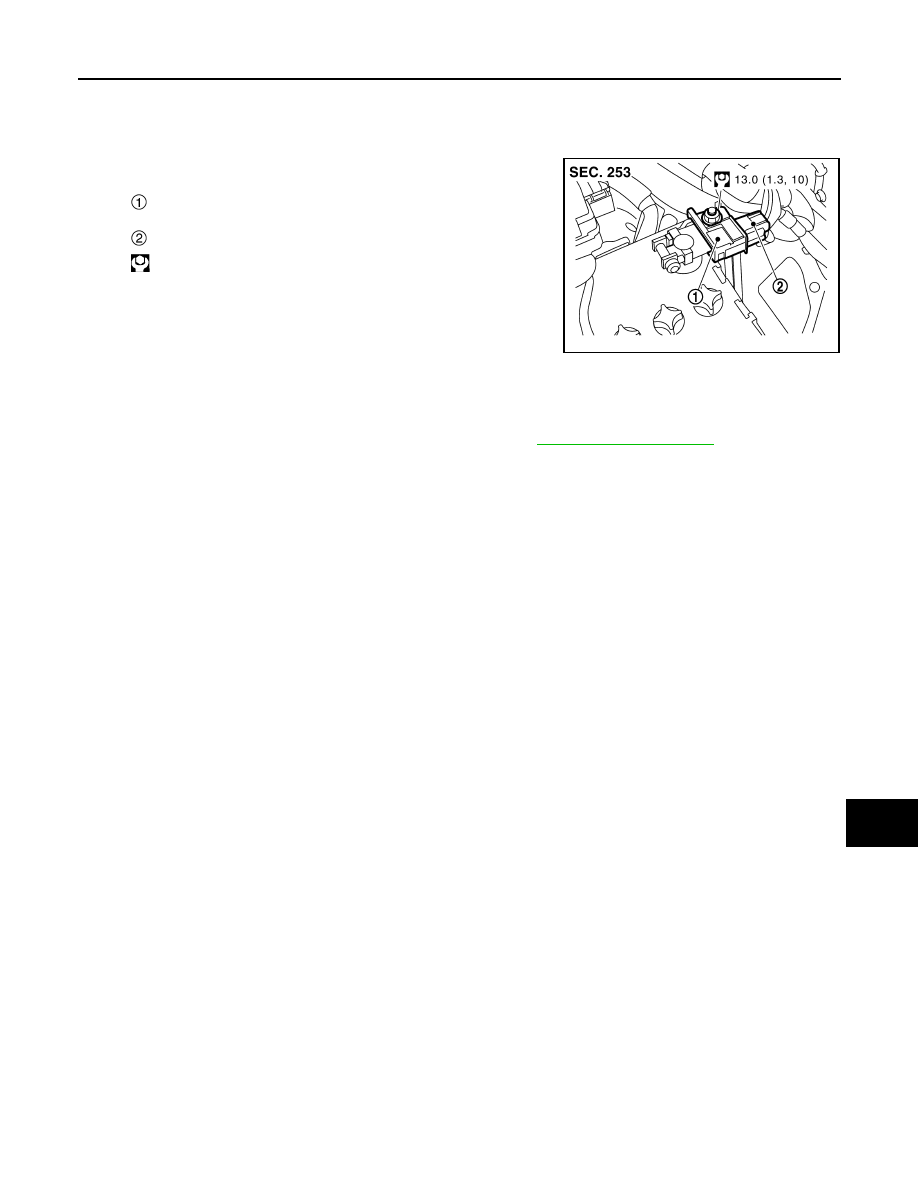

: Battery current sensor
(With battery temperature sensor)

: Harness connector

: N·m (kg-m, ft-lb)

JSMIA1127GB

PG-158

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Battery

INFOID:0000000010464111

Type

L2

L3

20 hour rate capacity

[V – Ah]

12 – 60

12 – 70

Cold cranking current (For reference value)

[A]

510

720
