DOOR FINISHER

INT-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

INT-18

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

BODY SIDE TRIM

Exploded View

INFOID:0000000010350939

Removal and Installation

INFOID:0000000010350940

CAUTION:

• Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
• Be careful not to damage the body while removing side trim.

REMOVAL

FRONT PILLAR GARNISH

1.

Release front pillar garnish portion from front body side welt.

2.

Disengage front pillar garnish fixing anchor clips using remover tool (A).

CAUTION:

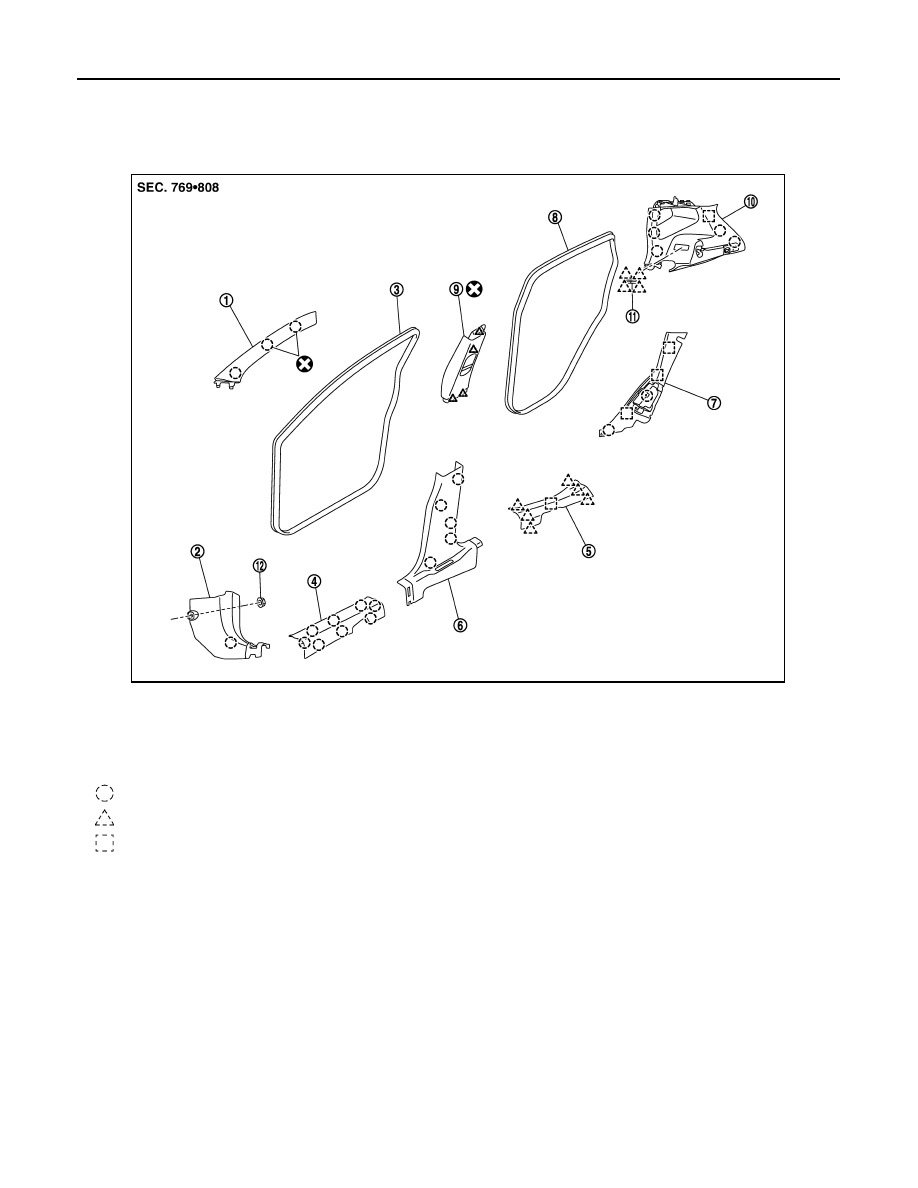

1.

Front pillar garnish

2.

Dash side finisher

3.

Welt body side front (RH)

4.

Front kicking plate inner

5.

Rear kicking plate inner

6.

Center pillar lower garnish

7.

Luggage side lower finisher (front)

8.

Welt body side rear (RH)

9.

Center pillar upper garnish

10. Rear pillar finisher (RH)

11. Rear seat belt escutcheon

12. Trim clip

: Clip

: Pawl

: Metal clip

E1JIA0272ZZ

BODY SIDE TRIM

INT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Do not re-use clips, if part is removed.

3.

Once free, pull front pillar garnish upwards to disengage the lower locating tab from instrument panel.

4.

Remove front pillar garnish.

FRONT KICKING PLATE INNER

1.

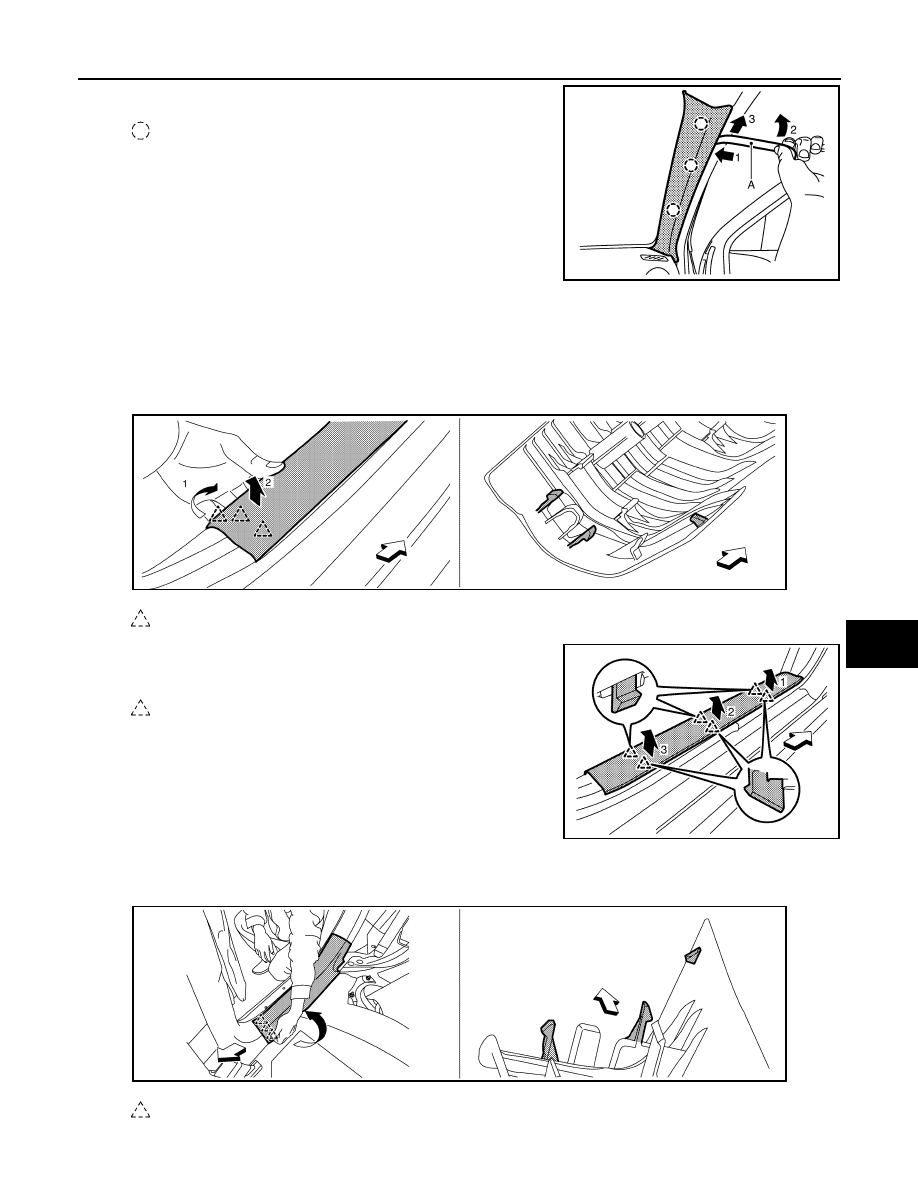

Disengage front kicking plate fixing pawls from front end portion according to numerical order as shown in
the figure.

2.

Disengage front kicking plate fixing pawls from center portion,
according to numerical order as shown in the figure.

REAR KICKING PLATE INNER

1.

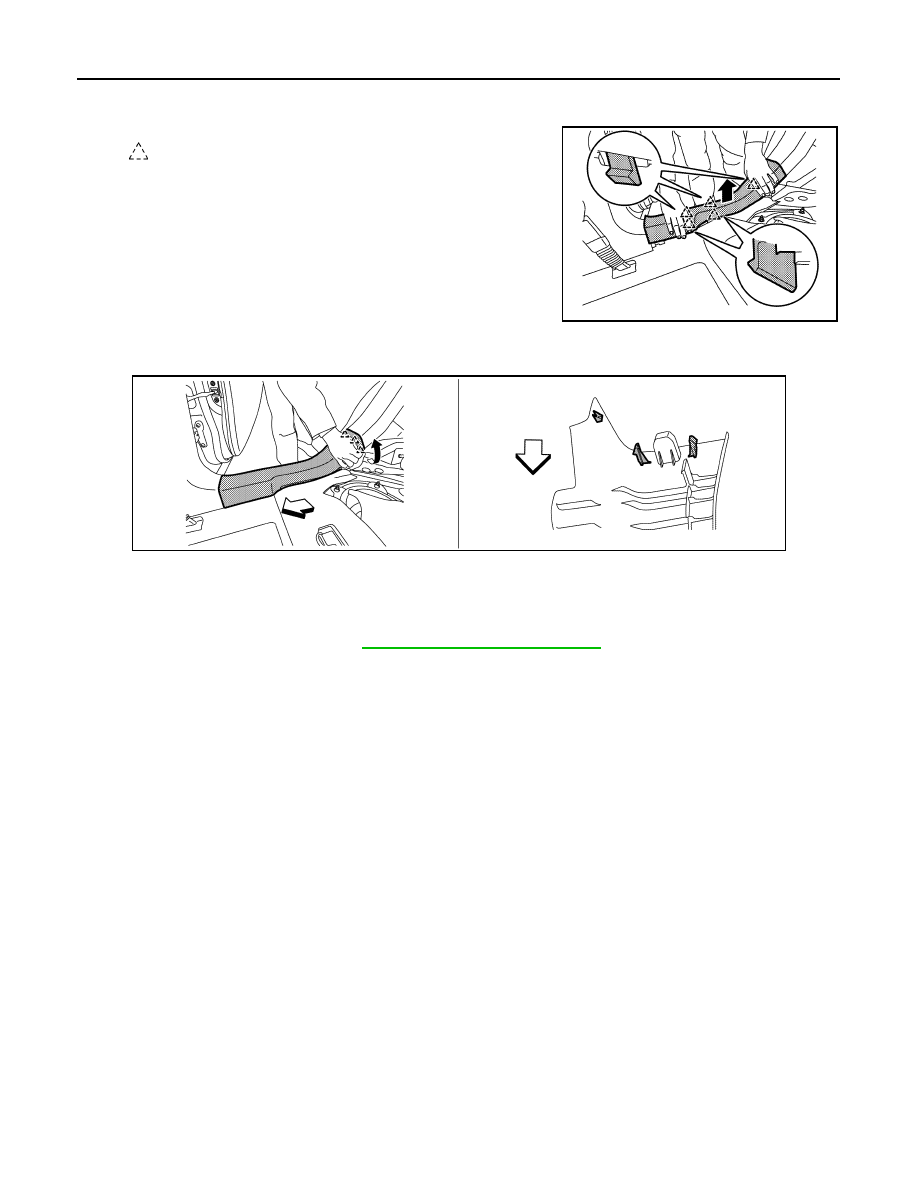

Disengage rear kicking plate fixing pawls of front end portion indicated by arrow as shown in the figure.

: Clip

E1JIA0273ZZ

JMJIA9606ZZ

: Pawl

: Pawl

JMJIA9607ZZ

JMJIA8922ZZ

: Pawl

INT-20

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

2.

Disengage rear kicking plate fixing pawls from center portion as shown in the figure.

3.

Disengage rear kicking plate fixing pawls of rear end portion as shown in the figure.

4.

Remove rear kicking plate.

DASH SIDE FINISHER

1.

Remove front kicking plate. Refer to

INT-18, "Removal and Installation"

2.

Release dash side finisher portion of front body side welt.

3.

Remove dash side finisher fixing clip.

4.

Remove dash side finisher.

CENTER PILLAR LOWER GARNISH

1.

Fully open front door and rear door.

2.

Move front seat to the frontmost position.

3.

Remove front and rear kicking plate inner.

4.

Release center pillar lower garnish portion of front body side welt and rear body side welt.

5.

Disengage outer cover fixing pawls and then remove outer cover.

: Pawl

JMJIA8923ZZ

JMJIA8921ZZ

BODY SIDE TRIM

INT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

6.

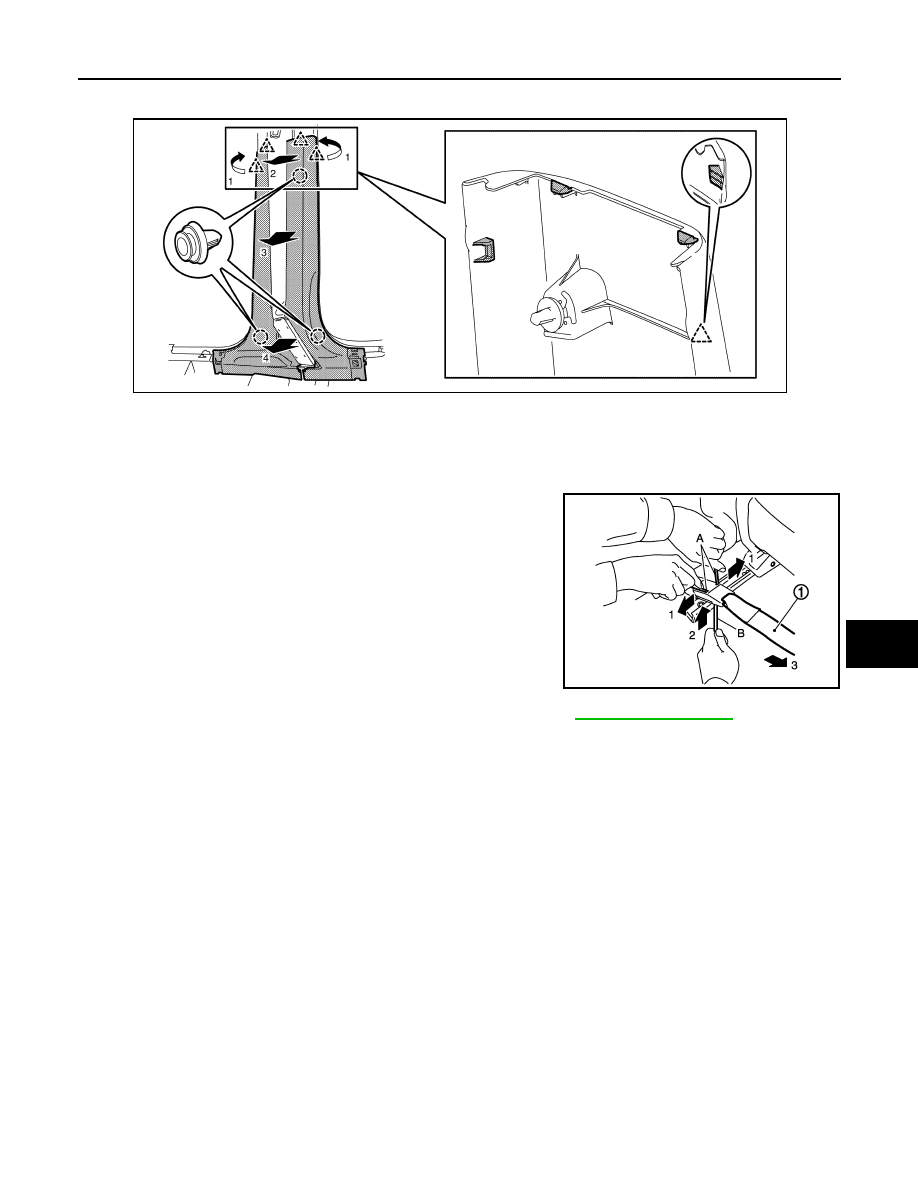

Disengage center pillar lower garnish fixing pawls and clips according to numerical ordet indicated by
arrows as shown in the figure.

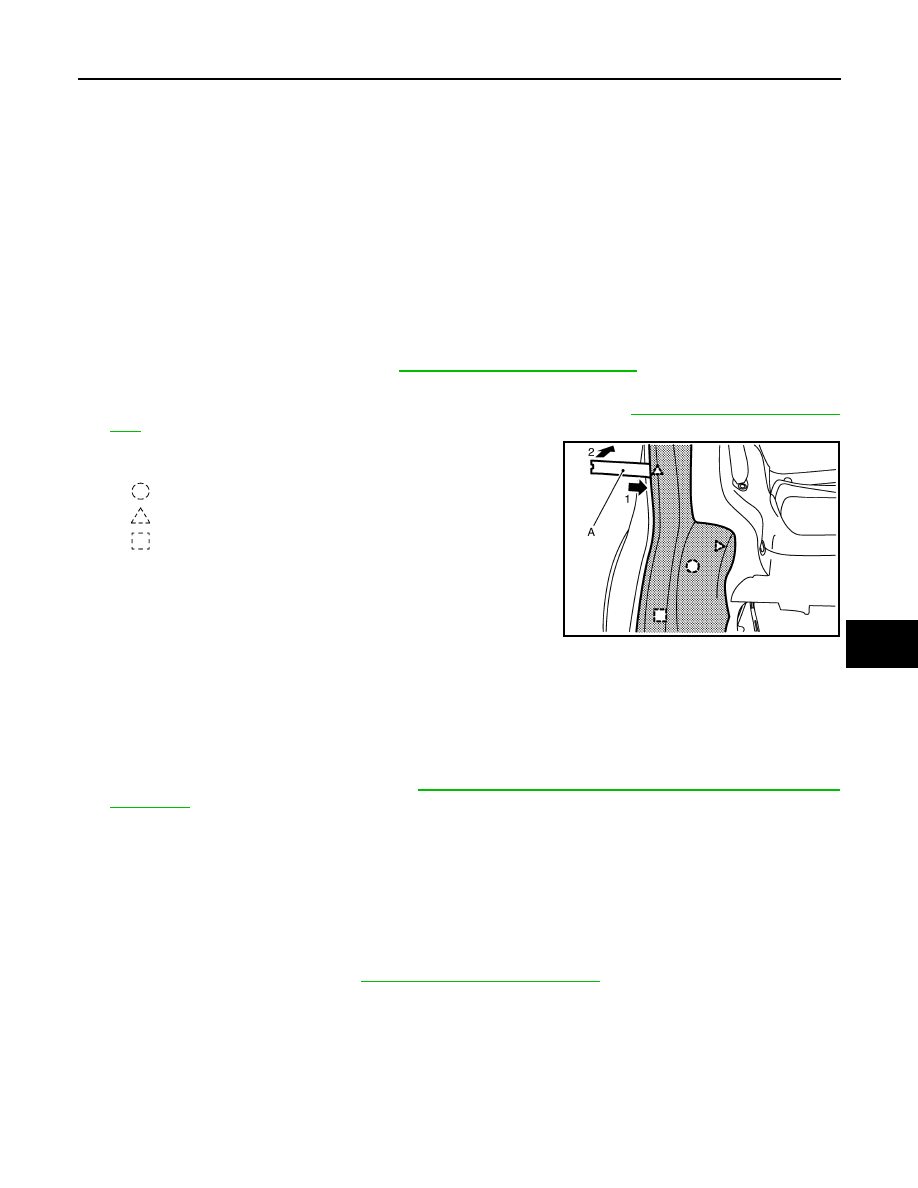

CENTER PILLAR UPPER GARNISH

1.

Remove center pillar lower garnish.

2.

Release center pillar upper garnish portion of front body side welt and rear body side welt.

3.

Remove front kicking plate and rear kicking plate.

4.

Insert remover tool (A) into each hole on lap pre-tensionner
buckle back side, spread the inner metal portion as shown in the
figure, and pull out lap pre-tensionner tongue (1) while inserting
remover tool (B) into the hole on lap pre-tensioner buckle (with
lap pre-tensioner).

5.

Remove mounting anchor bolt (without lap pre-tensioner). Refer to

SB-6, "Exploded View"

6.

Disengage center pillar upper garnish lower side fixing metal clips.

7.

Disengage center pillar upper garnish upper side fixing pawls.

CAUTION:

Never apply excessive force when removing center pillar upper garnish. Otherwise pawl may be
damaged and fragments may drop in panel holes on body.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Check that pawls are securely fitted in panel holes on body when installing, and then press them in.

JMJIA9613ZZ

JMHIA1649ZZ

INT-22

< REMOVAL AND INSTALLATION >

FLOOR TRIM

FLOOR TRIM

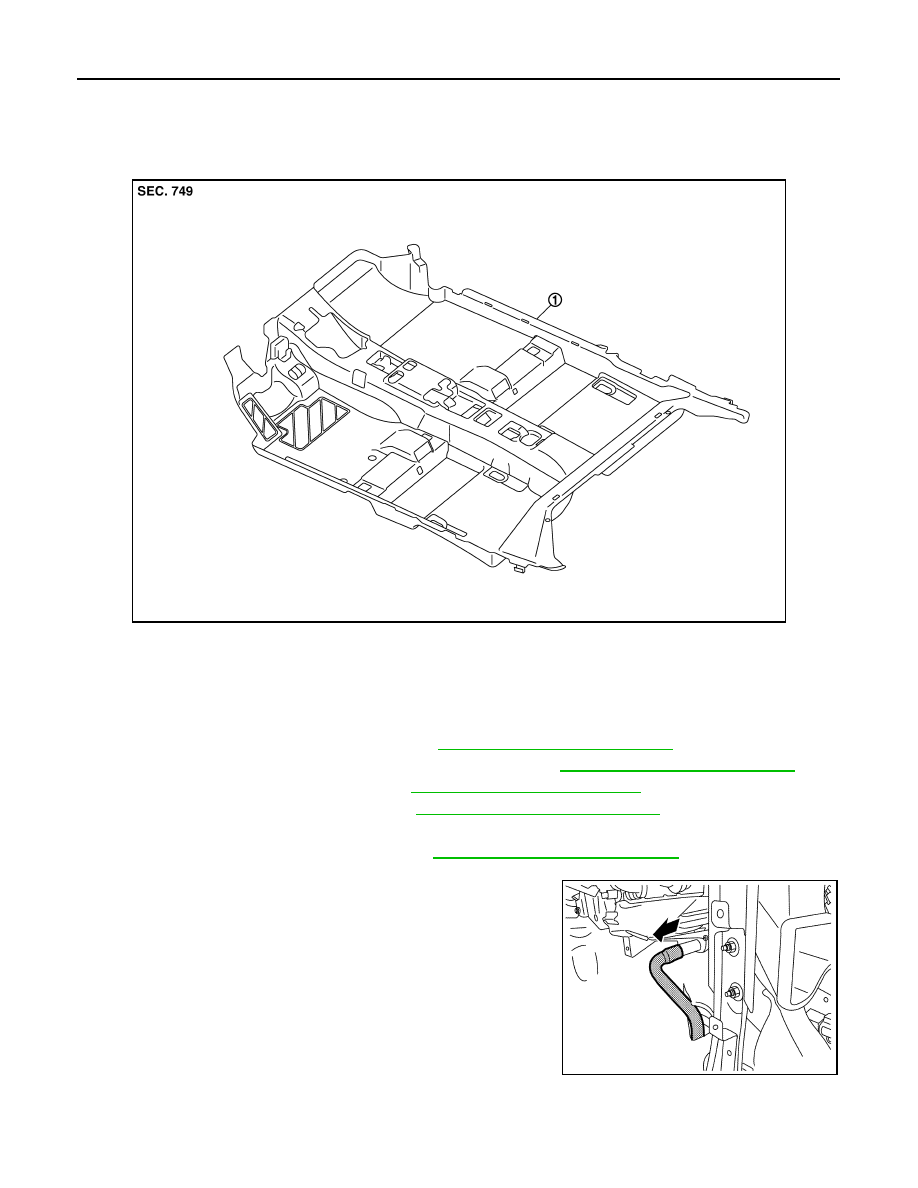

Exploded View

INFOID:0000000010350943

Removal and Installation

INFOID:0000000010500838

REMOVAL

1.

Remove front seat assembly (LH/RH). Refer to

SE-29, "Removal and Installation"

.

2.

Remove rear seat cushion and rear seatback assembly. Refer to

SE-35, "Removal and Installation"

.

3.

Remove center console assembly. Refer to

IP-19, "Removal and Installation"

.

4.

Remove parking brake control unit. Refer to

PB-142, "Removal and Installation"

 .

5.

Disconnect G sensor harness connector (CVT models only).

6.

Remove CVT shift selector assembly. Refer to

TM-617, "Removal and Installation"

.

7.

Disconnect drain hose.

JMJIA0731ZZ

1.

Floor carpet

JMJIA9632ZZ

FLOOR TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

8.

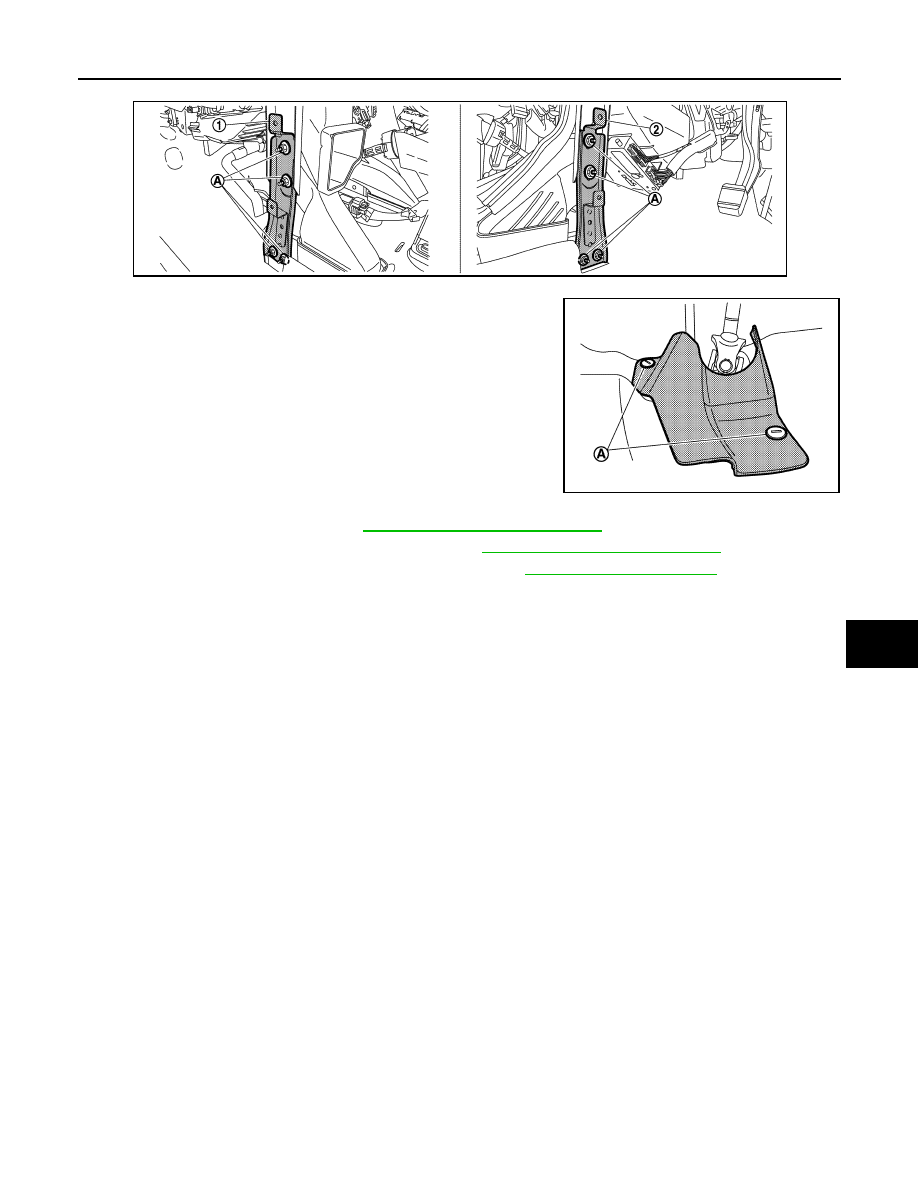

Remove instrument stay mounting nuts (A), and then remove instrument stay LH (1) and RH (2).

9.

Remove steering column hole cover fixing clips (A) and then
steering column hole cover.

10. Remove dash side finisher. Refer to

INT-18, "Removal and Installation"

.

11. Remove center pillar lower garnish (LH/RH). Refer to

INT-18, "Removal and Installation"

 .

12. Remove luggage side lower finisher (front) LH/RH. Refer to

INT-29, "Luggage side trim"

.

13. Remove floor carpet.

CAUTION:

Be careful not to damage the body panel.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• When replacing the floor carpet with a new one, install by cutting the front end like the old one. After

that, ensure matching quality between floor trim and instrument lower cover, etc. by tucking.

• Joints both new floor carpet and old front carpet ends by using a tucker.

JMJIA9615ZZ

JMJIA9616ZZ

INT-24

< REMOVAL AND INSTALLATION >

HEADLINING

HEADLINING

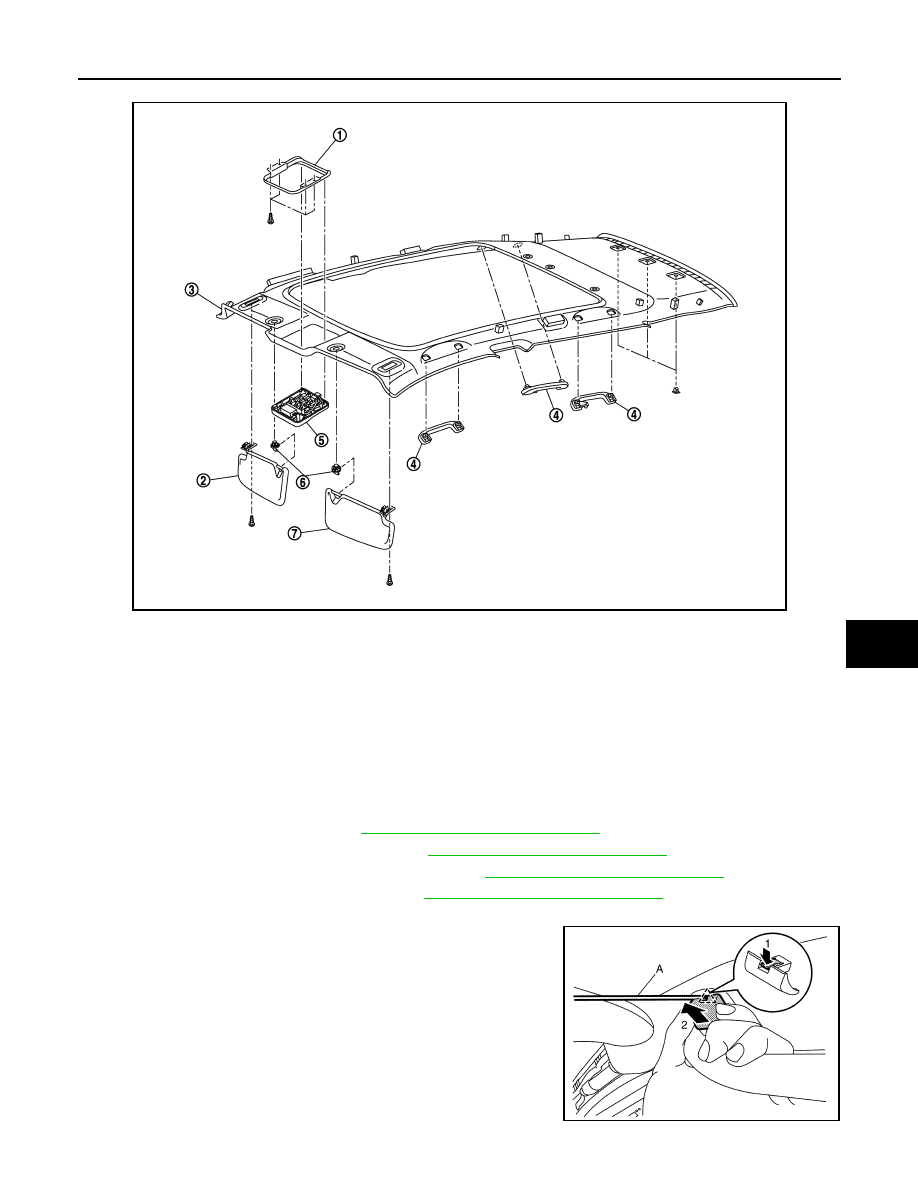

Exploded View

INFOID:0000000010351296

WITHOUT SUNROOF GLASS

E1JIA0279ZZ

1.

Map lamp bracket

2.

Roof insulators

3.

Headlining

4.

Assist grip

5.

Map lamp

6.

Sun visor holder (LH/RH)

7.

Sun visor (RH)

8.

Room lamp

9.

Sun visor (LH)

HEADLINING

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

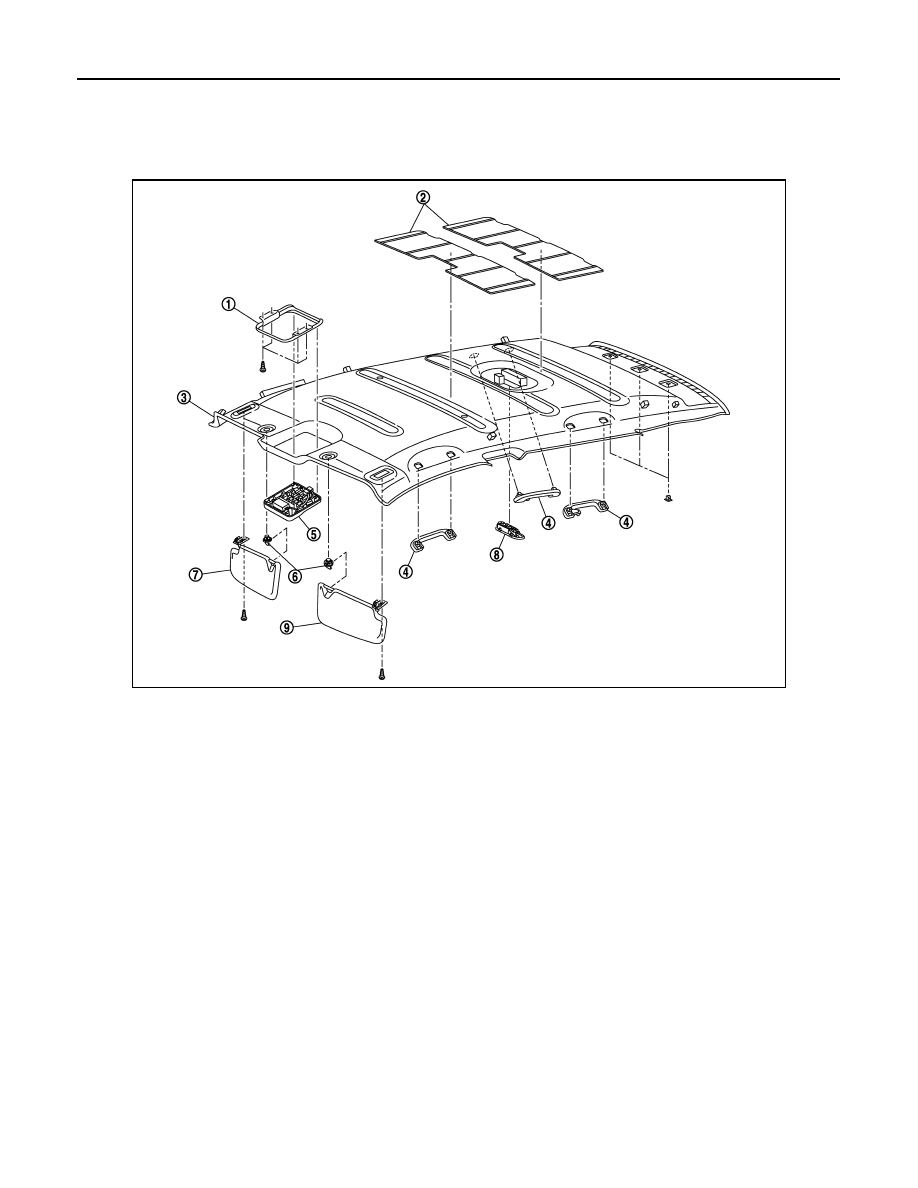

WITH SUNROOF GLASS

Removal and Installation

INFOID:0000000010351297

REMOVAL

WARNING:

Before servicing the SRS, turn ignition switch OFF, disconnect both battery cables then wait at least
three minutes.

1.

Remove all body side welt. Refer to

INT-18, "Removal and Installation"

.

2.

Remove front pillar garnish (LH/RH). Refer to

INT-18, "Removal and Installation"

.

3.

Remove center pillar upper garnish (LH/RH). Refer to

INT-18, "Removal and Installation"

.

4.

Remove rear pillar finisher (LH/RH). Refer to

INT-18, "Removal and Installation"

.

5.

Remove all assist grips.
• Disengage assist grip cap fixing pawl using a remover tool (A),

and then slide assist grip cap and remove it according to
numerical order indicated by arrows in the figure.

E1JIA0280ZZ

1.

Map lap bracket

2.

Sun visor (RH)

3.

Headlining

4.

Assist grip

5.

Map lamp

6.

Sun visor holder (LH/RH)

7.

Sun visor (LH)

8.

Sun visor holder (LH/RH)

JMJIA8937ZZ

INT-26

< REMOVAL AND INSTALLATION >

HEADLINING

• Slide assist grip forward and remove it.

6.

Remove map lamp finisher. Refer to

INL-68, "Exploded View"

.

7.

Remove sunroof welt (With sunroof models).

8.

Remove personal lamp (LH/RH). Refer to

INL-77, "Removal and Installation"

 (With sunroof models).

9.

Remove room lamp. Refer to

INL-75, "Removal and Installation"

 (Without sunroof models).

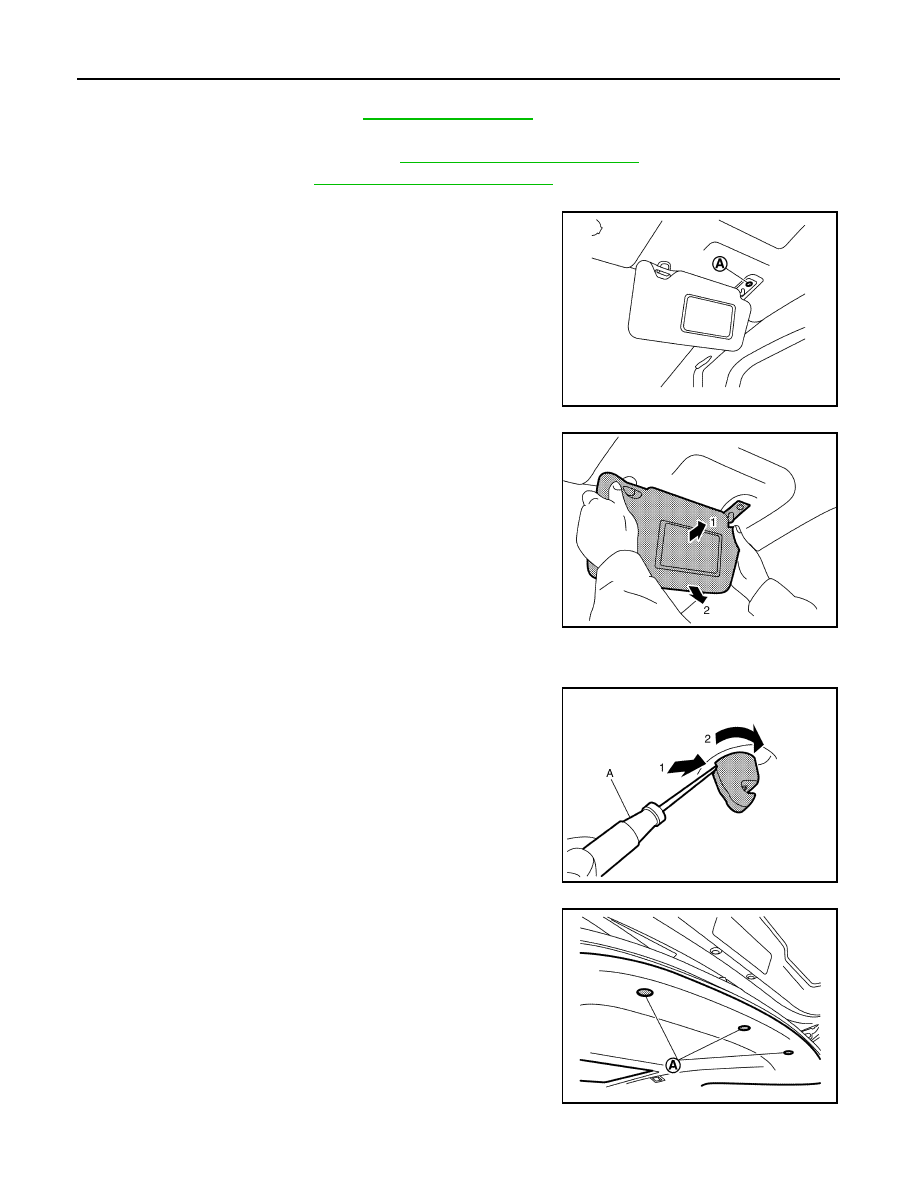

10. Remove sunvisor assembly (LH/RH):

• Remove sunvisor assembly fixing screw (A).

• Remove sunvisor assembly according to numerical order indi-

cated by arrows in the figure.

• Disconnect vanity mirror lamp harness connector (if equipped).

11. Remove sun visor holder (LH/RH) using a remover tool (A)

according to numerical order indicated by arrows as shown in
the figure.

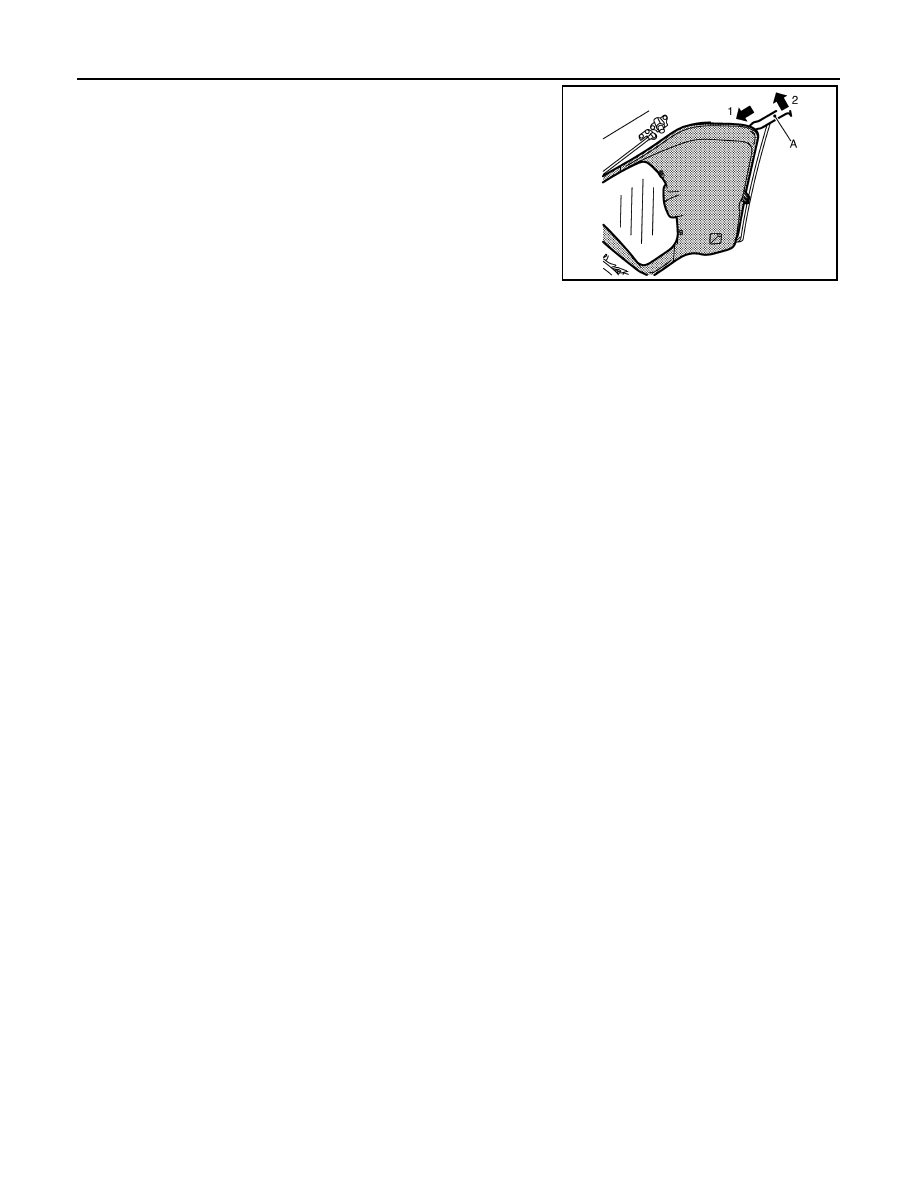

12. Remove headlining clips (A).

JMJIA7980ZZ

JMJIA7981ZZ

JMJIA9251ZZ

JMJIA9638ZZ

HEADLINING

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

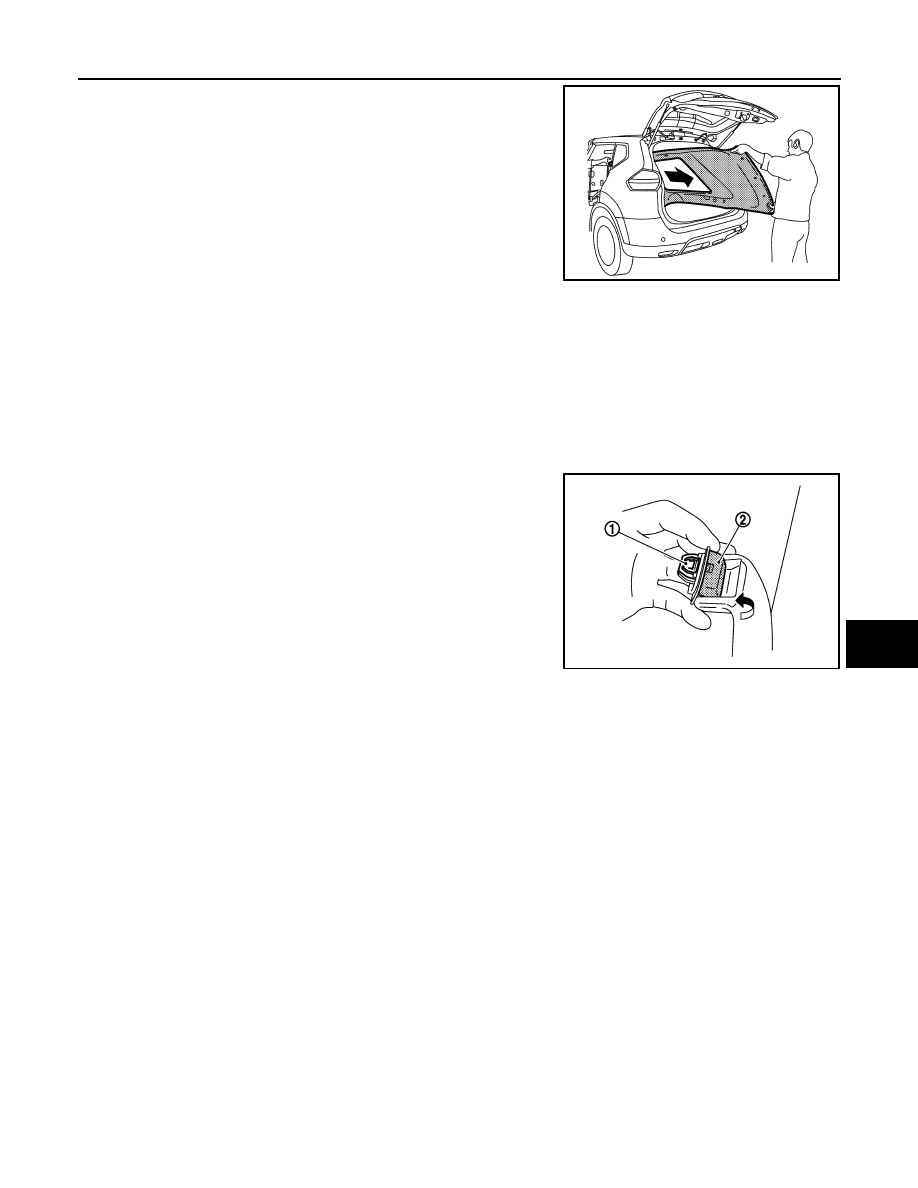

13. Remove headlining assembly through the back door.

CAUTION:

• Two workers are required for removal in order to prevent damage.
• Apply protective tape to the portion where contact may occur during work.
• Never bend headlining when removing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Never bend headlining when installing.
• Be careful that the surface is not wrinkled when installing.
• When finstalling assist grip, install metal clip (1) to assist grip

cap (2) and then instal to the body panel.

JMJIA9641ZZ

JMJIA3623ZZ

INT-28

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

LUGGAGE TRIM

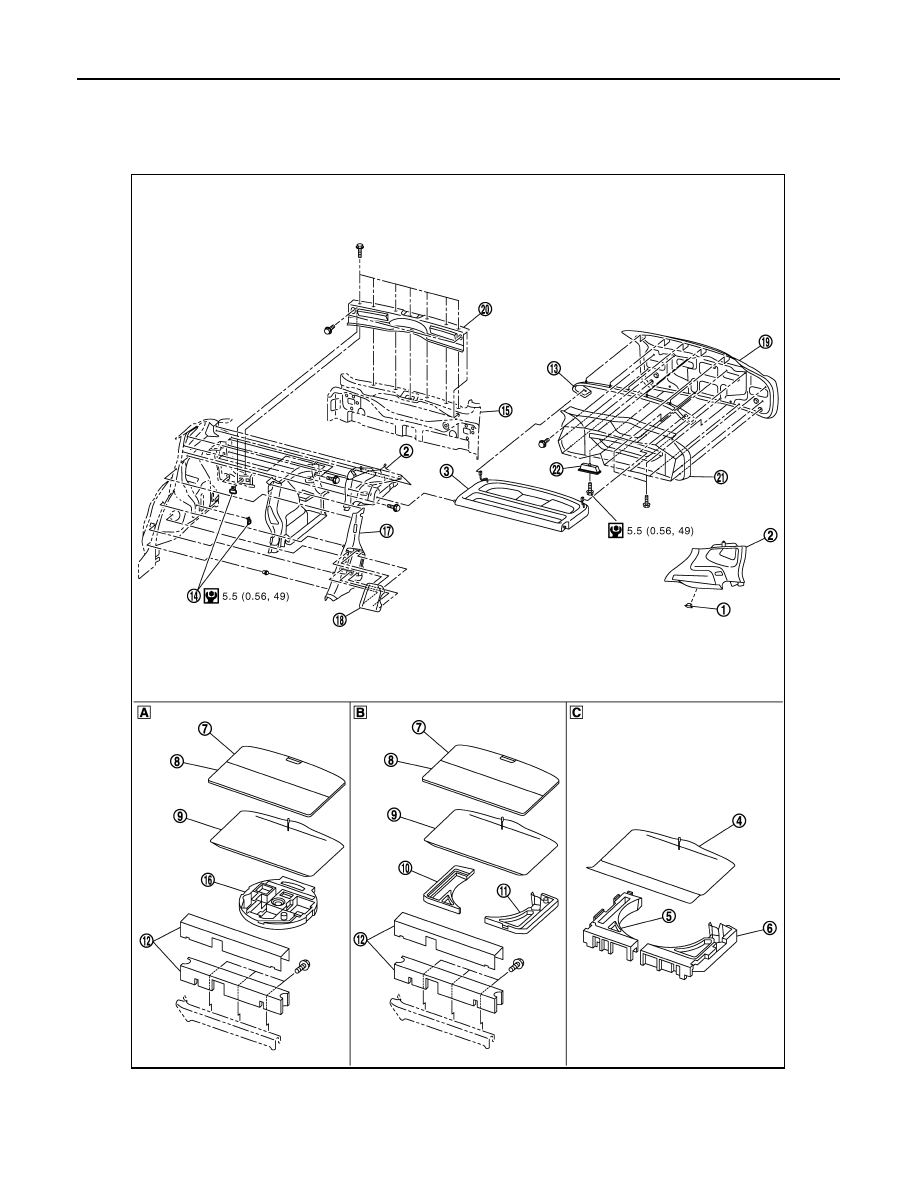

Exploded View

INFOID:0000000010350947

1.

Lamp assembly

2.

Rear pillar finisher

3.

Parcel shelf

4.

Luggage floor carpet

5.

Luggage floor spacer (RH)

6.

Luggage floor spacer(LH)

7.

Luggage floor board assembly

8.

Luggage floor board assembly

9.

Luggage floor carpet

E1JIA0281GB

LUGGAGE TRIM

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Luggage side trim

INFOID:0000000010350948

REMOVAL

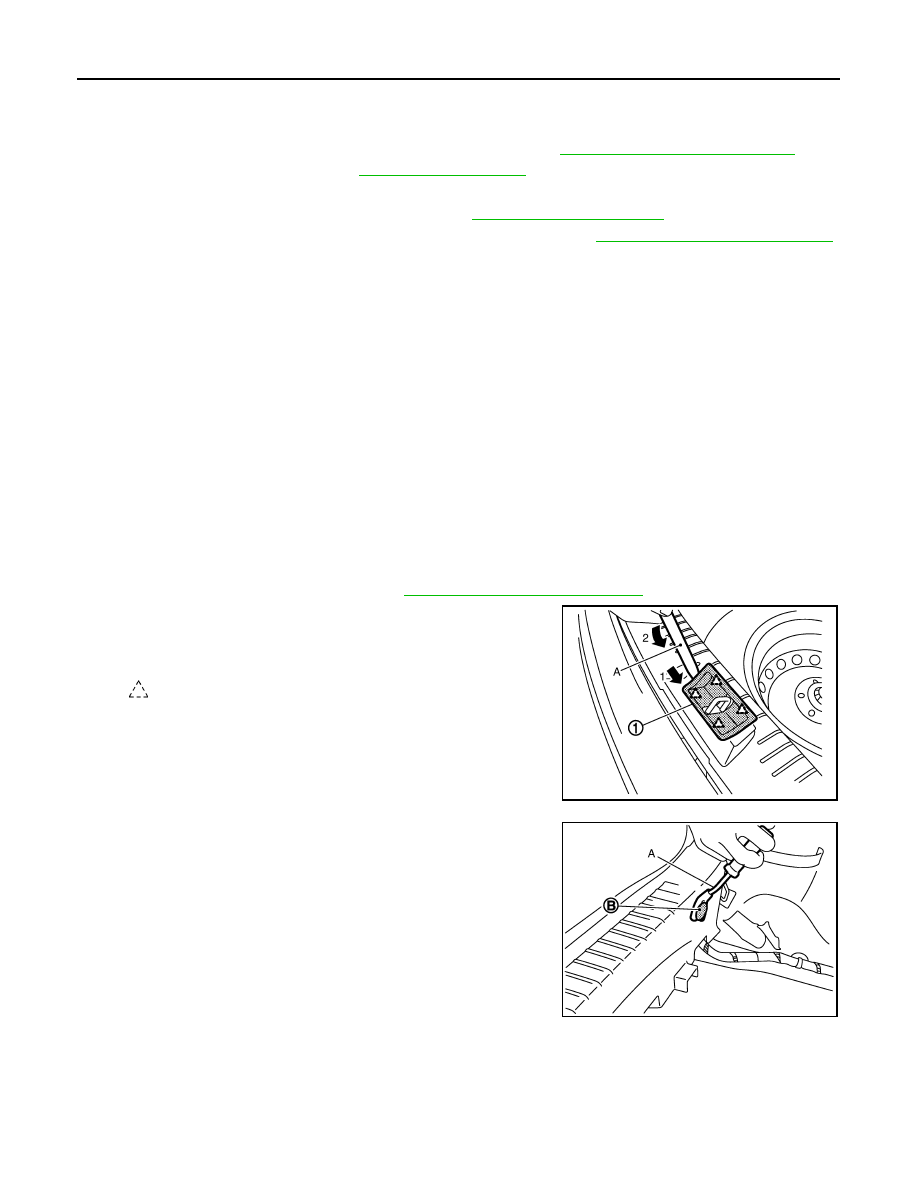

LUGGAGE SIDE LOWER FINISHER (FRONT)

1.

Remove rear kicking plate inner. Refer to

INT-18, "Removal and Installation"

 .

2.

Release luggage side lower finisher (front) portion from rear body side welt.

3.

Remove rear seat cushion assembly and rear seatback assembly. Refer to

SE-35, "Removal and Installa-

tion"

.

4.

Disengage luggage side lower finisher (front) fixing clips.

5.

Remove luggage side lower finisher (front).

LUGGAGE SIDE LOWER FINISHER

CAUTION:

Be careful not to damage the body panel.

1.

Fully open back door.

2.

Remove back door weather-strip. Refer to

DLK-356, "BACK DOOR WEATHER-STRIP : Removal and

Installation"

.

3.

Remove luggage rear plate fixing clips.

4.

Disengage luggage rear plate fixing pawls and metal clips.

5.

Remove luggage rear plate.

6.

Remove rear parcel shelf finisher (if equipped).

7.

Remove luggage floor carpet.

8.

Remove luggage floor board (if equipped).

9.

Remove luggage side lower finisher (front).

10. Remove rear pillar finisher. Refer to

INT-18, "Removal and Installation"

.

11. Remove trunk side finisher mounting bolts.

12. Remove trunk side finisher.

13. Remove luggage floor carpet front fixing clips.
14. Remove luggage floor carpet front.

15. Remove luggage side lower finisher fixing clips.

16. Remove luggage side lower finisher.

10. Luggage floor spacer (RH)

11. Luggage floor spacer (LH)

12. Front luggage floor carpet structure

13. Back door trim finisher upper

14. Hook assembly

15. Rear body assembly

16. Hook rope (LH)Rear center luggage

floor spacer assembly (if equipped)

17. Luggage side lower finisher

18. Front luggage side lower finisher

19. Back door assembly

20. Luggage rear plate

21. Back door trim finisher lower

22. Back door pull handle

A

With luggage floor spacer

B

Without luggage floor spacer

C

Without luggage floor spacer and
luggage floor board assembly

: Clip

: Pawl

: Metal clip

JMJIA0245ZZ

INT-30

< REMOVAL AND INSTALLATION >

LUGGAGE TRIM

REAR PILLAR FINISHER

CAUTION:

Be careful not to damage the body panel.
1.

Remove rear seat cushion and rear seatback assembly. Refer to

SE-35, "Removal and Installation"

.

2.

Remove lower anchor bolt. Refer to

SB-10, "Exploded View"

3.

Disengage seat belt finisher fixing pawls, and then remove seat belt finisher.

4.

Remove luggage side lower finisher (front). Refer to

INT-29, "Luggage side trim"

5.

Remove luggage room lamp (rear pillar finisher LH side only). Refer to

INL-79, "Removal and Installation"

.

6.

Release rear pillar finisher portion of back door weather-strip.

7.

Disengage rear pillar finisher fixing clips and metal clips.

8.

Remove rear pillar finisher (LH/RH).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Visually check clips and metal clips for deformation and damage during installation. Replace with new
one if necessary.
When installing check in advance that clips and metal clips are accurately aligned with the portions on
body panel.

Luggage floor trim

INFOID:0000000010375508

REMOVAL

LUGGAGE REAR PLATE

1.

Remove luggage floor carpet and luggage floor spacers.

2.

Remove back door weather-strip. Refer to

INT-31, "Removal and Installation"

.

3.

Insert remover tool (A) between luggage rear plate and luggage
rear plate cap (1) to disengage pawls and then remove luggage
rear plate cap.

4.

Remove both clips (B) on luggage rear plate using a remover
tool (A).

5.

Hold both sides of rear plate, pull upwards to remove.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMJIA0235ZZ

JMJIA0236ZZ

BACK DOOR TRIM

INT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BACK DOOR TRIM

Exploded View

INFOID:0000000010350955

Removal and Installation

INFOID:0000000010350956

REMOVAL

BACK DOOR TRIM

1.

Fully open back door.

2.

Remove screw tap (A) located in back door trim finisher lower
(1) with screwdriver (B).

1.

Back door trim finisher lower

2.

Back door trim finisher upper

3.

Back door assembly

: Clip

: Pawl

: Metal clip

JMJIA0231ZZ

JMJIA0233ZZ

INT-32

< REMOVAL AND INSTALLATION >

BACK DOOR TRIM

3.

Insert remover tool (A) between back door trim finisher lower
and back door panel to disengage clips. Starting by the lower
downwards and works around the edges and up to the sides.

4.

Pull downwards carefully the back trim finisher to disengage center clips and remove back door trim fin-
isher.

5.

Remove back door trim finisher upper.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Visually check clips and metal clips for deformation and damage during installation. Replace with new
ones if necessary.
When installing door finisher, check that clips are securely fitted in panel holes on body, and then
press them in.

JMJIA0232ZZ
