Qashqai J11. Defogger - part 2

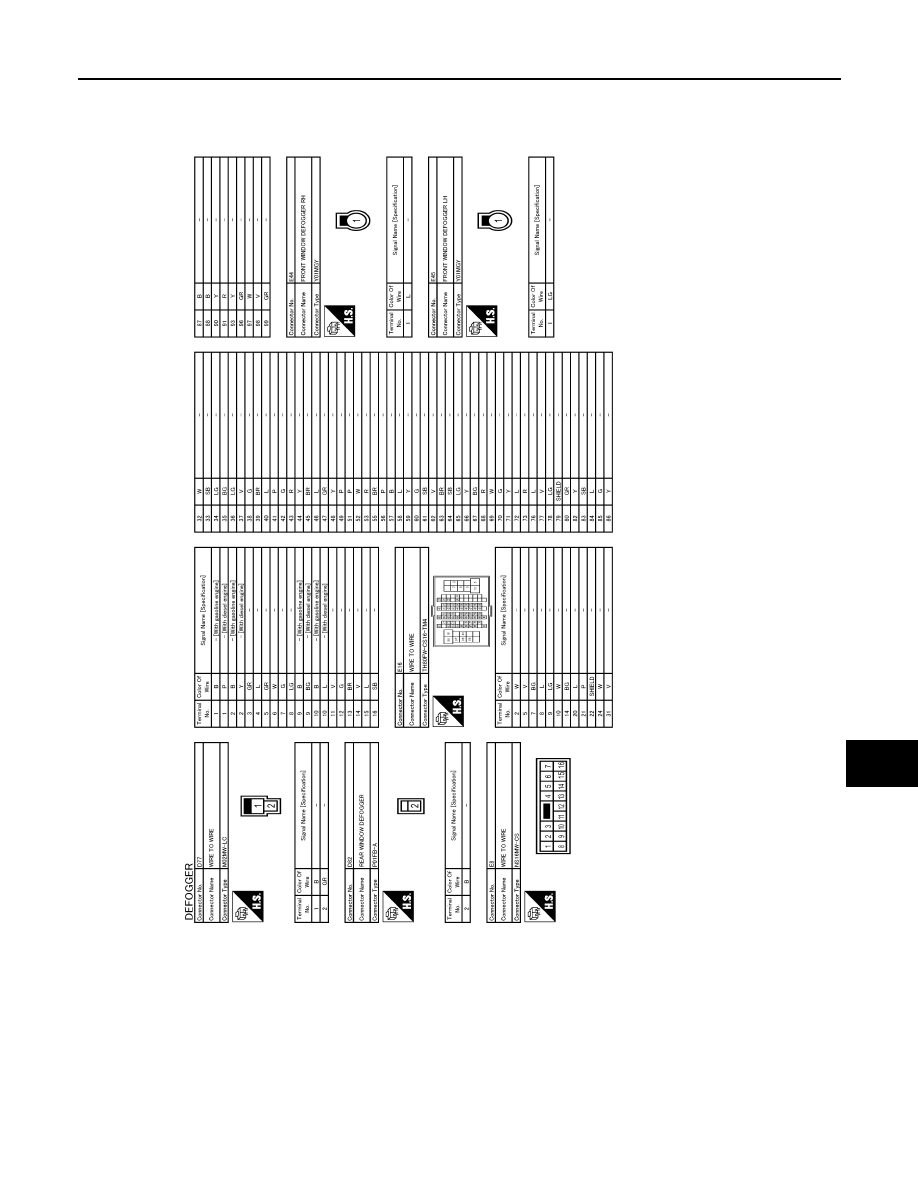

REAR WINDOW DEFOGGER SYSTEM

DEF-17

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

JRLWD2262GB

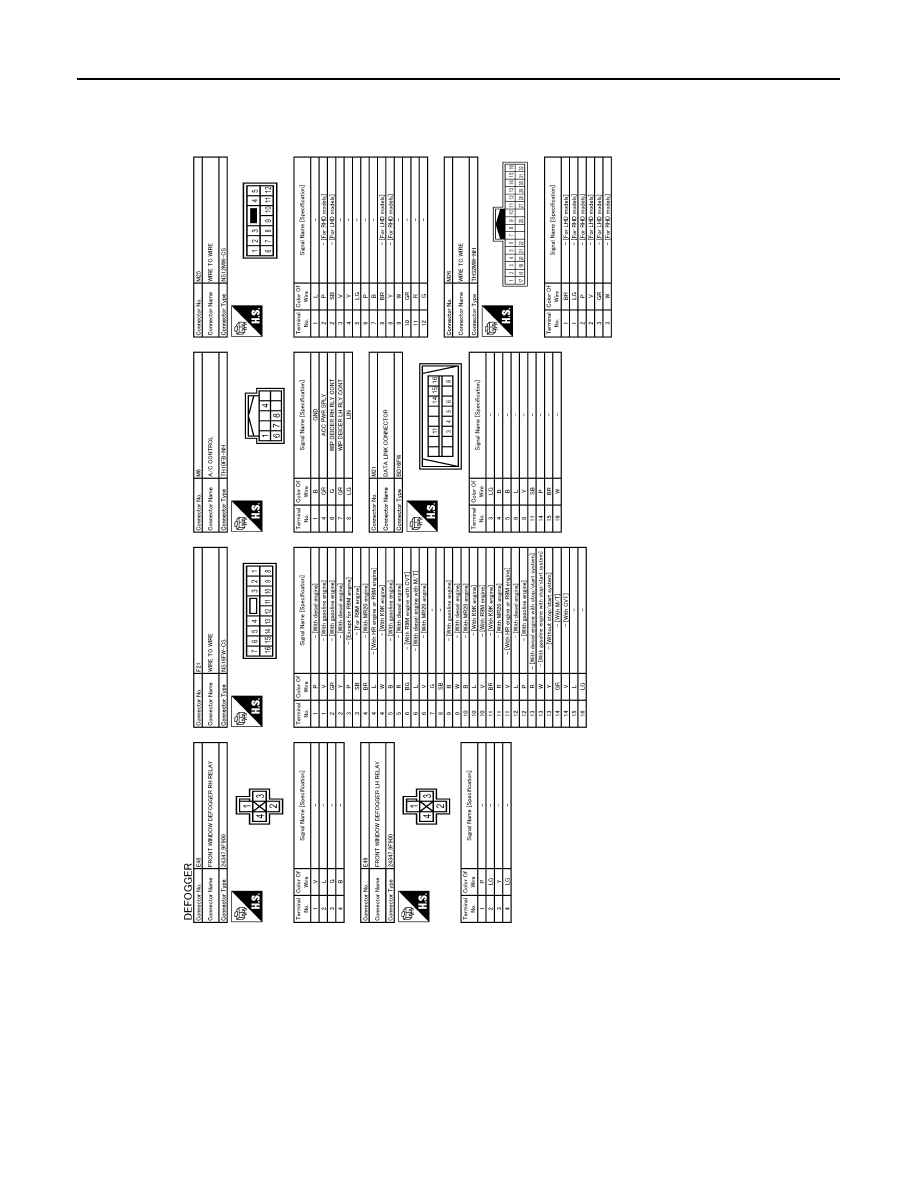

DEF-18

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER SYSTEM

JRLWD2263GB

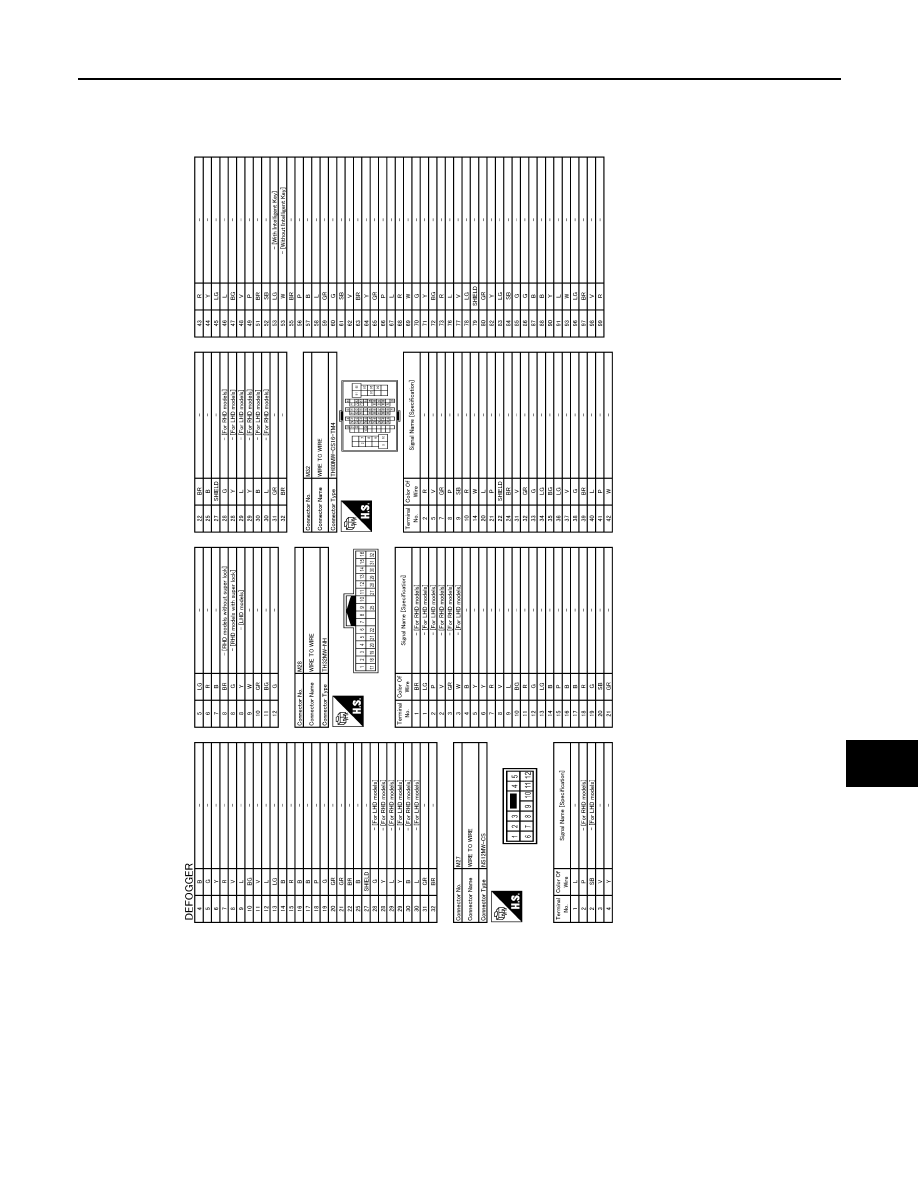

REAR WINDOW DEFOGGER SYSTEM

DEF-19

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

JRLWD2264GB

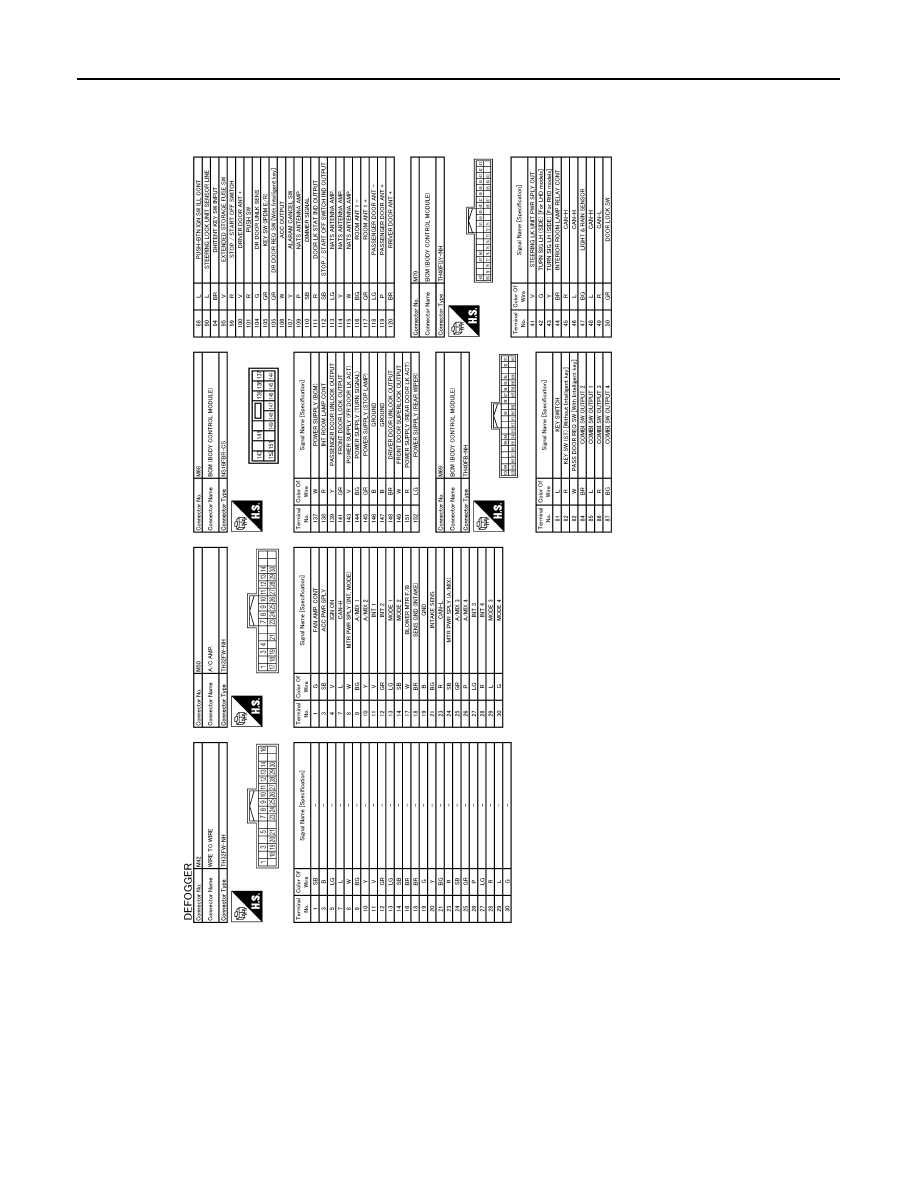

DEF-20

< WIRING DIAGRAM >

REAR WINDOW DEFOGGER SYSTEM

JRLWD2265GB

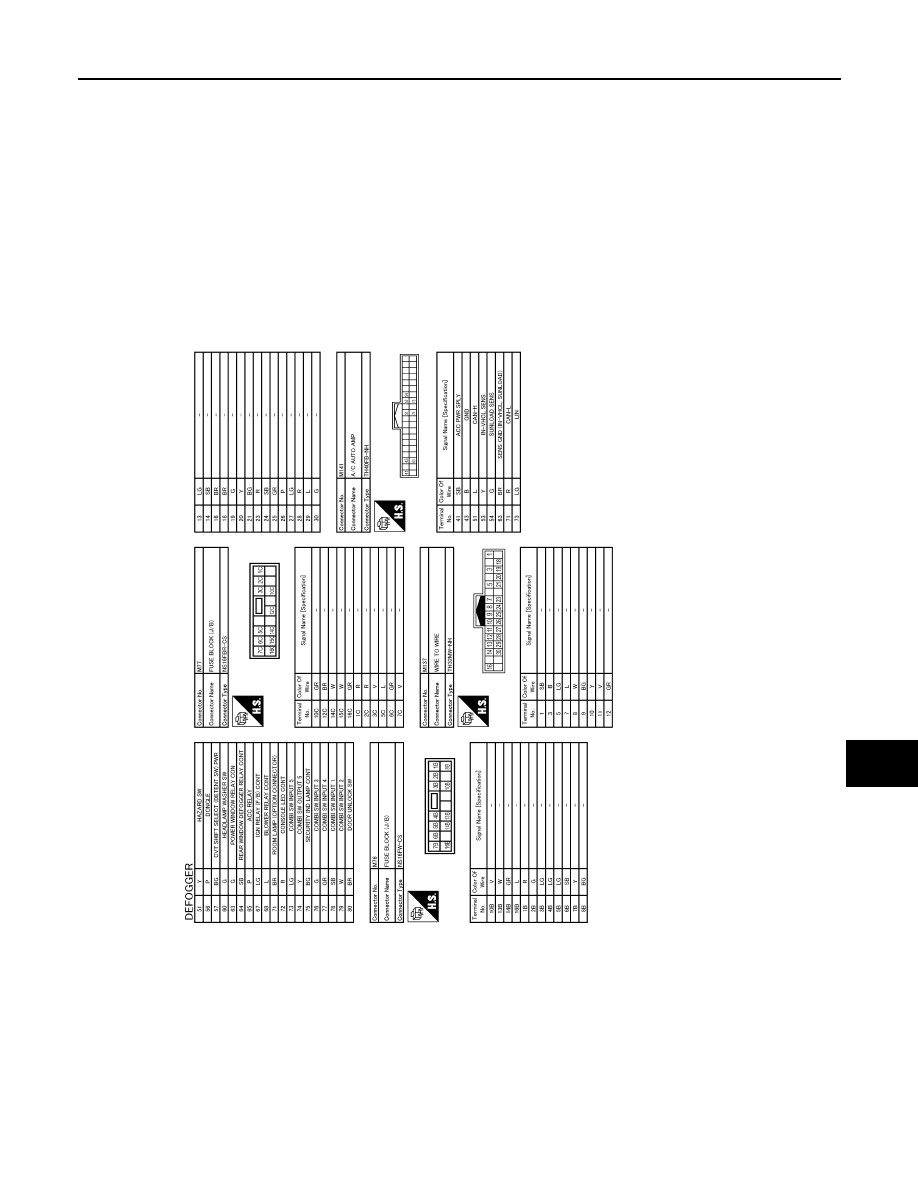

REAR WINDOW DEFOGGER SYSTEM

DEF-21

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

JRLWD2266GB

DEF-22

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010434116

DETAILED FLOW

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-
tion occurred) as much as possible when the customer brings the vehicle in.

>> GO TO 2.

2.

CHECK DTC

Perform self diagnosis with CONSULT.
Is any DTC detected?

YES

>> Refer to

BCS-90, "DTC Index"

.

NO

>> GO TO 3.

3.

REPRODUCE THE MALFUNCTION INFORMATION

Check the malfunction on the vehicle that the customer describes.
Inspect the relation of the symptoms and the condition when the symptoms occur.

>> GO TO 4.

4.

IDENTIFY THE MALFUNCTIONING SYSTEM WITH “SYMPTOM DIAGNOSIS”

Use “Symptom diagnosis” from the symptom inspection result in step 3. Then identify where to start perform-
ing the diagnosis based on possible causes and symptoms.

>> GO TO 5.

5.

IDENTIFY MALFUNCTIONING PARTS WITH “COMPONENT DIAGNOSIS”

Perform the diagnosis with “Component diagnosis” of the applicable system.

>> GO TO 6.

6.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the specified malfunctioning parts.

>> GO TO 7.

7.

FINAL CHECK

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 3.
Are all malfunctions corrected?

YES

>> INSPECTION END

NO

>> GO TO 4.

REAR WINDOW DEFOGGER SWITCH

DEF-23

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

DTC/CIRCUIT DIAGNOSIS

REAR WINDOW DEFOGGER SWITCH

Component Function Check

INFOID:0000000010434117

1.

CHECK REAR WINDOW DEFOGGER SWITCH FUNCTION

Check that the indicator lamp of rear window defogger illuminates when rear window defogger switch ON.

Is the inspection result normal?

YES

>> Rear window defogger switch function is OK.

NO

>> Refer to

DEF-23, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000010434118

1.

CHECK A/C TYPE

Check A/C type.

Automatic A/C>>GO TO 2.
Except for automatic A/C>>GO TO 5.

2.

CHECK INTEGRAL SWITCH (REAR WINDOW DEFOGGER SWITCH)

Perform ON BOARD SELF-DIAGNOSIS of A/C control.
Refer to

HAC-45, "Diagnosis Description"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

REPLACE A/C CONTROL

1.

Turn ignition switch OFF.

2.

Replace A/C control (rear window defogger switch). Refer to

HAC-126, "Removal and Installation"

.

3.

Turn ignition switch ON.

4.

Operate rear window defogger switch and check the operating condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

REPLACE A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Replace A/C auto amp. Refer to

HAC-127, "Removal and Installation"

.

3.

Turn ignition switch ON.

4.

Operate rear window defogger switch and check the operating condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

5.

REPLACE A/C AMP.

1.

Turn ignition switch OFF.

2.

Replace A/C amp. Refer to

HAC-222, "Removal and Installation"

 (For models with manual A/C) or

HAC-

289, "Removal and Installation"

 (For models with manual heater).

3.

Turn ignition switch ON.

4.

Operate rear window defogger switch and check the operating condition.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 6.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

DEF-24

< DTC/CIRCUIT DIAGNOSIS >

REAR WINDOW DEFOGGER SWITCH

Is the inspection result normal?

>> INSPECTION END

REAR WINDOW DEFOGGER RELAY

DEF-25

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

REAR WINDOW DEFOGGER RELAY

Component Function Check

INFOID:0000000010434119

1.

CHECK REAR WINDOW DEFOGGER RELAY POWER SUPPLY CIRCUIT

1.

Perform BCM Active Test (“REAR DEFOGGER”) with CONSULT.

2.

Touch “ON”.

3.

Check that the rear window heating wire is getting warmer.

Is the inspection result normal?

YES

>> Rear window defogger relay power supply circuit is OK.

NO

>> Refer to

DEF-25, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000010434120

1.

CHECK REAR WINDOW DEFOGGER CIRCUIT 1

1.

Turn ignition switch ON.

2.

Check voltage between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO-1

>> Fixed at 0 V and remains unchanged: GO TO 2.

NO-2

>> Fixed at 9 – 16 V and remains unchanged: Replace BCM. Refer to

BCS-132, "Removal and

Installation"

.

2.

CHECK REAR WINDOW DEFOGGER CIRCUIT 2

1.

Turn ignition switch OFF.

2.

Disconnect BCM connector and fuse block (J/B) connector.

3.

Check continuity between BCM harness connector and fuse block (J/B) harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK REAR WINDOW DEFOGGER RELAY1

Check rear window defogger relay.
Refer to

DEF-26, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace rear window defogger relay.

4.

CHECK FUSE BLOCK (J/B)

1.

Install the rear window defogger relay.

2.

Turn ignition switch ON.

3.

Check voltage between fuse block (J/B) (fuse block side) and ground.

(+)

(-)

Condition

Voltage (V)

BCM

 Connector

Terminal

M70

64

Ground

 Rear window defogger switch

ON

0 – 0.5

OFF

9 – 16

BCM

Fuse block (J/B)

Continuity

Connector

Terminal

Connector

Terminal

M70

64

M76

6B

Existed

DEF-26

< DTC/CIRCUIT DIAGNOSIS >

REAR WINDOW DEFOGGER RELAY

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace fuse block (J/B).

5.

CHECK REAR WINDOW DEFOGGER RELAY2

1.

Turn ignition switch OFF.

2.

Check rear window defogger relay. Refer to

DEF-26, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace rear window defogger relay.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

>> INSPECTION END

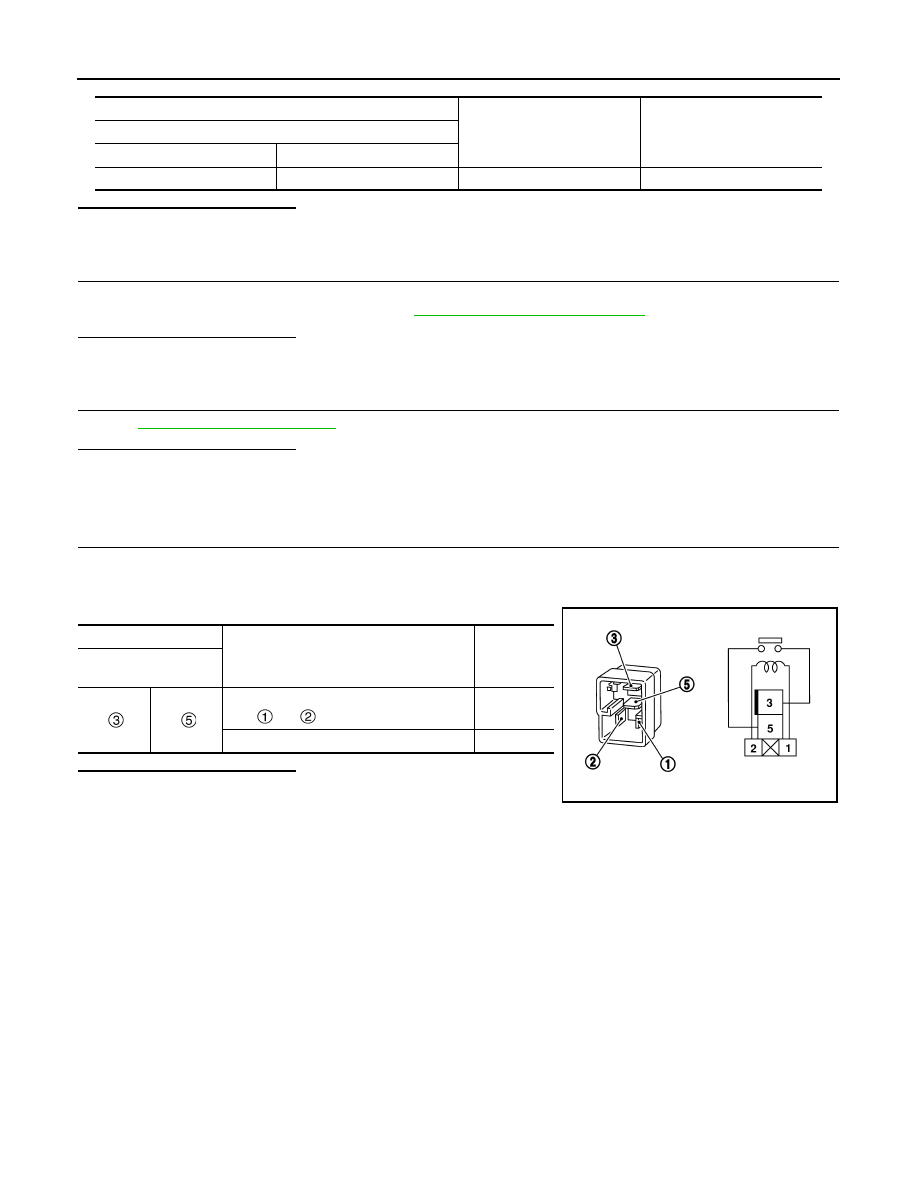

Component Inspection

INFOID:0000000010434121

1.

CHECK REAR WINDOW DEFOGGER RELAY

1.

Turn ignition switch OFF.

2.

Disconnect rear window defogger relay.

3.

Check continuity between rear window defogger relay terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace rear window defogger relay.

(+)

(-)

Voltage (V)

(Approx.)

Fuse block (J/B)

 Connector

 Terminal

M76

6B

Ground

Battery voltage

Terminal

Condition

Continuity

Rear window

defogger relay

12 V direct current supply between termi-

nals

and .

Existed

No current supply

Not existed

SEF497Y

REAR WINDOW DEFOGGER

DEF-27

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

REAR WINDOW DEFOGGER

Component Function Check

INFOID:0000000010434122

1.

CHECK REAR WINDOW DEFOGGER

1.

Perform BCM Active Test (“REAR DEFOGGER”) with CONSULT.

2.

Touch “ON”.

3.

Check that the rear window heating wire is getting warmer.

Is the inspection result normal?

YES

>> Rear window defogger is OK.

NO

>> Refer to

DEF-27, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000010434123

1.

CHECK FUSE

1.

Turn ignition switch OFF.

2.

Check that the following fuse is not fusing.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the affected circuit if a fuse is blown.

2.

CHECK POWER SUPPLY CIRCUIT

1.

Disconnect rear window defogger connector.

2.

Turn ignition switch ON.

3.

Check voltage between rear window defogger harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 4.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between rear window defogger harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace harness.

4.

CHECK REAR WINDOW DEFOGGER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuse block (J/B) connector.

Fuse No.

Capacity

10

15 A

11

(+)

(–)

Condition

Voltage (V)

(Approx.)

Rear window defogger

Connector

Terminal

B46

1

Ground

Rear window defogger
switch

ON

Battery voltage

OFF

0

Rear window defogger

Ground

Continuity

Connector

Terminal

D82

2

Existed

DEF-28

< DTC/CIRCUIT DIAGNOSIS >

REAR WINDOW DEFOGGER

3.

Check continuity between fuse block (J/B) harness connector and rear window defogger harness connec-
tor.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

CHECK FUSE BLOCK (J/B)

1.

Turn ignition switch ON.

2.

Check voltage between fuse block (J/B) (fuse block side) and ground.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace fuse block (J/B).

6.

CHECK FILAMENT

Check the filament for damage or blown.
Refer to

DEF-42, "Inspection and Repair"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair filament.

7.

CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to

DEF-42, "Inspection and Repair"

.

>> INSPECTION END

Fuse block (J/B)

Rear window defogger

Continuity

 Connector

Terminal

Connector

Terminal

B35

3H

B46

1

Existed

5H

(+)

(–)

Condition

Voltage (V)

(Approx.)

Fuse block (J/B)

Connector

Terminal

B35

3H

Ground

Rear window defogger
switch

ON

Battery voltage

OFF

0

5H

ON

Battery voltage

OFF

0

DOOR MIRROR DEFOGGER

DEF-29

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

DOOR MIRROR DEFOGGER

Component Function Check

INFOID:0000000010434125

1.

CHECK DOOR MIRROR DEFOGGER

1.

Perform BCM Active Test (“REAR DEFOGGER”) with CONSULT.

2.

Touch “ON”.

3.

Check that both side door mirror glass is getting warmer.

Is the inspection result normal?

YES

>> Door mirror defogger is OK.

NO

>> Refer to

DEF-29, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000010434126

1.

CHECK FUSE

1.

Turn ignition switch OFF.

2.

Check that the following fuse is not fusing.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the affected circuit if a fuse is blown.

2.

CHECK FUSE BLOCK (J/B)

1.

Disconnect fuse block (J/B) connector.

2.

Turn ignition switch ON.

3.

Check voltage between fuse block (J/B) (fuse block side) and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace fuse block (J/B).

3.

CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to

GI-41, "Intermittent Incident"

.

>> INSPECTION END

Fuse No.

Capacity

12

10 A

(+)

(-)

Condition

Voltage (V)

(Approx.)

Fuse block (J/B)

Connector

Terminal

M76

4B

Ground

Rear window
defogger switch

ON

Battery voltage

OFF

0

5B

ON

Battery voltage

OFF

0

DEF-30

< DTC/CIRCUIT DIAGNOSIS >

DRIVER SIDE DOOR MIRROR DEFOGGER

DRIVER SIDE DOOR MIRROR DEFOGGER

Component Function Check

INFOID:0000000010434127

1.

CHECK DRIVER SIDE DOOR MIRROR DEFOGGER

1.

Perform BCM Active Test (“REAR DEFOGGER”) with CONSULT.

2.

Touch “ON”.

3.

Check that the driver side door mirror glass is getting warmer.

Is the inspection result normal?

YES

>> Driver side door mirror defogger is OK.

NO

>> Refer to

DEF-30, "Diagnosis Procedure"

Diagnosis Procedure

INFOID:0000000010434128

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect door mirror (driver side) connector.

3.

Turn ignition switch ON.

4.

Check voltage between door mirror (driver side) harness connector and ground.

LHD

RHD

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK DRIVER SIDE DOOR MIRROR DEFOGGER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuse block (J/B) connector.

3.

Check continuity between fuse block (J/B) harness connector and door mirror (driver side) harness con-
nector.

LHD

RHD

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

(+)

(-)

Condition

Voltage (V)

(Approx.)

Door mirror (driver side)

 Connector

Terminal

D3

2

Ground

Rear window defogger
switch

ON

Battery voltage

OFF

0

(+)

(-)

Condition

Voltage (V)

(Approx.)

Door mirror (driver side)

 Connector

Terminal

D40

2

Ground

Rear window defogger
switch

ON

Battery voltage

OFF

0

Fuse block (J/B)

Door mirror (driver side)

Continuity

 Connector

Terminal

Connector

Terminal

M76

4B

D3

2

Existed

Fuse block (J/B)

Door mirror (driver side)

Continuity

 Connector

Terminal

Connector

Terminal

M76

5B

D40

2

Existed

DRIVER SIDE DOOR MIRROR DEFOGGER

DEF-31

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

3.

CHECK FUSE BLOCK (J/B)

1.

Turn ignition switch ON.

2.

Check voltage between fuse block (J/B) (fuse block side) and ground.

LHD

RHD

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace fuse block (J/B).

4.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between door mirror (driver side) harness connector and ground.

LHD

RHD

Is the inspection result normal?

YES

>> Replace glass mirror (driver side).

NO

>> Repair or replace harness.

5.

CHECK INTERMITTENT INCIDENT

Check intermittent incident.
Refer to

GI-41, "Intermittent Incident"

.

>> INSPECTION END

(+)

(-)

Condition

Voltage (V)

(Approx.)

Fuse block (J/B)

Connector

Terminal

M76

4B

Ground

Rear window
defogger switch

ON

Battery voltage

OFF

0

(+)

(-)

Condition

Voltage (V)

(Approx.)

Fuse block (J/B)

Connector

Terminal

M76

5B

Ground

Rear window
defogger switch

ON

Battery voltage

OFF

0

Door mirror (driver side)

Ground

Continuity

Connector

Terminal

D3

10

Existed

Door mirror (driver side)

Ground

Continuity

Connector

Terminal

D40

10

Existed

DEF-32

< DTC/CIRCUIT DIAGNOSIS >

PASSENGER SIDE DOOR MIRROR DEFOGGER

PASSENGER SIDE DOOR MIRROR DEFOGGER

Component Function Check

INFOID:0000000010434129

1.

CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER

1.

Perform BCM Active Test (“REAR DEFOGGER”) with CONSULT.

2.

Touch “ON”.

3.

Check that the passenger side door mirror glass is getting warmer.

Is the inspection result normal?

YES

>> Passenger side door mirror defogger is OK.

NO

>> Refer to

DEF-32, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010505198

1.

CHECK POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect door mirror (passenger side) connector.

3.

Turn ignition switch ON.

4.

Check voltage between door mirror (passenger side) harness connector and ground.

LHD

RHD

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect fuse block (J/B) connector.

3.

Check continuity between fuse block (J/B) harness connector and door mirror (passenger side) harness
connector.

LHD

RHD

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

(+)

(-)

Condition

Voltage (V)

(Approx.)

Door mirror (passenger side)

 Connector

Terminal

D27

2

Ground

Rear window defogger
switch

ON

Battery voltage

OFF

0

(+)

(-)

Condition

Voltage (V)

(Approx.)

Door mirror (passenger side)

 Connector

Terminal

D16

2

Ground

Rear window defogger
switch

ON

Battery voltage

OFF

0

Fuse block (J/B)

Door mirror (passenger side)

Continuity

 Connector

Terminal

Connector

Terminal

M76

5B

D27

2

Existed

Fuse block (J/B)

Door mirror (passenger side)

Continuity

 Connector

Terminal

Connector

Terminal

M76

4B

D16

2

Existed
