CORROSION PROTECTION

BRM-401

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

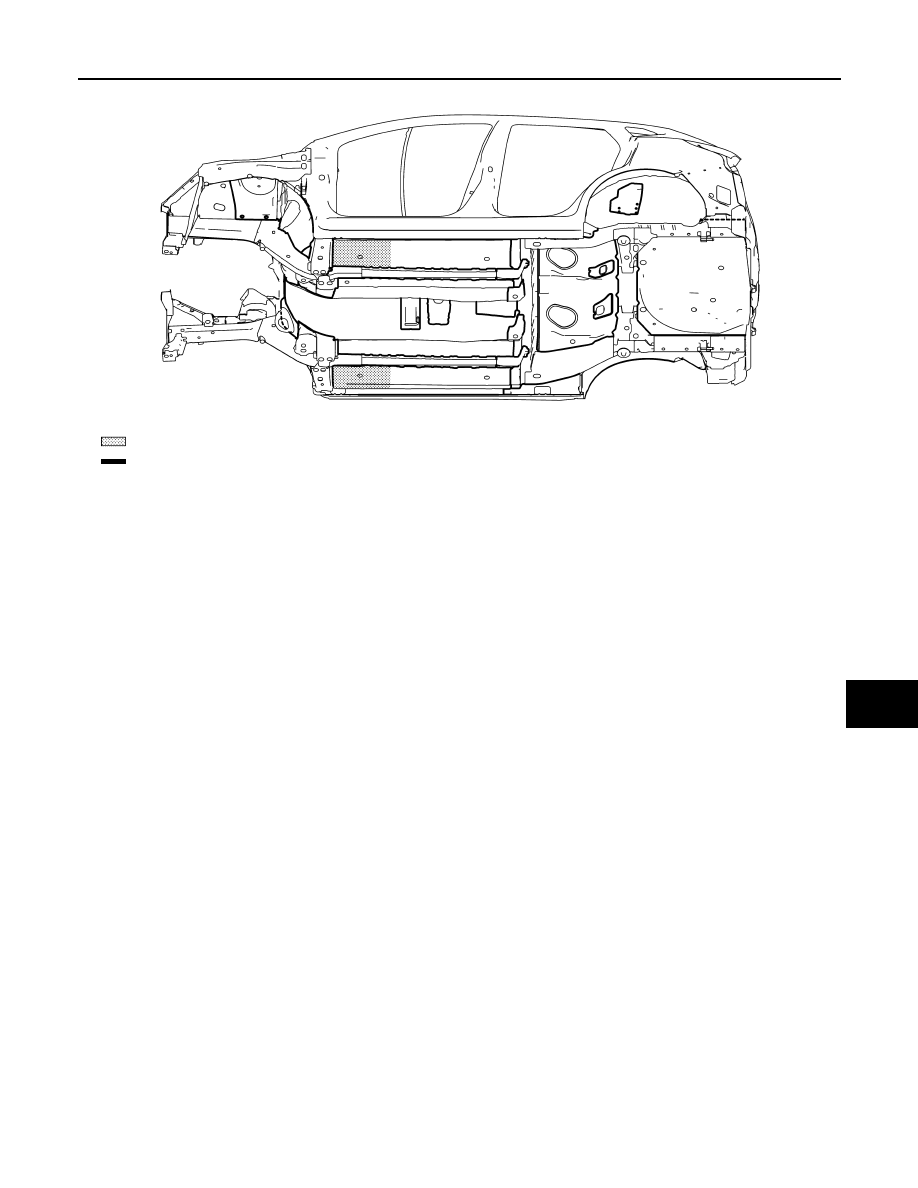

Stone Guard Coat

INFOID:0000000010499754

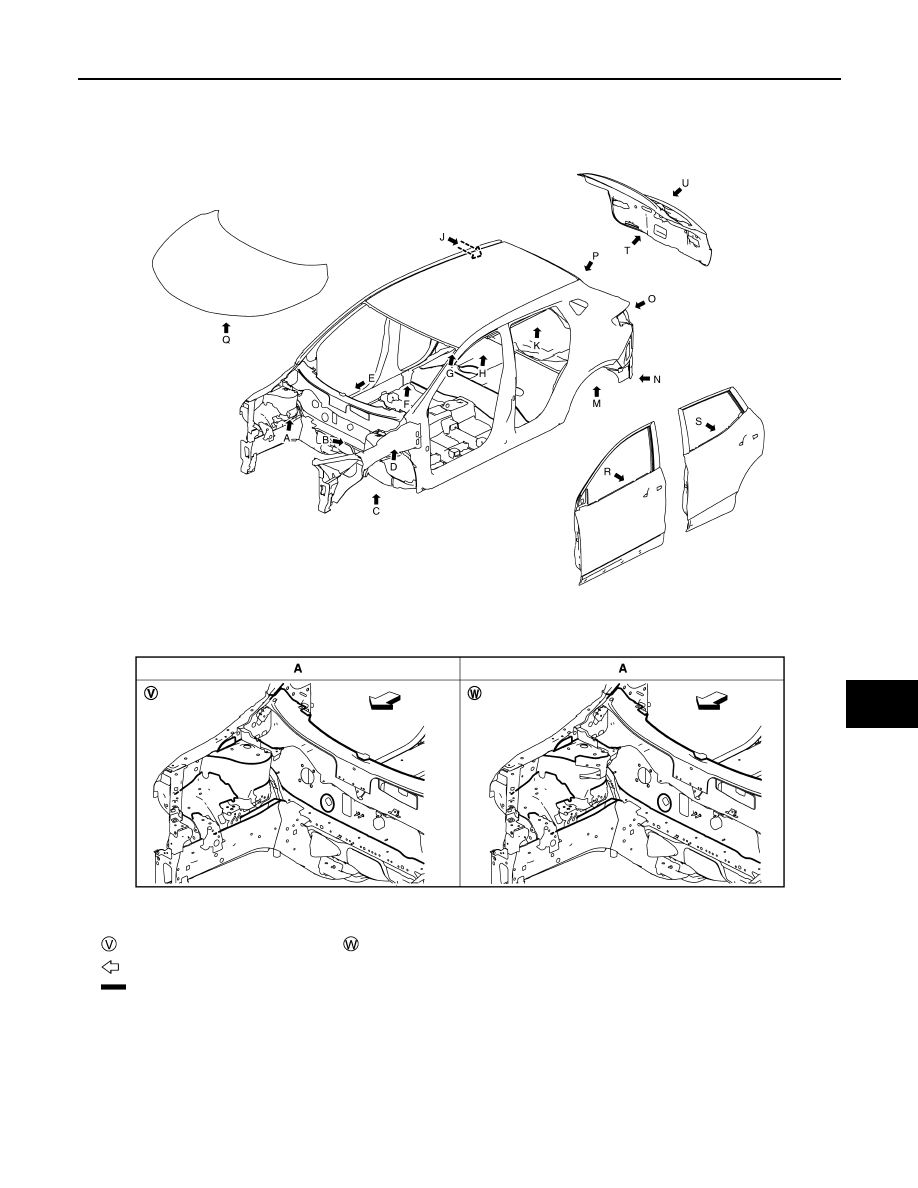

To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer
of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone
Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant
and has a long shelf life.

: Undercoated areas

: Sealed portions

JSKIA3994ZZ

BRM-402

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

CORROSION PROTECTION

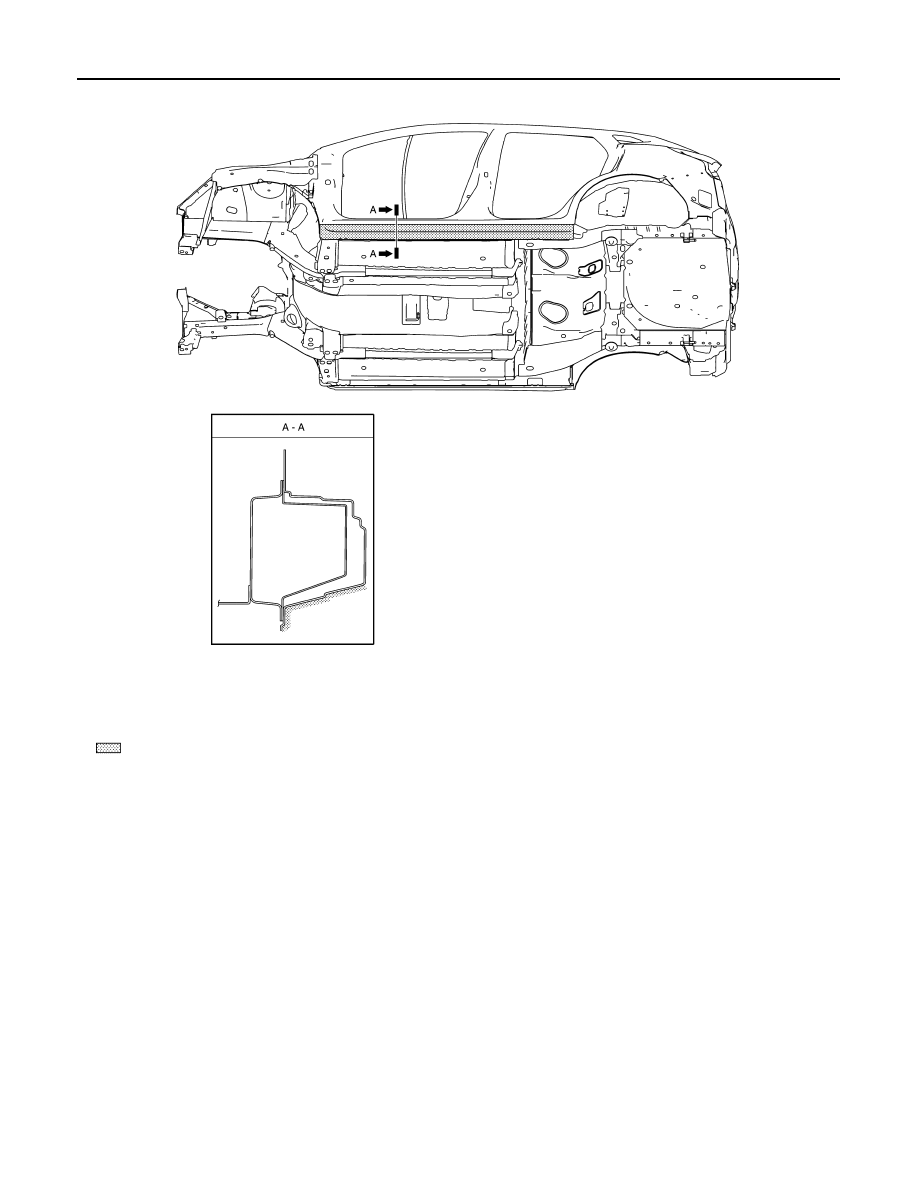

Body Sealing

INFOID:0000000010499755

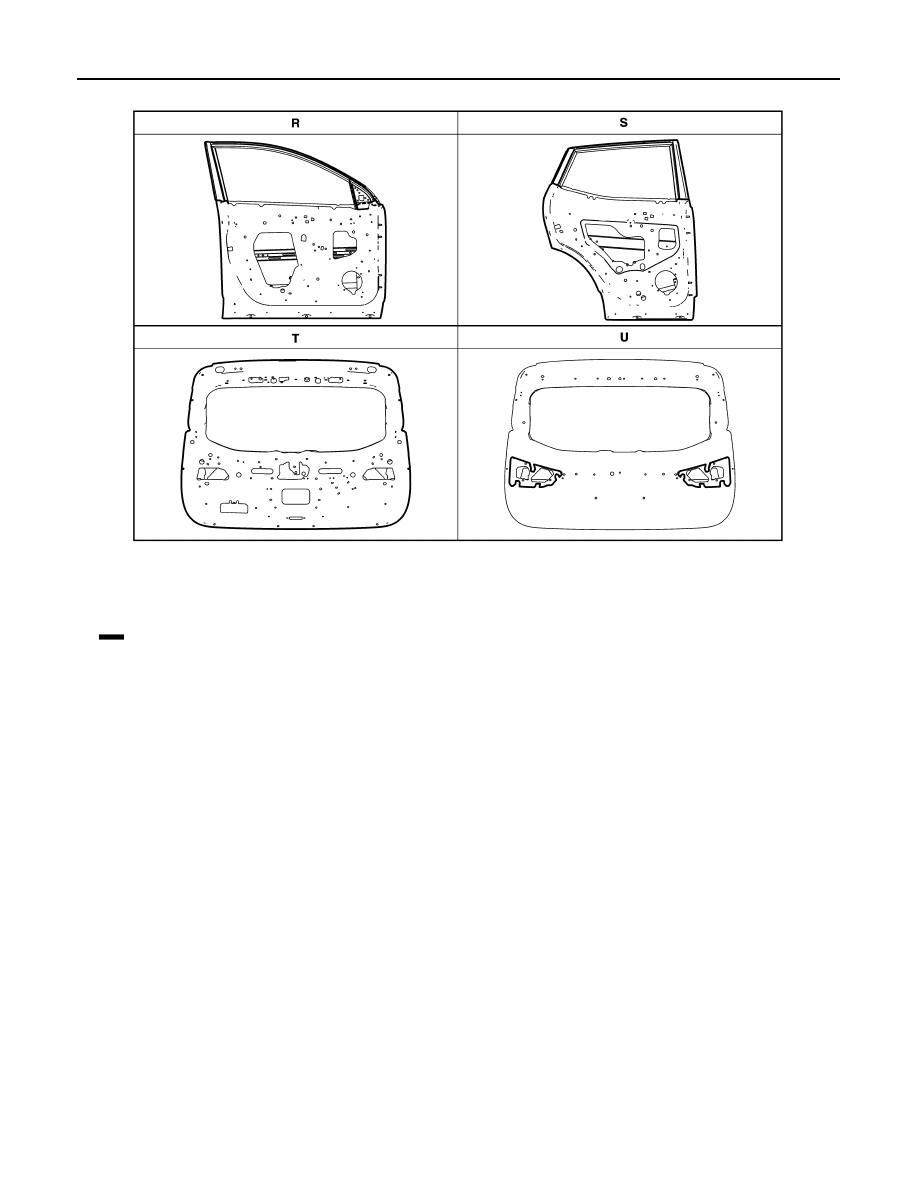

The following figure shows the areas that are sealed at the factory. Sealant that is applied to these areas
should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant
and not to allow other unaffected parts to come into contact with the sealant.

: Stone guard coated portions

JSKIA3949ZZ

CORROSION PROTECTION

BRM-403

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

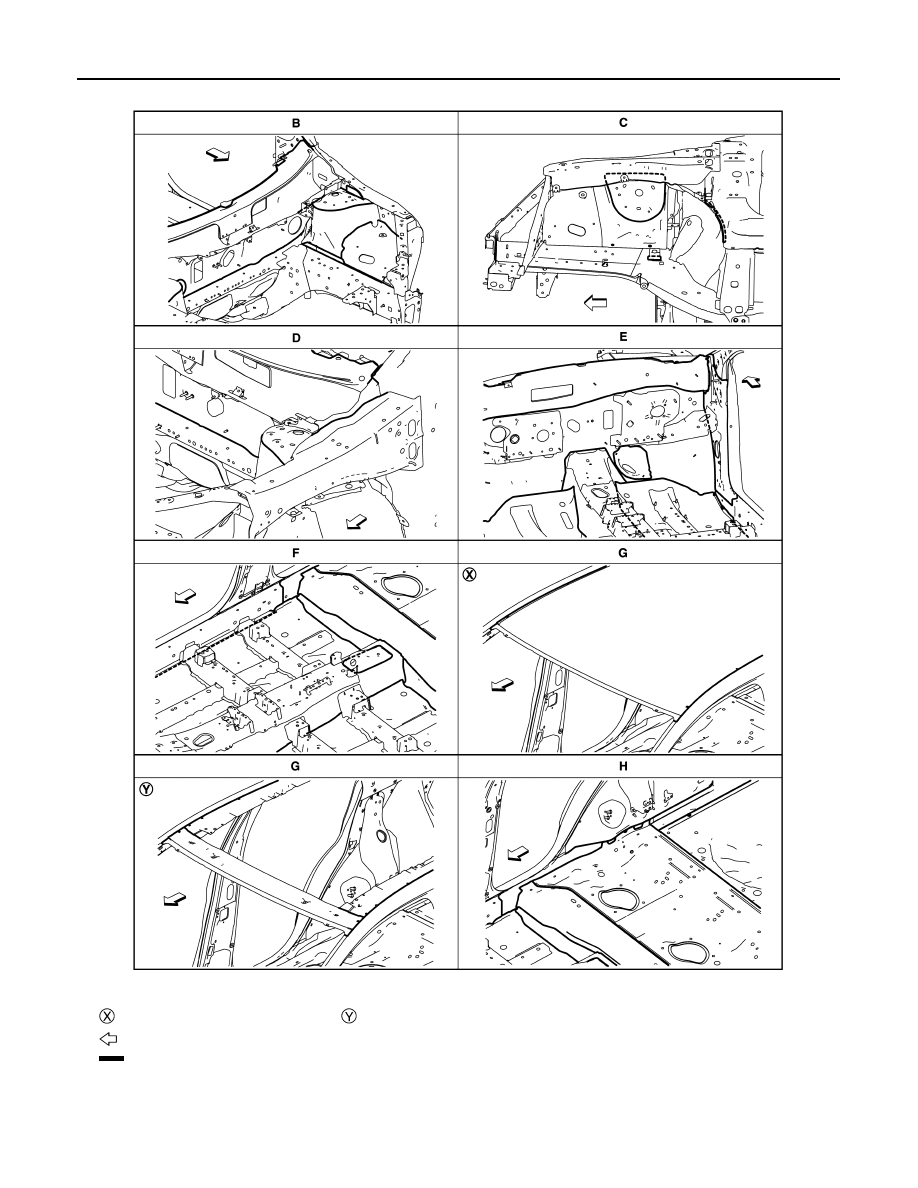

Except for R9M engine models

R9M engine models

: Vehicle front

: Sealed portions

JSKIA3944ZZ

BRM-404

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

CORROSION PROTECTION

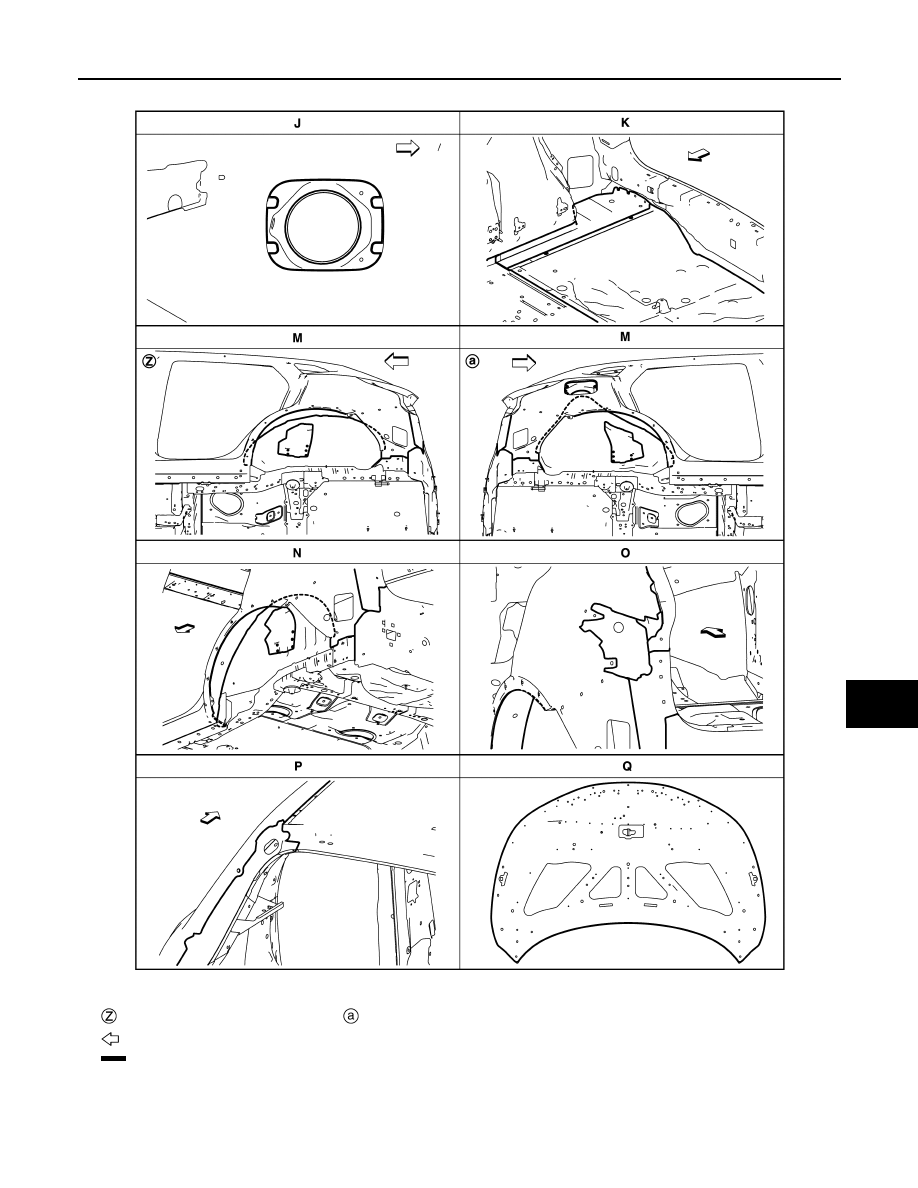

Without sunroof models

With sunroof models

: Vehicle front

: Sealed portions

JSKIA3951ZZ

CORROSION PROTECTION

BRM-405

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

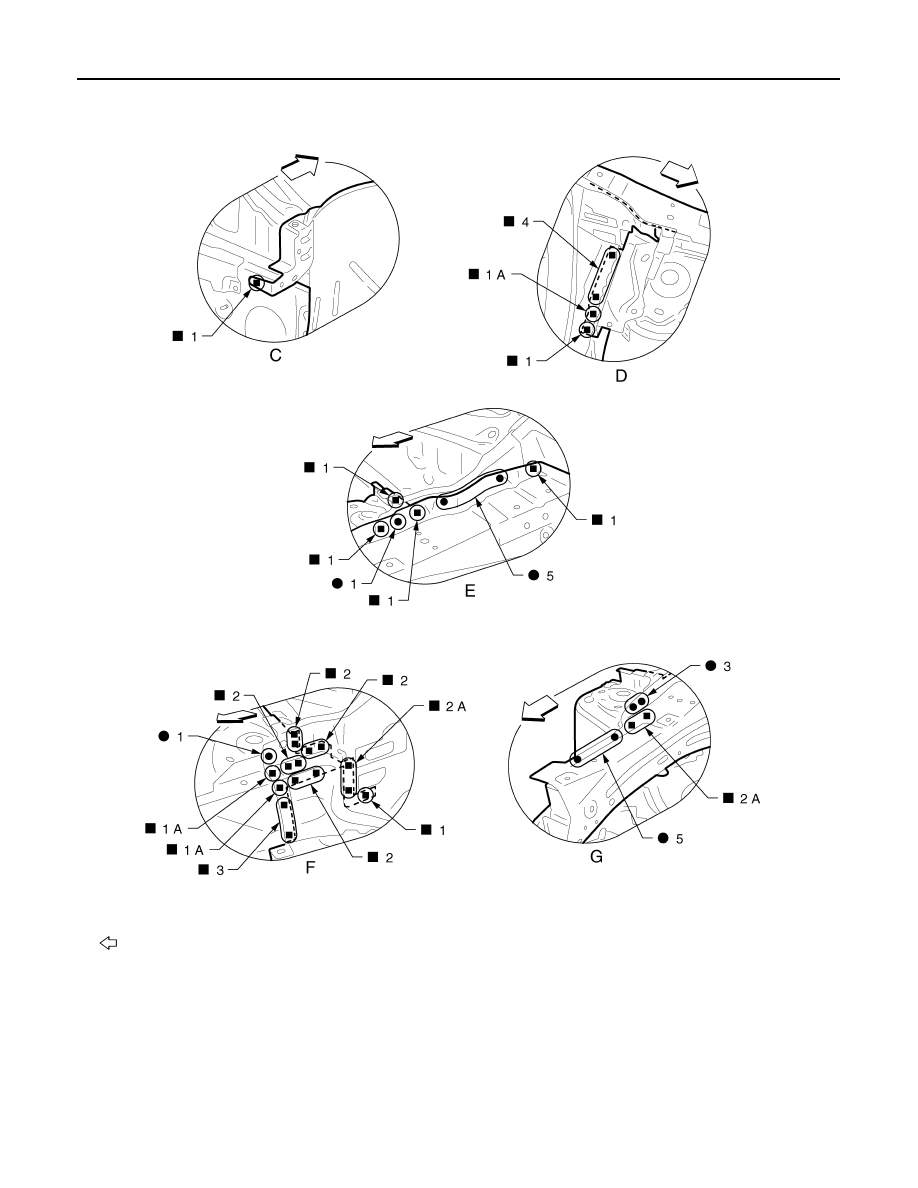

Left side

Right side

: Vehicle front

: Sealed portions

JSKIA3899ZZ

BRM-406

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

CORROSION PROTECTION

: Sealed portions

JSKIA3893ZZ

BODY CONSTRUCTION

BRM-407

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

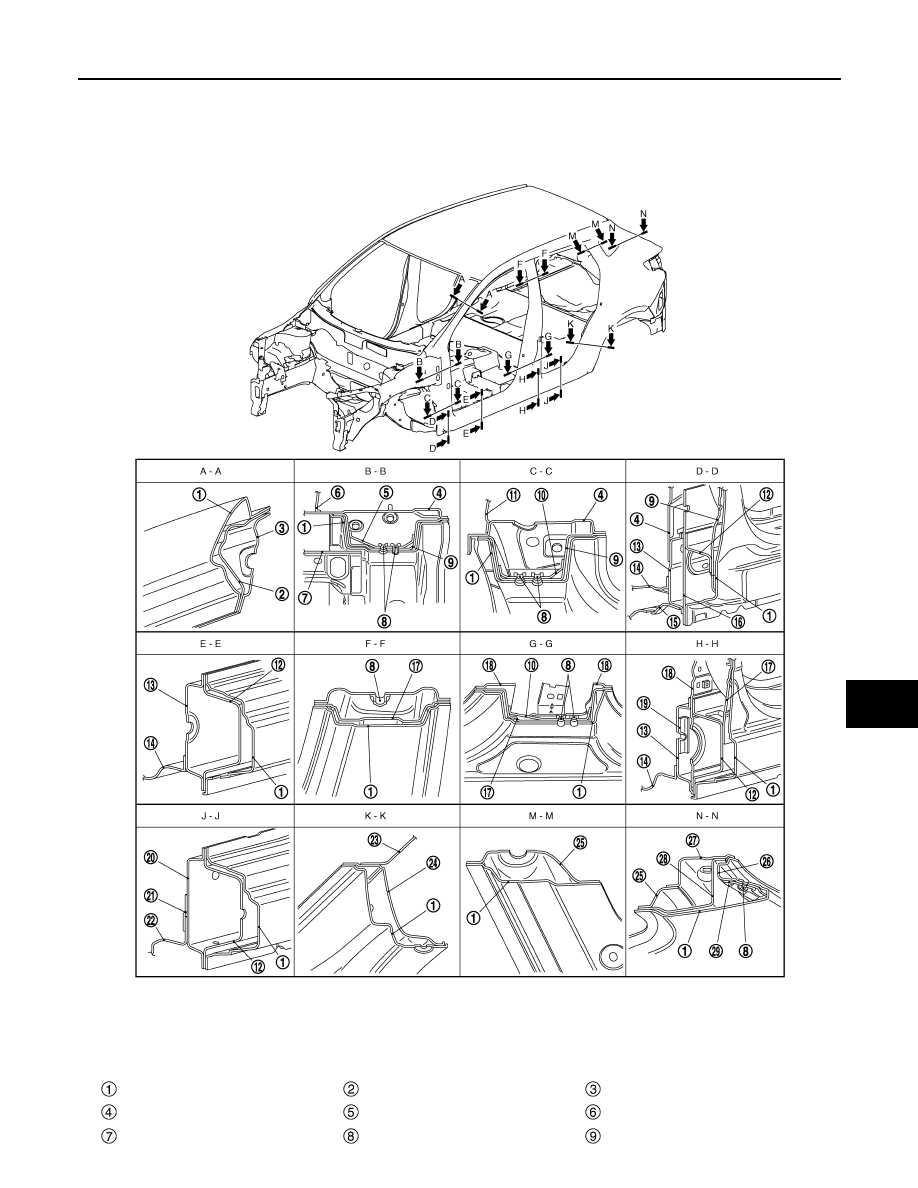

BODY CONSTRUCTION

Body Construction

INFOID:0000000010499756

Outer side body

Outer front pillar reinforcement

Upper inner front pillar

Side dash

Upper hinge plate

Upper dash

Hoodledge reinforcement

Weld nut

Lower front pillar hinge brace

JSKIA3955ZZ

BRM-408

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

BODY CONSTRUCTION

Lower hinge plate

Lower dash

Outer sill reinforcement

Inner sill

Front floor

Front side member outrigger

Lower front pillar reinforcement

Center pillar hinge brace

Inner center pillar

Weld plate

Inner sill extension

Rear seat crossmember

Rear floor front extension

Inner rear wheelhouse

Outer rear wheelhouse

Inner rear pillar

Rear fender extension

Rear roof rail brace

Upper back pillar reinforcement

Back door stay reinforcement

REPLACEMENT OPERATIONS

BRM-409

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REPLACEMENT OPERATIONS

Description

INFOID:0000000010309472

• This section is prepared for technicians who have attained a high level of skill and experience in repairing

collision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body
repair techniques should not attempt to repair collision-damaged vehicles by using this section.

• Technicians are also encouraged to read the Body Repair Manual (Fundamentals) in order to ensure that the

original functions and quality of the vehicle are maintained. The Body Repair Manual (Fundamentals) con-
tains additional information, including cautions and warnings, that are not including in this manual. Techni-
cians should refer to both manuals to ensure proper repair.

• Please note that this information is prepared for worldwide usage, and as such, certain procedures might not

apply in some regions or countries.

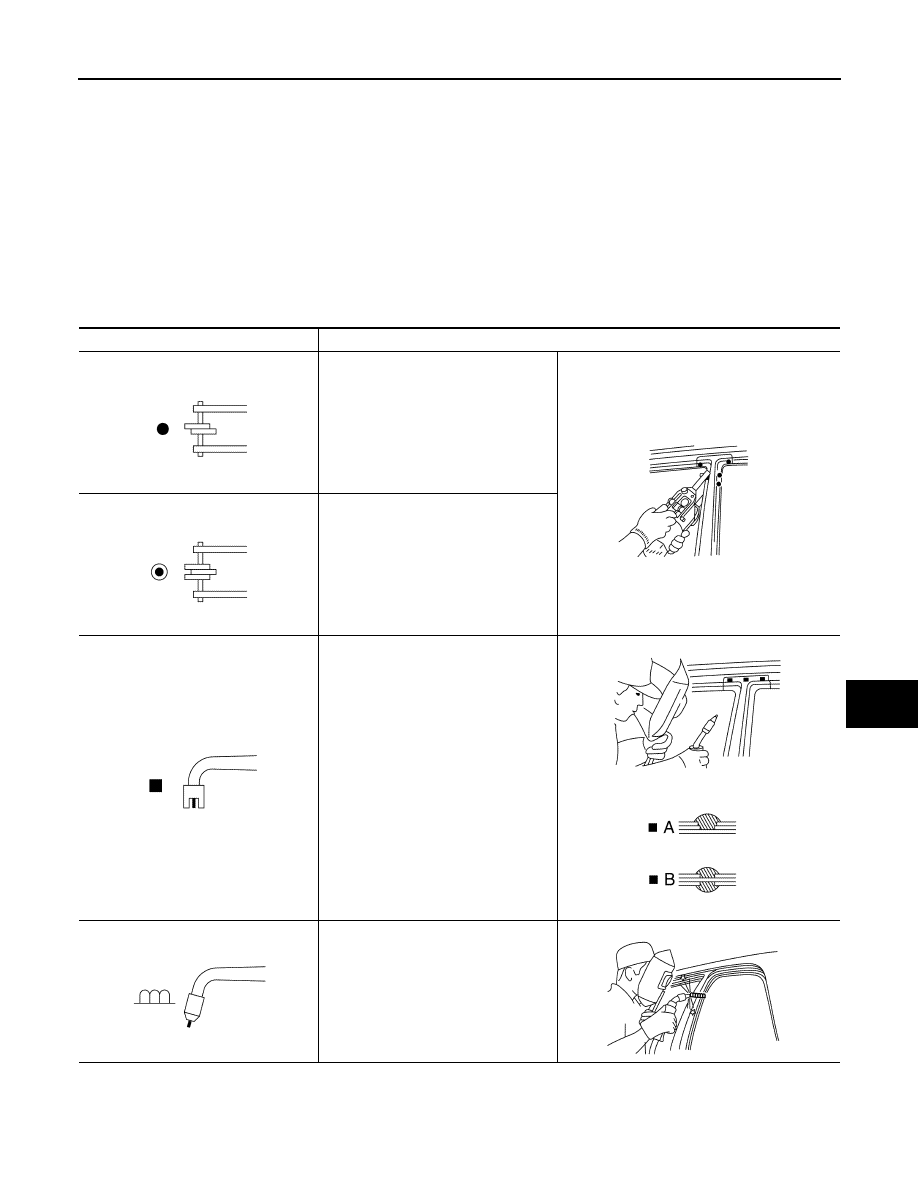

The symbols used in this section for welding operations are shown below.

Symbol marks

Description

2-spot welds

3-spot welds

MIG plug weld

For 3 panels plug weld method

MIG seam weld / Point weld

JSKIA0049ZZ

JSKIA0053ZZ

JSKIA0050ZZ

JSKIA0051ZZ

JSKIA0054ZZ

JSKIA0055ZZ

JSKIA0052ZZ

JSKIA0056ZZ

BRM-410

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

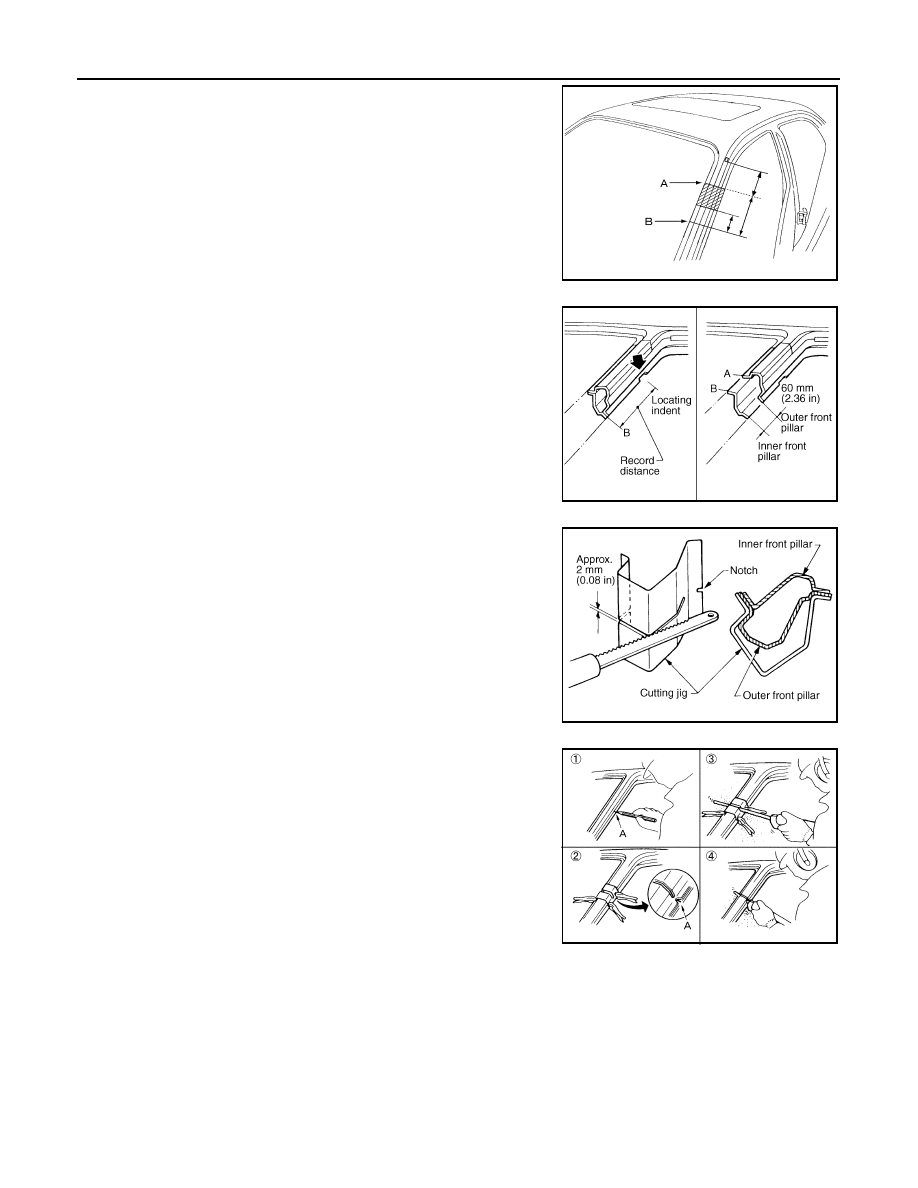

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at
position A due to the construction of the vehicle.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer
front pillar over 60 mm (2.36 in) above the inner front pillar cut
position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit the service part to be accurately cut at the joint position.

• An example of cutting operation using a cutting jig is as per the fol-

lowing.

1.

Mark cutting lines.
A: Cut position of outer pillar
B: Cut position of inner pillar

2.

Align cutting line with notch on jig. Clamp jig to pillar.

3.

Cut outer pillar along groove of jig (at position A).

4.

Remove jig and cut remaining portions.

5.

Cut inner pillar at position B in same manner.

Welding of Ultra High Strength Steel

INFOID:0000000010499787

SPOT WELDING

The spot welding is limited to ultra high strength steel of tensile strength 980 MPa under the conditions listed
below.

CAUTION:

• If this condition is not satisfied, then perform plug welding.
• This condition is inapplicable to ultra high strength steel of tensile strength more than 980 MPa. For

this type of ultrahigh strength steel, perform plug welding.

PIIA0150E

JSKIA0104GB

JSKIA0105GB

PIIA0153E

REPLACEMENT OPERATIONS

BRM-411

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• Since this condition is applicable only to this vehicle (J11), never apply it to welding conditions of

other vehicles.

Welding condition

PLUG WELDING

To weld ultra high strength steel of tensile strength 980 MPa or more, perform plug welding observing the
welding hole diameter described in the manual.

CAUTION:

• To perform plug welding, use fuel mixture (Ar 80% + CO2 20%) for shielding gas of welder.
• If carbon dioxide gas (CO2 100%) is used for shielding gas of welder, adequate weld strength cannot

be secured. For this reason, always use fuel mixture for shielding gas of welder to prevent.

• When welding hole diameter cannot be satisfied, make multiple holes (smaller diameter) so that the

sum of hole areas becomes equal to the area of the specified weld hole.

EXAMPLE

Chip tip diameter

6 mm

Welding pressure

3100 N

Welding current

7900 A

Weld time

10 cyc (0.20 sec)

Panel configuration

Combination of a plate of
tensile strength 980 MPa
and that of tensile strength
less than 980 MPa. (Up to 3
plates)

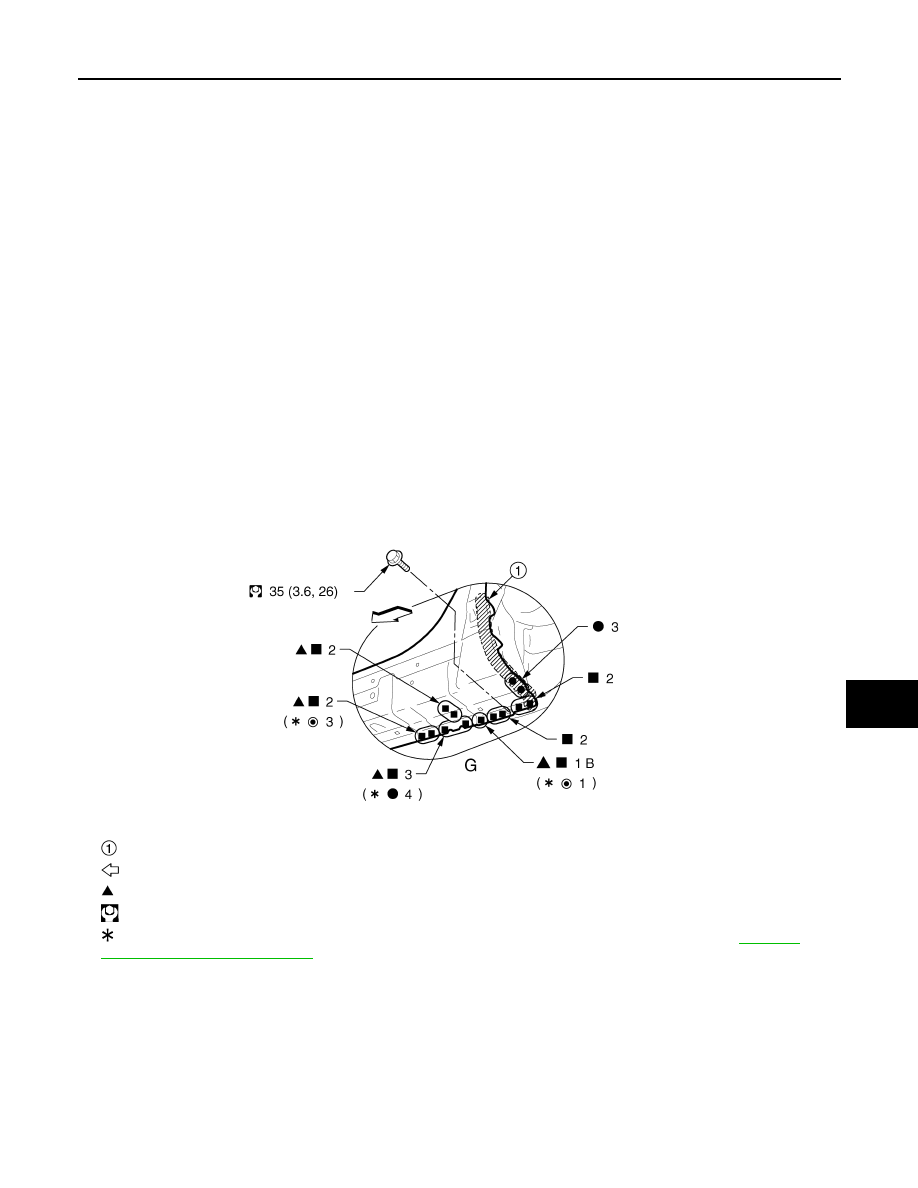

Body sealing

: Vehicle front

: Drill

φ

6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel).

: N·m (kg-m, ft-lb)

: For spot welding of steel plate of tensile strength 980 MPa, observe the indicated welding conditions. Refer to

BRM-410,

"Welding of Ultra High Strength Steel"

JSKIA3503GB

BRM-412

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

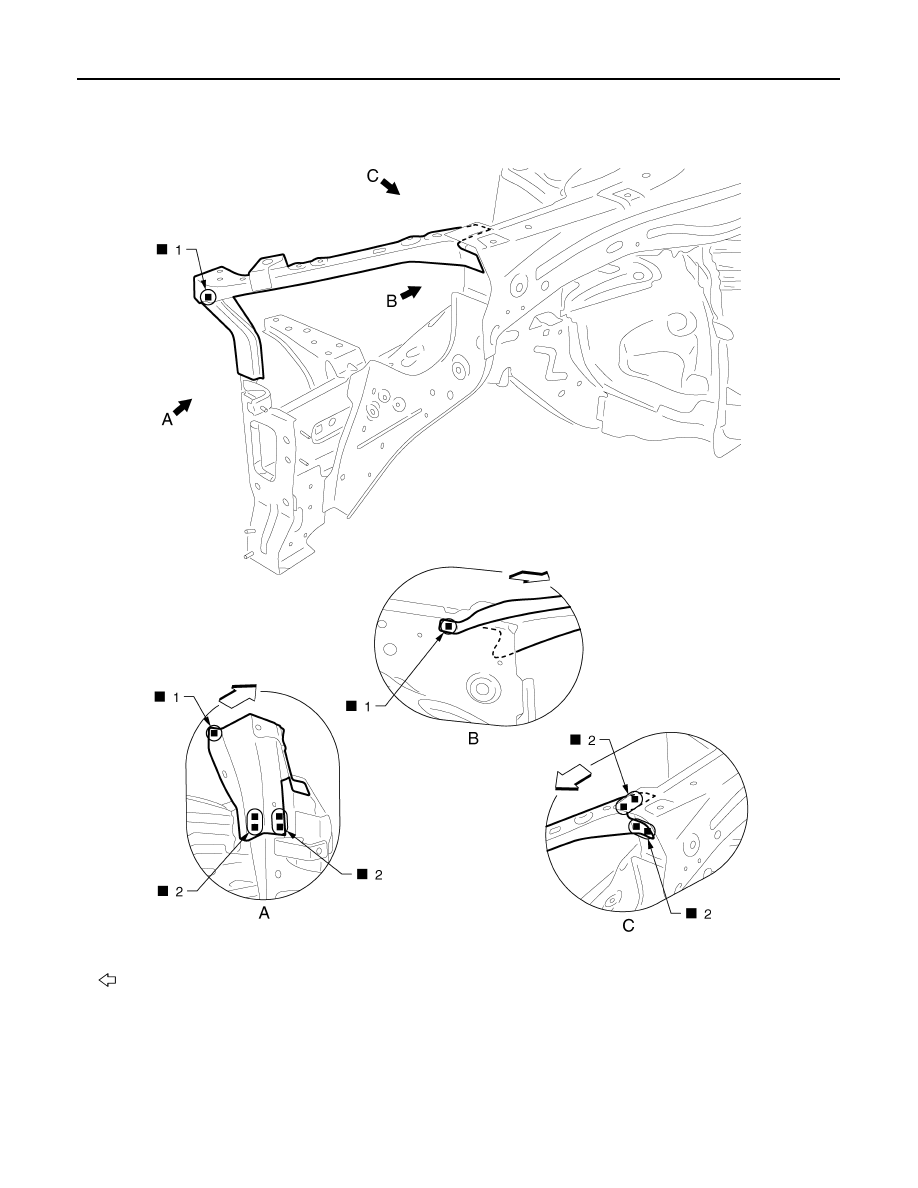

Radiator Core Support

INFOID:0000000010313748

Hoodledge

INFOID:0000000010475506

Work after radiator core support is removed.

: Vehicle front

Replacement part

z

Side radiator core support assembly

z

Front side member assembly

JSKIA4000ZZ

REPLACEMENT OPERATIONS

BRM-413

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

: Vehicle front

Replacement part

z

Front strut housing assembly

z

Hoodledge reinforcement assembly

JSKIA4001ZZ

BRM-414

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

View F: Before installing hoodledge reinforcement assembly

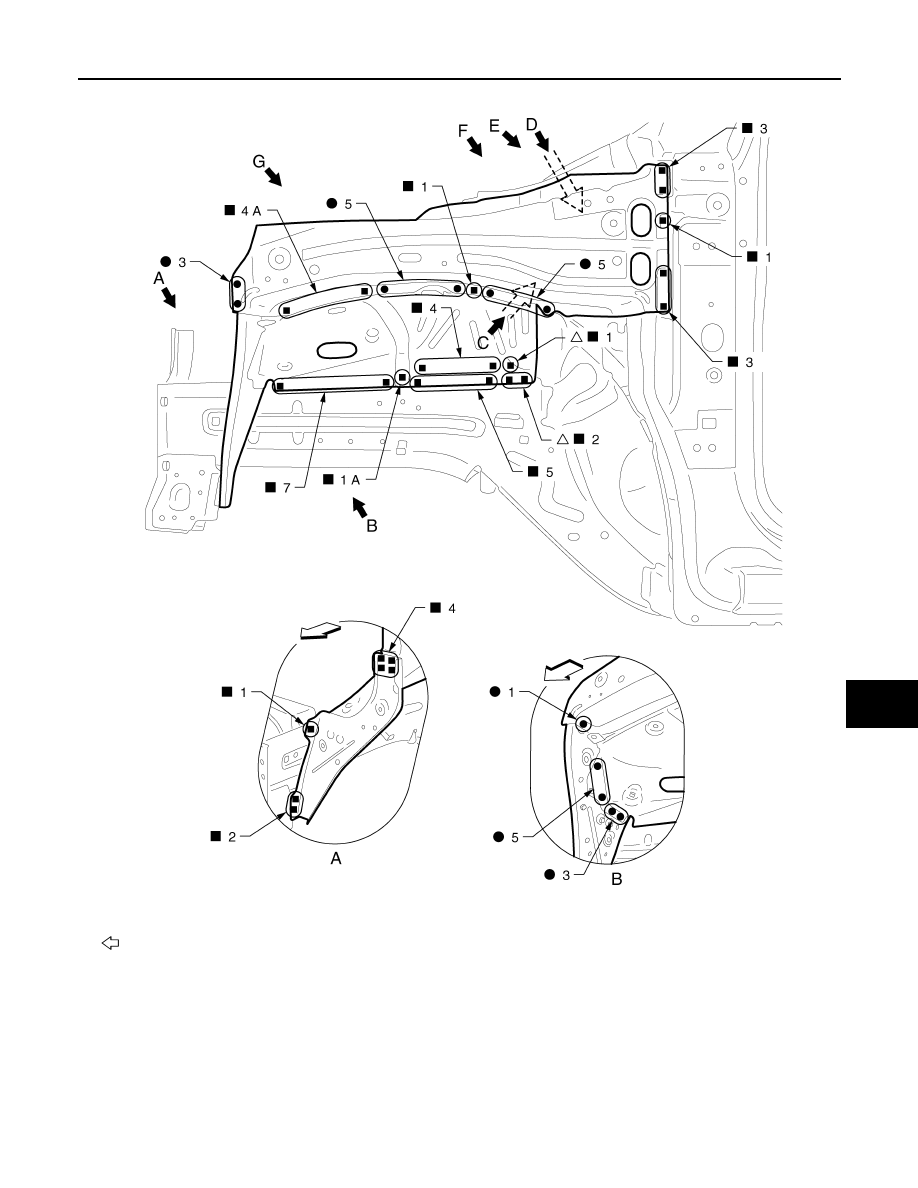

Hoodledge (Partial Replacement)

INFOID:0000000010475507

Work after radiator core support is removed.
Remove the engine mounting bracket reinforcement (reusable) for easier installation.

: Vehicle front

JSKIA4227ZZ

REPLACEMENT OPERATIONS

BRM-415

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

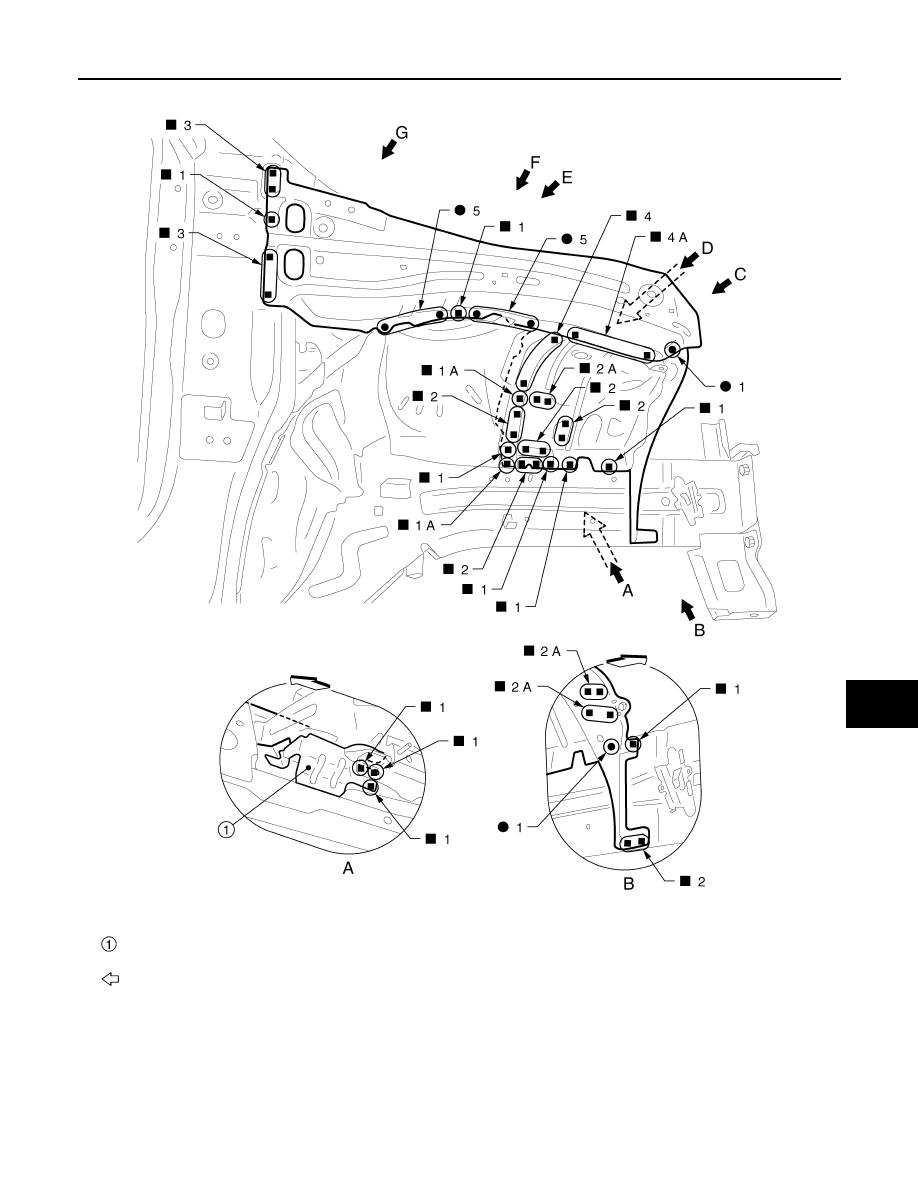

Engine mounting bracket reinforce-
ment(reusable)

: Vehicle front

Replacement part

z

Hoodledge reinforcement assembly

z

Upper hoodledge assembly

z

Lower front hoodledge

JSKIA4003ZZ

BRM-416

< REMOVAL AND INSTALLATION >

[EXCEPT FOR EUROPE AND RUSSIA (RHD)]

REPLACEMENT OPERATIONS

View E: Before installing hoodledge reinforcement assembly

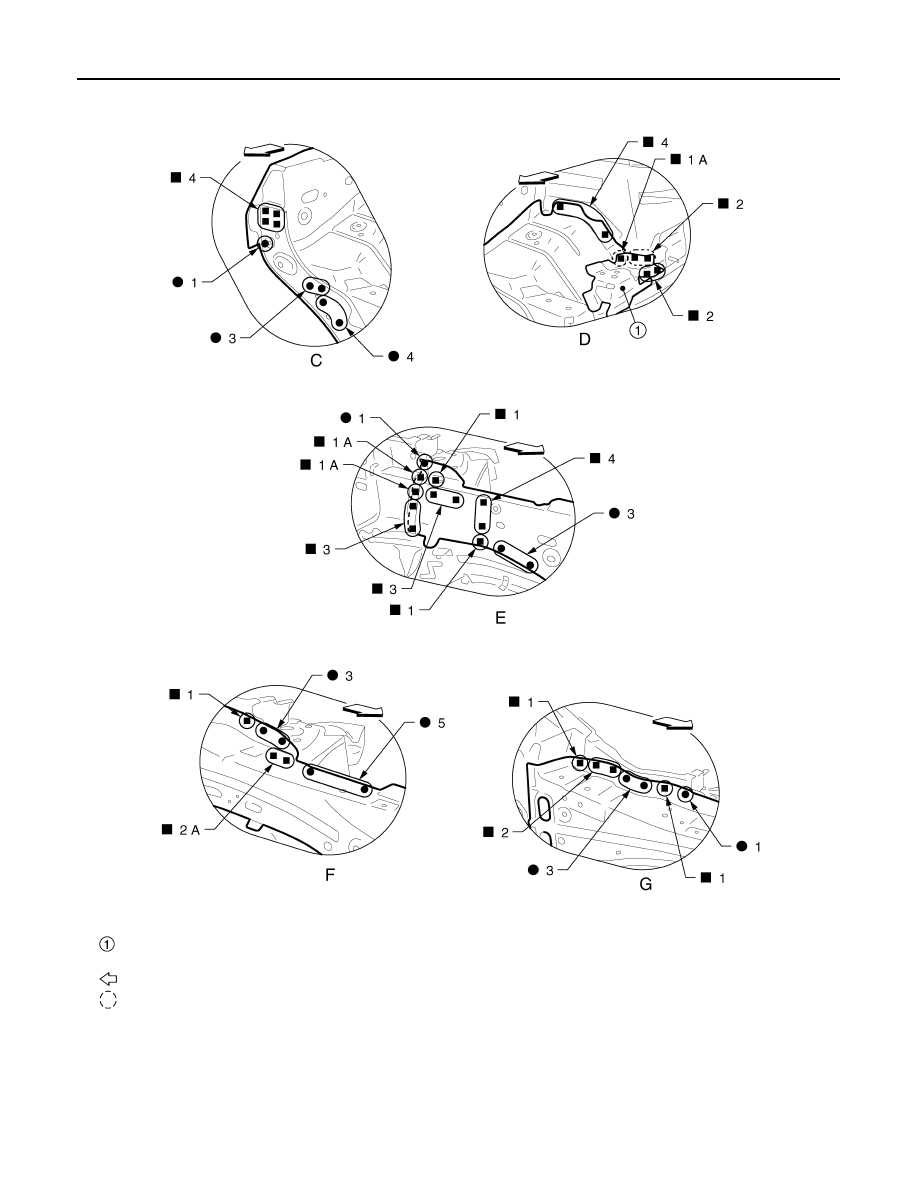

Front Side Member

INFOID:0000000010475508

Work after radiator core support and hoodledge are removed.

Engine mounting bracket reinforce-
ment(reusable)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4228ZZ
