Qashqai J11. Body repair - part 9

REPAIRING HIGH STRENGTH STEEL

BRM-129

< PRECAUTION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

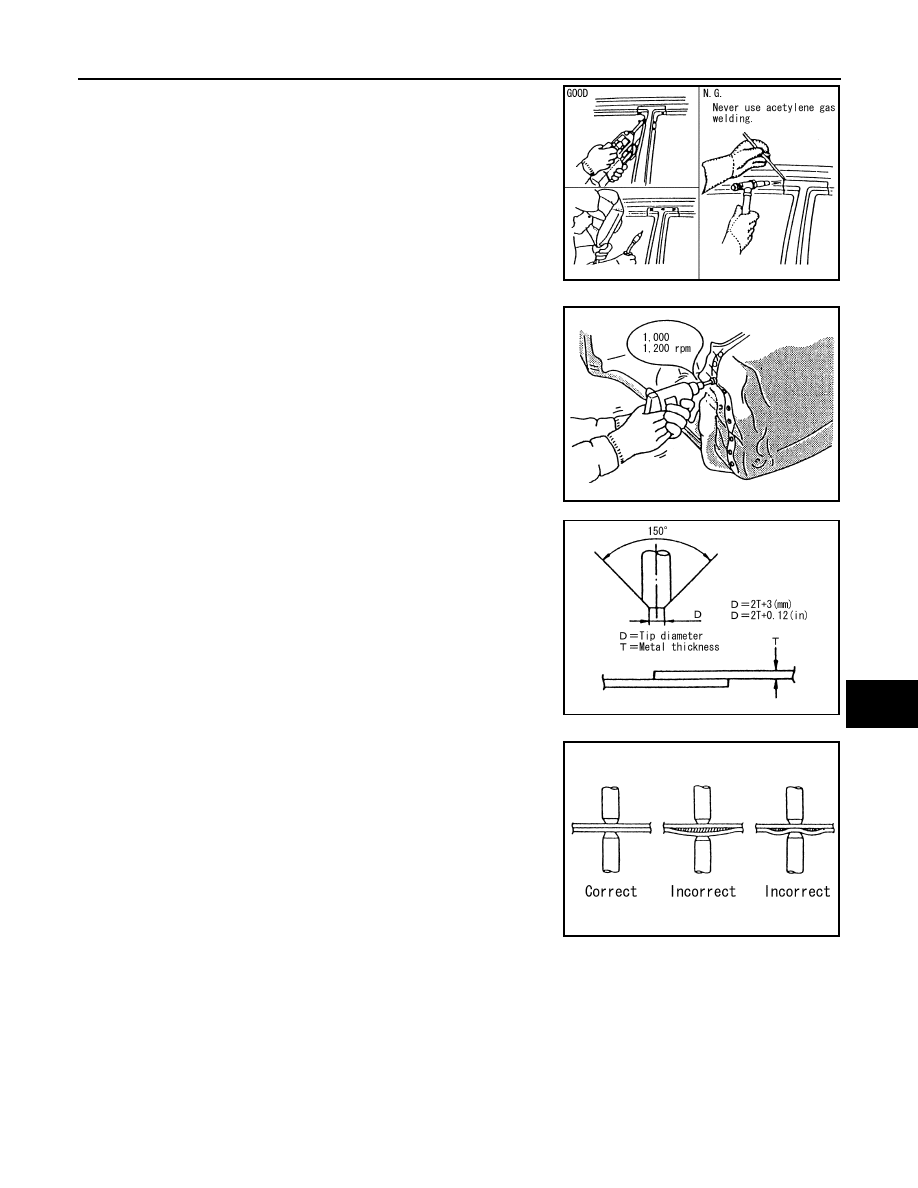

• When welding HSS panels, use spot welding whenever possi-

ble in order to minimize weakening surrounding areas due to
heat.
If spot welding is impossible, use MIG. welding. Do not use
gas (torch) for welding because it is inferior in welding
strength.

• Spot welding on HSS panels is harder than that of an ordinary

steel panel.
Therefore, when cutting spot welds on a HSS panel, use a low
speed high torque drill (1,000 to 1,200 rpm) to increase drill bit
durability and facilitate the operation.

2.

Precautions in spot welding HSS
This work should be performed under standard working condi-
tions. Always note the following when spot welding HSS:
• The electrode tip diameter must be sized properly according to

the metal thickness.

• The panel surfaces must fit flush to each other, leaving no

gaps.

PIIA0144E

PIIA0145E

PIIA0146E

PIIA0147E

BRM-130

< PRECAUTION >

[FOR EUROPE (RHD)]

REPAIRING HIGH STRENGTH STEEL

• Follow the specifications for the proper welding pitch.

Unit: mm (in)

Thickness (T)

Minimum pitch (L)

0.6 (0.024)
0.8 (0.031)
1.0 (0.039)
1.2 (0.047)
1.6 (0.063)
1.8 (0.071)

10 (0.39) or more
12 (0.47) or more
18 (0.71) or more
20 (0.79) or more
27 (1.06) or more
31 (1.22) or more

JSKIA0781ZZ

REPAIRING MATERIAL

BRM-131

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PREPARATION

REPAIRING MATERIAL

Foam Repair

INFOID:0000000010308787

During factory body assembly, foam insulators are installed in certain body panels and locations around the
vehicle. Use the following procedure(s) to replace any factory-installed foam insulators.

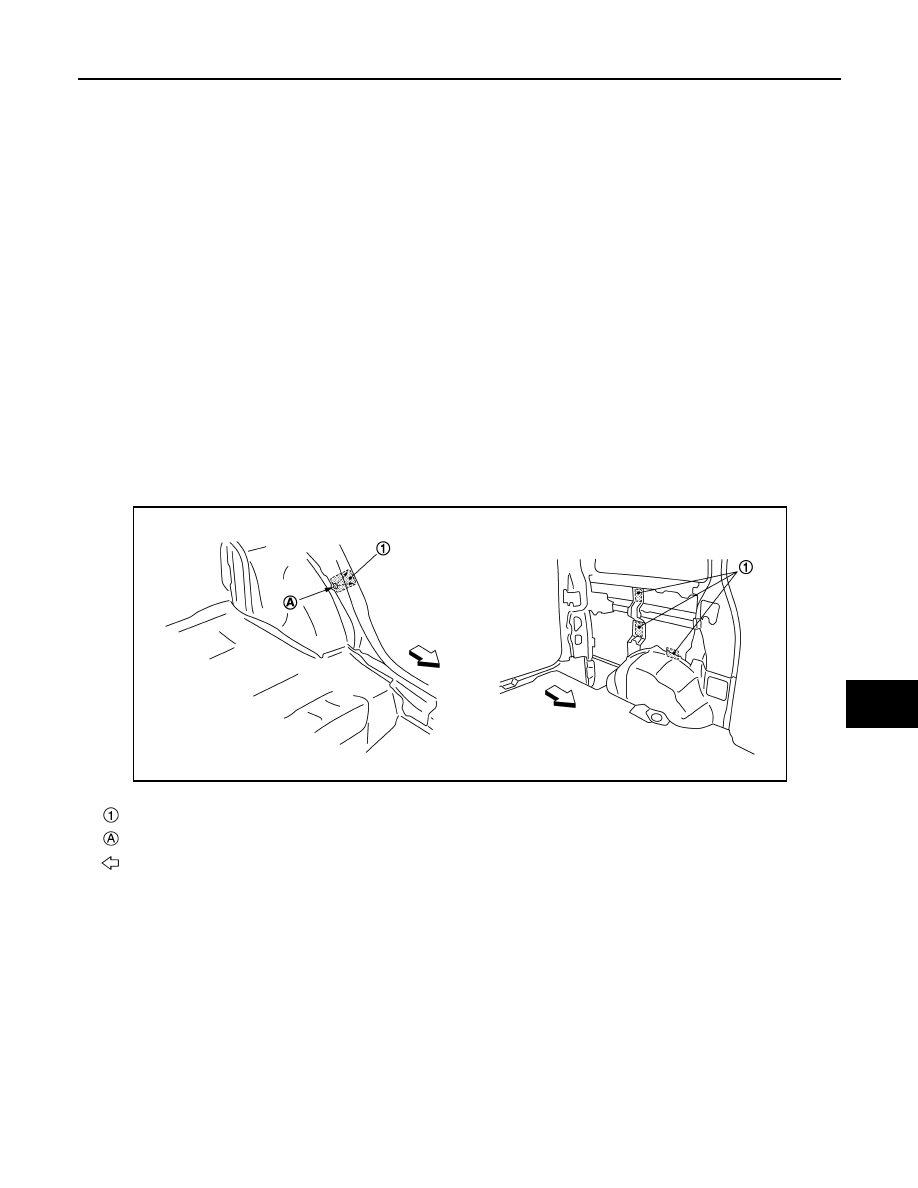

URETHANE FOAM APPLICATIONS

Use commercially available Urethane foam for sealant (foam material) repair of material used on vehicle.

Read instructions on product for fill procedures.

Example of foaming agent filling operation procedure

1.

Fill procedures after installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating form insulator and foam material.

c.

Install service part.

d.

Insert nozzle into hole near fill area and fill foam material or fill enough to close gap with the service part.

2.

Fill procedures before installation of service part.

a.

Eliminate foam material remaining on vehicle side.

b.

Clean area after eliminating foam insulator and foam material.

c.

Fill foam material on wheelhouse outer side.

<Urethane foam for foaming agent>

3M™ Automix™ Flexible Foam 08463 or equiva-
lent

Urethane foam

Nozzle insert hole

: Vehicle front

JSKIA0129GB

BRM-132

< PREPARATION >

[FOR EUROPE (RHD)]

REPAIRING MATERIAL

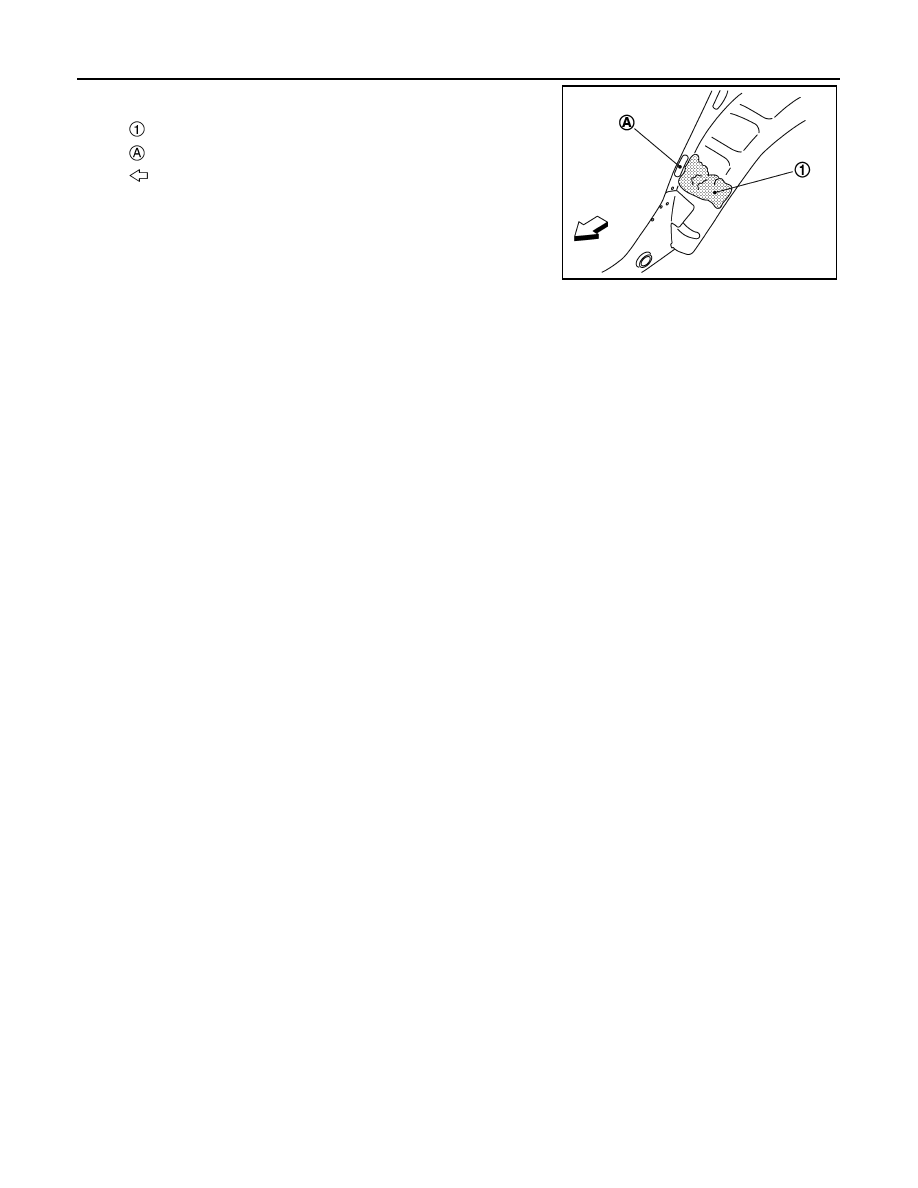

NOTE:
Fill enough to close gap with service part while avoiding flange
area.

d.

Install service part.
NOTE:
Refer to label for information on working times.

Urethane foam

Fill while avoiding flange area

: Vehicle front

JSKIA0130GB

BODY COMPONENT PARTS

BRM-133

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY COMPONENT PARTS

2WD

2WD : Ultra High Strength Steel Part

INFOID:0000000010505346

DESCRIPTION

Ultra high strength steel parts signify high strength steel plates with tensile strength of 980 MPa or more.
When replacing parts made of ultra high strength steel or parts including ultra high strength steel, never per-
form the prohibition described below:

PROHIBITION

WARNING:

Never cut ultra high strength steel parts or perform butt welding. Violation of this prohibition causes
extreme strength degradation, and the strength before damage cannot be secured.

PART REPLACEMENT

To replace an ultra high strength part, be sure to replace it by panel supply unit of ultra high strength steel part.
For the welding method, refer to

BRM-166, "Welding of Ultra High Strength Steel"

2WD : Underbody Component Parts

INFOID:0000000010308788

Refer to parts catalogue for the replacement parts.

BRM-134

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

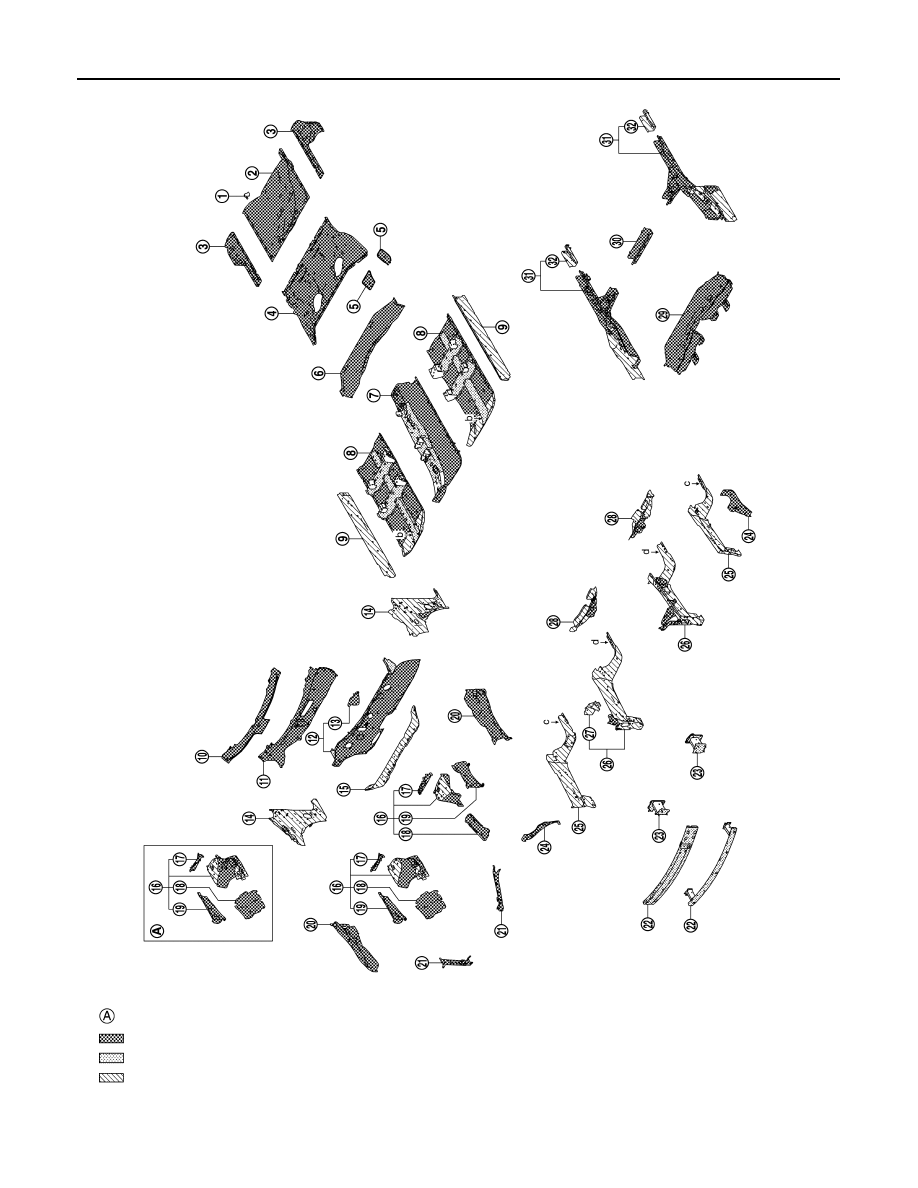

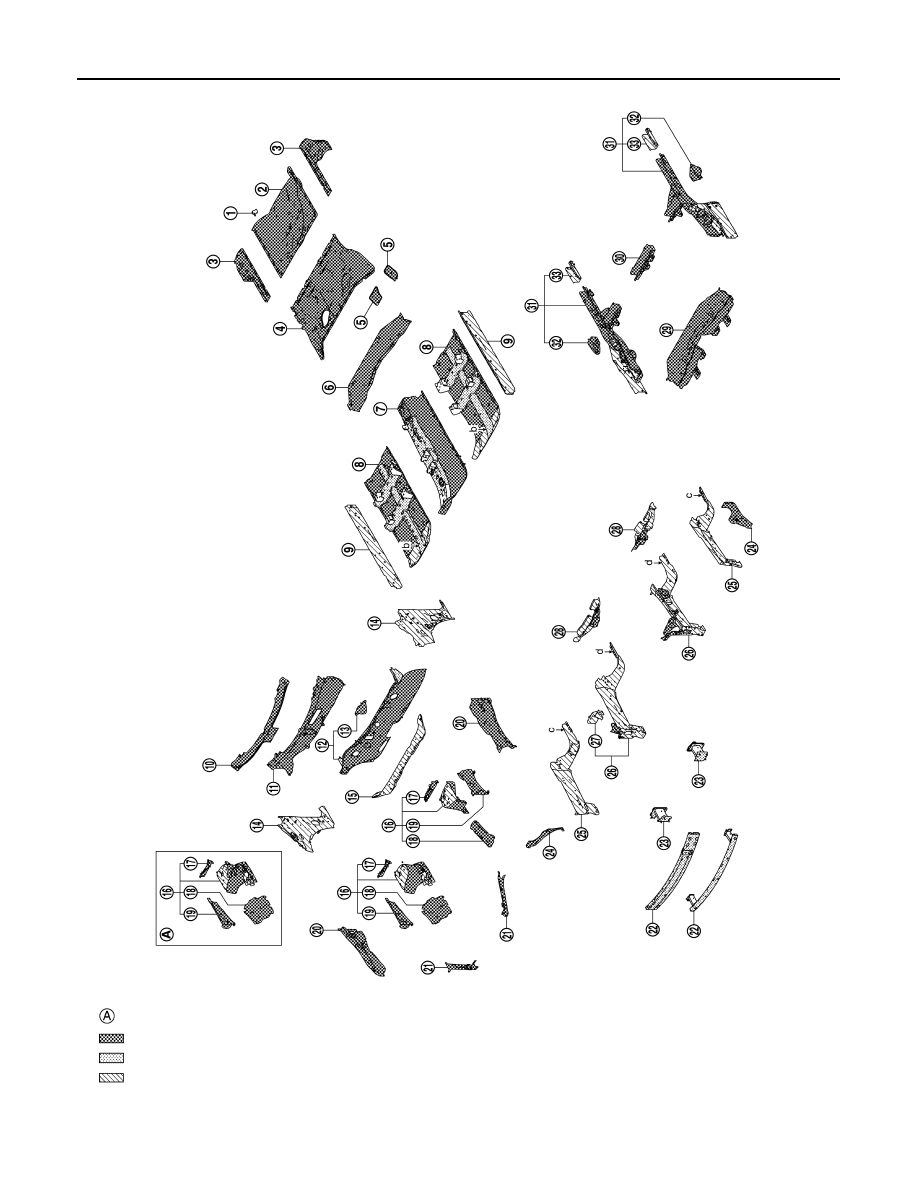

R9M engine models

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3937ZZ

BODY COMPONENT PARTS

BRM-135

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Spare wheel clamp bracket assembly

Under 440

—

Rear floor rear

Under 440

×

Rear floor side assembly (RH & LH)

Under 440

×

Rear floor front

Under 440

×

Inner rear belt anchor reinforcement assembly (RH & LH)

Under 440

×

Rear seat crossmember

Under 440

×

Center front floor assembly

780

×

Front floor assembly (RH & LH)

b.

LH

1350MPa

caution

T=1.4 mm (0.055 in)

590

×

RH

980MPa

caution

T=1.8 mm (0.071 in)

Inner sill assembly (RH & LH)

980MPa

caution

T=1.4 mm (0.055 in)

—

×

Cowl top

Under 440

×

Upper dash assembly

Under 440

×

Lower dash assembly

780

×

Steering hole cover assembly

Under 440

×

Side dash assembly (RH & LH)

590

×

Lower center dash crossmember assembly

980MPa

caution

T=2.0 mm (0.079 in)

—

×

Front strut housing assembly (RH & LH)

445

×

Upper side cowl top (RH & LH)

Under 440

×

Lower front hoodledge (RH & LH)

Under 440

×

Upper hoodledge assembly (RH & LH)

Under 440

×

Hoodledge reinforcement assembly (RH & LH)

Under 440

×

Side radiator core support assembly (RH & LH)

Under 440

×

Front bumper reinforcement assembly

1180MPa

caution

T=1.2 mm (0.079 in)

440

—

Lower front bumper stay (RH & LH)

600

—

Hoodledge connector assembly (RH & LH)

Under 440

×

Side member closing plate assembly (RH & LH)

c.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Front side member assembly (RH & LH)

d.

980MPa

caution

T=2.0 mm (0.079 in)

750

×

Engine mounting member bracket assembly

445

×

Front suspension mounting rear bracket assembly (RH & LH)

590

×

Rear floor front extension assembly

Under 440

×

Center rear crossmember assembly

Under 440

×

Rear side member assembly (RH & LH)

590

×

BRM-136

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

2WD : Body Component Parts

INFOID:0000000010498724

Refer to parts catalogue for the replacement parts.

rear spring mounting bracket assembly (RH & LH)

Under 440

×

Rear side member extension assembly (RH & LH)

780

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

BODY COMPONENT PARTS

BRM-137

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

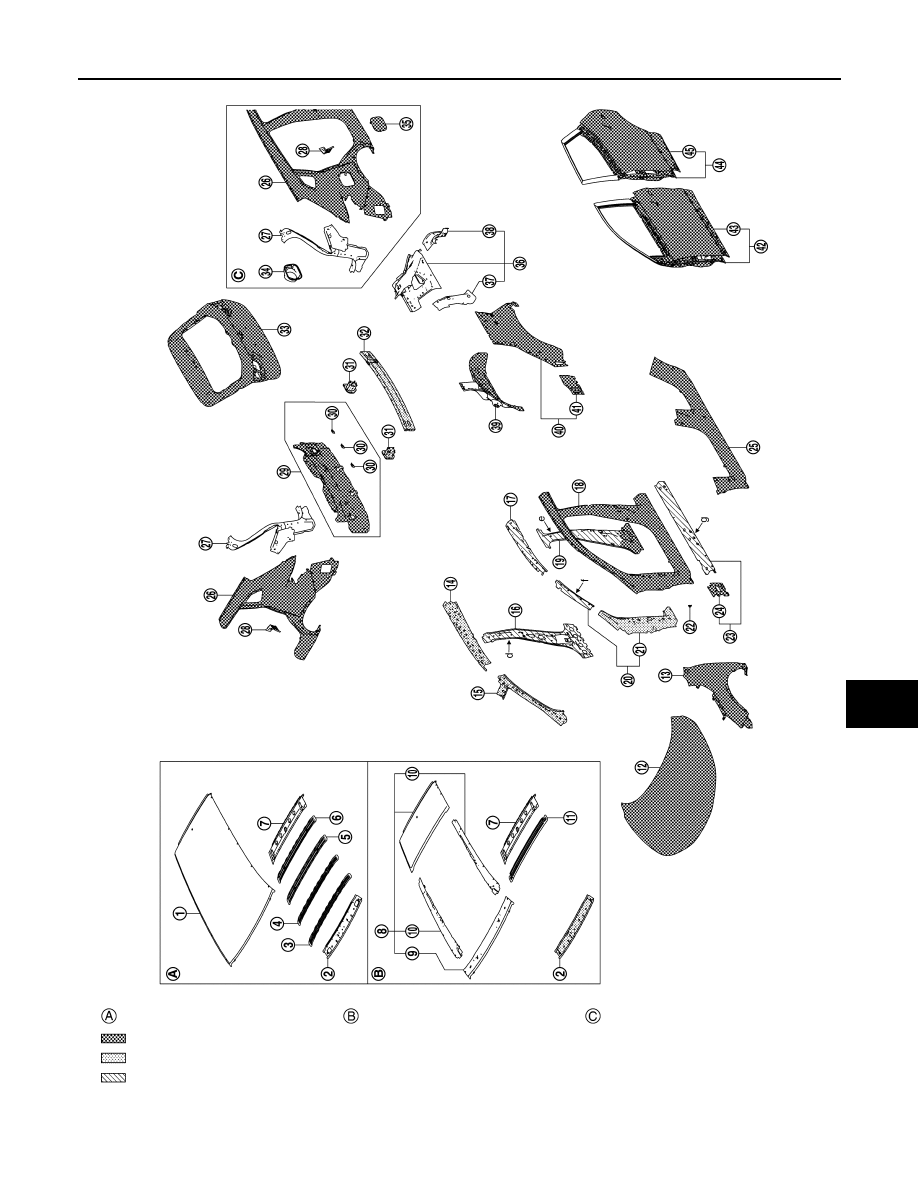

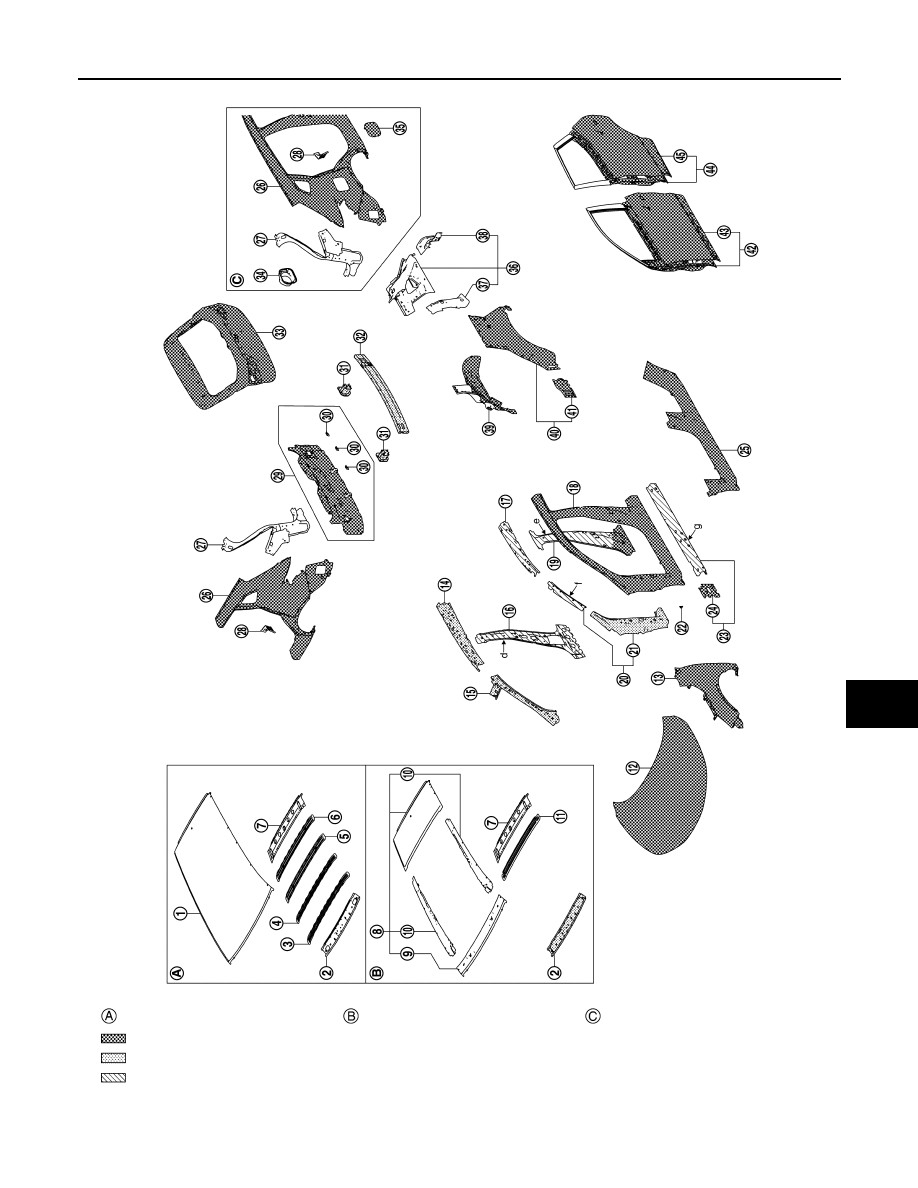

Without sunroof models

With sunroof models

Right side

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3884ZZ

BRM-138

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Roof

Under 440

—

Front roof rail assembly

Under 440

—

1st roof bow

Under 440

—

2nd roof bow

Under 440

—

3rd roof bow

Under 440

—

4th roof bow

Under 440

—

Rear roof rail assembly

Under 440

—

Sunroof assembly

Under 440

—

Upper front roof rail

Under 440

—

Roof extension assembly

Under 440

—

Center roof bow

Under 440

—

Hood assembly

Under 440

×

Front fender assembly (RH & LH)

Under 440

×

Inner front side roof rail assembly (RH & LH)

450

—

Upper inner front pillar assembly (RH & LH)

590

—

Inner center pillar assembly (RH & LH)

d.

980MPa

caution

T=1.2 mm (0.047 in)

590

×

Outer side roof rail (RH & LH)

980MPa

caution

T=1.0 mm (0.039 in)

—

×

Outer front side body (RH & LH)

Under 440

×

Center pillar hinge brace assembly (RH &
LH)

e.

980MPa

caution

T=1.2 mm (0.047 in)

Under 440

×

Front pillar hinge brace assembly (RH &
LH)

f.

980MPa

caution

T=1.4 mm (0.055 in)

590

×

Lower front pillar hinge brace (RH & LH)

590

×

Front fender bracket (RH & LH)

Under 440

×

Outer sill reinforcement assembly (RH &
LH)

g.

980MPa

caution

T=1.0 mm (0.039 in)

Under 440

×

Lower front pillar reinforcement (RH & LH)

Under 440

×

Outer sill assembly (RH & LH)

Under 440

×

Rear fender assembly (RH & LH)

Under 440

×

Rear fender extension complete (RH & LH)

Under 440

—

Striker retainer assembly (RH & LH)

Under 440

—

Upper rear panel assembly

450

×

Upper rear bumper retainer

Under 440

×

Rear bumper stay assembly (RH & LH)

600

—

Rear bumper reinforcement assembly

1180MPa

caution

T=1.2 mm (0.047 in)

—

—

Back door assembly

Under 440

×

BODY COMPONENT PARTS

BRM-139

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

4WD

4WD : Ultra High Strength Steel Part

INFOID:0000000010505555

DESCRIPTION

Ultra high strength steel parts signify high strength steel plates with tensile strength of 980 MPa or more.
When replacing parts made of ultra high strength steel or parts including ultra high strength steel, never per-
form the prohibition described below:

PROHIBITION

WARNING:

Never cut ultra high strength steel parts or perform butt welding. Violation of this prohibition causes
extreme strength degradation, and the strength before damage cannot be secured.

PART REPLACEMENT

To replace an ultra high strength part, be sure to replace it by panel supply unit of ultra high strength steel part.
For the welding method, refer to

BRM-166, "Welding of Ultra High Strength Steel"

4WD : Underbody Component Parts

INFOID:0000000010498725

Refer to parts catalogue for the replacement parts.

Fuel filler base assembly

Under 440

—

Fuel filler lid assembly

Under 440

×

Inner rear pillar assembly (RH & LH)

Under 440

—

Inner rear pillar reinforcement (RH & LH)

Under 440

—

Lower inner rear pillar (RH & LH)

Under 440

—

Inner rear wheelhouse assembly (RH & LH)

Under 440

×

Outer rear wheelhouse assembly (RH & LH)

Under 440

×

Outer rear wheelhouse extension (RH & LH)

Under 440

×

Front door assembly (RH & LH)

Under 440

×

Outer front door (RH & LH)

Under 440

×

Rear door assembly (RH & LH)

Under 440

×

Outer rear door (RH & LH)

Under 440

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

BRM-140

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

R9M engine models

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3939ZZ

BODY COMPONENT PARTS

BRM-141

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Spare wheel clamp bracket assembly

Under 440

—

Rear floor rear

Under 440

×

Rear floor side assembly (RH & LH)

Under 440

×

Rear floor front

Under 440

×

Inner rear belt anchor reinforcement assembly (RH & LH)

Under 440

×

Rear seat crossmember

Under 440

×

Center front floor assembly

780

×

Front floor assembly (RH & LH)

b.

LH

1350MPa

caution

T=1.4 mm (0.055 in)

590

×

RH

980MPa

caution

T=1.8 mm (0.071 in)

Inner sill assembly (RH & LH)

980MPa

caution

T=1.4 mm (0.055 in)

—

×

Cowl top

Under 440

×

Upper dash assembly

Under 440

×

Lower dash assembly

780

×

Steering hole cover assembly

Under 440

×

Side dash assembly (RH & LH)

590

×

Lower center dash crossmember assembly

980MPa

caution

T=2.0 mm (0.079 in)

—

×

Front strut housing assembly (RH & LH)

445

×

Upper side cowl top (RH & LH)

Under 440

×

Lower front hoodledge (RH & LH)

Under 440

×

Upper hoodledge assembly (RH & LH)

Under 440

×

Hoodledge reinforcement assembly (RH & LH)

Under 440

×

Side radiator core support assembly (RH & LH)

Under 440

×

Front bumper reinforcement assembly

1180MPa

caution

T=1.2 mm (0.079 in)

440

—

Lower front bumper stay (RH & LH)

600

—

Hoodledge connector assembly (RH & LH)

Under 440

×

Side member closing plate assembly (RH & LH)

c.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Front side member assembly (RH & LH)

d.

980MPa

caution

T=2.0 mm (0.079 in)

750

×

Engine mounting member bracket assembly

445

×

Front suspension mounting rear bracket assembly (RH & LH)

590

×

Rear floor front extension assembly

Under 440

×

Center rear crossmember assembly

Under 440

×

BRM-142

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

4WD : Body Component Parts

INFOID:0000000010498726

Refer to parts catalogue for the replacement parts.

Rear side member assembly (RH & LH)

590

×

Rear side member extension assembly (RH & LH)

780

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

BODY COMPONENT PARTS

BRM-143

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Without sunroof models

With sunroof models

Right side

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3886ZZ

BRM-144

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Roof

Under 440

—

Front roof rail assembly

Under 440

—

1st roof bow

Under 440

—

2nd roof bow

Under 440

—

3rd roof bow

Under 440

—

4th roof bow

Under 440

—

Rear roof rail assembly

Under 440

—

Sunroof assembly

Under 440

—

Upper front roof rail

Under 440

—

Roof extension assembly

Under 440

—

Center roof bow

Under 440

—

Hood assembly

Under 440

×

Front fender assembly (RH & LH)

Under 440

×

Inner front side roof rail assembly (RH & LH)

450

—

Upper inner front pillar assembly (RH & LH)

590

—

Inner center pillar assembly (RH & LH)

d.

980MPa

caution

T=1.2 mm (0.047 in)

590

×

Outer side roof rail (RH & LH)

980MPa

caution

T=1.0 mm (0.039 in)

—

×

Outer front side body (RH & LH)

Under 440

×

Center pillar hinge brace assembly (RH &
LH)

e.

980MPa

caution

T=1.2 mm (0.047 in)

Under 440

×

Front pillar hinge brace assembly (RH &
LH)

f.

980MPa

caution

T=1.4 mm (0.055 in)

590

×

Lower front pillar hinge brace (RH & LH)

590

×

Front fender bracket (RH & LH)

Under 440

×

Outer sill reinforcement assembly (RH &
LH)

g.

980MPa

caution

T=1.0 mm (0.039 in)

Under 440

×

Lower front pillar reinforcement (RH & LH)

Under 440

×

Outer sill assembly (RH & LH)

Under 440

×

Rear fender assembly (RH & LH)

Under 440

×

Rear fender extension complete (RH & LH)

Under 440

—

Striker retainer assembly (RH & LH)

Under 440

—

Upper rear panel assembly

450

×

Upper rear bumper retainer

Under 440

×

Rear bumper stay assembly (RH & LH)

600

—

Rear bumper reinforcement assembly

1180MPa

caution

T=1.2 mm (0.047 in)

—

—

Back door assembly

Under 440

×
