SECURITY INDICATOR LAMP

SEC-273

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

>> INSPECTION END

5.

CHECK SECURITY INDICATOR LAMP CIRCUIT

1.

Disconnect combination meter connector.

2.

Check continuity between combination meter harness connector and BCM harness connector.

3.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-86, "Removal and Installation"

.

NO

>> Repair or replace harness.

Combination meter

BCM

Continuity

Connector

Terminal

Connector

Terminal

M51

7

M70

75

Existed

Combination meter

Ground

Continuity

Connector

Terminal

M51

7

Not existed

SEC-274

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD SWITCH

HOOD SWITCH

Component Function Check

INFOID:0000000010479778

1.

CHECK FUNCTION

1.

Select “HOOD SW” in “Data Monitor” mode of “IPDM E/R” using CONSULT.

2.

Check “HOOD SW” indication under the following condition.

Is the indication normal?

YES

>> Hood switch is OK.

NO

>> Refer to

SEC-274, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010479779

1.

CHECK HOOD SWITCH SIGNAL CIRCUIT 1

1.

Turn ignition switch OFF.

2.

Disconnect hood switch connector.

3.

Check voltage between hood switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK HOOD SWITCH SIGNAL CIRCUIT 2

1.

Disconnect IPDM E/R connector.

2.

Check continuity between IPDM E/R harness connector and hood switch harness connector.

3.

Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-68, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK HOOD SWITCH GROUND CIRCUIT

Check continuity between hood switch harness connector and ground.

Monitor item

Condition

Indication

HOOD SW

Hood

Open

ON

Close

OFF

(+)

(–)

Voltage

Hood switch

Connector

Terminal

E100

2

Ground

9 - 16 V

IPDM E/R

Hood switch

Continuity

Connector

Terminal

Connector

Terminal

E102

60

E100

1

Existed

IPDM E/R

Ground

Continuity

Connector

Terminal

E102

60

Not existed

Hood switch

Ground

Continuity

Connector

Terminal

E100

2

Existed

HOOD SWITCH

SEC-275

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK HOOD SWITCH

Refer to

SEC-275, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace hood switch. Refer to

DLK-179, "HOOD LOCK : Removal and Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000010479780

1.

CHECK HOOD SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect hood switch connector.

3.

Check continuity between hood switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace hood switch. Refer to

DLK-179, "HOOD LOCK : Removal and Installation"

.

Hood switch

Condition

Continuity

Terminal

1

2

Hood  lock

Unlock condition

Not existed

Lock condition

Existed

SEC-276

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

HORN FUNCTION

HORN FUNCTION

Diagnosis Procedure

INFOID:0000000010479781

1.

CHECK HORN FUNCTION

Check that horns function properly using horn switch.
Does horn sound?

YES

>> GO TO 2.

NO

>> Check horn circuit. Refer to

HRN-4, "Wiring Diagram"

.

2.

CHECK HORN CONTROL CIRCUIT

1.

Disconnect horn relay.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between IPDM E/R harness connector and horn relay harness connector.

4.

Check continuity between IPDM E/R harness connector and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-68, "Removal and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Horn relay

Continuity

Connector

Terminal

Connector

Terminal

E37

9

E22

1

Existed

IPDM E/R

Ground

Continuity

Connector

Terminal

E37

9

Not existed

INTRUDER SENSOR

SEC-277

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

INTRUDER SENSOR

Component Function Check

INFOID:0000000010479782

1.

CHECK INTRUDER SENSOR FUNCTION

1.

Turn ignition switch OFF.

2.

Check that hood is closed completely.

3.

Get in the vehicle and close all doors.

4.

Lock doors using Keyfob.

5.

Check security indicator lamp blinks to confirm that the vehicle security system is shifted into the ARMED
phase. Refer to

SEC-195, "VEHICLE SECURITY SYSTEM : System Description"

.

6.

Hold up and move a hand over intruder sensor.

7.

Check that siren sounds after a few seconds.

Does the siren sound?

YES

>> Intruder sensor is OK.

NO

>> Refer to

SEC-277, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010479783

1.

CHECK INTRUDER SENSOR POWER SUPPLY

1.

Turn ignition switch OFF.

2.

Disconnect intruder sensor connector.

3.

Check voltage between intruder sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO-1

>> Check 10 A fuse [No. 79, located in the fuse block].

NO-2

>> Check harness for open or short between fuse and intruder sensor.

2.

CHECK INTRUDER SENSOR SIGNAL CIRCUIT

1.

Disconnect siren control unit connector.

2.

Check continuity between siren control unit harness connector and intruder sensor harness connector.

3.

Check continuity between siren control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK INTRUDER SENSOR GROUND CIRCUIT

Check continuity between intruder sensor harness connector and ground.

(+)

(–)

Voltage

(Approx.)

Sensor cancel switch

Connector

Terminal

R2

1

Ground

Battery voltage

Siren control unit

Sensor cancel switch

Continuity

Connector

Terminal

Connector

Terminal

B27

4

R2

2

Existed

Siren control unit

Ground

Continuity

Connector

Terminal

B27

4

Not existed

SEC-278

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

INTRUDER SENSOR

Is the inspection result normal?

YES

>> Replace intruder sensor.

NO

>> Repair or replace harness.

Sensor cancel switch

Ground

Continuity

Connector

Terminal

R2

3

Existed

SENSOR CANCEL SWITCH

SEC-279

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SENSOR CANCEL SWITCH

Diagnosis Procedure

INFOID:0000000010479784

1.

CHECK SENSOR CANCEL SWITCH SIGNAL

1.

Turn ignition switch OFF.

2.

Disconnect sensor cancel switch connector.

3.

Check signal between sensor cancel switch harness connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK SENSOR CANCEL SWITCH CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between BCM harness connector and sensor cancel switch harness connector.

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK GROUND CIRCUIT

Check continuity between sensor cancel switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK SENSOR CANCEL SWITCH

Refer to

SEC-280, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

(+)

(–)

Voltage

Sensor cancel switch

Connector

Terminal

R2

5

Ground

JPMIA0011GB

BCM

Sensor cancel switch

Continuity

Connector

Terminal

Connector

Terminal

M69

107

R2

5

Existed

BCM

Ground

Continuity

Connector

Terminal

M69

107

Not existed

Sensor cancel switch

Ground

Continuity

Connector

Terminal

R2

5

Existed

SEC-280

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

SENSOR CANCEL SWITCH

NO

>> Replace sensor cancel switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000010479785

1.

CHECK SENSOR CANCEL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect sensor cancel switch connector.

3.

Check continuity between sensor cancel switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace sensor cancel switch.

Sensor cancel switch

Condition

Continuity

Terminal

5

6

Sensor cancel switch

Press

Existed

Release

Not existed

SIREN CONTROL UNIT CIRCUIT (COMMUNICATION SIGNAL)

SEC-281

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SIREN CONTROL UNIT CIRCUIT (COMMUNICATION SIGNAL)

Component Function Check

INFOID:0000000010479786

1.

CHECK SIREN CONTROL UNIT FUNCTION

1.

Turn ignition switch OFF.

2.

Check that hood is closed completely.

3.

Get in the vehicle and close all doors.

4.

Lock doors using Keyfob.

5.

Check security indicator lamp blinks to confirm that the vehicle security system is shifted into the ARMED
phase. Refer to

SEC-195, "VEHICLE SECURITY SYSTEM : System Description"

.

Is the inspection result normal?

YES

>> Siren control unit circuit (communication signal) is OK.

NO

>> Refer to

SEC-281, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010479787

1.

CHECK SIREN CONTROL UNIT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect siren control unit connector.

3.

Disconnect BCM connector.

4.

Check continuity between siren control unit harness connector and BCM harness connector.

5.

Check continuity between siren control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Siren control unit

BCM

Continuity

Connector

Terminal

Connector

Terminal

B27

3

B4

38

Existed

Siren control unit

Ground

Continuity

Connector

Terminal

B27

3

Not existed

SEC-282

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

SIREN CONTROL UNIT CIRCUIT (HAZARD SWITCH SIGNAL)

SIREN CONTROL UNIT CIRCUIT (HAZARD SWITCH SIGNAL)

Component Function Check

INFOID:0000000010479788

1.

CHECK SIREN CONTROL UNIT FUNCTION

1.

Turn ignition switch OFF.

2.

Check that hood is closed completely.

3.

Get in the vehicle and close all doors.

4.

Lock doors using Keyfob.

5.

Check security indicator lamp blinks to confirm that the vehicle security system is shifted into the ARMED
phase. Refer to

SEC-195, "VEHICLE SECURITY SYSTEM : System Description"

.

6.

Hold up and move a hand over intruder sensor.

7.

Check that hazard warning lamps blinks after a few seconds.

Does the siren sound?

YES

>> Siren control unit circuit (hazard switch signal) is OK.

NO

>> Refer to

SEC-282, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010479789

1.

CHECK SIREN CONTROL UNIT SIGNAL CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect siren control unit connector.

3.

Disconnect BCM connector.

4.

Check continuity between siren control unit harness connector and BCM harness connector.

5.

Check continuity between siren control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Siren control unit

BCM

Continuity

Connector

Terminal

Connector

Terminal

B27

1

M70

51

Existed

Siren control unit

Ground

Continuity

Connector

Terminal

B27

1

Not existed

SECURITY INDICATOR LAMP DOES NOT TURN ON OR BLINK

SEC-283

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

SYMPTOM DIAGNOSIS

SECURITY INDICATOR LAMP DOES NOT TURN ON OR BLINK

Description

INFOID:0000000010338082

Security indicator lamp does not blink when ignition switch is in a position other than ON.
NOTE:
• Before performing the diagnosis, check “Work Flow”. Refer to

SEC-237, "Work Flow"

.

• Check that vehicle is under the condition shown in “CONDITIONS OF VEHICLE (OPERATING CONDI-

TIONS)” before starting diagnosis, and check each symptom.

CONDITIONS OF VEHICLE (OPERATING CONDITIONS)

Ignition switch is not in the ON position.

Diagnosis Procedure

INFOID:0000000010505355

1.

CHECK SECURITY INDICATOR LAMP

Check security indicator lamp.
Refer to

SEC-169, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

REPLACE BCM

Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

Is the result normal?

YES

>> INSPECTION END.

NO

>> GO TO 3

3.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> INSPECTION END

NO

>> GO TO 4.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

SEC-284

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY SYSTEM CANNOT BE SET

VEHICLE SECURITY SYSTEM CANNOT BE SET

KEY FOB

KEY FOB : Description

INFOID:0000000010338084

Armed phase is not activated when all doors are locked using keyfob.
NOTE:
Check that vehicle is under the condition shown in “CONDITIONS OF VEHICLE (OPERATING CONDI-
TIONS)” before starting diagnosis, and check each symptom.

CONDITION OF VEHICLE (OPERATING CONDITIONS)

“SECURITY ALARM SET”: ON
Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT.

KEY FOB : Diagnosis Procedure

INFOID:0000000010338085

1.

CHECK REMOTE KEYLESS ENTRY SYSTEM

Lock/unlock door with keyfob. Refer to

DLK-391, "REMOTE KEYLESS ENTRY FUNCTION : System Descrip-

tion"

 (With super lock) or

DLK-517, "System Description"

 (With out super lock).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

DLK-448, "Diagnosis Procedure"

.

2.

CHECK HOOD SWITCH

Check hood switch. Refer to

SEC-274, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace hood switch.

3.

REPLACE BCM

• Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

• Confirm the operation after replacement.

Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

DOOR LOCK AND UNLOCK SWITCH

DOOR LOCK AND UNLOCK SWITCH : Description

INFOID:0000000010338086

ARMED phase is not activated when door is locked using door lock and unlock switch.
NOTE:
Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and check
each symptom.

CONDITION OF VEHICLE (OPERATING CONDITION)

• SECURITY ALARM SET: ON

Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT.

DOOR LOCK AND UNLOCK SWITCH : Diagnosis Procedure

INFOID:0000000010338087

1.

CHECK POWER DOOR LOCK SYSTEM (DOOR LOCK FUNCTION)

Lock/unlock door with door lock and unlock switch. Refer to

DLK-389, "System Description"

 (With super lock)

or

DLK-515, "System Description"

 (Without super lock).

Is the inspection result normal?

YES

>> GO TO 2.

VEHICLE SECURITY SYSTEM CANNOT BE SET

SEC-285

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NO

>> Check power door lock system (door lock function). Refer to

DLK-443, "ALL DOOR : Diagnosis

Procedure"

 (With super lock) or

DLK-581, "ALL DOOR : Diagnosis Procedure"

 (Without super

lock).

2.

CHECK HOOD SWITCH

Check hood switch. Refer to

SEC-274, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or Replace hood switch.

3.

REPLACE BCM

• Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

• Confirm the operation after replacement.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

UNLOCK SENSOR

UNLOCK SENSOR : Description

INFOID:0000000010506179

Armed phase is not activated when door is locked by door key cylinder operation using mechanical key.
NOTE:
Check that vehicle is under the condition shown in “CONDITIONS OF VEHICLE (OPERATING CONDI-
TIONS)” before starting diagnosis, and check each symptom.

CONDITION OF VEHICLE (OPERATING CONDITIONS)

“SECURITY ALARM SET”: ON
Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT.

UNLOCK SENSOR : Diagnosis Procedure

INFOID:0000000010506180

1.

CHECK POWER DOOR LOCK SYSTEM (DOOR LOCK FUNCTION)

Lock/unlock door using mechanical key inserted into door key cylinder.
Refer to

DLK-389, "System Description"

 (With super lock) or

DLK-515, "System Description"

 (Without super

lock).
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check power door lock system (door lock function). Refer to

DLK-447, "Diagnosis Procedure"

(With super lock) or

DLK-585, "Diagnosis Procedure"

 (Without super lock).

2.

CHECK HOOD SWITCH

Check hood switch.
Refer to

SEC-274, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace hood switch.

3.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

SEC-286

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

Description

INFOID:0000000010338088

Alarm does not operate when alarm operating condition is satisfied.
NOTE:
Check that vehicle is under the condition shown in “CONDITIONS OF VEHICLE (OPERATING CONDI-
TIONS)” before starting diagnosis, and check each symptom.

CONDITION OF VEHICLE (OPERATING CONDITIONS)

“SECURITY ALARM SET”: ON
Check the setting of “SECURITY ALARM SET” in “Work Support” mode of “THEFT ALM” of “BCM” using
CONSULT.

Diagnosis Procedure

INFOID:0000000010505375

1.

CHECK SENSOR CANCEL SWITCH

Check sensor cancel switch.
Refer to

SEC-279, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace sensor cancel switch.

2.

PERFORM SELF-DIAGNOSIS OF SIREN CONTROL UNIT

Perform self-diagnosis of siren control unit.
Refer to

SEC-207, "Diagnosis Description"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace malfunctioning parts.

3.

CHECK DOOR SWITCH

Check door switch.
Refer to

DLK-430, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace the malfunctioning door switch. Refer to

DLK-195, "Removal and Installation"

.

4.

CHECK HOOD SWITCH

Check hood switch.
Refer to

SEC-274, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace hood switch.

5.

CHECK INTRUDER SENSOR

Check intruder sensor.
Refer to

SEC-277, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace intruder sensor.

6.

REPLACE SIREN CONTROL UNIT

1.

Replace siren control unit.

2.

Confirm the operation after replacement.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 7.

VEHICLE SECURITY ALARM DOES NOT ACTIVATE

SEC-287

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

7.

REPLACE BCM

Replace BCM. Refer to

BCS-135, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

SEC-288

< SYMPTOM DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

INTRUDER SENSOR CANNOT BE DEACTIVATED

INTRUDER SENSOR CANNOT BE DEACTIVATED

Diagnosis Procedure

INFOID:0000000010505376

1.

CHECK SENSOR CANCEL SWITCH

Check sensor cancel switch.
Refer to

SEC-279, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace sensor cancel switch.

2.

REPLACE SIREN CONTROL UNIT

1.

Replace siren control unit.

2.

Confirm the operation after replacement.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 3.

3.

REPLACE BCM

Replace BCM. Refer to

BCS-135, "Removal and Installation"

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NATS ANTENNA AMP.

SEC-289

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

REMOVAL AND INSTALLATION

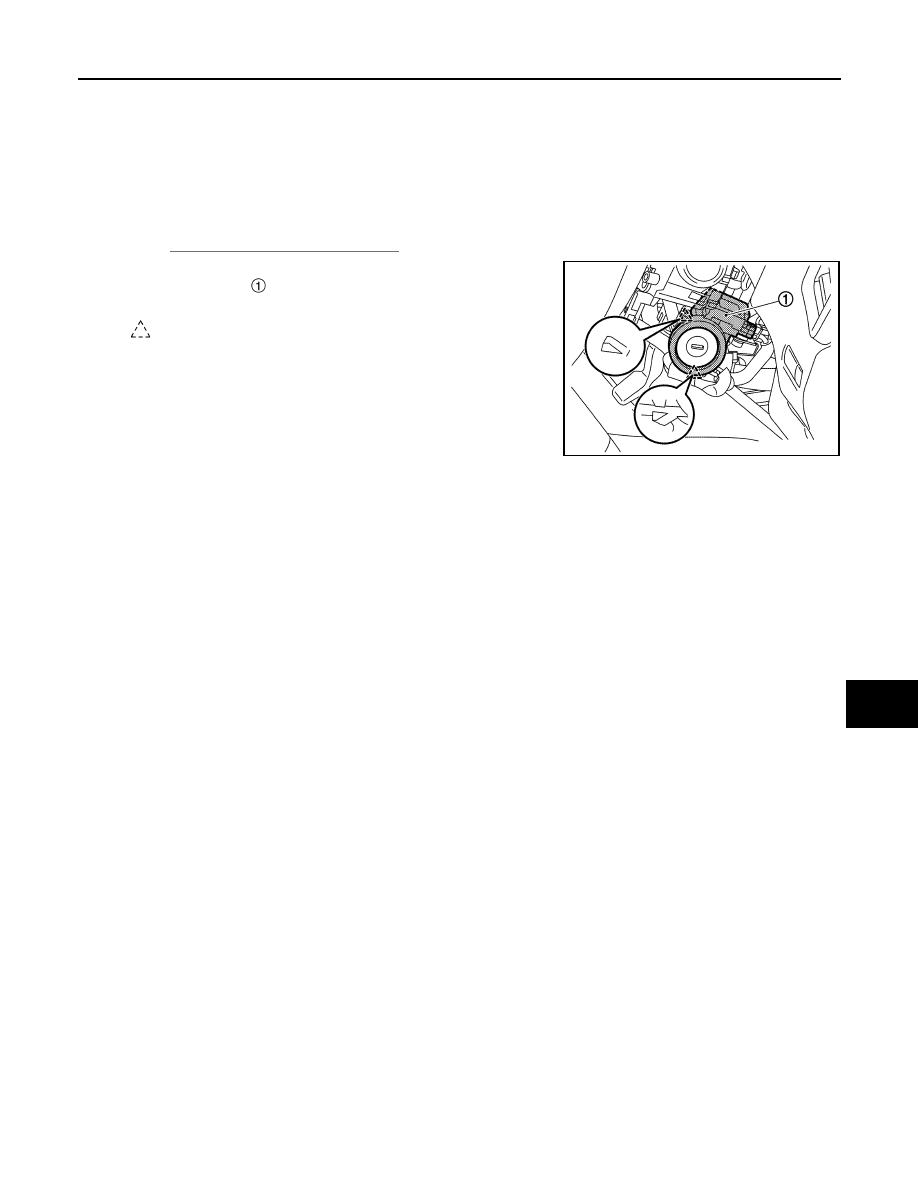

NATS ANTENNA AMP.

Removal and Installation

INFOID:0000000010338090

REMOVAL

1.

Remove the steering column cover.
Refer to

IP-13, "Removal and Installation"

.

2.

Disengage NATS antenna amp. fixing pawl and then remove
NATS antenna amp.

 from steering lock assembly.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB2859ZZ

















Content      ..     16      17      18
