Qashqai J11. Power window control system - part 5

AUTO OPERATION DOES NOT OPERATE BUT MANUAL OPERATE NORMAL-

LY (DRIVER SIDE)

PWC-65

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

AUTO OPERATION DOES NOT OPERATE BUT MANUAL OPERATE NOR-
MALLY (DRIVER SIDE)

Diagnosis Procedure

INFOID:0000000010286518

1.

PERFORM INITIALIZATION PROCEDURE

Initialization procedure is executed and operation is confirmed.
Refer to

PWC-31, "Description"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK ENCODER CIRCUIT

Check encoder circuit.
Refer to

PWC-51, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CONFIRM THE OPERATION

Confirm the operation again.

Is the inspection normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> GO TO 1.

PWC-66

< SYMPTOM DIAGNOSIS >

ANTI-PINCH SYSTEM DOES NOT OPERATE NORMALLY (DRIVER SIDE)

ANTI-PINCH SYSTEM DOES NOT OPERATE NORMALLY (DRIVER SIDE)

Diagnosis Procedure

INFOID:0000000010286519

1.

PERFORM INITIALIZATION PROCEDURE

Initialization procedure is executed and operation is confirmed.
Refer to

PWC-31, "Description"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

CHECK ENCODER CIRCUIT

Check encoder circuit.
Refer to

PWC-51, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CONFIRM THE OPERATION

Confirm the operation again.

Is the inspection normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> GO TO 1.

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

PWC-67

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW LOCK SWITCH DOES NOT FUNCTION

Diagnosis Procedure

INFOID:0000000010286520

1.

REPLACE POWER WINDOW MAIN SWITCH

Replace power window main switch. Refer to

PWC-68, "POWER WINDOW MAIN SWITCH : Removal and

Installation"

.

>> INSPECTION END

PWC-68

< REMOVAL AND INSTALLATION >

FRONT POWER WINDOW SWITCH

REMOVAL AND INSTALLATION

FRONT POWER WINDOW SWITCH

POWER WINDOW MAIN SWITCH

POWER WINDOW MAIN SWITCH : Removal and Installation

INFOID:0000000010286521

CAUTION:

Never bend the pawl of power window main switch finisher.

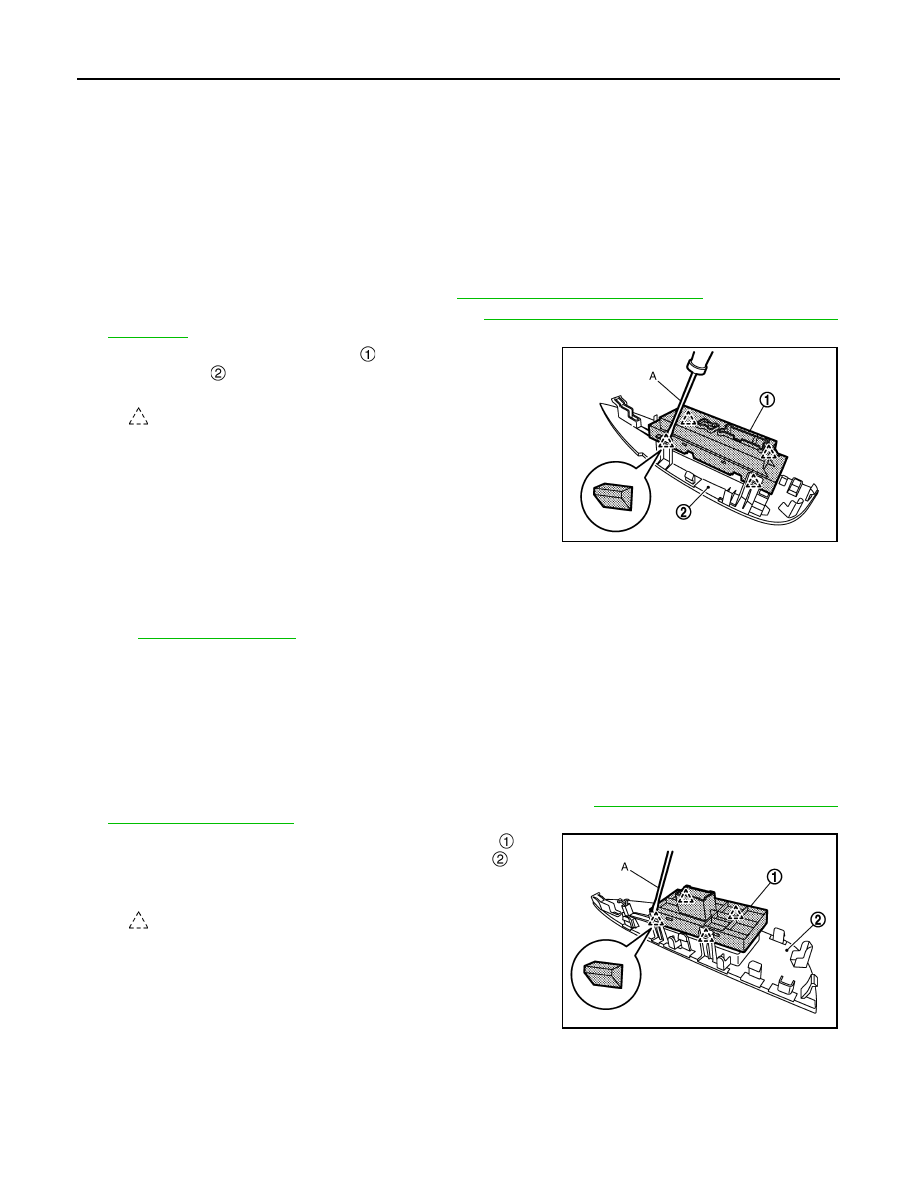

REMOVAL

1.

Disconnect the battery negative terminal. Refer to

PG-155, "Removal and Installation"

.

2.

Remove power window main switch finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and

Installation"

.

3.

Remove power window main switch

 from power window main

switch finisher

 using remover tool (A).

INSTALLATION

Note the following items, and then install in the reverse order of removal.
NOTE:
If power window main switch is replaced or is removed, it is necessary to perform the initialization procedure.
Refer to

PWC-31, "Description"

.

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

FRONT POWER WINDOW SWITCH (PASSENGER SIDE) : Removal and Installation

INFOID:0000000010286550

CAUTION:

Never bend the pawl of front power window switch (passenger side) finisher.

REMOVAL

1.

Remove front power window switch (passenger side) finisher. Refer to

INT-12, "FRONT DOOR FINISHER

: Removal and Installation"

.

2.

Remove front power window switch (passenger side)

 from

front power window switch (passenger side) finisher

 using

remover tool (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB2995ZZ

: Pawl

JMKIB2996ZZ

REAR POWER WINDOW SWITCH

PWC-69

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REAR POWER WINDOW SWITCH

Removal and Installation

INFOID:0000000010286547

CAUTION:

Never bend the pawl of rear power window switch finisher.

REMOVAL

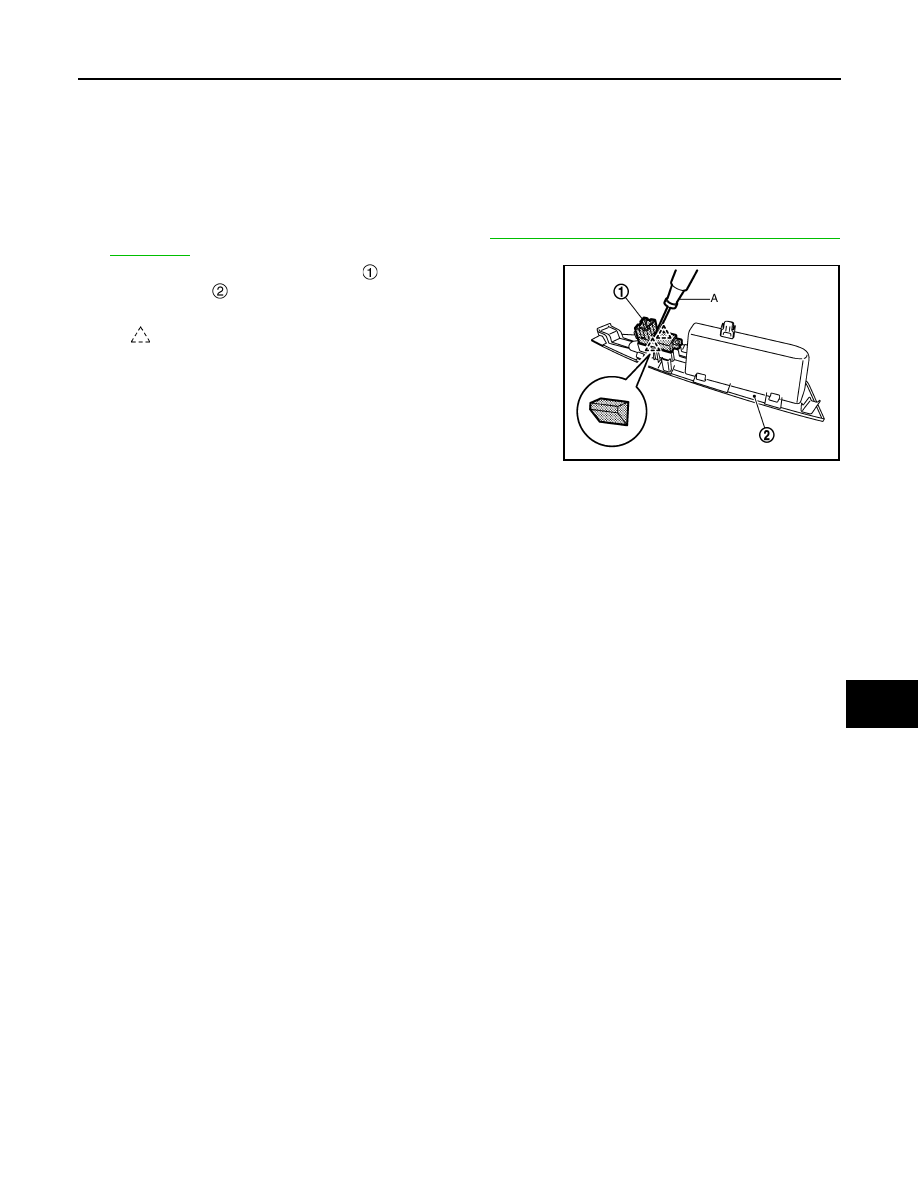

1.

Remove rear power window switch finisher. Refer to

INT-15, "REAR DOOR FINISHER : Removal and

Installation"

.

2.

Remove rear power window switch

 from rear power window

switch finisher

 using remover tool (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMKIB2997ZZ
