CONTENTS

INTERIOR LIGHTING SYSTEM

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

Precautions for Removing Battery Terminal .............

SYSTEM DESCRIPTION ..............................

COMPONENT PARTS ........................................

Component Parts Location ........................................

SYSTEM ..............................................................

INTERIOR ROOM LAMP CONTROL SYSTEM ..........

INTERIOR ROOM LAMP CONTROL SYSTEM :
System Description ...................................................

INTERIOR ROOM LAMP BATTERY SAVER SYS-
TEM ............................................................................

INTERIOR ROOM LAMP BATTERY SAVER
SYSTEM : System Description ...............................

ILLUMINATION CONTROL SYSTEM .......................

ILLUMINATION CONTROL SYSTEM : System
Description ..............................................................

SPICY ILLUMINATION CONTROL SYSTEM ...........

SPICY ILLUMINATION CONTROL SYSTEM :
System Description .................................................

DIAGNOSIS SYSTEM (BCM) ............................

COMMON ITEM .........................................................

COMMON ITEM : CONSULT Function (BCM -
COMMON ITEM) .....................................................

INT LAMP ..................................................................

INT LAMP : CONSULT Function (BCM - INT
LAMP) .....................................................................

BATTERY SAVER .....................................................

BATTERY SAVER : CONSULT Function (BCM -
BATTERY SAVER) ..................................................

INTELLIGENT KEY ....................................................

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY) (Type 1) ..................................

INTELLIGENT KEY : CONSULT Function (BCM -
INTELLIGENT KEY) (Type 2) ..................................

ECU DIAGNOSIS INFORMATION ..............

BCM ...................................................................

List of ECU Reference .............................................

WIRING DIAGRAM ......................................

INTERIOR ROOM LAMP CONTROL SYSTEM

...

Wiring Diagram ........................................................

ILLUMINATION .................................................

Wiring Diagram ........................................................

BASIC INSPECTION ...................................

DIAGNOSIS AND REPAIR WORK FLOW .......

Work Flow ................................................................

DTC/CIRCUIT DIAGNOSIS .........................

INTERIOR ROOM LAMP POWER SUPPLY
CIRCUIT ............................................................

Diagnosis Procedure ...............................................

Component Inspection .............................................

INTERIOR ROOM LAMP CIRCUIT ...................

Diagnosis Procedure ...............................................

INTERIOR ROOM LAMP CONTROL CIRCUIT

...

Component Function Check ....................................

Diagnosis Procedure ...............................................

INL-2

LUGGAGE ROOM LAMP CIRCUIT ..................

Component Function Check ...................................

Diagnosis Procedure ..............................................

SPICY ILLUMINATION CIRCUIT ......................

Component Function Check ...................................

Diagnosis Procedure ..............................................

PUSH-BUTTON IGNITION SWITCH ILLUMI-
NATION CIRCUIT ..............................................

Component Function Check ...................................

Diagnosis Procedure ..............................................

SYMPTOM DIAGNOSIS .............................

INTERIOR LIGHTING SYSTEM SYMPTOMS ...

Symptom Table ......................................................

REMOVAL AND INSTALLATION ...............

MAP LAMP ........................................................

Exploded View ........................................................

MAP LAMP ................................................................

MAP LAMP : Removal and Installation ...................

MAP LAMP : Replacement .....................................

MAP LAMP FINISHER ..............................................

MAP LAMP FINISHER : Removal and Installation ...

MAP LAMP BRACKET .............................................

MAP LAMP BRACKET : Removal and Installation ...

VANITY MIRROR LAMP ...................................

Exploded View ........................................................

Replacement ...........................................................

GLOVE BOX LAMP ...........................................

Exploded View ........................................................

Replacement ...........................................................

SPICY ILLUMINATION ......................................

Exploded View ........................................................

Replacement ...........................................................

ROOM LAMP .....................................................

Exploded View ........................................................

Removal and Installation .........................................

Replacement ...........................................................

PERSONAL LAMP ............................................

Exploded View ........................................................

Removal and Installation .........................................

Replacement ...........................................................

LUGGAGE ROOM LAMP ..................................

Exploded View ........................................................

Removal and Installation .........................................

Replacement ...........................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

bulb specifications ...................................................

PRECAUTIONS

INL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010430899

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing Battery Terminal

INFOID:0000000010503204

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

1.

Open the hood.

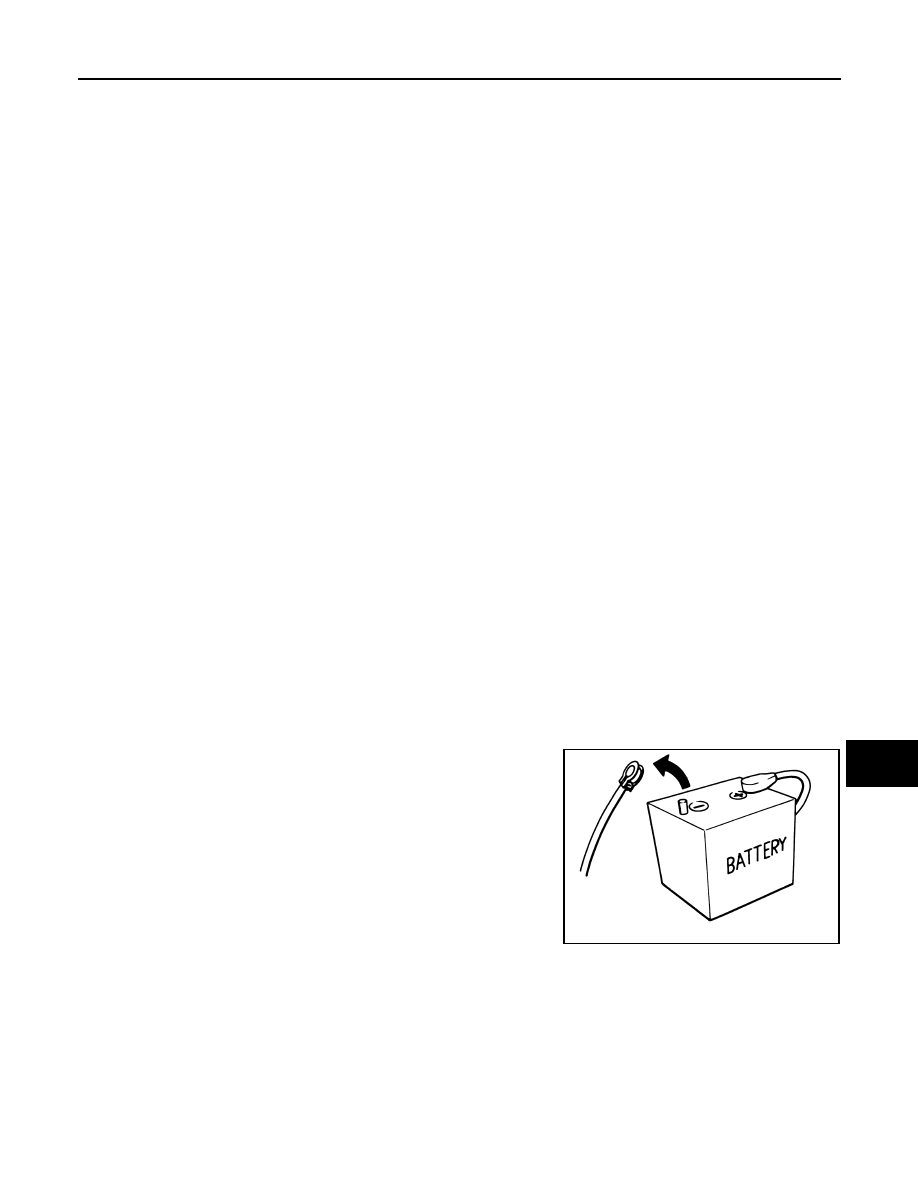

SEF289H

INL-4

< PRECAUTION >

PRECAUTIONS

2.

Turn key switch to the OFF position with the driver side door opened.

3.

Get out of the vehicle and close the driver side door.

4.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

5.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

1.

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

2.

Open the driver side door.

3.

Open the hood.

4.

Close the driver side door.

5.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

COMPONENT PARTS

INL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

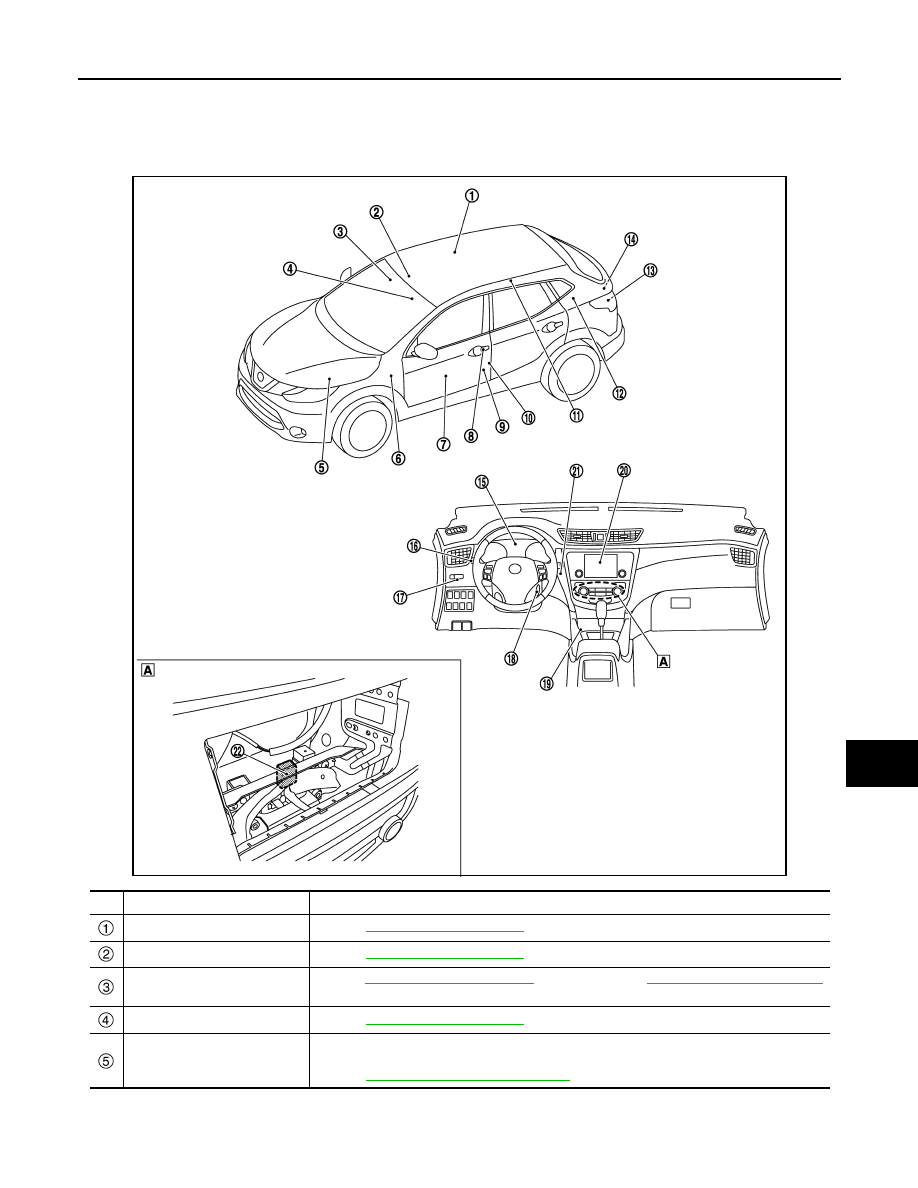

Component Parts Location

INFOID:0000000010335129

JMLIA5169ZZ

No.

Component

Function

Room lamp*

1

Refer to

INL-81, "bulb specifications"

.

Map lamp

Refer to

INL-81, "bulb specifications"

.

Light & rain sensor*

2

EXL-16, "Light & Rain Sensor"

(LED headlamp) or

EXL-188, "Light & Rain Sensor"

(halogen headlamp).

Vanity mirror lamp*

3

Refer to

INL-81, "bulb specifications"

.

IPDM E/R

Controls the integrated relay and smart FET according to the request signal from BCM (via
CAN communication).
Refer to

PCS-5, "Component Parts Location"

for detailed installation location.

INL-6

< SYSTEM DESCRIPTION >

COMPONENT PARTS

*

1

: Without sunshade system

*

2

: With light &rain sensor

*

3

: With vanity mirror lamp

*

4

: With Intelligent Key System

*

5

: With sunshade system

BCM

• Activates the interior room lamp timer depending on the vehicle condition to turn the inte-

rior room lamps ON/OFF.

• Operates the interior room lamp battery saver depending on the vehicle condition to turn

interior room lamps OFF.

• Detects each switch condition by the combination switch reading function.
• Judges the illumination lamp ON/OFF status depending on the vehicle condition. And then

transmits request signal to IPDM E/R and combination meter (via CAN communication).

Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

for detailed in-

stallation location.

Power window main switch
(Door lock and unlock switch)

Refer to

DLK-29, "Component Parts Location"

(Type 1),

"Component Parts Location"

DLK-386, "Component Parts Location"

(Type 3) or

DLK-511, "Component Parts Location"

(Type 4).

Refer to

DLK-24, "Information"

for detailed vehicle information.

Front outside handle assembly

(Request switch*

4

)

Refer to

DLK-29, "Component Parts Location"

(Type 1),

"Component Parts Location"

(Type 2).

Refer to

DLK-24, "Information"

for detailed vehicle information.

Front door lock assembly
(Driver side)
(Unlock sensor)

Refer to

DLK-29, "Component Parts Location"

(Type 1),

"Component Parts Location"

DLK-386, "Component Parts Location"

(Type 3) or

DLK-511, "Component Parts Location"

(Type 4).

Refer to

DLK-24, "Information"

for detailed vehicle information.

Door switch

Refer to

DLK-29, "Component Parts Location"

(Type 1),

"Component Parts Location"

DLK-386, "Component Parts Location"

(Type 3) or

DLK-511, "Component Parts Location"

(Type 4).

Refer to

DLK-24, "Information"

for detailed vehicle information.

Luggage room lamp

Refer to

INL-81, "bulb specifications"

.

Back door opener switch as-
sembly

(Request switch*

4

)

Refer to

DLK-29, "Component Parts Location"

(Type 1),

"Component Parts Location"

(Type 2).

Refer to

DLK-24, "Information"

for detailed vehicle information.

Back door lock assembly
(Back door switch)

Refer to

DLK-29, "Component Parts Location"

(Type 1),

"Component Parts Location"

DLK-386, "Component Parts Location"

(Type 3) or

DLK-511, "Component Parts Location"

(Type 4).

Refer to

DLK-24, "Information"

for detailed vehicle information.

Personal lamp*

5

Refer to

INL-81, "bulb specifications"

.

Combination meter

Controls the illumination according to the request signal from BCM (via CAN communica-
tion).

Combination switch
(Lighting & turn signal switch)

Refer to

BCS-13, "COMBINATION SWITCH READING SYSTEM : System Description"

.

Meter control switch
(Illumination control switch)

Controls the illumination brightness.

Key switch*

4

Refer to

DLK-386, "Component Parts Location"

(Type 3) or

"Component Parts Location"

(Type 4).

Refer to

DLK-24, "Information"

for detailed vehicle information.

Spicy illumination*

6

Refer to

INL-81, "bulb specifications"

.

NAVI control unit*

7

Controls the brightness of display according to the signal from BCM.

Push-button ignition switch
(Push-button ignition switch il-

lumination)*

4

Refer to

INL-81, "bulb specifications"

.

Interior room lamp relay

• Interior room lamp relay is controlled by BCM.
• Interior room lamp relay supplies power to interior room lamp and light & rain sensor.

No.

Component

Function

COMPONENT PARTS

INL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

*

6

: With spicy illumination

*

7

: With NAVI

INL-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM

INTERIOR ROOM LAMP CONTROL SYSTEM : System Description

INFOID:0000000010335130

SYSTEM DIAGRAM

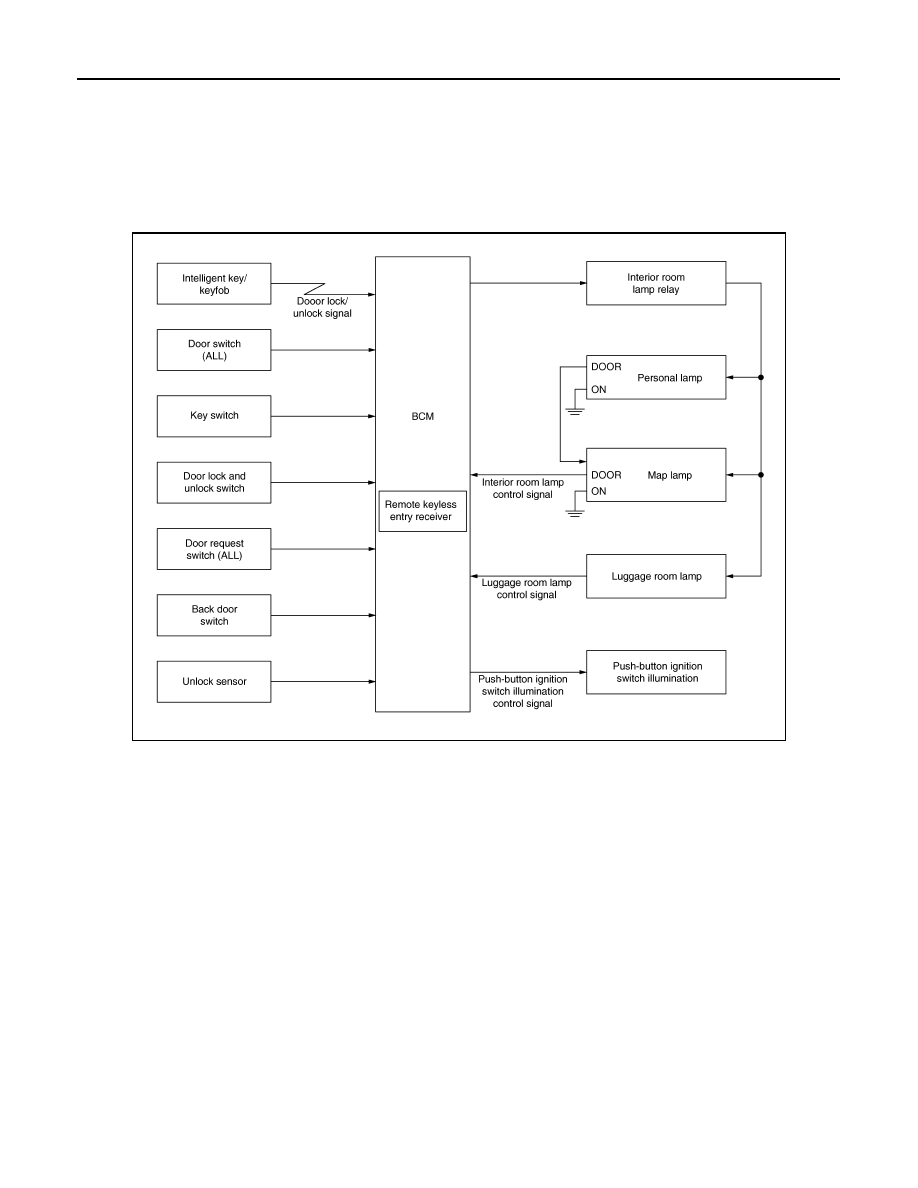

With Sunshade System

JMLIA5146GB

SYSTEM

INL-9

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

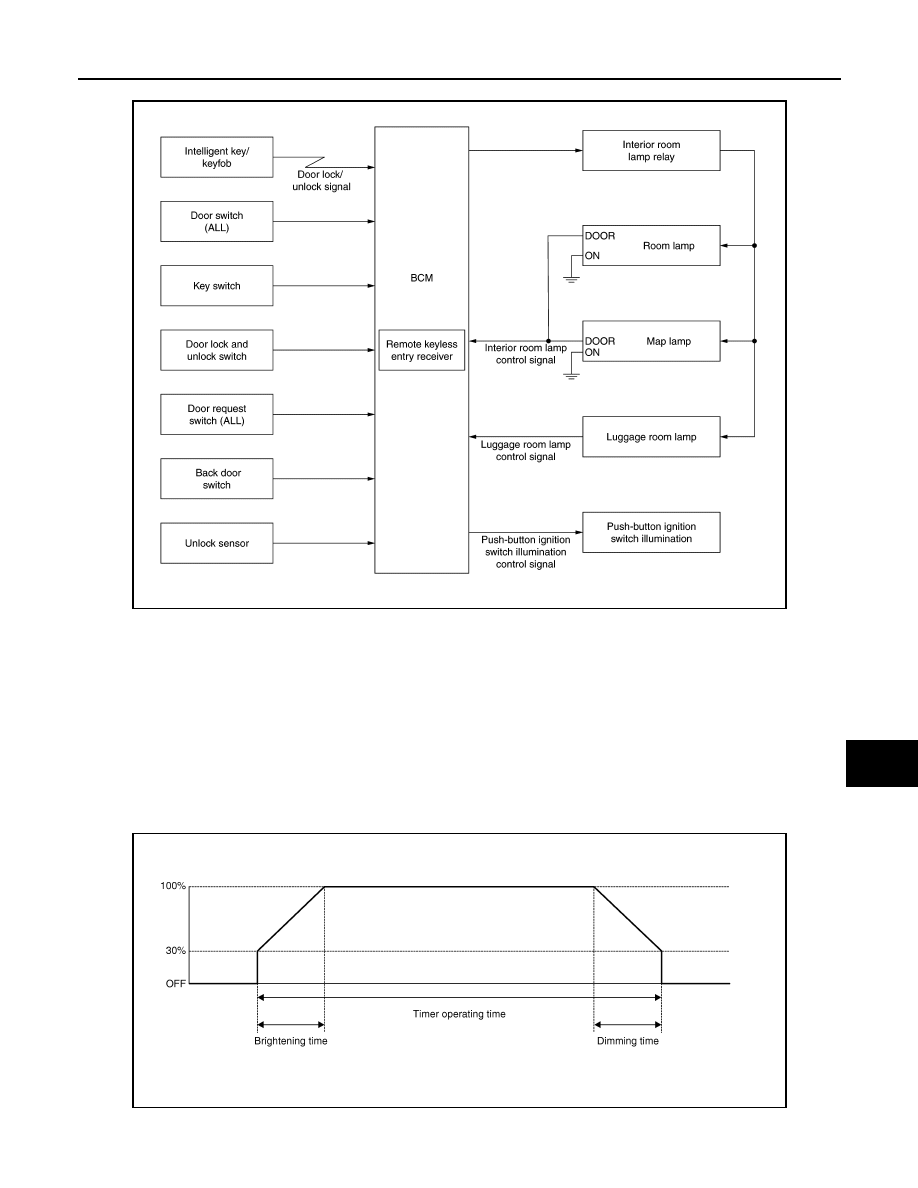

Without Sunshade System

OUTLINE

• Following lamps are controlled by interior room lamp timer control function of BCM.
- Map lamp*
- Room lamp*
- Personal lamp*
• Luggage room lamp is controlled by luggage room lamp control function of BCM.
• Push-button ignition switch illumination is controlled by push-button ignition switch illumination control func-

tion of BCM.

*: Interior room lamp time control operates when the switch position is DOOR.

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

• Following lamps turn ON and OFF (gradual brightening and dimming) by the interior room lamp timer.
- Map lamp

JMLIA5375GB

JPLIA0093GB

INL-10

< SYSTEM DESCRIPTION >

SYSTEM

- Room lamp
- Personal lamp
• For Europe, Russia or South Africa: Timer operating time is 30 seconds.
• Except for Europe, Russia of South Africa: Timer operating time is 15 seconds.
• Brightening time is 1 second and dimming time is 1 seconds.
• BCM judges the vehicle condition with the following items and activates the interior room lamp timer.
- Ignition switch status
- Key switch signal
- Door switch signal
- Door lock/unlock signal (remote keyless entry receiver, door lock and unlock switch, each door request

switch)

NOTE:
Factory setting of interior room lamp is with interior room lamp timer control. This setting can be set to without
by using CONSULT. Refer to

INL-15, "INT LAMP : CONSULT Function (BCM - INT LAMP)"

.

Interior Room Lamp ON Operation

• BCM always turns interior room lamp relay ON to turn on interior room lamp when any door opens.
• BCM activates the interior room lamp timer in any of the following condition to turn the interior room lamp ON

for a period of time.

- Status of all doors are OPEN

→

CLOSE

- Ignition switch is turned ON

→

OFF

- Key switch is ON

→

OFF

- Door unlock signal is detected when all doors close with ignition switch OFF
NOTE:
The timer restarts if new condition is input during the timer operating time.

Interior Room Lamp OFF Operation

BCM stops the timer in any of the following condition to turn the interior room lamp OFF.
• The timer operating time is expired
• Ignition switch is turned OFF

→

ON

• Door lock signal is detected with all doors close.

LUGGAGE ROOM LAMP CONTROL

BCM turns luggage room lamp ON when the following condition is detected.
• Back door switch is ON
BCM turns luggage room lamp OFF when the following condition is detected.
• Back door switch is OFF

PUSH-BUTTON IGNITION SWITCH ILLUMINATION CONTROL

Push-button Ignition Switch Illumination ON Operation

BCM turns the push-button ignition switch illumination ON when Ignition switch is ON.

Push-button Ignition Switch Illumination OFF Operation

BCM turns the push-button ignition switch illumination OFF when the following condition is satisfied.
• Status does not change for 16 seconds
• Driver side door is UNLOCK

→

LOCK

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM

INTERIOR ROOM LAMP BATTERY SAVER SYSTEM : System Description

INFOID:0000000010335132

SYSTEM DIAGRAM

SYSTEM

INL-11

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

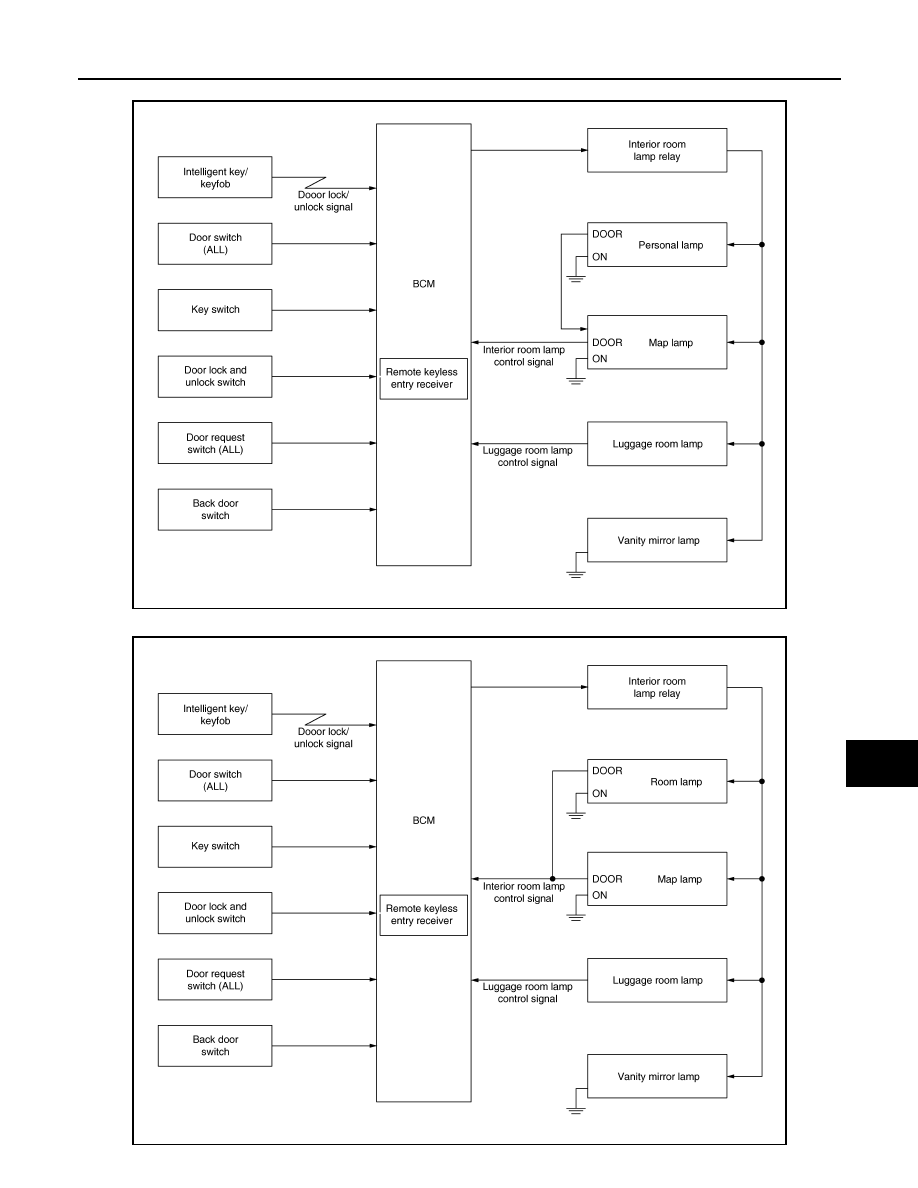

With Sunshade System

Without Sunshade System

JMLIA5148GB

JMLIA5149GB

INL-12

< SYSTEM DESCRIPTION >

SYSTEM

OUTLINE

• Interior room lamp battery saver is controlled by BCM.
• BCM turns applicable lamps OFF depending on the vehicle condition. This function prevent battery dis-

charge if the driver neglects, turning OFF any lamps.

Applicable lamps

- Map lamp
- Room lamp
- Personal lamp
- Luggage room lamp
- Vanity mirror lamp

INTERIOR ROOM LAMP BATTERY SAVER FUNCTION

• BCM turns interior room lamp relay ON and keeps the interior room lamp power supply continuously when

the ignition switch position is ON.

• When the ignition switch is turned OFF, BCM operates timer for 15 minutes and then turns interior room

lamp relay OFF to cut the interior room lamp power supply.
NOTE:
When the ignition switch is turned OFF and all door is locked, BCM operates timer for 10 seconds and then
turns interior room lamp relay OFF to cut the interior room lamp power supply.

• BCM restart the timer when any of the following signal changes while operating the timer.
- Ignition switch status
- Key switch signal
- Door switch signal
- Back door switch signal
- Door lock/unlock signal (remote keyless entry receiver, door lock and unlock switch, each door request

switch)

ILLUMINATION CONTROL SYSTEM

ILLUMINATION CONTROL SYSTEM : System Description

INFOID:0000000010430903

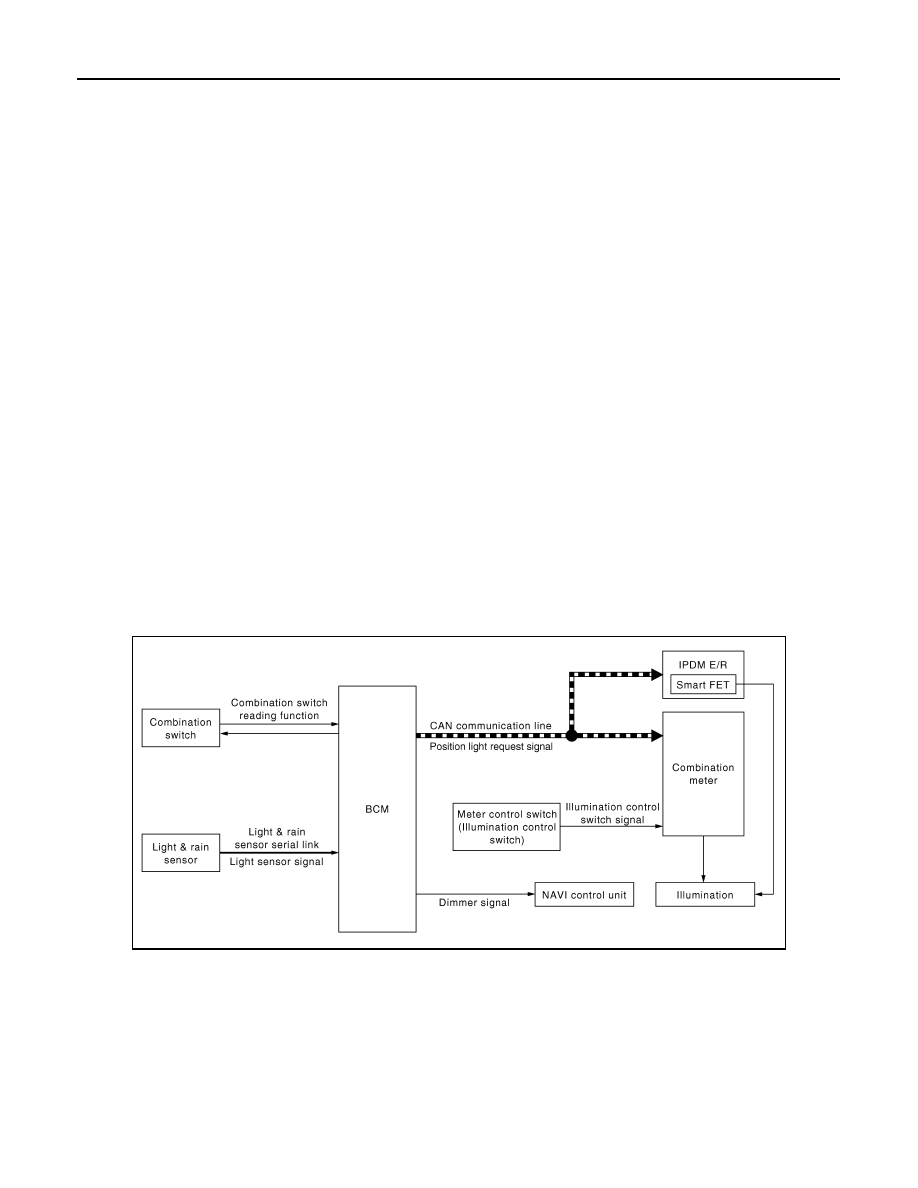

SYSTEM DIAGRAM

OUTLINE

Each illumination lamp is controlled by each function of BCM, IPDM E/R and combination meter.

Control by BCM

• Parking, license plate and tail lamp control function
• Combination switch reading function
• Auto light function

Control by IPDM E/R

• Relay control function

JMLIA5150GB

SYSTEM

INL-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

Control by combination meter

• Illumination control function

ILLUMINATION CONTROL

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits position light request signal to IPDM E/R and combination meter according to tail lamp ON

condition. Refer to

EXL-26, "PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : System Description"

(LED headlamp) or

EXL-195, "PARKING, LICENSE PLATE AND TAIL LAMP SYSTEM : System Descrip-

(halogen headlamp).

• IPDM E/R turns the integrated smart FET ON according to position light request signal. It provides the power

supply to illumination lamp.

• Combination meter enters in the nighttime mode according to position light request signal and provides the

power supply to illumination lamp.

SPICY ILLUMINATION CONTROL SYSTEM

SPICY ILLUMINATION CONTROL SYSTEM : System Description

INFOID:0000000010335134

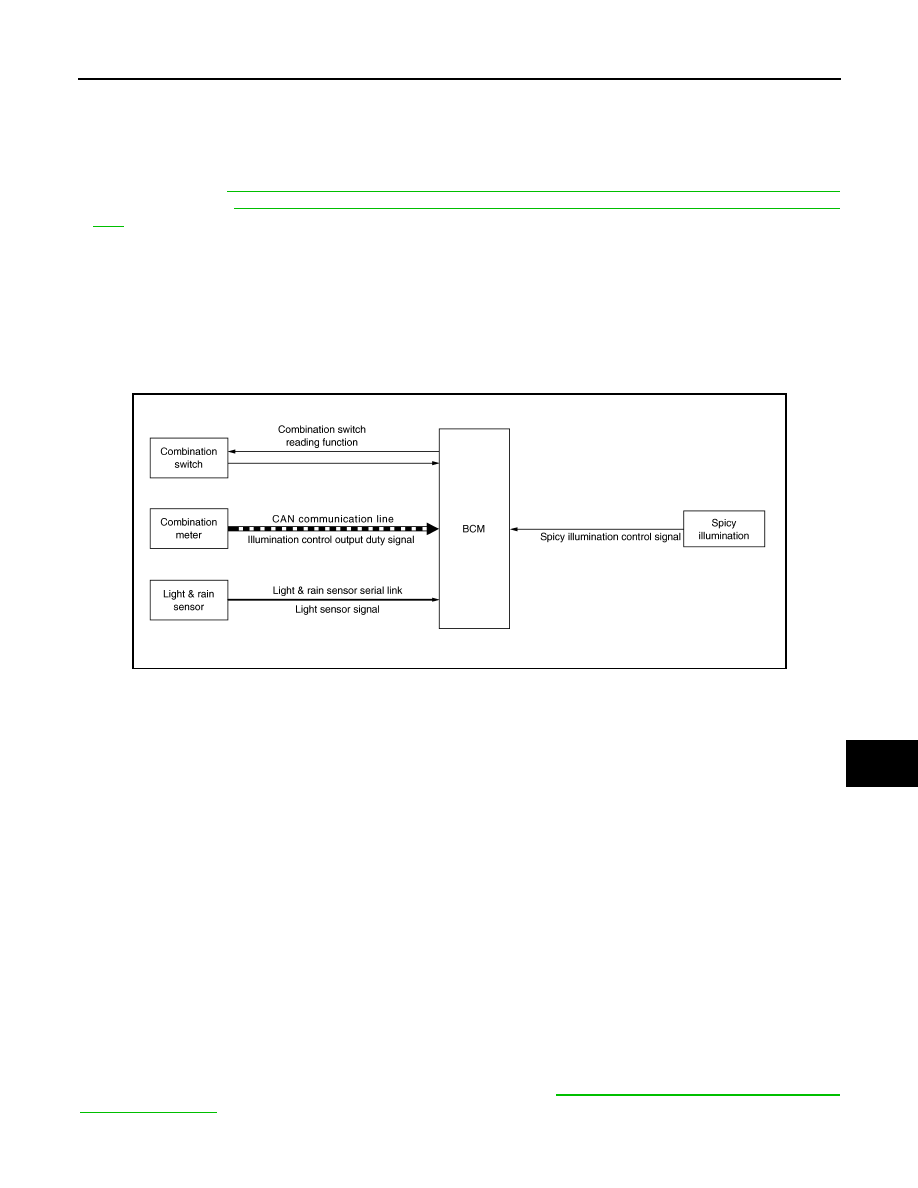

SYSTEM DIAGRAM

OUTLINE

Spicy illumination is controlled by each function or BCM and combination meter.

Control by BCM

• Combination switch reading function
• Auto light function

Control by combination meter

• Illumination control function

SPICY ILLUMINATION CONTROL

Spicy Illumination ON/OFF operation

Spicy illumination turns ON/OFF when interior room lamp is turned ON/OFF by interior room lamp timer con-
trol.

Spicy Illumination Output Duty

• BCM detects the combination switch condition by the combination switch reading function.
• BCM receives light sensor signal from light & rain sensor via light & rain sensor serial link.
• BCM judges daytime or nighttime according to the combination switch condition and light sensor signal.
• BCM decides the output duty of spicy illumination depends on the judgement of daytime or nighttime and

illumination control output duty signal from combination meter.

• Spicy illumination turns ON gradually and turns OFF gradually (Gradual brightening time and gradual dim-

ming time are changed with the output duty of spicy illumination).

NOTE:
Each function of spicy illumination can be set by CONSULT. Refer to

INL-15, "INT LAMP : CONSULT Function

(BCM - INT LAMP)"

.

JMLIA5151GB

INL-14

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010501099

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:
*: This item is displayed, but not used.

FREEZE FRAME DATA (FFD)

The BCM records the following vehicle condition at the time a particular DTC is detected, and displays on
CONSULT.

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Exterior lamp

HEAD LAMP

×

×

×

Interior room lamp control

INT LAMP

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

—

AIR CONDITONER*

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

NVIS - NATS

IMMU

×

Interior room lamp battery saver

BATTERY SAVER

×

Back door open

TRUNK

×

Vehicle security

THEFT ALM

×

×

RAP

RETAINED PWR

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

Signal buffer system

SIGNAL BUFFER

×

×

DIAGNOSIS SYSTEM (BCM)

INL-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

INT LAMP

INT LAMP : CONSULT Function (BCM - INT LAMP)

INFOID:0000000010335139

WORK SUPPORT

*

1

: Factory setting

*

2

: With spicy illumination

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

CONSULT screen item

Indication/Unit

Description

BATTERY VOLTAGE

V

Battery voltage of the moment a particular DTC is detected.

VEHICLE SPEED

km/h

Vehicle speed of the moment a particular DTC is detected.

EXTERNAL TEMP

°

C

External temperature of the moment a particular DTC is detected

VEHICLE COND

—

NOTE:
This item is displayed, but cannot be use this item.

DOOR LOCK STATUS

—

NOTE:
This item is displayed, but cannot be use this item.

POWER SUPPLY
COUNTER

min

Displays the cumulative time from the time that the battery terminal is connected.

Service item

Setting item

Setting

SET I/L D-UNLCK INTCON

On*

1

With interior room lamp timer function

Off

Without interior room lamp timer function

FOG LAMP OVERRIDE

On*

1

With front fog override function

Off

Without front fog override function

SPICY BRIGHTNESS SETTING*

2

MODE1

Turns spicy illumination function OFF

MODE2

Sets spicy illumination brightness.

MODE3

MODE4

MODE5*

1

MODE6

MODE7

MODE8

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

INL-16

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

ACTIVE TEST

BATTERY SAVER

BATTERY SAVER : CONSULT Function (BCM - BATTERY SAVER)

INFOID:0000000010335140

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

DOOR SW-BK
[On/Off]

Indicated [On/Off] condition of back door switch

CDL LOCK SW
[On/Off]

Indicated [On/Off] condition of lock signal from door lock and unlock switch

CDL UNLOCK SW
[On/Off]

Indicated [On/Off] condition of unlock signal from door lock and unlock switch

KEY CYL LK-SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

KEY CYL UN-SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

RKE-LOCK
[On/Off]

Indicates [On/Off] condition of LOCK signal from Intelligent Key

RKE-UNLOCK
[On/Off]

Indicates [On/Off] condition of UNLOCK signal from Intelligent Key

KEY SW
[On/Off]

NOTE:
This item is displayed, but cannot be monitored

Monitor item

[Unit]

Description

Test item

Operation

Description

INT LAMP

On

Outputs interior room lamp control signal.

Off

Stops interior room lamp control signal.

Monitor item

[Unit]

Description

REQ SW-DR
[On/Off]

Indicated [On/Off] condition of door request switch (driver side)

REQ SW-AS
[On/Off]

Indicated [On/Off] condition of door request switch (passenger side)

PUSH SW
[On/Off]

Indicates [On/Off] condition of push-button ignition switch

DOOR SW-DR
[On/Off]

Indicated [On/Off] condition of front door switch (driver side)

DOOR SW-AS
[On/Off]

Indicated [On/Off] condition of front door switch (passenger side)

DOOR SW-RR
[On/Off]

Indicated [On/Off] condition of rear door switch RH

DOOR SW-RL
[On/Off]

Indicated [On/Off] condition of rear door switch LH

Content .. 1 2 ..
