TIMING CHAIN

EM-417

< REMOVAL AND INSTALLATION >

[R9M]

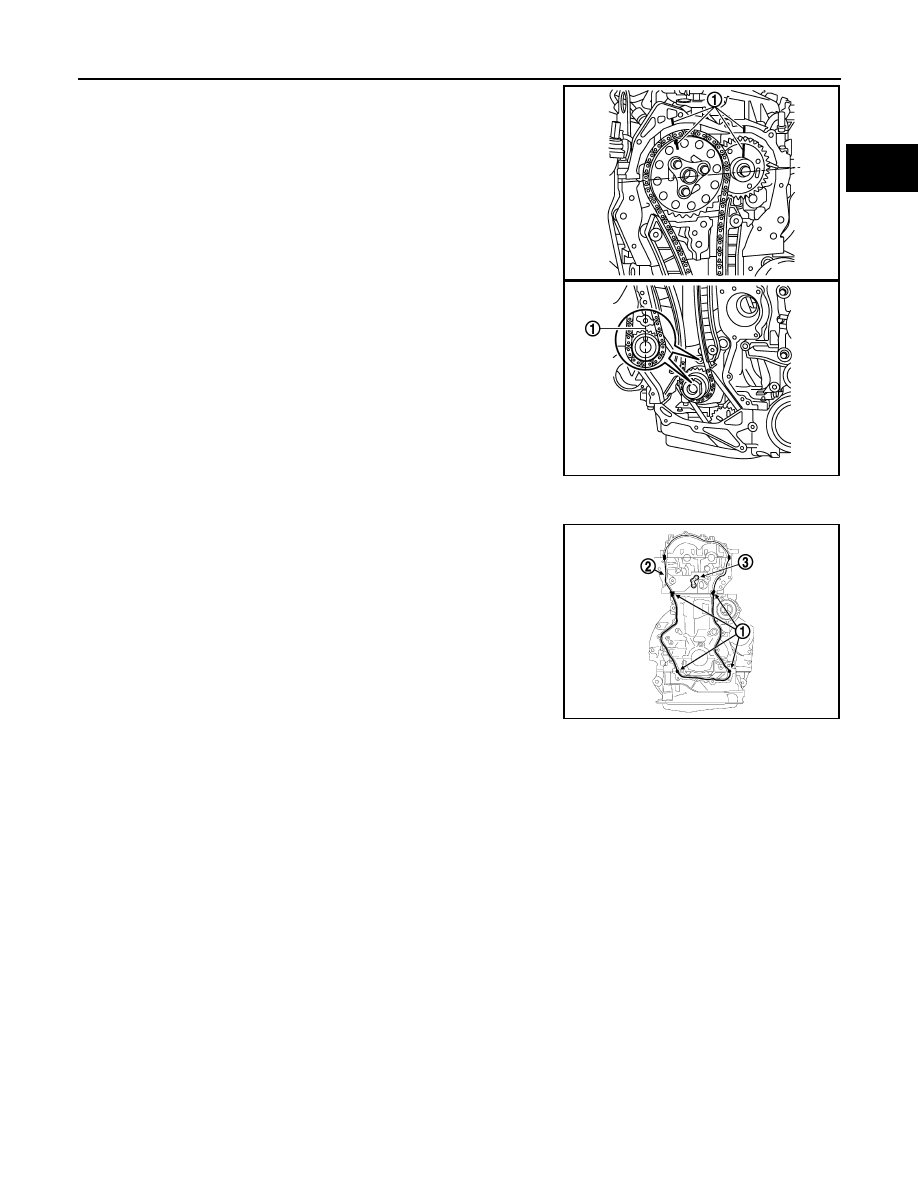

27. Check the marks (1) (if necessary, start the previous operation

again).

28. Install front cover with the following procedure:

Apply liquid gasket to the front cover side, referring to the appli-
cation point shown in the figure.

Use Genuine Liquid Gasket or equivalent.
NOTE:
Liquid gasket should be applied to the front cover side because the workspace is narrow.

E1BIA0595ZZ

E1BIA0596ZZ

1 lower side:

5.0 - 9.0 mm (0.098 - 0.177 in) in diameter

2 upper side:

4.0 - 8.0 mm (0.118 - 0.276 in) in diameter

3 center:

1.5 - 3.5 mm (0.394 - 0.591 in) long

E1BIA0597ZZ

EM-418

< REMOVAL AND INSTALLATION >

[R9M]

TIMING CHAIN

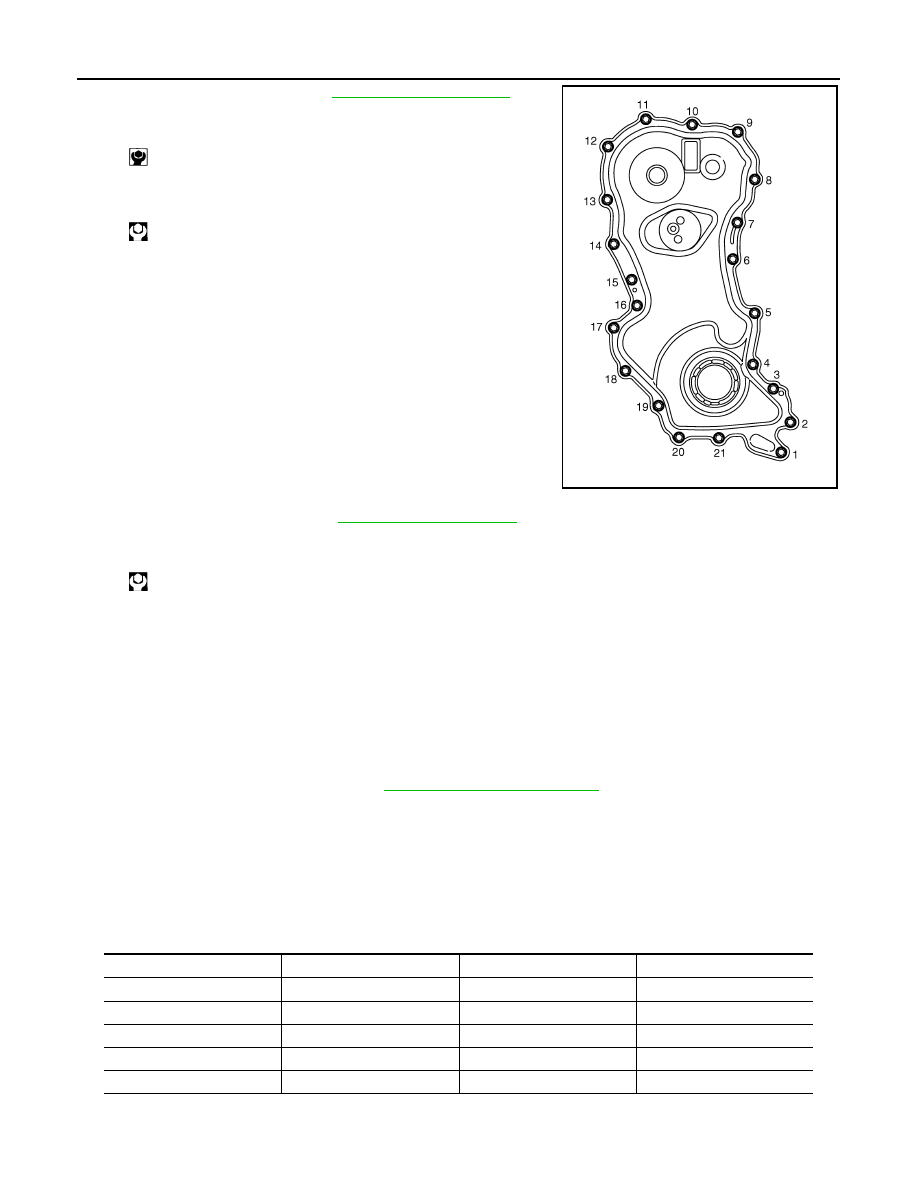

Install the timing cover. Refer to

EM-412, "Exploded View"

Pre-tighten the timing cover bolts.

ii.

Tighten the timing cover bolts.

29. Install crankshaft pulley. Refer to

EM-377, "Exploded View"

30. Tighten crankshaft pulley bolt

31. Turn 150 degrees clockwise (angle tightening).

32. Install in the reverse order of removal, for the rest of the parts.

Inspection

INFOID:0000000010282006

INSPECTION AFTER INSTALLATION

Inspection for Leaks

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-59, "Fluids and Lubricants"

• Use procedure below to check for fuel leakage.
- Start engine. With engine speed increased, check again for fuel leakage at connection points.
• Run engine to check for unusual noise and vibration.
• Warm up engine thoroughly to check there is no leakage of fuel, exhaust gases, or any oil/fluids including

engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 15 N·m (1.6 kg-m, 12 ft-lb)

E1BIA0652ZZ

Crankshaft pulley bolt : 50 N·m (5.1 kg-m, 37 ft-

lb)

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

Fuel

Leakage

Exhaust gases

—

Leakage

—

TIMING SPROCKET

EM-419

< REMOVAL AND INSTALLATION >

[R9M]

TIMING SPROCKET

Removal and installation

INFOID:0000000010282007

REMOVAL

Remove the timing chain. Refer to

EM-412, "Exploded View"

Immobilise the intake camshaft timing sprocket using the tool
[SST: -(Mot.1969)] (1)

Loosen the intake camshaft timing sprocket bolt (2).

Remove the tool [SST: -(Mot.1969)] .

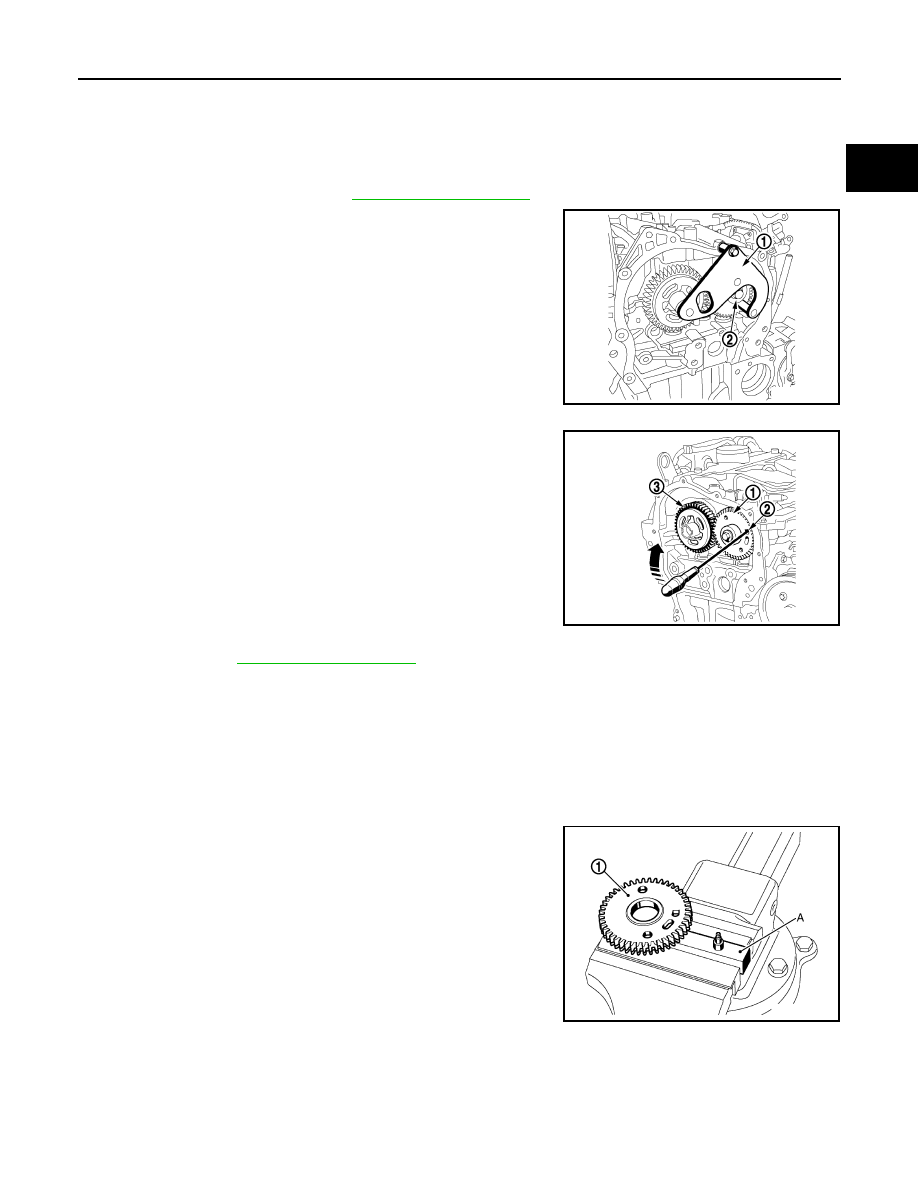

Place a screw driver in the hole (2), compress the spring of the
intake camshaft timing sprocket (1) and remove the exhaust
camshaft timing sprocket (rear) (3).

Remove. Refer to

EM-412, "Exploded View"

the screwdriver,

the intake camshaft timing sprocket bolt,

the intake camshaft timing sprocket spacer,

the intake camshaft timing sprocket.

INSTALLATION

Install the intake camshaft timing sprocket with the following procedure:

Set the intake camshaft timing sprocket (1) on base plate of
positioning tool [SST: — (Mot. 1773)] (A).

E1BIA0455ZZ

E1BIA0456ZZ

JPBIA0766ZZ

EM-420

< REMOVAL AND INSTALLATION >

[R9M]

TIMING SPROCKET

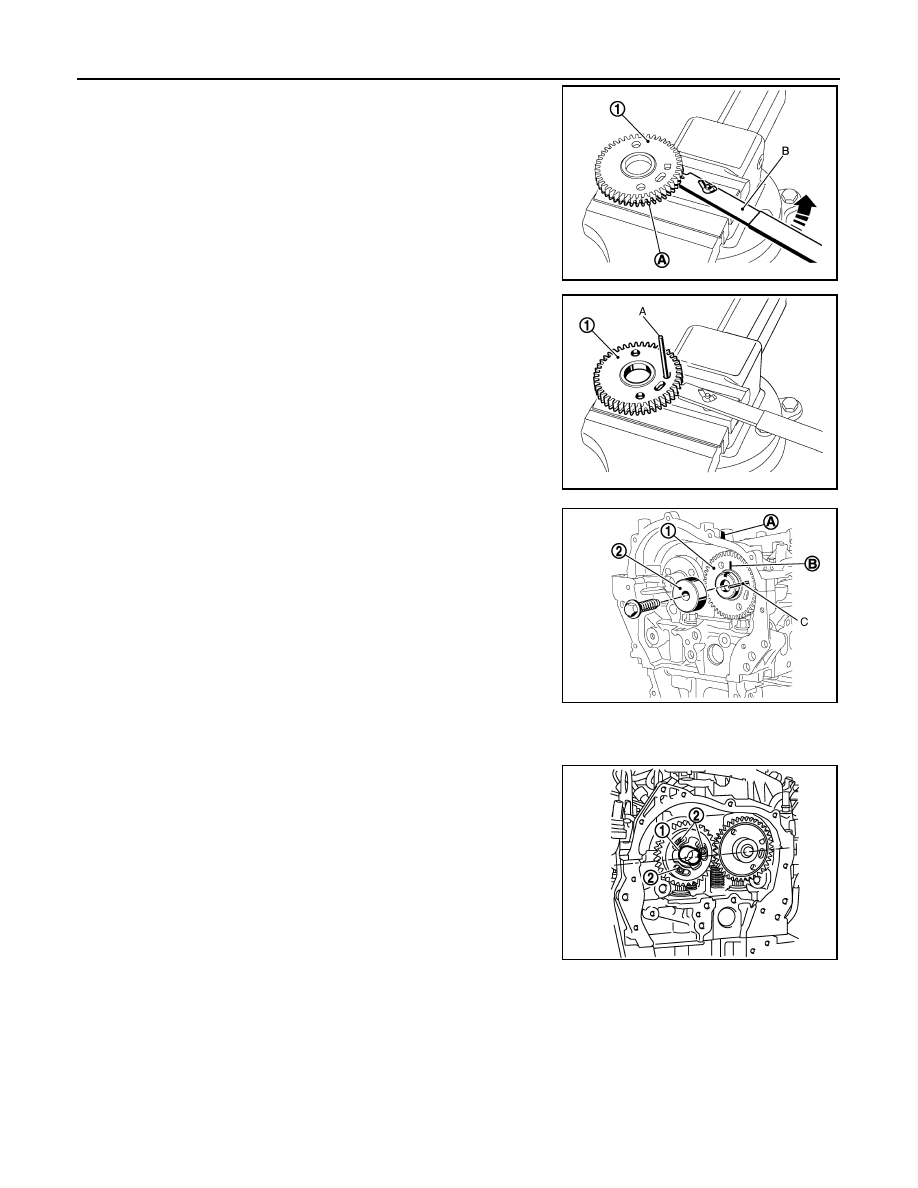

Set the lever (B) in the lower gear teeth (A). Pivot the lever
counterclockwise until the two gear teeth are aligned.

Set a stopper pin (A) in the gear hole.

NOTE:
• Use approximately 4.0 mm (0.157 in) dia. hard metal pin as a

stopper pin

Install intake camshaft timing sprocket (1) and intake camshaft
timing sprocket spacer (2) to the camshaft.

Align matching mark (B) on intake camshaft timing sprocket and
mark (A) of cylinder head housing.

Temporarily tighten mounting bolt.

Install exhaust camshaft timing sprocket (rear) with the following procedure:

Check that the exhaust camshaft groove (1) is horizontal (large ring facing upwards).

Center the exhaust camshaft timing sprocket (rear) openings on
the camshaft hub mounting holes (2).

Set the exhaust camshaft timing sprocket (rear) fully onto the
camshaft (right side) hub.

Remove stopper pin.

Re-install the tool [SST: -(Mot.1969)] to immobilise the intake camshaft timing sprocket.

Tighten the intake camshaft timing sprocket bolts

Turn 35 degrees clockwise (angle tightning).

Install in the reverse order of removal.

: Wear compensation gear

JPBIA0594ZZ

: Wear compensation gear

JPBIA0595ZZ

C : Stopper pin

JPBIA0616ZZ

E1BIA0462ZZ

Intake camshaft timing
sprocket bolt:

20 Nm (2.0 kg-m, 15 ft-lb)

CAMSHAFT

EM-421

< REMOVAL AND INSTALLATION >

[R9M]

CAMSHAFT

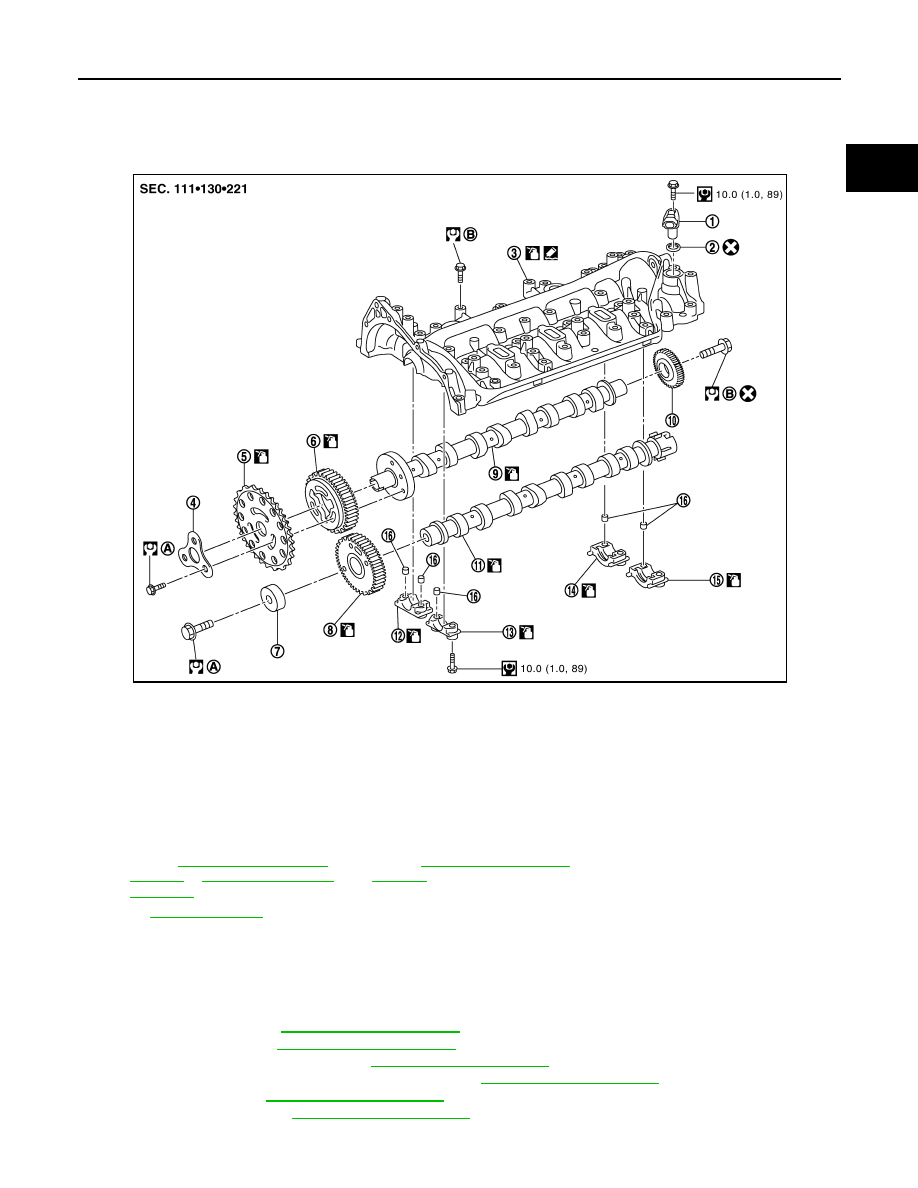

Exploded View

INFOID:0000000010282008

Removal and Installation

INFOID:0000000010282009

REMOVAL

Remove the following parts.
• Oil separator: Refer to

EM-402, "Exploded View"

• Fuel injector: Refer to

EM-404, "Exploded View"

• Engine slinger (front side): Refer to

EM-440, "Exploded View"

• Front cover and timing chain related parts: Refer to

EM-412, "Exploded View"

• Fuel pump: Refer to

EM-408, "Exploded View"

• Vacuum pump: Refer to

EM-400, "Exploded View"

Remove camshaft position sensor.

Camshaft position sensor

O-ring

Cylinder head housing

Timing sprocket spacer

Exhaust camshaft timing sprocket
(front)

Exhaust camshaft timing sprocket
(rear)

Intake camshaft timing sprocket
spacer

Intake camshaft timing sprocket

Exhaust camshaft

10. Camshaft sprocket (for fuel pump)

11.

Intake camshaft

12. Camshaft bracket

13. Camshaft bracket

14. Camshaft bracket

15. Camshaft bracket

16. Camshaft bracket pin

Refer to

EM-413, "Removal and In-

stallation"

EM-419, "Removal and

installation"

Refer to

EM-421, "Removal and In-

stallation"

Refer to

GI-4, "Components"

for symbols shown in the figure.

E1BIA0576GB

EM-422

< REMOVAL AND INSTALLATION >

[R9M]

CAMSHAFT

CAUTION:

• Handle camshaft position sensor carefully and avoid impacts.
• Never disassemble camshaft position sensor.
• Never place sensor where it is exposed to magnetism.

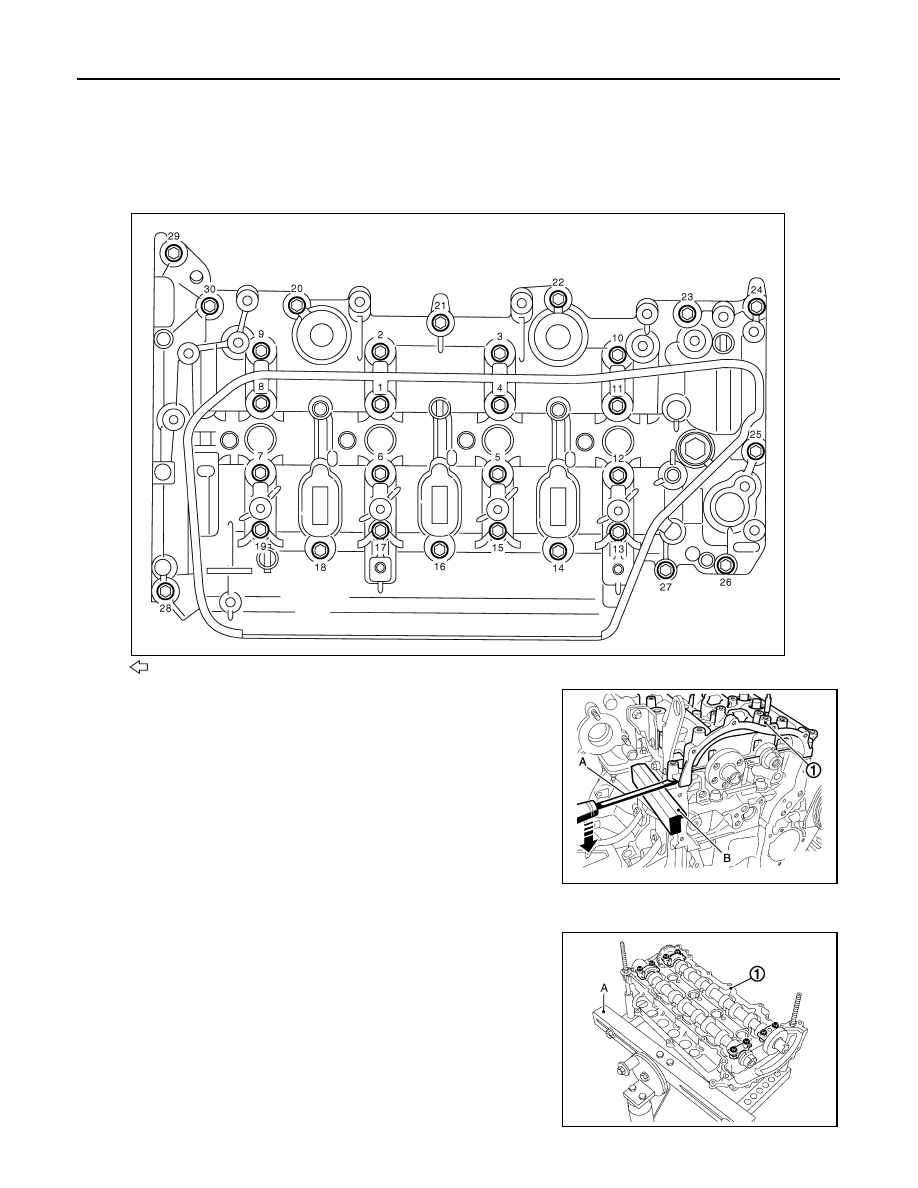

Remove cylinder head housing with the following procedure:

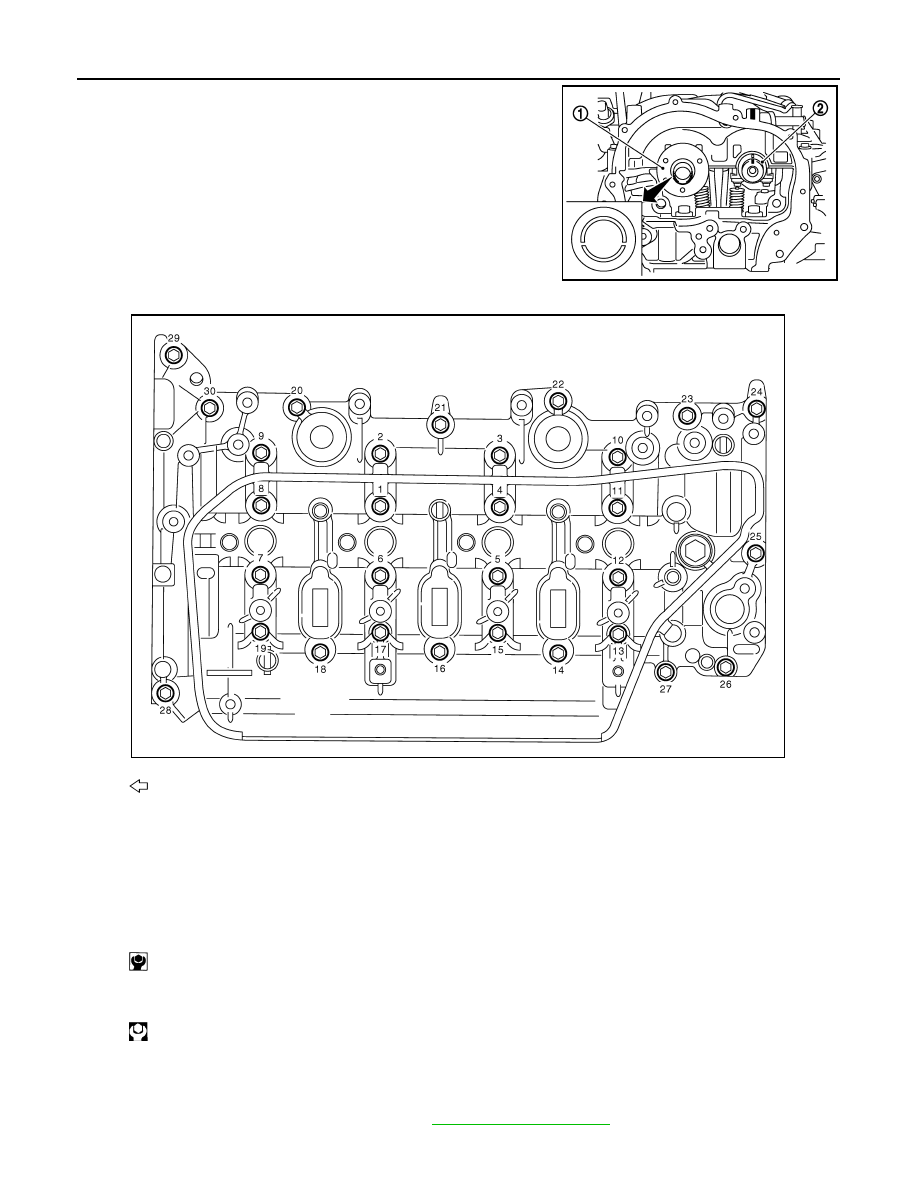

Loosen mounting bolts in reverse order as shown in the figure.

Remove the cylinder head housing (1) using a flat-blade screw-
driver (A).

CAUTION:

Be careful not to damage the mating surface.

Remove camshafts with the following procedure:

Install cylinder head housing (1) to cylinder head stand [com-
mercial service tool: KV113B0200 (Mot.1573)] (A).

Loosen mounting bolts, and remove camshaft brackets and
camshafts.
• Mark camshafts and camshaft brackets so they are placed in

the same position and direction for installation.

: Engine front

: Protective shim (suitable tool)

E1BIA0605ZZ

JPBIA0606ZZ

JPBIA0641ZZ

CAMSHAFT

EM-423

< REMOVAL AND INSTALLATION >

[R9M]

Remove camshaft sprocket (for fuel pump) from camshaft (right side), if necessary.

INSTALLATION

When camshaft sprocket (for fuel pump) is removed, install it.

Tighten mounting bolt.

Install camshaft to cylinder head housing with the following procedure:

Clean camshaft journal to remove any foreign material.

Install camshafts.

Refer to the figure to install camshaft bracket in its original.

Tighten camshaft bracket mounting bolts.
• Finger tighten the camshaft bracket mounting bolts, until they just make contact.

Install cylinder head housing with the following procedure:

Align the crankshaft groove (A) with the cylinder block hole (B).
NOTE:
This is for the purpose of preventing interferences of valve and
piston head.

Remove foreign material completely from cylinder head housing backside and cylinder head installation
face.

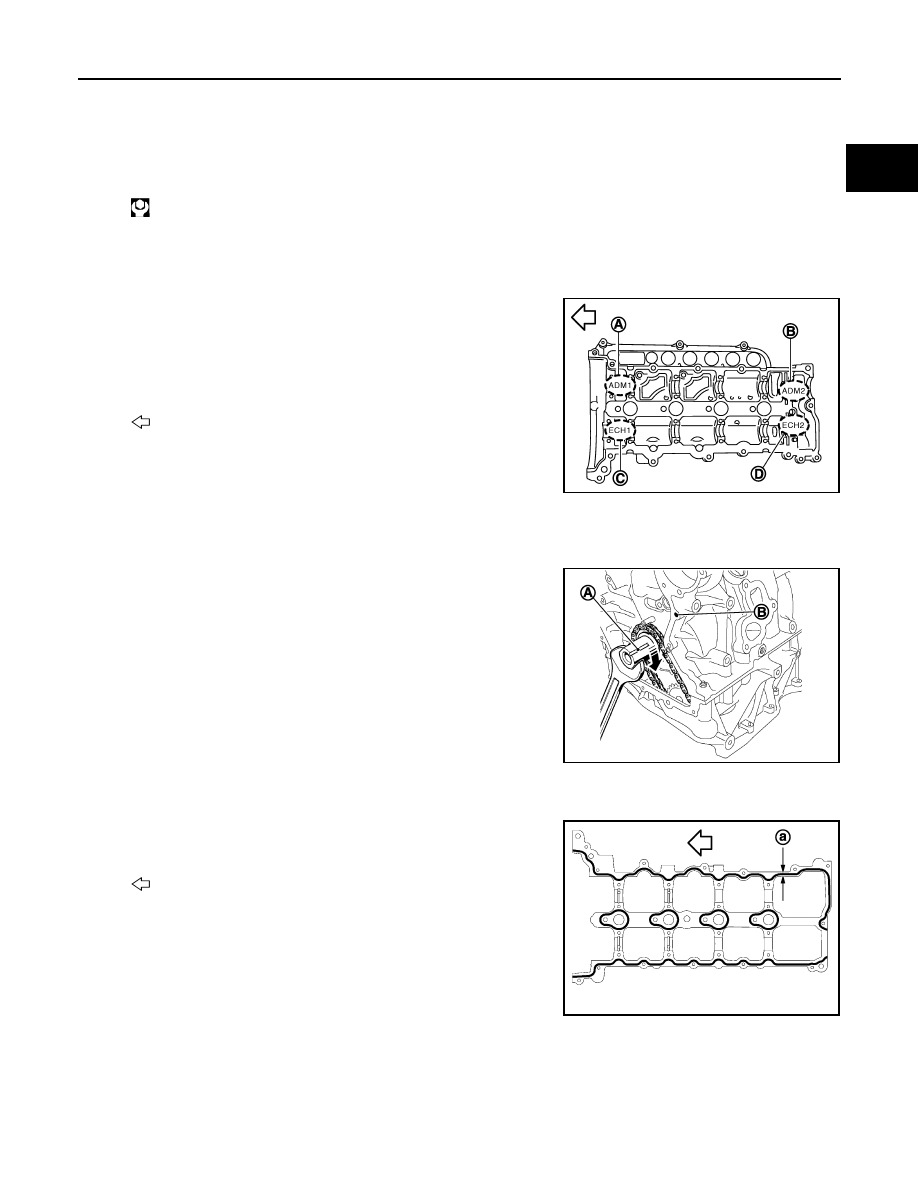

Apply liquid gasket to cylinder head as shown in the figure.

Use Genuine Liquid Gasket or equivalent.

: 30 N·m (3.1 kg-m, 22 ft-lb)

: Part marking ADM1

: Part marking ADM2

: Part marking ECH1

: Part marking ECH2

: Engine front

JPBIA0761ZZ

JPBIA0610ZZ

: 0.5 - 2.5 mm (0.020 - 0.098 in)

: Engine front

JPBIA0609ZZ

EM-424

< REMOVAL AND INSTALLATION >

[R9M]

CAMSHAFT

Install so that camshafts are positioned in the directions shown
in the figure.
• Parallelize the groove of camshaft (right side) (1) to face the

offset side upward.

• Fit the groove of camshaft (left side) (2) and boss of cylinder

head housing.

Tighten mounting bolts of cylinder head housing in the following steps.

Tighten in order and successively, the cylinder head housing bolts No. 6, 4, 8 and 12 to gradually fit the
cylinder head housing on the cylinder head.

ii.

Tighten the remaining bolts (temporarily).

iii.

Loosen bolts No. 6, 4, 8 and 12.

iv.

Tighten the bolts No. 6, 4, 8 and 12 (temporarily).

Tighten bolts in numerical order.

vi. Tighten bolts in numerical order.

CAUTION:

After tightening mounting bolts of cylinder head housing, be sure to wipe off excessive liquid gas-
ket from the mating surface of cylinder head.

Install timing chain and related parts. Refer to

EM-412, "Exploded View"

JPBIA0729ZZ

: Engine front

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 12.0 N·m (1.2 kg-m, 9 ft-lb)

E1BIA0605ZZ

CAMSHAFT

EM-425

< REMOVAL AND INSTALLATION >

[R9M]

Install in the reverse order of removal, for the rest of parts

Inspection

INFOID:0000000010282010

INSPECTION AFTER REMOVAL

Camshaft Journal oil clearance

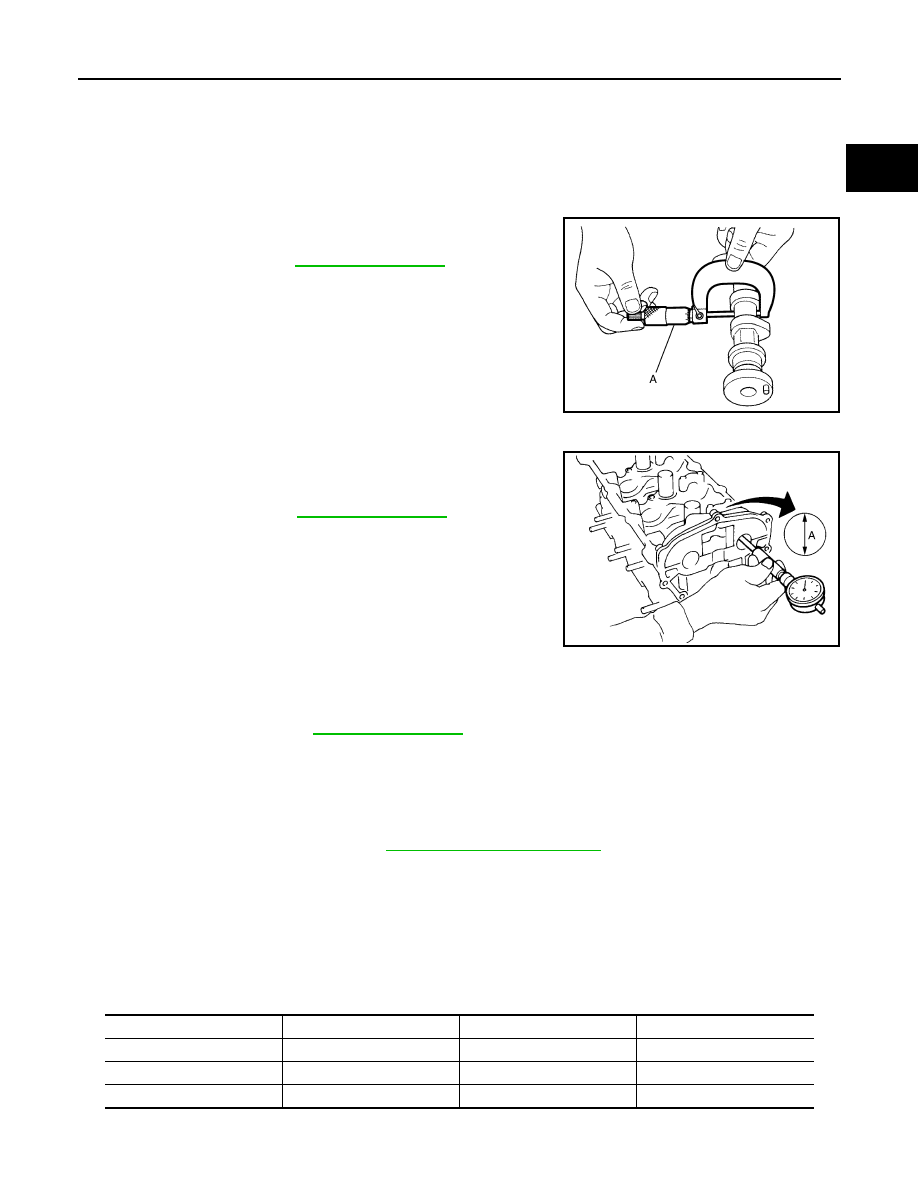

CAMSHAFT JOURNAL
• Measure the camshaft journal with a micrometer (A).

CYLINDER HEAD HOUSING AND CAMSHAFT BRACKET INNER DIAMETER
• Measure the inner diameter (A) of cylinder head housing and cam-

shaft bracket with a bore gauge.

CAMSHAFT JOURNAL OIL CLEARANCE
• (Oil clearance) = (Bracket inner diameter) – (Camshaft journal diameter)

• If it exceeds the standard, replace camshaft or/and cylinder head housing and cylinder head assembly.

INSPECTION AFTER INSTALLATION

Inspection for Leaks

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-59, "Fluids and Lubricants"

engine oil and engine coolant.

• Bleed air from lines and hoses of applicable lines, such as in cooling system.
• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the

specified level, if necessary.

Summary of the inspection items:

Standard

: Refer to

EM-473, "Camshaft"

JPBIA0122ZZ

Standard

: Refer to

EM-473, "Camshaft"

PBIC1645E

Standard

: Refer to

EM-473, "Camshaft"

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Other oils and fluid*

Level

Leakage

Level

EM-426

< REMOVAL AND INSTALLATION >

[R9M]

CAMSHAFT

* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc.

Fuel

Leakage

Exhaust gases

—

Leakage

—

OIL SEAL

EM-427

< REMOVAL AND INSTALLATION >

[R9M]

OIL SEAL

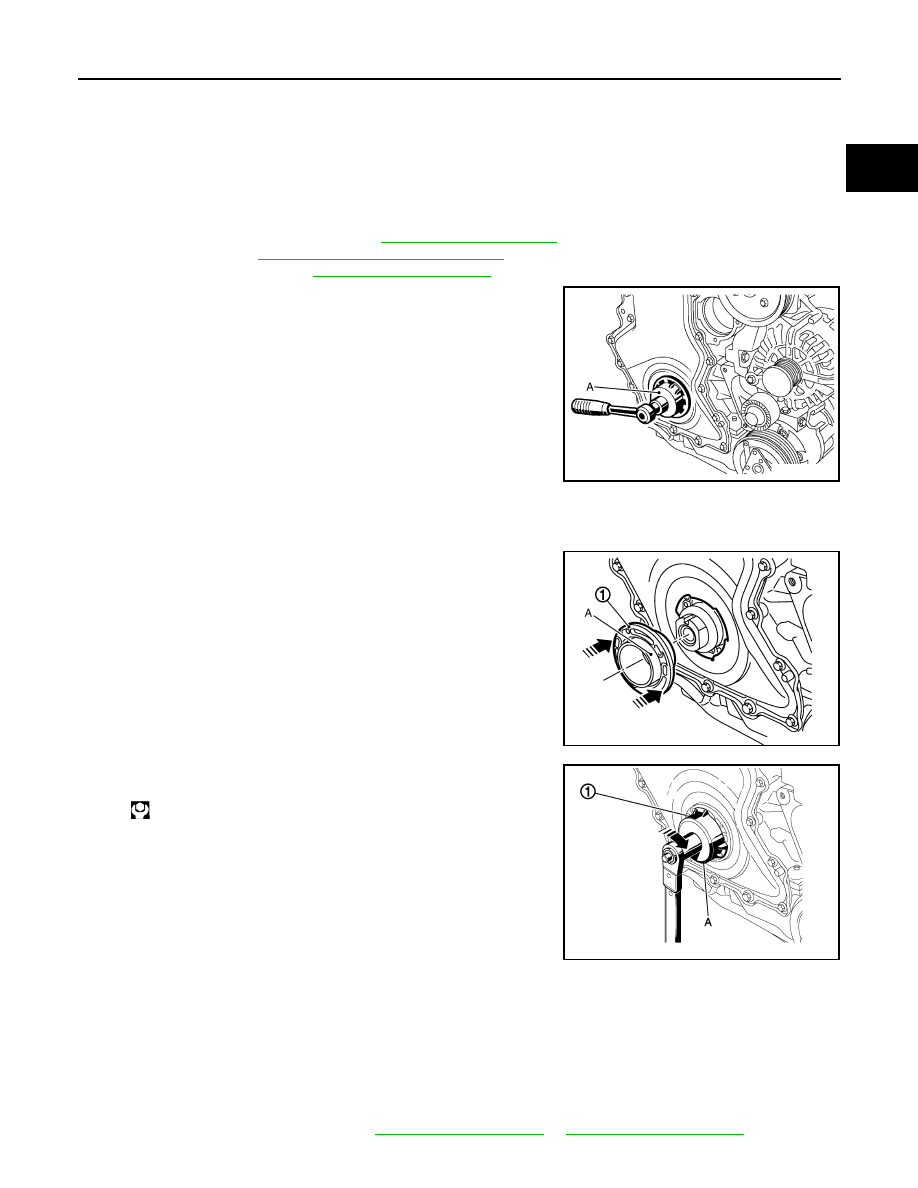

FRONT OIL SEAL

FRONT OIL SEAL : Removal and Installation

INFOID:0000000010282011

REMOVAL

Remove the following parts.
• Front fender protector (RH): Refer to

EXT-31, "Exploded View"

• Drive belt: Refer to

EM-373, "Removal and Installation"

• Crankshaft pulley: Refer to

EM-377, "Exploded View"

Remove front oil seal using service tool (A).
NOTE:
The service tool is supplied in the new seal parts kit.

INSTALLATION

Install front oil seal with the following procedure:

Fit the protector (A) to front oil seal (1).
• Align the front oil seal notches with front cover notches.

NOTE:
The protector is supplied in the new seal parts kit.

Tighten to front oil seal (1) using service tool (A).

NOTE:
The service tool is supplied in the new seal parts kit.

Remove the protector.

Install in the reverse order of removal, for the rest of parts.

REAR OIL SEAL

REAR OIL SEAL : Removal and Installation

INFOID:0000000010282012

REMOVAL

Remove transaxle assembly. Refer to

TM-88, "Exploded View"

TM-148, "Exploded View"

JPBIA0765ZZ

JPBIA0778ZZ

: 47 N·m (4.8 kg-m, 35 ft-lb)

JPBIA0591ZZ

EM-428

< REMOVAL AND INSTALLATION >

[R9M]

OIL SEAL

Remove clutch cover and clutch disk. Refer to

CL-26, "R9M : Removal and Installation"

Remove rear oil seal retainer.

INSTALLATION

Install rear oil seal retainer with the following procedure:

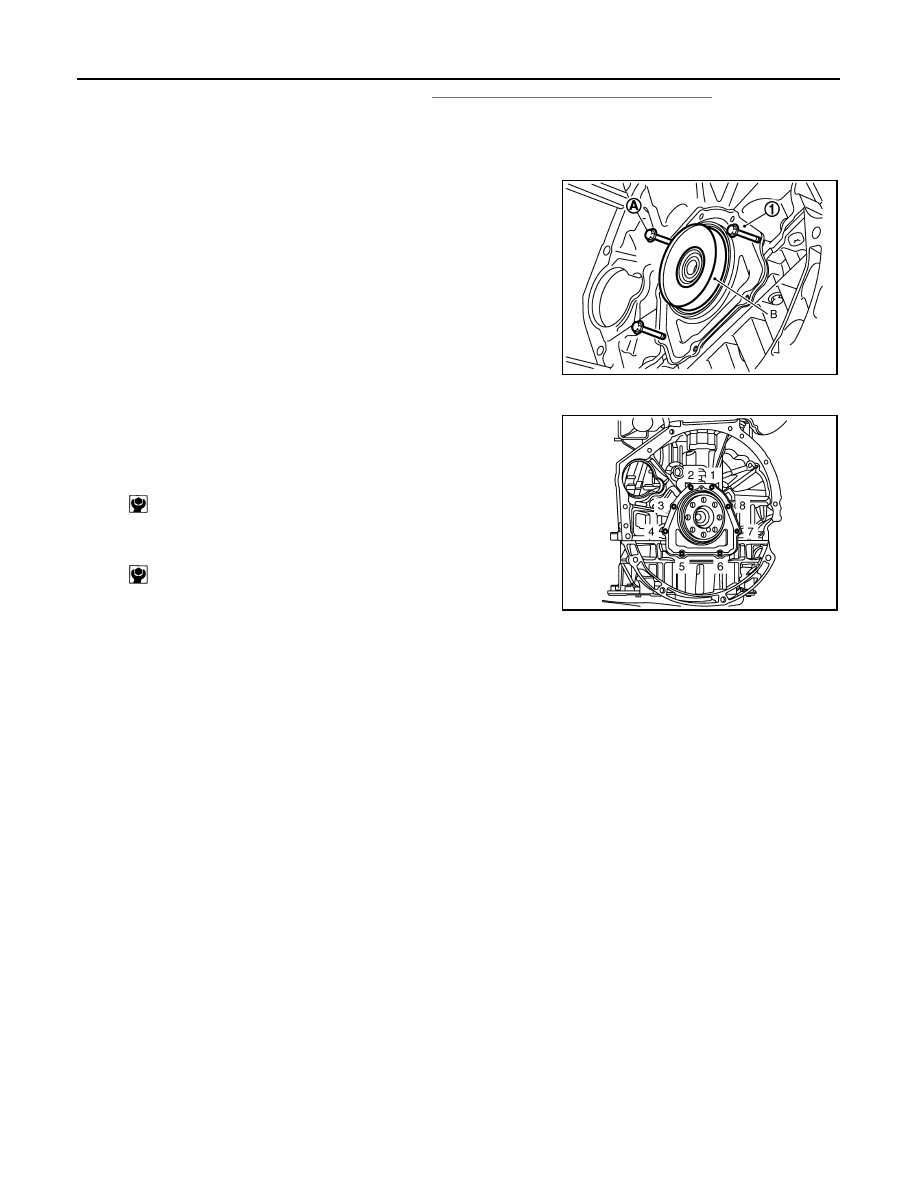

Set guide bolt (A) and protector (B) to rear oil seal retainer (1).
NOTE:
The protector is supplied in the new seal parts kit.

Move the rear oil seal retainer evenly by hand until it makes con-
tact with the cylinder block.

Remove guide bolts and protector.

Tighten mounting bolts in two steps separately in numerical
order as shown in the figure.

Tighten bolts No. 1and 5.

ii.

Tighten No. 1 to 8 in numerical order as shown.

Install in the reverse order of removal, for the rest of parts.

JPBIA0777ZZ

: 5.0 N·m (0.51 kg-m, 44 in-lb)

: 12.0 N·m (1,2 kg-m, 9 ft-lb)

JPBIA0645ZZ

ENGINE ASSEMBLY

EM-429

< UNIT REMOVAL AND INSTALLATION >

[R9M]

UNIT REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

Exploded View

INFOID:0000000010282013

2WD

4WD

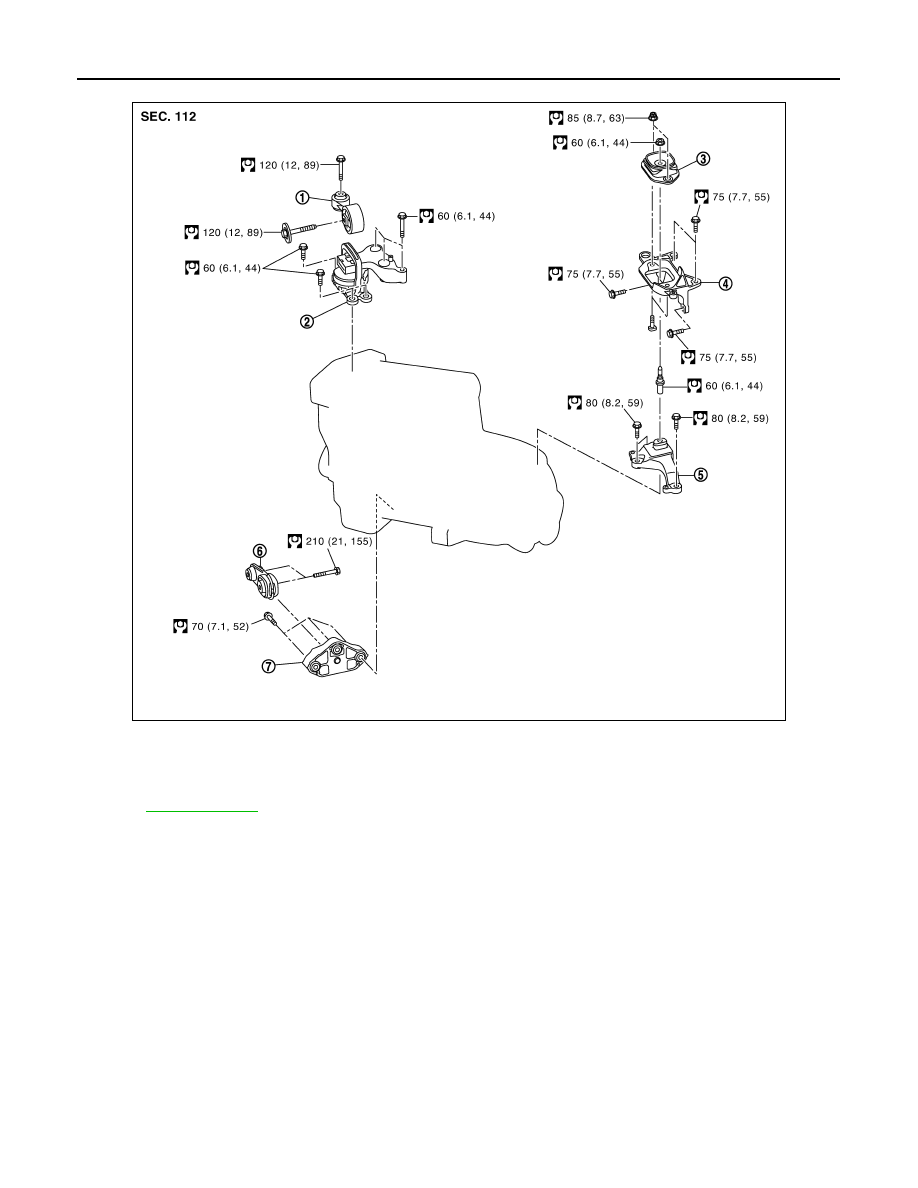

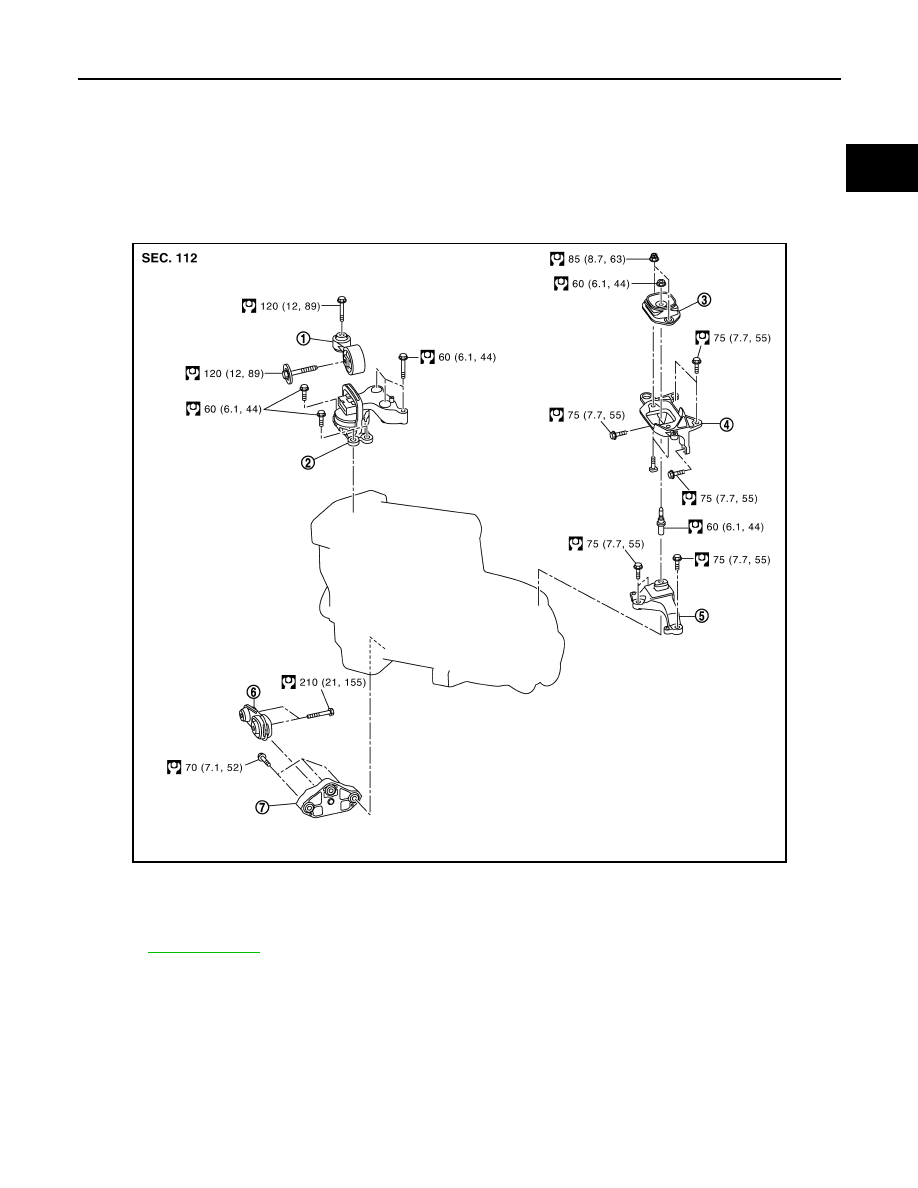

E1BIA1212GB

Upper torque rod

Engine mounting insulator (RH)

Engine mounting insulator (LH)

Engine mounting frame support (LH) 5.

Engine mounting bracket (LH)

Rear torque rod

Rear engine mounting bracket

Refer to

GI-4, "Components"

for symbols in the figure.

EM-430

< UNIT REMOVAL AND INSTALLATION >

[R9M]

ENGINE ASSEMBLY

CVT

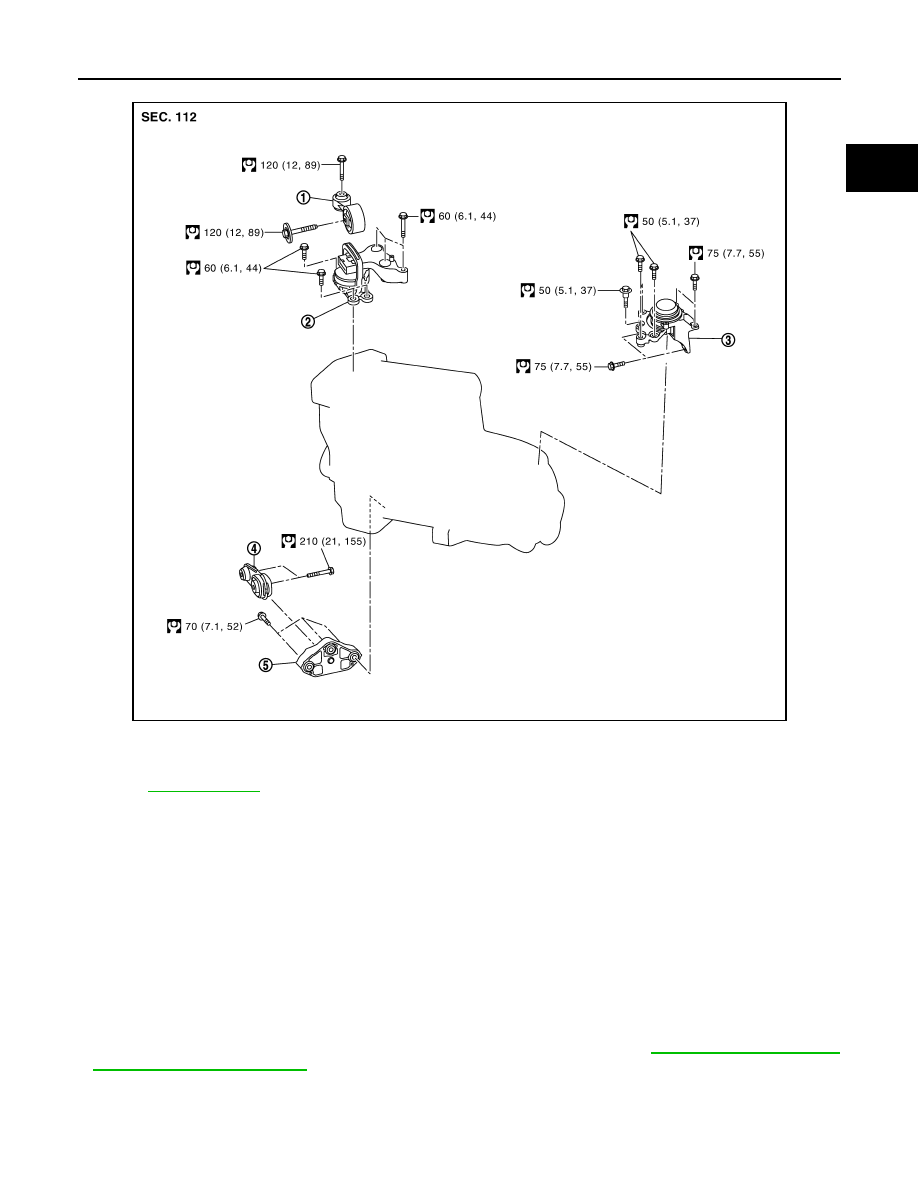

E1BIA1213GB

Upper torque rod

Engine mounting insulator (RH)

Engine mounting insulator (LH)

Engine mounting frame support (LH) 5.

Engine mounting bracket (LH)

Rear torque rod

Rear engine mounting bracket

Refer to

GI-4, "Components"

for symbols in the figure.

ENGINE ASSEMBLY

EM-431

< UNIT REMOVAL AND INSTALLATION >

[R9M]

Removal and Installation

INFOID:0000000010282014

WARNING:

• Situate the vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.

CAUTION:

• Always be careful to work safely, avoid forceful or uninstructed operations.
• Never start working until exhaust system and coolant are cool enough.
• If items or work required are not covered by the engine section, refer to the applicable sections.
• Always use the support point specified for lifting.
• Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for unavoid-

able reasons, support at the rear axle jacking point with a transmission jack or similar tool before
starting work, in preparation for the backward shift of center of gravity.

• For supporting points for lifting and jacking point at rear axle, refer to

GI-36, "Garage Jack and

Safety Stand and 2-Pole Lift"

NOTE:

E1BIA1214GB

Upper torque rod

Engine mounting insulator (RH)

Engine mounting insulator (LH)

Rear torque rod

Rear engine mounting bracket

Refer to

GI-4, "Components"

for symbols in the figure.

EM-432

< UNIT REMOVAL AND INSTALLATION >

[R9M]

ENGINE ASSEMBLY

When removing components such as hoses, tubes / lines, etc., cap or plug openings to prevent fluid from spill-
ing.

REMOVAL

Outline

Remove the engine and the transaxle assembly from the vehicle downward. Separate the engine and the tran-
saxle.

Preparation

Drain engine coolant from radiator. Refer to

CO-89, "Draining"

CAUTION:

• Perform this step when the engine is cold.
• Never spill engine coolant on drive belt.

Remove the following parts.
• Engine undercover
• Engine cover
• Front fender protector (RH and LH): Refer to

EXT-31, "Exploded View"

• Road wheels tire (RH and LH): Refer to

WT-60, "Removal and Installation"

WT-73, "Removal and

Installation"

• Battery and battery tray: Refer to

PG-155, "Removal and Installation"

• Air inlet tubes and air inlet hoses: Refer to

EM-382, "Exploded View"

• Air duct (inlet) and air duct/air cleaner case assembly: Refer to

EM-380, "Exploded View"

• Radiator hose (upper and lower) and cooling fan assembly: Refer to

CO-95, "Exploded View"

• Exhaust front tube: Refer to

EX-22, "Exploded View"

Engine Room LH

Remove ECM and bracket.

Remove harness bracket from engine mounting insulator (LH).

Disconnect all connections of engine harness around the engine mounting insulator (LH), and then tem-
porarily secure the engine harness into the engine side.

CAUTION:

Protect connectors using a resin bag against foreign materials during the operation.

Disconnect fuel hoses from fuel pump. Refer to

EM-404, "Exploded View"

and

EM-408, "Exploded View"

Disconnect heater hoses, and install plugs them to prevent engine coolant from draining.

Disconnect shift cable/select cable from transaxle. Refer to

TM-83, "Removal and Installation"

TM-143,

"Removal and Installation"

Remove ground cable from transaxle side.

Disconnect vacuum hose from brake booster.

Engine Room RH

Remove ground cable.

Disconnect reservoir tank hose (lower).

Remove alternator. Refer to

CHG-31, "R9M : Removal and Installation"

Remove A/C compressor with piping connected from the engine. Temporarily secure it on the vehicle side
with a rope to avoid putting load on it. Refer to

HA-121, "Removal and Installation"

Vehicle Underbody

Remove front wheel sensor (LH and RH) for ABS from steering knuckle. Refer to

BRC-138, "FRONT

WHEEL SENSOR : Removal and Installation"

Remove brake caliper assembly with piping connected from steering knuckle. Temporarily secure it on the
vehicle side with a rope to avoid load on it. Refer to

BR-35, "BRAKE PAD : Exploded View"

Remove two mounting bolts which fix steering knuckle and strut. Refer to

FSU-20, "Exploded View"

Remove rear torque rod.

Remove propeller shaft (4WD models). Refer to

DLN-186, "Removal and Installation"

Remove drive shaft (LH and RH). Refer to

FAX-22, "Removal and Installation (LH)"

and

FAX-26,

"Removal and Installation (RH)"

(2WD models) or

FAX-60, "Removal and Installation (LH)"

and

FAX-63,

"Removal and Installation (RH)"

(4WD models).

Content .. 25 26 27 28 ..
