ENGINE CONTROL SYSTEM SYMPTOMS

ECH-305

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

(continued on next table)

SYSTEM — ENGINE MECHANICAL & OTHER

Clutch interlock switch circuit

x

ECH-254
ECH-263

Refrigerant pressure sensor circuit

x

x

x

x

ECH-225

Reverse / neutral position switch cir-
cuit

x

x

x

x

x

ECH-261

Vehicle speed signal circuit

x

x

x

x

ECH-132

Cooling  fan  control  circuit

x

x

x

x

x

x

x

x

x

x

—

Starter relay circuit

x

—

Starter control relay circuit

x

—

Electrical load signal circuit

x

x

x

x

—

Air  conditioner  circuit

x

x

x

x

x

x

x

x

x

x

x

HAC-68

HAC-182

ABS actuator and electric unit (con-
trol unit)

x

x

BRC-60

SYMPTOM

Reference page

HARD/NO S

T

A

R

T/RES

T

A

R

T (E

XCP

. HA)

E

N

GINE

 ST

ALL

HES

IT

A

TION/SURGING/FLA

T

 SPOT

S

P

ARK KNOC

K

/DET

O

NA

TI

ON

LACK OF

POWER/POOR ACCELERA

TION

HIG

H

 IDL

E

/L

OW

 ID

LE

ROUGH IDLE/HUNTING

ID

LING VI

BRA

T

ION

S

L

OW/NO RETU

RN

T

O

 ID

LE

OVERHEA

T

S

/W

A

TER TEMPERA

T

URE HIG

H

E

X

CESSIVE

 FUEL CON

S

UMP

T

ION

E

X

CESSIVE

 OIL

C

O

NSUMP

T

ION

B

A

TTER

Y

DEAD (UNDER CHARGE)

Warranty symptom code

AA

AB

AC

AD

AE

AF

AG

AH

AJ

AK

AL

AM

HA

ECH-306

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

ENGINE CONTROL SYSTEM SYMPTOMS

SYMPTOM

Reference page

HARD/NO S

T

A

R

T/RES

T

A

R

T (E

XCP

. HA)

E

N

GINE

 ST

ALL

HES

IT

A

TION/SURGING/FLA

T

 SPOT

S

P

ARK KNOC

K

/DET

O

NA

TI

ON

LACK OF

POWER/POOR ACCELERA

TION

HIG

H

 IDL

E

/L

OW

 ID

LE

ROUGH IDLE/HUNTING

ID

LING VI

BRA

T

ION

S

L

OW/NO RETU

RN

T

O

 ID

LE

OVERHEA

T

S

/W

A

TER TEMPERA

T

URE HIG

H

E

X

CESSIVE

 FUEL CON

S

UMP

T

ION

E

X

CESSIVE

 OIL

C

O

NSUMP

T

ION

B

A

TTER

Y

DEAD (UNDER CHARGE)

Warranty symptom code

AA

AB

AC

AD

AE

AF

AG

AH

AJ

AK

AL

AM

HA

Fuel

Fuel tank

x

x

FL-12

Fuel piping

x

x

x

x

x

x

FL-5

Vapor lock

—

Valve deposit

x

x

x

x

x

x

x

—

Poor fuel (Heavy weight
gasoline, Low octane)

x

x

x

—

Air

Air duct

x

x

x

x

x

x

EM-24

Air cleaner

Air leakage from air duct

x

x

x

x

Electric throttle control ac-
tuator

x

x

x

x

x

EM-25

Air leakage from intake
manifold/Collector/Gas-
ket

EM-25

Crank-
ing

Battery

x

x

x

x

x

x

x

x

PG-138
PG-143

Generator circuit

x

x

CHG-15
CHG-46

Starter circuit

x

STR-18

Signal plate

x

x

x

x

—

Reverse / neutral position
signal

x

TM-15

Engine

Cylinder head

x

x

x

x

x

x

x

x

EM-74

Cylinder head gasket

x

x

EM-69

Cylinder block

x

x

x

x

x

x

x

x

x

EM-102

Piston

Piston ring

x

Connecting rod

Bearing

x

Crankshaft

ENGINE CONTROL SYSTEM SYMPTOMS

ECH-307

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

Valve
mecha-
nism

Timing  chain

x

x

x

x

x

x

x

x

EM-67

Camshaft

x

x

EM-81
EM-84

Intake valve timing control

x

x

x

x

EM-67

Exhaust valve timing con-
trol

x

x

x

x

Intake valve

x

EM-74

Exhaust valve

x

Ex-
haust

Exhaust manifold/Tube/
Muffler/Gasket

x

x

x

x

x

x

x

x

EM-37

EX-5

Three way catalyst

x

EM-31

Lubri-
cation

Oil pan/Oil strainer/Oil
pump/Oil filter/Oil gallery/
Oil cooler

x

x

x

x

x

x

x

x

EM-48
EM-92

LU-12
LU-10

LU-3

LU-14

Oil level (Low) /Filthy oil

x

x

LU-8

Cooling

Radiator/Hose/Radiator
filler cap

x

x

x

x

x

x

x

x

x

CO-16
CO-15

Thermostat

x

CO-26

Water pump

x

x

CO-23

Water gallery

x

CO-8

Cooling fan

x

x

CO-21

Coolant level (Low) /Con-
taminated coolant

x

CO-11

NATS (Nissan Anti-theft System)

x

x

SEC-77

SEC-231

SYMPTOM

Reference page

HARD/NO S

T

A

R

T/RES

T

A

R

T (E

XCP

. HA)

E

N

GINE

 ST

ALL

HES

IT

A

TION/SURGING/FLA

T

 SPOT

S

P

ARK KNOC

K

/DET

O

NA

TI

ON

LACK OF

POWER/POOR ACCELERA

TION

HIG

H

 IDL

E

/L

OW

 ID

LE

ROUGH IDLE/HUNTING

ID

LING VI

BRA

T

ION

S

L

OW/NO RETU

RN

T

O

 ID

LE

OVERHEA

T

S

/W

A

TER TEMPERA

T

URE HIG

H

E

X

CESSIVE

 FUEL CON

S

UMP

T

ION

E

X

CESSIVE

 OIL

C

O

NSUMP

T

ION

B

A

TTER

Y

DEAD (UNDER CHARGE)

Warranty symptom code

AA

AB

AC

AD

AE

AF

AG

AH

AJ

AK

AL

AM

HA

ECH-308

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

STOP/START SYSTEM

STOP/START SYSTEM

Diagnosis Procedure

INFOID:0000000010713097

1.

CHECK STOP/START SYSTEM FUNCTION-1

Activate stop/start system. Refer to

ECH-33, "STOP/START SYSTEM : System Description"

.

Is the stop/start system activated?

YES

>> GO TO 2.

NO

>> Proceed to

ECH-309, "Diagnosis Procedure"

.

2.

CHECK STOP/START INDICATOR LAMP

Check the stop/start indicator lamp during stop/start system operation.
Is stop/start indicator lamp turned ON?

YES

>> GO TO 3.

NO

>> Check the combination meter. Refer to

MWI-54, "Work flow"

.

3.

CHECK STOP/START SYSTEM FUNCTION-2

Check the engine status during stop/start system operation.

Is the engine stalled during stop/start system operation?

YES

>> Perform “All DTC Reading” with CONSULT and perform trouble diagnosis for DTC indicated.

NO

>> GO TO 4.

4.

CHECK STOP/START SYSTEM FUNCTION-3

Check the engine restart operation during stop/start system operation. Refer to

ECH-33, "STOP/START SYS-

TEM : System Description"

.

Is the engine restarted?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

CHECK STARTER MOTOR OPERATION

Check the starter motor operation (cranking) when engine restart during stop/start system operation.

Is the starter motor operated (cranking)?

YES

>> Refer to “HARD/NO START/RESTART” in

ECH-303, "Symptom Table"

.

NO

>> Perform the trouble diagnosis for starting system. Refer to

STR-18, "Work Flow"

.

STOP/START SYSTEM NOT ACTIVATED

ECH-309

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

STOP/START SYSTEM NOT ACTIVATED

Diagnosis Procedure

INFOID:0000000010713098

NOTE:
To use the stop/start system, the vehicle needs to recognize the status of battery. For this reason, the stop/
start system may not be activated immediately after battery change.

1.

CHECK DTC

With CONSULT

Perform “All DTC Reading” with CONSULT.
Is any DTC detected?

YES

>>  Perform trouble diagnosis for the detected DTC.

NO

>> GO TO 2.

2.

CHECK STOP/START INDICATOR LAMP

Check stop/start indicator lamp.

Is stop/start indicator lamp blinks slowly?

YES

>> Perform “All DTC Reading” with CONSULT and perform trouble diagnosis for detected DTC.

NO

>> GO TO 3.

3.

PERFORM ACTIVE TEST

With CONSULT

1.

Start the engine and warm it up to normal operating temperature.

2.

Press start/stop OFF switch and check that the switch indicator is ON.

3.

Select “AUTO STOP START” in “ACTIVE TEST” mode of “ENGINE” using CONSULT.

4.

Touch “START” and operate stop/start system. (engine stop.)

5.

Touch “CANCEL” and restart the engine.

Is stop/ start system activated normal?

YES

>> GO TO 8.

NO

>> GO TO 4.

4.

CHECK STARTER MOTOR OPERATION COUNTER

With CONSULT

1.

Select “STRT OPRTN CNTR” in “DATA MONITOR” mode of “ENGINE” using CONSULT.

2.

Check that the “STRT OPRTN CNTR” indication.

Is the indication less than 250,000?

YES

>> GO TO 5.

NO

>> Replace starter motor. Refer to

STR-24, "HRA2DDT : Removal and Installation"

.

5.

CHECK IPDM E/R STATUS

With CONSULT

1.

On CONSULT screen, select “IPDM E/R” >> “DATA MONITOR” >> “STOP/START STATUS”.

2.

Check that “STOP/START STATUS” indicates “PERMIT”.

Is “PERMIT” indicated?

YES

>> GO TO 9.

NO

>> GO TO 6.

6.

CHECK CUMULATIVE BATTERY DISCHARGE CURRENT

WITH CONSULT

1.

Select “DATA MONITOR” mode of “ENGINE” using CONSULT.

2.

Check that the “CML B/DCHG CRNT” indication.

Monitor item

Indication

STRT OPRTN CNTR

Less than 250,000

ECH-310

< SYMPTOM DIAGNOSIS >

[HRA2DDT]

STOP/START SYSTEM NOT ACTIVATED

Is the indication less than 65,000?

YES

>> GO TO 7.

NO

>> Replace battery designed for the stop/start system. Refer to

PG-155, "Removal and Installation"

.

7.

CHARGE BATTERY

Charge battery. Refer to

PG-136, "FOR MAINTENANCE REQUIRED BATTERY MODELS : How to Handle

Battery"

 (for maintenance required battery models) or

PG-142, "FOR MAINTENANCE FREE BATTERY MOD-

ELS : How to Handle Battery"

 (for maintenance free battery models).

>> GO TO 8.

8.

CHECK BATTERY STATUS

WITH CONSULT

1.

Start the engine and warm up the engine coolant temperature to 45

°

C (113

°

F) or more.

2.

Check the temperature of battery fluid is 0

°

C (32

°

F) or more.

3.

Select “BATTERY STATUS” in “DATA MONITOR” mode of “IPDM E/R” using CONSULT.

4.

Check the “BATTERY STATUS” indication.

Is “OK” displayed on CONSULT screen?

YES

>> GO TO 9.

NO

>> Check battery. Refer to

PG-136, "FOR MAINTENANCE REQUIRED BATTERY MODELS : How

to Handle Battery"

 (maintenance required battery) or

PG-142, "FOR MAINTENANCE FREE BAT-

TERY MODELS : How to Handle Battery"

 (maintenance free battery).

9.

CHECK STOP/START OFF SWITCH

Check the stop/start OFF switch. Refer to

ECH-300, "Component Function Check"

.

Is the inspection normal?

YES

>> GO TO 10.

NO

>> Repair or replace error-detected parts.

10.

CHECK HOOD SWITCH

Check the hood switch. Refer to

ECH-298, "Component Function Check"

.

Is the inspection normal?

YES

>> GO TO 11.

NO

>> Repair or replace error-detected parts.

11.

CHECK STOP/START SYSTEM OPERATION CONDITION

Check the stop/start system operation condition. Refer to

ECH-33, "STOP/START SYSTEM : System Descrip-

tion"

.

>> INSPECTION END

Monitor item

Indication

BAT DISCHAGE COUNT

Less than 65,000

EVAPORATIVE EMISSION SYSTEM

ECH-311

< PERIODIC MAINTENANCE >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

PERIODIC MAINTENANCE

EVAPORATIVE EMISSION SYSTEM

Inspection

INFOID:0000000010379191

1.

Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.

2.

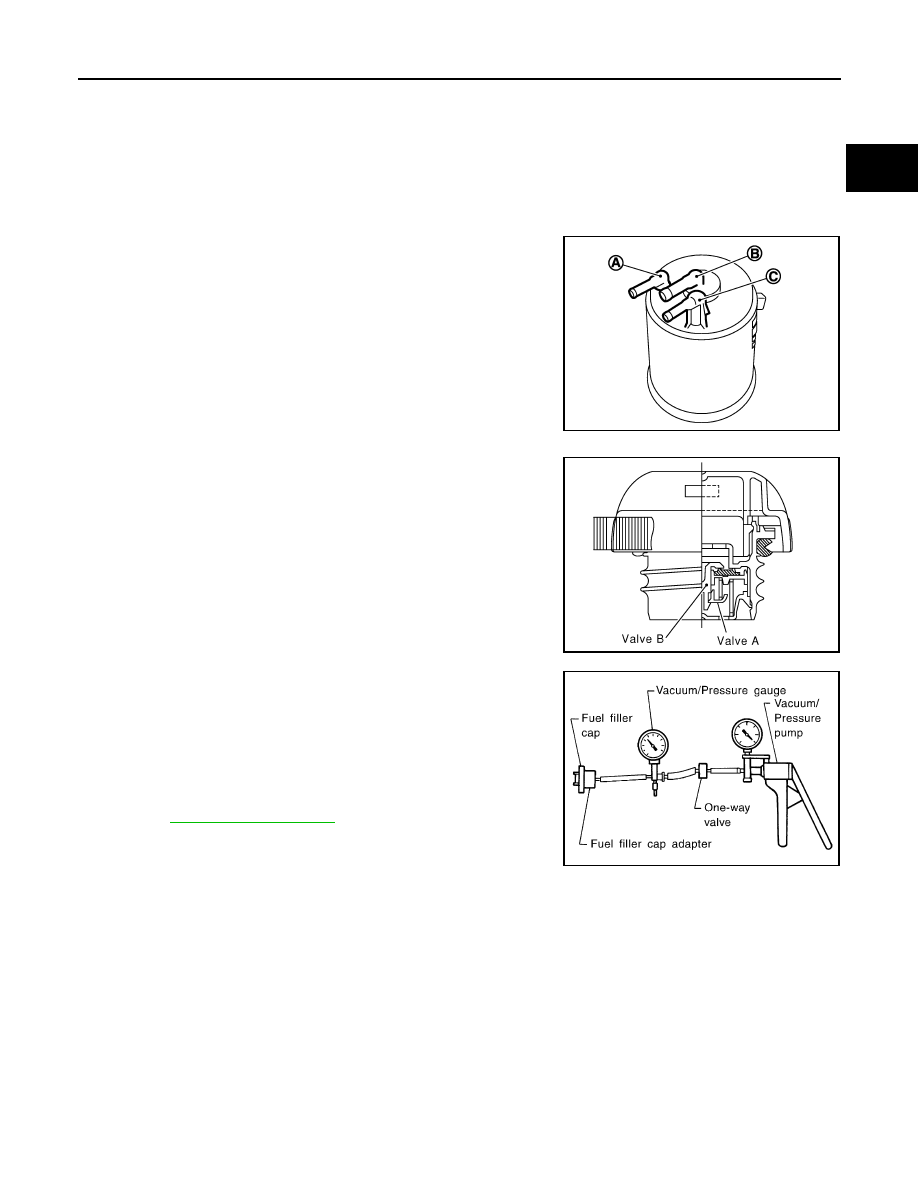

Check EVAP canister as follows:

a.

Block port (A). Orally blow air through port (B).
Check that air flows freely through port (C).

b.

Block port (B). Orally blow air through port (A).
Check that air flows freely through port (C).

3.

Inspect fuel tank filler cap vacuum relief valve for clogging, stick-
ing, etc.

a.

Wipe clean valve housing.

b.

Check valve opening pressure and vacuum.

c.

If out of specification, replace fuel filler cap as an assembly.
Refer to

FL-10, "Exploded View"

.

JSBIA0335ZZ

SEF989X

Pressure:

15.3 - 20.0 kPa (0.153 - 0.200 bar, 0.156 - 0.204 kg/

cm

2

, 2.22 - 2.90 psi)

Vacuum:

–6.0 to –3.4 kPa (–0.06 bar to –-0.034bar, –0.061 to –

0.035 kg/cm

2

, –0.87 to –0.49 psi)

SEF943S

ECH-312

< REMOVAL AND INSTALLATION >

[HRA2DDT]

VACUUM LINES

REMOVAL AND INSTALLATION

VACUUM LINES

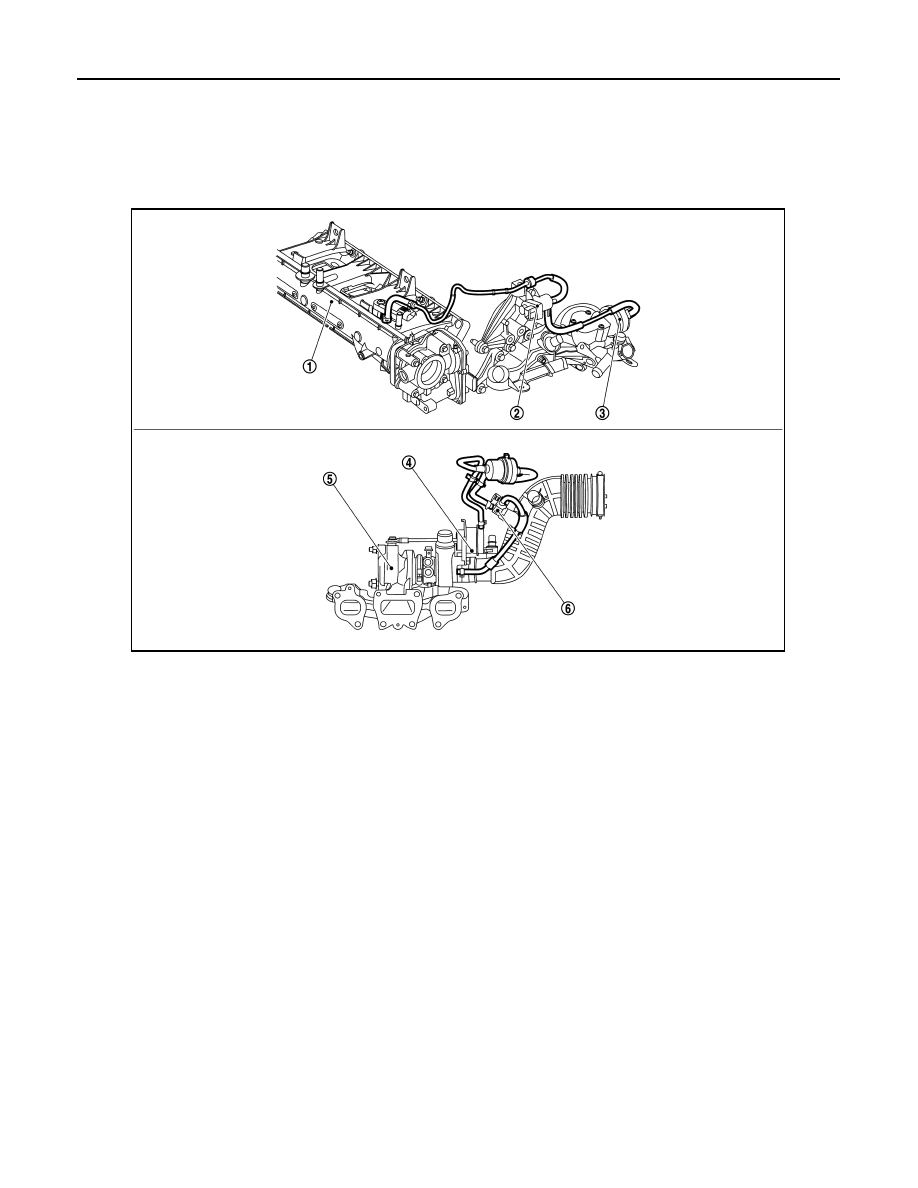

Vacuum Layout

INFOID:0000000010501191

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose.

1.

Intake manifold

2.

Engine coolant bypass valve control
solenoid valve

3.

Engine coolant bypass valve control
actuator

4.

TC wastegate control actuator

5.

Turbocharger

6.

TC wastegate control solenoid valve

JSBIA4856ZZ

ECM

ECH-313

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

ECM

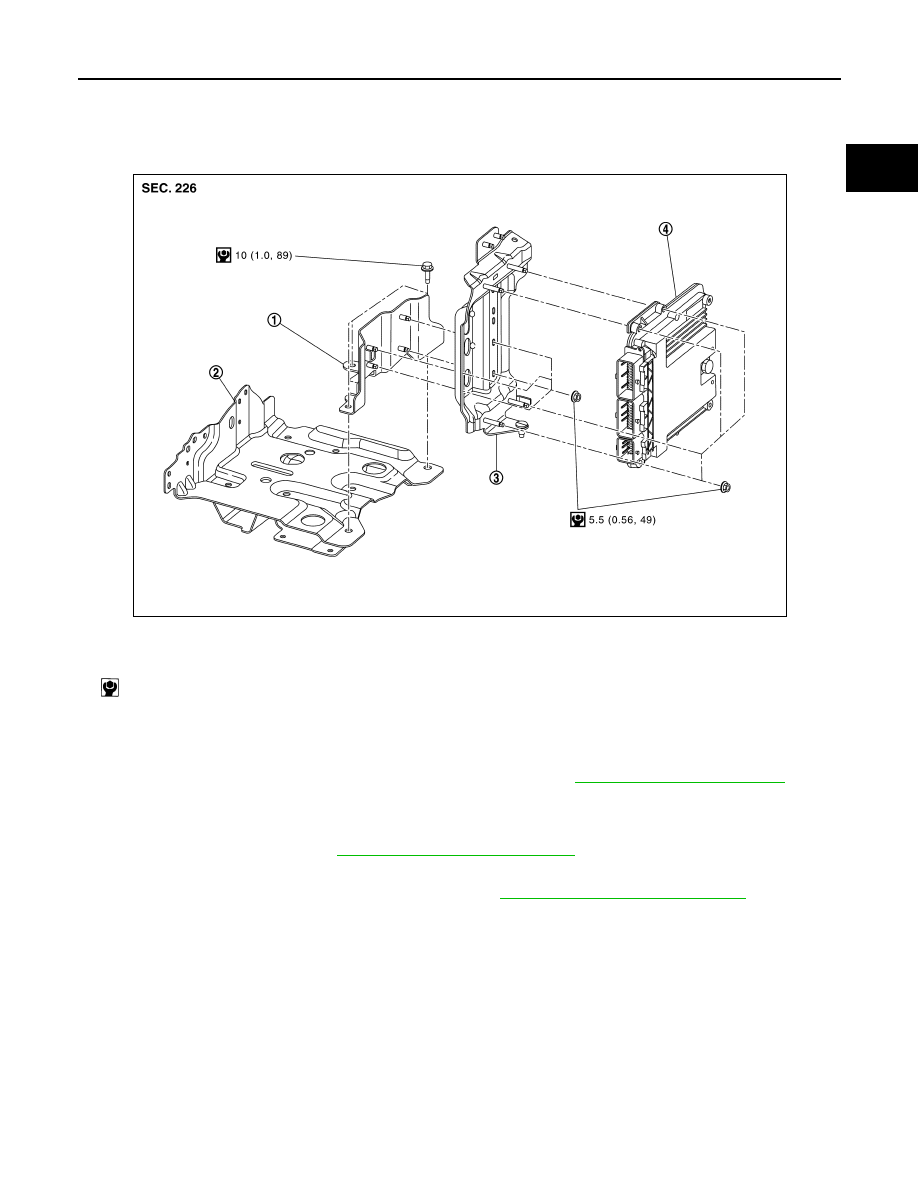

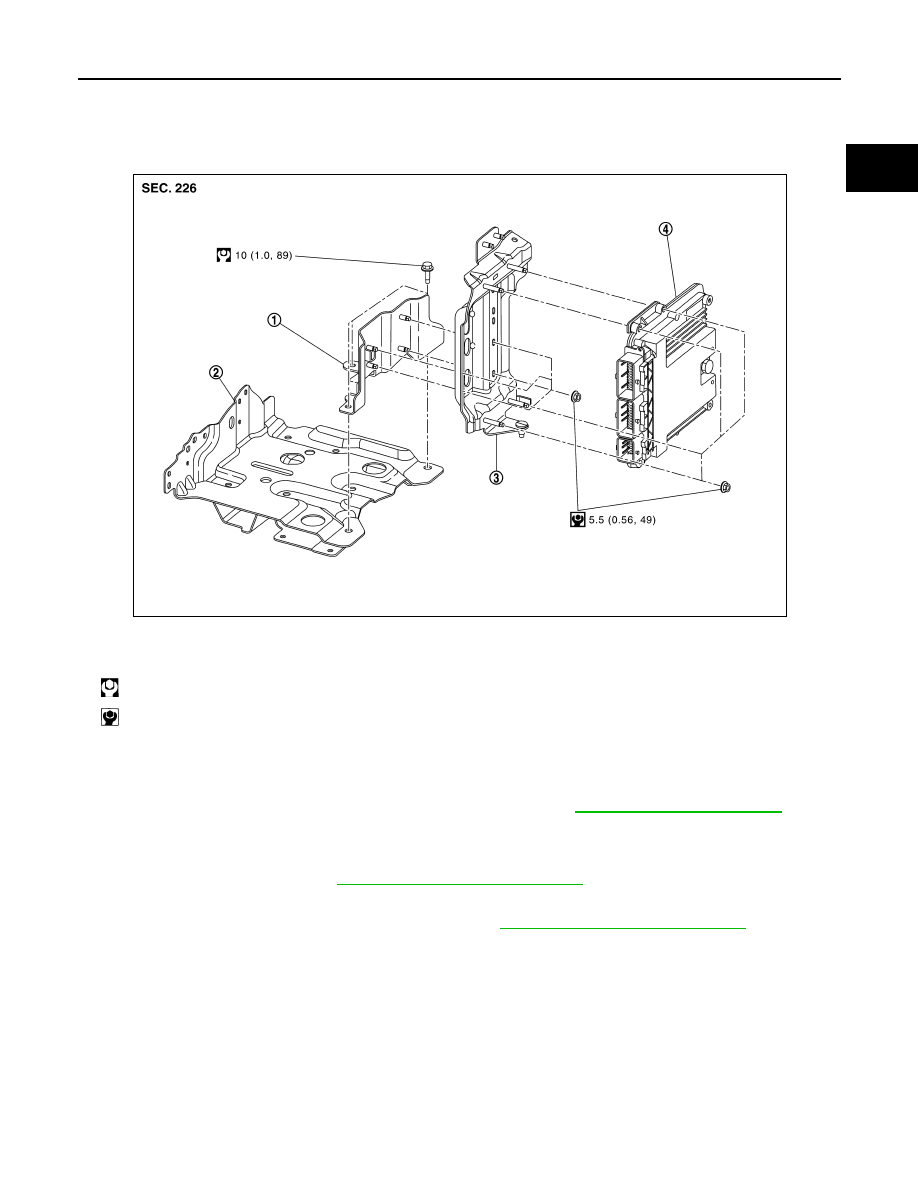

Exploded View

INFOID:0000000010501192

Removal and Installation

INFOID:0000000010501193

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

ECH-103, "Work Procedure"

.

REMOVAL

1.

Disconnect battery negative terminal.

2.

Remove air duct (inlet). Refer to

EM-23, "Removal and Installation"

.

3.

Disconnect ECM harness connectors.

4.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

5.

Remove bracket A with ECM.

6.

Remove ECM from bracket B.

INSTALLATION

Install in the reverse order of removal.

1.

Battery mounting bracket

2.

Bracket A

3.

Bracket B

4.

ECM

: N·m (kg-m, in-lb)

JSBIA5191GB

ECH-314

< REMOVAL AND INSTALLATION >

[HRA2DDT]

DC/DC CONVERTER

DC/DC CONVERTER

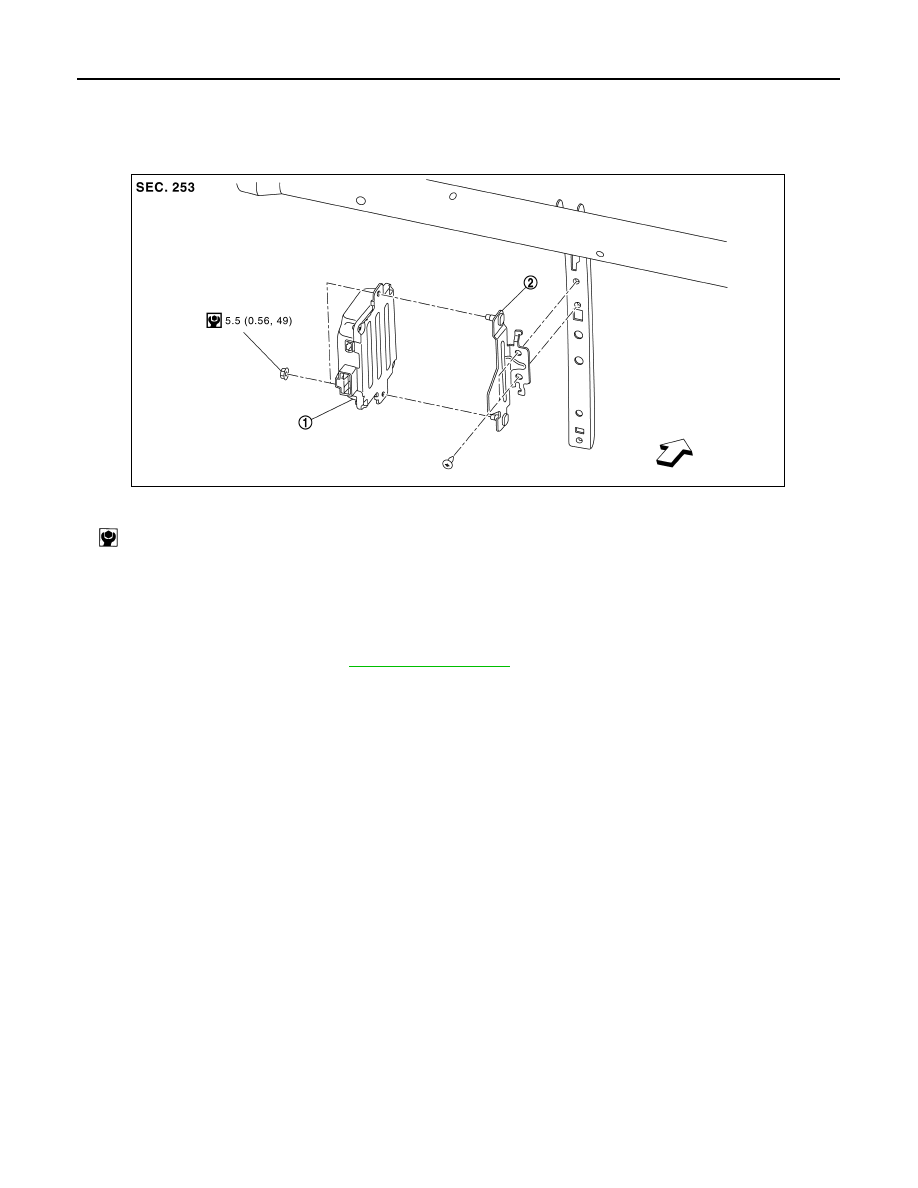

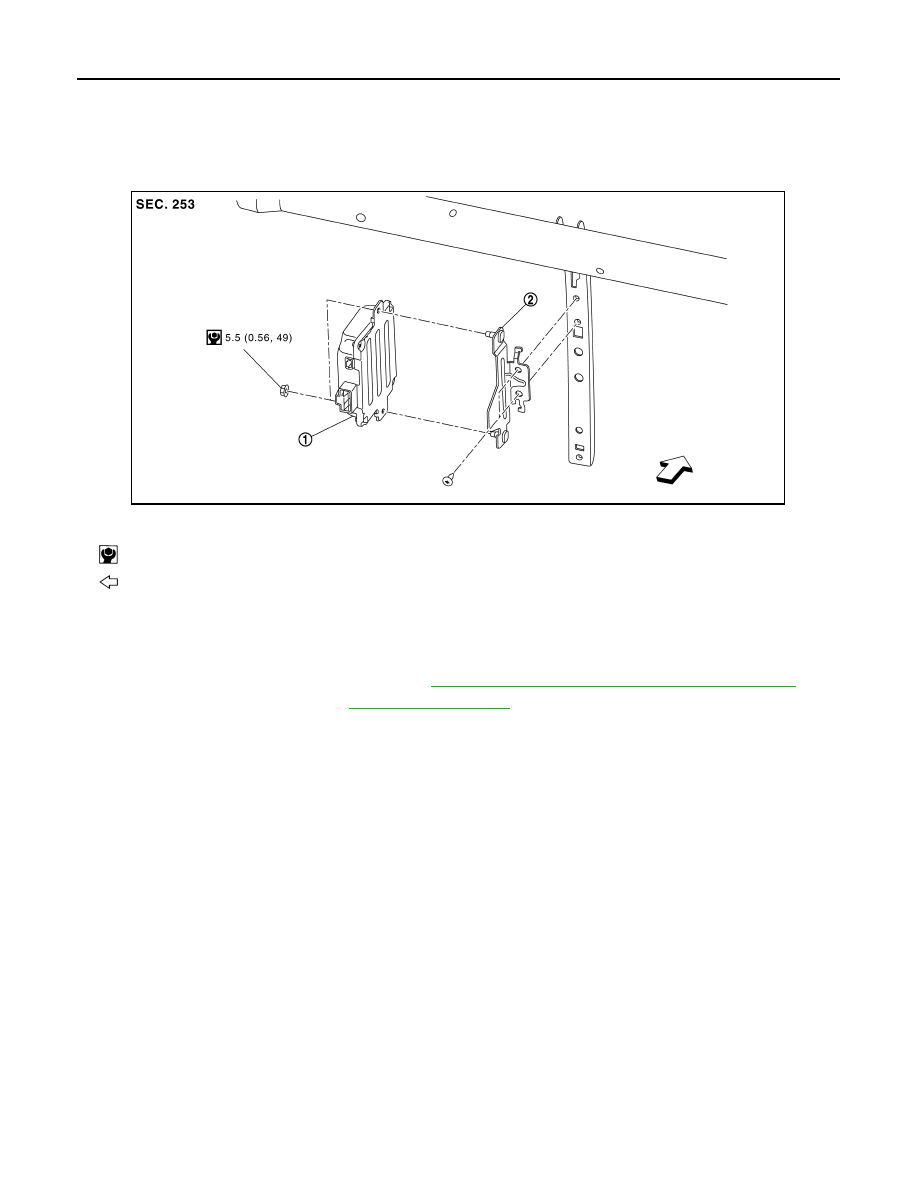

Exploded View

INFOID:0000000010501198

NOTE:
The below figure shows LHD models. RHD models are the mirror image.

Removal and Installation

INFOID:0000000010501199

REMOVAL

1.

Disconnect battery negative terminal. Refer to

ECH-7, "Precautions for Removing Battery Terminal"

.

2.

Remove glove box cover. Refer to

IP-12, "Exploded View"

.

3.

Disconnect DC/DC converter harness connectors.

4.

Remove DC/DC converter bracket mounting screws.

5.

Remove bracket with DC/DC converter.

6.

Remove DC/DC converter mounting nuts.

7.

Remove DC/DC converter.

INSTALLATION

Install in the reverse order of removal.

1.

DC/DC converter

2.

Bracket

: N·m (kg-m, in-lb)

: Vehicle front

JSBIA4865GB

ENGINE RESTART BYPASS RELAY

ECH-315

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

ENGINE RESTART BYPASS RELAY

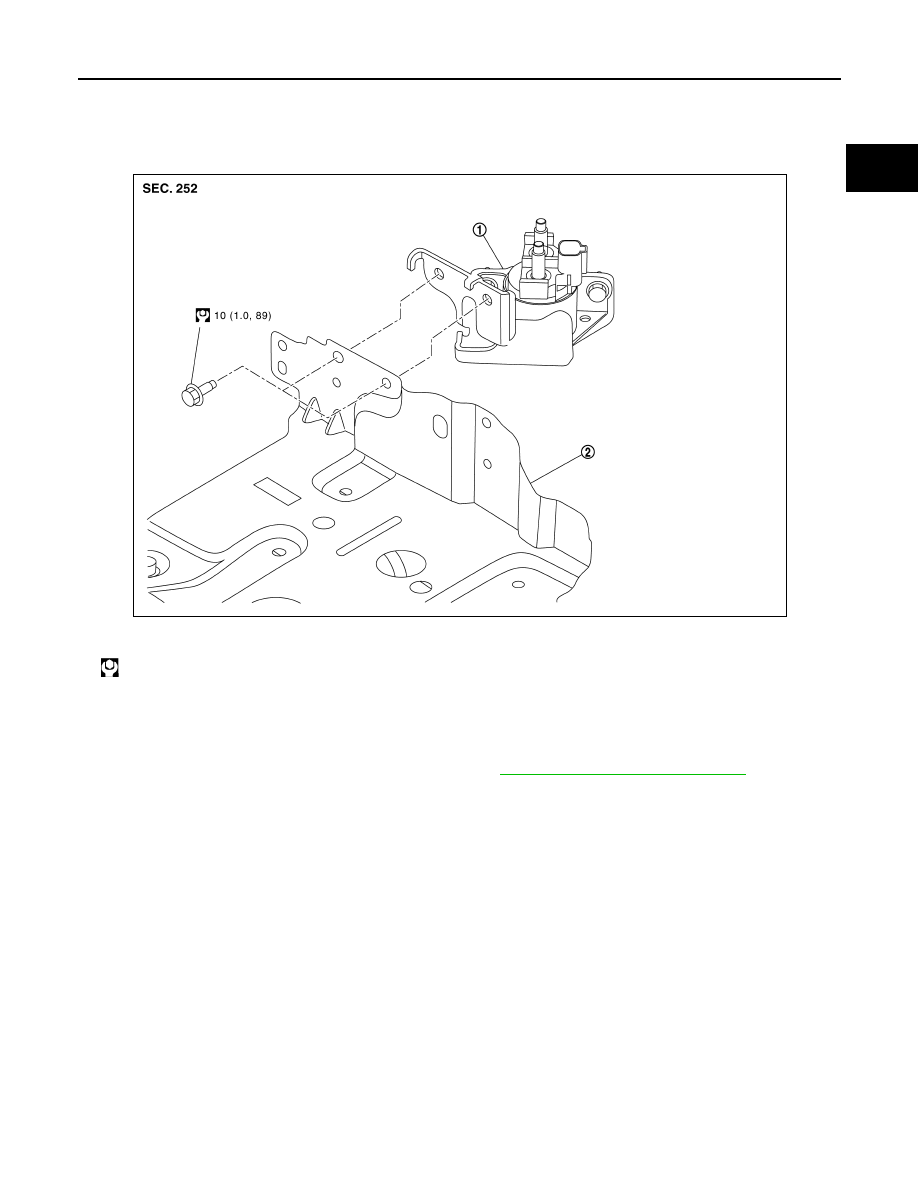

Exploded View

INFOID:0000000010501200

Removal and Installation

INFOID:0000000010501201

REMOVAL

1.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

2.

Disconnect engine restart bypass relay harness connectors.

3.

Remove bracket with engine restart bypass relay.

INSTALLATION

Install in the reverse order of removal.

1.

Engine restart bypass relay

2.

Battery mounting bracket

: N·m (kg-m, in-lb)

JSBIA5193GB

ECH-316

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000010379194

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Condition

Specification

No load* (in Neutral position)

750

±

 50 rpm

EVAPORATIVE EMISSION SYSTEM

ECH-317

< PERIODIC MAINTENANCE >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

PERIODIC MAINTENANCE

EVAPORATIVE EMISSION SYSTEM

Inspection

INFOID:0000000010379191

1.

Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,
chafing and deterioration.

2.

Check EVAP canister as follows:

a.

Block port (A). Orally blow air through port (B).
Check that air flows freely through port (C).

b.

Block port (B). Orally blow air through port (A).
Check that air flows freely through port (C).

3.

Inspect fuel tank filler cap vacuum relief valve for clogging, stick-
ing, etc.

a.

Wipe clean valve housing.

b.

Check valve opening pressure and vacuum.

c.

If out of specification, replace fuel filler cap as an assembly.
Refer to

FL-10, "Exploded View"

.

JSBIA0335ZZ

SEF989X

Pressure:

15.3 - 20.0 kPa (0.153 - 0.200 bar, 0.156 - 0.204 kg/

cm

2

, 2.22 - 2.90 psi)

Vacuum:

–6.0 to –3.4 kPa (–0.06 bar to –-0.034bar, –0.061 to –

0.035 kg/cm

2

, –0.87 to –0.49 psi)

SEF943S

ECH-318

< REMOVAL AND INSTALLATION >

[HRA2DDT]

VACUUM LINES

REMOVAL AND INSTALLATION

VACUUM LINES

Vacuum Layout

INFOID:0000000010501191

CAUTION:

Do not use soapy water or any type of solvent while installing vacuum hose.

1.

Intake manifold

2.

Engine coolant bypass valve control
solenoid valve

3.

Engine coolant bypass valve control
actuator

4.

TC wastegate control actuator

5.

Turbocharger

6.

TC wastegate control solenoid valve

JSBIA4856ZZ

ECM

ECH-319

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

ECM

Exploded View

INFOID:0000000010501192

Removal and Installation

INFOID:0000000010501193

CAUTION:

Perform ADDITIONAL SERVICE WHEN REPLACING ECM. Refer to

EC9-142, "Work Procedure"

.

REMOVAL

1.

Disconnect battery negative terminal.

2.

Remove air duct (inlet). Refer to

EM-243, "Removal and Installation"

.

3.

Disconnect ECM harness connectors.

4.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

5.

Remove bracket A with ECM.

6.

Remove ECM from bracket B.

INSTALLATION

Install in the reverse order of removal.

1.

Battery mounting bracket

2.

Bracket A

3.

Bracket B

4.

ECM

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSBIA4864GB

ECH-320

< REMOVAL AND INSTALLATION >

[HRA2DDT]

DC/DC CONVERTER

DC/DC CONVERTER

Exploded View

INFOID:0000000010501198

Removal and Installation

INFOID:0000000010501199

REMOVAL

1.

Disconnect battery negative terminal.

2.

Remove glove box cover. Refer to

IP-12, "Exploded View"

.

3.

Remove bracket with DC/DC converter.

4.

Disconnect DC/DC converter harness connectors.

INSTALLATION

Install in the reverse order of removal.

1.

DC/DC converter

2.

Bracket

: N·m (kg-m, in-lb)

JSBIA4865GB

ENGINE RESTART BYPASS RELAY

ECH-321

< REMOVAL AND INSTALLATION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

ECH

N

P

O

ENGINE RESTART BYPASS RELAY

Exploded View

INFOID:0000000010501200

Removal and Installation

INFOID:0000000010501201

REMOVAL

1.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

2.

Disconnect engine restart bypass relay harness connectors.

3.

Remove bracket with engine restart bypass relay.

INSTALLATION

Install in the reverse order of removal.

1.

Engine restart bypass relay

2.

Battery mounting bracket

: N·m (kg-m, ft-lb)

JSBIA4866GB

ECH-322

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HRA2DDT]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000010379194

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Condition

Specification

No load* (in Neutral position)

750

±

 50 rpm
