REMOVAL AND INSTALLATION

FRONT WIPER

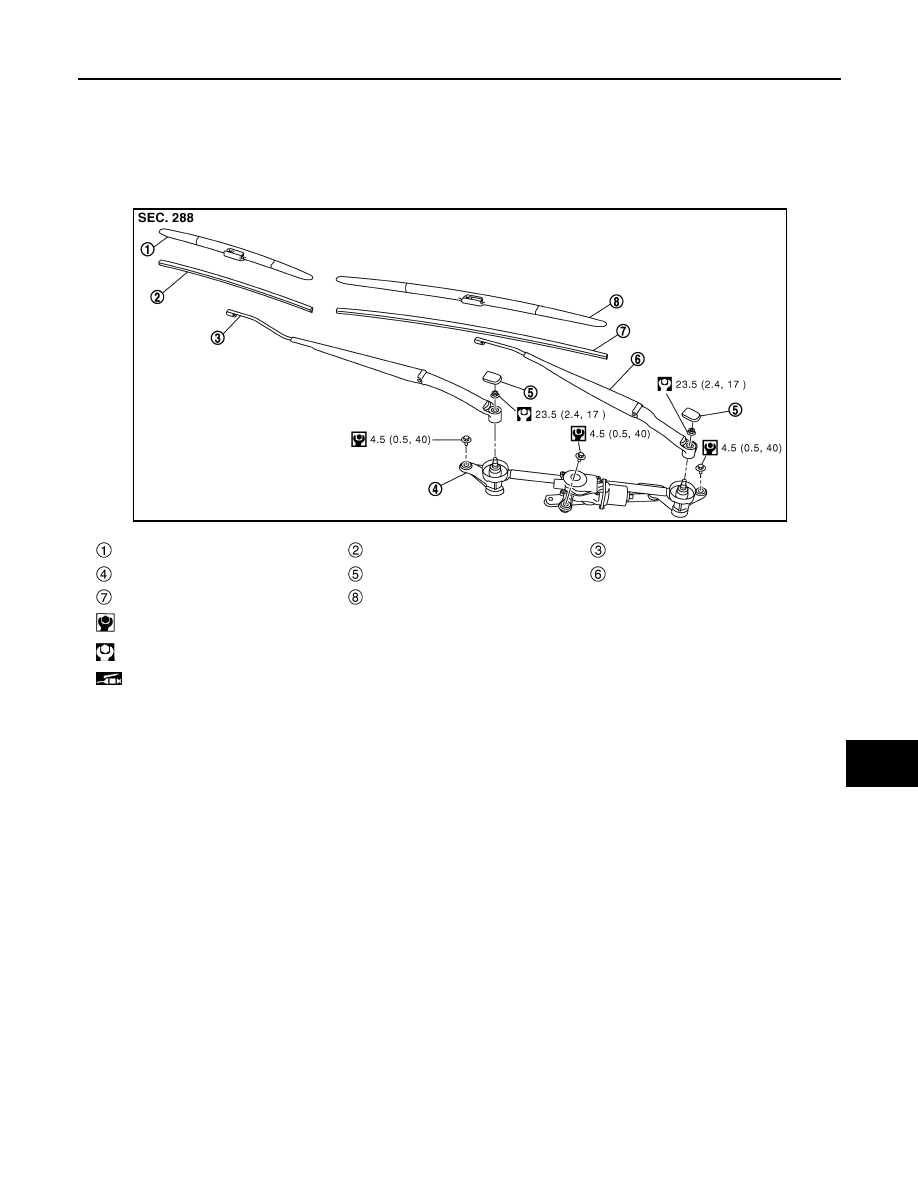

Exploded View

INFOID:0000000010479826

WIPER ARM

WIPER ARM : Removal and Installation

INFOID:0000000010479827

CAUTION:

Clean the windshield glass and wiper refill so that the windshield glass may not be damaged by dust,
etc.

REMOVAL

1.

Full open hood assembly.

CAUTION:

Before opening hood assembly, check that wipers are in auto stop position.

2.

Remove wiper arm cap.

3.

Remove wiper arm fixing nut, and then remove wiper arm.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Wiper blade RH

Wiper refill RH

Wiper arm RH

Wiper motor assembly

Wiper arm cap

Wiper arm LH

Wiper refill LH

WIper blade LH

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Nissan MP special grease No. 2

JMLIA5158GB

W

W

- 7

6

< REMOVAL AND INSTALLATION >

FRONT WIPER

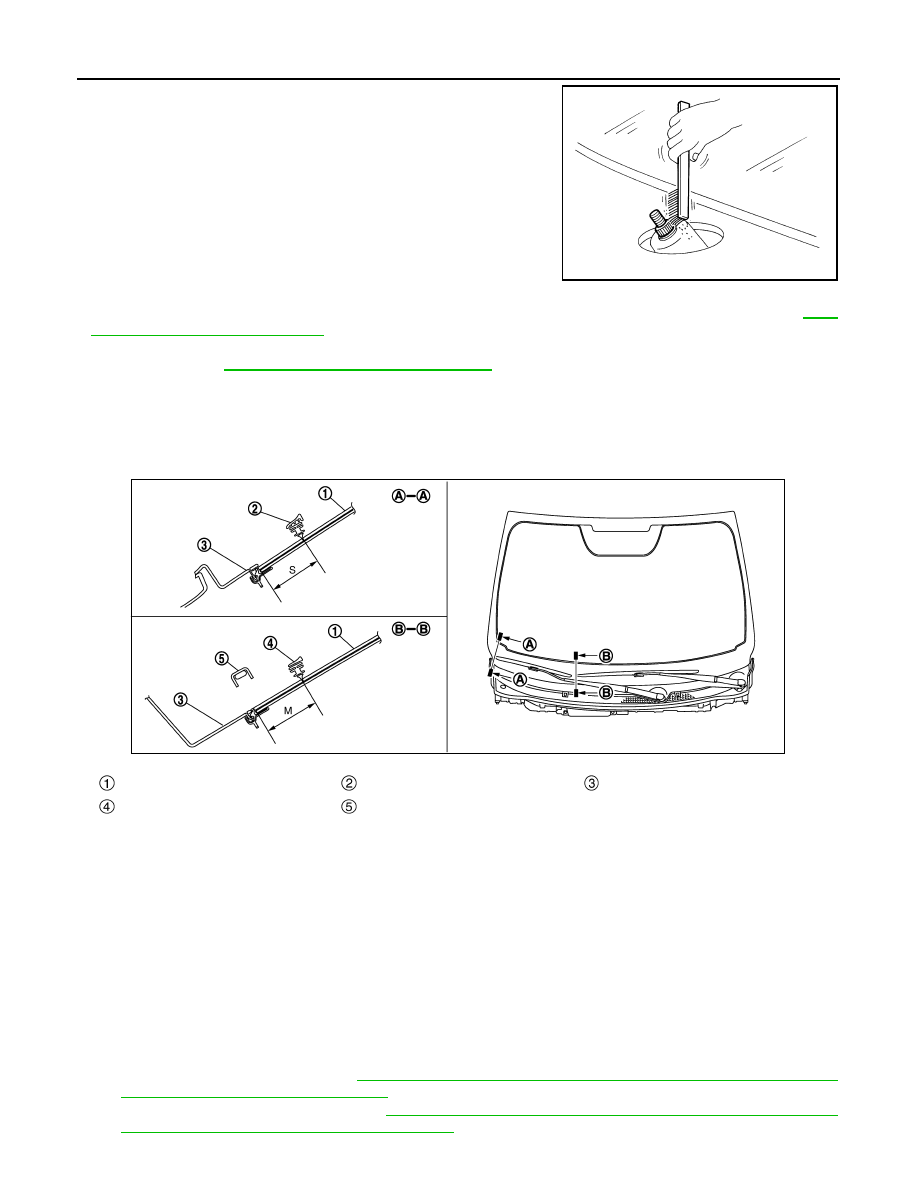

• Clean wiper arm installation location as shown in the figure,

and then fully insert wiper arm to prevent nut from being loos-
ened by shakiness.

• When installing the wiper arm, install so that it is within the standard. For the standard, refer to

WW-

76, "WIPER ARM : Adjustment"

.

• After installation, operate front wiper, and then check that the wiper blades stop at the specified

position. Refer to

WW-76, "WIPER ARM : Adjustment"

.

WIPER ARM : Adjustment

INFOID:0000000010479828

WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of cowl top cover / front fender cover and the top of wiper blade center.

Standard clearance

WIPER BLADE

WIPER BLADE : Removal and Installation

INFOID:0000000010479829

CAUTION:

Clean the windshield glass and wiper refill so that the windshield glass may not be damaged by dust,
etc.

REMOVAL

1.

Move the wiper arm by service position operation to lock back possibility position.
• with light & rain sensor: Refer to

WW-10, "FRONT WIPER AND WASHER SYSTEM (WITH LIGHT &

RAIN SENSOR) : System Description"

.

• without light & rain sensor: Refer to

WW-13, "FRONT WIPER AND WASHER SYSTEM (WITHOUT

LIGHT & RAIN SENSOR) : System Description"

.

ELH0717D

Windshield glass assembly

Wiper blade RH

Cowl top cover

Wiper blade LH

Wiper arm RH

JMLIA5159ZZ

S

: 38.0

±

7.5 mm (1.50

±

 0.30 in)

M : 40.7

±

7.5 mm (1.60

±

 0.30 in)

FRONT WIPER

WW-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

2.

Lift up wiper arm, and then lock back wiper arm.

3.

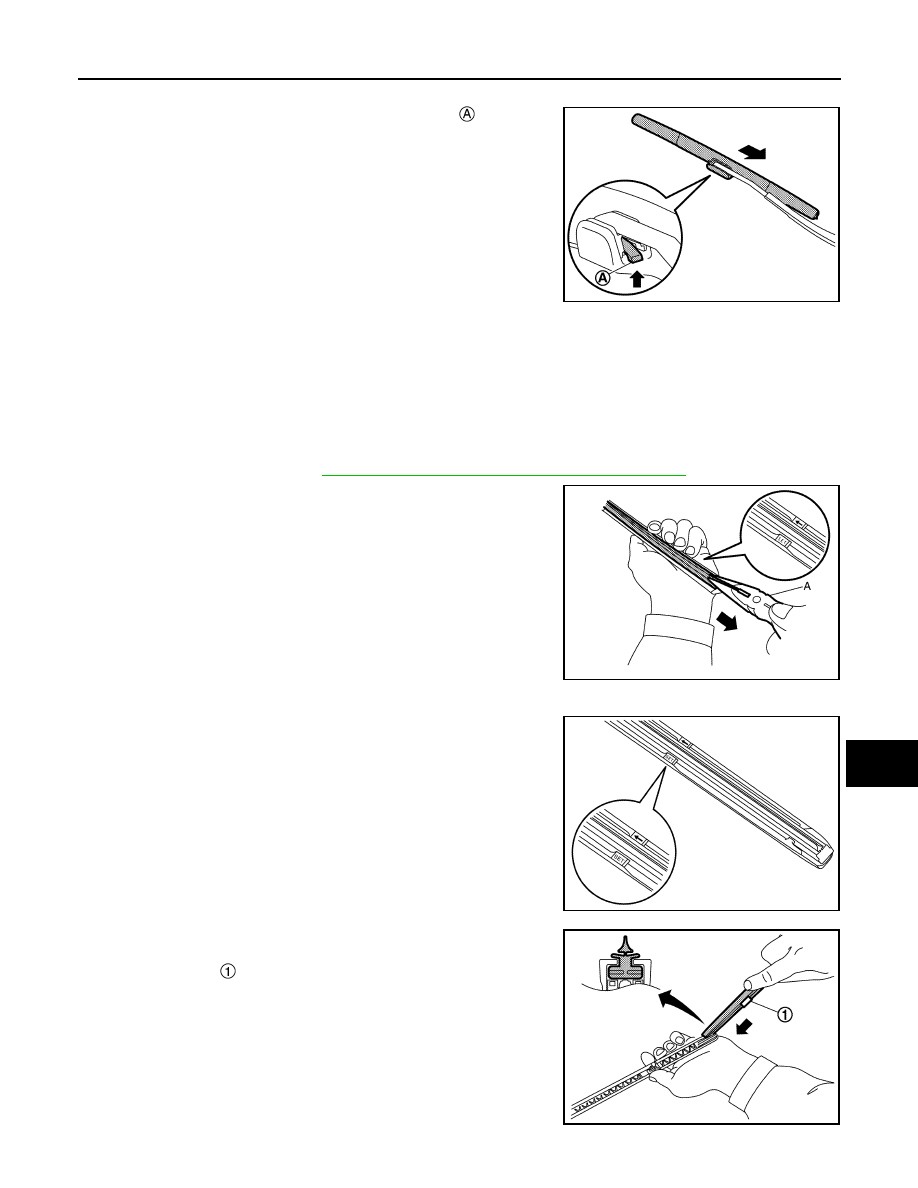

Slide the wiper blade while pushing up lever

, and then

remove wiper blade.

CAUTION:

After the wiper blade is removed, wrap the wiper arm tip
with a shop cloth and fold it down so that the wiper arm
does not fall against and damage the windshield glass.

INSTALLATION

Install in the reverse order of removal.

WIPER REFILL

WIPER REFILL : Removal and Installation

INFOID:0000000010479830

REMOVAL

1.

Remove wiper blade. Refer to

WW-76, "WIPER BLADE : Removal and Installation"

.

2.

Pull out wiper refill using a long-nose pliers (A), and then
remove wiper refill.

INSTALLATION

1.

Check the wiper refill insertion direction by arrow mark on wiper
blade.

2.

Pass through pawl of wiper blade in the groove of wiper refill.
NOTE:
Remove holder

* at last procedure.

*: Attached to service parts.

JMLIA4149ZZ

JMLIA4385ZZ

JMLIA2606ZZ

JMLIA4386ZZ

WW-78

< REMOVAL AND INSTALLATION >

FRONT WIPER

3.

Engage wiper refill stopper hole, and wiper blade pawl with imprinted “SET” mark (“

” mark).

4.

Check the following items after installing.
• Wiper refill thoroughly fits in the pawl on wiper blade.
• Wiper refill is not deformed (waving / tucking).

NOTE:

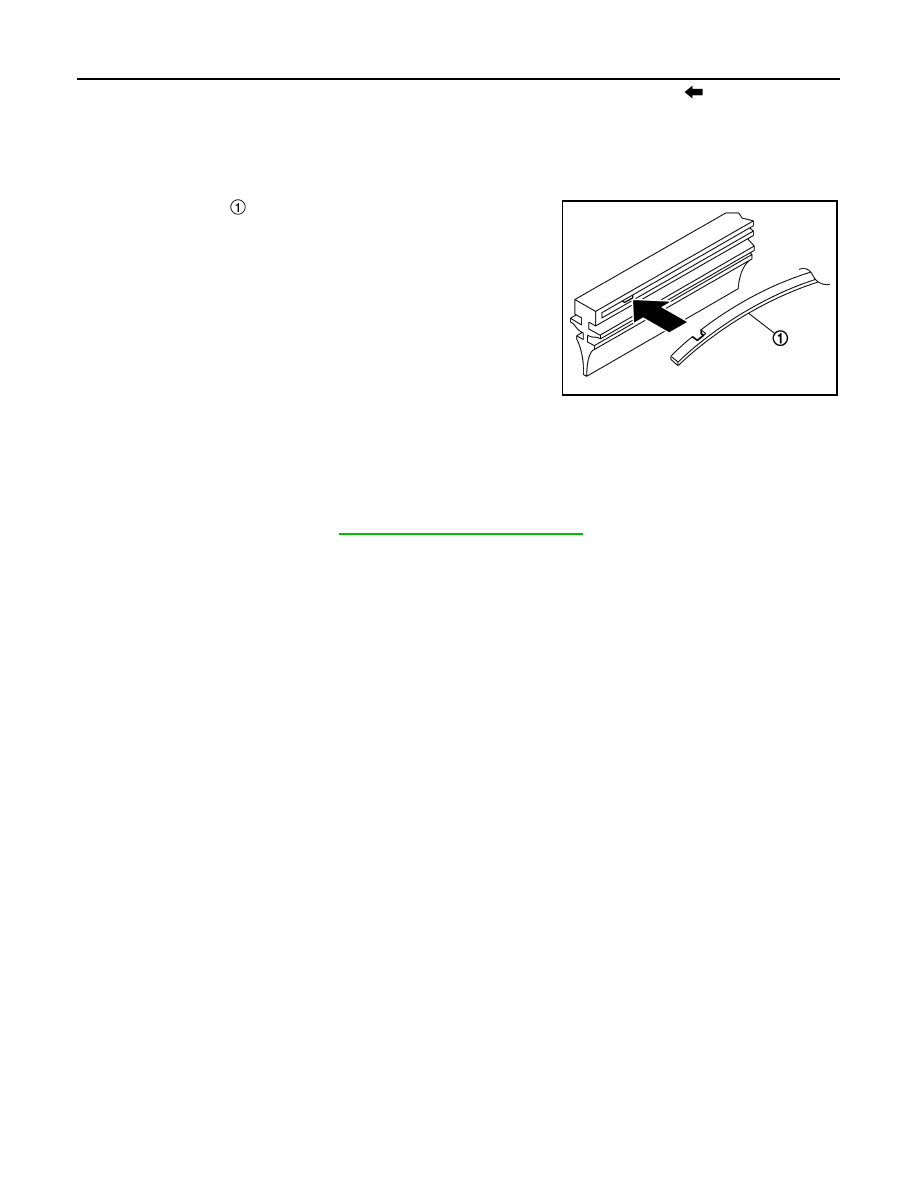

When the vertebra is detached

• Insert the vertebra

 into the wiper blade to the same bending

direction.

• If a vertebra has a notch, fit it to a protrusion inside the wiper refill.

WIPER DRIVE ASSEMBLY

WIPER DRIVE ASSEMBLY : Removal and Installation

INFOID:0000000010479831

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-29, "Removal and Installation"

.

2.

Disconnect wiper motor harness connector, disengage wiper motor harness clip, remove wiper drive
assembly fixing bolts, and then remove wiper drive assembly.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing, temporarily tighten all fixing bolts, and then tighten bolts to specified torque.

JPLIA1586ZZ

REAR WIPER

WW-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER

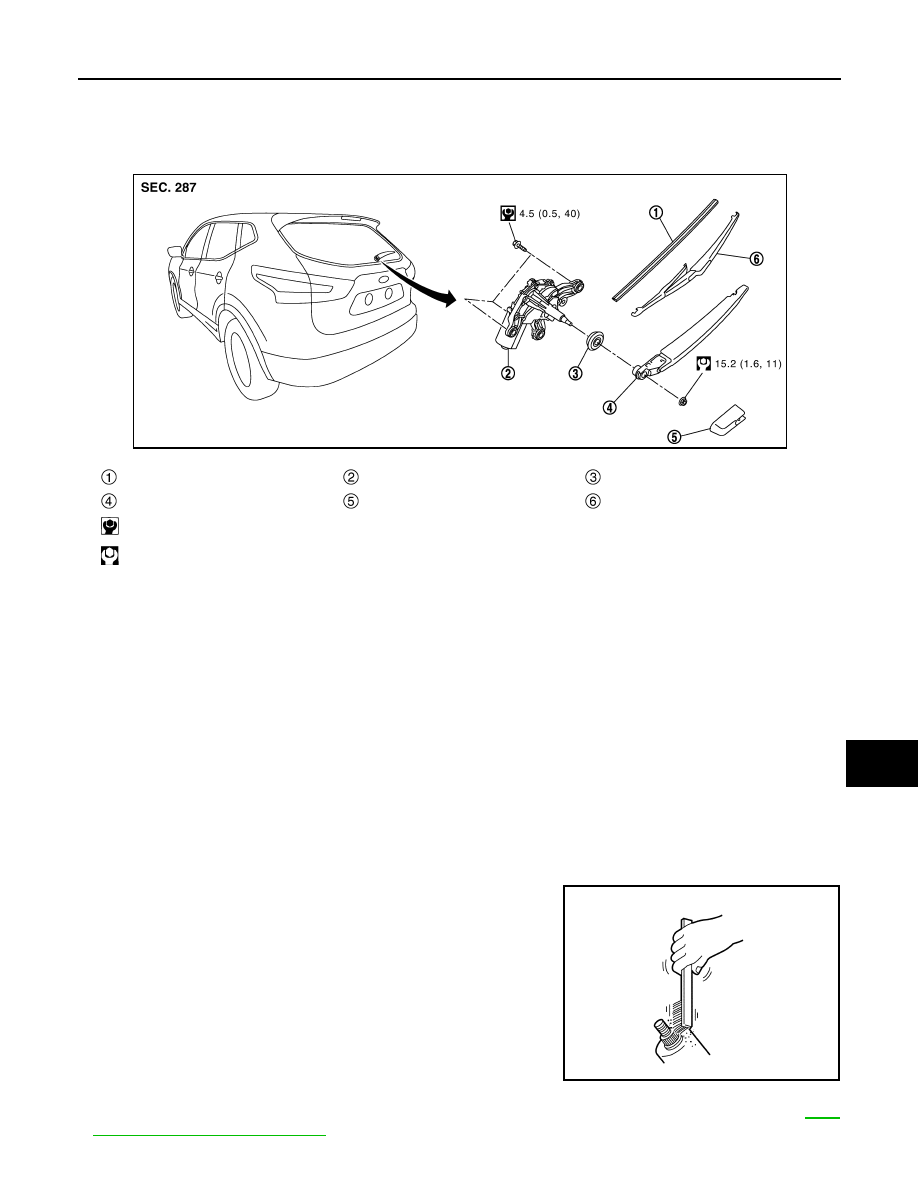

Exploded View

INFOID:0000000010479850

WIPER ARM

WIPER ARM : Removal and Installation

INFOID:0000000010491763

CAUTION:

Clean the rear windshield glass and rear wiper refill so that the rear windshield glass may not be dam-
aged by dust, etc.

REMOVAL

1.

Operate rear wiper to the auto stop position.

2.

Open rear wiper arm cover.

3.

Remove rear wiper arm fixing nut.

4.

Remove wiper arm from the vehicle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Clean wiper arm installation location as shown in the figure,

and then fully insert wiper arm to prevent nut from being loos-
ened by shakiness.

• When installing the wiper arm, install so that it is within the standard. For the standard, refer to

WW-

80, "WIPER ARM : Adjustment"

.

Rear wiper refill

Rear wiper motor

Rear wiper pivot seal

Rear wiper arm

Rear wiper arm cover

Rear wiper blade

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

JMLIA5160GB

SKIA0082J

WW-80

< REMOVAL AND INSTALLATION >

REAR WIPER

• After installation, operate front wiper, and then check that the wiper blades stop at the specified

position. Refer to

WW-80, "WIPER ARM : Adjustment"

.

WIPER ARM : Adjustment

INFOID:0000000010491764

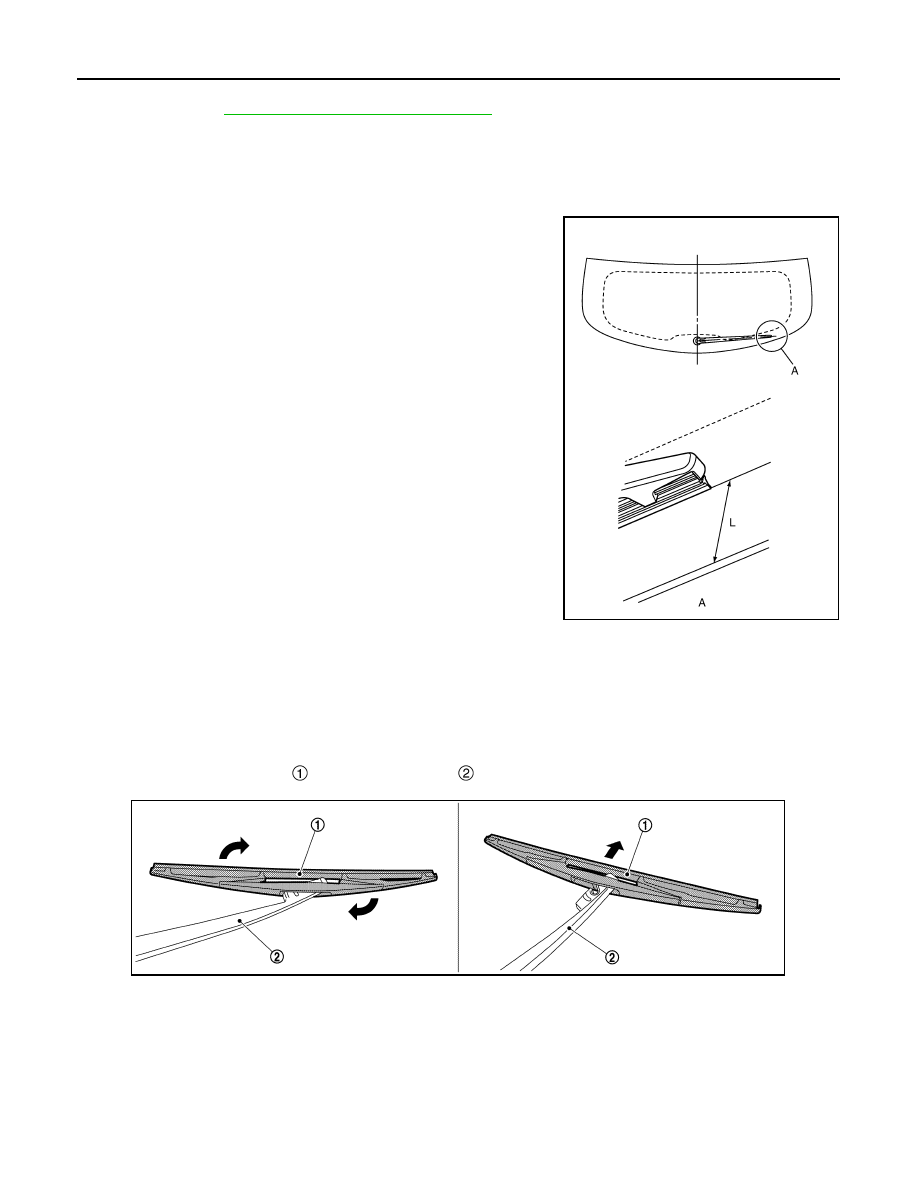

REAR WIPER BLADE POSITION ADJUSTMENT

Clearance between the end of back door glass and top of wiper blade center.

Standard clearance

WIPER BLADE

WIPER BLADE : Removal and Installation

INFOID:0000000010479853

REMOVAL

1.

Lift up and hold rear wiper arm.

2.

Remove rear wiper blade

 from rear wiper arm

 while rotating rear wiper blade in the direction indi-

cated by the arrow as shown in the figure.

CAUTION:

After the wiper blade is removed, wrap the wiper arm tip with a shop cloth and fold it down so that
the wiper arm does not fall against and damage the windshield glass.

INSTALLATION

Install in the reverse order of removal.

WIPER MOTOR

L

: 40.5 mm (1.59 in)

JPLIA0966ZZ

JMLIA1989ZZ

REAR WIPER

WW-81

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WIPER MOTOR : Removal and Installation

INFOID:0000000010491661

REMOVAL

1.

Remove the rear wiper arm. Refer to

WW-79, "WIPER ARM : Removal and Installation"

.

2.

Remove the back door lower finisher. Refer to

INT-31, "Removal and Installation"

.

3.

Disconnect the harness connector from the rear wiper motor.

4.

Remove the rear wiper motor fixing bolts, and then remove rear wiper motor.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

When installing, temporarily tighten all fixing bolts, and then tighten bolts to specified torque.

WW-82

< REMOVAL AND INSTALLATION >

FRONT WASHER

FRONT WASHER

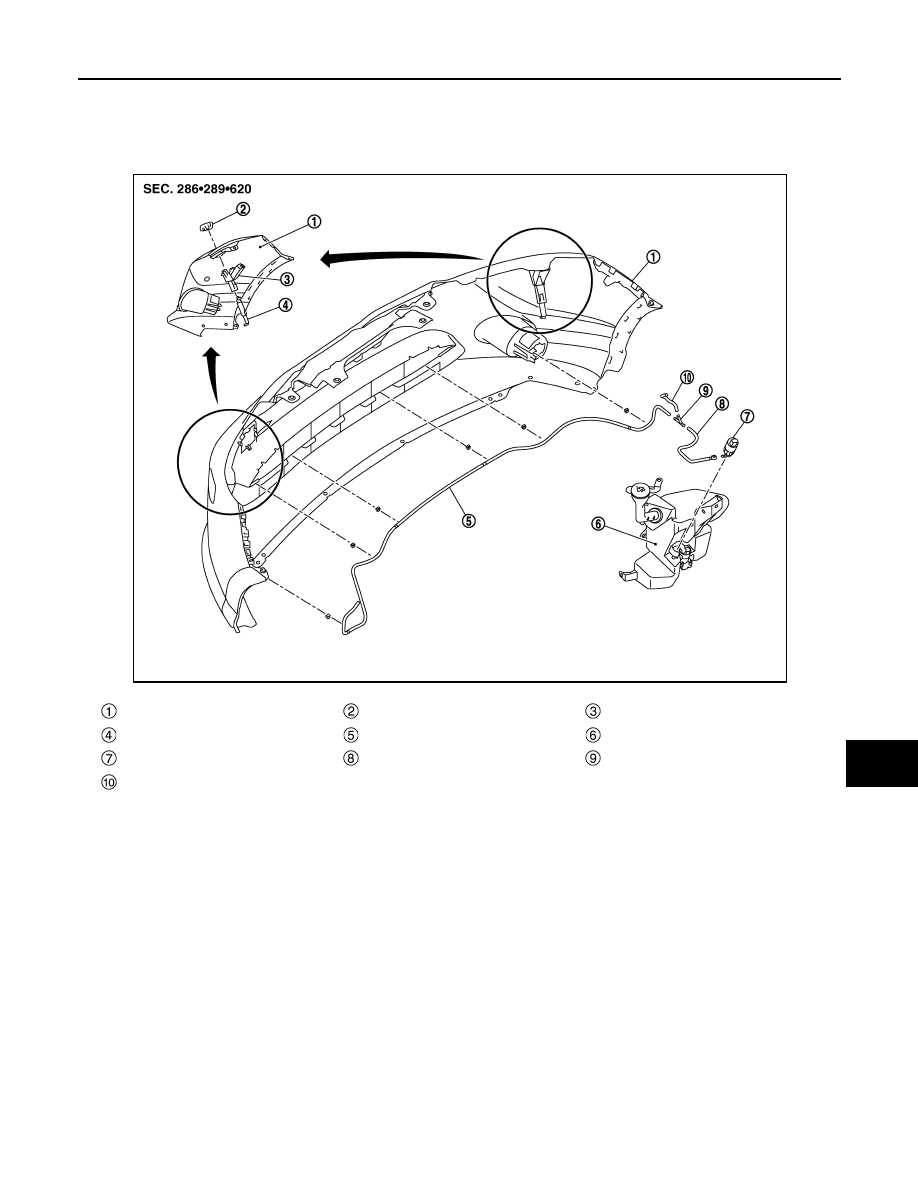

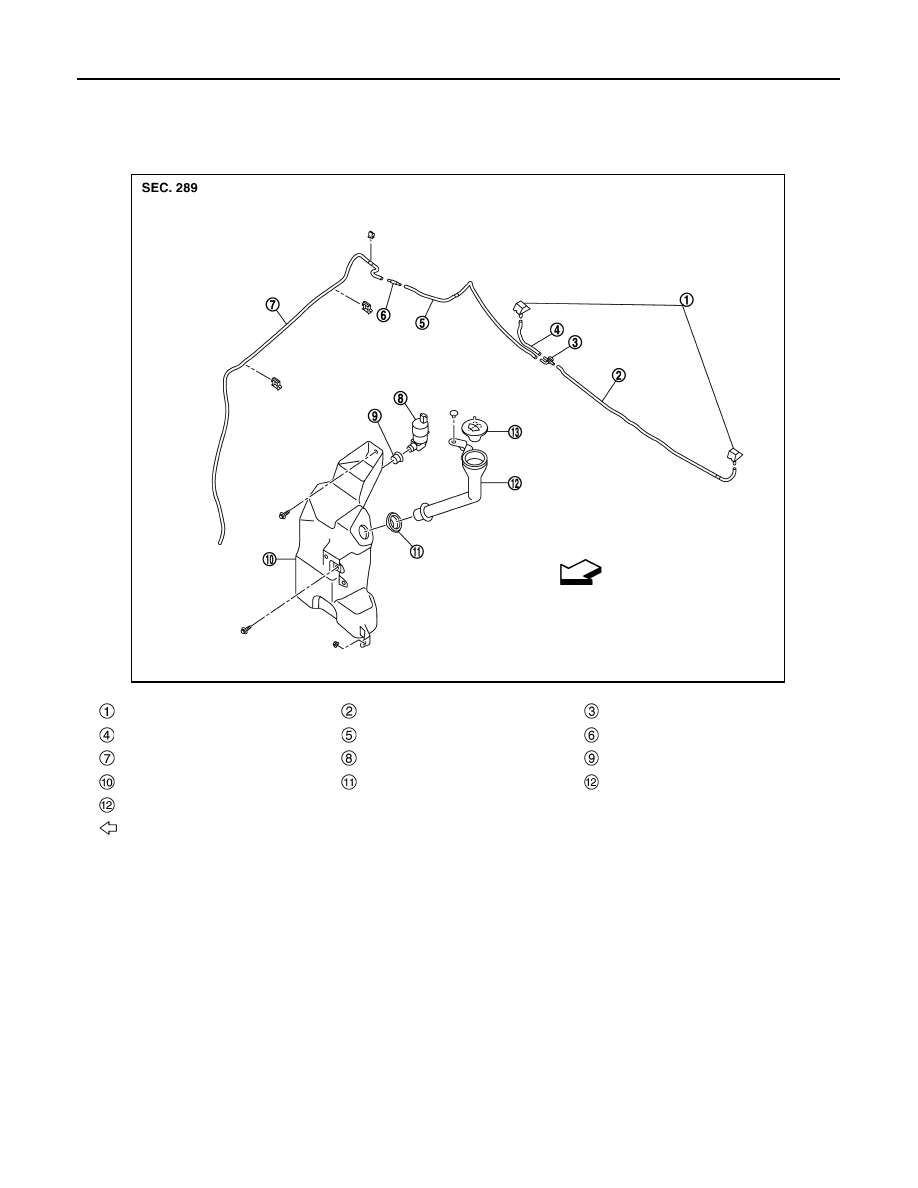

Exploded View

INFOID:0000000010479833

Washer nozzle

Washer tube

Check valve

Washer tube

Washer tube

Straight connector

Washer tube

Washer pump

Packing

Washer tank

Washer tank packing

Washer tank inlet

Washer tank cap

: Vehicle front

JMLIA5161ZZ

FRONT WASHER

WW-83

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

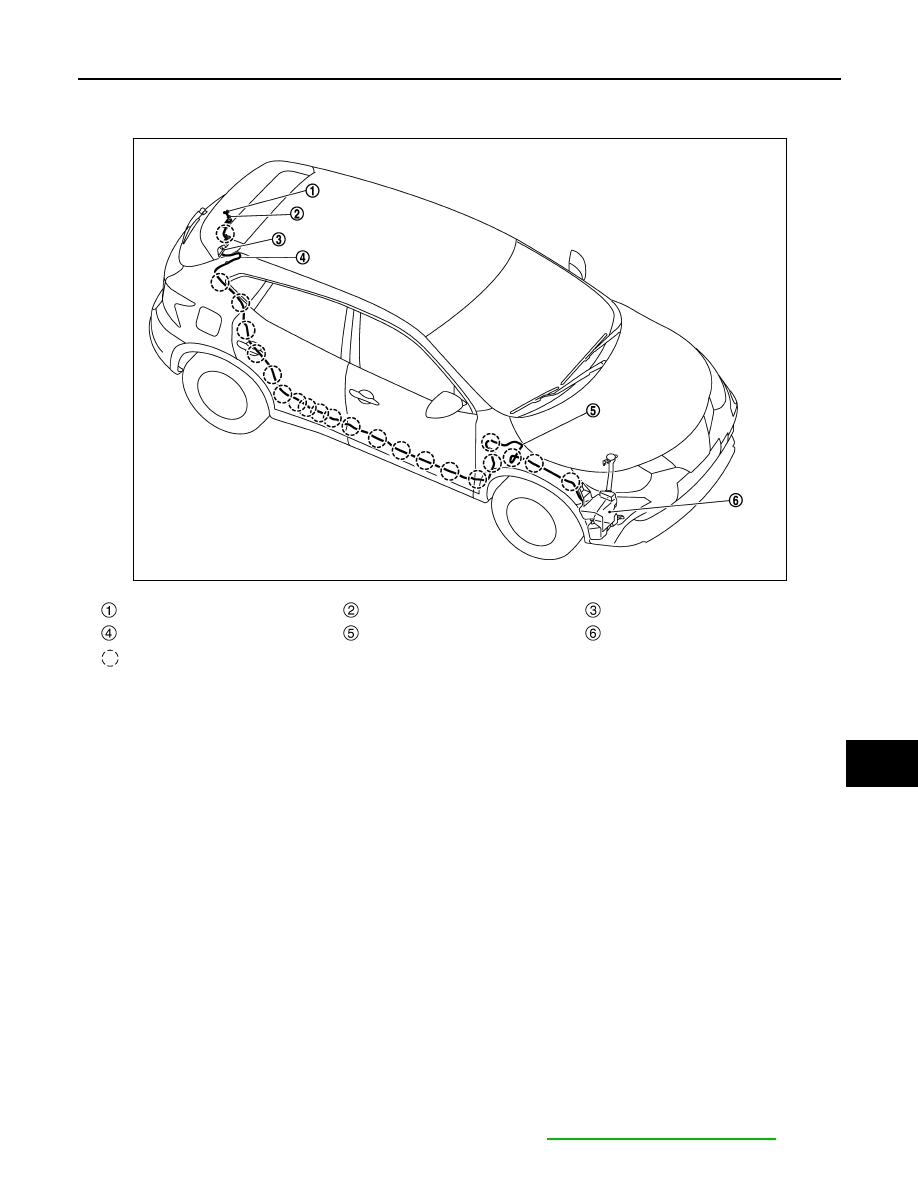

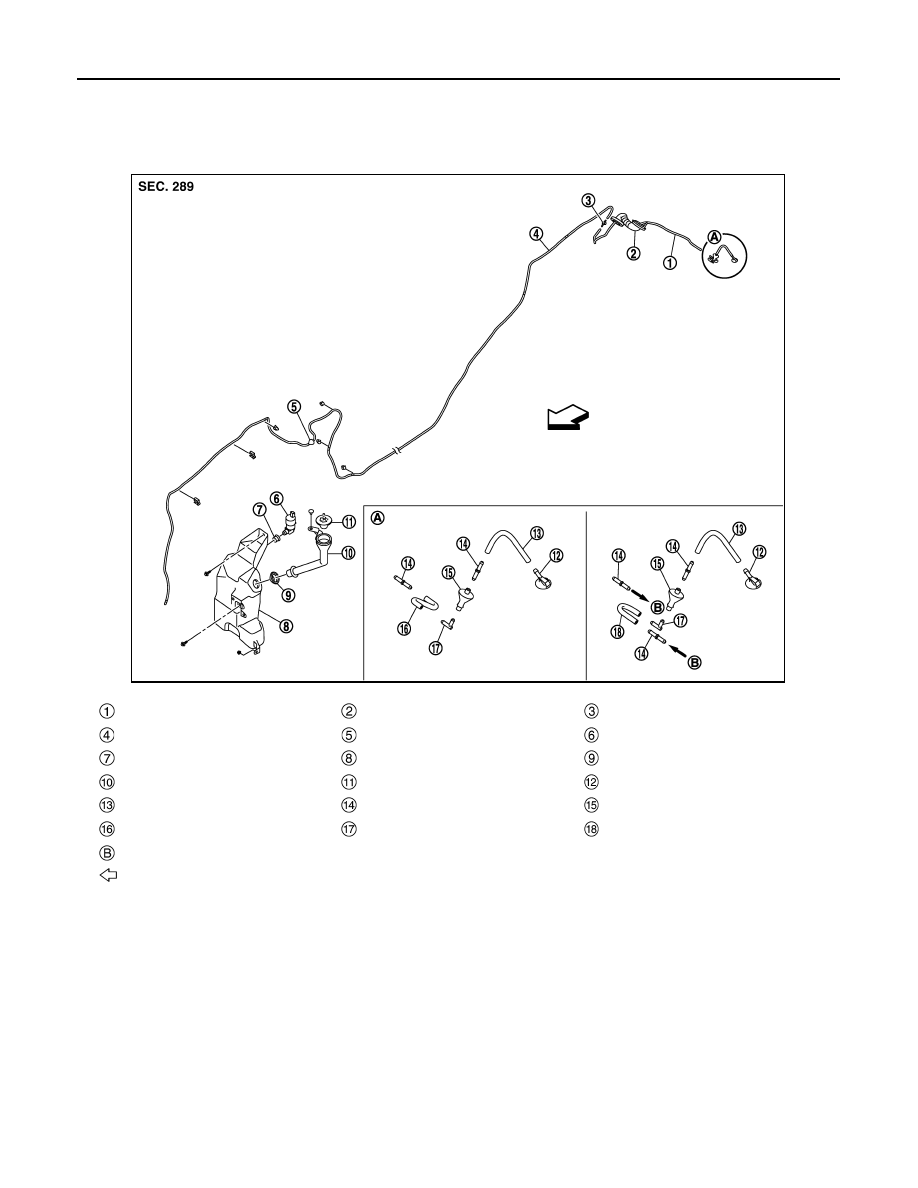

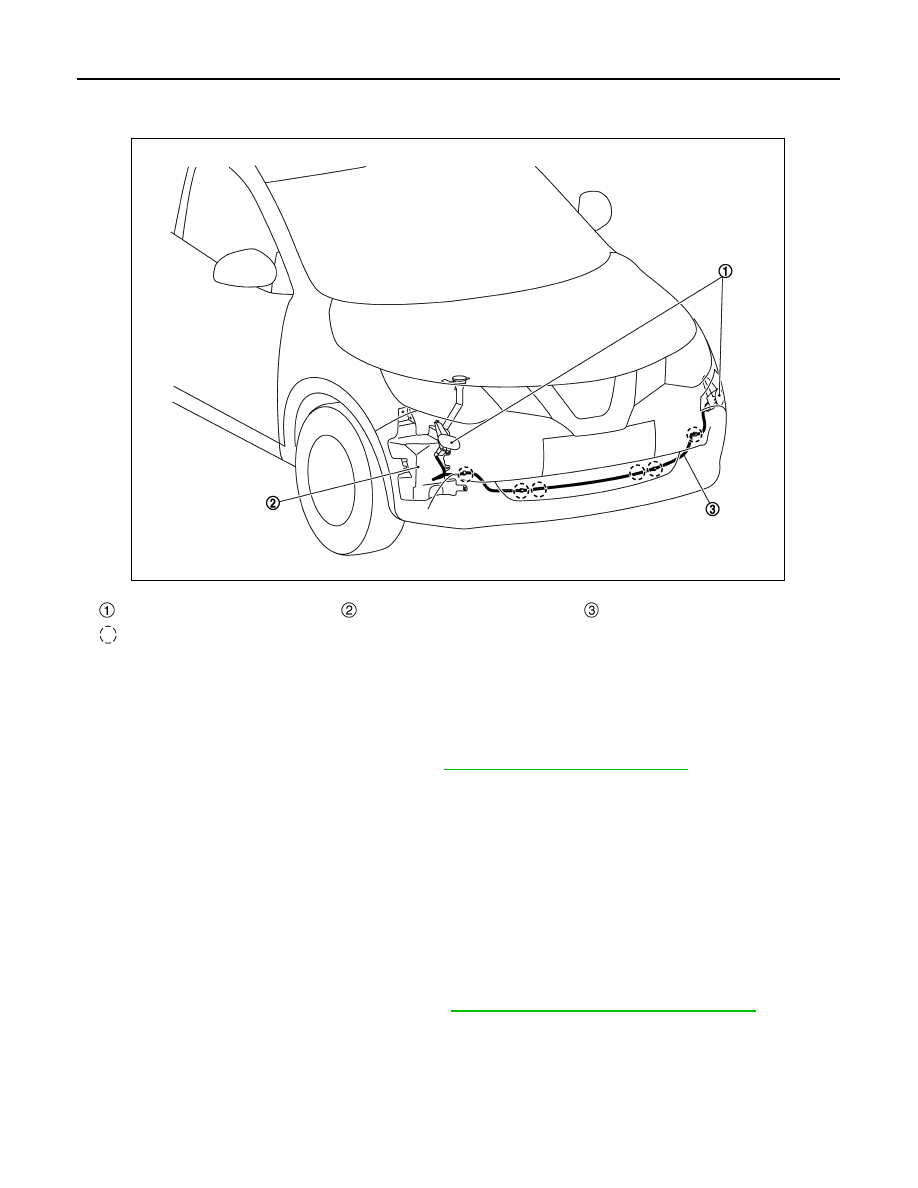

Hydraulic Layout

INFOID:0000000010479834

WASHER NOZZLE

WASHER NOZZLE : Removal and Installation

INFOID:0000000010491780

REMOVAL

1.

Open the hood.

2.

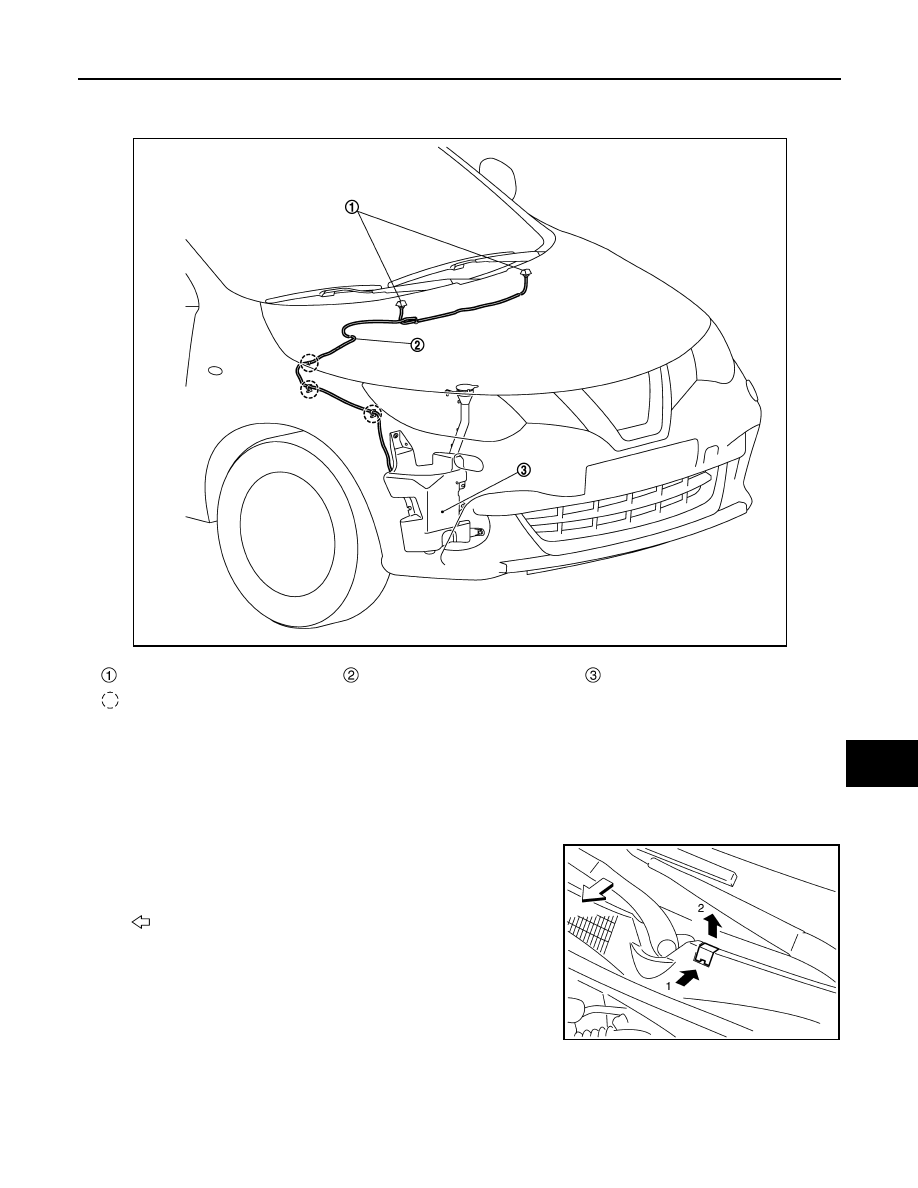

Remove front washer nozzle with a small flat-bladed screwdriver
in according to numerical order 1

→

2 indicated by arrows as

shown in the figure.

3.

Remove the front washer tube from the front washer nozzle.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Washer nozzle

Washer tube

Washer tank

: Fixing point

JMLIA5162ZZ

: Vehicle front

JPLIA0274ZZ

WW-84

< REMOVAL AND INSTALLATION >

FRONT WASHER

• After installation, check that there is no leakage at operated washer.
• After installation, check that spray position. Refer to

WW-84, "WASHER NOZZLE : Inspection"

.

WASHER NOZZLE : Inspection

INFOID:0000000010491781

WASHER NOZZLE SPRAY POSITION INSPECTION

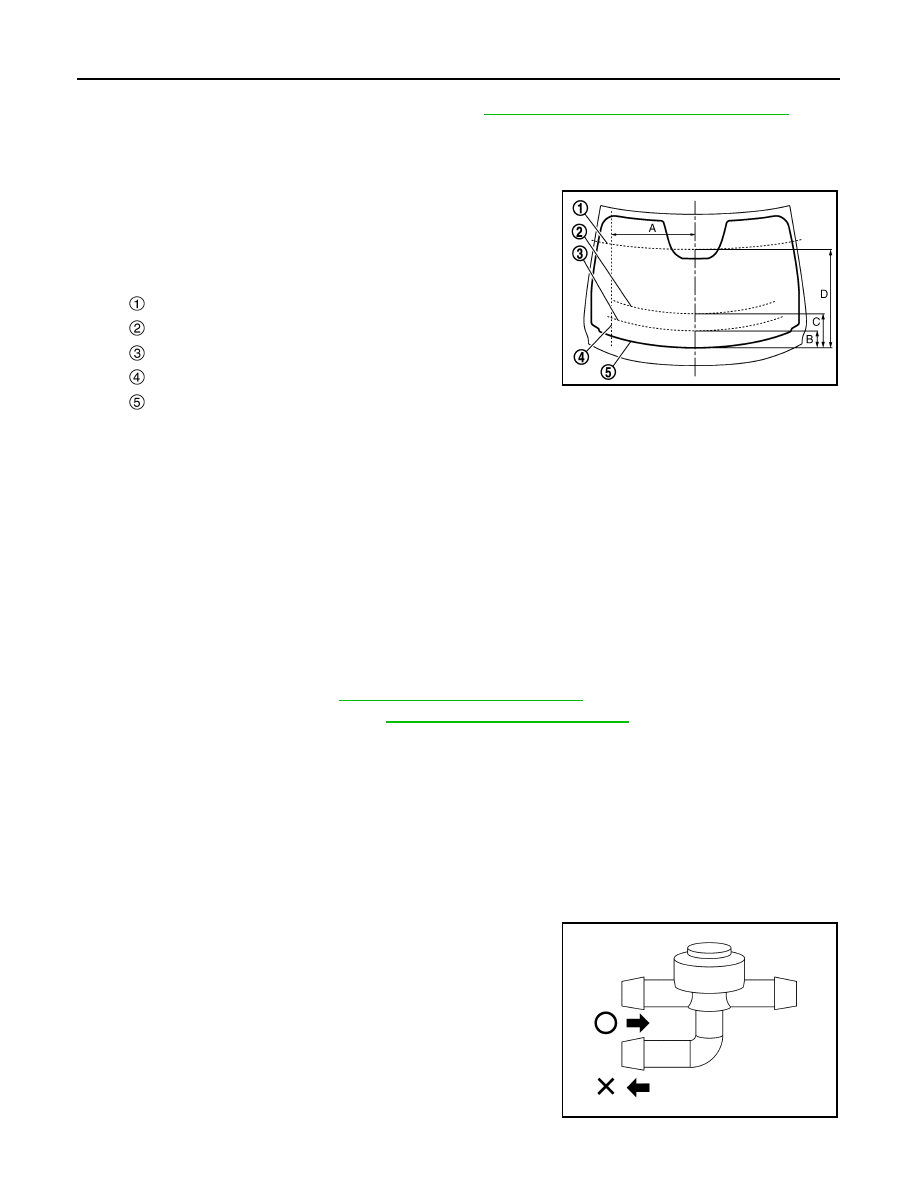

Check spray positions to match the positions shown in the figure.

CAUTION:

Can not adjust splay position.
Replace the washer nozzle, when the splay position is out of the
figure.

WASHER TUBE

WASHER TUBE : Removal and Installation

INFOID:0000000010479864

CAUTION:

When the washer tube is removed, washer fluid may come out so prepare a container to receive the
fluid and never allow fluid to be sprinkled.

REMOVAL

1.

Remove cowl top cover. Refer to

EXT-29, "Removal and Installation"

.

2.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

3.

Pull out washer tube from washer pump.

4.

Disengage washer tube fixing clip, and then remove washer tube.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check that there is no leakage at operated washer.

WASHER TUBE : Inspection

INFOID:0000000010499382

CHECK VALVE INSPECTION

Check that air can pass through the hose by blowing forward [toward
the nozzle, and check that air cannot pass through by sucking
[toward the washer tank].

WASHER TANK

: Upper allowable limit of aiming.

: Aiming target.

: Lower allowable limit of aiming.

: Approx outer edge of fan.

: Edge of black coating.

A

: 540 mm (21.3 in)

B

: 110 mm (4.33 in)

C

: 220 mm (8.66 in)

D

: 630 mm (24.8 in)

JMLIA5254ZZ

JPLIA0275ZZ

FRONT WASHER

WW-85

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER TANK : Removal and Installation

INFOID:0000000010479837

REMOVAL

CAUTION:

When the washer tank inlet and washer tube is removed, washer fluid may come out so prepare a con-
tainer to receive the fluid and never allow fluid to be sprinkled.

1.

Remove front bumper fascia assembly. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

3.

Remove washer tank inlet.

a.

Remove washer tank inlet fixing clip.

b.

Pull out washer tank inlet from washer tank.

4.

Pull out washer tube from washer pump.

5.

Disconnect washer pump harness connector.

6.

Disengage harness clips, and then remove harness form washer tank.

7.

Remove washer tank fixing bolts and nut, and then remove washer tank.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

• After installation, check that there is no leakage at operated washer.

WASHER PUMP

WASHER PUMP : Removal and Installation

INFOID:0000000010479838

REMOVAL

CAUTION:

When the washer tube and washer pump is removed, washer fluid may come out so prepare a con-
tainer to receive the fluid and never allow fluid to be sprinkled.

1.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

2.

Pull out washer tube from washer pump.

3.

Disconnect washer pump harness connector, pull out washer pump, and then remove washer pump.

4.

Remove packing.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check that packing is inserted fully. (This may be the cause of washer fluid leakage and washer

pump looseness.)

• Add washer liquid up to the top of the washer tank inlet after installing. Check that there is no leak-

age.

• After installation, check that there is no leakage at operated washer.

WW-86

< REMOVAL AND INSTALLATION >

REAR WASHER

REAR WASHER

Exploded View

INFOID:0000000010479856

Washer tube

Grommet

Check valve

Washer tube

Grommet

Washer pump

Packing

Washer tank

Washer tank packing

Washer tank inlet

Washer tank cap

Rear washer nozzle

Washer tube

Tube connector

Grommet

Washer tube

Tube connector

Washer tube

: To solenoid valve

: Vehicle front

JMLIA5163ZZ

REAR WASHER

WW-87

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Hydraulic Layout

INFOID:0000000010479857

WASHER NOZZLE

WASHER NOZZLE : Removal and Installation

INFOID:0000000010479858

REMOVAL

CAUTION:

When the washer tube is removed, washer fluid may come out so prepare a container to receive the
fluid and never allow fluid to be sprinkled.
1.

Disengage rear washer nozzle fixing pawl, using a remover tool to notch of rear washer nozzle.

2.

Pull out washer tube form rear washer nozzle, and then remove rear washer nozzle.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

• Can not adjust splay position.
• After installation, check that there is no leakage at operated washer.

WASHER TUBE

WASHER TUBE : Removal and Installation

INFOID:0000000010479863

CAUTION:

When the washer tube is removed, washer fluid may come out so prepare a container to receive the
fluid and never allow fluid to be sprinkled.

REMOVAL

1.

Remove instrument panel, and then remove insulator. Refer to

IP-13, "Removal and Installation"

.

Rear washer nozzle

Grommet

Grommet

Washer tube

Grommet

Washer tank

: Fixing point

JMLIA5164ZZ

WW-88

< REMOVAL AND INSTALLATION >

REAR WASHER

2.

Remove dash side finisher and center pillar lower garnish. Refer to

INT-18, "Removal and Installation"

.

3.

Remove luggage side lower finisher (front). Refer to

INT-29, "Luggage side trim"

.

4.

Remove head lining. Refer to

INT-25, "Removal and Installation"

.

5.

Remove back door trim finisher upper. Refer to

INT-31, "Removal and Installation"

.

6.

Remove front fender protector. Refer to

EXT-32, "Removal and Installation"

.

7.

Remove rear washer nozzle. Refer to

WW-87, "WASHER NOZZLE : Removal and Installation"

.

8.

Pull out washer tube from washer pump.

9.

Disengage washer tube fixing clips, and then remove washer tube.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

After installation, check that there is no leakage at operated washer.

WASHER TUBE : Inspection

INFOID:0000000010499372

CHECK VALVE INSPECTION

Check that air can pass through by blowing forward direction [toward
the washer nozzle], and check that air cannot pass through by suck-
ing reverse direction [toward washer tank].

JMLIA4606ZZ

HEADLAMP WASHER

WW-89

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

HEADLAMP WASHER

Exploded View

INFOID:0000000010479840

Front bumper fascia assembly

Headlamp washer cover

Headlamp washer bracket

Headlamp washer nozzle

Headlamp washer tube

Washer tank

Headlamp washer pump

Headlamp washer tube

Connector

Headlamp washer tube

JMLIA5165ZZ

WW-90

< REMOVAL AND INSTALLATION >

HEADLAMP WASHER

Hydraulic Layout

INFOID:0000000010479841

WASHER NOZZLE

WASHER NOZZLE : Removal and Installation

INFOID:0000000010479842

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-19, "Removal and Installation"

.

2.

Disengage headlamp washer cover fixing pawls while pull out headlamp washer nozzle from front bumper
fascia assembly, and then remove headlamp washer cover.

3.

Remove headlamp washer nozzle.

a.

Pull out washer tube from washer nozzle.

b.

Disengage headlamp washer bracket fixing pawl, and then remove headlamp washer bracket from front
bumper fascia assembly.

c.

Separate headlamp washer bracket and headlamp washer nozzle.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, check that there is no leakage at operated washer.
• After installation, check spray position. Refer to

WW-90, "WASHER NOZZLE : Inspection"

.

WASHER NOZZLE : Inspection

INFOID:0000000010479843

HEADLAMP WASHER NOZZLE SPRAY POSITION INSPECTION

Check that washer fluid is sprayed on the luminescent surface of lamp.

CAUTION:

Headlamp washer nozzle

Washer tank

Washer tank

: Fixing portion

JMLIA5166ZZ
