SB-10

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

REAR SEAT BELT

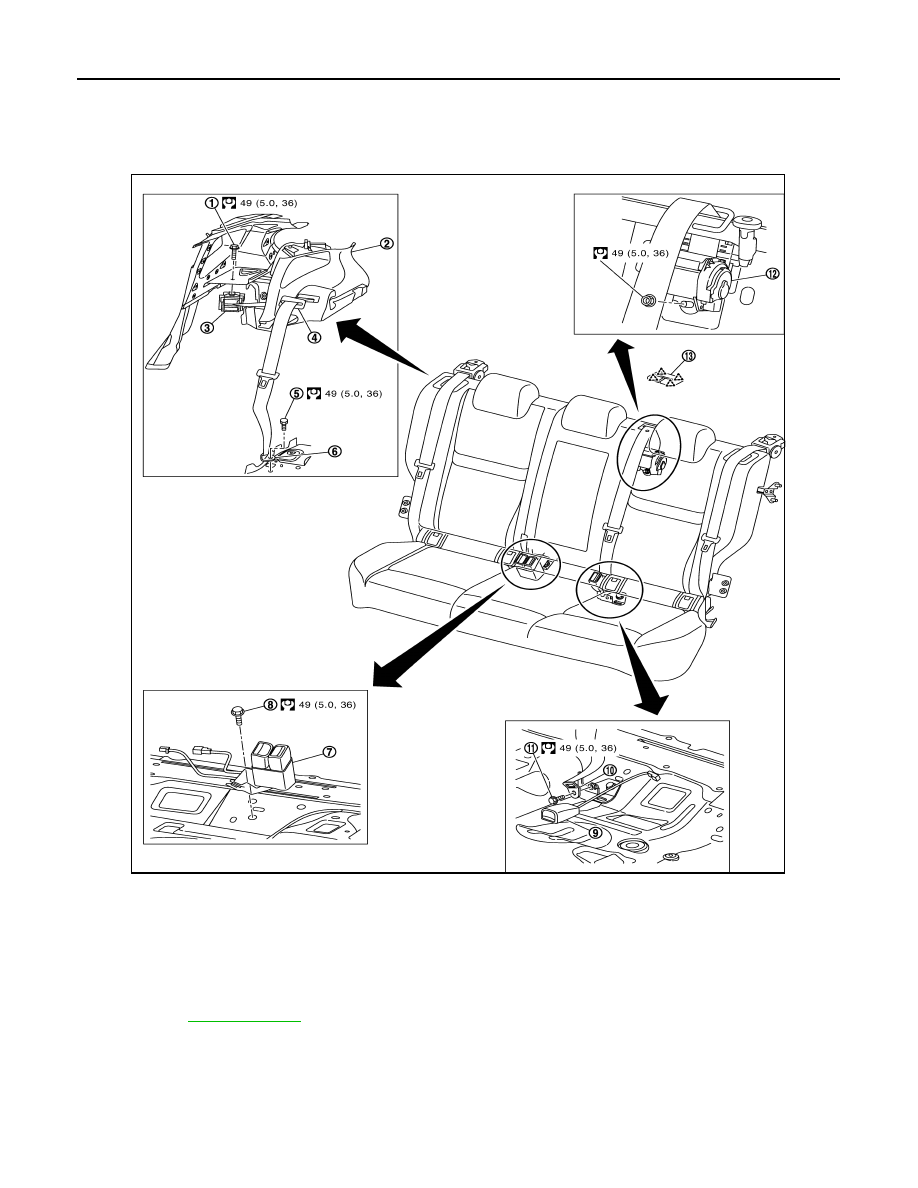

Exploded View

INFOID:0000000010478344

SEAT BELT RETRACTOR

SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000010478345

SEAT BELT RETRACTOR - (LH/RH)

1.

Outer seat belt retractor bolt

2.

Rear pillar finisher

3.

Outer seat belt retractor

4.

Seat belt finisher

5.

Outer seat belt anchor bolt

6.

Outer seat belt anchor

7.

Seat belt buckle (RH and center) 8.

Seat belt buckle bolt (RH and
center)

9.

Seat belt buckle (LH)

10. Center seat belt anchor

11.

Center seat belt anchor bolt

12. Center seat belt retractor

13. Center seat belt escutcheon

Refer to

GI-4, "Components"

 for symbols in the figure.

E1HIA0038GB

REAR SEAT BELT

SB-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

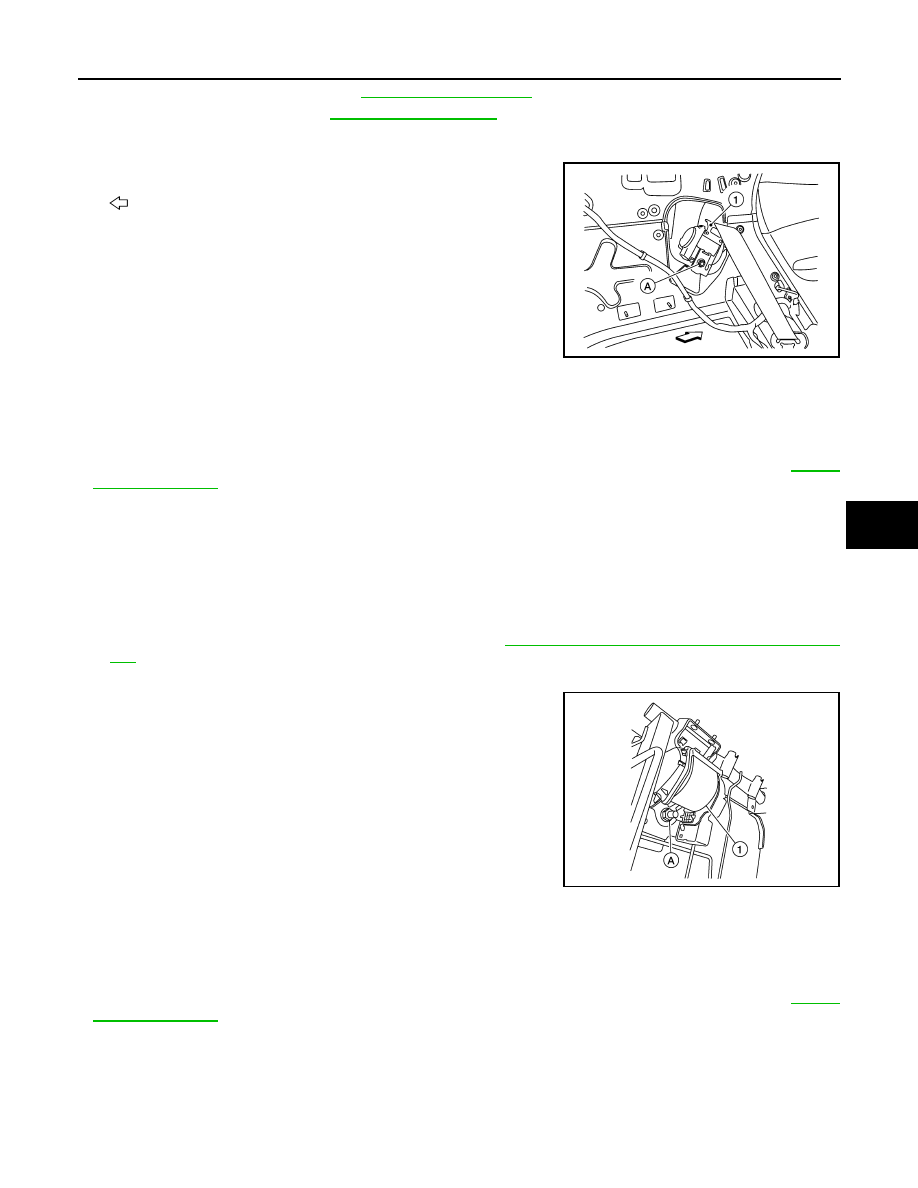

1.

Remove rear pillar finisher. Refer to

INT-28, "Exploded View"

.

2.

Remove seat cushion. Refer to

SE-33, "Exploded View"

.

3.

Remove seat belt outer anchor bolt (A).

4.

Remove seat belt retractor bolt (A) and remove seat belt retrac-
tor (1).

: Front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten the outer seat belt anchor bolt and seat belt retractor bolt to specification. Refer to

SB-10,

"Exploded View"

.

• Make sure the outer seat belt anchor operates freely.
• Always perform an inspection after repair to make sure the system is functioning correctly.

SEAT BELT RETRACTOR - (CENTER)

Removal
1.

Remove center seat belt anchor bolt.

2.

Unclip and remove center seat belt escutcheon.

3.

Remove seatback pad and seatback trim (LH). Refer to

SE-35, "SEATBACK : Disassembly and Assem-

bly"

.

4.

Remove seat belt retractor nut (A) and remove seat belt retactor
(1) from rear seatback frame (LH).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten the center seat belt anchor bolt and seat belt retractor bolt to specification. Refer to

SB-10,

"Exploded View"

.

• Make sure the center seat belt anchor operates freely.
• Always perform an inspection after repair to make sure the system is functioning correctly.

SEAT BELT BUCKLE

ALHIA0373ZZ

ALHIA0376ZZ

SB-12

< REMOVAL AND INSTALLATION >

REAR SEAT BELT

SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000010478346

SEAT BELT BUCKLE - (LH)

Removal
1.

Remove rear seat cushion. Refer to

SE-34, "Removal and Installation"

.

2.

Disconnect seat belt buckle (LH) connector.

3.

Remove seat belt buckle (LH) anchor bolt and remove seat belt buckle (LH).

Installation

Installation is in the reverse order of removal.

CAUTION:

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-10, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning correctly.

SEAT BELT BUCKLE - (CENTER and RH)

Removal
1.

Remove rear seat cushion. Refer to

SE-34, "Removal and Installation"

.

2.

Disconnect seat belt buckle (Center and RH) connector.

3.

Remove seat belt buckle (Center and RH) anchor bolt and remove seat belt buckle (Center and RH).

4.

Separate seat belt buckle center and RH.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-10, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning correctly.

SBC-1

RESTRAINTS

C

D

E

F

G

I

J

K

L

M

SECTION

SBC

A

B

SBC

N

O

P

CONTENTS

SEAT BELT CONTROL SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precautions Necessary for Steering Wheel Rota-
tion After Battery Disconnection  ................................

2

Precautions for Removing Battery Terminal  .............

3

SYSTEM DESCRIPTION  ..............................

4

COMPONENT PARTS  ........................................

4

Component Parts Location ........................................

4

Seat Belt Buckle Switch  ............................................

5

SYSTEM ..............................................................

6

SEAT BELT WARNING LAMP CONTROL SYS-
TEM ..............................................................................

6

SEAT BELT WARNING LAMP CONTROL SYS-
TEM : System Description .........................................

6

WIRING DIAGRAM  .......................................

7

SEAT BELT WARNING LAMP CONTROL
SYSTEM ..............................................................

7

Wiring Diagram  .........................................................

7

BASIC INSPECTION  ...................................

11

DIAGNOSIS AND REPAIR WORK FLOW  ........

11

Work Flow  ...............................................................

11

DTC/CIRCUIT DIAGNOSIS  .........................

14

SEAT BELT BUCKLE SWITCH (DRIVER
SIDE) .................................................................

14

Description ...............................................................

14

Diagnosis Procedure  ...............................................

14

Component Inspection .............................................

14

SEAT BELT BUCKLE SWITCH (PASSEN-
GER SIDE)  ........................................................

15

Description ...............................................................

15

Diagnosis Procedure  ...............................................

15

Component Inspection .............................................

16

REAR SEAT BELT BUCKLE SWITCH  ............

17

Description ...............................................................

17

Diagnosis Procedure  ...............................................

17

Component Inspection .............................................

17

SYMPTOM DIAGNOSIS  ..............................

18

SEAT BELT WARNING LAMP DOES NOT
TURN ON  ..........................................................

18

Diagnosis Procedure  ...............................................

18

SEAT BELT WARNING LAMP DOES NOT
TURN OFF .........................................................

20

Diagnosis Procedure  ...............................................

20

REAR SEAT BELT WARNING LAMP DOES
NOT ILLUMINATE  ............................................

22

Diagnosis Procedure  ...............................................

22

REAR SEAT BELT WARNING LAMP DOES
NOT TURN OFF  ................................................

24

Diagnosis Procedure  ...............................................

24
