FRONT DRIVE SHAFT

FAX-71

< UNIT DISASSEMBLY AND ASSEMBLY >

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

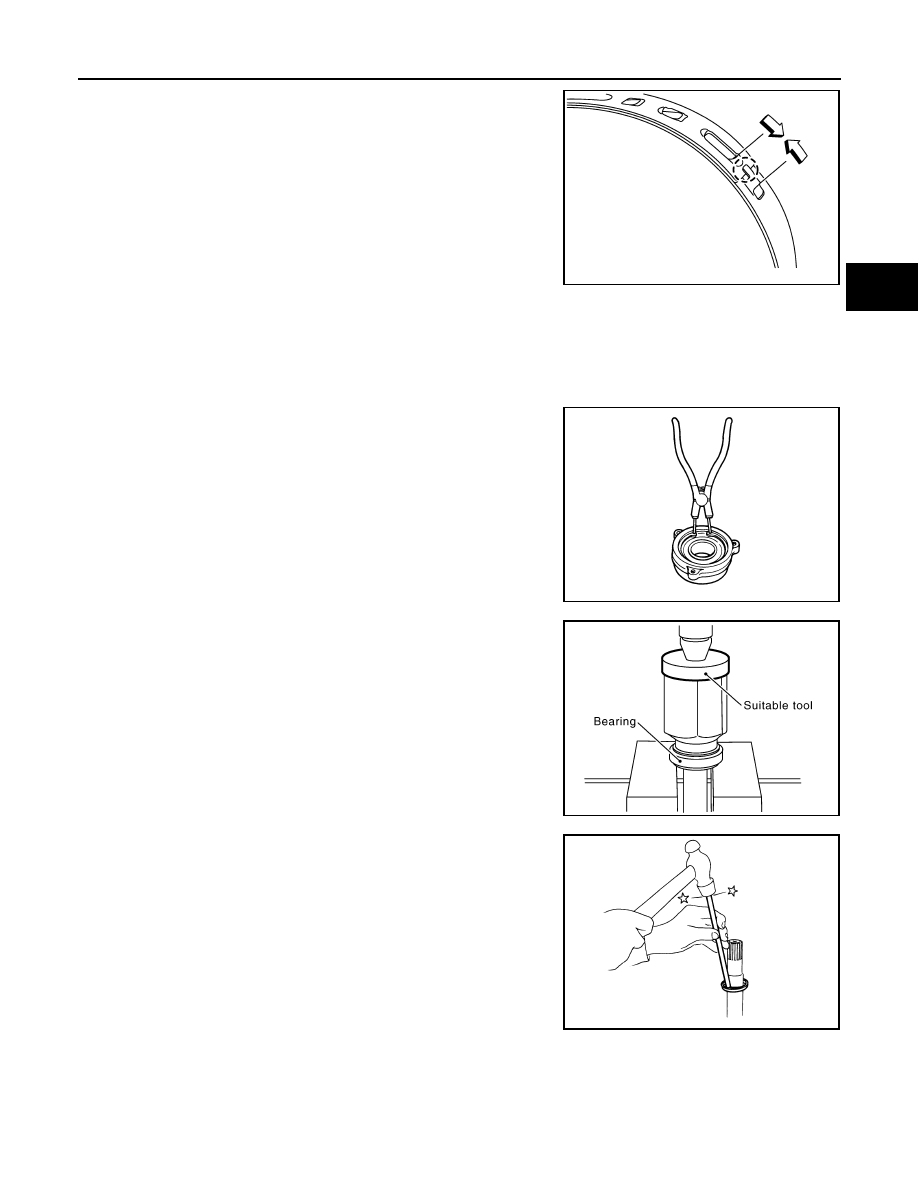

8.

Pinch projection on the band with suitable pliers to tighten band.

9.

Insert tip of band below end of the pawl.

10. Secure housing and shaft, and then make sure that they are in

the correct position when rotating boot. Install them with new
boot band when the mounting positions become incorrect.

11. Install dust shield.

CAUTION:

Never reuse dust shield.

12. Install circular clip to housing (left side).

CAUTION:

Never reuse circular clip.

Support Bearing

1.

Install dust shield on housing assembly.

CAUTION:

Never reuse dust shield.

2.

Install support bearing into retainer.

3.

Install snap ring to retainer.

CAUTION:

Never reuse snap ring.

4.

Install retainer and support bearing to housing assembly.

5.

Install snap ring.

CAUTION:

Never reuse snap ring.

6.

Install dust shields.

CAUTION:

Never reuse dust shields.

Dynamic Damper

SDIA3558E

FAC0147D

YAX007

FAC0154D

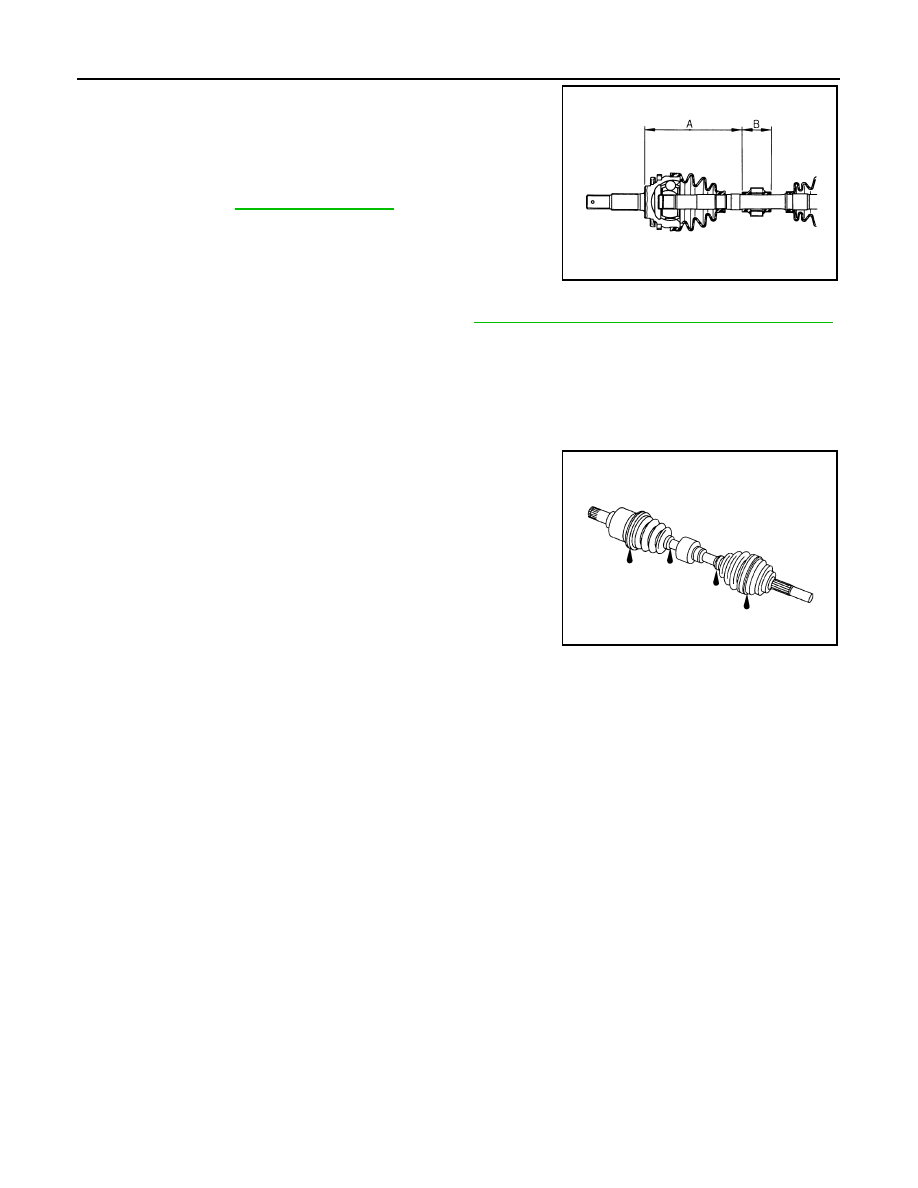

FAX-72

< UNIT DISASSEMBLY AND ASSEMBLY >

[4WD]

FRONT DRIVE SHAFT

Secure dynamic damper with bands in the following specified posi-
tion when removing.

CAUTION:

Never reuse bands.

Wheel Side

For further details, refer to the installation procedure of “

FAX-54, "WHEEL SIDE : Removal and Installation"

”

for the drive shaft boot.

Inspection

INFOID:0000000011722648

INSPECTION AFTER REMOVAL

• Move joint up/down, left/right, and in the axial directions. Check for motion that is not smooth and for signifi-

cant looseness.

• Check boot for cracks, damage, and leakage of grease.
• Disassemble drive shaft and exchange malfunctioning part if there

is any non-standard condition.

INSPECTION AFTER DISASSEMBLY

Shaft

Check shaft for runout, cracks, or other damage. Replace if there are.

Dynamic Damper

Check damper for cracks or wear. Replace if necessary.

Joint Sub-Assembly (Wheel Side)

Check the following:
• Joint sub-assembly for rough rotation and excessive axial looseness
• The inside of the joint sub-assembly for entry of foreign material
• Joint sub-assembly for compression scars, cracks, and fractures inside of joint sub-assembly
Replace joint sub-assembly if there are any non-standard conditions of components.

Housing and Spider assembly (Transaxle Side)

Replace housing and spider assembly if there is any scratching or wear of housing on roller contact surface or
spider roller contact surface.
NOTE:
Housing and spider assembly are used in a set.

Support Bearing (Right Side)

Make sure wheel bearing rolls freely and is free from noise, cracks, pitting or wear. Replace support bearing if
there are any non-standard conditions.

Support Bearing Bracket (Right Side)

Check for bending, cracks, or damage. Replace support bearing bracket if there are any non-standard condi-
tions.

Standard

Demission :

FAX-73, "Drive Shaft"

.

FAC0156D

SDIA1190J

SERVICE DATA AND SPECIFICATIONS (SDS)

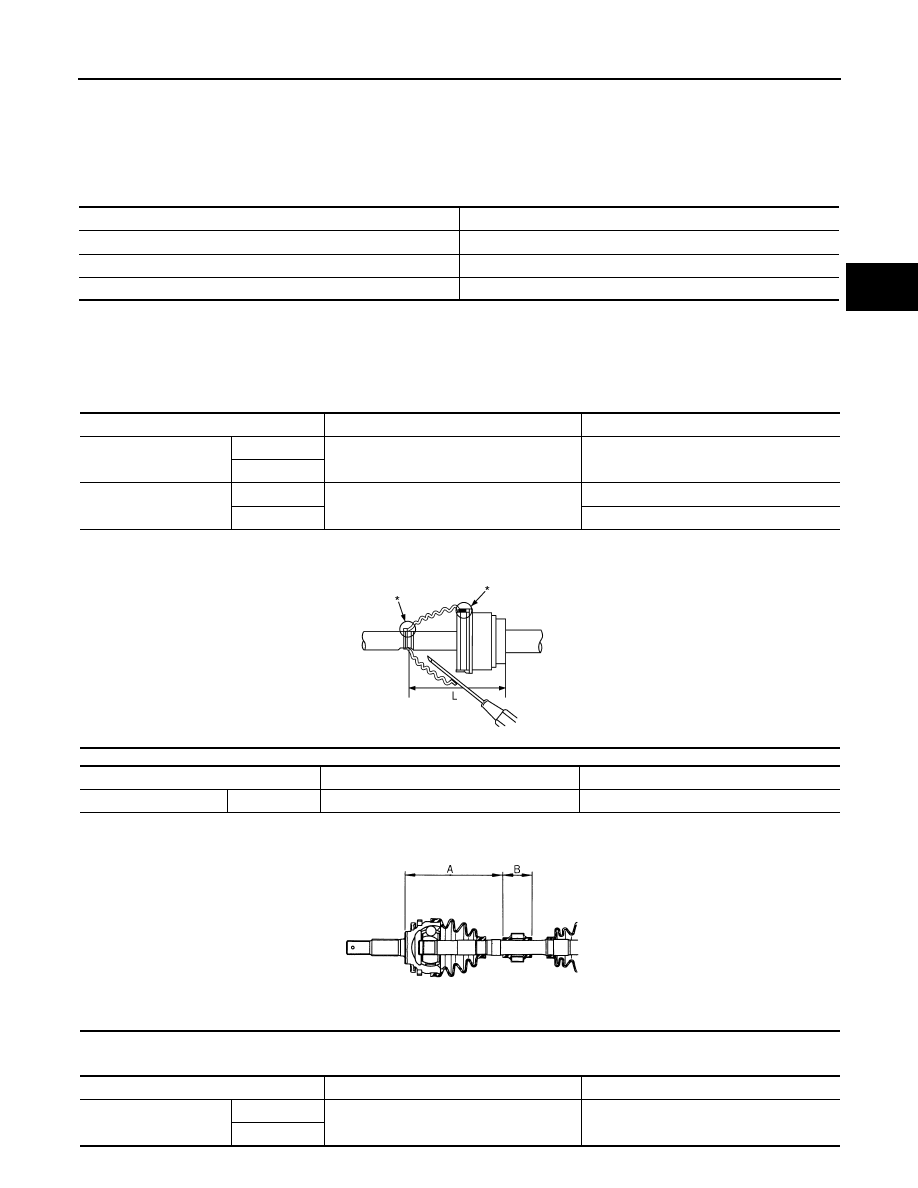

FAX-73

< SERVICE DATA AND SPECIFICATIONS (SDS)

[4WD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing

INFOID:0000000010436941

Drive Shaft

INFOID:0000000010297882

MR20DD

M/T models

CVT models

Item

Standard

Axial end play

0.0 mm (0.0 in)

Rotating torque

1.9 N.m (0.19 kg-m, 17 in-lb) or less

Spring balance measurement

13.7 N (1.40 kg-f, 3.08 lb-f) or less

Joint

Wheel side

Transaxle assembly side

Grease quantity

Left side

115 – 135 g (4.06 – 4.76 oz)

200 – 220 g (7.05 – 7.76 oz)

Right side

Boots installed length (L)

Left side

133.5 mm (5.26 in)

189.6 mm (7.46 in)

Right side

177.6 mm (6.99 in)

Dynamic damper

A

B

Dimension

Right side

219 – 223 mm (8.62 – 8.78 in)

70 mm (2.76 in)

JPDIF0031ZZ

FAC0156D

Joint

Wheel side

Transaxle assembly side

Grease quantity

Left side

115 – 135 g (4.06 – 4.76 oz)

200 – 220 g (7.05 – 7.76 oz)

Right side

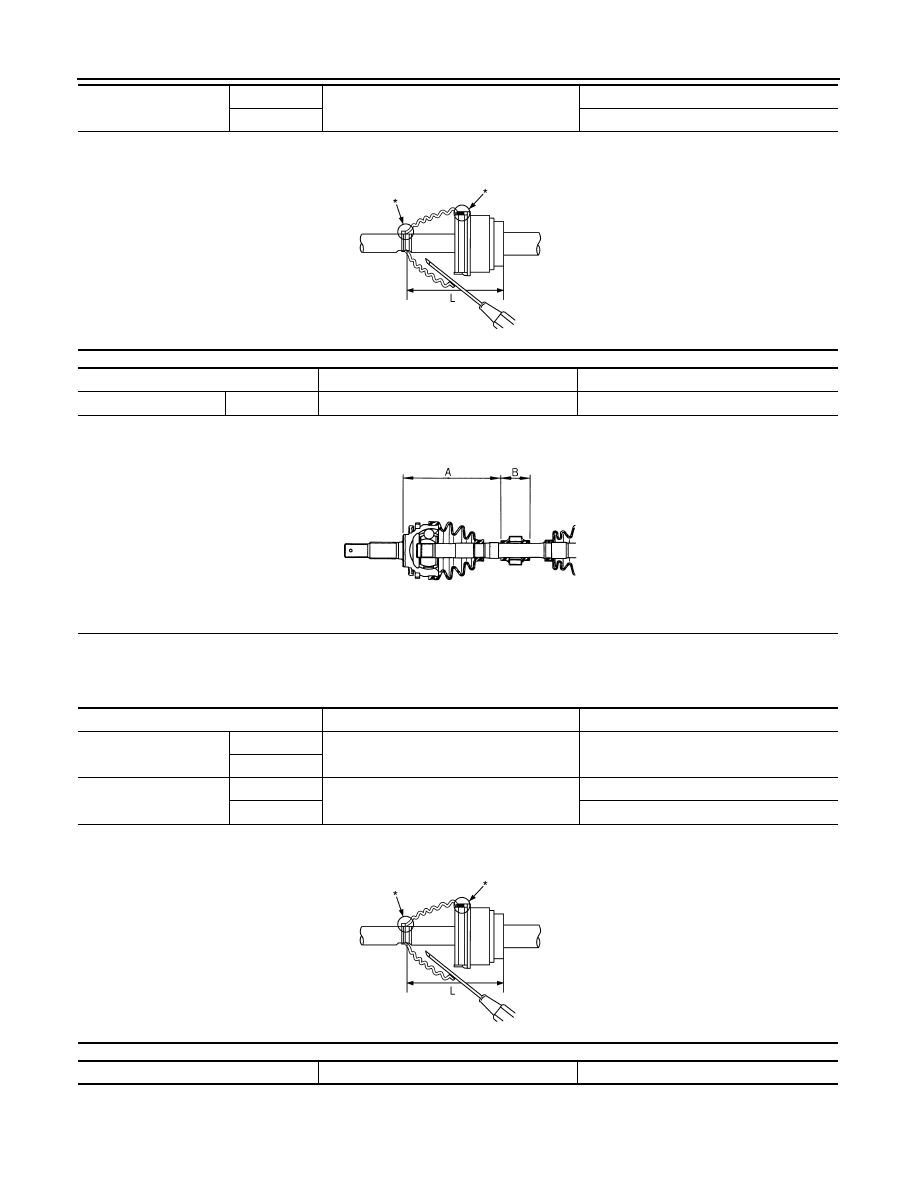

FAX-74

< SERVICE DATA AND SPECIFICATIONS (SDS)

[4WD]

SERVICE DATA AND SPECIFICATIONS (SDS)

R9M

M/T models

Boots installed length (L)

Left side

133.5 mm (5.26 in)

185.6 mm (7.31 in)

Right side

177.6 mm (6.99 in)

Dynamic damper

A

B

Dimension

Right side

238 – 242 mm (9.37 – 9.53 in)

70 mm (2.76 in)

JPDIF0031ZZ

FAC0156D

Joint

Wheel side

Transaxle assembly side

Grease quantity

Left side

175 – 205 g (6.17 – 7.23 oz)

165 – 175 g (5.82 – 6.17 oz)

Right side

Boots installed length (L)

Left side

163.4 mm (6.43 in)

173.1 mm (6.81 in)

Right side

181.1 mm (7.13 in)

Dynamic damper

A

B
