Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-615, "Adjustment"

.

TM-636

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

OUTPUT SPEED SENSOR

OUTPUT SPEED SENSOR

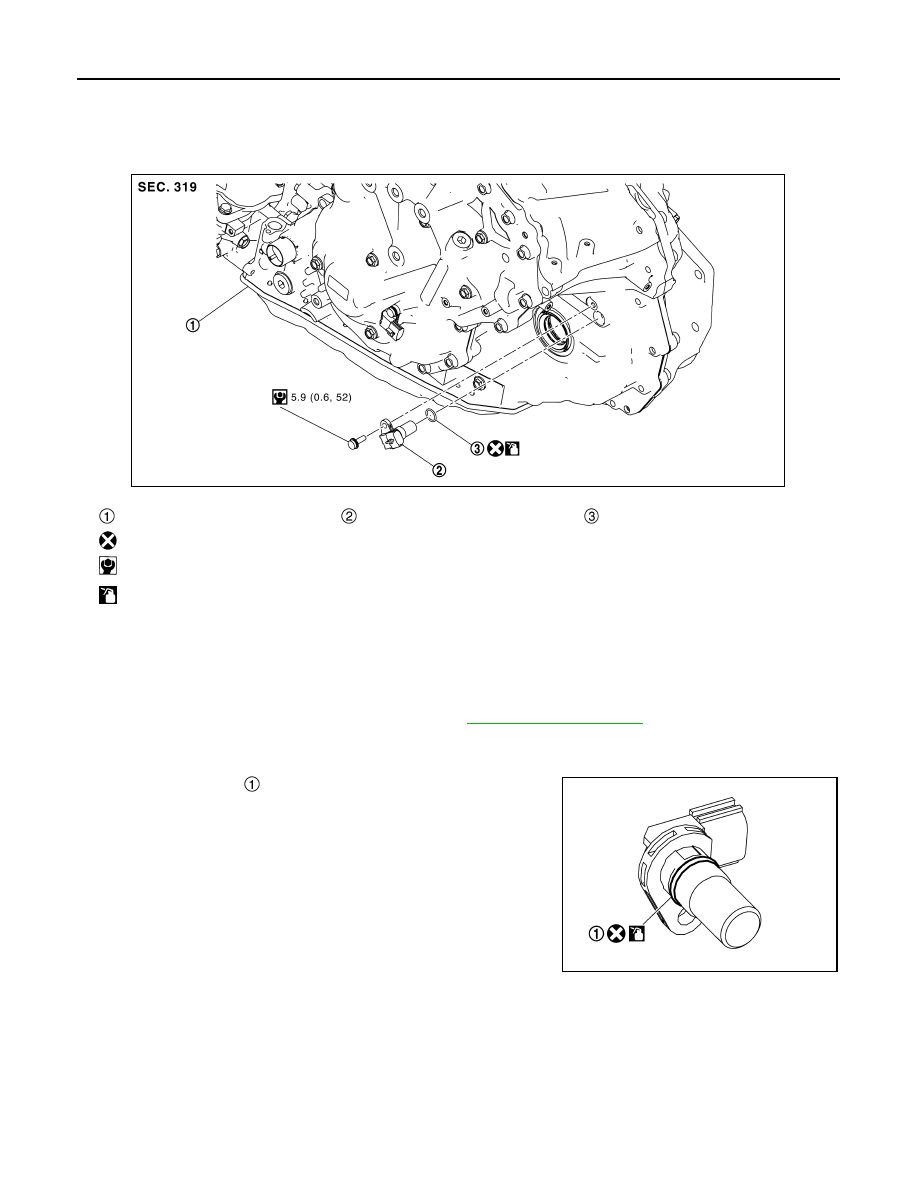

Exploded View

INFOID:0000000010245696

Removal and Installation

INFOID:0000000010245697

REMOVAL

1.

Turn ignition switch OFF.

2.

Remove the Hoodledge splashguard (LH). Refer to

EXT-31, "Exploded View"

.

3.

Disconnect the output speed sensor harness connector.

4.

Remove the output speed sensor mounting bolt and remove the output speed sensor.

5.

Remove the O-ring

 from the output speed sensor.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to the O-ring.

Inspection and Adjustment

INFOID:0000000010245698

INSPECTION AFTER INSTALLATION

Transaxle assembly

Output speed sensor

O-ring

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: Apply CVT fluid

JSDIA5133GB

JSDIA5199ZZ

OUTPUT SPEED SENSOR

TM-637

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Start the engine and check visually that there is no leakage of CVT fluid.

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT fluid level. Refer to

TM-615, "Adjustment"

.

TM-638

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

DIFFERENTIAL SIDE OIL SEAL

DIFFERENTIAL SIDE OIL SEAL

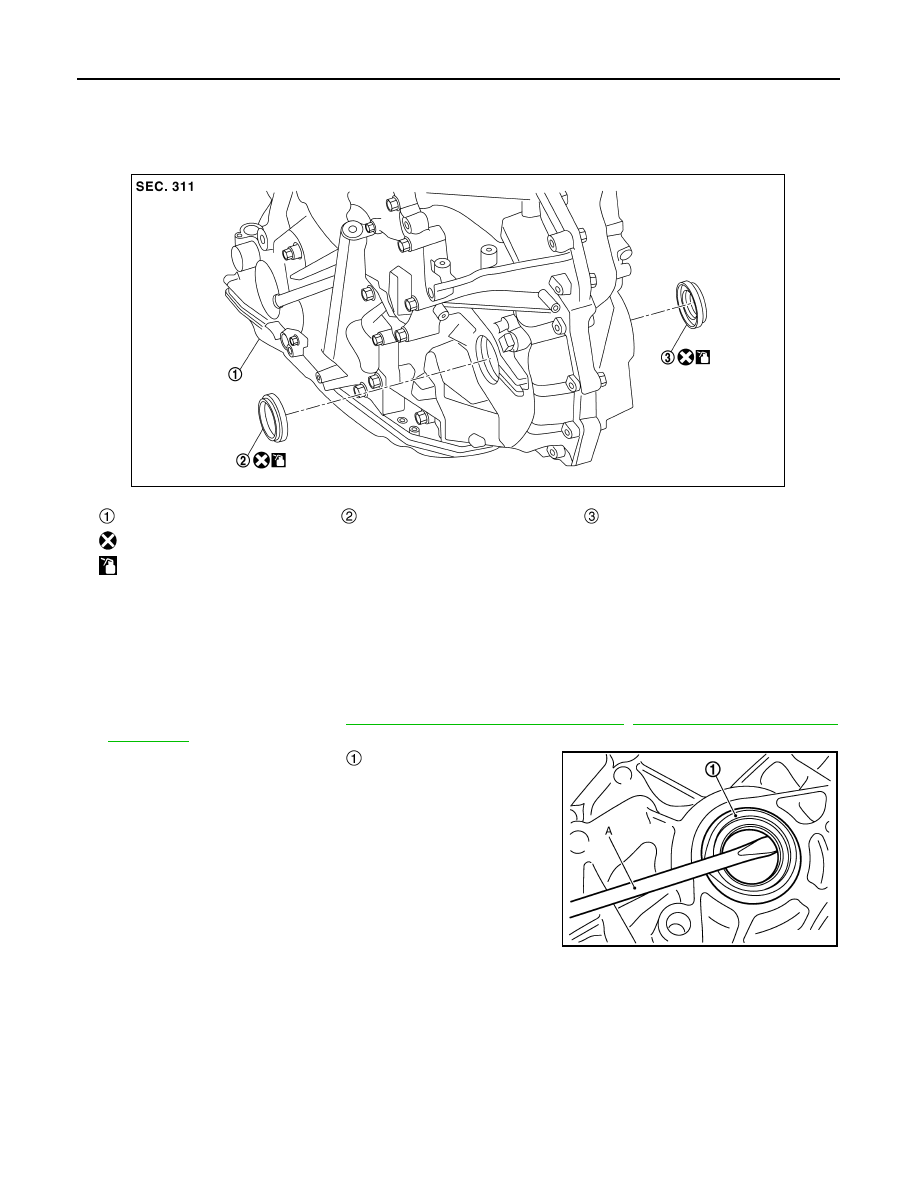

Exploded View

INFOID:0000000010245699

Removal and Installation

INFOID:0000000010245700

REMOVAL

NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Remove front drive shaft. Refer to

FAX-22, "Removal and Installation (LH)"

,

FAX-26, "Removal and Instal-

lation (RH)"

.

2.

Remove differential side oil seal

 using an oil seal remover

(commercial service tool) (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLATION

Note the followings and installation is in the reverse order of removal.

CAUTION:

• Never reuse differential side oil seal.
• Apply CVT fluid to differential side oil seals.
• When inserting the drive shaft, be sure to use Tool.

Transaxle assembly

Differential side oil seal (left side)

Differential side oil seal (right side)

: Always replace after every disassembly.

: Apply CVT fluid

JSDIA3729GB

JPDIA0118ZZ

Tool number

: KV38107900
