Nissan Qashqai J11. Manual - part 761

CVT SHIFT SELECTOR

TM-619

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

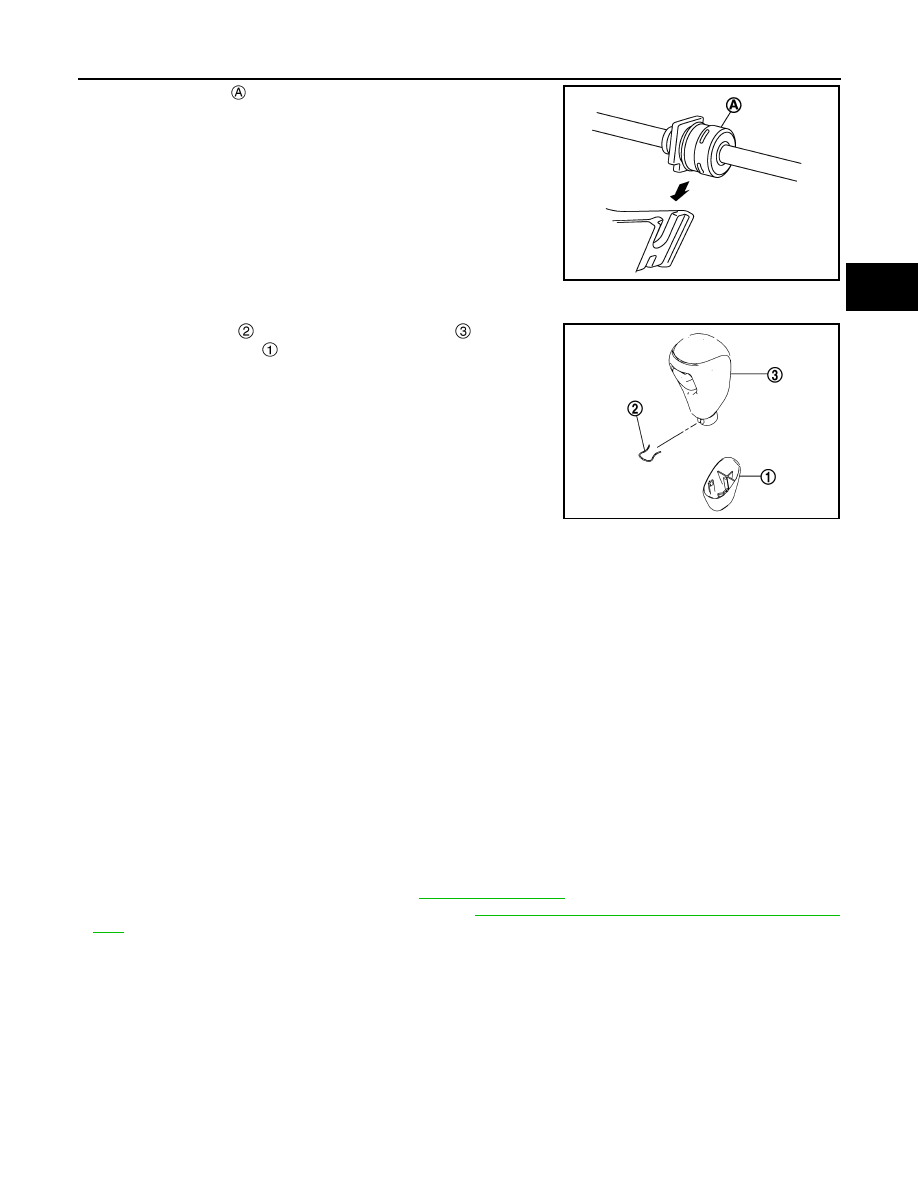

2.

Install the socket

 onto the CVT shift selector assembly.

CAUTION:

• Place the socket onto the CVT shift selector assembly,

then fasten it in place from above.

• Check that the pulling on the socket does not disconnect

it.

• Follow the procedure below and place the selector lever knob onto the CVT shift selector.
1.

Install the lock pin

 onto the selector lever knob

.

2.

Install the knob cover

 onto the selector lever knob.

3.

Shift the selector lever to “N” position.

4.

Press the selector lever knob onto the selector lever until it
clicks.

CAUTION:

• When install, never press selector button.
• Never strike the selector lever knob to press it into place.

5.

After installing selector lever knob, pull the knob to check that it
does not become disconnected.

Disassembly and Assembly

INFOID:0000000010476164

DISASSEMBLY

1.

Remove the position lamp.

2.

Disengage the hooks (4 locations), and lift up the position indication panel to separate it from the CVT shift
selector assembly.

CAUTION:

Never damage the CVT shift selector assembly.

3.

Remove shift lock unit mounting screws.

4.

Remove the shift lock unit from the CVT shift selector assembly.

5.

Disconnect the park position switch connector, detent switch connector and shift lock solenoid connector
from the shift lock unit.

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection

INFOID:0000000010245676

INSPECTION AFTER INSTALLATION

• Check the CVT shift selector position. Refer to

TM-509, "Inspection"

.

• Check that shift lock can be forcible release. Refer to

TM-445, "SHIFT LOCK SYSTEM : System Descrip-

tion"

.

• The key can be removed only when the selector lever is in the “P” position. (Without push engine starter)
• It must not be possible to turn the ignition switch to LOCK when the selector lever is not in the “P” position.

(Without push engine starter)

JSDIA1810ZZ

JSDIA2778ZZ

TM-620

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

CONTROL CABLE

CONTROL CABLE

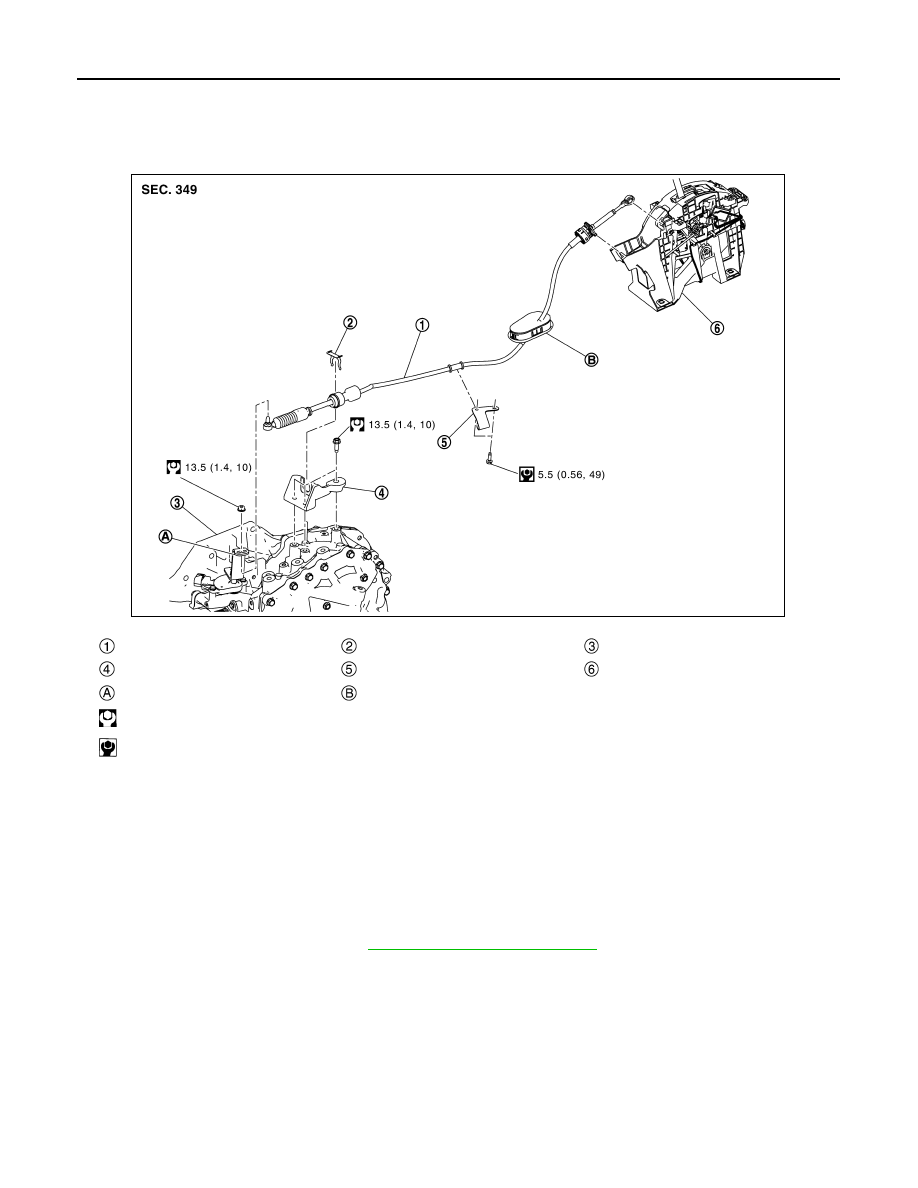

Exploded View

INFOID:0000000010245677

Removal and Installation

INFOID:0000000010245678

CAUTION:

Always apply the parking brake before performing removal and installation.

REMOVAL

1.

Apply the parking brake.

CAUTION:

Make sure the vehicle cannot move with the parking brake applied.

2.

Remove the center console. Refer to

IP-19, "Removal and Installation"

.

3.

Remove the position lamp.

Control cable

Lock plate

Transaxle assembly

Bracket

Bracket

CVT shift selector assembly

Manual lever

Grommet

: N·m (kg-m, ft-lb)

: N·m (kg-m, in-lb)

JSDIA5218GB

CONTROL CABLE

TM-621

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

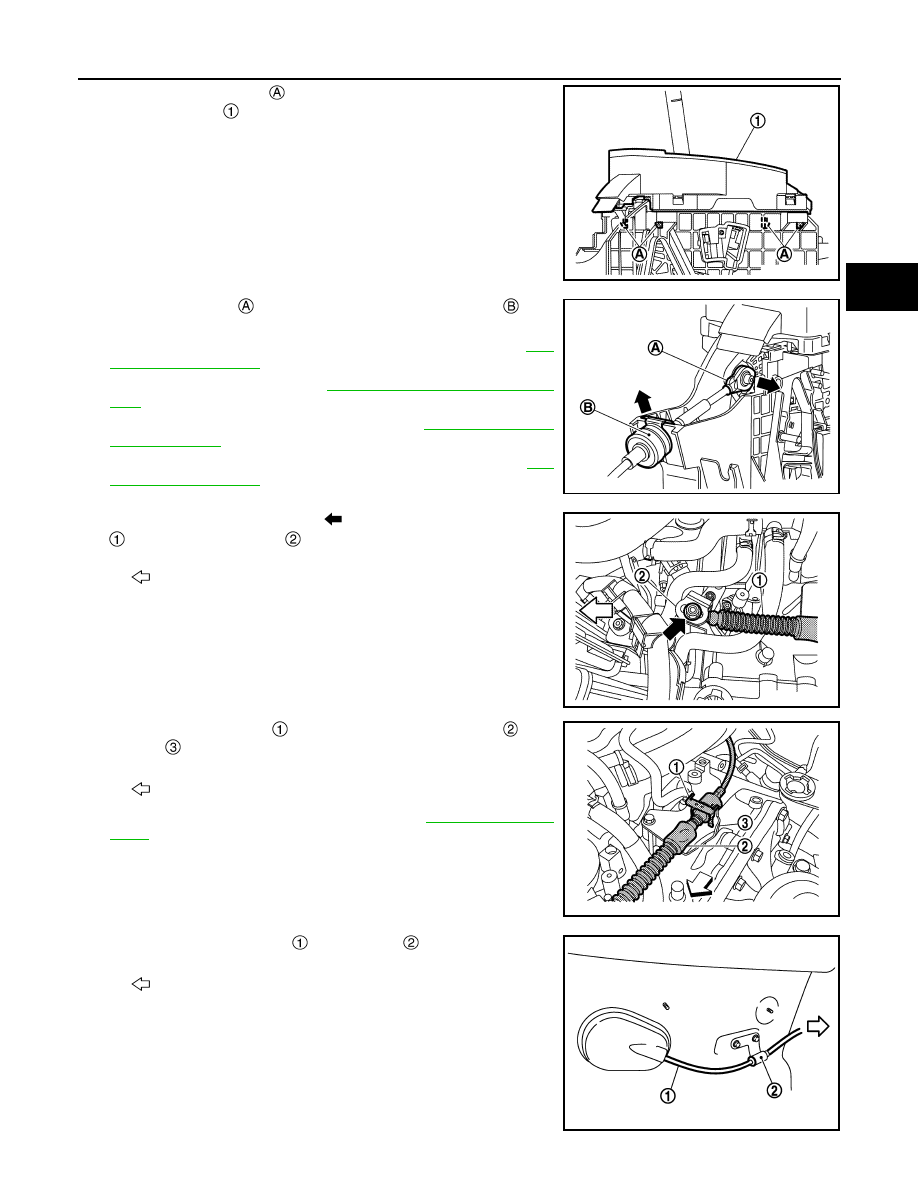

4.

Disengage the hooks

 (4 locations), and lift up the position

indication panel

 to separate it from the CVT shift selector.

CAUTION:

Never damage the CVT shift selector assembly.

5.

Disconnect the tip

 of control cable and remove socket

 from

the CVT shift selector assembly.

6.

Remove the air duct (inlet) and air cleaner case. Refer to

EM-

380, "Exploded View"

.

7.

Remove the battery. Refer to

PG-155, "Removal and Installa-

tion"

.

8.

Remove the TCM bracket and TCM. Refer to

TM-625, "Removal

and Installation"

.

9.

Remove the battery mounting bracket assembly. Refer to

PG-

154, "Exploded View"

.

10. Remove the control cable nut (

) and remove the control cable

 from the manual lever

.

11. Remove the lock plate

 and remove the control cable

 from

bracket .

12. Remove the exhaust front tube. Refer to

EX-22, "Exploded

View"

13. Remove heat plate.

14. Remove the control cable

 from bracket

.

15. Remove the control cable from the vehicle.

JSDIA4229ZZ

JSDIA4220ZZ

: Vehicle front

JSDIA4147ZZ

: Vehicle front

JSDIA4148ZZ

: Vehicle front

JPDIA0107ZZ

TM-622

< REMOVAL AND INSTALLATION >

[CVT: RE0F10G]

CONTROL CABLE

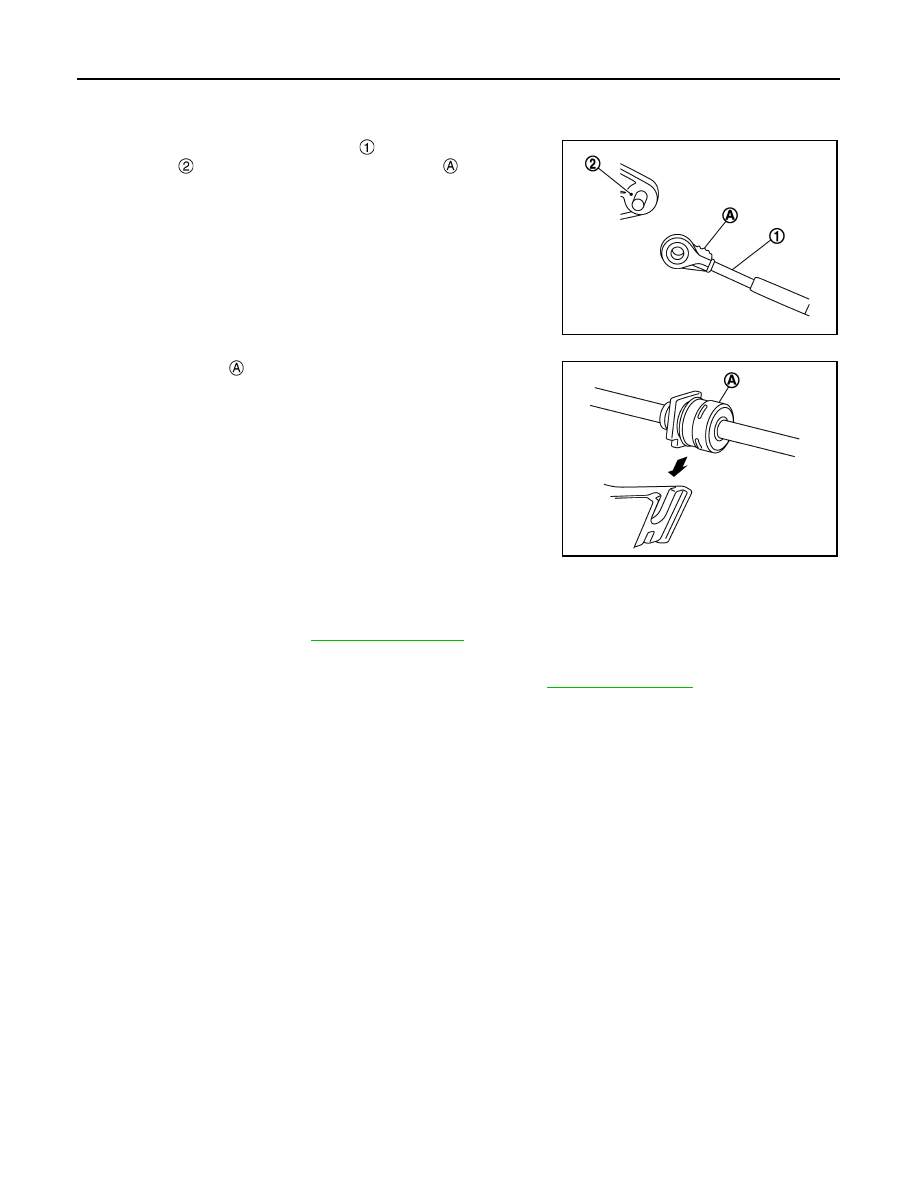

INSTALLATION

Note the following and install in the reverse order of removal.
• Pay attention to the following when connecting the control cable to the CVT shift selector assembly.
1.

When connecting the control cable

 to the CVT shift selector

assembly

, face the grooved surface of the rib

 up and insert

the control cable until it stops.
NOTE:
Apply multi-purpose grease to control cable eye before installa-
tion.

2.

Install the socket

 onto the CVT shift selector assembly.

CAUTION:

• Place the socket onto the CVT shift selector assembly,

then fasten it in place from above.

• Check that the pulling on the socket does not disconnect

it.

Inspection and Adjustment

INFOID:0000000010245679

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT position. Refer to

TM-509, "Adjustment"

.

INSPECTION AFTER ADJUSTMENT

Check the CVT shift selector position after the adjustment. Refer to

TM-509, "Inspection"

.

JSDIA1624ZZ

JSDIA1810ZZ
