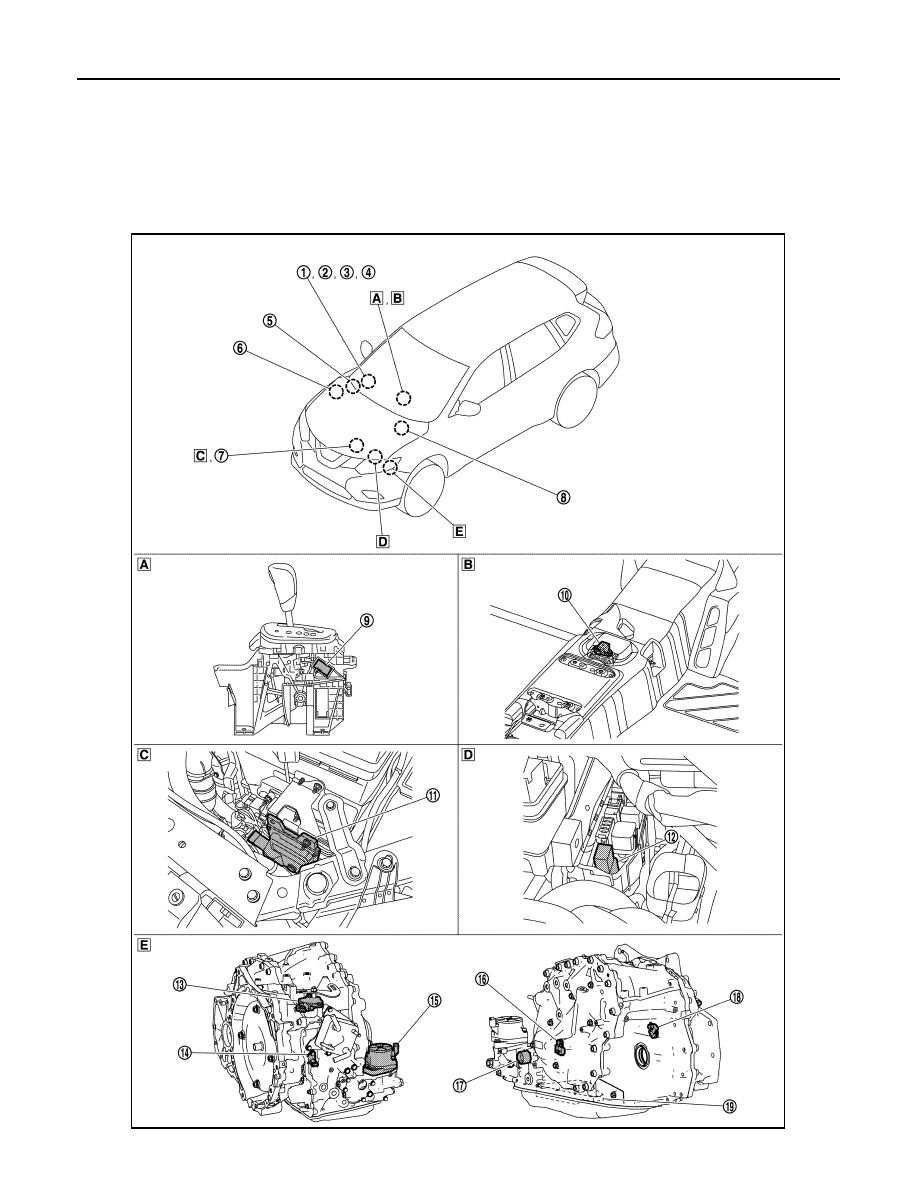

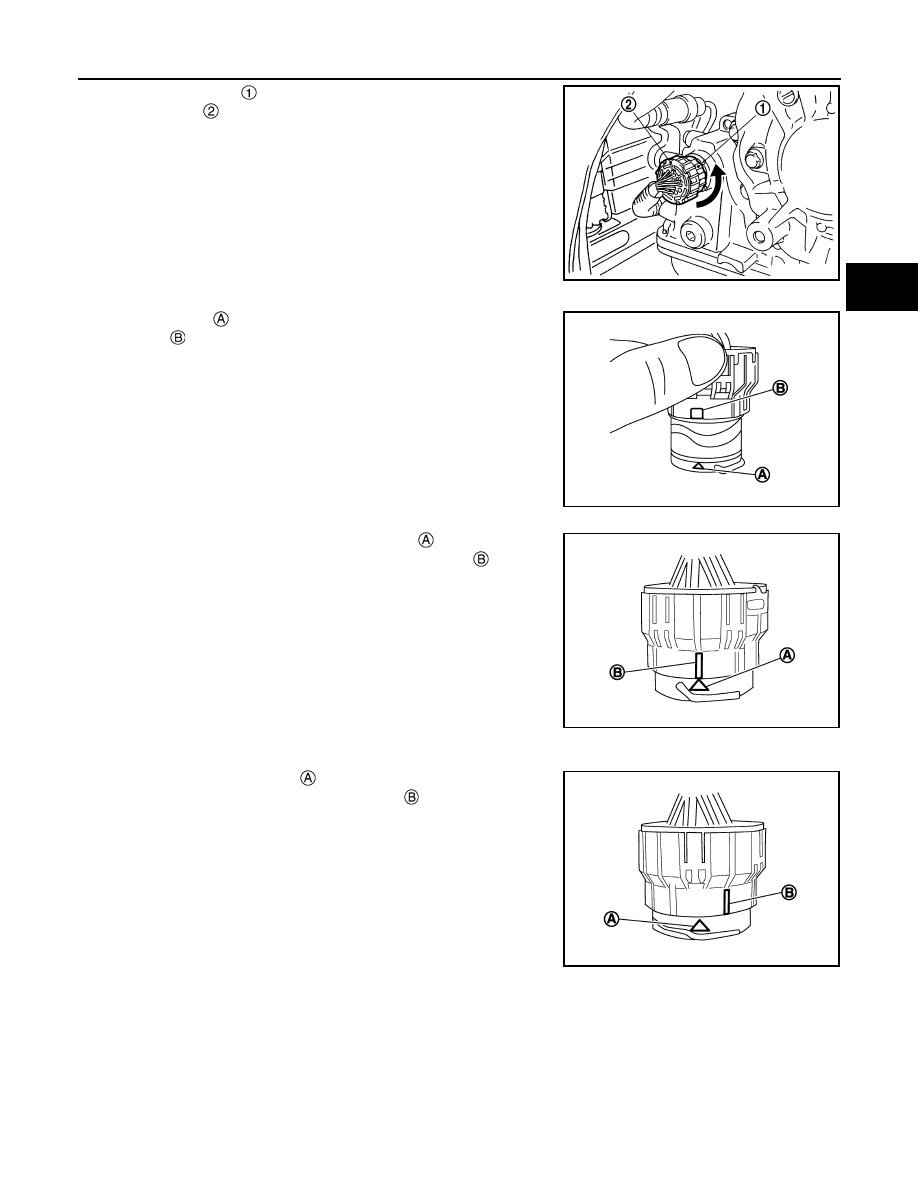

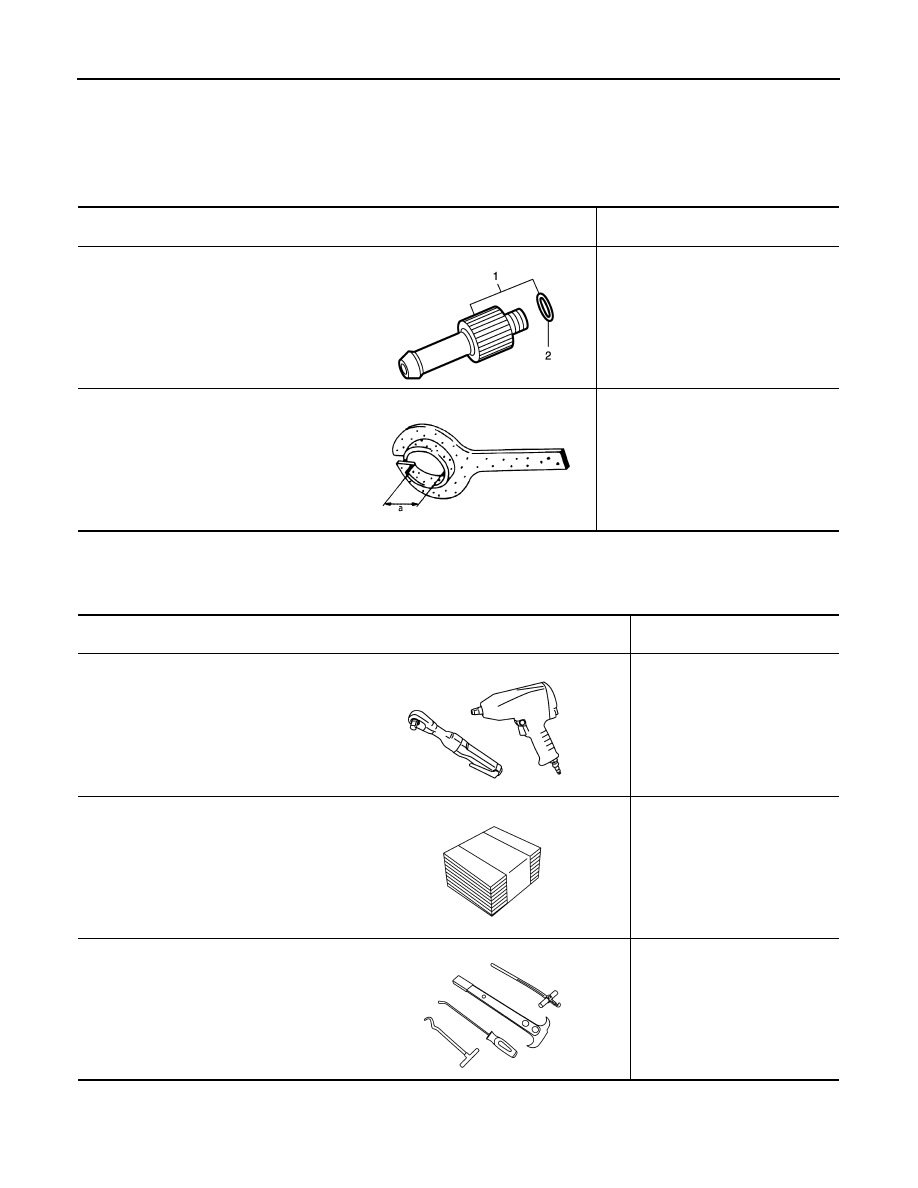

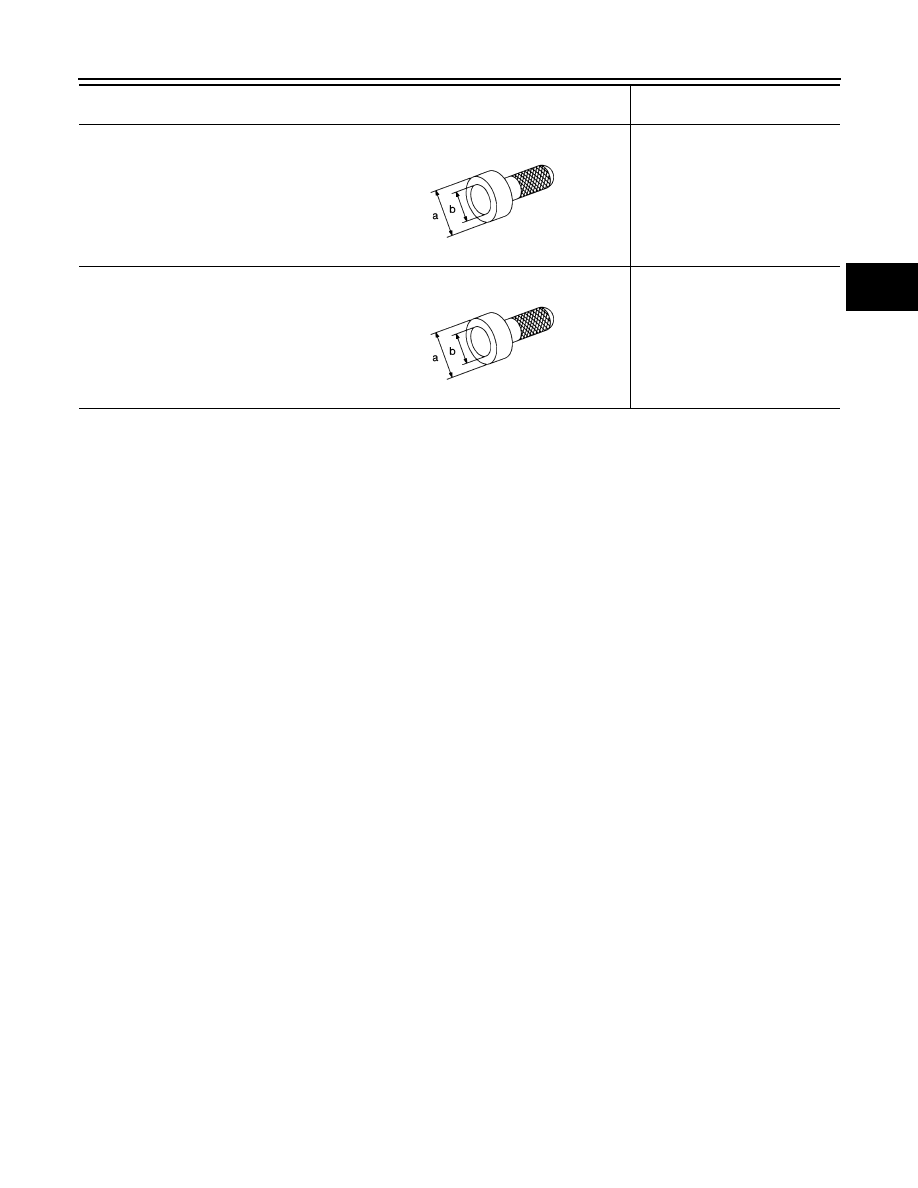

PRECAUTIONS TM-427 < PRECAUTION > [CVT: RE0F10G] C E F G H I J K L M A B TM N O P • Rotate bayonet ring counterclockwise. Pull out CVT unit har- ness connector upward and remove it. INSTALLATION 1. Align marking on CVT unit harness connector terminal with marking on bayonet ring. Insert CVT unit harness connector. 2. Rotate bayonet ring clockwise. 3. Rotate bayonet ring clockwise until marking on CVT unit har- ness connector terminal body is aligned with the slit on bayo- net ring as shown in the figure (correctly fitting condition). CAUTION: • Securely align marking on CVT unit harness connector terminal body with bayonet ring slit . Then, be careful not to make a half fit condition as shown in the figure. • Never mistake the slit of bayonet ring for other dent por- tion. SCIA6685J JPDIA0294ZZ JPDIA0295ZZ JPDIA0296ZZ |
