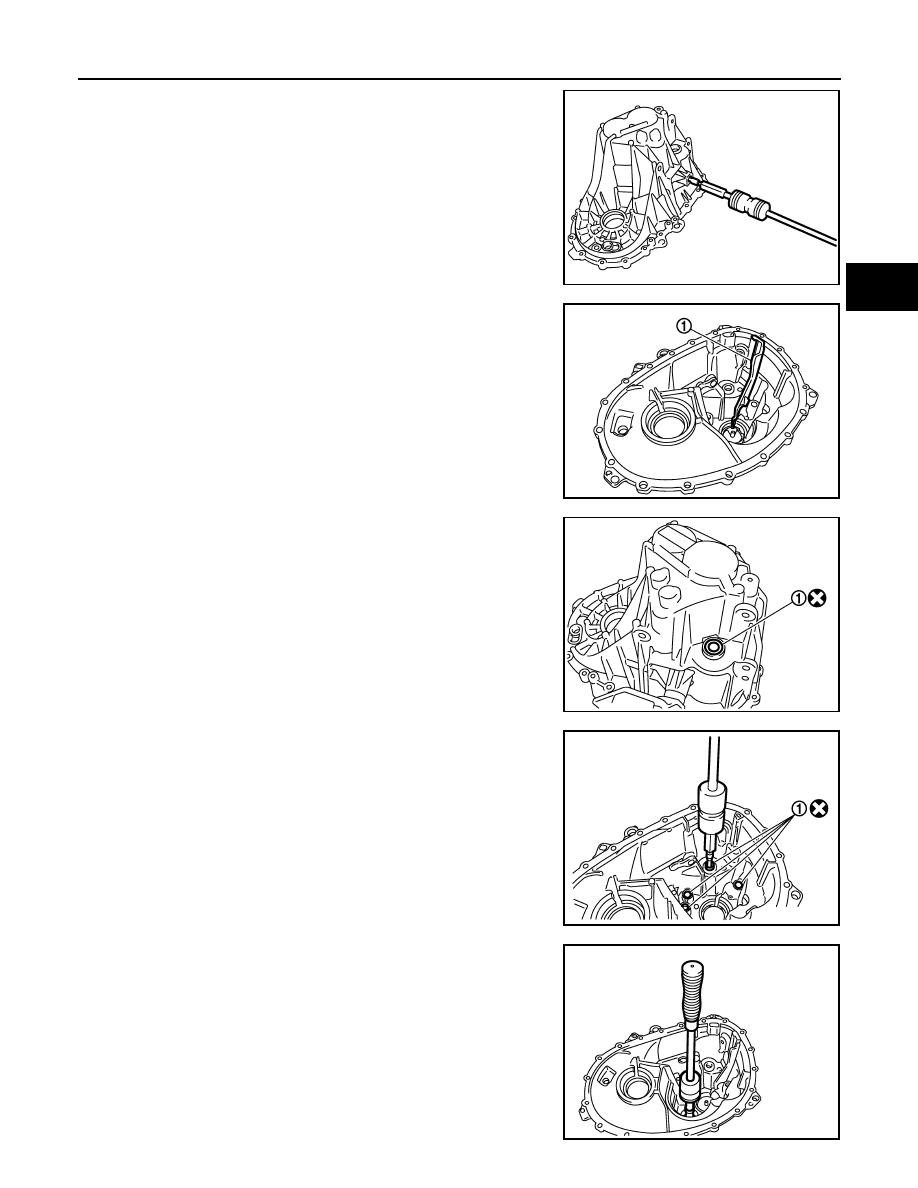

24. Remove selector lever oil seal and bushings from transaxle

case using a suitable remover.

25. Remove oil gutter (1) from transaxle case.

26. Remove shifter lever oil seal (1) from transaxle case.

27. Remove bushings (1) from transaxle case using a suitable

remover.

28. Remove mainshaft rear bearing outer race from transaxle case

using a suitable remover and then remove bearing preloading
shim.

CAUTION:

Never damage transaxle case.

PCIB1713E

PCIB1707E

PCIB1709E

PCIB1710E

PCIB1706E

TM-48

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

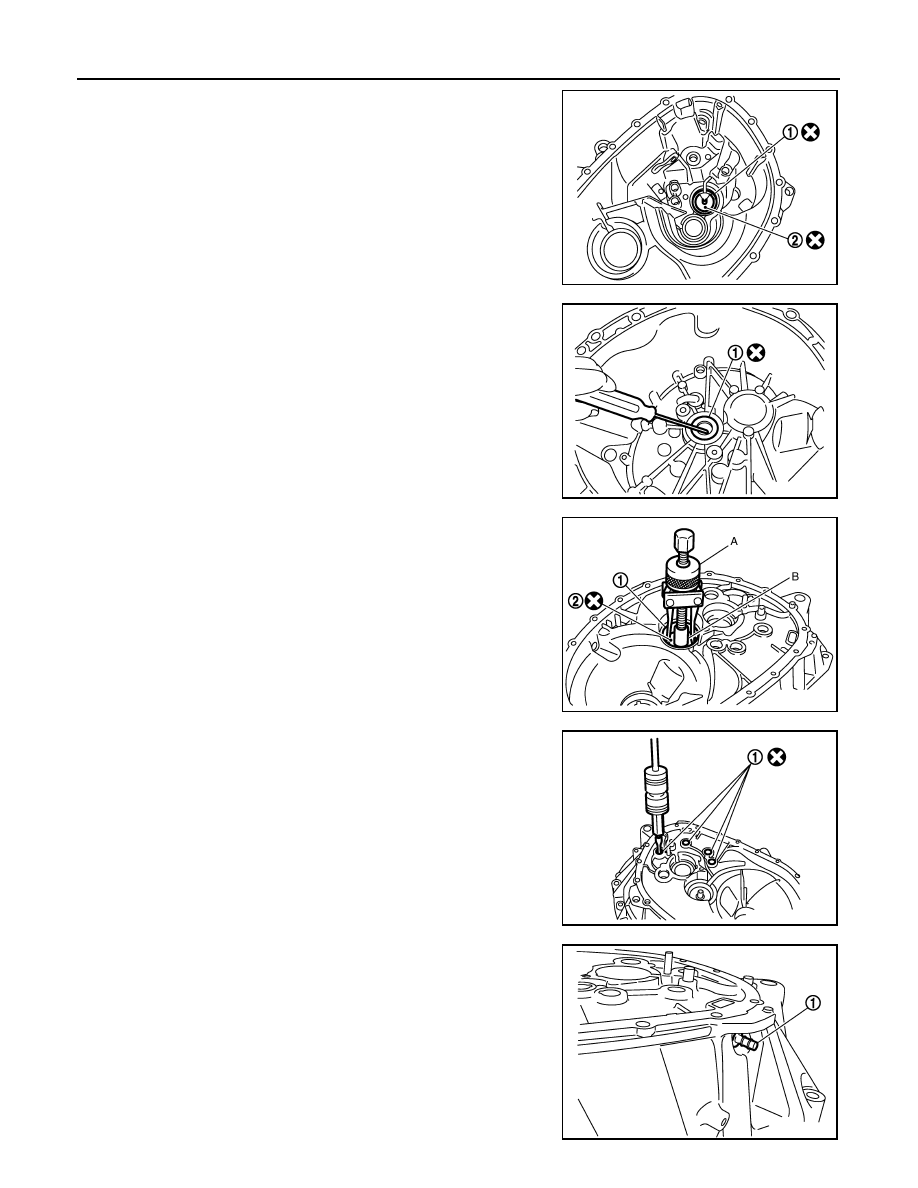

29. Remove snap ring (1) and oil channel (2) from transaxle case.

30. Remove input shaft oil seal (1) from clutch housing using a flat-

bladed screwdriver.

31. Remove mainshaft front bearing outer race (1) and oil channel

(2) from clutch housing using the puller (A) [SST: KV381054S0]
and the spacer (B) [Commercial service tool].

32. Remove bushings (1) from clutch housing using a suitable

remover.

33. Remove two way connector (1) from clutch housing.
34. Remove plug. (If equipped)

PCIB1708E

PCIB1714E

JPDIC0107ZZ

PCIB1717E

PCIB1720E

TRANSAXLE ASSEMBLY

TM-49

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

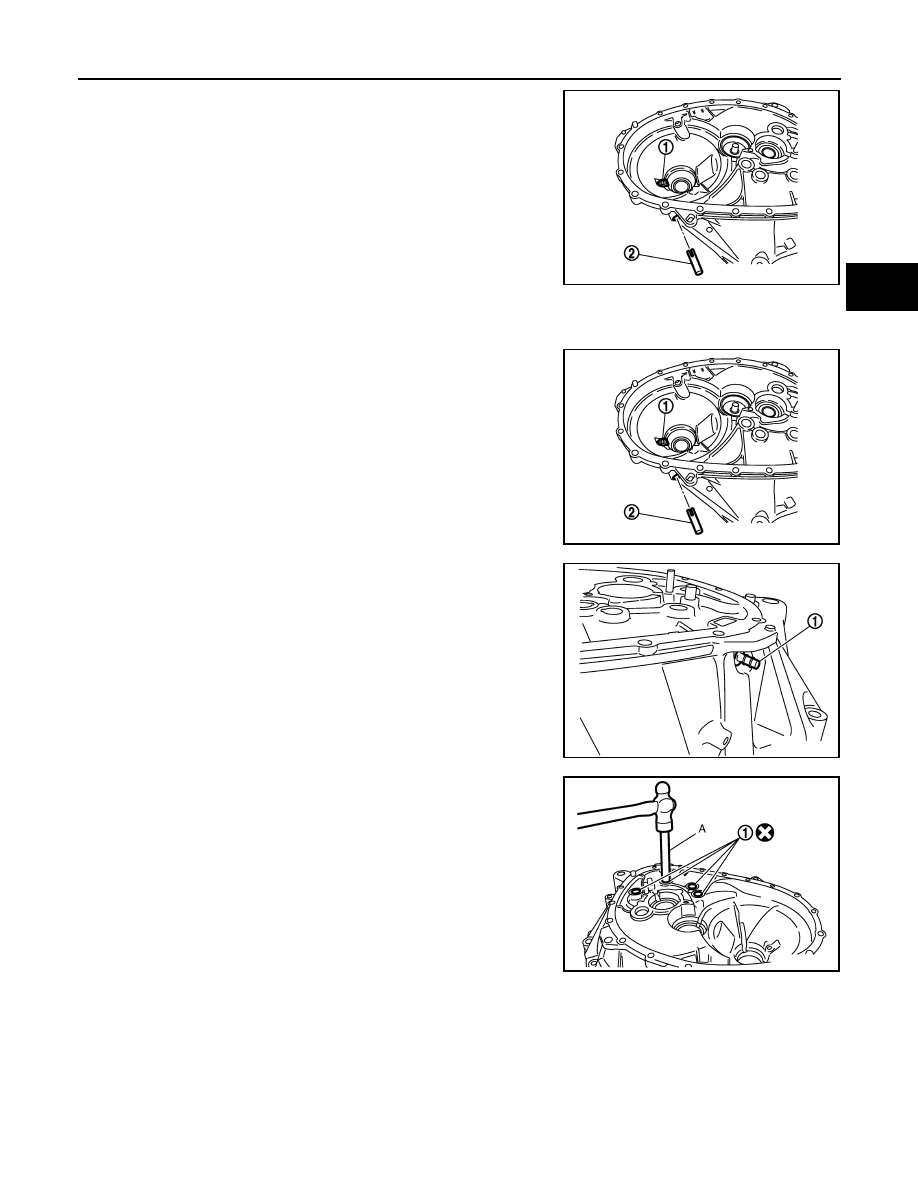

35. Remove pinion gear (1) and pinion shaft (2) from clutch housing.

(If equipped)

Assembly

INFOID:0000000010288459

1.

Install pinion gear (1) and pinion shaft (2) into clutch housing. (If
equipped)

2.

Install plug. (If equipped)

3.

Install two way connector (1) into clutch housing.

4.

Install bushings (1) until they are flush with end face of clutch
housing using the drift (A) [Commercial service tool].

PCIB1719E

PCIB1719E

PCIB1720E

JPDIC0108ZZ

TM-50

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F94R]

TRANSAXLE ASSEMBLY

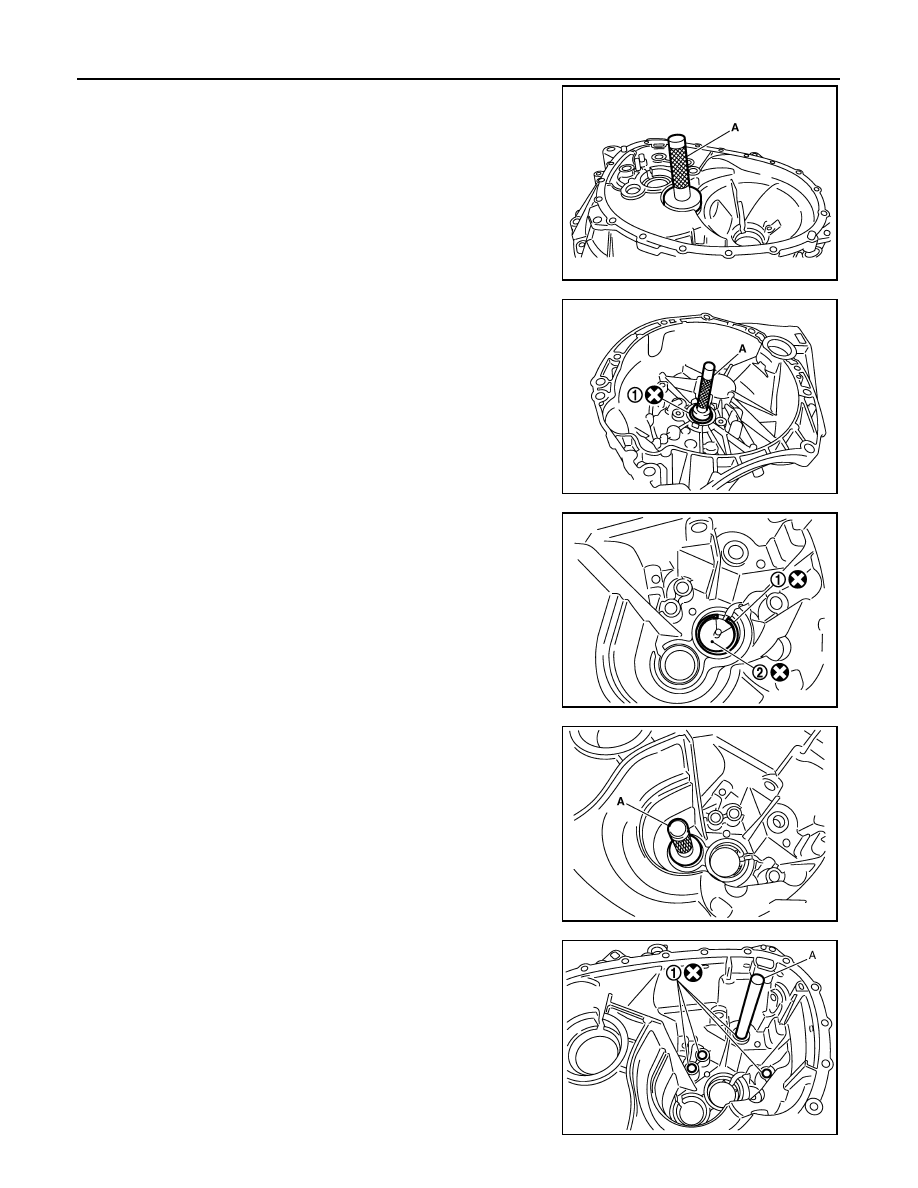

5.

Install oil channel and mainshaft front bearing outer race into
clutch housing using the drift (A) [SST: KV38100200].

CAUTION:

• Never reuse oil channel.
• Replace mainshaft front bearing outer race and mainshaft

front bearing inner race as a set.

6.

Install input shaft oil seal (1) into clutch housing using the drift
(A) [SST: ST33220000].

7.

Install snap ring (1) and oil channel (2) onto transaxle case.

8.

Install bearing preloading shim and mainshaft rear bearing outer
race into transaxle case using the drift (A) [SST: KV38100200].

CAUTION:

Replace mainshaft rear bearing outer race and mainshaft
rear bearing inner race as a set.

9.

Install bushings (1) into transaxle case using the drift (A) [Com-
mercial service tool].

PCIB1724E

PCIB1721E

PCIB1729E

PCIB1728E

JPDIC0109ZZ
