PREPARATION

TM-23

< PREPARATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Drift
a: 45 mm (1.77 in) dia.
b: 39 mm (1.54 in) dia.

Installing differential side bearing inner race
(clutch housing side)

Drift
a: 52 mm (2.05 in) dia.
b: 45 mm (1.77 in) dia.

Installing differential side bearing inner race
(transaxle case side)

Tool name

Description

S-NT474

S-NT474

TM-24

< PERIODIC MAINTENANCE >

[6MT: RS6F94R]

GEAR OIL

PERIODIC MAINTENANCE

GEAR OIL

Exploded View

INFOID:0000000010288444

Refer to

TM-38, "Exploded View"

.

Draining

INFOID:0000000010288445

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug (1) and then drain gear oil.

3.

Set a gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

Refilling

INFOID:0000000010288446

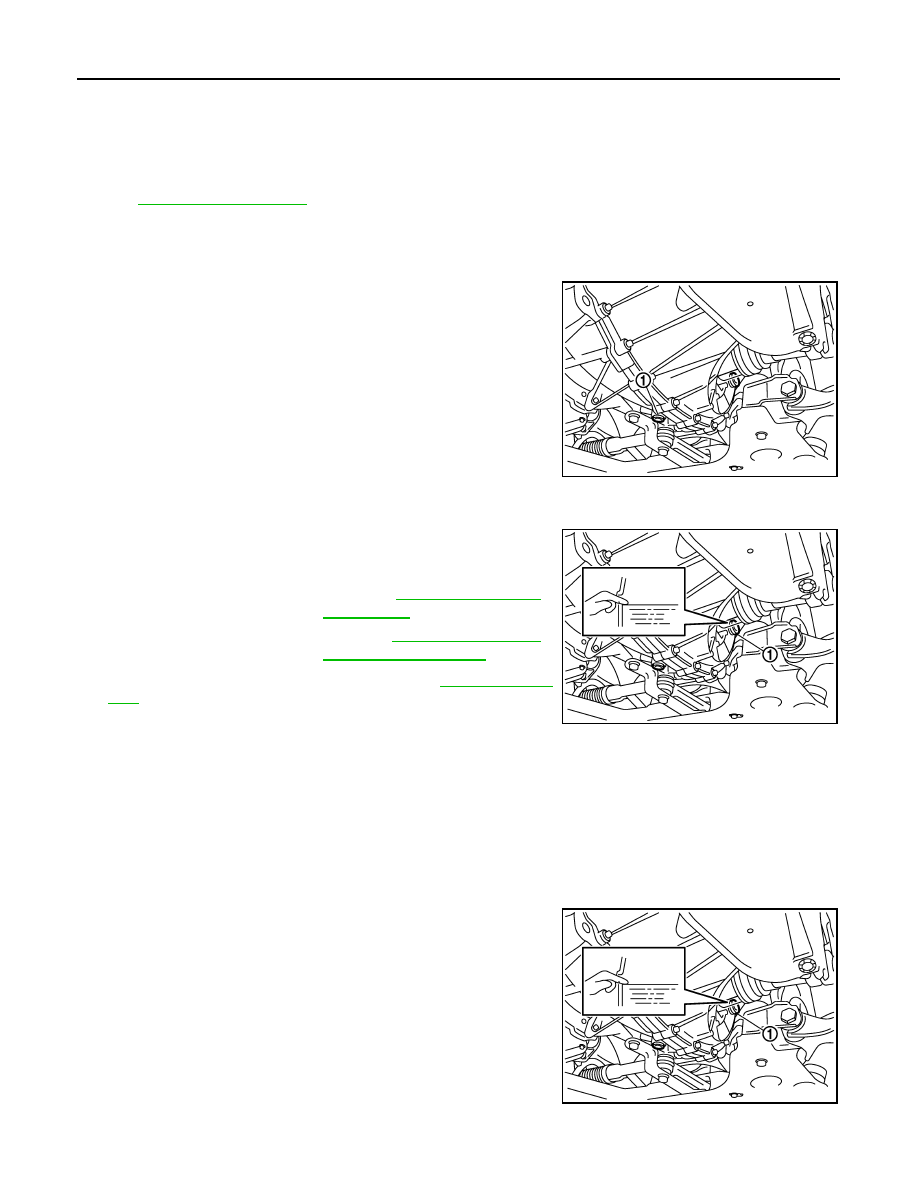

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified limit at filler plug hole as shown.

2.

After refilling gear oil, check oil level. Refer to

TM-24, "Inspec-

tion"

.

3.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

Inspection

INFOID:0000000010288447

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1) and check oil level at filler plug hole as
shown.

CAUTION:

Never start engine while checking oil level.

2.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque.

SCIA7622E

Oil grade and viscosity

: Refer to

MA-59, "Fluids and

Lubricants"

.

Oil capacity

: Refer to

MA-122, "GEAR OIL

(RS6F94R) : Refilling"

.

SCIA7623E

SCIA7623E

M/T SHIFT SELECTOR

TM-25

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

M/T SHIFT SELECTOR

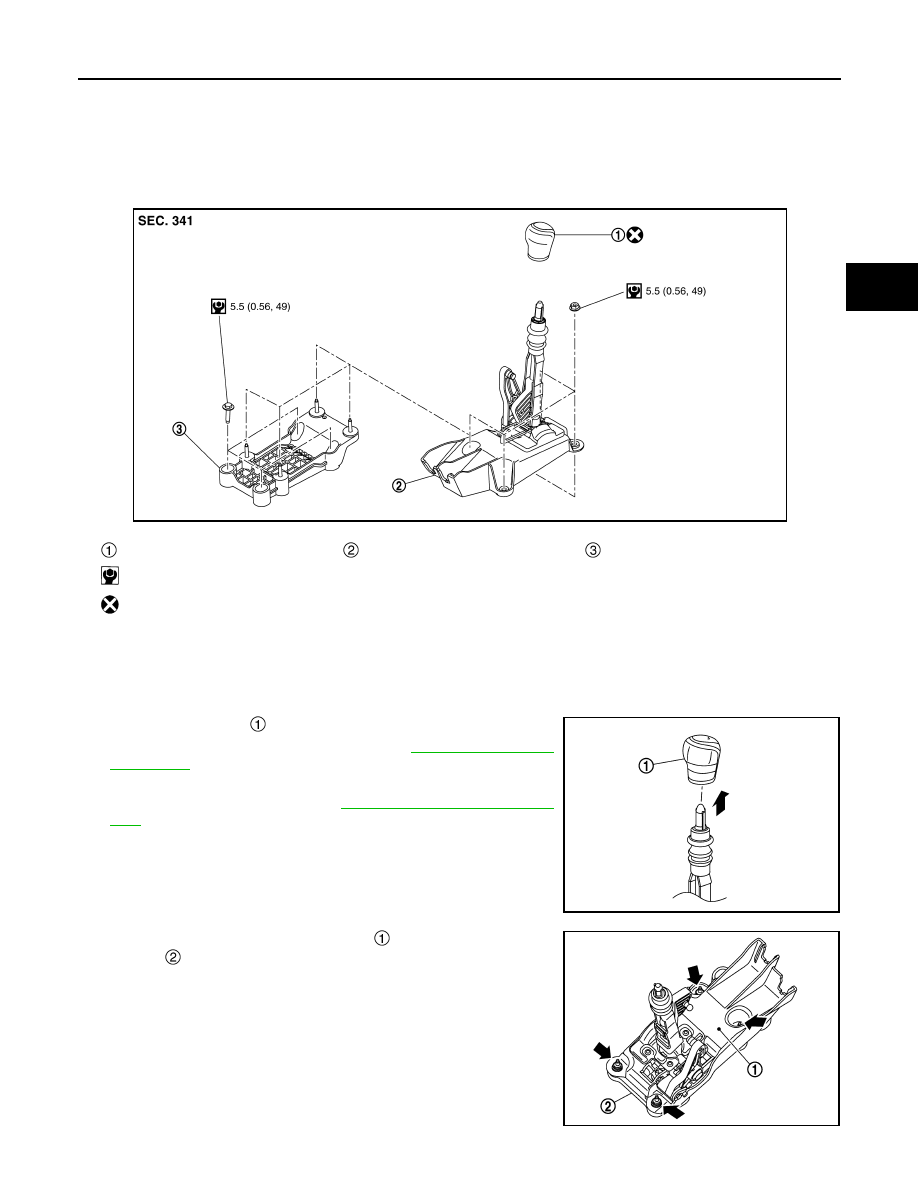

Exploded View

INFOID:0000000010735671

Removal and Installation

INFOID:0000000010735672

REMOVAL

1.

Shift shift lever to the neutral position.

2.

Pull shift lever knob

 upward to remove.

3.

Remove center console assembly. Refer to

IP-19, "Removal and

Installation"

 .

4.

Disconnect and remove shift cable and select cable from M/T
shift selector assembly. Refer to

TM-28, "Removal and Installa-

tion"

.

5.

Remove M/T shift selector assembly

 from M/T shift selector

bracket .

Shift lever knob

M/T shift selector assembly

M/T shift selector bracket

: N·m (kg-m, in-lb)

: Always replace after every disassembly.

JSDIA5662GB

JSDIA5753ZZ

JSDIA5749ZZ

TM-26

< REMOVAL AND INSTALLATION >

[6MT: RS6F94R]

M/T SHIFT SELECTOR

6.

Remove M/T shift selector bracket

.

INSTALLATION

Note the following, and install in the reverse order of removal.
• For each tightening torque, refer to

TM-25, "Exploded View"

 .

• Install shift lever knob to the shift lever, as per the following procedure.

CAUTION:

Never reuse shift lever knob.

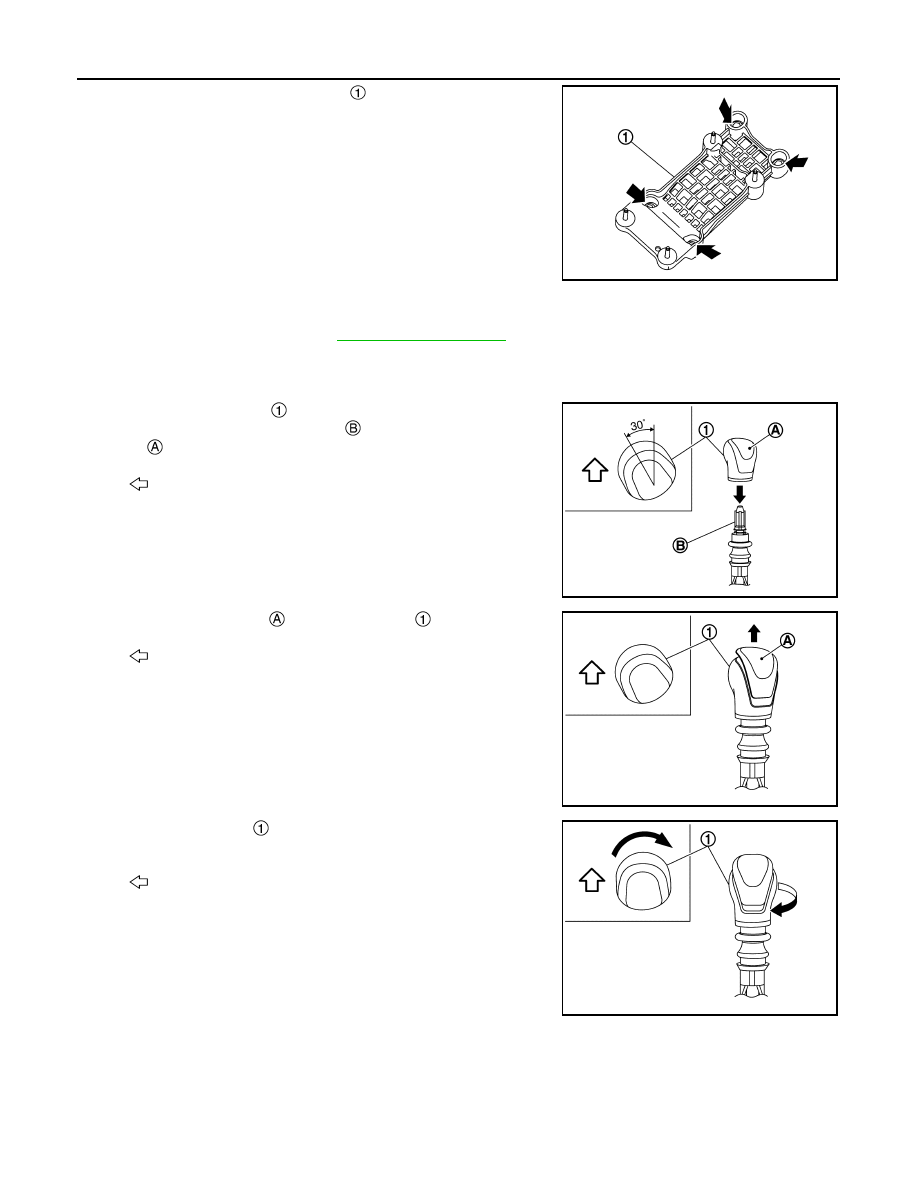

1.

Turn shift lever knob

 counterclockwise (30 degrees) and

insert it straight to the shift lever

 without pressing the orna-

ment .

2.

Protrude the ornament

 of shift lever knob

.

3.

Turn shift lever knob

 clockwise (30 degrees) until coming to a

stop.

JSDIA5750ZZ

: Vehicle front

JSDIA6032ZZ

: Vehicle front

JSDIA6033ZZ

: Vehicle front

JSDIA6034ZZ
