CSC (CONCENTRIC SLAVE CYLINDER)

REMOVAL

1.

Remove transaxle assembly from the vehicle. Refer to

TM-148, "Removal and Installation"

 (4WD) or

TM-

88, "Removal and Installation"

 (2WD) .

2.

Remove mounting bolts and then remove CSC from clutch housing.

INSTALLATION

1.

Install CSC to clutch housing and then tighten bolts to the specified torque.

CAUTION:

• Never reuse CSC.
• Never insert and operate CSC because piston and stopper of CSC components may fall off.

2.

Install transaxle assembly. Refer to

TM-148, "Removal and Installation"

 (4WD) or

TM-88, "Removal and

Installation"

 (2WD) .

3.

Bleed the air from the clutch hydraulic system. Refer to

CL-8, "Air Bleeding Procedure"

.

CLUTCH DISC AND CLUTCH COVER

CL-19

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

CLUTCH DISC AND CLUTCH COVER

MR20DD

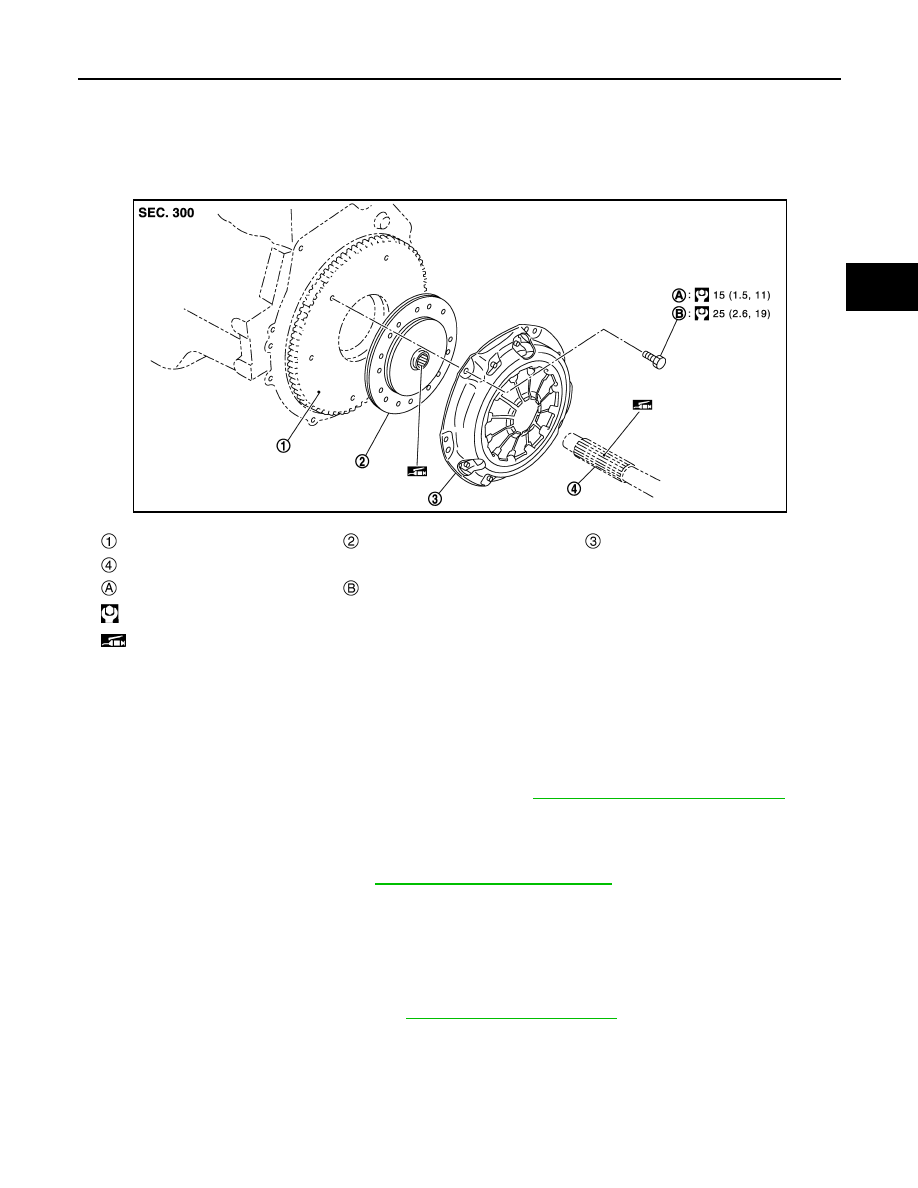

MR20DD : Exploded View

INFOID:0000000010654843

MR20DD : Removal and Installation

INFOID:0000000010654844

CAUTION:

• Never reuse CSC (Concentric Slave Cylinder). Because CSC slides back to the original position

every time when removing transaxle assembly. At this timing, dust on the sliding parts may damage
a seal of CSC and may cause clutch fluid leakage. Refer to

CL-17, "Removal and Installation"

.

• Never bring any grease to the clutch disc facing, pressure plate surface and flywheel surface.
• Never clean clutch disc using solvent.

REMOVAL

1.

Remove transaxle assembly. Refer to

TM-35, "Removal and Installation"

.

2.

Remove clutch cover mounting bolts while holding clutch cover.

CAUTION:

Never drop clutch disc.

3.

Remove clutch cover and clutch disc.

CAUTION:

Never drop clutch disc.

4.

Perform inspection after removal. Refer to

CL-20, "MR20DD : Inspection"

.

INSTALLATION

1.

Clean clutch disc and input shaft splines to remove grease and powder arisen from abrasion.

Flywheel

Clutch disc

Clutch cover

Input shaft

First step

Final step

: N·m (kg-m, ft-lb)

: Apply lithium-based grease including molybdenum disulphide.

NOTE:
New clutch discs are pre-greased, additional greasing is not required. If refitting used disc, apply a thin coating of grease.

JPDIB0049GB

CL-20

< UNIT REMOVAL AND INSTALLATION >

CLUTCH DISC AND CLUTCH COVER

2.

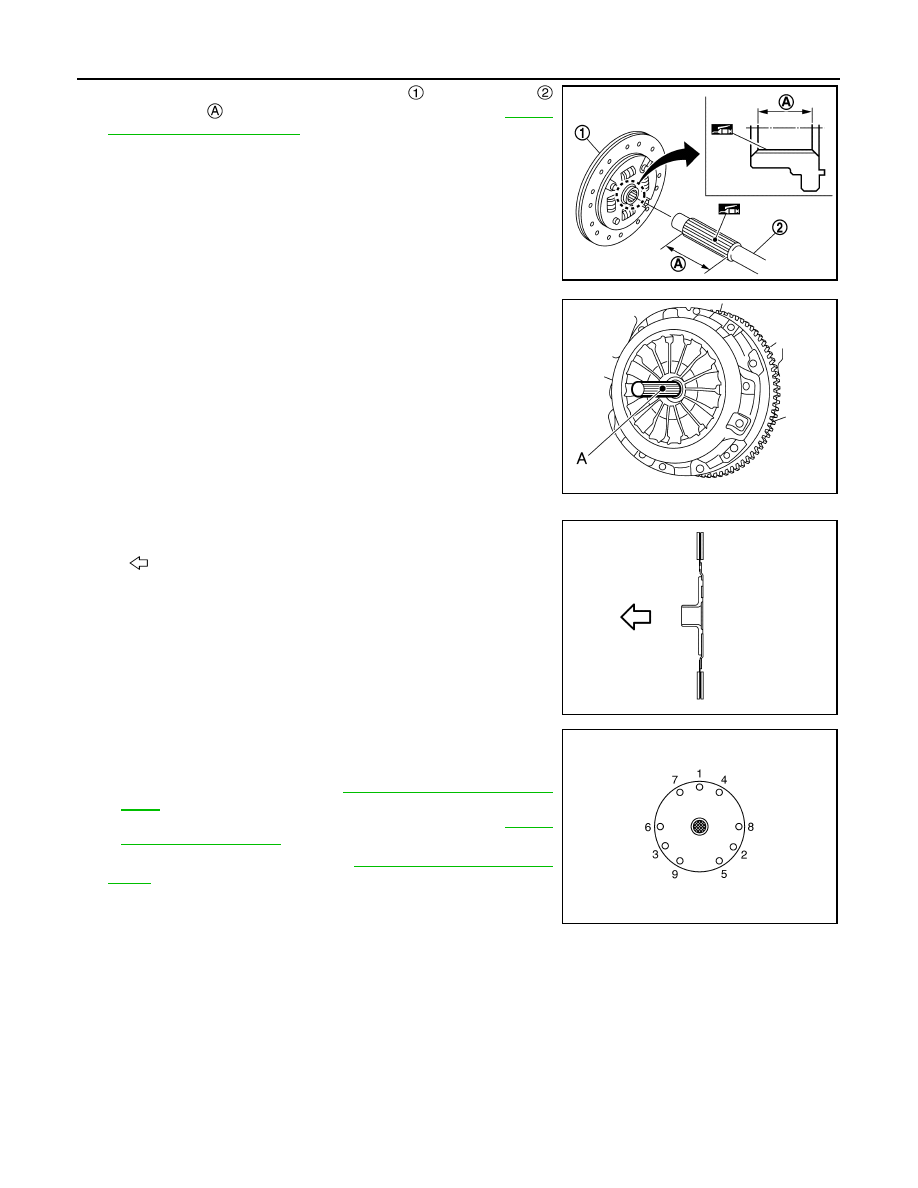

Apply recommended grease to clutch disc

 and input shaft

splines area

. For recommended grease, refer to

CL-19,

"MR20DD : Exploded View"

.

CAUTION:

Be sure to apply grease to the points specified. Otherwise,
noise, poor disengagement, or damage to the clutch may
result. Excessive grease may cause slip or judder. And if it
adheres to seal of CSC, it cause clutch fluid leakage. Wipe
out excess grease. Wipe out any grease oozing from the
parts.

3.

Install clutch disc using clutch aligner (A) (commercial service
tool), and temporarily install clutch cover.

CAUTION:

• Never drop clutch disc and clutch cover.

• Be careful with the orientation of the clutch disc.

4.

Tighten clutch cover mounting bolts to the specified torque
evenly in two steps in the numerical order as shown in the fig-
ure.
• For tightening torque, refer to

CL-19, "MR20DD : Exploded

View"

.

• After installation, perform inspection. Refer to

CL-20,

"MR20DD : Inspection"

.

5.

Install transaxle assembly. Refer to

TM-35, "Removal and Instal-

lation"

.

MR20DD : Inspection

INFOID:0000000010654845

INSPECTION AFTER REMOVAL

Clutch Disc

JSDIA3617ZZ

JSDIA3358ZZ

: Engine side

JSDIA6017ZZ

PCIB1772E

CLUTCH DISC AND CLUTCH COVER

CL-21

< UNIT REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

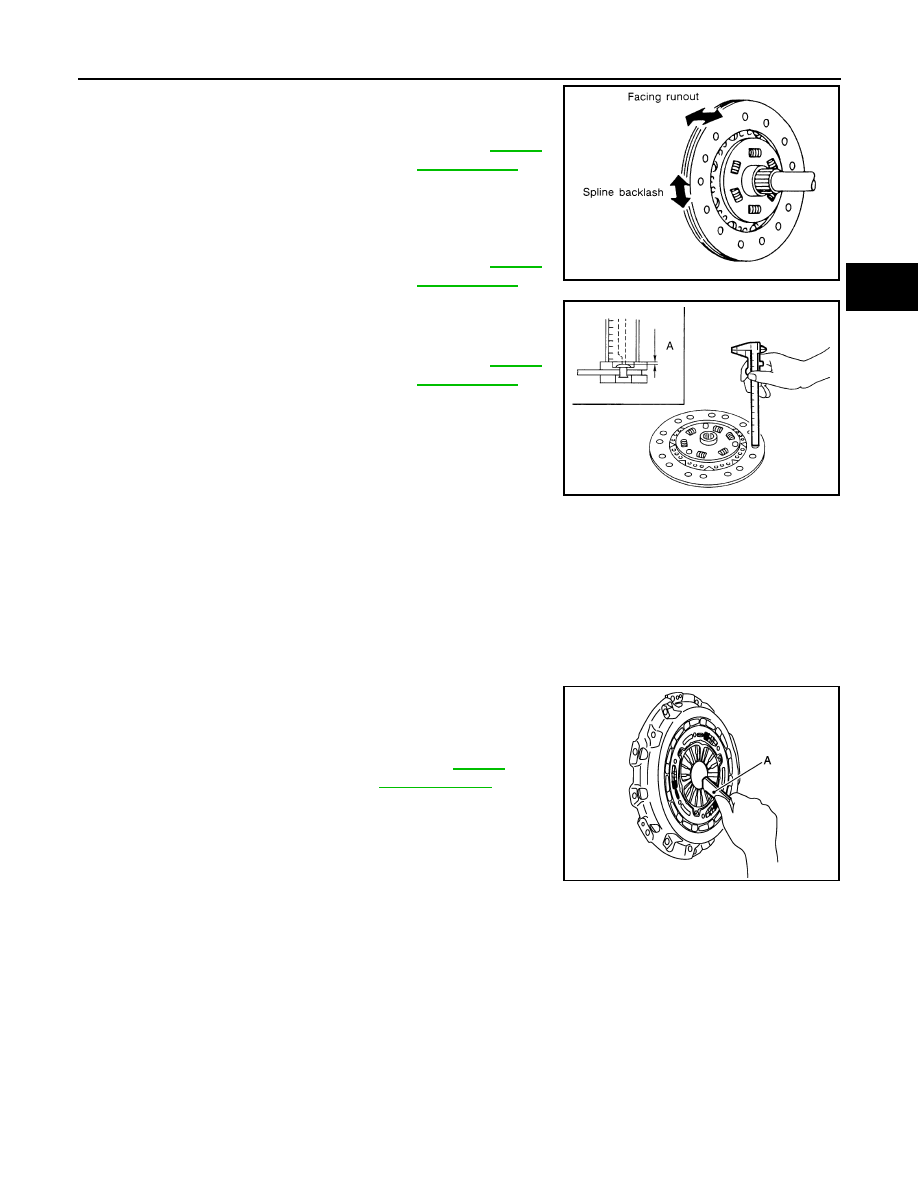

• Measure circumferential runout relative to clutch disc center spline.

If it is outside the specification, replace clutch disc.

• Measure backlash to clutch disc spline and input shaft spline at the

circumference of clutch disc. If it is outside the specification,
replace clutch disc.

• Measure the depth (A) to clutch disc facing rivet heads, using a

calipers. If it exceeds the allowable wear limit, replace clutch disc.

Clutch Cover

• Check clutch cover thrust ring for wear or breakage. If wear or breakage is found, replace clutch cover.

NOTE:
• Worn thrust ring will generate a beating noise when tapped at the rivet with a hammer.
• Broken thrust ring will make a clinking sound when cover is shaken up and down.

• If a trace of burn or discoloration is found on the clutch cover pressure plate to clutch disc contact surface,

repair the surface with sandpaper. If surface is damaged or distorted, replace clutch cover.

INSPECTION AFTER INSTALLATION

Clutch Cover

Check diaphragm spring lever claws for unevenness with the lever
still on the vehicle. If they exceed the tolerance, adjust lever height,
using the diaphragm adjusting wrench (A) (SST: ST20050240).

HRA2DDT

Runout limit/diameter of the area to
be measured

: Refer to

CL-31,

"Clutch Disc"

 .

Maximum allowable spline backlash
(at outer edge of disc)

: Refer to

CL-31,

"Clutch Disc"

.

Facing wear limit (depth to the rivet
head)

: Refer to

CL-31,

"Clutch Disc"

.

SCL221

JPDIB0026ZZ

Tolerance for diaphragm spring
lever unevenness

: Refer to

CL-31,

"Clutch Cover"

.

JPDIB0160ZZ
