Nissan Qashqai J11. Manual - part 563

EC9-408

< REMOVAL AND INSTALLATION >

[R9M]

DC/DC CONVERTER

DC/DC CONVERTER

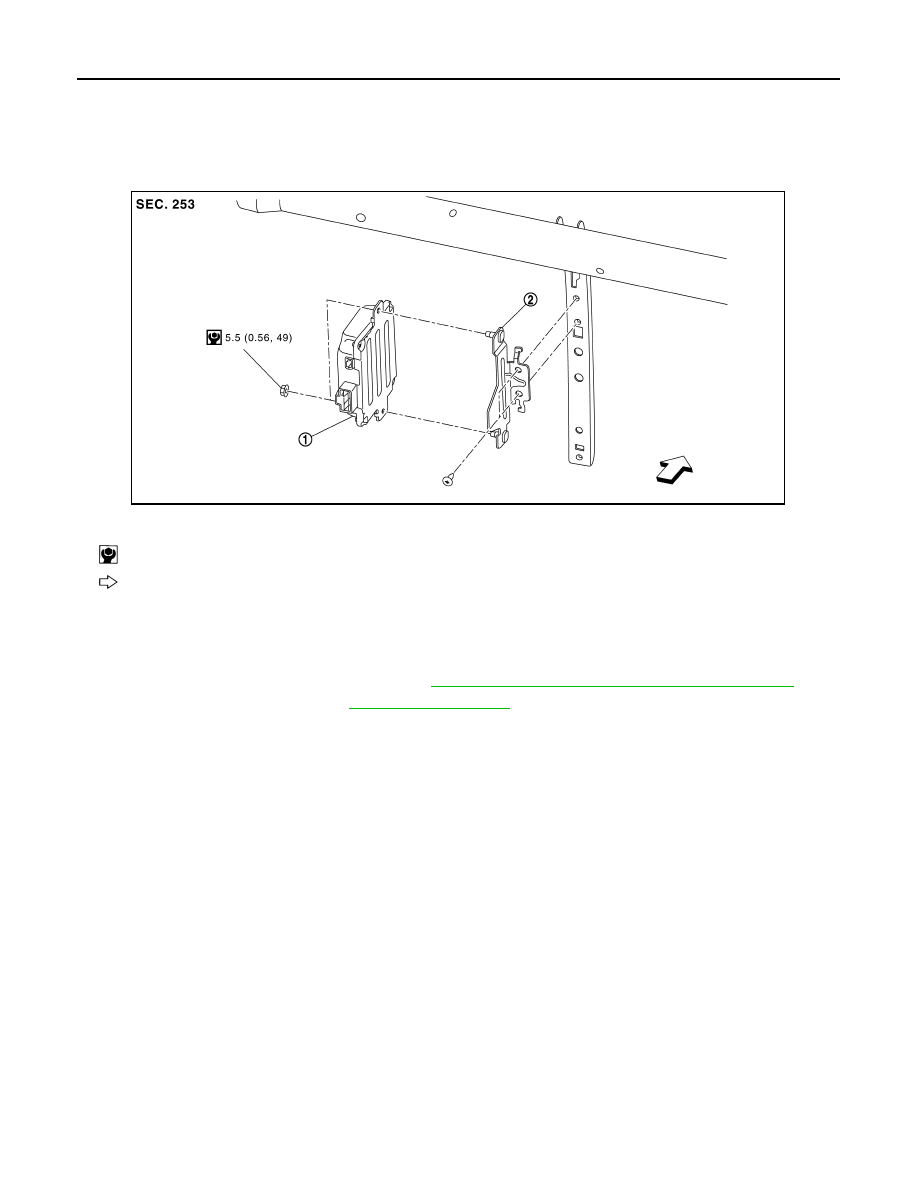

Exploded View

INFOID:0000000010309433

NOTE:
The below figure shows LHD models. RHD models are the mirror image.

Removal and Installation

INFOID:0000000010309434

REMOVAL

1.

Disconnect battery negative terminal. Refer to

EC9-9, "Precautions for Removing Battery Terminal"

.

2.

Remove glove box cover. Refer to

IP-12, "Exploded View"

.

3.

Disconnect DC/DC converter harness connectors.

4.

Remove DC/DC converter bracket mounting screws.

5.

Remove bracket with DC/DC converter.

6.

Remove DC/DC converter mounting nuts.

7.

Remove DC/DC converter.

INSTALLATION

Install in the reverse order of removal.

1.

DC/DC converter

2.

Bracket

: N·m (kg-m, in-lb)

: Vehicle front

JSBIA4865GB

ENGINE RESTART BYPASS RELAY

EC9-409

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

ENGINE RESTART BYPASS RELAY

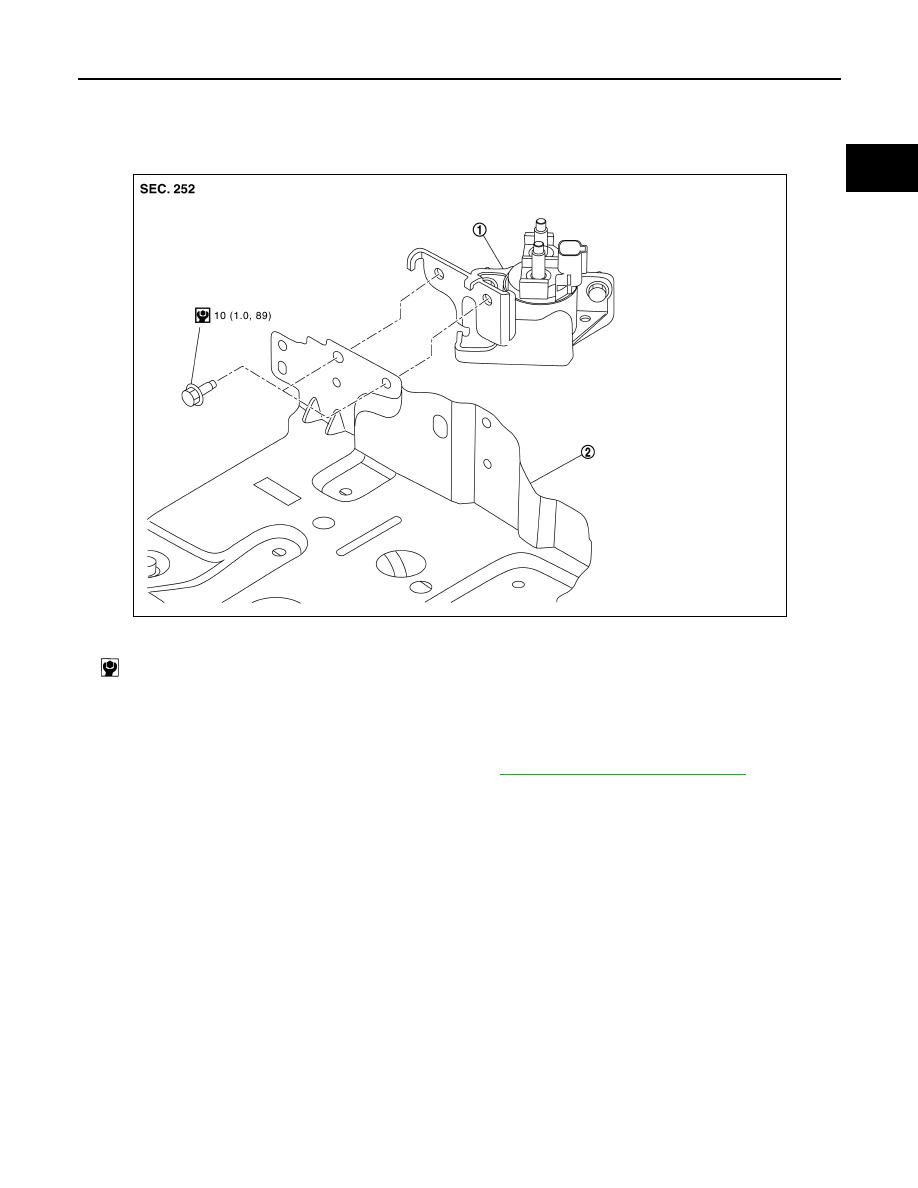

Exploded View

INFOID:0000000010309435

Removal and Installation

INFOID:0000000010309436

REMOVAL

1.

Remove battery, battery cover and battery tray. Refer to

PG-155, "Removal and Installation"

.

2.

Disconnect engine restart bypass relay harness connectors.

3.

Remove bracket with engine restart bypass relay.

INSTALLATION

Install in the reverse order of removal.

1.

Engine restart bypass relay

2.

Battery mounting bracket

: N·m (kg-m, in-lb)

JSBIA5193GB

EC9-410

< REMOVAL AND INSTALLATION >

[R9M]

FUEL PUMP CONTROL MODULE (FPCM)

FUEL PUMP CONTROL MODULE (FPCM)

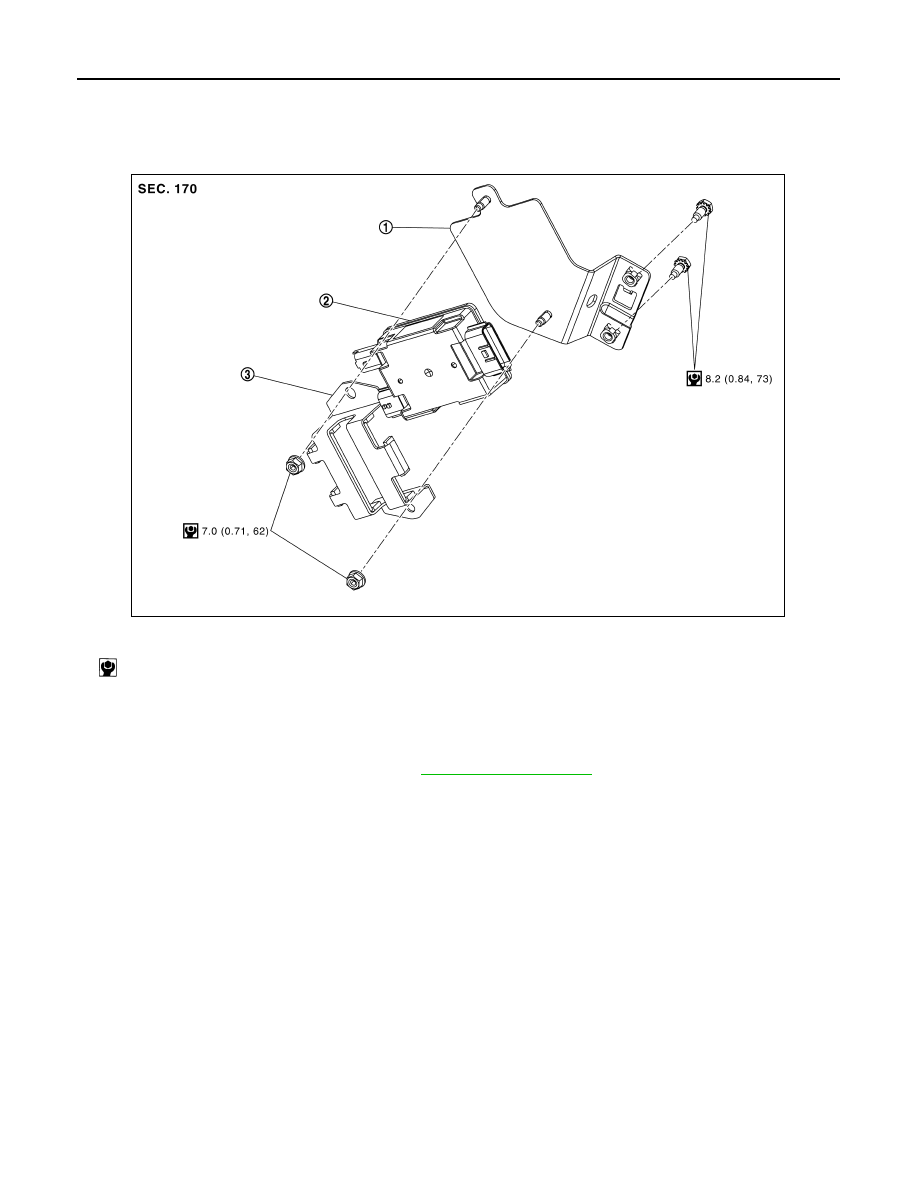

Exploded View

INFOID:0000000010500761

Removal and Installation

INFOID:0000000010500762

REMOVAL

1.

Remove luggage side finisher (RH). Refer to

INT-28, "Exploded View"

.

2.

Remove bracket with fuel pump control module (FPCM).

3.

Disconnect fuel pump control module (FPCM) harness connectors.

4.

Remove cover and fuel pump control module (FPCM) from bracket.

INSTALLATION

Install in the reverse order of removal.

1.

Bracket

2.

Fuel pump control module (FPCM)

3.

Cover

: N·m (kg-m, in-lb)

JSBIA4867GB

SERVICE DATA AND SPECIFICATIONS (SDS)

EC9-411

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EC9

N

P

O

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Idle Speed

INFOID:0000000010309439

*: Under the following conditions

• A/C switch: OFF

• Electric load: OFF (Lights, glow plug, heater fan & rear window defogger)

• Steering wheel: Kept in straight-ahead position

Condition

Specification

No load* (in Neutral position)

850

±

 100 rpm
