CHASSIS MAINTENANCE

MA-147

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

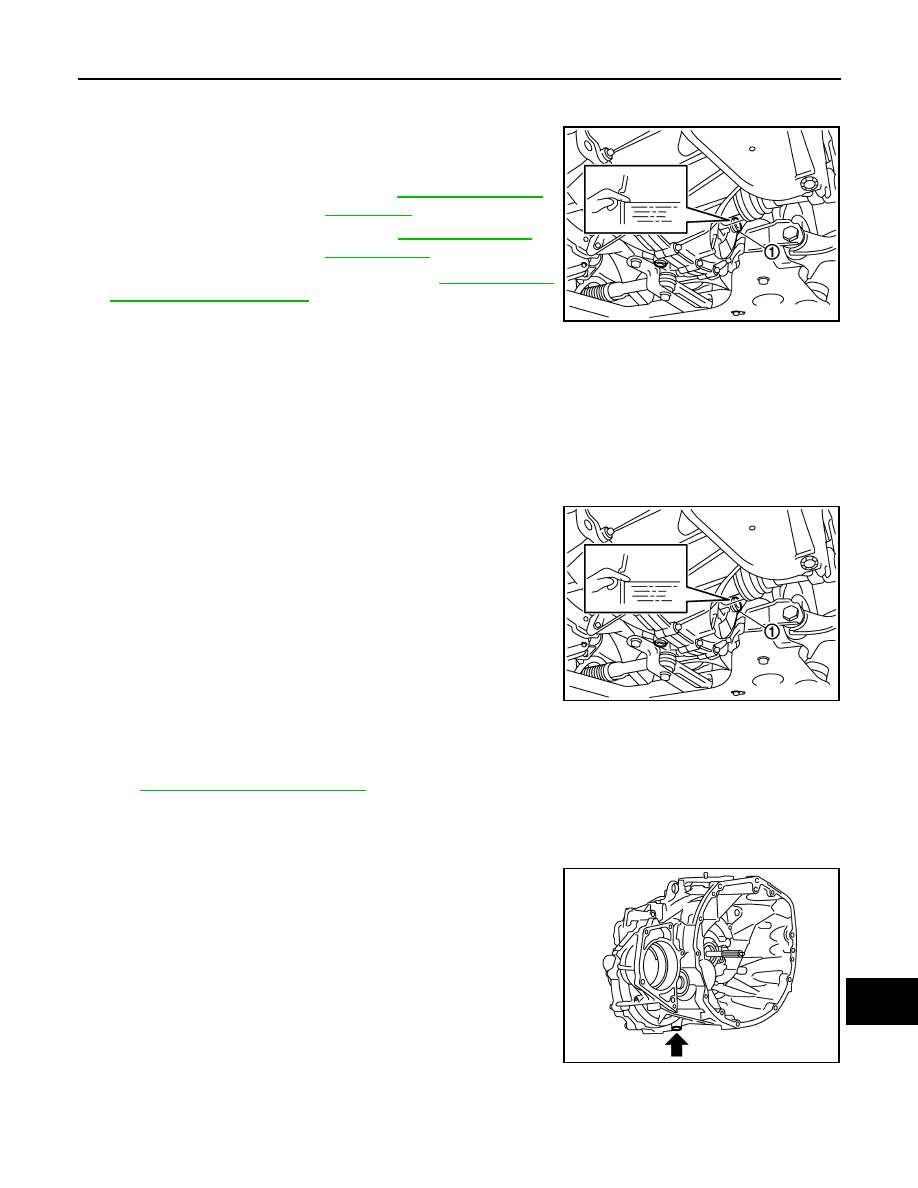

GEAR OIL (RS6F95R) : Refilling

INFOID:0000000011497362

1.

Remove filler plug (1). Fill with new gear oil until oil level reaches
the specified limit at filler plug hole as shown.

2.

After refilling gear oil, check oil level. Refer to

MA-147, "GEAR

OIL (RS6F95R) : Inspection"

.

3.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

GEAR OIL (RS6F95R) : Inspection

INFOID:0000000011497363

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1) and check oil level at filler plug hole as
shown.

CAUTION:

Never start engine while checking oil level.

2.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

3.

Tighten filler plug to the specified torque.

GEAR OIL (RS6F52A)

GEAR OIL (RS6F52A) : Exploded View

INFOID:0000000011497364

Refer to

TM-155, "4WD : Exploded View"

.

GEAR OIL (RS6F52A) : Draining

INFOID:0000000011497365

1.

Start engine and let it run to warm up transaxle.

2.

Stop engine. Remove drain plug and then drain gear oil.

3.

Set a gasket on drain plug and install it to clutch housing.
Tighten drain plug to the specified torque.

CAUTION:

Never reuse gasket.

Oil grade and viscosity

: Refer to

MA-64, "Fluids and

Lubricants"

.

Oil capacity

: Refer to

TM-131, "General

Specification"

.

SCIA7623E

SCIA7623E

JPDIC0073ZZ

MA-148

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

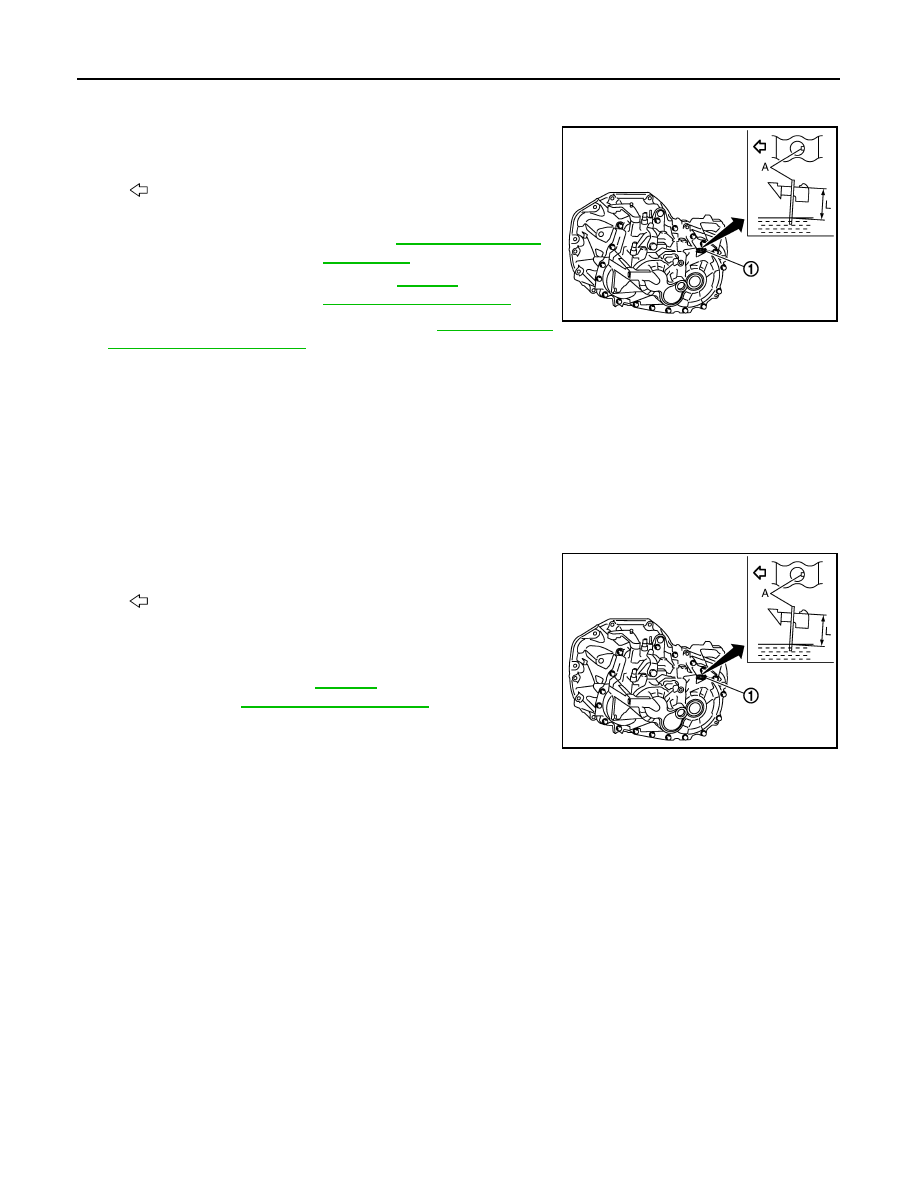

GEAR OIL (RS6F52A) : Refilling

INFOID:0000000011497366

1.

Remove filler plug (1). Fill with new gear oil to transaxle.

2.

After refilling gear oil, check oil level. Refer to

MA-148, "GEAR

OIL (RS6F52A) : Inspection"

.

3.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

GEAR OIL (RS6F52A) : Inspection

INFOID:0000000011497367

LEAKAGE

Make sure that gear oil is not leaking from transaxle or around it.

LEVEL

1.

Remove filler plug (1).

2.

Measure oil level using a suitable gauge (A) as shown in the fig-
ure and then check if it is within the specifications.

CAUTION:

• Never start engine while checking oil level.
• Measure suitable gauge according to the wall of the plug

mounting hole.

3.

Set a gasket on filler plug and then install it to transaxle case.

CAUTION:

Never reuse gasket.

4.

Tighten filler plug to the specified torque.

CLUTCH FLUID

CLUTCH FLUID : Inspection

INFOID:0000000011497370

CLUTCH FLUID LEVEL

A

: Suitable gauge

: Vehicle front

Oil grade and viscosity

: Refer to

MA-64, "Fluids and

Lubricants"

.

Oil capacity (reference)

: Refer to

TM-211,

"General Specifications"

.

JPDIC0139ZZ

: Vehicle front

Oil level “L”

: Refer to

TM-211,

"General Specifications"

.

JPDIC0139ZZ

CHASSIS MAINTENANCE

MA-149

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

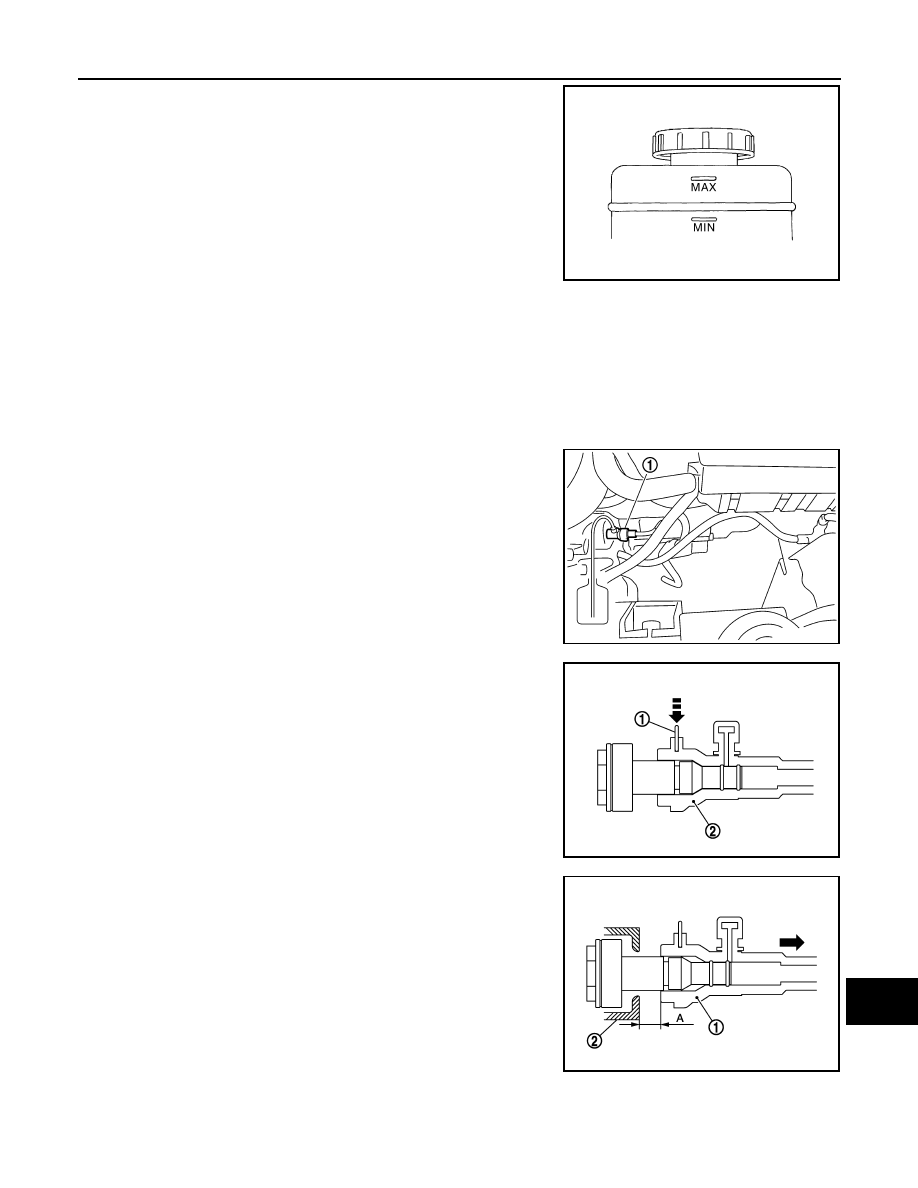

• Check that the fluid level in the reservoir tank is within the specified

range (MAX – MIN lines).

• Visually check for any clutch fluid leakage around the reservoir

tank.

• Check the clutch system for any leakage if the fluid level is

extremely low (lower than MIN).

CLUTCH FLUID : Air Bleeding Procedure

INFOID:0000000011497371

NOTE:
Do not use a vacuum assist or any other type of power bleeder on this system. Use of a vacuum assist or
power bleeder will not purge all the air from the system.

CAUTION:

• Monitor clutch fluid level in reservoir tank to make sure it does not empty.
• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immediately

and wash the affected area with water.

• Bleed the air of bleeding connector (1).

1.

Fill reservoir tank with new clutch fluid.

2.

Connect a transparent vinyl hose to air bleeder of bleeding con-
nector.

3.

“Depress” and “release” the clutch pedal slowly and fully 15
times at an interval of 2 to 3 seconds and release the clutch
pedal.

4.

Push the lock pin (1) of the bleeding connector (2), and maintain
the position.

CAUTION:

Hold it to prevent releasing clutch tube from bleeding con-
nector when fluid pressure is applied in the tube.

5.

Slide clutch tube (1) in the direction of the arrow as shown in the
figure.

•

6.

Depress the clutch pedal soon and hold it, and then bleed the air
from the piping.

CAUTION:

Hold it to prevent releasing clutch tube from bleeding con-
nector when fluid pressure is applied in the tube.

7.

Return clutch tube and lock pin to their original positions.

8.

Release clutch pedal and wait for 5 seconds.

JPFIA0007ZZ

PCIB1494E

JPDIB0041ZZ

2

: Clutch housing

Dimension “A”

: 10 mm (0.39 in)

JPDIB0042ZZ

MA-150

< PERIODIC MAINTENANCE >

CHASSIS MAINTENANCE

9.

Repeat steps 3 to 8 until no bubbles are observed in the clutch fluid.

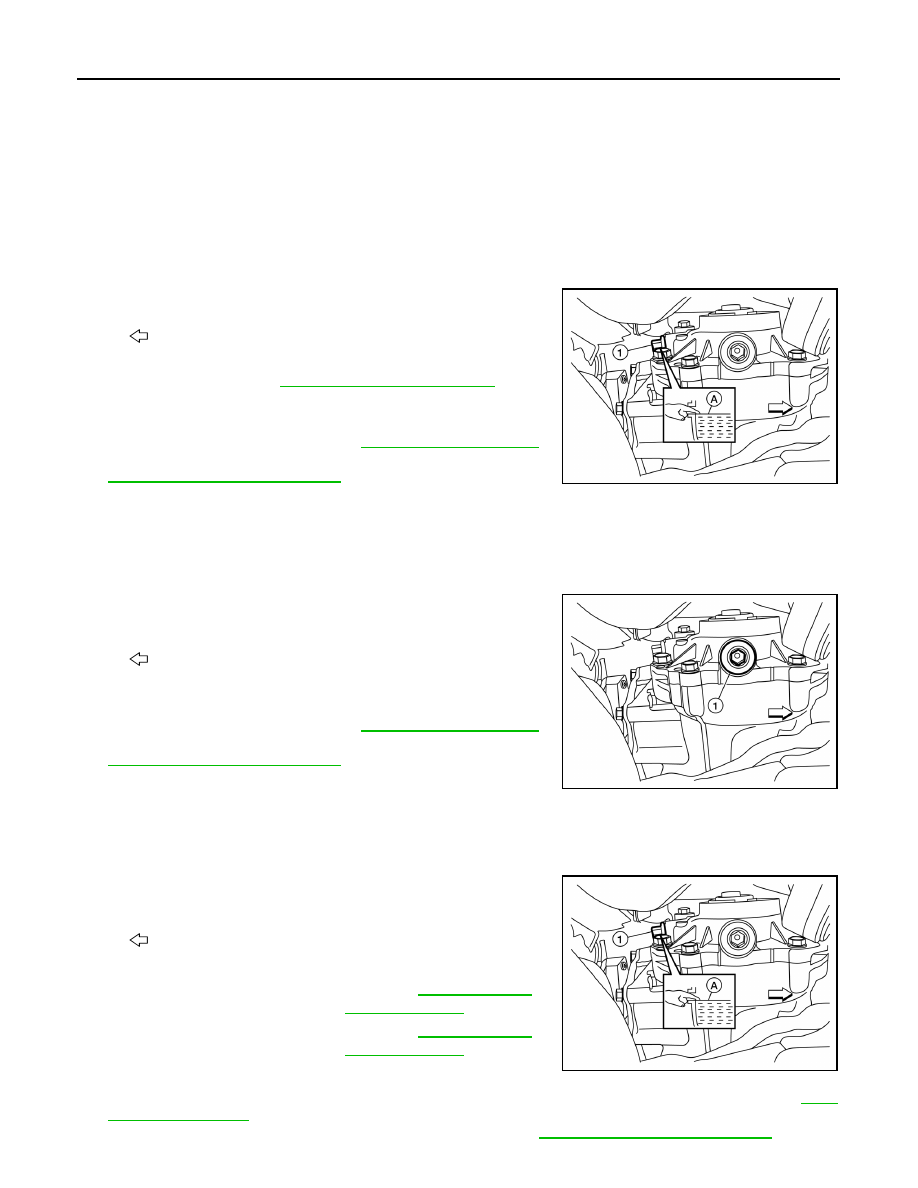

TRANSFER OIL (TY21C)

TRANSFER OIL (TY21C) : Inspection

INFOID:0000000011497372

OIL LEAKS

Check that oil is not leaking from transfer assembly or around it.

OIL LEVEL

CAUTION:

Do not start engine while checking oil level.
1.

Remove filler plug (1).

2.

Oil level (A) should be level with bottom of filler plug hole. Add
oil if necessary. Refer to

MA-64, "Fluids and Lubricants"

 .

3.

Clean threads of filler plug (1) and transfer case.

4.

Apply sealant to the threads of the filler plug (1) and install it.
Tighten to specified torque. Refer to

DLN-71, "Exploded View"

 .

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-64, "Fluids and Lubricants"

.

TRANSFER OIL (TY21C) : Draining

INFOID:0000000011497373

CAUTION:

Do not start engine while checking oil level.
1.

Run the vehicle to warm up the transfer unit sufficiently.

2.

Stop the engine and remove drain plug (1) and drain the transfer
oil.

3.

Clean threads of drain plug (1) and transfer case.

4.

Apply sealant to the threads of the drain plug (1) and install it.
Tighten to specified torque. Refer to

DLN-71, "Exploded View"

.

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-64, "Fluids and Lubricants"

.

TRANSFER OIL (TY21C) : Refilling

INFOID:0000000011497374

CAUTION:

Do not start engine while checking oil level.

1.

Remove filler plug (1).

2.

Fill with new oil to the specified level (A) near the filler plug hole.

3.

Clean threads of filler plug (1) and transfer case.

4.

Apply sealant to the threads of the filler plug (1), and install it. Tighten to specified torque. Refer to

DLN-

71, "Exploded View"

.

Use Genuine Silicone RTV Sealant or equivalent. Refer to

MA-64, "Fluids and Lubricants"

.

: Front

ALDIA0383ZZ

: Front

ALDIA0382ZZ

: Front

Oil grade and viscosity

: Refer to

MA-64, "Fluids

and Lubricants"

.

Oil capacity

: Refer to

MA-64, "Fluids

and Lubricants"

.

ALDIA0383ZZ
