DAS-130

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER ASSISTANCE SYSTEM]

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

4.

Check continuity between around view monitor control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK REAR CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and rear camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace rear camera. Refer to

AV-270, "Removal and Installation"

.

WITHOUT PUMP CONTROL UNIT

1.

CHECK REAR CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and rear camera connectors.

3.

Check continuity between around view monitor control unit connector and rear camera connector.

4.

Check continuity between around view monitor control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK REAR CAMERA POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and rear camera connectors.

M8

53

D80

5

Existed

54

1

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

53

Not existed

Around view monitor control unit connector

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

53

54

CAMERA switch is ON or se-
lector lever in R (reverse).

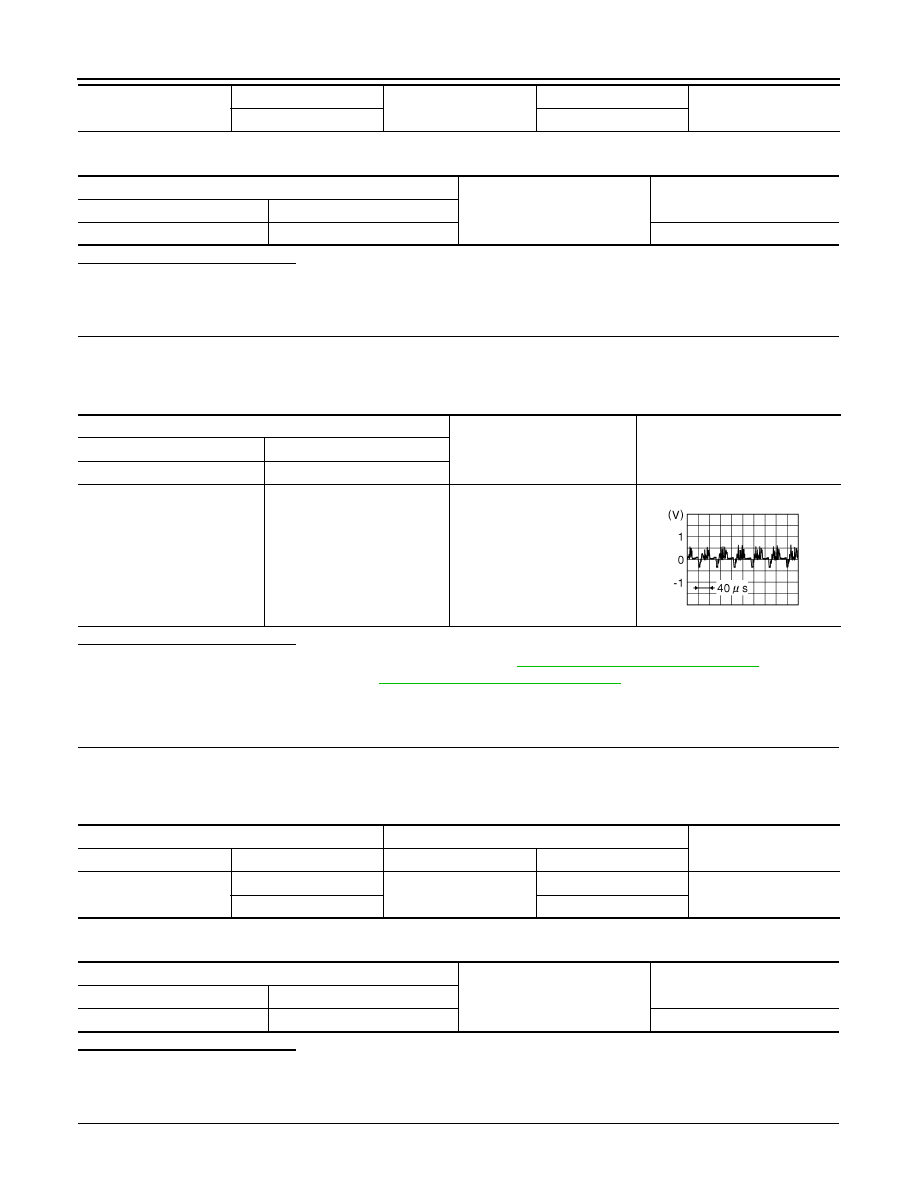

JSNIA0834GB

Around view monitor control unit

Rear camera

Continuity

Connector

Terminals

Connector

Terminals

M95

26

D86

1

Existed

25

2

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

26

Not existed

DAS

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

DAS-131

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK REAR CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and rear camera connectors.

3.

Check continuity between around view monitor control unit connector and rear camera connector.

4.

Check continuity between around view monitor control unit connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK REAR CAMERA IMAGE SIGNAL

1.

Connect around view monitor control unit and rear camera connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

NO

>> Replace rear camera. Refer to

AV-270, "Removal and Installation"

.

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M95

26

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

Rear camera

Continuity

Connector

Terminals

Connector

Terminals

M95

28

D86

3

Existed

27

4

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M95

28

Not existed

Around view monitor control unit connector

Condition

Reference value

(+)

(

−

)

Terminal

Terminal

28

27

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

DAS-132

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER ASSISTANCE SYSTEM]

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000010416870

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000010416871

WITH PUMP CONTROL UNIT

1.

CHECK SIDE CAMERA RH POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and side camera RH connectors.

3.

Check continuity between around view monitor control unit connector and side camera RH connector.

LHD models

RHD models

4.

Check continuity between around view monitor control unit connector and ground.

LHD models

RHD models

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK SIDE CAMERA RH POWER SUPPLY VOLTAGE

1.

Connect around view monitor control unit and side camera RH connectors.

2.

Turn ignition switch ON.

3.

Check voltage between around view monitor control unit connector and ground.

CONSULT Display

DTC Detection Condition

Possible Cause

SIDE CAMERA RH IMAGE
SIGNAL
[U111B]

Side camera RH image signal circuit open or
short.

Check Side camera RH image signal circuit.

Around view monitor control unit

Side camera RH

Continuity

Connector

Terminals

Connector

Terminals

M8

62

D27

7

Existed

64

8

Around view monitor control unit

Side camera RH

Continuity

Connector

Terminals

Connector

Terminals

M8

56

D40

7

Existed

58

8

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

62

Not existed

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

56

Not existed

DAS

U111B SIDE CAMERA RH IMAGE SIGNAL CIRCUIT

DAS-133

< DTC/CIRCUIT DIAGNOSIS >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

LHD models

RHD models

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-267, "Removal and Installation"

.

3.

CHECK SIDE CAMERA RH IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1.

Turn ignition switch OFF.

2.

Disconnect around view monitor control unit and side camera RH connectors.

3.

Check continuity between around view monitor control unit connector and side camera RH connector.

LHD models

RHD models

4.

Check continuity between around view monitor control unit connector and ground.

LHD models

RHD models

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK SIDE CAMERA RH IMAGE SIGNAL

1.

Connect around view monitor control unit and side camera RH connectors.

2.

Turn ignition switch ON.

3.

Check signal between the terminals of around view monitor control unit connector.

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

62

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M8

56

—

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

Side camera RH

Continuity

Connector

Terminals

Connector

Terminals

M8

65

D27

16

Existed

66

15

Around view monitor control unit

Side camera RH

Continuity

Connector

Terminals

Connector

Terminals

M8

59

D40

16

Existed

60

15

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

65

Not existed

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M8

59

Not existed
