CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR) : Work Procedure

INFOID:0000000010435681

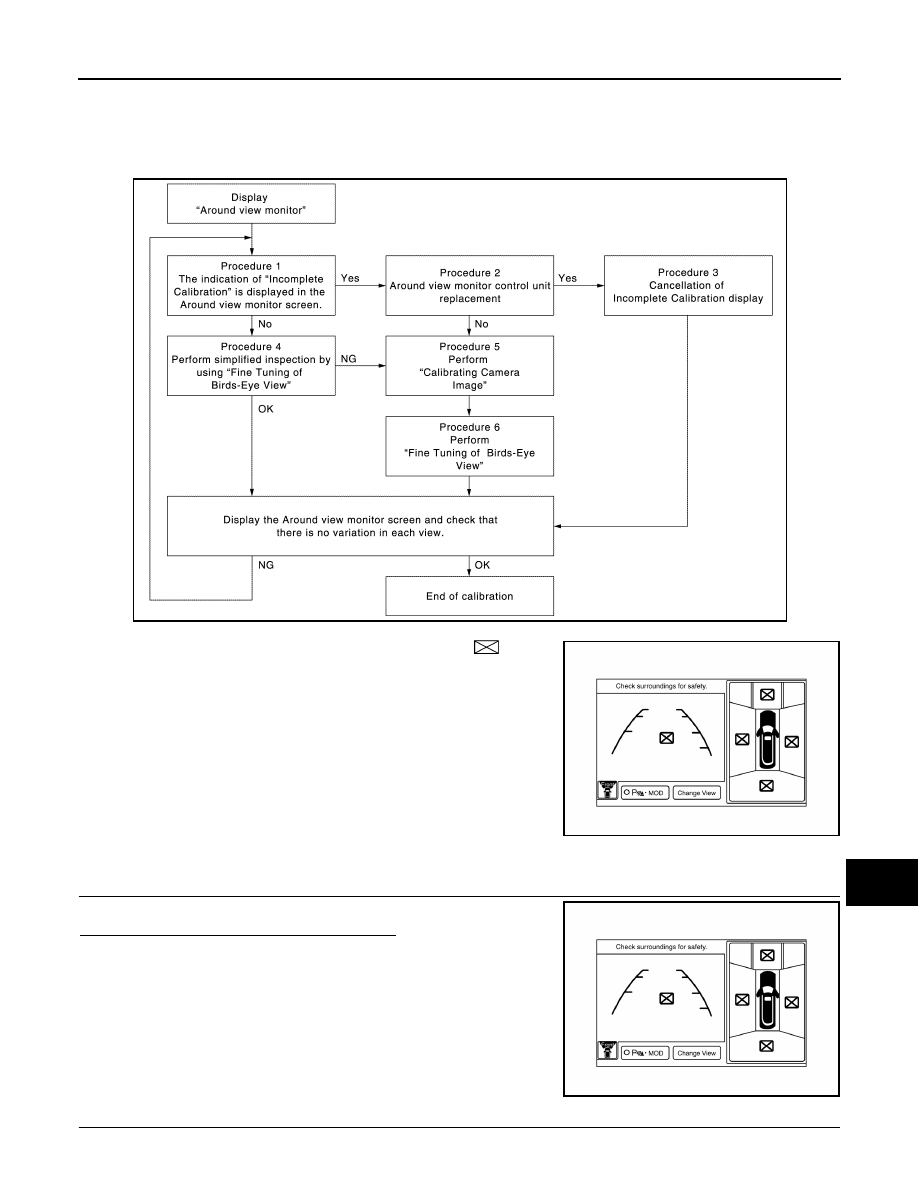

CALIBRATION FLOWCHART

Following the flowchart shown in the figure, perform the calibration.

NOTE:
View in the incomplete calibration state is indicated by “

” on the

around view monitor.

CALIBRATION PROCEDURE

1.

AROUND VIEW MONITOR SCREEN CONFIRMATION

Check that there is no indication of “Incomplete calibration”.

Is the “Incomplete calibration” display visible?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK THAT AROUND VIEW MONITOR CONTROL UNIT IS REPLACED

JSNIA4210GB

AWNIA2590GB

AWNIA2590GB

AV-182

< BASIC INSPECTION >

[NAVIGATION]

INSPECTION AND ADJUSTMENT

Check that the around view monitor control unit is replaced.

Is the around view monitor control unit replaced?

YES

>> GO TO 3.

NO

>> GO TO 5.

3.

CANCEL THE INDICATION OF INCOMPLETE CALIBRATION (PERFORM THIS ONLY AFTER REPLAC-

ING AROUND VIEW MONITOR CONTROL UNIT.)

CONSULT work support

1.

On the CONSULT screen, touch “CALIBRATING CAMERA IMAGE (FRONT CAMERA)”, “CALIBRATING
CAMERA IMAGE (PASS-SIDE CAMERA)”, “CALIBRATING CAMERA IMAGE (DR-SIDE CAMERA)”, or
“CALIBRATING CAMERA IMAGE (REAR CAMERA)” to accept the selection.
NOTE:
To cancel the indication of Incomplete calibration, select items based on the target camera.

2.

On the adjustment screen of each camera, touch “APPLY” but-
ton. After this, touch “OK” button.

CAUTION:

• Never perform operations other than those mentioned

above.

• Never perform “Initialize Camera Image Calibration”.

3.

Display the around view monitor screen to check that there is no
errors, such as deviations among the camera images.

Is there a malfunction?

YES

>> Calibration End.

NO

>> GO TO 1.

4.

PERFORM SIMPLIFIED CONFIRMATION/ADJUSTMENT BY “FINE TUNING OF BIRDS-EYE VIEW”

1.

Put target line 1 on the ground beside each axle using packing tape, etc.

2.

Put target lines 2 equal to the vehicle total length + approximately 1.0 m (39.3 in) from the vehicle side
(right and left) at approximately 30 cm (11.8 in) away from the vehicle (make the line as parallel with the
vehicle as possible)

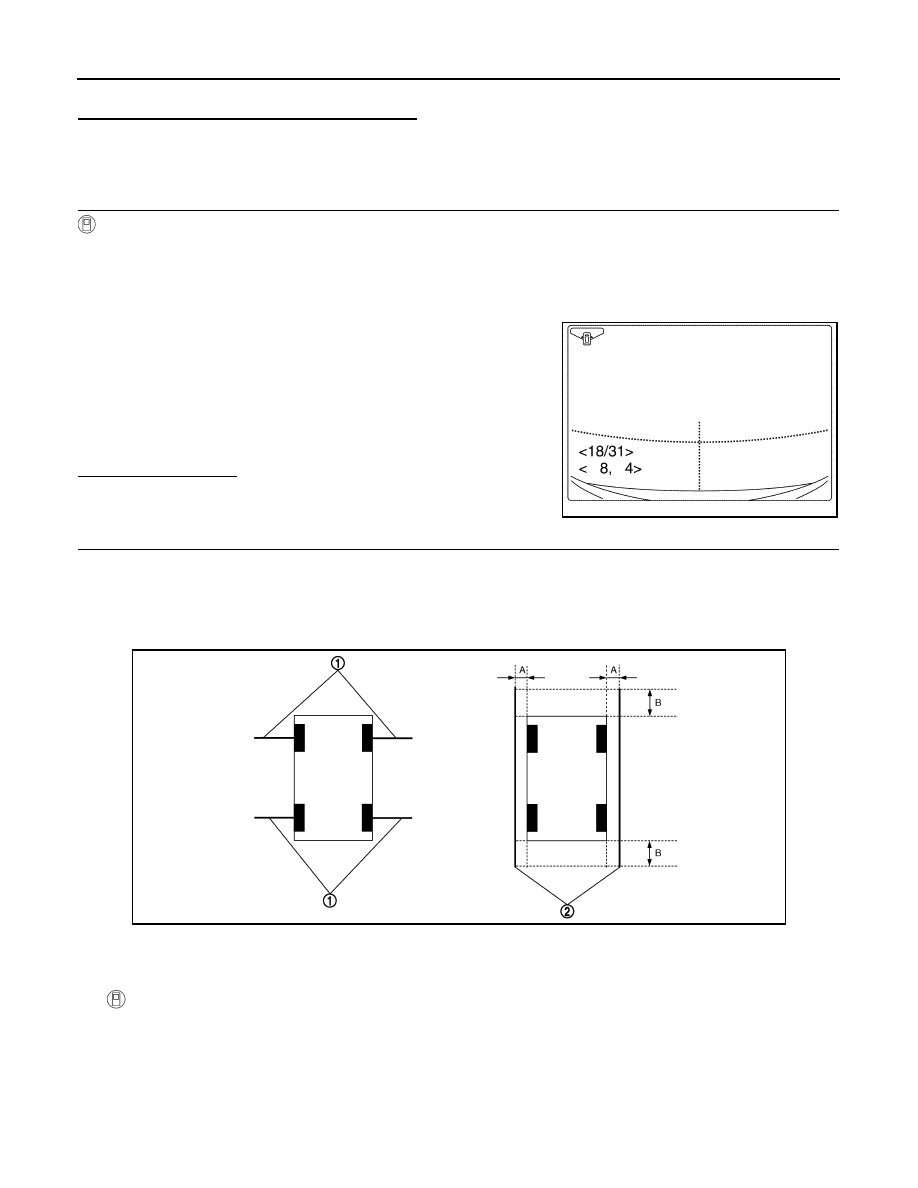

Preparation of simplified target line

3.

CONSULT work support

Touch “FINE TUNING OF BIRDS-EYE VIEW” on the CONSULT screen.

4.

On the CONSULT screen, touch “SELECT” button to select right or left camera and perform camera cali-
bration as instructed below:

-

If the marker on the screen deviates from Target line 1, touch “AXIS X” button and “AXIS Y” button to
adjust so that the marker is placed on the Target line 1.

-

If Target line 2 is misaligned among the cameras, adjust each camera image to bring Target line 2 into a
straight line.

CAUTION:

JSNIA4212ZZ

JSNIA0927ZZ

1.

Target lines 1

2.

Target lines 2

A.

Approx. 30 cm (11.8 in)

B.

Approx. 1.0 m (39.3 in)

AV

INSPECTION AND ADJUSTMENT

AV-183

< BASIC INSPECTION >

[NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Never adjust the front camera and rear camera. Only adjust the right and left cameras.

Simplified target line adjustment method

5.

Adjust right and left cameras. Touch "APPLY" on the CONSULT screen to display adjustment results.

6.

After adjusting right and left cameras, check that the marker is properly placed on the screen and there is
no deviation in Target line 1.
NOTE:
• It can be initialized to the NISSAN factory default condition with “Initialize Camera Image Calibration”.
• The adjustment value is cancelled on this mode by performing “Initialize Camera Image Calibration”.

Is the difference corrected?

YES

>> On the CONSULT screen, touch “OK” button to complete writing to the around view monitor con-

trol unit.

NO

>> GO TO 5.

5.

PERFORM “CALIBRATING CAMERA IMAGE”

Preparation of target line
1.

Hang a string with a weight as shown in the figure. Put the points FM0, RM0 (mark) on the ground at the
center of the vehicle front end and rear end with white packing tape or a pen.

2.

Route the vinyl string under the vehicle, and then pull and fix it on the point approximately 1.0 m (39.9 in)
to the front and rear of the vehicle through the points FM0 and RM0 using packing tape.

Target line preparation procedure 1

JSNIA0929ZZ

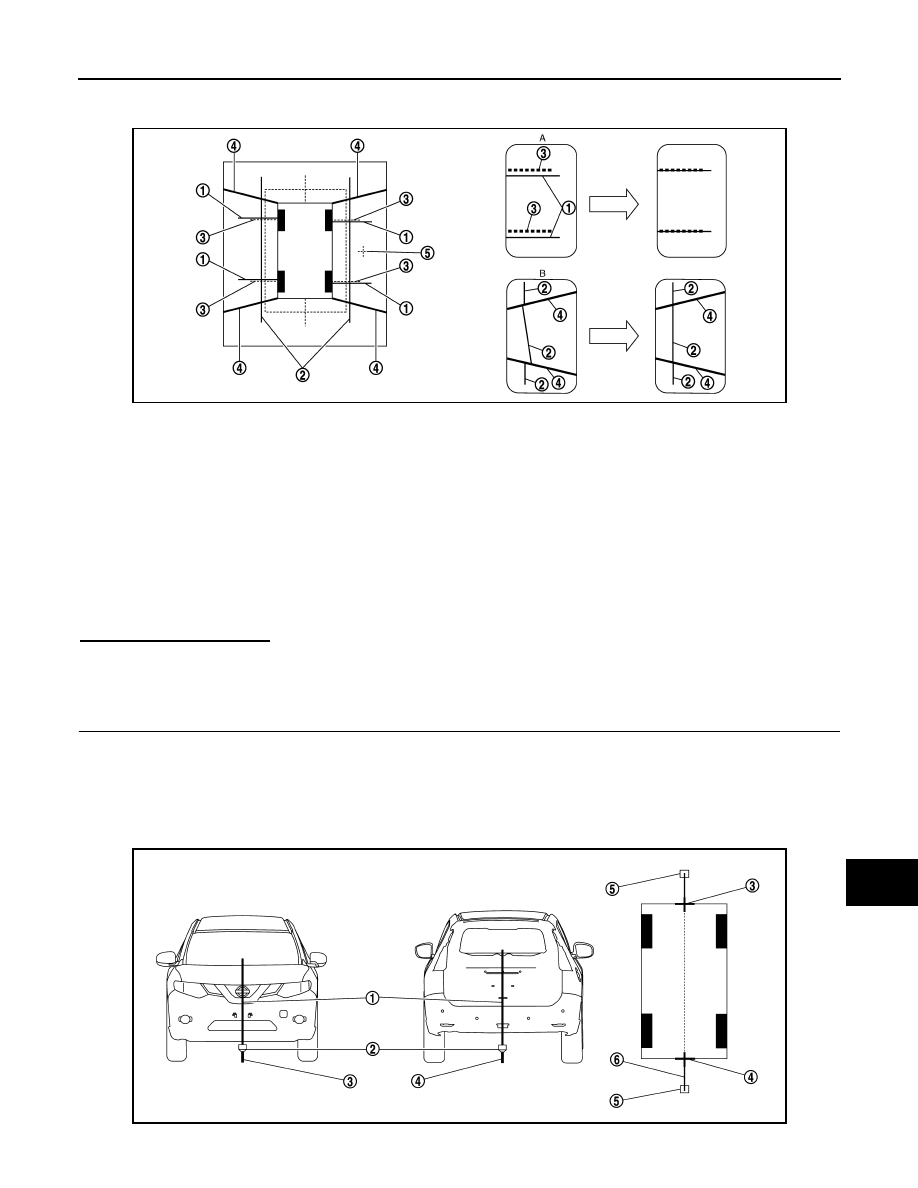

1.

Target lines 1

2.

Target lines 2

3.

Marker for target line 1

4.

Boundary between cameras

5.

Crosshairs cursor (mark indicated
the selected camera)

A.

Adjustment method for target lines 1
(right)

B.

Adjustment method for target lines 2
(right)

JSNIA6880ZZ

AV-184

< BASIC INSPECTION >

[NAVIGATION]

INSPECTION AND ADJUSTMENT

3.

Put the points FM and RM (mark) 75 cm (29.5 in) from the points FM0 and RM0 individually.

4.

Route the vinyl string through the points FM and RM using a triangle scale, and then fix it at approximately
1.5 m (59 in) on both sides with packing tape.

5.

Put the points FL, FR, RL, and RR (mark) to both right and left [vehicle width / 2 + 30 cm (11.8 in)] from the
points FM and RM.

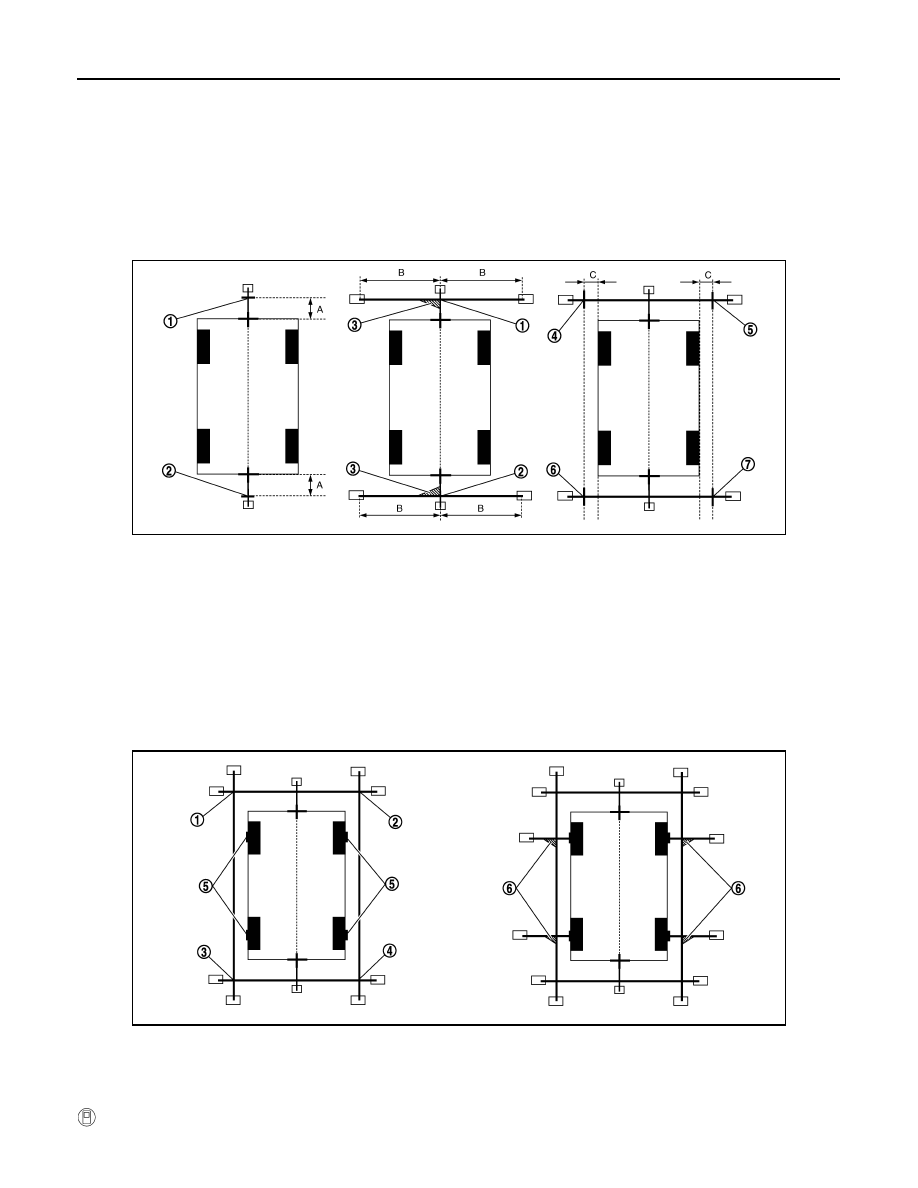

Target line preparation procedure 2

6.

Draw the lines of the points FL – RL and FR – RR with vinyl string, and fix it with packing tape.

7.

Put a mark on the center of each axle, draw vertical lines to the lines of the points FL – RL and FR – RR
from the marks on the center of the axle using a triangle scale, and then fix the lines using packing tape.

Target line preparation procedure 3

Perform “Calibrating Camera Image”

CONSULT work support

1.

Thread

2.

Weight

3.

Point FM0 (mark)

4.

Point RM0 (mark)

5.

Packing tape (to fix the vinyl string)

6.

Vinyl string

JSNIA0921ZZ

1.

Point FM

2.

Point RM

3.

Triangle scale

4.

Point FL (mark)

5.

Point FR (mark)

6.

Point RL (mark)

7.

Point RR (mark)

A.

75 cm (29.5 in)

B.

Approx. 1.5 m (59 in)

C.

30 cm (11.8 in)
[Vehicle width/ 2 + 30 cm (11.8 in)
from the points FM and RM]

JSNIA0922ZZ

1.

Point FL

2.

Point FR

3.

Point RL

4.

Point RR

5.

Center position of axle

6.

Triangle scale
