The other party

′

s voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person

′

s voice during a

call.

Poor sound quality.

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Symptom

Cause and Counter measure

AV-114

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

AUDIO UNIT

REMOVAL AND INSTALLATION

AUDIO UNIT

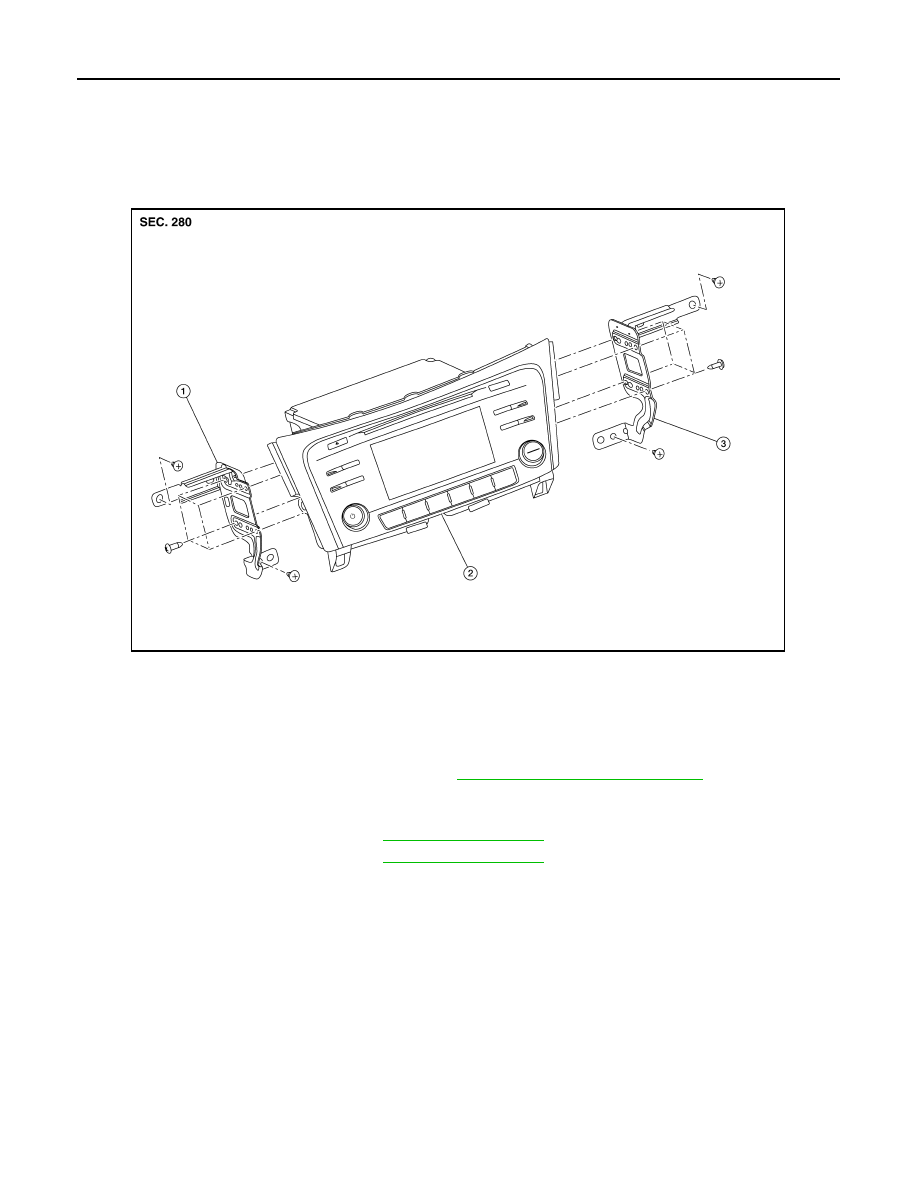

Exploded View

INFOID:0000000010435619

Removal and Installation

INFOID:0000000010435620

REMOVAL

1.

Disconnect the negative battery terminal. Refer to

PG-155, "Removal and Installation"

.

2.

Remove A/C switch (AUTOMATIC AIR CONDITIONING) or front air control (MANUAL AIR CONDITION-
ING).

3.

Remove instrument finisher B. Refer to

IP-12, "Exploded View"

.

4.

Remove instrument finisher E. Refer to

IP-12, "Exploded View"

.

5.

Remove the audio unit screws, then pull out the audio unit.

6.

Disconnect the harness connectors from the audio unit and remove.

7.

Remove the audio unit bracket (LH/RH) screws and the audio unit brackets (LH/RH) (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1.

Audio unit bracket (LH)

2.

Audio unit

3.

Audio unit bracket (RH)

AWNIA3340ZZ

AV

STEERING SWITCHES

AV-115

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

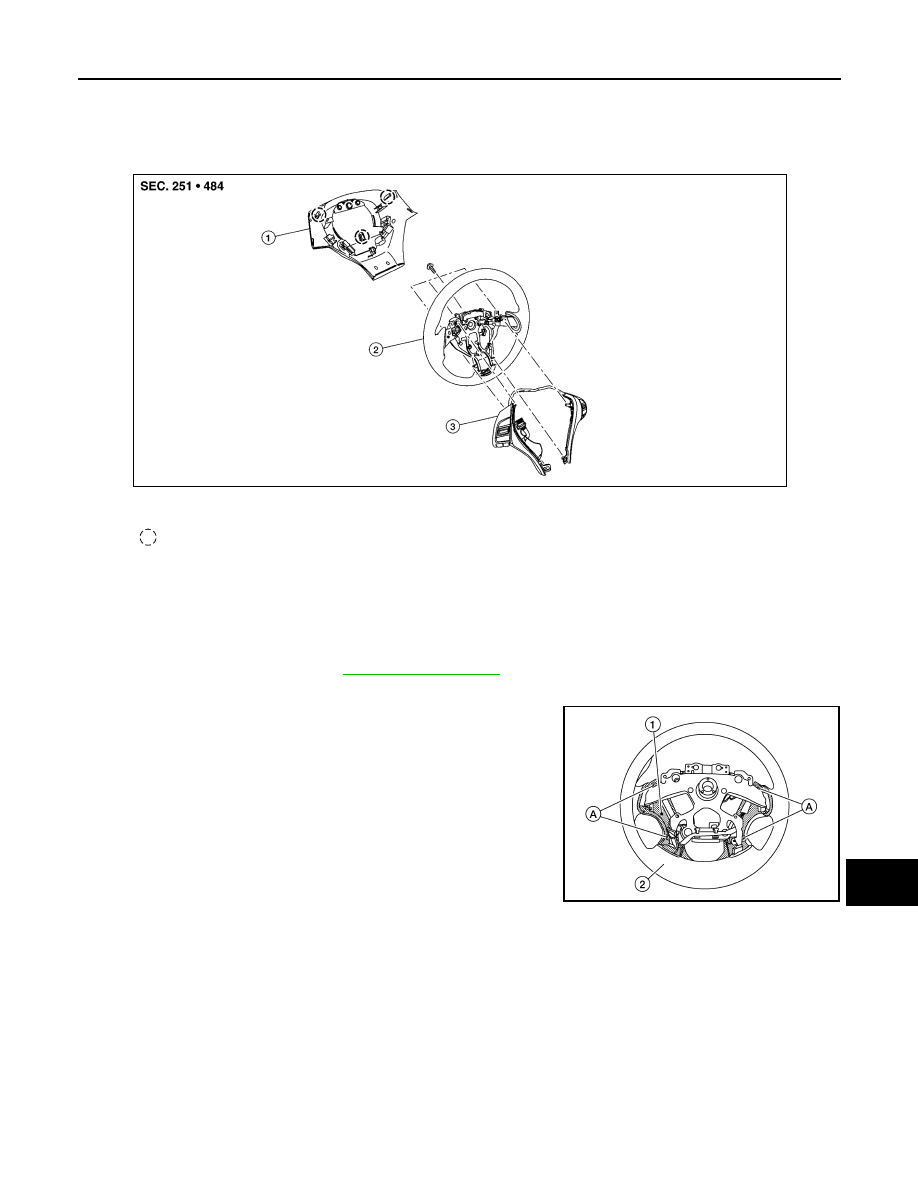

STEERING SWITCHES

Exploded View

INFOID:0000000010435621

Removal and Installation

INFOID:0000000010435622

REMOVAL

NOTE:
The steering switches are serviced as an assembly.

1.

Remove steering wheel. Refer to

ST-8, "Exploded View"

.

2.

Release pawls on the steering wheel rear finisher and remove.

3.

Remove screws (A) and steering switches (1) from steering
wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering wheel rear finisher

2.

Steering wheel

3.

Steering switches

Pawl

AWNIA3342ZZ

AWNIA3326ZZ

AV-116

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

FRONT TWEETER

FRONT TWEETER

Removal and Installation

INFOID:0000000010435623

REMOVAL

1.

Remove defroster grille. Refer to

IP-12, "Exploded View"

.

2.

Remove bolts and pull out the front tweeter.

3.

Disconnect the harness connector from the front tweeter and remove.

INSTALLATION

Installation is in the reverse order of removal.
