ECH-98
< BASIC INSPECTION >
[HRA2DDT]
DIAGNOSIS AND REPAIR WORKFLOW
>> GO TO 8.
8.
DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE
Inspect according to Diagnosis Procedure of the system.
NOTE:
The Diagnosis Procedure in EC section described based on open circuit inspection. A short circuit inspection
is also required for the circuit check in the Diagnosis Procedure. For details, refer to
GI-43, "Circuit Inspec-
tion"
.
Is malfunctioning part detected?
YES
>> GO TO 9.
NO
>> Monitor input data from related sensors or check the voltage of related ECM terminals using CON-
SULT. Refer to
ECH-59, "Reference Value"
.
9.
REPAIR OR REPLACE THE MALFUNCTIONING PART
1.
Repair or replace the malfunctioning part.
2.
Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace-
ment.
3.
Check DTC. If DTC is displayed, erase it.
>> GO TO 10.
10.
FINAL CHECK
When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function
Check again, and then make sure that the malfunction have been repaired securely.
When symptom was described from the customer, refer to confirmed symptom in step 3 or 4, and make sure
that the symptom is not detected.
Is DTC detected and does symptom remain?
YES-1 >> DTC is detected: GO TO 8.
YES-2 >> Symptom remains: GO TO 6.
NO
>> Before returning the vehicle to the customer, make sure to erase unnecessary DTC in ECM.

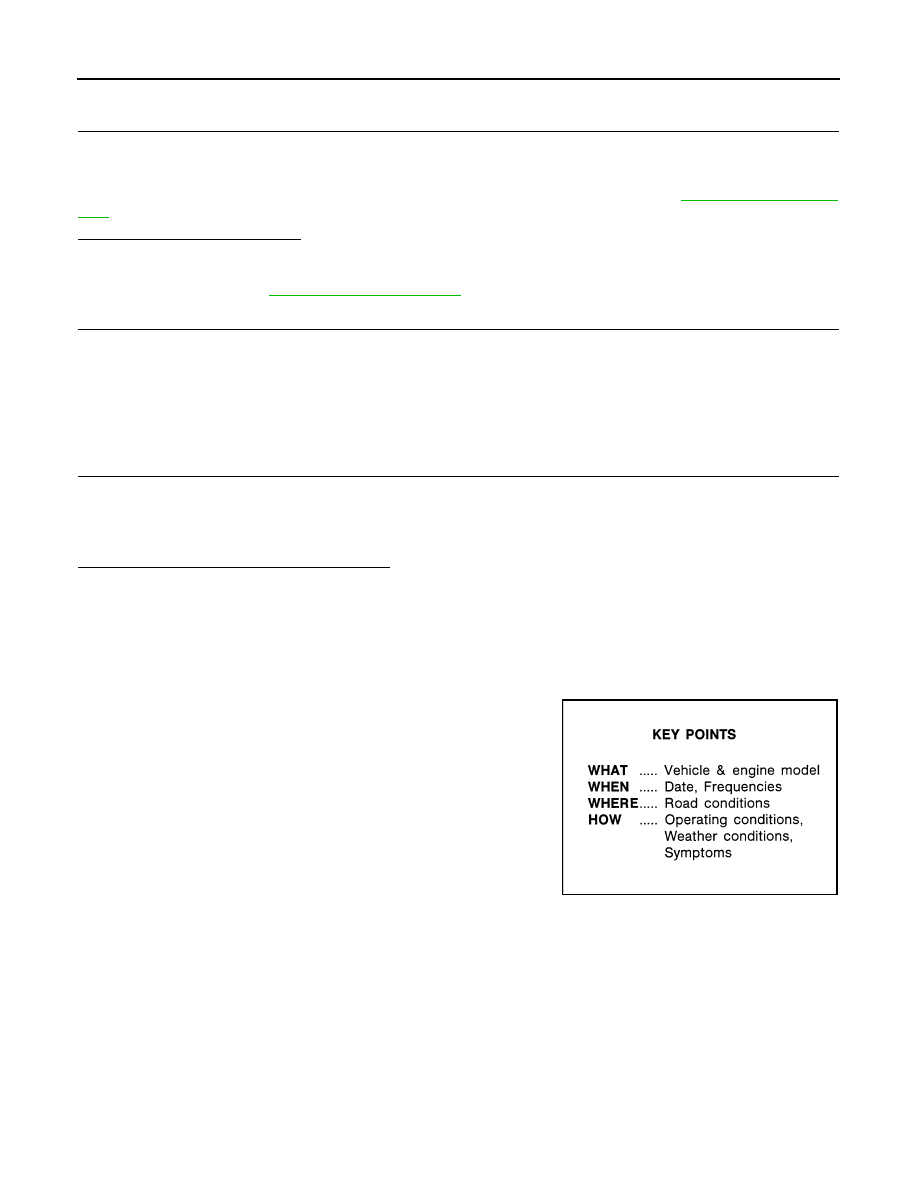

Diagnostic Work Sheet
INFOID:0000000010379041
DESCRIPTION
There are many operating conditions that lead to the malfunction of
engine components. A good grasp of such conditions can make trou-
bleshooting faster and more accurate.
In general, each customer feels differently about an incident. It is
important to fully understand the symptoms or conditions for a cus-
tomer complaint.

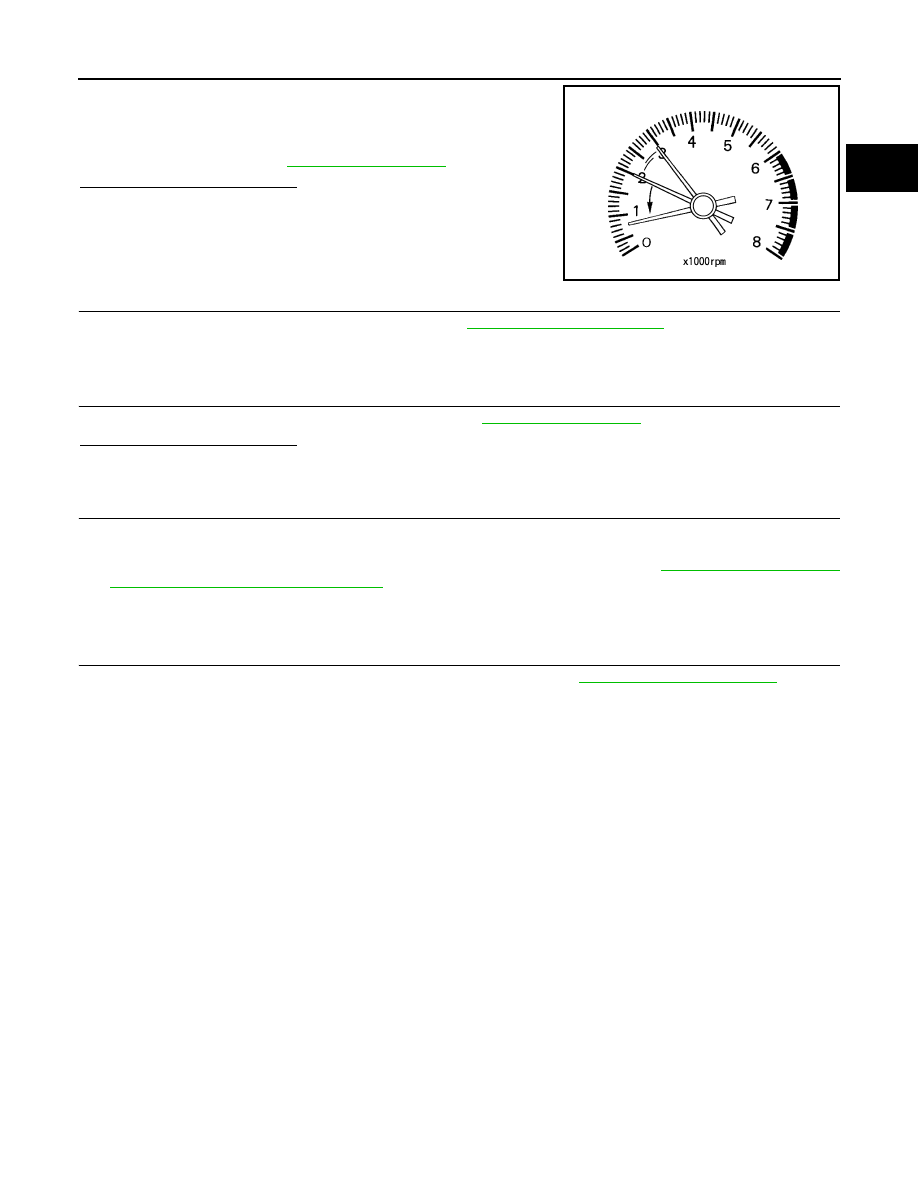

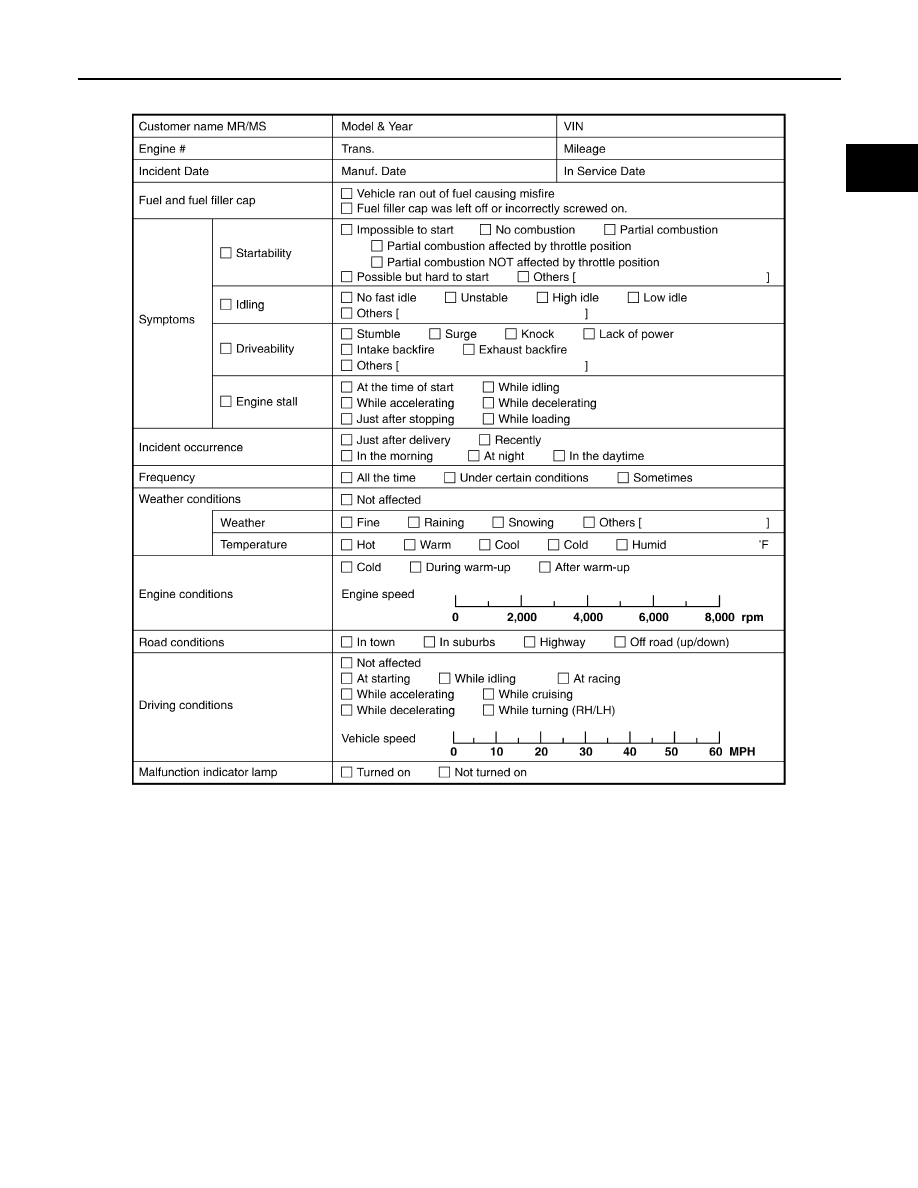

Utilize a diagnostic worksheet like the WORKSHEET SAMPLE
below in order to organize all the information for troubleshooting.
Some conditions may cause the MIL to come on steady or blink and
DTC to be detected. Examples:
Vehicle ran out of fuel, which caused the engine to misfire.
SEF907L
