ECH-74
< ECU DIAGNOSIS INFORMATION >
[HRA2DDT]
DC/DC CONVERTER
DC/DC CONVERTER
Reference Value
INFOID:0000000010682106

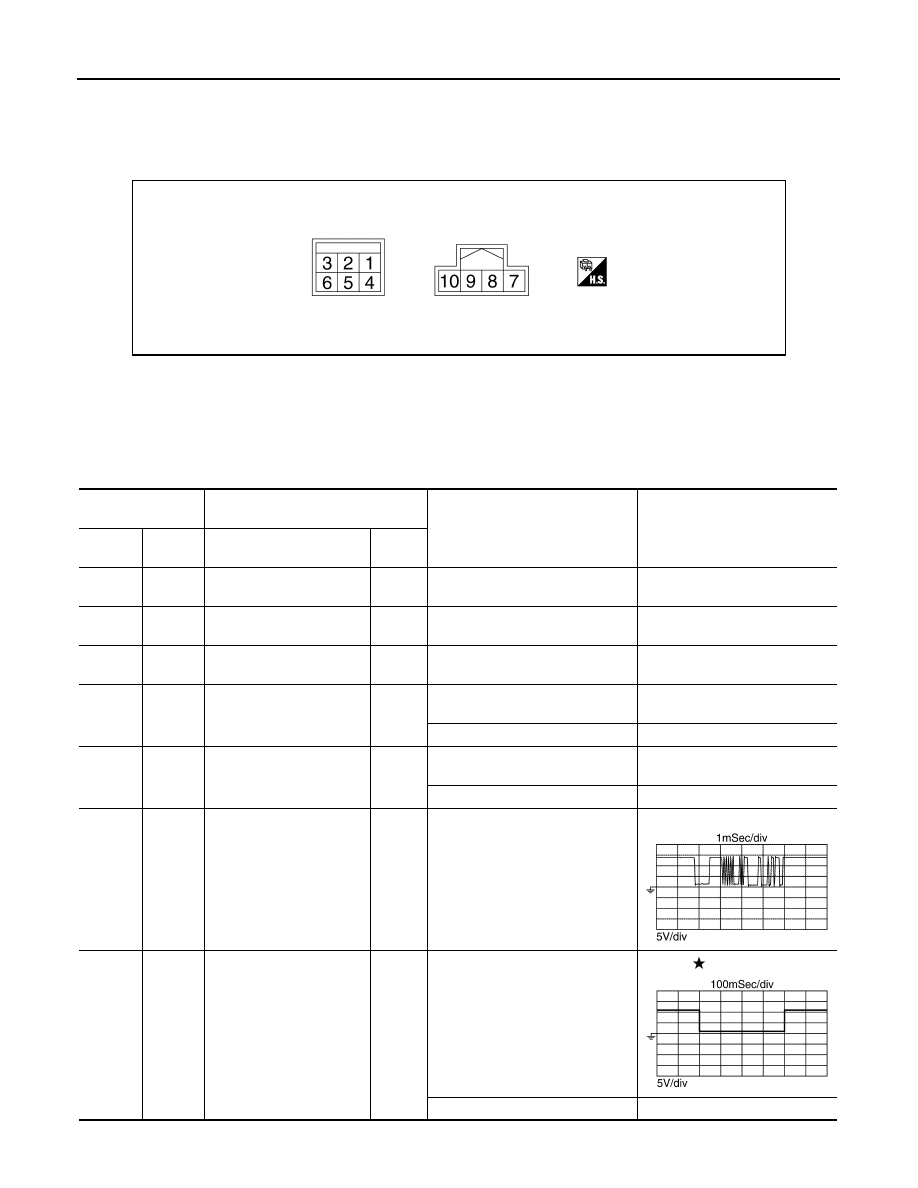

TERMINAL LAYOUT
PHYSICAL VALUES
NOTE:
• DC/DC converter is located behind the glove upper box assembly. For this inspection, remove passenger
side instrument lower panel.
• Specification data are reference values and are measured between each terminal and ground.
• Pulse signal is measured by CONSULT.
JSBIA5036GB
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
+
–
Signal name
Input/
Output
1
(LG)
2
(B)
Power supply input 1
Input
[Ignition switch: OFF]
9 - 13 V
2
(B)
—
Ground
—
—
—
3
(L)
2
(B)
Power supply input 2
Input
[Ignition switch: OFF]
9 - 13 V
4
(G)
2
(B)
Power supply output 1
Output
[Stop/start system operates]
• While cranking of restart
12 V
Except above
9 - 13 V
6
(W)
2
(B)
Power supply output 2
Output
[Stop/start system operates]
• While cranking of restart
12 V
Except above
9 - 13 V
7
(SB)
2
(B)
Engine communication line
Input/
Output
[Ignition switch: ON]
9
(LG)
2
(B)
Voltage stabilizer signal
Input
[Stop/start system operates]
• While cranking of restart
Less than 2 V
Except above
Battery voltage

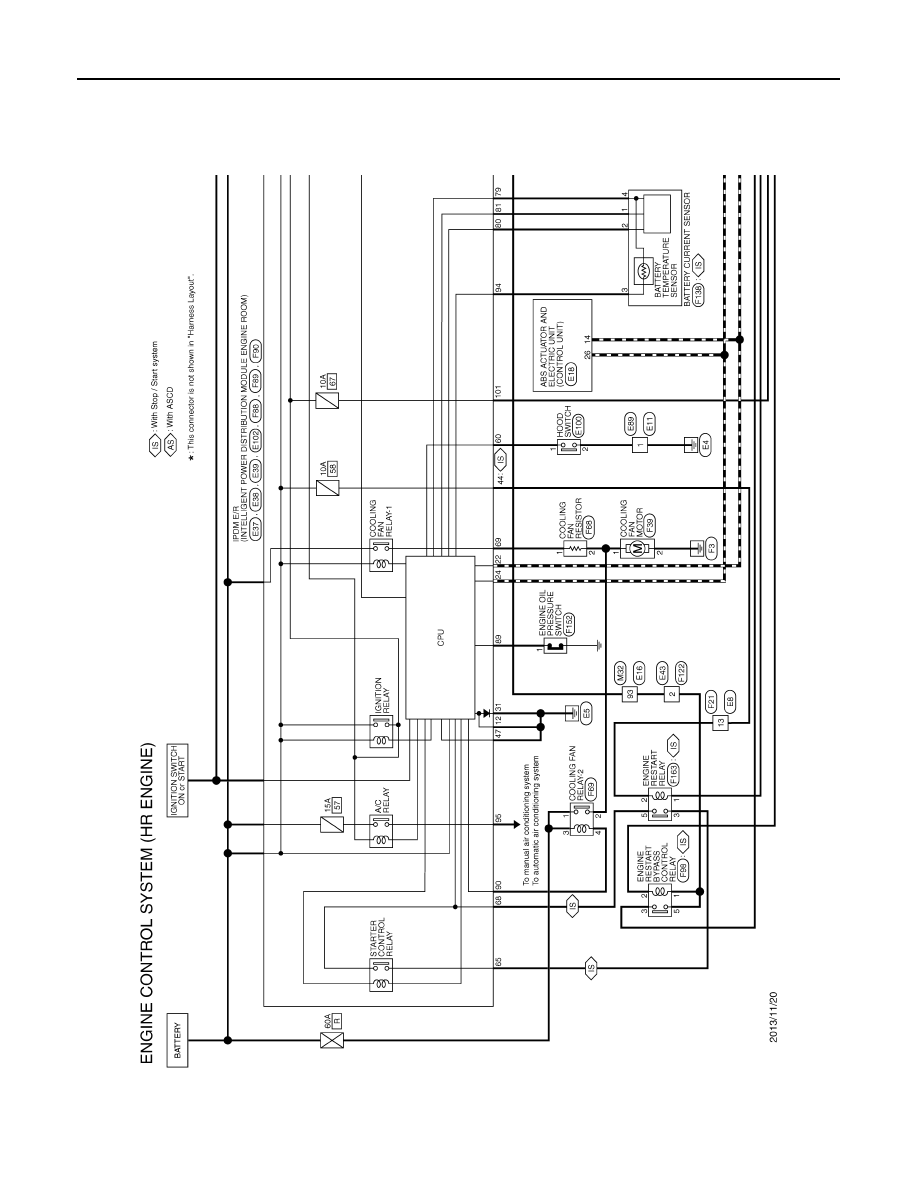

JPBIA4273ZZ

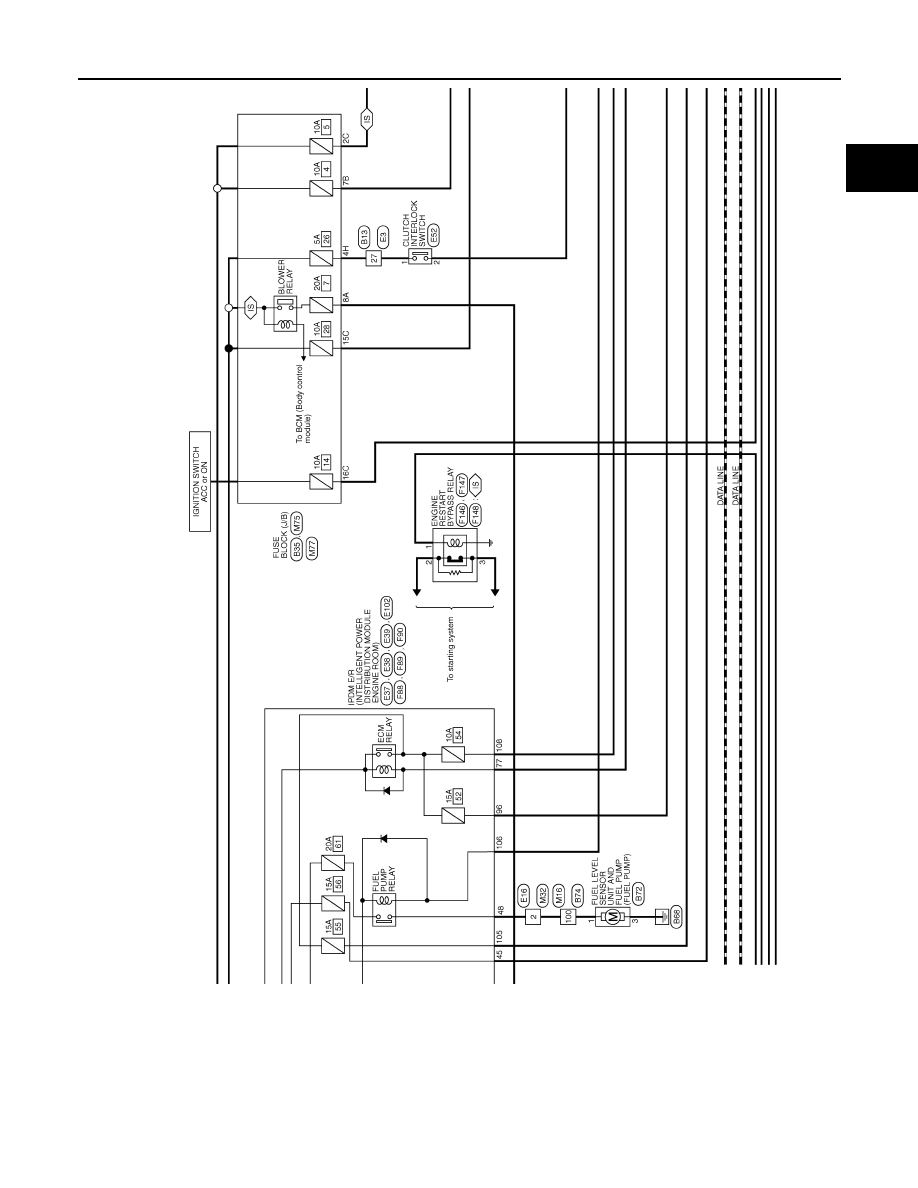

JSBIA5055GB
