FRONT FOG LAMP

• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
• Never touch bulb by hand while it is lit or right after being turned OFF.
• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

FRONT FOG LAMP BULB

1.

Remove fender protector to make work space. Refer to

EXT-32, "Removal and Installation"

.

2.

Disconnect front fog lamp harness connector

.

3.

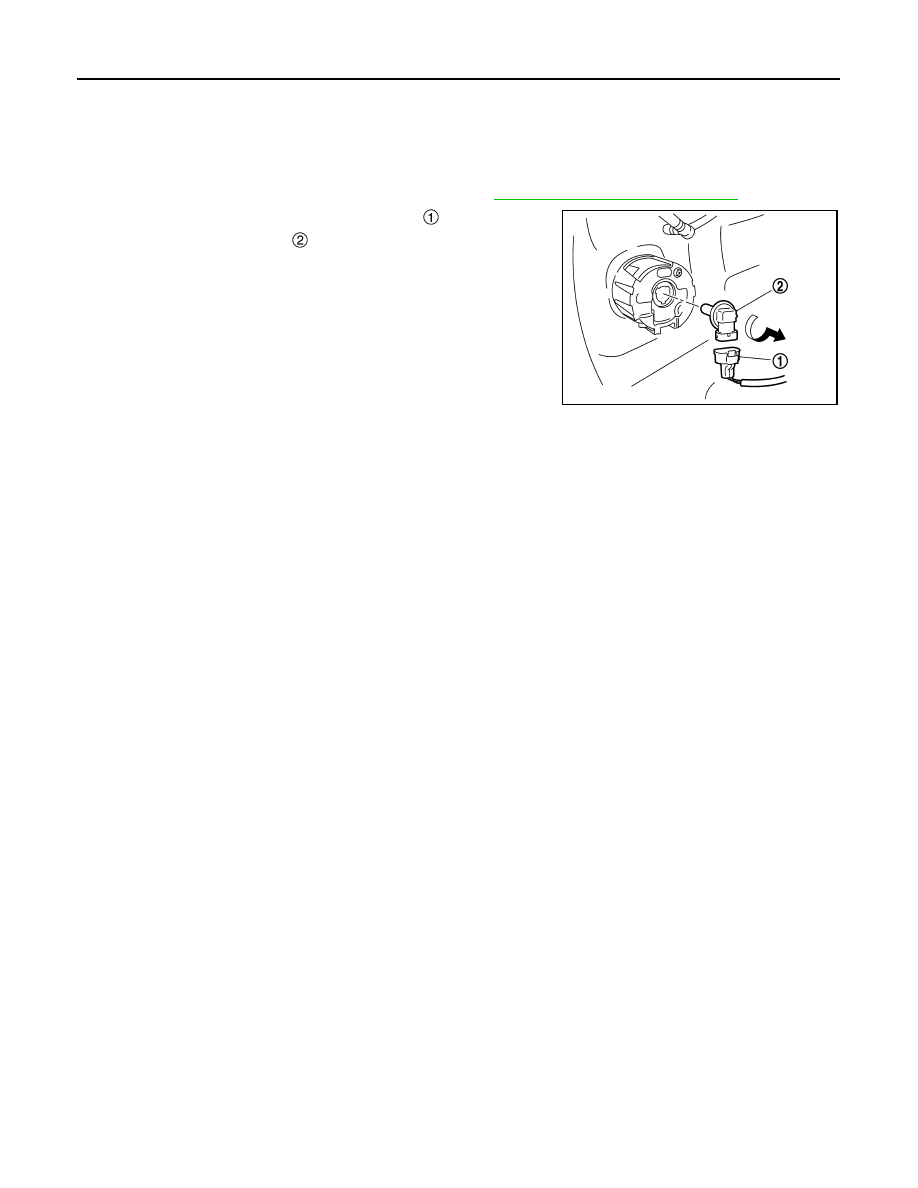

Rotate front fog lamp bulb

 counterclockwise and unlock it.

JPLIA0345ZZ

SIDE TURN SIGNAL LAMP

EXL-323

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SIDE TURN SIGNAL LAMP

Exploded View

INFOID:0000000010437136

Refer to

MIR-31, "Exploded View"

.

Removal and Installation

INFOID:0000000010437137

REMOVAL

1.

Remove door mirror cover. Refer to

MIR-31, "Removal and Installation"

.

2.

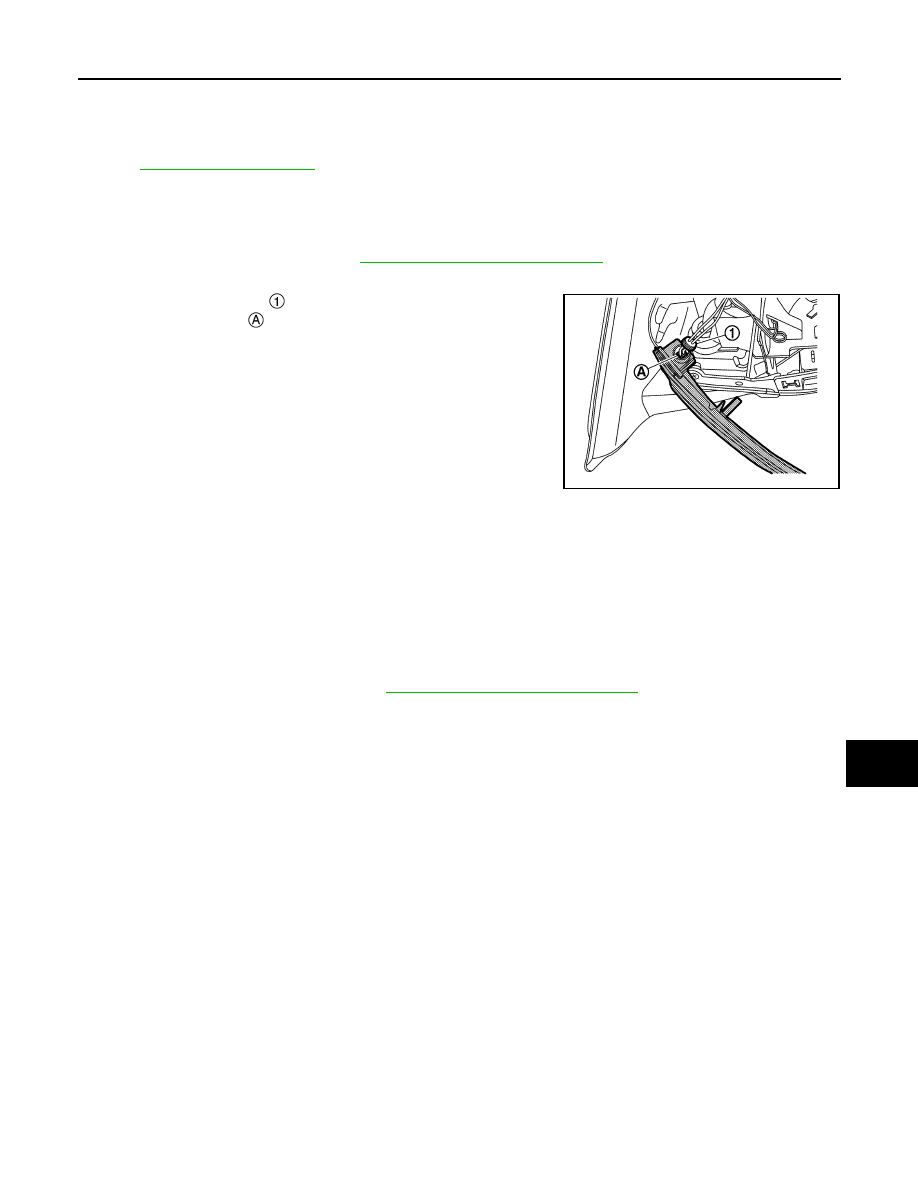

Remove side turn signal lamp fixing screws.

3.

Remove seal packing

 and disconnect side turn signal lamp

harness connector

, and then remove side turn signal lamp

from door mirror housing.

INSTALLATION

Install in the reverse order of removal.

Replacement

INFOID:0000000010437138

CAUTION:

Replacement of a single part is not possible due to the adoption of LED bulb. For replacement, replace
side turn signal lamp as a set.

SIDE TURN SIGNAL LAMP

1.

Remove side turn signal lamp. Refer to

EXL-323, "Removal and Installation"

.

2.

Replace side turn signal lamp with new part.

JMLIA4978ZZ

EXL-324

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

LIGHTING & TURN SIGNAL SWITCH

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000010437141

REMOVAL

Remove light & turn signal switch (combination switch). Refer to

BCS-133, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

HAZARD SWITCH

EXL-325

< REMOVAL AND INSTALLATION >

[HALOGEN HEADLAMP]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HAZARD SWITCH

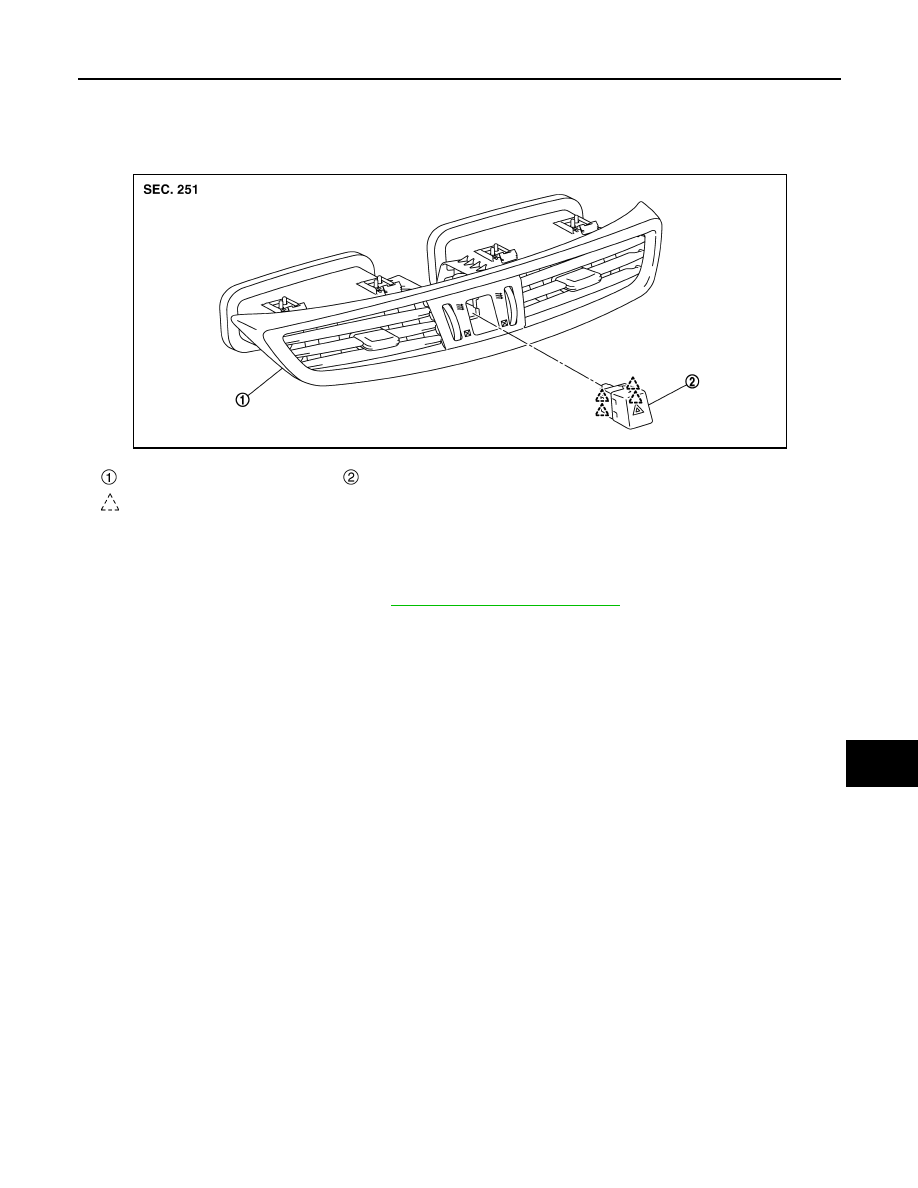

Exploded View

INFOID:0000000010437142

Removal and Installation

INFOID:0000000010437143

REMOVAL

1.

Remove center ventilator grille. Refer to

IP-13, "Removal and Installation"

.

2.

Disengage fixing pawls, and then remove hazard switch from center ventilator grille.

INSTALLATION

Install in the reverse order of removal.

Center ventilator grille

Hazard switch

: Pawl

JMLIA5094ZZ
