CO-104

< REMOVAL AND INSTALLATION >

[R9M]

WATER OUTLET

WATER OUTLET

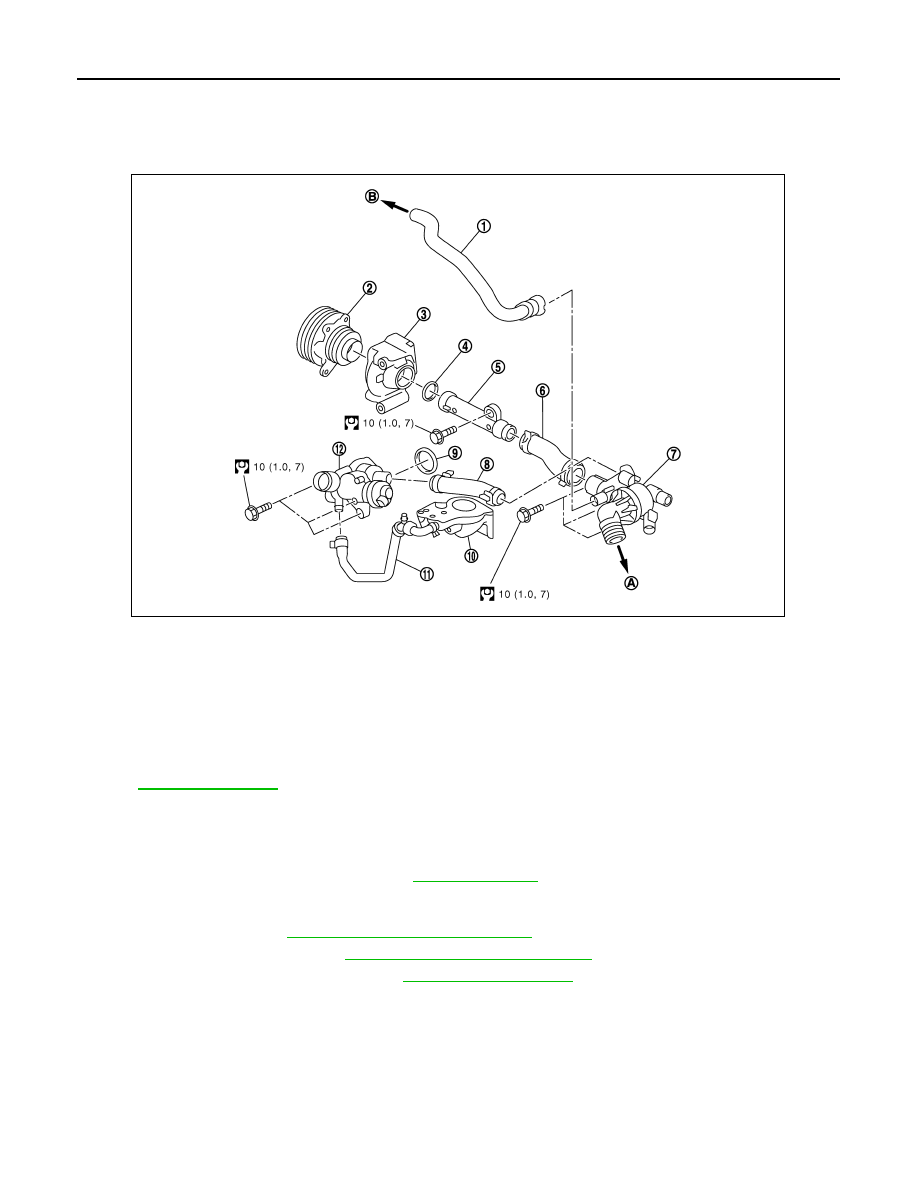

Exploded View

INFOID:0000000010416539

Refer to

GI-4, "Components"

 for symbols in the figure.

Removal and Installation

INFOID:0000000010416540

REMOVAL

1.

Drain engine coolant from radiator. Refer to

CO-89, "Draining"

.

CAUTION:

Perform this step when engine is cold.

2.

Remove battery. Refer to

PG-155, "Removal and Installation"

.

3.

Remove intake manifold. Refer to

EM-387, "Removal and Installation"

4.

Disconnect radiator hose (lower). Refer to

CO-95, "Exploded View"

.

5.

Disconnect water hoses from water outlet.

6.

Remove water outlet and thermostat assembly.

7.

CAUTION:

The thermostat cannot be separated from the water outlet.

INSTALLATION

Install in the reverse order of removal.

1.

Water hose

2.

Water pump

3.

Cylinder block

4.

O-ring

5.

Water pump inlet pipe

6.

Water pump inlet pipe intermediate

7.

Water outlet

8.

Water pipe between water inlet
housing and water chamber

9.

O-ring

10. intake manifold

11.

Water hose between intake manifold
and water chamber

12.

Water valve

A.

To Radiator

B.

To reservoir tank

E1BIA0656GB

WATER OUTLET

CO-105

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

Inspection

INFOID:0000000010416541

INSPECTION AFTER REMOVAL

Water outlet and thermostat assembly

1.

Check valve seating condition at ordinary room temperatures. It should seat tightly.

INSPECTION AFTER INSTALLATION

• Check that the reservoir tank cap is tightened.
• Check for leaks of engine coolant using the adapter and the reservoir tank cap tester [SST: — (M.S. 554-07).

Refer to

CO-89, "Inspection"

.

• Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.

Standard:

Refer to

CO-106, "Thermostat"

.

CO-106

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Periodical Maintenance Specification

INFOID:0000000010416547

ENGINE COOLANT CAPACITY (APPROXIMATE)

Unit:

 (Imp qt)

Radiator

INFOID:0000000010416548

Unit: kPa (bar, kg/cm

2

, psi)

Thermostat

INFOID:0000000010416549

Standard

Engine coolant capacity (With reservoir tank at “MAX” level)

M/T models

7.3 (6-3/8)

CVT models

7.9 (7)

Reservoir tank engine coolant capacity (At “MAX” level)

0.8 (3/4)

Reservoir tank cap relief pressure

140 (1.4, 1.4, 20)

Leakage testing pressure

140 (1.4, 1.4, 20)

Valve opening temperature

80 - 92

°

C (176 - 197

°

F)
