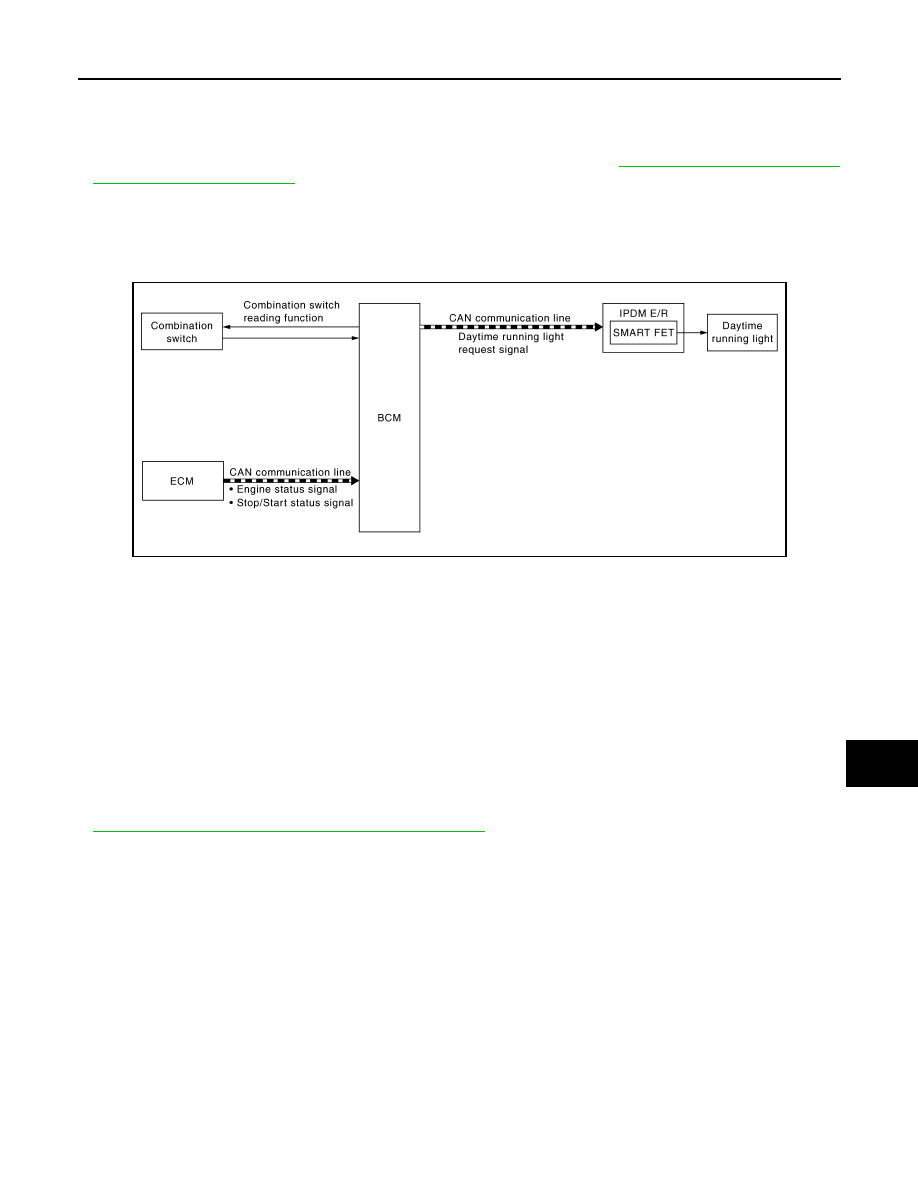

SYSTEM EXL-193 < SYSTEM DESCRIPTION > [HALOGEN HEADLAMP] C D E F G H I J K M A B EXL N O P NOTE: ation). • ON/OFF of fog override function can be changed using CONSULT. Refer to DAYTIME RUNNING LIGHT SYSTEM DAYTIME RUNNING LIGHT SYSTEM : System Description INFOID:0000000010469894 SYSTEM DIAGRAM OUTLINE Daytime running light is controlled by daytime running light control function and combination switch reading DAYTIME RUNNING LIGHT OPERATION • BCM detects the combination switch condition by the combination switch reading function. from ECM via CAN communication). • BCM transmits the daytime running light request signal to IPDM E/R via CAN communication according to the daytime running light ON condition. Daytime running light ON condition - Engine running and any following conditions are satisfied. EXL-192, "AUTO LIGHT SYSTEM : System Description" .) • IPDM E/R turns the integrated smart FET ON, and turns the daytime running light ON according to the day- time running light request signal. NOTE: DAYTIME RUNNING LIGHT SYSTEM : Fail-safe INFOID:0000000010469895 FAIL-SAFE CONTROL BY DTC IPDM E/R performs fail-safe control when any DTC are detected. JMLIA5230GB |
