SECURITY CONTROL SYSTEM

SEC-219

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

WIRING DIAGRAM

SECURITY CONTROL SYSTEM

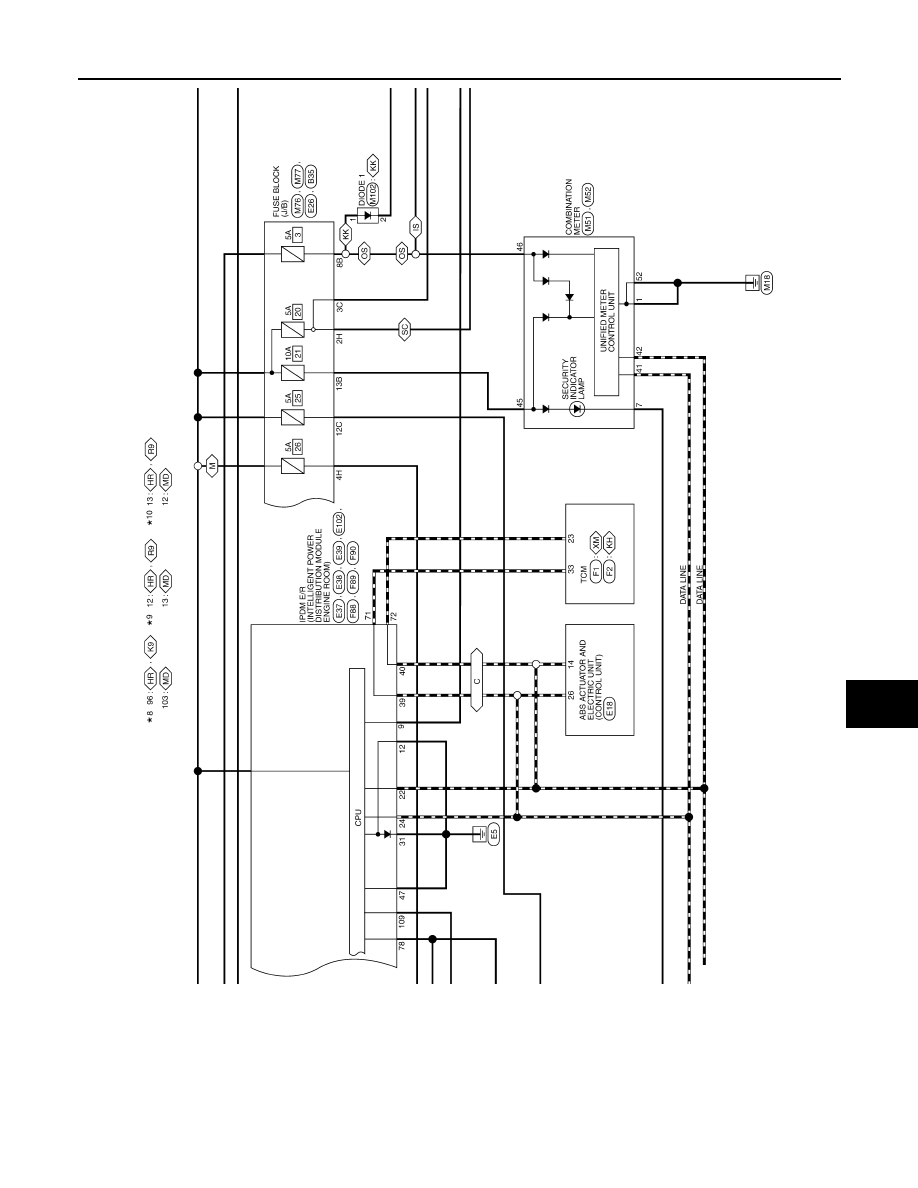

Wiring Diagram

INFOID:0000000010338040

JRKWE4015GB

SEC-220

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

SECURITY CONTROL SYSTEM

JRKWE4016GB

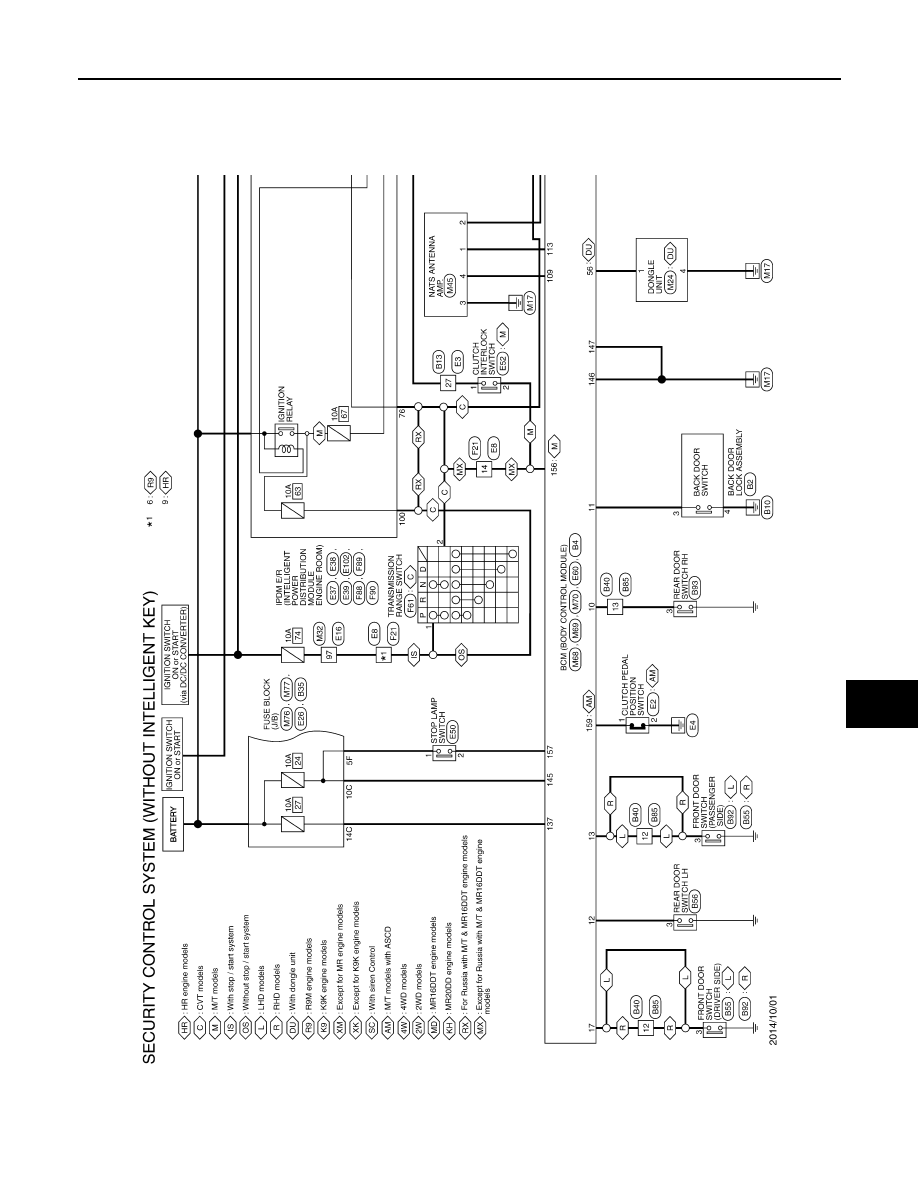

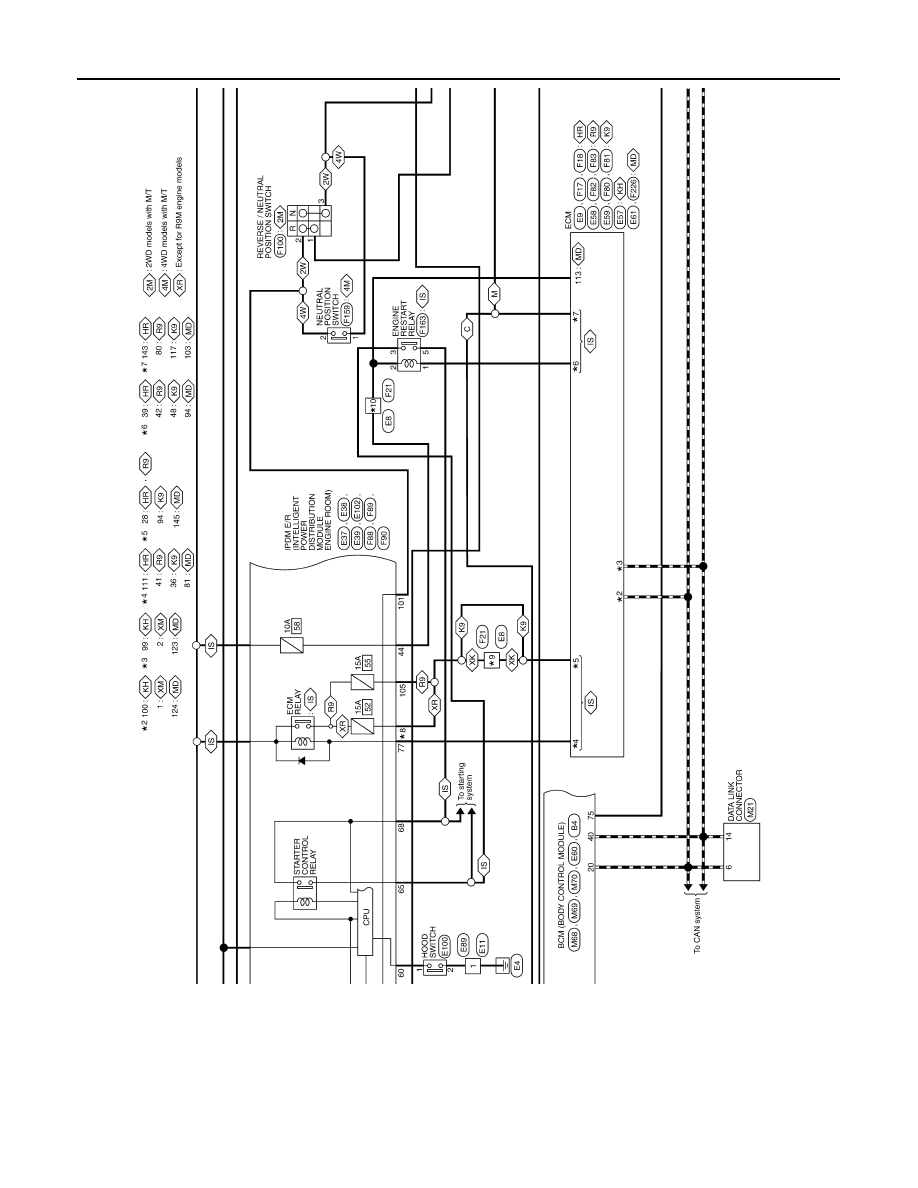

SECURITY CONTROL SYSTEM

SEC-221

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWE4017GB

SEC-222

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

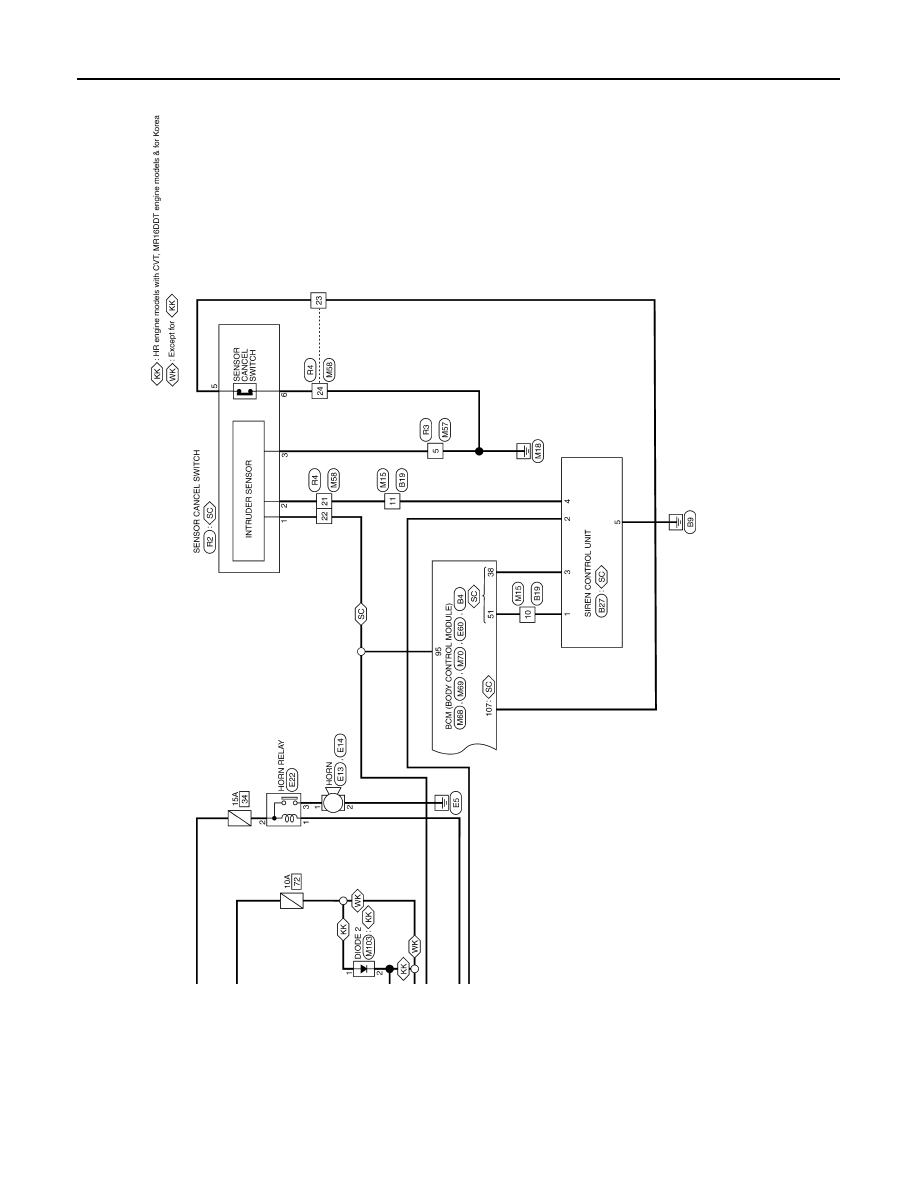

SECURITY CONTROL SYSTEM

JRKWE4018GB
