FRONT DOOR

DLK-937

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing front door assembly, support door with a jack and shop cloth to pro-

tect door and body.

1.

Remove front fender. Refer to

DLK-932, "Removal and Installation"

.

2.

Remove front door assembly. Refer to

DLK-934, "DOOR ASSEMBLY : Removal and Installation"

.

3.

Remove front door hinge mounting bolts (body side), and then remove front door hinge.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• Check front door open/close, lock/unlock operation after installation.
• After installation, perform the fitting adjustment. Refer to

DLK-935, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• After installation, check door hinge rotating part for poor lubrication. Refer to

DLK-937, "DOOR

HINGE : Inspection"

.

DOOR HINGE : Inspection

INFOID:0000000010678865

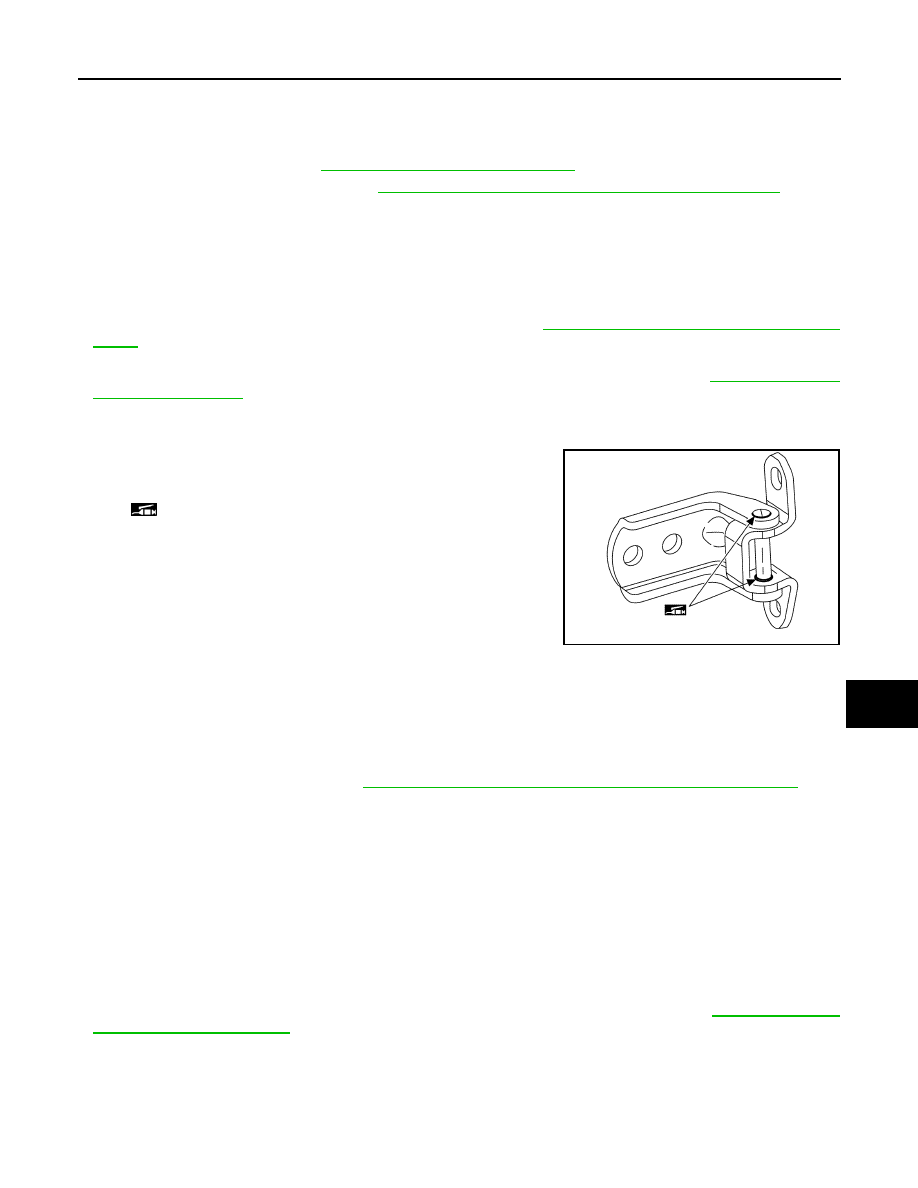

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

DOOR CHECK LINK

DOOR CHECK LINK : Removal and Installation

INFOID:0000000010678866

REMOVAL

1.

Fully close the front door glass.

2.

Remove front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

3.

Remove front door speaker.

a.

Disconnect front door speaker harness connector.

b.

Remove front door speaker mounting bolts, and then remove front door speaker.

4.

Remove check link mounting bolts of vehicle body side.

5.

Remove check link mounting bolts of door side.

6.

Take door check link out from the hole of door panel.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check front door open/close operation after installation.
• After installation, check door check link rotating part for poor lubrication. Refer to

DLK-938, "DOOR

CHECK LINK : Inspection"

.

: Body grease

JMKIB0321ZZ

DLK-938

< REMOVAL AND INSTALLATION >

[TYPE 6]

FRONT DOOR

DOOR CHECK LINK : Inspection

INFOID:0000000010678867

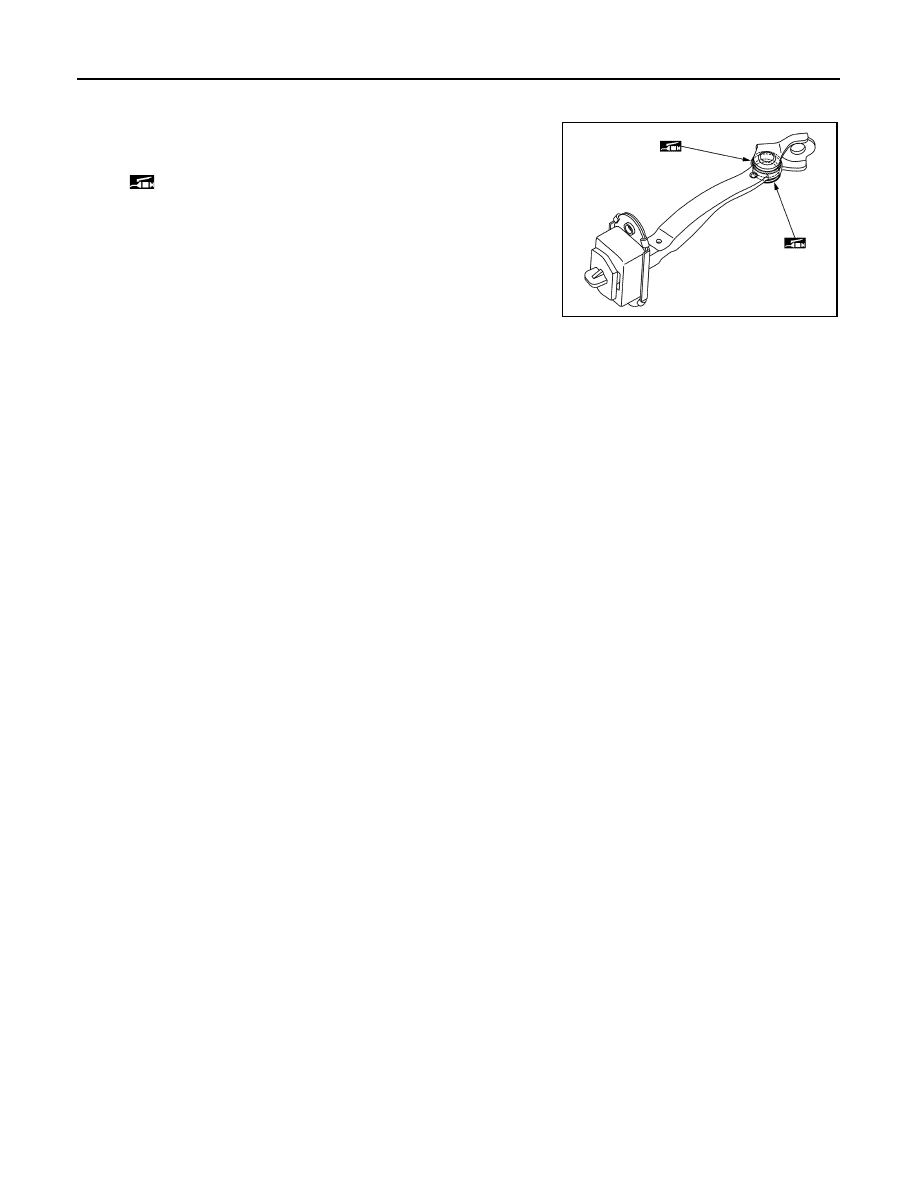

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

: Body grease

JMKIB0322ZZ

REAR DOOR

DLK-939

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REAR DOOR

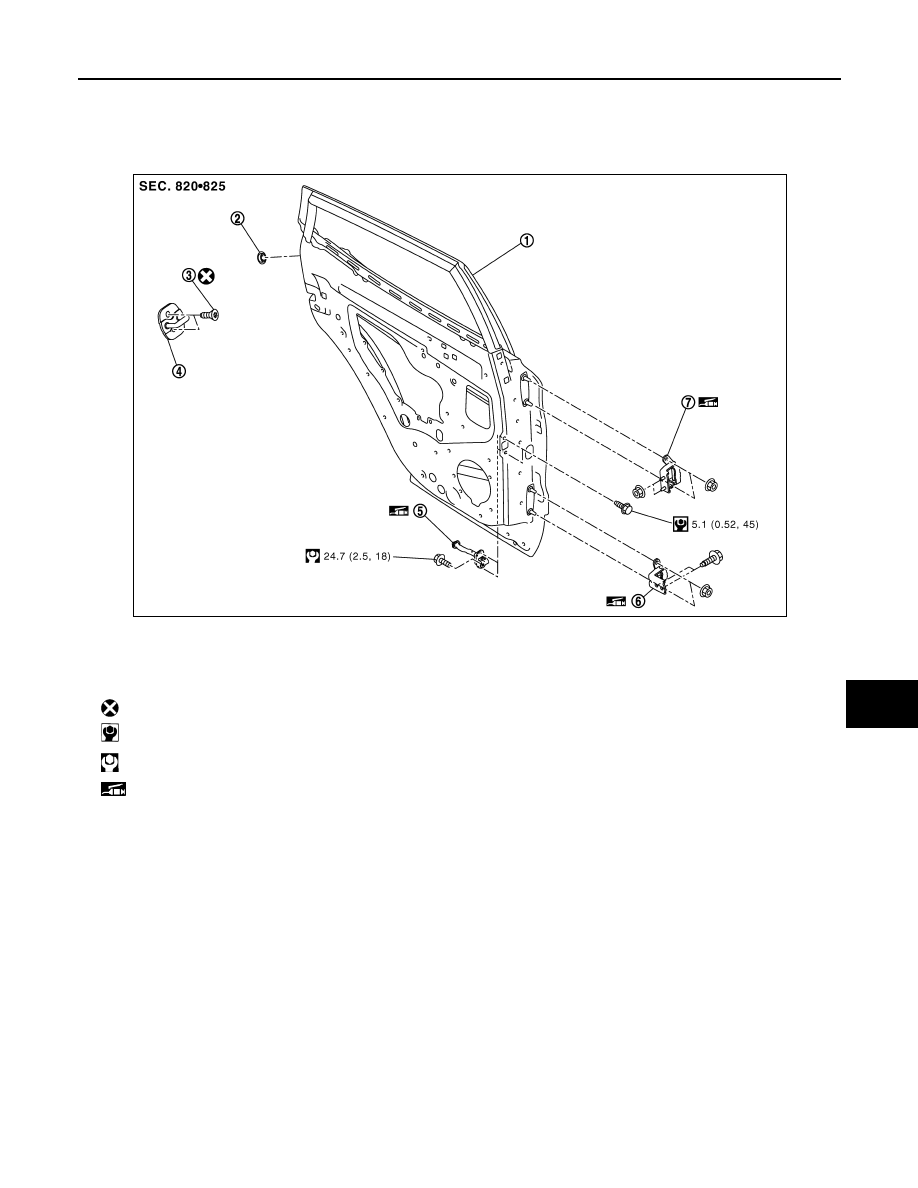

Exploded View

INFOID:0000000010678868

DOOR ASSEMBLY

DOOR ASSEMBLY : Removal and Installation

INFOID:0000000010678869

CAUTION:

• Perform work with 2 workers, because of its heavy weight.
• When removing and installing rear door assembly, support door with a jack and shop cloth to pro-

tect door and body.

REMOVAL

1.

Remove rear door harness grommet from vehicle body side, and then pull out rear door harness.

2.

Disconnect rear door harness connector.

3.

Remove mounting bolt of door check link on the vehicle.

4.

Remove door hinge mounting nuts of door side, and then remove rear door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

1.

Rear door panel

2.

Grommet

3.

TORX bolt

4.

Door striker

5.

Door check link

6.

Door hinge (lower)

7.

Door hinge (upper)

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3250GB

DLK-940

< REMOVAL AND INSTALLATION >

[TYPE 6]

REAR DOOR

• Apply anticorrosive agent onto the mounting surface.
• After installation, perform the fitting adjustment. Refer to

DLK-940, "DOOR ASSEMBLY : Adjust-

ment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.
• Check door hinge and door check link rotating part for poor lubrication.
- Door hinge: Refer to

DLK-942, "DOOR HINGE : Inspection"

.

- Door check link: Refer to

DLK-943, "DOOR CHECK LINK : Inspection"

.

DOOR ASSEMBLY : Adjustment

INFOID:0000000010678870

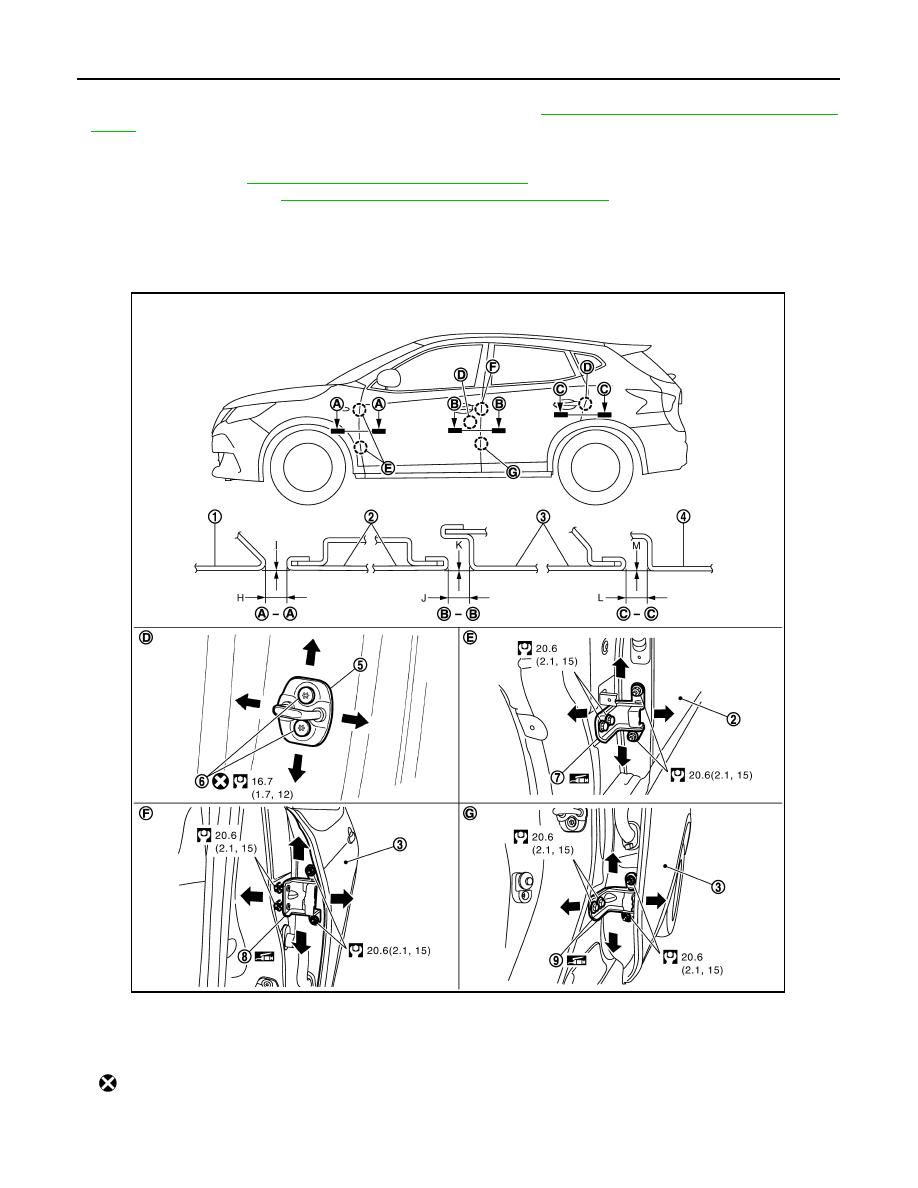

FITTING ADJUSTMENT

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

TORX bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

: Always replace after every disassembly.

JMKIB3256GB
