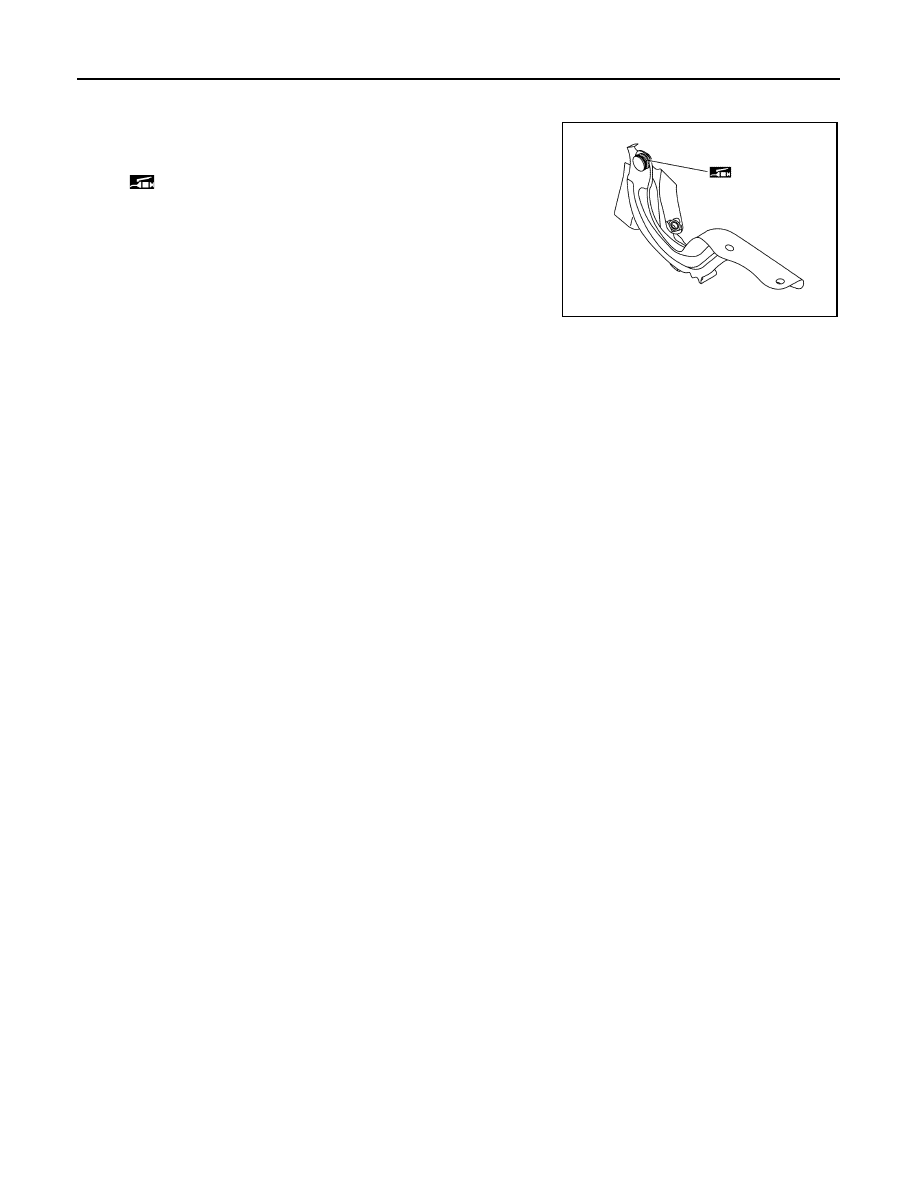

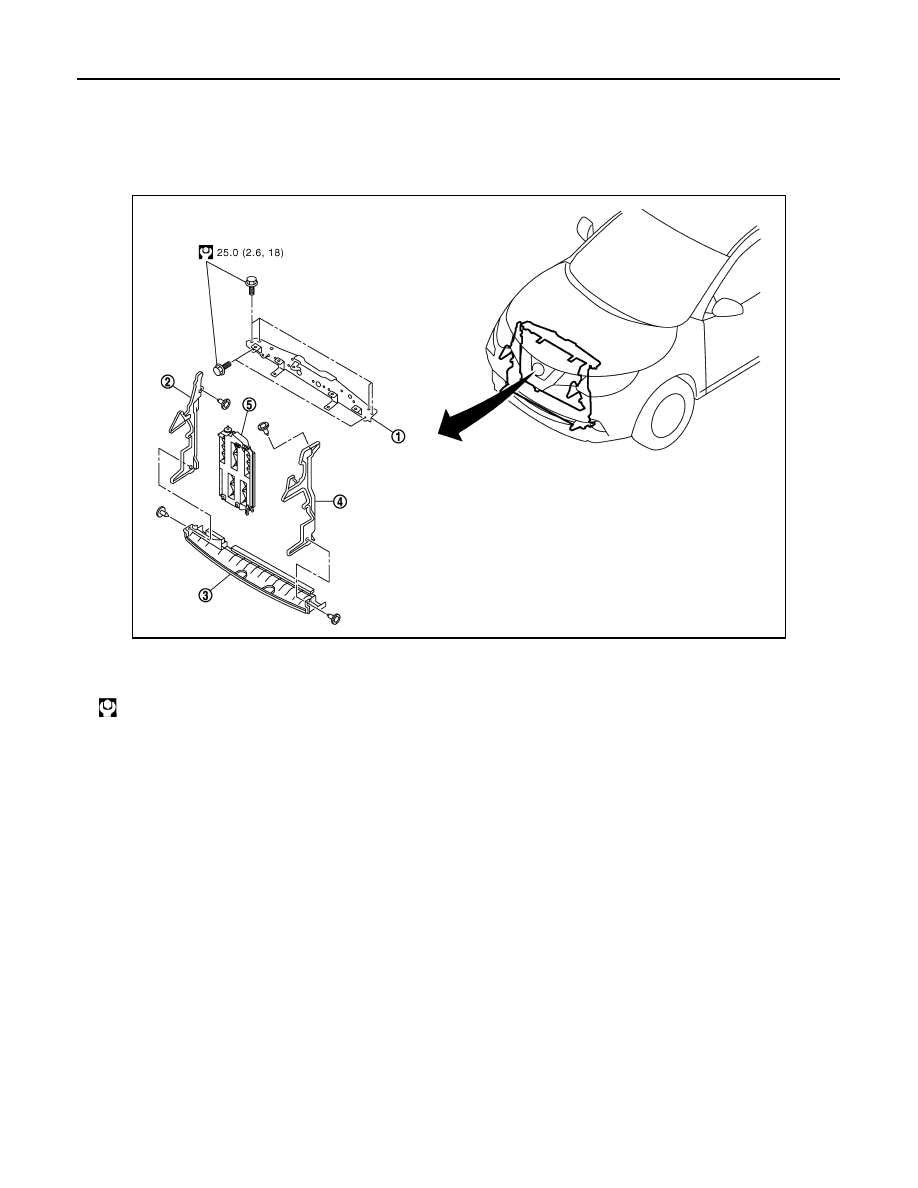

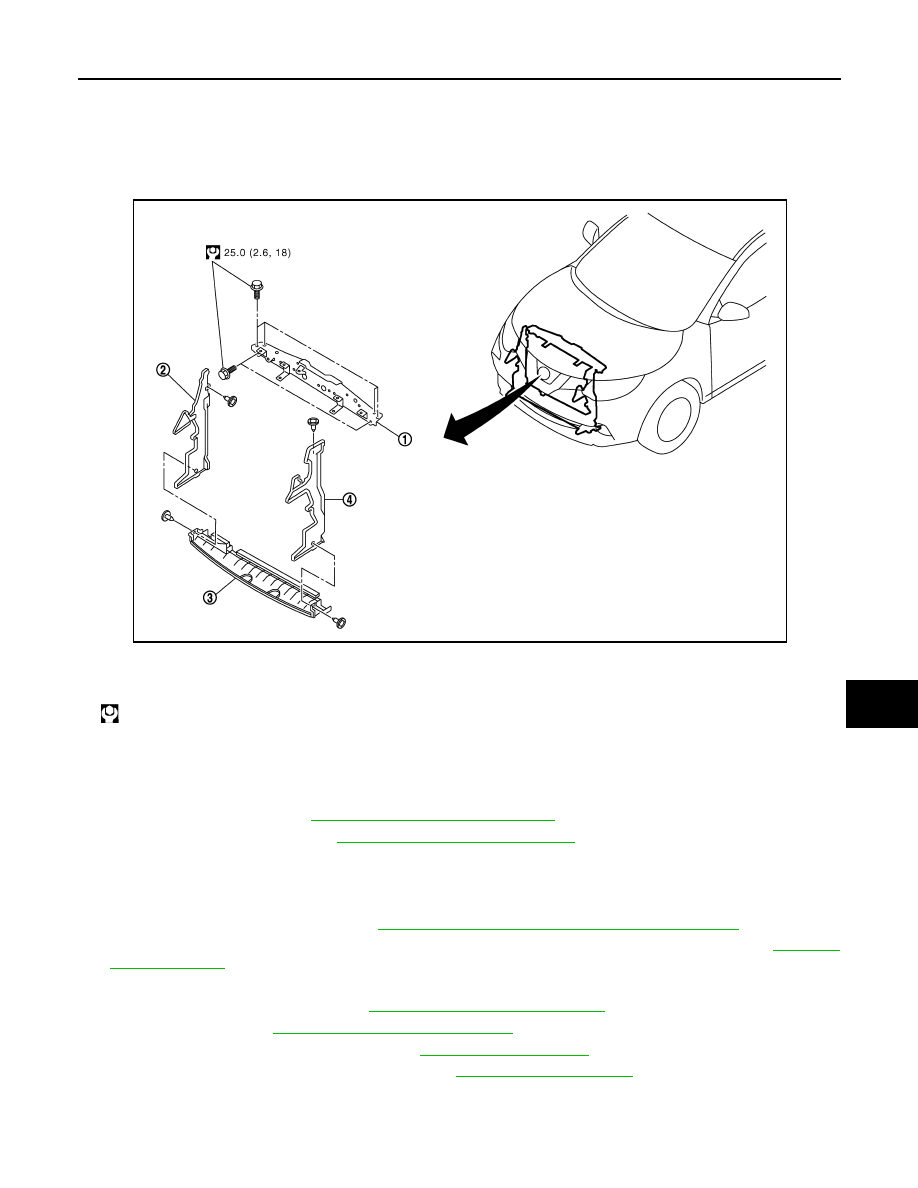

HOOD DLK-925 < REMOVAL AND INSTALLATION > [TYPE 6] C D E F G H I J L M A B DLK N O P Unit: mm [in] *: No more than 2 times left to right or right to left. Fitting Adjustment Procedure 1. Remove front grille. Refer to EXT-26, "Removal and Installation" 2. Remove hood lock assembly. 3. Adjust the surface height of hood assembly, front fender assembly, and front combination lamp according 4. Loosen hood hinge mounting bolts. 5. Adjust clearance of hood according to the specified value, by moving the hood assembly. 6. Tighten hood hinge mounting bolts to the specified torque. 7. Move hood lock assembly laterally until the center of primary striker and hood lock assembly are vertical 8. Position hood lock assembly and engage primary striker. Check hood lock assembly and primary striker 9. Tighten hood lock assembly mounting bolts and nut to the specified torque. 10. Rotate bumper rubber 1/2 of a rotation counterclockwise in upward direction. 11. After adjusting, check that hood opens and closes normally. Refer to . 12. Install front grille. Refer to EXT-26, "Removal and Installation" HOOD HINGE HOOD HINGE : Removal and Installation INFOID:0000000010678846 REMOVAL 1. Remove hood assembly. Refer to DLK-923, "HOOD ASSEMBLY : Removal and Installation" 2. Remove upper mounting bolt of front fender assembly. Refer to DLK-932, "Removal and Installation" 3. Remove hood hinge mounting bolts, and then remove hood hinge. INSTALLATION Note the following items, and then install in the reverse order of removal. CAUTION: • Apply touch-up paint to the body color if the paint around the hinge is peeled off during removal. DLK-923, "HOOD ASSEMBLY : Adjust- • Before installation of hood, apply anticorrosive agent onto the mounting surface of the hood hinge. DLK-926, "HOOD HINGE : Inspection" Portion Standard Difference (RH/LH, MAX) Hood – Front combination A – A C Clearance 4.0 – 9.0 [0.157 – 0.354] ≤ 3.0 [0.118] D Surface height 0.0 [0.000] — Hood – Front fender B – B E Clearance * — F Surface height ≤ 3.0 [0.118] — |
